IMR1103CB-DIEEE 802.11 a/b/g CardBus Card

Agere Systems 1103 CardBus Draft Manual 1103 CardBus Preliminary User Manual Agere Systems 1103 CardBus Draft Manual Agere Systems 1103 CardBus Draft Manual Agere Systems 1103 CardBus Draft Manual Agere Systems 1103 CardBus Draft Manual Agere Systems 1103 CardBus Draft Manual Agere Systems 1103 CardBus Draft Manual Section: Regulatory Compliance Information Information to the user It is the policy of Agere Systems Inc. to provide customers with the latest available information. All updates to this document will appear in the English version first. This document provides regulatory information about Agere wireless LAN products. This product can operate on channels in frequency bands in 2.4 GHz and 5 GHz ranges, and uses DSSS (Direct Sequence Spread Spectrum) or OFDM radio technology. It is designed to be inter-operable with similar wireless products that comply with: - IEEE 802.11 b/g/a Standards on Wireless LAN, as defined and approved by the Institute of Electrical and Electronics Engineers - Wireless Fidelity (Wi-Fi) certification as defined by the Wi-Fi Alliance formerly known as WECA (Wireless Ethernet Compatibility Alliance) For the country and date of manufacturing, consult the identification label of your wireless device. 1. Wireless LAN and your Health Wireless LAN products are radio devices that emit radio frequency electromagnetic energy. The level of energy emitted by Wireless LAN devices is much less than the electromagnetic energy emitted by devices like for example mobile telephones. Because Wireless LAN products operate within the guidelines found in radio frequency safety standards and recommendations, Agere believes this product is safe for use by consumers. These standards and recommendations reflect the consensus of the scientific community and result from deliberations of panels and committees of scientists who continually review and interpret the extensive research literature. See additional information for North America in section 2.1. Agere Systems 1103 CardBus Draft Manual Important Safety Instructions When using this product, always follow the basic precautions to reduce the risk of fire, electric shock and injury to persons, including the following: 1. Always install the product as described in the documentation that is included with your product. 2. Do not use this product near water, for example, near a bathtub, washbowl, and kitchen sink or laundry tub, in a wet basement or near a swimming pool. 3. Avoid using this product during an electric storm. There may be a remote risk of electric shock from lightning 4. Do not use this product to report a gas leak in the vicinity of the leak. SAVE THESE INSTRUCTIONS Agere Systems 1103 CardBus Draft Manual 2. Regulatory Information You must install and use this device in strict accordance with the manufacturer’s instructions as described in the user documentation that is included with your product. Before you start installation or use of this product, carefully read the contents of this document for device specific constraints or rules that may apply in the country where you want to use this product. The user must always ensure that country and/or channel selection of Peer-to-Peer groups or Base Station Networks matches the regulations of the country of operation. In some situations or environments, the use of wireless devices may be restricted by the proprietor of the building or responsible representatives of the organization. These situations may for example include: - Using the wireless equipment on board of airplanes, or - In any environment where the risk of interference to other devices or services is perceived or identified as harmful. If you are uncertain of the policy that applies on the use of wireless equipment in a specific organization or environment (e.g. airports), you are encouraged to ask for authorization to use this device prior to turning on the equipment. The manufacturer is mot responsible for any radio or television interference caused by unauthorized modification of the device, or the substitution or attachment of connecting cables and equipment other than specified by manufacturer. The correction of interference caused by such unauthorized modification, substitution or attachment will be the responsibility of the user. The manufacturer and it authorized resellers or distributors are not liable for any damage or violation that may arise from failing to comply with these guidelines. 2.1 North America Canada – Industry Canada (IC) The wireless radio of this device complies with RSS 210 of Industry Canada. This Class B device complies with Canadian ICES-003 (NMB-003). Agere Systems 1103 CardBus Draft Manual USA – Federal Communications Commission (FCC) This device complies with Part 15 of FCC Rules. Operation of the device is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference that may cause undesired operation. Operation in frequency band 5150-5250 MHz is restricted to indoor environments only. Exposure to Radio Frequency Radiation SAR (Specific Absorption Rate) compliance has been established and found to comply in accordance with FCC OET Bulletin 65 and guidelines of IEEE C95.1-1995. Caution : ! To comply with the FCC RF Exposure compliance requirements, the user is advised to maintain a distance of at least 13 mm from the antenna of the device while in use Federal Communications Commission Notice This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. Agere Systems 1103 CardBus Draft Manual This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, it may cause harmful interference to radio communications. However, there is no guarantee …

Text truncated - open the document above for the full version.

systems a8ere Zadelstede 1-10 3431 JZ Nieuwegein The Netherlands Phone' +31306097666 Fax' +31306097556 Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA Nieuwegein, 15 Apri12004 Re: Request for confidentiality, IMR 1103CB-D Dear Sir/Madam, Pursuant to 47 CFR O.457(d) and 0/459 we hereby request confidentiality status of Agere Systems documents Schematic drawing no 027160-B. Parts list drawing no. 027158-B Board Assy drawing no. (these show where parts are placed) no. 027161-B Block Diagram with Description 1103CB-D I Sincerely yours, ...~ Bert Vos, Regulatory Certifications

systems a8ere Zadelstede 1-10 3431 JZ Nieuwegein The Netherlands Phone: +31 306097666 Fax: +31 306097556 Federal Communications Commission Authorization & Evaluation Division 7435 Gakland Mills Road Columbia, MD 21046, USA Nieuwegein, 09 June 2004 Re: Certification of Wireless LAN product: 802, F CC rn: IMR 1103CB-D la/b/g CardBus Card, Subject: Note on Solit Comoosite tilin2 Dear Sir/Madam, This note is to infoml you that for the product under the FCC ID IMRl103CB-D we have a split of the Composite filing: via FCC uploaded on 04-22-2004, IMRl103CB-D, with EA627446 and EA520253, and for Part 15B via the TCB with name AmericanTCB (6731 Whittier Avenue I Suite Cl10 I McLean, VA 22101) Please send at the applicable time an email to my attention «([email protected]) with Notification that F CC part of the Orant has been issued. Sincerely YOu~~- Hert Vos, Regulatory Certifications Encl ATCB, William Graff ~

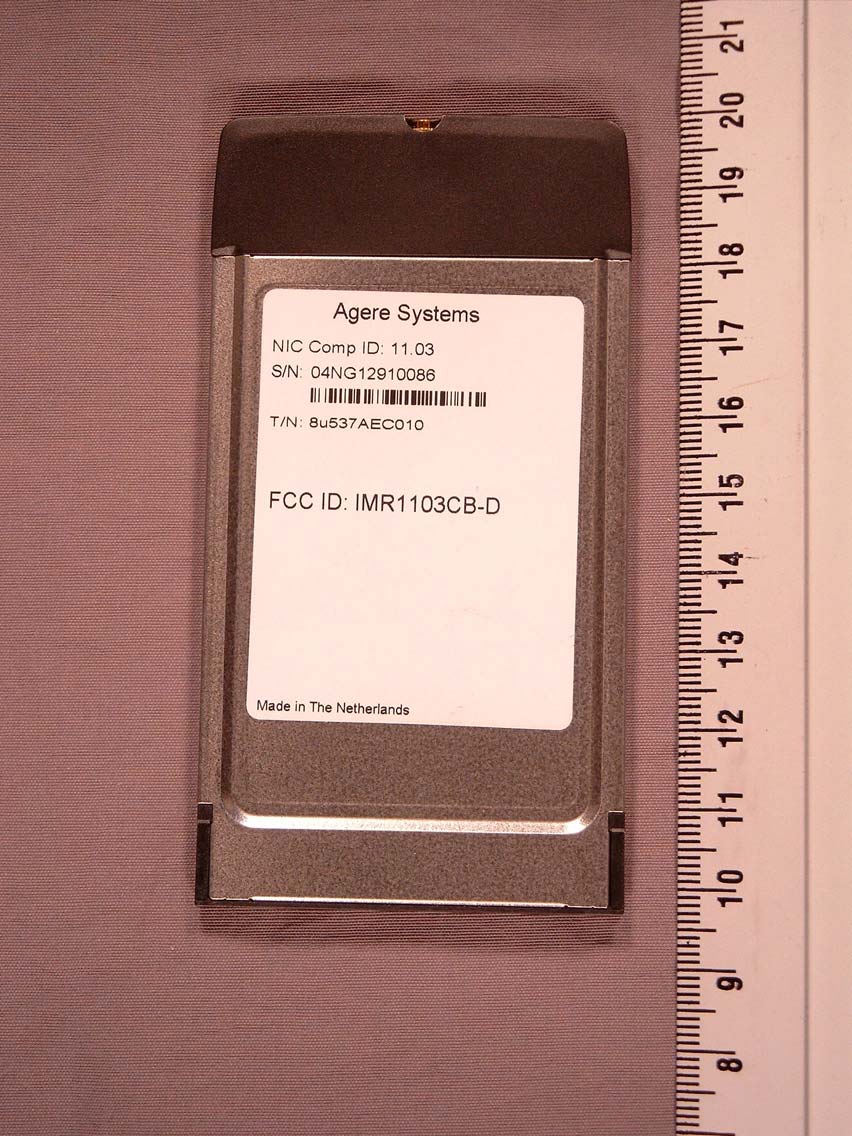

Testing and certification of electric, electronic and radio equipment/installations including telecommunication systems TNO Electronic Products & Services (EPS) B.V. P.O. Box 15 9822 ZG Niekerk (NL) Smidshornerweg 18 9822 TL Niekerk (NL) Telephone: +31 594 505005 Telefax: +31 594 504804 E-mail: [email protected] Web: www.eps.tno.nl Project number: 04032501.p02 Page 1 of 5 EXTERIOR PHOTOGRAPHS OF A 2.4/5 GHZ IEEE 802.11g/a WLAN CARDBUS CARD, BRAND AGERE, MODEL 1103. FCC listed Industry Canada VCCI registered : : : 90828 IC3501 R-1518, C-1598 Description of EUT: Manufacturer: Brand mark: Model: FCC ID: 2.4/5 GHz IEEE 802.11g/a WLAN Cardbus card Agere Systems Nederland B.V. Agere 1103 IMR1103CB-D Project number: 04032501.p02 Page 2 of 5 Description of test item Test item : 2.4/5 GHz IEEE 802.11g/a WLAN Cardbus card Manufacturer : Agere Systems Nederland B.V. Brand : Agere Model : 1102 Serial numbers : 04NG12910086 Revision : n.a. Receipt number : 2 Receipt date : February 16, 2004 Applicant information Applicant's representative : Mr. W. Kerkhof Company : Agere Systems Nederland B.V. Address : Zadelstede 1-10 Postal code : 3431 JZ City : Nieuwegein PO-box : 755 Postal code : 3430 AT City : Nieuwegein Country : The Netherlands Telephone number : +31 30 609 7534 Telefax number : +31 30 609 7556 This report is in conformity with NEN-EN-ISO/IEC 17025. This report shall not be reproduced, except in full, without the written permission of TNO Electronic Products & Services (EPS) B.V. The test results relate only to the item(s) tested. Description of EUT: Manufacturer: Brand mark: Model: FCC ID: 2.4/5 GHz IEEE 802.11g/a WLAN Cardbus card Agere Systems Nederland B.V. Agere 1103 IMR1103CB-D Project number: 04032501.p02 Page 3 of 5 Table of contents 1 Exterior photographs ..............................................................................................................................................................4 1.1 Top view.........................................................................................................................................................................4 1.2 Bottom view ...................................................................................................................................................................5 Description of EUT: Manufacturer: Brand mark: Model: FCC ID: 2.4/5 GHz IEEE 802.11g/a WLAN Cardbus card Agere Systems Nederland B.V. Agere 1103 IMR1103CB-D Project number: 04032501.p02 Page 4 of 5 1 Exterior photographs 1.1 Top view Description of EUT: Manufacturer: Brand mark: Model: FCC ID: 2.4/5 GHz IEEE 802.11g/a WLAN Cardbus card Agere Systems Nederland B.V. Agere 1103 IMR1103CB-D Project number: 04032501.p02 Page 5 of 5 1.2 Bottom view

FCC ID: IMR 1103CB-D LABEL , CONTENTS AND PLACEMENT

Testing and certification of electric, electronic and radio equipment/installations including telecommunication systems TNO Electronic Products & Services (EPS) B.V. P.O. Box 15 9822 ZG Niekerk (NL) Smidshornerweg 18 9822 TL Niekerk (NL) Telephone: +31 594 505005 Telefax: +31 594 504804 E-mail: [email protected] Web: www.eps.tno.nl Project number: 04032501.p03 Page 1 of 7 INTERIOR PHOTOGRAPHS OF A 2.4/5 GHZ IEEE 802.11g/a WLAN CARDBUS CARD, BRAND AGERE, MODEL 1103. FCC listed Industry Canada VCCI registered : : : 90828 IC3501 R-1518, C-1598 Description of EUT: Manufacturer: Brand mark: Model: FCC ID: 2.4/5 GHz IEEE 802.11g/a WLAN Cardbus card Agere Systems Nederland B.V. Agere 1103 IMR1103CB-D Project number: 04032501.p03 Page 2 of 7 Description of test item Test item : 2.4/5 GHz IEEE 802.11g/a WLAN Cardbus card Manufacturer : Agere Systems Nederland B.V. Brand : Agere Model : 1103 Serial numbers : 04NG12910086 Revision : n.a. Receipt number : 2 Receipt date : February 16, 2004 Applicant information Applicant's representative : Mr. W. Kerkhof Company : Agere Systems Nederland B.V. Address : Zadelstede 1-10 Postal code : 3431 JZ City : Nieuwegein PO-box : 755 Postal code : 3430 AT City : Nieuwegein Country : The Netherlands Telephone number : +31 30 609 7534 Telefax number : +31 30 609 7556 This report is in conformity with NEN-EN-ISO/IEC 17025. This report shall not be reproduced, except in full, without the written permission of TNO Electronic Products & Services (EPS) B.V. The test results relate only to the item(s) tested. Description of EUT: Manufacturer: Brand mark: Model: FCC ID: 2.4/5 GHz IEEE 802.11g/a WLAN Cardbus card Agere Systems Nederland B.V. Agere 1103 IMR1103CB-D Project number: 04032501.p03 Page 3 of 7 Table of contents 1 Interior photographs ...............................................................................................................................................................4 1.1 Open view PCB with shielding ......................................................................................................................................4 1.2 Top view PCB with shielding.........................................................................................................................................5 1.3 Top view PCB without shielding ...................................................................................................................................6 1.4 Bottom view PCB...........................................................................................................................................................7 Description of EUT: Manufacturer: Brand mark: Model: FCC ID: 2.4/5 GHz IEEE 802.11g/a WLAN Cardbus card Agere Systems Nederland B.V. Agere 1103 IMR1103CB-D Project number: 04032501.p03 Page 4 of 7 1 Interior photographs 1.1 Open view PCB with shielding Description of EUT: Manufacturer: Brand mark: Model: FCC ID: 2.4/5 GHz IEEE 802.11g/a WLAN Cardbus card Agere Systems Nederland B.V. Agere 1103 IMR1103CB-D Project number: 04032501.p03 Page 5 of 7 1.2 Top view PCB with shielding Description of EUT: Manufacturer: Brand mark: Model: FCC ID: 2.4/5 GHz IEEE 802.11g/a WLAN Cardbus card Agere Systems Nederland B.V. Agere 1103 IMR1103CB-D Project number: 04032501.p03 Page 6 of 7 1.3 Top view PCB without shielding Description of EUT: Manufacturer: Brand mark: Model: FCC ID: 2.4/5 GHz IEEE 802.11g/a WLAN Cardbus card Agere Systems Nederland B.V. Agere 1103 IMR1103CB-D Project number: 04032501.p03 Page 7 of 7 1.4 Bottom view PCB

IEEE802.11A/B/G CARDBUS PCCARD 1103CB-D 1 of 2 Apr2004 NederlandB.V. FCC Version (1103CB-D) DESCRIPTION WIRELESS LAN IEEE802.11A/B/G CARDBUS PCCARD A. General This document specifies an IEEE802.11a/b/g Wireless LAN Network Interface Card, with CardBus interface, based on the Agere WaveLAN 802.11a/b/g chipset solution. It operates in frequency bands 2.4 GHz and 5 GHz (see section B2) Figure 1 shows the functional block diagram of the IEEE802.11a/b/g Network Interface PC Card based on the WaveLAN 802.11a/b/g Chipset. The main blocks are: • WL60040, Wireless Medium Access Control (WMAC) processor • off-the-shelf EEPROM • WL64040, PHY (DSP) • WL54040, 2.4GHz/5GHz dual-band integrated radio • WL54240, dual-band PA (Power Amplifier) • integrated antennas The Physical layer (PHY) part consists of the DSP, Radio, PA, Supply, integrated antennae and EEPROM. Not shown on below block diagram are: the RF output power detector, RF filters and antenna switches. Figure 1: IEEE802.11a/b/g Network Interface CardBus PC Card architecture WL60040 WMAC processor WL64040 Baseband DSP WL54040 2.4/5GHz Radio Network Interface Card System Connector (Card Bus) EEPROM IEEE802.11a/g Physical Layer WL54240 Dual-band PA External Antenna Connector IEEE802.11A/B/G CARDBUS PCCARD 1103CB-D 2 of 2 Apr2004 FCC Version The Network Interface Card is capable to transmit and receive from either of the two internal antennas. The Network Interface Card has an optional external antenna connector having a nominal port impedance of 50 Ohm with a maximum VSWR of 2:1 in the applied frequency bands. The internal antennae are disabled when a plug is mated on this connector. B. Technical Characteristics : 1. Power supply: 3.3 Vdc 2. Technology and Data Rates: a. to IEEE 802.11b, 2.4 GHz band: - DSSS, at 1, 2, 5.5 and 11 Mbps b. to IEEE 802.11g, 2.4 GHz band: - OFDM, at 6, 9, 12, 18, 24, 36, 48, 54 Mbps c. to IEEE 802.11a, 5 GHz bands *: - OFDM, at 6, 9, 12, 18, 24, 36, 48, 54 Mbps *: band and selection of channel in the band is determined by the band availability in the applicable country and by the operation mode; in ESS mode under control of an installed AccessPoint (AP) (in both 2.4 and 5 GHz bands) or in IBSS Mode where user has limited choice of band/channel (only in 2.4 GHz band!). 5 GHz Bands for this card include: - 5150-5250 MHz - 5150-5350 MHz - 5725-5850 MHz 3. Output power * a. in band 2400 to 2483.5 MHz: < 23 dBm. maximum (the integrated antenna has 3 dBi gain) b. in bands - 5150 to 5350 MHz: < 11 dBm max - 5725 to 5875 MHz: < 17 dBm max. (the integrated antenna has 4 dBi gain) *: actual maximum levels are prepared in factory and can defer per region or country 4. Encryption: WEP or WPA 5 Standards: - USA : FCC Part 15.247 and 15.407 - Canada: RSS 210-6.2.2

Testing and certification of electric, electronic and radio equipment/installations including telecommunication systems TNO Electronic Products & Services (EPS) B.V. P.O. Box 15 9822 ZG Niekerk (NL) Smidshornerweg 18 9822 TL Niekerk (NL) Telephone: +31 594 505005 Telefax: +31 594 504804 E-mail: [email protected] Web: www.eps.tno.nl Project number: 04032501 Page 1 of 47 TEST REPORT OF A 2.4/5 GHZ IEEE 802.11a/g WLAN CARDBUS CARD, BRAND AGERE, MODEL 1103, IN CONFORMITY WITH FEDERAL REGULATED SAR (SPECIFIC ABSORPTION RATE) REQUIREMENTS IN THE USA AND CANADA. FCC listed Industry Canada VCCI registered : : : 90828 IC3501 R-1518, C-1598 Test specification(s): Description of EUT: Manufacturer: Brand mark: Model: FCC ID: FCC/CA SAR Requirements 2.4/5 GHz IEEE 802.11g/a WLAN Cardbus card Agere Systems Netherlands BV Agere 1103 IMR1103CB-D Project number: 04032501.ev1 Page 2 of 47 Description of test item Test item : 2.4/5 GHz IEEE 802.11g/a WLAN Cardbus card Manufacturer : Agere Systems Nederland B.V. Brand : Agere Model : 1103 Serial numbers : 04NG12910086 Revision : n.a. Receipt number : 2 Receipt date : February 12, 2004 Applicant information Applicant's representative : Mr. W. Kerkhof Company : Agere Systems Nederland B.V. Address : Zadelstede 1-10 Postal code : 3431 JZ City : Nieuwegein PO-box : 755 Postal code : 3430 AT City : Nieuwegein Country : The Netherlands Telephone number : +31 30 609 7534 Telefax number : +31 30 609 7556 Test(s) performed Location : Niekerk Test(s) started : February 13, 2004 Test(s) completed : February 20, 2004 Purpose of test(s) : To verify compliance with Federal regulated SAR requirements in the US and Canada Test specification(s) IEEE C95.1-1991, FCC OET Bulletin 65 (Supplement C), Industry Canada RSS-102 (Issue 1) Test engineer : J. Schuurmans, B.Sc.E.E. i.o. Project leader : H.J. Pieters Report written by : J. Schuurmans, B.Sc.E.E. i.o. Report approved by : P. de Beer Report date : April 21, 2004 This report is in conformity with NEN-EN-ISO/IEC 17025: 2000. This report shall not be reproduced, except in full, without the written permission of TNO Electronic Products & Services (EPS) B.V. The test results relate only to the item(s) tested. Test specification(s): Description of EUT: Manufacturer: Brand mark: Model: FCC ID: FCC/CA SAR Requirements 2.4/5 GHz IEEE 802.11g/a WLAN Cardbus card Agere Systems Netherlands BV Agere 1103 IMR1103CB-D Project number: 04032501.ev1 Page 3 of 47 Table of contents 1 General. .................................................................................................................................................................................5 1.1 Purpose of tests. .............................................................................................................................................................5 1.2 Applied standards/publications. .....................................................................................................................................5 1.3 References......................................................................................................................................................................5 2 Summary and conclusion.......................................................................................................................................................6 2.1 Exposure category. ........................................................................................................................................................6 2.2 Summary of results. .......................................................................................................................................................6 2.3 Compliance. ...................................................................................................................................................................6 3 Identification of Equipment Under Test (EUT). ....................................................................................................................7 3.1 Equipment under Test (EUT) details. ............................................................................................................................7 3.2 EUT test operating configurations. ................................................................................................................................7 3.3 Additional operating configurations. .............................................................................................................................8 4 Test conditions.......................................................................................................................................................................8 4.1 Environmental conditions. .............................................................................................................................................8 4.2 System performance check 2.4 GHz..............................................................................................................................8 4.2.1 2450 MHz validation parameters. ........................................................................................................................10 4.3 System validation on 5 GHz. .......................................................................................................................................11 4.3.1 5 GHz validation parameters. ..............................................................................................................................13 4.4 Measured maximum output power of EUT. ................................................................................................................13 4.4.1 Measured Average power on 2.4 GHz. ................................................................................................................13 4.4.2 Measured Average Power on 5 GHz..........................................................…

Text truncated - open the document above for the full version.

Answers questions FCC ID IMR1103CB-D EA520253 corr nr 26986 1) SAR report lists average conducted power measured at the antenna terminal, or the sum of this power and antenna gain whichever is higher. Measurement is done with a broadband power sensor, in this case a HP 8184A. Explanation applies for both 2.4 and 5 GHz. 2) Antenna gain question to be answered by Agere Systems 4) Liquids recipes are proprietry. In SAR report p 14. Specs are according P1528 (see tables in SAR report). Bristol university claims to be within 3.5% for all proeperties. “All Tissue Equivalent Liquids are obtained from Bristol University. Contact details: Medical Physics Department University of Bristol, Bristol Haemotology & Oncology Centre Horfield road, Bristol BS2 8 ED, United Kingdom Tel. 44 117 928 2469.” All liquid used are from the above vendor 7) Only one antenna transmits.

Testing and certification of electric, electronic and radio equipment/installations including telecommunication systems TNO Electronic Products & Services (EPS) B.V. P.O. Box 15 9822 ZG Niekerk (NL) Smidshornerweg 18 9822 TL Niekerk (NL) Telephone: +31 594 505005 Telefax: +31 594 504804 E-mail: [email protected] Web: www.eps.tno.nl Project number: 04032501.r03 Page 1 of 113 TEST REPORT OF A 2.4/5 GHZ IEEE 802.11g/a WLAN CARDBUS CARD, BRAND AGERE, MODEL 1103, IN CONFORMITY WITH 47 CFR PART 15 (July 22, 2003). FCC listed Industry Canada VCCI registered : : : 90828 IC3501 R-1518, C-1598 Test specification(s): Description of EUT: Manufacturer: Brand mark: Model: FCC ID: 47 CFR Part 15 (July 22, 2003) 2.4/5 GHz IEEE 802.11g/a WLAN Cardbus card Agere Systems Nederland B.V. Agere 1103 IMR1103CB-D Project number: 04032501.r03 Page 2 of 113 MEASUREMENT/TECHNICAL REPORT Agere Systems Nederland B.V. Model : 1103 FCC ID: IMR1103CB-D April 21, 2004 This report concerns: Original grant/certification Class 2 change Verification Equipment type: Unlicensed U-NII Device Deferred grant requested per 47 CFR 0.457(d)(1)(ii) ? Yes No Report prepared by: Name : H.J. Pieters Company name : TNO Electronic Products & Services (EPS) B.V. Address : Smidshornerweg 18 Postal code/city : 9822 ZG Niekerk Mailing address : P.O. Box 15 Postal code/city : 9822 TL Niekerk Country : The Netherlands Telephone number : + 31 594 505 005 Telefax number : + 31 594 504 804 E-mail : [email protected] The data taken for this test and report herein was done in accordance with 47 CFR Part 15 and the measurement procedures of ANSI C63.4-1992. TNO Electronic Products & Services (EPS) B.V. at Niekerk, The Netherlands, certifies that the data is accurate and contains a true representation of the emission profile of the Equipment Under Test (EUT) on the date of the test as noted in the test report. I have reviewed the test report and find it to be an accurate description of the test(s) performed and the EUT so tested. Date: April 21, 2004 Signature: P. de Beer TNO Electronic Products & Services (EPS) B.V. Test specification(s): Description of EUT: Manufacturer: Brand mark: Model: FCC ID: 47 CFR Part 15 (July 22, 2003) 2.4/5 GHz IEEE 802.11g/a WLAN Cardbus card Agere Systems Nederland B.V. Agere 1103 IMR1103CB-D Project number: 04032501.r03 Page 3 of 113 Description of test item Test item : 2.4/5 GHz IEEE 802.11g/a WLAN Cardbus card Manufacturer : Agere Systems Nederland B.V. Brand : Agere Model : 1103 Serial numbers : 04NG12910086 Revision : n.a. Receipt number : 2 Receipt date : February 16, 2004 Applicant information Applicant's representative : Mr. W. Kerkhof Company : Agere Systems Nederland B.V. Address : Zadelstede 1-10 Postal code : 3431 JZ City : Nieuwegein PO-box : 755 Postal code : 3430 AT City : Nieuwegein Country : The Netherlands Telephone number : +31 30 609 7534 Telefax number : +31 30 609 7556 Test(s) performed Location : Niekerk Test(s) started : February 16, 2004 Test(s) completed : February 26, 2004 Purpose of test(s) : Type approval / certification Test specification(s) : 47 CFR Part 15 (July 22, 2003) Test engineer : O.H. Hoekstra H.J. Pieters Report written by : H.J. Pieters Project leader : H.J. Pieters This report is in conformity with NEN-EN-ISO/IEC 17025: 2000. This report shall not be reproduced, except in full, without the written permission of TNO Electronic Products & Services (EPS) B.V. The test results relate only to the item(s) tested. Test specification(s): Description of EUT: Manufacturer: Brand mark: Model: FCC ID: 47 CFR Part 15 (July 22, 2003) 2.4/5 GHz IEEE 802.11g/a WLAN Cardbus card Agere Systems Nederland B.V. Agere 1103 IMR1103CB-D Project number: 04032501.r03 Page 4 of 113 Table of contents 1 General information. ..............................................................................................................................................................6 1.1 Product description.........................................................................................................................................................6 1.2 Related submittal(s) and/or Grant(s). .............................................................................................................................6 1.3 Tested system details......................................................................................................................................................6 1.4 Test methodology. ..........................................................................................................................................................7 1.5 Test facility.....................................................................................................................................................................7 1.6 Product labeling..............................................................................................................................................................7 1.7 System test configuration. ..............................................................................................................................................8 1.7.1 Justification. ...........................................................................................................................................................8 1.7.2 EUT test software. ..................................................................................................................................................9 1.8 Special accessories. ........................................................................................................................................................9 1.9 Equipment modifications................................................................................................................................................9 1.10 Configuration of the tested system. ....................................................................................…

Text truncated - open the document above for the full version.

Testing and certification of electric, electronic and radio equipment/installations including telecommunication systems TNO Electronic Products & Services (EPS) B.V. P.O. Box 15 9822 ZG Niekerk (NL) Smidshornerweg 18 9822 TL Niekerk (NL) Telephone: +31 594 505005 Telefax: +31 594 504804 E-mail: [email protected] Web: www.eps.tno.nl Project number: 04032501.p01 Page 1 of 7 47 CFR PART 15 TEST SETUP PHOTOGRAPHS OF A 2.4/5 GHZ IEEE …

Text truncated - open the document above for the full version.
