IMRWLPCE508AAP-2000 5GHz ORiNOCO CardBus NIC

802.11a PC Card Quick Installation Guide Quick Installation Guide Wireless TM 802.11a PC Card 54 Mbps wirel ess network card Other trademarks or brand names mentioned herein are trademarks or registered trademarks of their respec- tive companies. AP-2000 E062002-R01 i Contents Introduction 1 Package Checklist 1 System Requirements 1 Applications 2 Hardware Description 3 Hardware Installation 3 Driver Installation and Configuration 4 Windows 98/Me/2000/XP Driver Installation 4 Windows 98 Configuration 7 Windows Me/2000/XP Configuration 8 Network Configuration and Planning 15 Network Topologies 15 Ad Hoc Wireless LAN 15 Infrastructure Wireless LAN 16 Infrastructure Wireless LAN for Roaming Wireless PCs 17 Troubleshooting 18 Adapter Installation Problems 18 Network Connection Problems 18 The 802.11a Wireless Products Maximum Distance Table 19 Compliances 20 FCC Class B Certification 20 FCC RF Radiation Exposure Statement 20 CSA Statement (Canada) 20 Specifications 21 Terminology 23 Contents ii 1 Introduction The Wireless TM 802.11a PC Card is a 54 Mbps wireless network card that seamlessly integrates with existing Ethernet networks to support applications such as mobile users or temporary conferences. This solution offers fast, reliable wireless connectivity with considerable cost savings over wired LANs (which include long-term maintenance overhead for cabling). Just plug wireless cards into your notebook PCs and start networking. Using this card in conjunction with a Wireless TM WA5001 802.11a Wireless Access Point, you can create an instant network that allows users on the wireless LAN to access resources on the wired LAN. Moreover, moving or expanding your network is as easy as moving or installing additional access points – no wires! Package Checklist The Wireless TM PC Card package includes: •1 Wireless TM 802.11a PC Card (AP-2000 PC Card) • 1 Driver and Utility CD-ROM • This User Guide Inform your dealer if there are any incorrect, missing, or damaged parts. If possible, retain the carton, including the original packing materials. Use them again to repack the product if there is a need to return it for repair. System Requirements Before you install the Wireless PC Card, check your system for the following requirements: • A computer with a CardBus slot • Windows 98/Me/2000/XP (Have the Windows installation CD-ROM ready for use during installation) • A minimum of 30 Mbytes of free disk space for installing the driver and utility program Other IEEE 802.11a-compliant devices installed in your service area (such as the Wireless 802.11a Access Point). 2 Applications The Wireless products offer a fast, reliable, cost-effective solution for wireless client access to the network in applications such as: • Remote access to corporate network information E-mail, file transfer, and terminal emulation. •Difficult-to-wire environments Historical or old buildings, asbestos installations, and open areas where wiring is difficult to employ. • Frequently changing environments Retailers, manufacturers, and banks which frequently rearrange the workplace or change location. • Temporary LANs for special projects or peak times Trade shows, exhibitions, and construction sites which need temporary setup for a short time period. Retailers, airline and shipping companies which need additional workstations for a peak period. Auditors who require workgroups at customer sites. • Access to databases for mobile workers Doctors, nurses, retailers, or white-collar workers who need access to databases while being mobile in a hospital, retail store, or an office campus. • SOHO users SOHO (Small Office and Home Office) users who need easy and quick installation of a small computer network. 3 Hardware Description The Wireless PC Card is fully compliant with 802.11a wireless networking as defined in IEEE 802.11a. It can be installed in any notebook with a CardBus slot. Support is provided for Windows 98/Me/2000/XP. Hardware Installation 1.Turn your computer on and boot to your operating system. 2.With the CardBus adapter 68-pin connector facing the CardBus slot and the label facing up, slide the card completely into the CardBus slot as shown below. Note: You may insert or remove the CardBus adapter at any time. It is not necessary to power off your computer to do so. 4 Driver Installation and Configuration The driver folder on the Driver/Utility CD-ROM contains the software drivers available for the Wireless TM 802.11a PC Card. Windows 98/Me/2000/XP Driver Installation You may find that these instructions do not exactly match your version of Windows. This is because these steps and screenshots were created from Windows 2000. Windows 98, Windows Millennium Edition, and Windows XP are similar, but not identical, to Windows 2000. 1.Once the card is inserted, Windows 98/Me/2000/XP will automatically detect the new hardware and prompt you to install the driver. Click “Next.” Windows 98/Me/2000/XP Driver Installation 5 2.Insert the Driver/Utility CD-ROM and click “Next.” 3.Click “Next” to copy files from the CD-ROM. Driver Installation and Configuration 6 4.Click “Finish” to end the installation. To communicate with the Wireless 802.11a wireless devices, you may need to configure the CardBus Adapter. For Windows 98, see “Windows 98 Configuration” on page 7. For Windows Me/2000/XP see “Windows Me/2000/XP Configuration” on page 8. Windows 98 Configuration 7 Windows 98 Configuration 1.From the “Start” menu, select “Settings” then click on “Control Panel.” 2.Double-click on the “NIC Configuration” icon. A configuration dialog box similar to the one shown in step 5 on page 11 will appear. For the remaining configuration instructions, go to page 14 and continue from Step 5. Driver Installation and Configuration 8 Windows Me/2000/XP Configuration 1.On your desktop, right click “My Computer,” click “Properties” then click the “Hardware” tab in the “System Properties” dialog box. Windows Me/2000/XP Configuration 9 2.Click “Device Manager…

Text truncated - open the document above for the full version.

From: etcemi-seed [[email protected]] Sent: Monday, August 12, 2002 3:21 AM To: Mike Kuo Subject: Re: Agere Systems Nederland B.V., FCC ID:IMRWLPCE508A, AN02T2145 Dear Mike: Thank you for your reviewing our application project. The following is the answer to your question. Answer 1: Please refer to Techincal_Description.pdf. Answer 2: Please refer to Exhibit-E-User_Manual.pdf. Answer 3: Please refer to Exhibit-E-User_Manual.pdf Answer 4: We have submit to you in the pervious reply e-mail. Answer 5: Please refer to Test_Data.pdf If you need more document and instruction, please advise us. Thank you very much. Best regards, Will Yauo / ETC ----- Original Message ----- From: Mike Kuo <[email protected]> To: Will Yauo (E-mail) <[email protected]>; Will Yauo-Personal (E-mail) <[email protected]>; <[email protected]> Sent: Thursday, August 08, 2002 8:13 AM Subject: Agere Systems Nederland B.V., FCC ID:IMRWLPCE508A, AN02T2145 > > Question #1: The operational description for this device is not acceptable. > There are some important information have not been addressed. Please > provide detail operational description in addressing the following > requirements: > a. Section 15.407( c ) > b. Section 15.407( g ) > > Question #2: Per section 15.407(e) requirements, device operates in > 5.15-5.25GHz band, the operation is restricted to indoor operations. Please > revise user manual to include such warning statement. > > Question #3: The FCC ID number listed in page 26 of user manual does not > agree with the proposed FCC ID number. Please make necessary correction. > > Question #4: The peak conducted transmit output power: The channel > bandwidth used in 22MHz which is less than -26dB bandwidth. Please redo > peak conducted output measurement with channel bandwidth equal to -26dB. FCC > recommended peak conducted transmit output power are : > > Peak conducted transmit output power. > Peak output power shall be measured with no video averaging and with a video > bandwidth (VBW) greater than or equal to the larger of: > -- EBW/(2*pi*30), where EBW is the 26-dB emission bandwidth > -- 1/(2*pi*T), where T is the transmission pulse duration over which the > transmission is continuous and average symbol envelope power is constant. > > Compliance with either of the following methods is acceptable. > 1) Use a peak power meter applicable for the transmission pulse duration. > Any low-pass filtering in the meter must comply with the VBW requirement > above. > > 2) Use an analyzer with resolution bandwidth (RBW) greater than emission > bandwidth.* Use a video filter with VBW as specified above. Use peak > detector and max hold settings with no averaging. Analyzer should be in > linear (rather than log) display mode. > * For Broadband emissions where the available analyzer bandwidth is less > than emission bandwidth, > set RBW = 1 MHz and VBW as specified above. Use peak detector and max hold > settings with no averaging. The analyzer should be in linear (rather than > log) display > mode. Compute power by integrating the spectrum across the 26-dB EBW or > apply a bandwidth correction factor of 10log(EBW/1 MHz) to the spectral peak > of the emission. The integration can be performed using the spectrum > analyzer's band power measurement function with band limits set equal to the > EBW band edges or by summing power levels in each 1-MHz band in linear power > terms. The 1-MHz band power levels to be summed can be obtained by > averaging, in linear power terms, the peak-detected,max-hold power levels in > each frequency bin across the 1 MHz. > > Question #5: Please provide radiated emission data to demonstrate > 15.407(b)(6) /15.205 requirements. > > Best Regards > > Mike Kuo / TCB Certifier > The items indicated above must be submitted before processing can continue > on the above referenced application. Failure to provide the requested > information within 60 days of the original e-mail date may result in > application dismissal and forfeiture of the filing fee. Also, please note > that partial responses increase processing time and should not be submitted. > Any questions about the content of this correspondence should be directed to > the e-mail address listed below the name of the sender. >

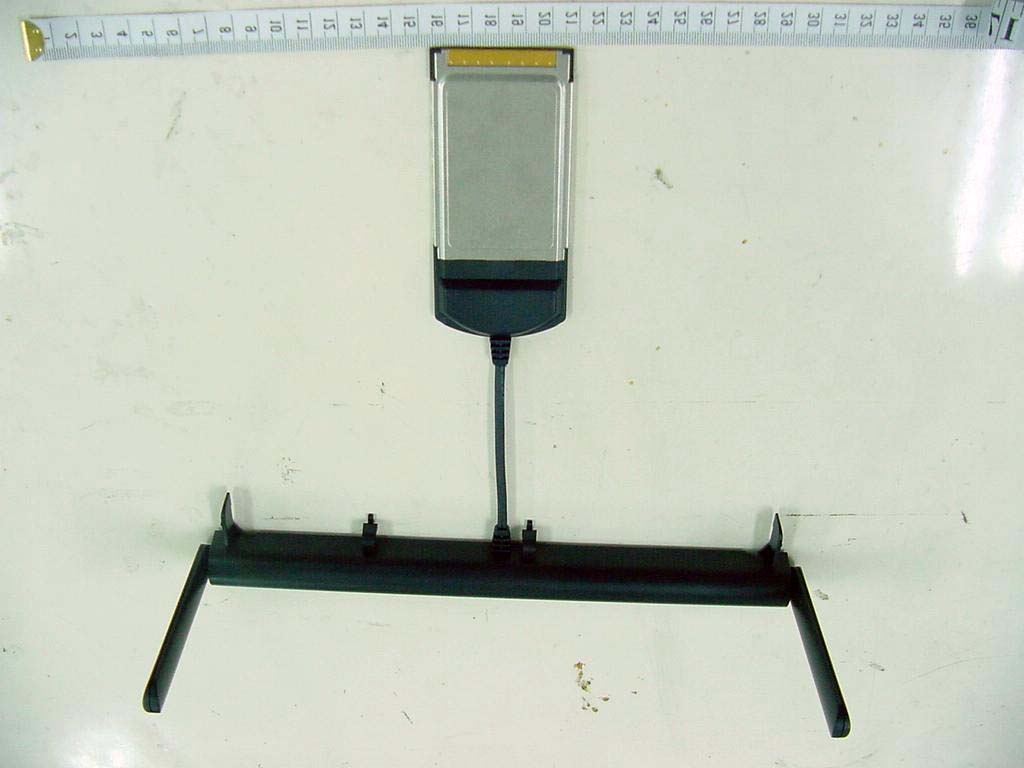

ETC Report No.: ET91R-07-079-01 FCC ID.: IMRWLPCE508A Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Front View of EUT Rear View of EUT

ETC Report No.: ET91R-07-079-01 FCC ID.: IMRWLPCE508A Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Internal View of EUT Component View of Main PCB ETC Report No.: ET91R-07-079-01 FCC ID.: IMRWLPCE508A Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Solder View of Main PCB

ETC Report No.: ET91R-07-079-01 FCC ID.: IMRWLPCE508A Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Internal View of EUT Component View of Main PCB

Rev. No 1.0 RF Maximum Permissible Exposure Measurement Report of E.U.T. : AP-2000 5GHz ORiNOCO CardBus NIC FCC ID. : IMRWLPCE508A MODEL : PC50E-8-FC/A for APPLICANT : Agere Systems Nederland B.V. ADDRESS : Zadelstede 1-10 3431JZ Nieuwegein, The Netherlands Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34, LIN 5, DING FU TSUN, LINKOU HSIANG, TAIPEI HSIE, TAIWAN, R.O.C. Tel:(02)26023052, 26023054 Fax:(02)26010910 Report Number : ET91R-07-079-01 ETC Report No. : ET91R-07-079-01 FCC ID.: IMRWLPCE508A Rev. No 1.0 TEST REPORT CERTIFICATION Applicant : Agere Systems Nederland B.V. Zadelstede 1-10 3431JZ Nieuwegein, The Netherlands Manufacturer : Accton Technology Corporation No. 1, Creation Rd. III, Science-Based Industrial Park, Hsinchu, Taiwan, R.O.C. Description of EUT : a) Type of EUT : AP-2000 5GHz ORiNOCO CardBus NIC b) Trade Name : ORiNOCO c) Model No. : PC50E-8-FC/A d) Power Supply : DC 3.3V from Notebook PC Regulation Applied : IEEE C95.1-1991, FCC 47 CFR Part 1 and Part 2 I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in IEEE C95.1, and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relates only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of ETC. Issued Date : Jul. 30, 2002 Test Engineer : ( S. S. Liou ) Approve & Authorized Signer : Will Yauo, Manager EMC Detp. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No. : ET91R-07-079-01 FCC ID.: IMRWLPCE508A Rev. No 1.0 Table of Contents Page 1 GENERAL INFORMATION ........................................................................................................ 1 1.1 Product Description....................................................................................................................... 1 1.2 Characteristics of Device .............................................................................................................. 1 1.3 Test Methodology.......................................................................................................................... 1 1.4 Test Facility................................................................................................................................... 1 2 PROVISIONS APPLICABLE....................................................................................................... 2 2.1 Definition....................................................................................................................................... 2 2.2 Relative Requirement for Compliance .......................................................................................... 2 3. SYSTEM TEST CONFIGURATION........................................................................................... 3 3.1 Justification.................................................................................................................................... 3 3.2 Devices for Tested System ............................................................................................................ 3 4 M AXIMUM P ERMISSIBLE E XPOSURE M EASUREMENTS .................................................................. 4 4.1 Applicable Standard ...................................................................................................................... 4 4.2 Measurement Procedure................................................................................................................ 4 4.3 Measurement Instrument............................................................................................................... 5 4.4 Power Desity Data......................................................................................................................... 5 4.5 Measurement Setup Photos .......................................................................................................... 9 ETC Report No. : ET91R-07-079-01 FCC ID.: IMRWLPCE508A Page 1 of 9 Pages 1 GENERAL INFORMATION 1.1 Product Description a) Type of EUT : AP-2000 5GHz ORiNOCO CardBus NIC b) Trade Name : ORiNOCO c) Model No. : PC50E-8-FC/A d) Power Supply : DC 3.3V from Notebook PC 1.2 Characteristics of Device a) Data Rate : 6, 9, 12, 18, 24, 36, 48, 54 Mbps b) Operation Frequency : 5.15 ~ 5.35 GHz c) Rated Output Power : 14 dBm (max.) for 5.15 ~ 5.25 GHz band 16.5 dBm (max.) for 5.25 ~ 5.35 GHz band 1.3 Test Methodology The Maximum Permissible Exposure (MPE) was performed according to the procedures illustrated in IEEE C95.1-1991. 1.4 Test Facility The open area test site and conducted measurement facility used to collect the radiated data is located on the roof top of Building at No.34, Lin 5, Ding Fu Tsun, Linkou Hsiang, Taipei Hsien, Taiwan, R.O.C. This site has been fully described in a report submitted to the FCC, and accepted in a letter dated Feb. 10, 2000. ETC Report No. : ET91R-07-079-01 FCC ID.: IMRWLPCE508A Page 2 of 9 Pages 2 PROVISIONS APPLICABLE 2.1 Definition MPE in Occupational / Controlled Environments: Persons are exposed as a consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure. Also apply to a individual is transient through a location where occupational / controlled limits apply provided he or she is made aware of the potatial for exposure. MPE in General Population / Uncontrolled Environments: General population / Uncontrilled exposure apply in situation in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment nay not be fully aware of the potatial for exposure or cannot execise control over their exposure. 2.2 Relative Requirement for Compliance (1) MPE for Controlled Enviroments According to section 1.1310 of FCC 47 CFR Part 1, MPE Limits f…

Text truncated - open the document above for the full version.

ETC Report No.: ET91R-07-079-01 FCC ID.: IMRWLPCE508A Rev. No 2.0 Appendix 6 : Radiated Emission Measurements (for Restricted Bands) A. Tx 5180 MHz ; Rx 4144 MHz Operation Mode : Normal Test Date : Aug. 09, 2002 Temperature : 25 °C Humidity : 60 % Frequency (MHz) Reading (dBuV) H V Peak Ave Peak Ave Factor (dB) Corr. Result @3m (dBuV/m) Peak Ave Limit @3m (dBuV/m) Peak Ave. Margin (dB) Table Deg. (Deg.) Ant. High (m) 15550.000 54.5 42.9 53.2 42.0 8.9 63.4 51.8 74.0 54.0 -2.2 178 2.10 B. Tx 5220 MHz ; Rx 4176 MHz Operation Mode : Normal Test Date : Aug. 09, 2002 Temperature : 25 °C Humidity : 60 % Frequency (MHz) Reading (dBuV) H V Peak Ave Peak Ave Factor (dB) Corr. Result @3m (dBuV/m) Peak Ave Limit @3m (dBuV/m) Peak Ave. Margin (dB) Table Deg. (Deg.) Ant. High (m) 15661.200 52.0 40.9 53.0 41.5 8.6 61.6 50.1 74.0 54.0 -3.9 210 2.00 C. Tx 5240 MHz ; Rx 4192 MHz Operation Mode : Normal Test Date : Aug. 09, 2002 Temperature : 25 °C Humidity : 60 % Frequency (MHz) Reading (dBuV) H V Peak Ave Peak Ave Factor (dB) Corr. Result @3m (dBuV/m) Peak Ave Limit @3m (dBuV/m) Peak Ave. Margin (dB) Table Deg. (Deg.) Ant. High (m) 15721.300 48.9 38.3 52.0 40.8 8.5 60.5 49.3 74.0 54.0 -4.7 150 2.00 Note : 1. Item of margin shown in above table refer to average limit. 2. Remark “---” means that the emission level is too low to be measured, with a preamplifier of 35 dB. 3. Measuring data showed on above table was derived with peak detector function. 4. It is considered that the results of average comply with average limit when measuring data with a peak function detector meet the average limit. Mark “***” means that Peak result is meet average limit. 5. The expanded uncertainty of the radiated emission tests is 3.53 dB. ETC Report No.: ET91R-07-079-01 FCC ID.: IMRWLPCE508A Rev. No 2.0 D. Tx 5260 MHz ; Rx 4208 MHz Operation Mode : Normal Test Date : Aug. 09, 2002 Temperature : 25 °C Humidity : 60 % Frequency (MHz) Reading (dBuV) H V Peak Ave Peak Ave Factor (dB) Corr. Result @3m (dBuV/m) Peak Ave Limit @3m (dBuV/m) Peak Ave. Margin (dB) Table Deg. (Deg.) Ant. High (m) 15777.000 48.2 37.0 46.8 35.6 8.3 56.5 45.3 74.0 54.0 -8.7 243 1.50 E. Tx 5280 MHz ; Rx 4224 MHz Operation Mode : Normal Test Date : Aug. 09, 2002 Temperature : 25 °C Humidity : 60 % Frequency (MHz) Reading (dBuV) H V Peak Ave Peak Ave Factor (dB) Corr. Result @3m (dBuV/m) Peak Ave Limit @3m (dBuV/m) Peak Ave. Margin (dB) Table Deg. (Deg.) Ant. High (m) 15840.200 50.3 38.8 46.5 35.1 8.2 58.5 47.0 74.0 54.0 -7.0 170 1.60 F. Tx 5320 MHz ; Rx 4256 MHz Operation Mode : Normal Test Date : Aug. 09, 2002 Temperature : 25 °C Humidity : 60 % Frequency (MHz) Reading (dBuV) H V Peak Ave Peak Ave Factor (dB) Corr. Result @3m (dBuV/m) Peak Ave Limit @3m (dBuV/m) Peak Ave. Margin (dB) Table Deg. (Deg.) Ant. High (m) 10640.700 59.7 44.1 60.2 44.8 8.1 68.3 52.9 74.0 54.0 -1.1 195 1.30 15961.700 51.5 40.7 49.2 38.0 7.9 59.4 48.6 74.0 54.0 -5.4 173 1.10 Note : 1. Item of margin shown in above table refer to average limit. 2. Remark “---” means that the emission level is too low to be measured, with a preamplifier of 35 dB. 3. Measuring data showed on above table was derived with peak detector function. 4. It is considered that the results of average comply with average limit when measuring data with a peak function detector meet the average limit. Mark “***” means that Peak result is meet average limit. 5. The expanded uncertainty of the radiated emission tests is 3.53 dB.

Rev. No 2.0 FCC Part 15 EMI TEST REPORT of E.U.T. :AP-2000 5GHz ORiNOCO CardBus NIC FCC ID. :IMRWLPCE508A MODEL :PC50E-8-FC/A for APPLICANT : Agere Systems Nederland B.V. ADDRESS : Zadelstede 1-10 3431JZ Nieuwegein, The Netherlands Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34, LIN 5, DING FU TSUN, LINKOU HSIANG TAIPEI HSIEN, TAIWAN, R.O.C. Tel: (02) 26023052, 26023054 Fax: (02) 26010910 Report Number: ET91R-07-079-01 ETC Report No.: ET91R-07-079-01 FCC ID.: IMRWLPCE508A Rev. No 2.0 TEST REPORT CERTIFICATION Applicant : Agere Systems Nederland B.V. Zadelstede 1-10 3431JZ Nieuwegein, The Netherlands Manufacturer : Accton Technology Corporation No. 1, Creation Rd. III, Science-Based Industrial Park, Hsinchu, Taiwan, R.O.C. Description of EUT : a) Type of EUT : AP-2000 5GHz ORiNOCO CardBus NIC b) Trade Name : ORiNOCO c) Model No. : PC50E-8-FC/A d) Power Supply : DC 3.3V from Notebook PC Regulation Applied : FCC Rules and Regulations Part 15 Subpart B & C (2001) I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in ANSI C63.4, and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of ETC. Issued Date: Jul. 30, 2002 Test Engineer: (S. S. Liou) Approve & Authorized Signer: Will Yauo, Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No.: ET91R-07-079-01 FCC ID.: IMRWLPCE508A Rev. No 2.0 Table of Contents Page 1 GENERAL INFORMATION........................................................................................................ 1 1.1 Product Description....................................................................................................................... 1 1.2 Characteristics of Device .............................................................................................................. 1 1.3 Test Methodology.......................................................................................................................... 1 1.4 Test Facility................................................................................................................................... 1 2 PROVISIONS APPLICABLE....................................................................................................... 2 2.1 Definition....................................................................................................................................... 2 2.2 Requirement for Compliance ........................................................................................................ 3 2.3 Restricted Bands of Operation ...................................................................................................... 5 2.4 Labeling Requirement ................................................................................................................... 5 2.5 User Information............................................................................................................................ 6 3. SYSTEM TEST CONFIGURATION........................................................................................... 7 3.1 Justification.................................................................................................................................... 7 3.2 Devices for Tested System ............................................................................................................ 7 4 RADIATED EMISSION MEASUREMENTS............................................................................. 8 4.1 Applicable Standard ...................................................................................................................... 8 4.2 Measurement Procedure................................................................................................................ 8 4.3 Measuring Instruments .................................................................................................................. 9 4.4 Radiated Emission Data .............................................................................................................. 10 4.5 Field Strength Calculation ........................................................................................................... 10 4.6 Photos of Radiation Measuring Setup ......................................................................................... 11 5 CONDUCTED EMISSION MEASUREMENTS....................................................................... 12 5.1 Standard Applicable .................................................................................................................... 12 5.2 Measurement Procedure.............................................................................................................. 12 5.3 Conducted Emission Data ........................................................................................................... 13 5.4 Result Data Calculation............................................................................................................... 15 5.5 Conducted Measurement Equipment .......................................................................................... 15 5.6 Photos of Conduction Measuring Setup ...................................................................................... 16 6 ANTENNA REQUIREMENTS................................................................................................... 17 6.1 Standard Applicable .................................................................................................................... 17 6.2 Antenna Structure........................................................................................................................ 17 7 EMISSION BANDWIDTH MEASUREMENTS.........…

Text truncated - open the document above for the full version.

ETC Report No.: ET91R-07-079-01 FCC ID.: IMRWLPCE508A Rev. No 2.0 Photos of Radiation Measuring Setup ETC Report No.: ET91R-07-079-01 FCC ID.: IMRWLPCE508A Rev. No 2.0 Photos of Conduction Measuring Setup
