IMRPC2411BWireless LAN PC Card 2.4 GHz

D RAFf! ! ! UNFORMATION IN mE FLYER Information to the User ft is the poicy of Agere Systems Inc. to provide customers with the Iatest avaiable infonnation. All updates to this docunent wil appear in the English version first nis doament provides regulatory information about Agere Wlrsess lAN products. nis product uses Drect SequMce Spread Specbum (DSSS) radio teclYtoiogy. It is designed to be inter-operable with any other y,;reless DSSS type product that co~ies with: . The IEEE 802.11b Standard on WereJess lANs, as defined and approved by the Institute of EIec1rical and Electrorics En~neers. . The Wireless Fldsity (Wi-F~ certification as defined by the WECA Wireiess Ethemet Compatibility AlliarK:e. Check yow product label tor the country and date of manufacturi~. Wireless LAN and your Health Wireless LAN prodUds, like olher radio devices, emit radio frequency electromagnetic energy. The level of energy enitted by Wireless LAN devices however is far mum less than the eectromag1etic energy enitted by wireless devices like tor example mobile phones. Because Wreless LAN prodUc1s operate wittin Ihe guidetines foond in radio frequency safety standards and reconvnendations, Agere beieves Ihis product is safe tor use by co~umers. These standards Md reconvnendations reflect Ihe coosensus of the scientific community aoo result trom deliberations of panels and c<mmittees of scàentists who continuaJly review and interpret the extensive research literature. Important Safety Instructions When using 1his prodUd. always follow 1he basic safety precautions to reduce the risk of f..e, electric shock and injury to persons, oouding 1he foilooNing: 1. Atways instaU 1he product as desamed in 1he dO<Unentatioo that is induded with yoor produd. 2. Do not use 1his product near water, tor example. near a bath tub, wash b<J.Yl. kitchen si~ or laundry lub, in a wet basemem or near a swinvning pool. 3. Avoid usng ttMs produd during an electrical stonn. There may be a rem«e risk of eledric shock trom I~tning. 4. Do not use 1his product to report a gas leak in the vicirity of the Ieak. SAVETHESEINSTRUCTIONS Voo must instaJl and use ttis device in strict accordance .,,;th the manufacturer's instructions as described in the user documentation that comes with the product. B~ae )'Ou start instaUation or use of this prodlK:t, carefully read the tollo.,,;ng information tor device specific constraints or Nies Ö\at may apply in the country where you want to use this product. The user must always ensure that coontry aoo/or channel selection of peer-to-peer groups or Base Station configurations matches the ~Iations of the country of operation. In some situations or envi'onments, the use ot wiretess devices may be restricted by the proprietor of Ö\e building or responsibie repres~tatives d the organization. These situations may tor example incklde: . Using the wireless equilX"9"t on board ot airpianes, or . In any other envi'onrnent where Ö\e risk ot nt~erence to other devices or services is perceived or identified as hannful. It you are unc81ain of !he policy that appies on the use ot .,,;reless equ~t in a specific organization or environment (e.g. airports), you are encouraged to ask tor authorization to use ttis device prior to tuning 00 Ö\e eqlipment. The rnanutacturer is not responsibIe tor any radio or t~evisioo interference caused by unauthorized modification ot the devices included with ttis kit, or the stbstitution or atlachment of coonecti~ cables and equipment other !hM specified by manufacturer. The correction of interference caused by such unauthorized modfication. substitution a attaavnent.,,;O be the responsibility of the user. The manufacturer and its authorized res~lers or distriOOtas are nol liable tor any darnage or vioJation of goverm1ent regulations that may arise trom failing to c~1y .,,;th these gJideiines. North America ETl AN8UU. STD.1Dm ETllisted produds coof<m1 to ANSI/Ul 510.1950 certified to CAN/CSA sm C22.2 NO . 950 USA. Federal Communications Commission (FCC) This device compies with Part 15 of FCC Ru.es. Operation of ttle device is subject to the folowing two conditions (1) Ths device may not cause harmful mterference, and (2) this device must accept any interference that may Gause undes..ed operation. Declaration of Conformity for products marked with FCC logo Produc1s that conmin a radio transmitter are labeJed with FCC 10 and may aJso carry the FCC logo: Tested to c~1y with FCC Standards. For home and office use only. Caution: Exposure to Radio Frequency Radiation ... CAUTION: To ~Iy with the FCC RF exposure compliance requirements. the folfNIing antenna installation and device operating configurations n'KJst be satisfied: To be updated! ! 2. 3.The transmitter shall nat be cotlocated widl otMr tr~smitters or ~t~nas. Federal Communicatlons Commission Notice This equ~ment has been tested and tound to comply with the 6mits tor a Class B digital device. pursuant to Part 15 of the FCC Rules. These linits are desjgned to provide reasonable protection aga~st harmful interference ~ a restdential installation. This equ~ment generates. uses. and can radiate radio frequency energy. It not instalIed and used ~ accordance with the instnJctions. it may cause harmful interferençe to radio commu~tioos. However. there is no guarantee that interference ""';8 oot occur in a particular instalation. If ttMs equipment does cause hannfU ilterference to radio or tele'w'ision receptioo. ~ch can be determned by ttming the equipment off Md on, the user is eocouraged to try and correct the iNerference by roe or more of the tol~ng measures: . Reorient or relocate the receivng antenna. . Increase the distance between the equipment and the receiver. . Conned the equ~ment to an outJet on a cirwt different trom that to which the receiver is connected. Consult the dealer or an experienced radiofTV techrWcian tor he~. Modifications The FCC requires the user to be notified that any cha~ or modifications to ~s device that are nol…

Text truncated - open the document above for the full version.

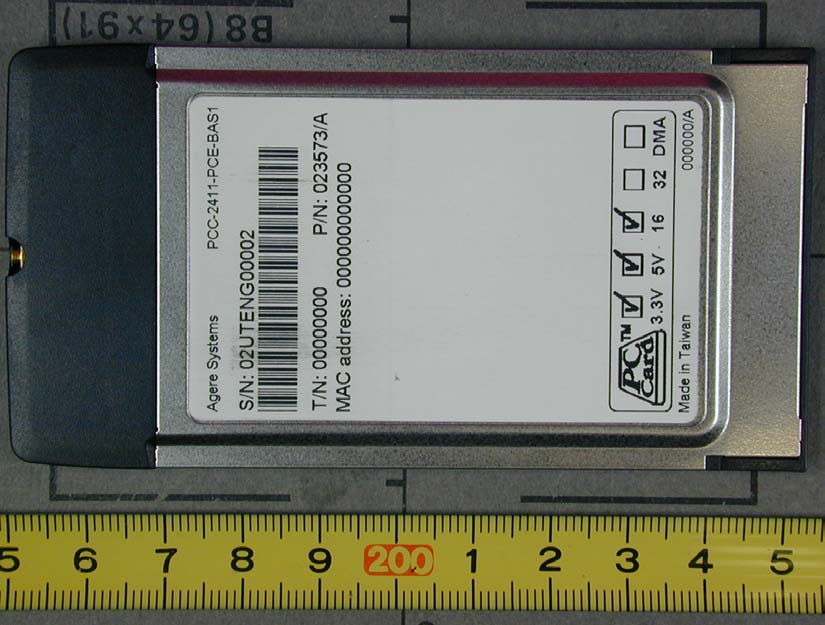

EXTERNAL PHOTOGRAPHS FCC ID: IMRPC2411B PC Card, bottom side with label PC Card, top side EXTERNAL PHOTOGRAPHS FCC ID: IMRPC2411B Front view RF-modem (with antenna connector) \

FCC ID: IMR PC2411B LABEL CONTENTS AND PLACEMENT For USA following text will be put on the label below the line with MAC address: FCC ID: IMRPC2411B For Canada following text will be placed above or below FCC ID: IC: 4005APC2411B.

EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: IMRPC2411B Annex A to Test Report No. 56305-20559-1 Page 1 of 12 Pages Annex A to Test Report No. 56305-20559-1 Photographs of EUT and Host EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: IMRPC2411B Annex A to Test Report No. 56305-20559-1 Page 2 of 12 Pages Photo No. A1 Top view of RF-modem EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: IMRPC2411B Annex A to Test Report No. 56305-20559-1 Page 3 of 12 Pages Photo No. A2 Bottom view of RF-modem (with label) EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: IMRPC2411B Annex A to Test Report No. 56305-20559-1 Page 4 of 12 Pages Photo No. A3 Front view of RF-modem (antenna connector) EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: IMRPC2411B Annex A to Test Report No. 56305-20559-1 Page 5 of 12 Pages Photo No. A4 Top view of disassembled RF-modem (disassembled version) EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: IMRPC2411B Annex A to Test Report No. 56305-20559-1 Page 6 of 12 Pages Photo No. A5 Top view of printed board of RF-modem (disassembled version) EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: IMRPC2411B Annex A to Test Report No. 56305-20559-1 Page 7 of 12 Pages Photo No. A6 Bottom view of printed board of RF-modem (disassembled version) EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: IMRPC2411B Annex A to Test Report No. 56305-20559-1 Page 8 of 12 Pages Photo No. A7 Bottom view of printed board of RF-modem (disassembled version) without shielding covers EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: IMRPC2411B Annex A to Test Report No. 56305-20559-1 Page 9 of 12 Pages Photo No. A8 Top view of PC-card extender EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: IMRPC2411B Annex A to Test Report No. 56305-20559-1 Page 10 of 12 Pages Photo No. A9 Bottom view of PC-card extender EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: IMRPC2411B Annex A to Test Report No. 56305-20559-1 Page 11 of 12 Pages Photo No. A10 Front view of PC-card extender (PC-card connector) EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: IMRPC2411B Annex A to Test Report No. 56305-20559-1 Page 12 of 12 Pages Photo No. A11 Front view of notebook (host equipment) with cover opened

Nederland B.V. September 2002 DESCRIPTION IEEE PC Card Ext (B) This IEEE PC Card product provides a wireless connection for portable and mobile computers in accordance with IEEE standard 802.11 DSSS. It can work at 11, 5.5, 2 or 1 Mbps. The operation is in accordance with IEEE 802.11. The product, one piece of hardware, contains the following blocks: - PCMCIA interface - Wireless Medium Access Control (WMAC); this chip is used for handshaking with the PCMCIA bus and for handling the IEEE protocol; it also does frequency management and interfaces to FlashROM for parameters on frequencies and Call codes. Here also selection for 11, 5.5, 2 or 1 Mbps is handled. - Digital signal processor takes care of all modulation/demodulation for DSSS for all above rates and can do selection out of 2 receiving antennae Optionally it can be equipped with: - a factory installable data encryption feature Block Diagram PCMCIA Interface Connector The technical specification is as follows on the next page. Antenna Conn . WMAC DIGITAL SIGNAL PROCESSOR Nederland B.V. Sep02 TECHNICAL SPECIFICATION IEEE PC Card Ext 2.4 GHz (B) Data Signaling Rate: 11, 5.5, 2 or 1 Mbit/s Media Access Protocol: According to IEEE 802.11 DSSS, CSMA/CA (Collision Avoidance) Bit Error Rate: Better than 10-8 Base-Band Modulation: - 2 Mbps: Differential Quadrature Phase Shift (before spreading) Keying (DQPSK) 2 bits/symbol - 11 and 5.5 Mbps: Complementary Code Keying Differential Quadrature Phase Shift Keying (DQPSK CCK) Spread Spectrum: Direct Sequence with 11 chips/symbol interval. Pseudo random Barker code sequence: { 1 -1 1 1 -1 1 1 1 -1 -1 -1 } Chipping Rate: 11 Mchips/s Carrier Frequency: Selectable from factory pre-programmed sets per country according to IEEE 802.11. Examples: - for USA/ Canada: 2412, 2417, 2422, 2427, 2432, 2437, 2442, 2447, 2452, 2457 and 2462 MHz - for EU: 2412, 2417, 2422, 2427, 2432, 2437, 2442, 2447, 2452, 2457, 2462, 2467 and 2472 MHz - for Japan: 2412, 2417, 2422, 2427, 2432, 2437, 2442, 2447, 2452, 2457, 2462, 2467, 2472 and 2484 MHz Peak Output Power: < 32 mW rms power (15 dBm) RF Power Density: < 8 dBm/3kHz Antenna (indoor): e.g. External, e.g. Range Extender AIN24-OD-0202: - Gain 0 dBi - Polarization diversity Hor/Vert. Spurious Emissions etc: Satisfies e.g. the USA Federal Comm. Commission (FCC) rules Part 15.247 and requirements of ETS EN 300 328

EMV-Pr ̧fzentrum EMI/EMC-Testcenter Page 1 of 44 Pages Straubing, November 6, 2002 T E S T - R E P O R T No. 56305-20559-3 for PCC-2411-PCE-BAS1 RF-modem for wireless LAN Applicant: Agere Systems Nederland B.V. Purpose of testing: To show compliance with FCC Code of Federal Regulations, Part 15 Subpart B Class B Industry Canada Interference-Causing Equipment Standard ICES-003 (Digital Apparatus), Issue 3, November 22, 1997 Note: The test data of this report relate only to the individual item which has been tested. This report shall not be reproduced except in full extent without the written approval of the testing laboratory. EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: IMRPC2411B Test Report No. 56305-20559-3 Page 2 of 44 Pages Table of Contents 1. Administrative Data ..............................................................................................3 2. Identification of Test Laboratory ...........................................................................4 3. Summary of Test Results.....................................................................................5 4. Operation Mode of EUT .......................................................................................6 5. Configuration of EUT and Peripheral Devices ......................................................7 6. Setup of Host .......................................................................................................8 7. Measuring Methods..............................................................................................9 7.1. Conducted Emission 0.15 MHz - 30 MHz (CFR47 ß15.107 / ICES-003 sec. 4.1) ......................................................................................10 7.2. Radiated Emission 30 MHz - 1 GHz (CFR47 ß15.109/ ICES-003 sec. 4.1) ......................................................................................................12 8. Equipment List ...................................................................................................14 9. Photographs Taken During Testing....................................................................16 10. Referenced Regulations.....................................................................................23 11. List of Measurements.........................................................................................24 11.1. List of Measurements according to FCC Part 15 Subpart C ........................25 11.2. List of Measurements according to ICES-003 .............................................26 12. Test Results .......................................................................................................27 13. Additional Information supplementary to the Test Report ...................................44 EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: IMRPC2411B Test Report No. 56305-20559-3 Page 3 of 44 Pages 1. Administrative Data Equipment Under Test (EUT): PCC-2411-PCE-BAS1 Serial number(s): 02UTENG00002 Type of equipment: RF-modem using DSSS technology for wireless connection for e.g. portable and mobile computers which have a PC-card-bus (PCMCIA). Version: as delivered Parts/accessories: see "Configuration of EUT and Peripheral Devices" on page 7 FCC-ID: IMRPC2411B Applicant: Agere Systems Nederland B.V. (full address) Zadelstede 1-10 NL-3431 JZ Nieuwegein The Netherlands Contract identification: --- Contact person: Mr. Wout Kerkhof Manufacturer: Agere Systems Nederland B.V. Receipt of EUT: September 3, 2002 Date of test: November 4 and 5, 2002 Note: --- Responsible for testing: Rainer Heller Responsible for test report: Rainer Heller EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: IMRPC2411B Test Report No. 56305-20559-3 Page 4 of 44 Pages 2. Identification of Test Laboratory Test Laboratory: Senton GmbH EMI/EMC Test Center (full address): Aeussere Fruehlingstrasse 45 D-94315 Straubing Germany Contact person: Mr. Johann Roidt Communication: Telephone (+49) 0 94 21 / 55 22-0 Fax (+49) 0 94 21 / 55 22-99 eMail: [email protected] FCC registration number: 90926 Industry Canada file number: IC 3050 EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: IMRPC2411B Test Report No. 56305-20559-3 Page 5 of 44 Pages 3. Summary of Test Results The tested sample complies with the requirements set forth in the Code of Federal Regulations Part 15 Subpart B (unintentional radiators), sections ß15.107 and ß15.109 of the Federal Communication Commission (FCC) and the Interference-Causing Equipment Standard ICES-003 (Digital Apparatus), Issue 3 of Industry Canada. Johann Roidt Rainer Heller Technical Manager Test Engineer EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: IMRPC2411B Test Report No. 56305-20559-3 Page 6 of 44 Pages 4. Operation Mode of EUT All tests were performed using the "Test program for wireless cards V0.39" ("wincert.exe") and EUT in receive mode (RX) with operating frequency set to 2.442 GHz and bit rate 11 Mbps. EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: IMRPC2411B Test Report No. 56305-20559-3 Page 7 of 44 Pages 5. Configuration of EUT and Peripheral Devices RF-modem module PCC-2411-PCE-BAS1 was tested operating with internal antenna and mounted in PC-card slot of notebook Dell Latitude C800. This setup was selected to test the EUT as a digital device. In table 1 used accessories and host equipment are listed (with Agere part numbers). Item Model or part no. Serial no. Designation Manufacturer RF-modem 023573/A 02UTENG00002 PCC-2411-PCE-BAS1 Agere Notebook --- 8ZFB50J Latitude C800 Dell AC adapter --- CN-09364U- 16291-143-006V AA20031 Dell Table 1: EUT and accessories EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: IMRPC2411B Test Report No. 56305-20559-3 Page 8 of 44 Pages 6. Setup of Host Configuration of cables of host • Non shielded power line for AC-power supply of notebook, 180 cm • Shielded data cable connected to parallel interface of notebook, Inmac, 150 cm, Senton inv.-no. 1387 • Shielded data cable connected to serial interface of notebook, Senton, 170 cm, Senton inv.-no. 1401 • Sh…

Text truncated - open the document above for the full version.

EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: IMRPC2411B Annex B to Test Report No. 56305-20559-3 Page 1 of 7 Pages Annex B to Test Report No. 56305-20559-3 Photographs Taken During Testing EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: IMRPC2411B Annex B to Test Report No. 56305-20559-3 Page 2 of 7 Pages Photo No. B1 Test setup for conducted emission test 150 kHz - 30 MHz EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: IMRPC2411B Annex B to Test Report No. 56305-20559-3 Page 3 of 7 Pages Photos No. B2 - B3 Test setup for conducted emission test 150 kHz - 30 MHz - continued - EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: IMRPC2411B Annex B to Test Report No. 56305-20559-3 Page 4 of 7 Pages Photos No. B4 - B5 Test setup for radiated emission pre-test 30 MHz - 1 GHz (semi anechoic room) EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: IMRPC2411B Annex B to Test Report No. 56305-20559-3 Page 5 of 7 Pages Photos No. B6 - B7 Test setup for radiated emission pre-test 30 MHz - 1 GHz (semi anechoic room) - continued - EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: IMRPC2411B Annex B to Test Report No. 56305-20559-3 Page 6 of 7 Pages Photos No. B8 - B9 Test setup for radiated emission final test 30 MHz - 1 GHz (open area test site) EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: IMRPC2411B Annex B to Test Report No. 56305-20559-3 Page 7 of 7 Pages Photos No. B10 - B11 Test setup for radiated emission final test 30 MHz - 1 GHz (open area test site) - continued -
