IMRCB1102IEEE 802.11 a/b/g CardBus Card

Agere Systems CardBus 1102 Preliminary User Manual Section: Regulatory Compliance Information Information to the user It is the policy of Agere Systems Inc. to provide customers with the latest available information. All updates to this document will appear in the English version first. This document provides regulatory information about Agere wireless LAN products. This product can operate on channels in frequency bands in 2.4 GHz and 5 GHz ranges, and uses DSSS (Direct Sequence Spread Spectrum) or OFDM radio technology. It is designed to be inter-operable with similar wireless products that comply with: - IEEE 802.11 b/g/a Standards on Wireless LAN, as defined and approved by the Institute of Electrical and Electronics Engineers - Wireless Fidelity (Wi-Fi) certification as defined by the Wi-Fi Alliance formerly known as WECA (Wireless Ethernet Compatibility Alliance) For the country and date of manufacturing, consult the identification label of your wireless device. 1. Wireless LAN and your Health Wireless LAN products are radio devices that emit radio frequency electromagnetic energy. The level of energy emitted by Wireless LAN devices is much less than the electromagnetic energy emitted by devices like for example mobile telephones. Because Wireless LAN products operate within the guidelines found in radio frequency safety standards and recommendations, Agere believes this product is safe for use by consumers. These standards and recommendations reflect the consensus of the scientific community and result from deliberations of panels and committees of scientists who continually review and interpret the extensive research literature. See additional information for North America in section 2.1. Important Safety Instructions When using this product, always follow the basic precautions to reduce the risk of fire, electric shock and injury to persons, including the following: 1. Always install the product as described in the documentation that is included with your product. 2. Do not use this product near water, for example, near a bathtub, washbowl, and kitchen sink or laundry tub, in a wet basement or near a swimming pool. 3. Avoid using this product during an electric storm. There may be a remote risk of electric shock from lightning 4. Do not use this product to report a gas leak in the vicinity of the leak. SAVE THESE INSTRUCTIONS 2. Regulatory Information You must install and use this device in strict accordance with the manufacturer’s instructions as described in the user documentation that is included with your product. Before you start installation or use of this product, carefully read the contents of this document for device specific constraints or rules that may apply in the country where you want to use this product. The user must always ensure that country and/or channel selection of Peer-to-Peer groups or Base Station Networks matches the regulations of the country of operation. In some situations or environments, the use of wireless devices may be restricted by the proprietor of the building or responsible representatives of the organization. These situations may for example include: - Using the wireless equipment on board of airplanes, or - In any environment where the risk of interference to other devices or services is perceived or identified as harmful. If you are uncertain of the policy that applies on the use of wireless equipment in a specific organization or environment (e.g. airports), you are encouraged to ask for authorization to use this device prior to turning on the equipment. The manufacturer is mot responsible for any radio or television interference caused by unauthorized modification of the device, or the substitution or attachment of connecting cables and equipment other than specified by manufacturer. The correction of interference caused by such unauthorized modification, substitution or attachment will be the responsibility of the user. The manufacturer and it authorized resellers or distributors are not liable fro any damage or violation that may arise from failing to comply with these guidelines. 2.1 North America Canada – Industry Canada (IC) The wireless radio of this device complies with RSS 210 of Industry Canada. This Class B device complies with Canadian ICES-003 (NMB-003). USA – Federal Communications Commission (FCC) This device complies with Part 15 of FCC Rules. Operation of the device is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference that may cause undesired operation. Operation in frequency band 5150-5250 MHz is restricted to indoor environments only. Exposure to Radio Frequency Radiation SAR (Specific Absorption Rate) compliance has been established and found to comply in accordance with FCC OET Bulletin 65 and guidelines of IEEE C95.1-1995. Caution: ! To comply with the FCC RF Exposure compliance requirements, the user is advised to maintain a distance of at least 13 mm cm from the antenna of the device while in use Federal Communications Commission Notice This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning off and on, the user is encouraged to try and correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna • Increase the distance between the equipment and the receiver • Connect the equipme…

Text truncated - open the document above for the full version.

Agere Systems CardBus 1102 Draft Manual CardBus 1102 Preliminary User Manual Agere Systems CardBus 1102 Draft Manual Agere Systems CardBus 1102 Draft Manual Agere Systems CardBus 1102 Draft Manual Agere Systems CardBus 1102 Draft Manual Agere Systems CardBus 1102 Draft Manual Agere Systems CardBus 1102 Draft Manual Section: Regulatory Compliance Information Information to the user It is the policy of Agere Systems Inc. to provide customers with the latest available information. All updates to this document will appear in the English version first. This document provides regulatory information about Agere wireless LAN products. This product can operate on channels in frequency bands in 2.4 GHz and 5 GHz ranges, and uses DSSS (Direct Sequence Spread Spectrum) or OFDM radio technology. It is designed to be inter-operable with similar wireless products that comply with: - IEEE 802.11 b/g/a Standards on Wireless LAN, as defined and approved by the Institute of Electrical and Electronics Engineers - Wireless Fidelity (Wi-Fi) certification as defined by the Wi-Fi Alliance formerly known as WECA (Wireless Ethernet Compatibility Alliance) For the country and date of manufacturing, consult the identification label of your wireless device. 1. Wireless LAN and your Health Wireless LAN products are radio devices that emit radio frequency electromagnetic energy. The level of energy emitted by Wireless LAN devices is much less than the electromagnetic energy emitted by devices like for example mobile telephones. Because Wireless LAN products operate within the guidelines found in radio frequency safety standards and recommendations, Agere believes this product is safe for use by consumers. These standards and recommendations reflect the consensus of the scientific community and result from deliberations of panels and committees of scientists who continually review and interpret the extensive research literature. See additional information for North America in section 2.1. Agere Systems CardBus 1102 Draft Manual Important Safety Instructions When using this product, always follow the basic precautions to reduce the risk of fire, electric shock and injury to persons, including the following: 1. Always install the product as described in the documentation that is included with your product. 2. Do not use this product near water, for example, near a bathtub, washbowl, and kitchen sink or laundry tub, in a wet basement or near a swimming pool. 3. Avoid using this product during an electric storm. There may be a remote risk of electric shock from lightning 4. Do not use this product to report a gas leak in the vicinity of the leak. SAVE THESE INSTRUCTIONS Agere Systems CardBus 1102 Draft Manual 2. Regulatory Information You must install and use this device in strict accordance with the manufacturer’s instructions as described in the user documentation that is included with your product. Before you start installation or use of this product, carefully read the contents of this document for device specific constraints or rules that may apply in the country where you want to use this product. The user must always ensure that country and/or channel selection of Peer-to-Peer groups or Base Station Networks matches the regulations of the country of operation. In some situations or environments, the use of wireless devices may be restricted by the proprietor of the building or responsible representatives of the organization. These situations may for example include: - Using the wireless equipment on board of airplanes, or - In any environment where the risk of interference to other devices or services is perceived or identified as harmful. If you are uncertain of the policy that applies on the use of wireless equipment in a specific organization or environment (e.g. airports), you are encouraged to ask for authorization to use this device prior to turning on the equipment. The manufacturer is mot responsible for any radio or television interference caused by unauthorized modification of the device, or the substitution or attachment of connecting cables and equipment other than specified by manufacturer. The correction of interference caused by such unauthorized modification, substitution or attachment will be the responsibility of the user. The manufacturer and it authorized resellers or distributors are not liable fro any damage or violation that may arise from failing to comply with these guidelines. 2.1 North America Canada – Industry Canada (IC) The wireless radio of this device complies with RSS 210 of Industry Canada. This Class B device complies with Canadian ICES-003 (NMB-003). Agere Systems CardBus 1102 Draft Manual USA – Federal Communications Commission (FCC) This device complies with Part 15 of FCC Rules. Operation of the device is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference that may cause undesired operation. Operation in frequency band 5150-5250 MHz is restricted to indoor environments only. Exposure to Radio Frequency Radiation SAR (Specific Absorption Rate) compliance has been established and found to comply in accordance with FCC OET Bulletin 65 and guidelines of IEEE C95.1-1995. Caution : ! To comply with the FCC RF Exposure compliance requirements, the user is advised to maintain a distance of at least 13 mm cm from the antenna of the device while in use Federal Communications Commission Notice This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to Agere Systems CardBus 1102 Draft Manual provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, it may cause harmful interference to radio communications. However, there is no guarant…

Text truncated - open the document above for the full version.

Agere Systems CardBus 1102 Draft Manual CardBus 1102 Preliminary User Manual Agere Systems CardBus 1102 Draft Manual Agere Systems CardBus 1102 Draft Manual Agere Systems CardBus 1102 Draft Manual Agere Systems CardBus 1102 Draft Manual Agere Systems CardBus 1102 Draft Manual Agere Systems CardBus 1102 Draft Manual Section: Regulatory Compliance Information Information to the user It is the policy of Agere Systems Inc. to provide customers with the latest available information. All updates to this document will appear in the English version first. This document provides regulatory information about Agere wireless LAN products. This product can operate on channels in frequency bands in 2.4 GHz and 5 GHz ranges, and uses DSSS (Direct Sequence Spread Spectrum) or OFDM radio technology. It is designed to be inter-operable with similar wireless products that comply with: - IEEE 802.11 b/g/a Standards on Wireless LAN, as defined and approved by the Institute of Electrical and Electronics Engineers - Wireless Fidelity (Wi-Fi) certification as defined by the Wi-Fi Alliance formerly known as WECA (Wireless Ethernet Compatibility Alliance) For the country and date of manufacturing, consult the identification label of your wireless device. 1. Wireless LAN and your Health Wireless LAN products are radio devices that emit radio frequency electromagnetic energy. The level of energy emitted by Wireless LAN devices is much less than the electromagnetic energy emitted by devices like for example mobile telephones. Because Wireless LAN products operate within the guidelines found in radio frequency safety standards and recommendations, Agere believes this product is safe for use by consumers. These standards and recommendations reflect the consensus of the scientific community and result from deliberations of panels and committees of scientists who continually review and interpret the extensive research literature. See additional information for North America in section 2.1. Agere Systems CardBus 1102 Draft Manual Important Safety Instructions When using this product, always follow the basic precautions to reduce the risk of fire, electric shock and injury to persons, including the following: 1. Always install the product as described in the documentation that is included with your product. 2. Do not use this product near water, for example, near a bathtub, washbowl, and kitchen sink or laundry tub, in a wet basement or near a swimming pool. 3. Avoid using this product during an electric storm. There may be a remote risk of electric shock from lightning 4. Do not use this product to report a gas leak in the vicinity of the leak. SAVE THESE INSTRUCTIONS Agere Systems CardBus 1102 Draft Manual 2. Regulatory Information You must install and use this device in strict accordance with the manufacturer’s instructions as described in the user documentation that is included with your product. Before you start installation or use of this product, carefully read the contents of this document for device specific constraints or rules that may apply in the country where you want to use this product. The user must always ensure that country and/or channel selection of Peer-to-Peer groups or Base Station Networks matches the regulations of the country of operation. In some situations or environments, the use of wireless devices may be restricted by the proprietor of the building or responsible representatives of the organization. These situations may for example include: - Using the wireless equipment on board of airplanes, or - In any environment where the risk of interference to other devices or services is perceived or identified as harmful. If you are uncertain of the policy that applies on the use of wireless equipment in a specific organization or environment (e.g. airports), you are encouraged to ask for authorization to use this device prior to turning on the equipment. The manufacturer is mot responsible for any radio or television interference caused by unauthorized modification of the device, or the substitution or attachment of connecting cables and equipment other than specified by manufacturer. The correction of interference caused by such unauthorized modification, substitution or attachment will be the responsibility of the user. The manufacturer and it authorized resellers or distributors are not liable fro any damage or violation that may arise from failing to comply with these guidelines. 2.1 North America Canada – Industry Canada (IC) The wireless radio of this device complies with RSS 210 of Industry Canada. This Class B device complies with Canadian ICES-003 (NMB-003). Exposure to Radio Frequency Radiation SAR (Specific Absorption Rate) compliance has been established and found to comply in accordance with FCC OET Bulletin 65 and guidelines of IEEE C95.1-1995. Caution: ! To comply with the FCC RF Exposure compliance requirements, the user is advised to maintain a distance of at least 13 mm from the antenna of the device while in use Federal Communications Commission Notice This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning off and on, the user is encouraged to try and correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna • Increase the distance between the equipment and the receiver • Connect the equipment to an outlet on a circuit different fr…

Text truncated - open the document above for the full version.

Nederland B.V._____________________________________________________________________________________ Zadelstede 1-10 3431 JZ Nieuwegein The Netherlands Phone: +31 30 6097666 Fax: +31 30 6097556 Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA Nieuwegein, 16 December 2003 Re: Certification of Wireless LAN product: 802.11a/b/g CardBus Card, FCC ID: IMR CB1102 Dear Sir/Madam, Please find enclosed Application Form (FCC 731) Equipment Authorization and corresponding documentation as per attached list, for the certification of the Agere Wireless LAN PC Card as a general-purpose device. It concerns a basic (Wireless LAN) card with integral antenna in metal housing that can be inserted into PCs with CardBus interface. The card has a connector for external antenna, but currently no external antenna will be listed. Sincerely yours, Bert Vos, Regulatory Certifications Encl. See attached table cc FCC Application Package FCC ID: IMR CB1102 Date: 16Dec03 CONTENTS: 1. Application letter (cover of this) 2. Letter request for confidentiality 3. Product Description 4. Block Diagram with Description 5. Schematics 026976 6. Parts List 026974 7. Assembly drawing 026977 8. Photos PC Card Internal, file 03111701_p02 9. Photos PC Card External, file 03111701_p01 10. SAR: - report, file 03111701_ev01 - statement 11. Section from manual on Regulatory information 12. FC test reports and set up photos: - Report to Part 15.247 for 2.4 GHz, file 03111701_r01 - Report to Part 15.247 for 5.7 GHz, file 03111701_r02 - Report to Part 15.407 for 5.1-5.2 GHz, file 03111701_r03 - Set up photos, file 03111701_p03 13. Document showing placement FCC label 14. Info connector for external antenna

a 8 e resystems Zadelstede 1-10 3431 JZ Nieuwegein The Netherlands Phone: +31306097666 Fax: +31 306097556 Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA Nieuwegein, 16 December 2003 Re: Request for confidentiality, IMR CB 1102 Dear Sir/Madam, Pursuant to 47 CFR 0.457(d) and 0/459 we hereby request confidentiality status of Agere Systems documents Schematic drawing no. 026976-A. Parts list drawing no. 026974-A Board Assy drawing no.026977 -A (these show where parts are placed) Block Diagram with Description Sincerely yours, Pi=- Bert Vos, Regulatory Certifications

Nederland B.V.____________________________________________________________________________________ Zadelstede 1-10 3431 JZ Nieuwegein The Netherlands Phone: +31 30 6097666 Fax: +31 30 6097556 Response to FCC on FCC ID: IMRCB1102, correspondence no. 26485 , date 22Mar04 1) FYI user manual (preliminary) states "user is advised to maintain a distance of at least 13 mm cm" - please revise to mm or cm but not both. Answer: updated the manual, which will be uploaded 2) FYI pg 5 of SAR report lists 1528-200X - final 1528 was published in Dec 2003. Answer: has been changed in revised test report 3) FYI SAR pg 17 table is missing 5.825 row. Answer: see uploaded letter from TNO 4) FYI in future filings please include SAR system verification for both 5.3 and 5.8 GHz bands. Answer: Okay Please respond to the following: 5) In EA421029 EMC reports pg 7 or 8 show modulations and bit rates tested - please submit similar list and rationale for modes & rates tested in SAR report (QAM, PSK, etc.). Answer: see uploaded letter from TNO 6) SAR report pg 7 states: 10.8 dBm typically 5180 MHz-5320 MHz 14.9 dBm conducted @ 2.4 GHz 6.6 dBm conducted @ 5745-5825 MHz These do not agree with Form731 - please clarify, list correct numbers, and confirm/revise numbers for consistency in other exhibits (EMC, op. desc., etc.). Answer: above values for SAR are average values and in EMC report and FCC Form peak values have to be stated, thus there is a difference. I have updated the Operational Description document. 7) Please provide more details of 5ghz SAR liquid if available, e.g., list ingredients, spec. sheet, reference data. Answer: see uploaded letter from TNO 8) SAR report has uncertainty tables for 2.45 and 5.8 GHz - any differences for 5.3 GHz? Answer: see uploaded letter from TNO

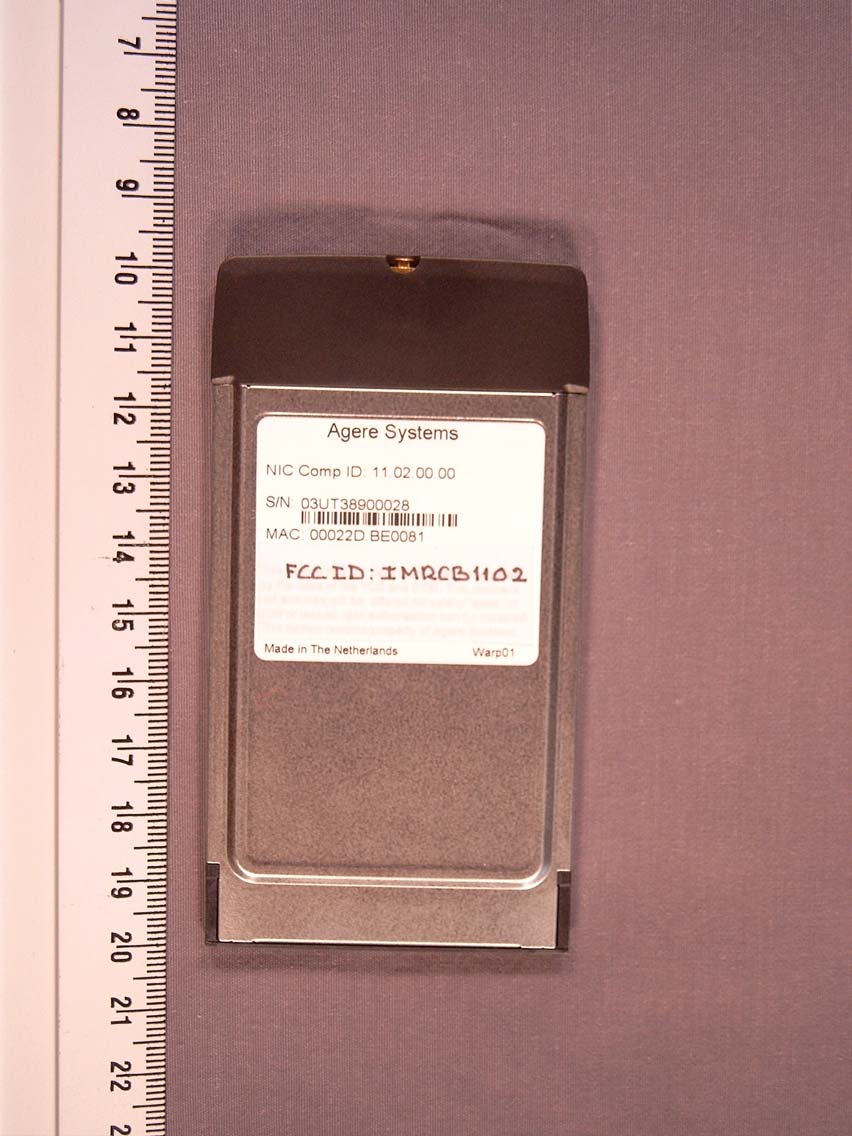

Testing and certification of electric, electronic and radio equipment/installations including telecommunication systems TNO Electronic Products & Services (EPS) B.V. P.O. Box 15 9822 ZG Niekerk (NL) Smidshornerweg 18 9822 TL Niekerk (NL) Telephone: +31 594 505005 Telefax: +31 594 504804 E-mail: [email protected] Web: www.eps.tno.nl Project number: 03111701.p01 Page 1 of 5 EXTERIOR PHOTOGRAPHS OF A 2.4/5 GHZ IEEE 802.11g/a WLAN CARDBUS CARD, BRAND AGERE, MODEL 1102. FCC listed Industry Canada VCCI registered : : : 90828 IC3501 R-1518, C-1598 Description of EUT: Manufacturer: Brand mark: Model: FCC ID: 2.4/5 GHz IEEE 802.11g/a WLAN Cardbus card Agere Systems Nederland B.V. Agere 1102 IMRCB1102 Project number: 03111701.p01 Page 2 of 5 Description of test item Test item : 2.4/5 GHz IEEE 802.11g/a WLAN Cardbus card Manufacturer : Agere Systems Nederland B.V. Brand : Agere Model : 1102 Serial numbers : 03UT38900028 Revision : B1 Receipt number : 1 Receipt date : November 17, 2003 Applicant information Applicant's representative : Mr. W. Kerkhof Company : Agere Systems Nederland B.V. Address : Zadelstede 1-10 Postal code : 3431 JZ City : Nieuwegein PO-box : 755 Postal code : 3430 AT City : Nieuwegein Country : The Netherlands Telephone number : +31 30 609 7534 Telefax number : +31 30 609 7556 This report is in conformity with NEN-EN-ISO/IEC 17025. This report shall not be reproduced, except in full, without the written permission of TNO Electronic Products & Services (EPS) B.V. The test results relate only to the item(s) tested. Description of EUT: Manufacturer: Brand mark: Model: FCC ID: 2.4/5 GHz IEEE 802.11g/a WLAN Cardbus card Agere Systems Nederland B.V. Agere 1102 IMRCB1102 Project number: 03111701.p01 Page 3 of 5 Table of contents 1 Exterior photographs. .............................................................................................................................................................4 1.1 Front view. .....................................................................................................................................................................4 1.2 Back view. ......................................................................................................................................................................5 Description of EUT: Manufacturer: Brand mark: Model: FCC ID: 2.4/5 GHz IEEE 802.11g/a WLAN Cardbus card Agere Systems Nederland B.V. Agere 1102 IMRCB1102 Project number: 03111701.p01 Page 4 of 5 1 Exterior photographs. 1.1 Front view. Description of EUT: Manufacturer: Brand mark: Model: FCC ID: 2.4/5 GHz IEEE 802.11g/a WLAN Cardbus card Agere Systems Nederland B.V. Agere 1102 IMRCB1102 Project number: 03111701.p01 Page 5 of 5 1.2 Back view.

FCC ID: IMR CB1102 LABEL , CONTENTS AND PLACEMENT

Testing and certification of electric, electronic and radio equipment/installations including telecommunication systems TNO Electronic Products & Services (EPS) B.V. P.O. Box 15 9822 ZG Niekerk (NL) Smidshornerweg 18 9822 TL Niekerk (NL) Telephone: +31 594 505005 Telefax: +31 594 504804 E-mail: [email protected] Web: www.eps.tno.nl Project number: 03111701.p02 Page 1 of 5 INTERIOR PHOTOGRAPHS OF A 2.4/5 GHZ IEEE 802.11g/a WLAN CARDBUS CARD, BRAND AGERE, MODEL 1102. FCC listed Industry Canada VCCI registered : : : 90828 IC3501 R-1518, C-1598 Description of EUT: Manufacturer: Brand mark: Model: FCC ID: 2.4/5 GHz IEEE 802.11g/a WLAN Cardbus card Agere Systems Nederland B.V. Agere 1102 IMRCB1102 Project number: 03111701.p02 Page 2 of 5 Description of test item Test item : 2.4/5 GHz IEEE 802.11g/a WLAN Cardbus card Manufacturer : Agere Systems Nederland B.V. Brand : Agere Model : 1102 Serial numbers : 03UT38900028 Revision : B1 Receipt number : 1 Receipt date : November 17, 2003 Applicant information Applicant's representative : Mr. W. Kerkhof Company : Agere Systems Nederland B.V. Address : Zadelstede 1-10 Postal code : 3431 JZ City : Nieuwegein PO-box : 755 Postal code : 3430 AT City : Nieuwegein Country : The Netherlands Telephone number : +31 30 609 7534 Telefax number : +31 30 609 7556 This report is in conformity with NEN-EN-ISO/IEC 17025. This report shall not be reproduced, except in full, without the written permission of TNO Electronic Products & Services (EPS) B.V. The test results relate only to the item(s) tested. Description of EUT: Manufacturer: Brand mark: Model: FCC ID: 2.4/5 GHz IEEE 802.11g/a WLAN Cardbus card Agere Systems Nederland B.V. Agere 1102 IMRCB1102 Project number: 03111701.p02 Page 3 of 5 Table of contents 1 Interior photographs. ..............................................................................................................................................................4 1.1 Top view PCB. ...............................................................................................................................................................4 1.2 Bottem view PCB. ..........................................................................................................................................................5 Description of EUT: Manufacturer: Brand mark: Model: FCC ID: 2.4/5 GHz IEEE 802.11g/a WLAN Cardbus card Agere Systems Nederland B.V. Agere 1102 IMRCB1102 Project number: 03111701.p02 Page 4 of 5 1 Interior photographs. 1.1 Top view PCB. Description of EUT: Manufacturer: Brand mark: Model: FCC ID: 2.4/5 GHz IEEE 802.11g/a WLAN Cardbus card Agere Systems Nederland B.V. Agere 1102 IMRCB1102 Project number: 03111701.p02 Page 5 of 5 1.2 Bottem view PCB.

Testing and certification of electric, electronic and radio equipment/installations including telecommunication systems TNO Electronic Products & Services (EPS) B.V. P.O. Box 15 9822 ZG Niekerk (NL) Smidshornerweg 18 9822 TL Niekerk (NL) Telephone: +31 594 505005 Telefax: +31 594 504804 E-mail: [email protected] Web: www.eps.tno.nl Project number: 03111701.p02 Page 1 of 5 INTERIOR PHOTOGRAPHS OF A 2.4/5 GHZ IEEE 802.11g/a WLAN CARDBUS CARD, BRAND AGERE, MODEL 1102. FCC listed Industry Canada VCCI registered : : : 90828 IC3501 R-1518, C-1598 Description of EUT: Manufacturer: Brand mark: Model: FCC ID: 2.4/5 GHz IEEE 802.11g/a WLAN Cardbus card Agere Systems Nederland B.V. Agere 1102 IMRCB1102 Project number: 03111701.p02 Page 2 of 5 Description of test item Test item : 2.4/5 GHz IEEE 802.11g/a WLAN Cardbus card Manufacturer : Agere Systems Nederland B.V. Brand : Agere Model : 1102 Serial numbers : 03UT38900028 Revision : B1 Receipt number : 1 Receipt date : November 17, 2003 Applicant information Applicant's representative : Mr. W. Kerkhof Company : Agere Systems Nederland B.V. Address : Zadelstede 1-10 Postal code : 3431 JZ City : Nieuwegein PO-box : 755 Postal code : 3430 AT City : Nieuwegein Country : The Netherlands Telephone number : +31 30 609 7534 Telefax number : +31 30 609 7556 This report is in conformity with NEN-EN-ISO/IEC 17025. This report shall not be reproduced, except in full, without the written permission of TNO Electronic Products & Services (EPS) B.V. The test results relate only to the item(s) tested. Description of EUT: Manufacturer: Brand mark: Model: FCC ID: 2.4/5 GHz IEEE 802.11g/a WLAN Cardbus card Agere Systems Nederland B.V. Agere 1102 IMRCB1102 Project number: 03111701.p02 Page 3 of 5 Table of contents 1 Interior photographs. ..............................................................................................................................................................4 1.1 Top view PCB. ...............................................................................................................................................................4 1.2 Bottem view PCB. ..................................................................................................................................…
