IMRWLPC2411R2.4 GHz low power WLAN integrated PCMCIA card

Outdoor Antenna Installation Guide QTwPQ9Q Q‰ˆrƒƒ†Tƒ‰ˆs† 012706/C November 2000Copyright © 2000 Lucent Technologies Inc. All Rights ReservedYou can find the latest software & documentation at:http://www.lucent.com/orinoco COV_ODC.fm Page 1 Monday, November 6, 2000 1:22 PM About this DocumentThe product described in this book is a licensed product of Lucent Technologies Inc.• ORiNOCO, WaveLAN, WaveACCESS, WavePOINT and WaveMANAGER are registered trademarks or trademarks of Lucent Technologies Inc. • Microsoft MS-Windows and MS-DOS are registered trademarks or trademarks of Microsoft Corporation. • Adobe Acrobat is a registered trademark of Adobe Systems Inc. All other brand and product names are trademarks or registered trademarks of their respective holders.This Document was created by:Lucent Technologies Nederland B.V.Wireless Communications & Networking Division (WCND)P. O . B o x 7 5 53430 AT NieuwegeinThe NetherlandsAn electronic copy of this document is also available on the enclosed software CD-ROM. Updates of this document can be downloaded from the ORiNOCO Library on the World Wide Web at http://www.lucent.com/orinoco . To view or print the electronic document, in Adobe’s Portable Document Format (PDF), you will need the Adobe Acrobat Reader®, included on the enclosed Software CD-ROM. Alternatively, consult the Adobe website at: http://www.adobe.com . November 6, 2000 It is the policy of Lucent Technologies to improve products as new technology, components, software, and firmware become available. Lucent Technologies, therefore, reserves the right to change specifications without prior notice.All features, functions, and operations described herein may not be marketed by Lucent Technologies in all parts of the world. In some instances, drawings are of equipment prototypes. Therefore, before using this document, consult your Lucent Technologies representative or Lucent Technologies office for information that is applicable and current. Copyright ©2000 Lucent Technologies Inc., All Rights Reserved COV_ODC.fm Page 2 Monday, November 6, 2000 1:22 PM ORiNOCO Outdoor Antenna Installation Guidei 1Welcome1-1 About This Guide 1-1
Who Should Use This Guide 1-1
Finding Additional Information 1-2 About ORiNOCO Outdoor Router 1-4 2Preparing for Installation2-1 Site Prerequisites 2-1 Overview of the Indoor Installation 2-2
Outdoor Router Hardware 2-2
Cable System 2-5 Overview of the Outdoor Installation 2-8
Antenna Placement 2-8
Antenna Mast/Wall Bracket 2-11
Grounding System 2-12
Antenna Cable Routing 2-14 Before Climbing the Roof... 2-15 3Determine Range & Clearance3-1 Introduction 3-1 Determine the Outdoor Range 3-2
Determine the Maximum Range 3-3
Determine the Cable Factor 3-7
Determine the Clearance Factor 3-8 Table of Contents iiORiNOCO Outdoor Antenna Installation Guide Examples 3-13
Point-to-Point Links 3-13
Point-to-MultiPoint Links 3-15 4Installing the Antenna4-1 Planning Antenna Installation 4-1
Safety Precautions 4-1
Installation Overview 4-3 Mounting the Antenna 4-5 Connecting the Antenna Cable 4-6
Sealing the Cable Connectors 4-7 AThe Antenna Cabling SystemA-1 The Outdoor Cabling Components A-1
Selecting the Correct Connector-Type A-2 ORiNOCO Cable Assembly A-6 ORiNOCO Surge Arrester A-7 Low-Loss Antenna Cable A-9 B14 dBi Directional AntennaB-1 General Description B-1
Contents of the Antenna Box B-1
Mounting the Directional Antenna B-1 C7 dBi Omni-Directional Base Station AntennaC-1 Hardware Specifications C-1
Mounting the Omni-directional Antenna C-1 ORiNOCO Outdoor Antenna Installation Guideiii D10 dBi Omni-Directional Base Station AntennaD-1 Hardware Specifications D-1
Mounting Instructions D-1 E12 dBi Directional Wide Angle AntennaE-1 Hardware Specifications E-1
Mounting Instructions E-1 F24 dBi Directional Parabolic Grid AntennaF-1 Hardware Specifications F-1
Kit Contents F-2
Assembling the Antenna F-2
Mounting the Antenna F-4 GCertified Outdoor SolutionsG-1 Introduction G-1 Selecting the Right Card & Cables G-3 Regulatory Information G-7 HSupport & WarrantyH-1 Technical Support H-1 Warranty and Repair H-2 IndexIX-1 List of FiguresLOF-1 List of TablesLOT-1 Contents 1 Welcome About This Guide 1-1 Who Should Use This Guide1-1 Finding Additional Information1-2
Installing Outdoor Router Hardware 1-2
Configuration and Management 1-2
Context-Sensitive Help 1-3
Hardware Specifications 1-3
Additional files on your Software CD-ROM 1-3
Other Sources of Information 1-3 About ORiNOCO Outdoor Router 1-4
ORiNOCO Remote Outdoor Router 1-4
ORiNOCO Central Outdoor Router 1-5
Upgrading the ORiNOCO Outdoor Router 1-6 ORiNOCO Outdoor Antenna Installation Guide1-1 Welcome About This Guide This ORiNOCO Outdoor Antenna Installation Guide explains how to install and set-up an outdoor antenna installation based on ORiNOCO PC Cards that will be used in combination with:
ORiNOCO Outdoor Router products 1
ORiNOCO Client products There is also a chapter about verifying the wireless link quality and correcting problems that might arise during installation or operation. This guide does not explain how to erect antenna masts, or how to install a safety grounding system. These are pre-requisites that must be in place before the directional antenna is installed. Who Should Use This Guide The installation of Outdoor Antenna Links requires technical expertise. At the very least, you should be able to:
Install and configure the network components, such as the Outdoor Router and the ORiNOCO LAN administrator’s station.
Understand or have a working knowledge of the installation procedures for network operating systems under Microsoft Windows 95/98 and/or Microsoft Windows NT.
Mount the outdoor antenna and surge arrester. Lucent Technologies recommends that the installation is performed by a qualified antenna installation service. 1 Formerly also referred to as WavePOINT-II PTP, WaveACCESS Link WP-II or WaveCAMPUS. Welcome About This Guide 1-2ORiNOCO Outdoor Antenna Install…

Text truncated - open the document above for the full version.

Lucent Technologies Nederland B.V. (WCND) Wke/outdoor/991214/A External Antenna overview for Outdoor Testing at SENTON External Antenna Cable assembly Total Total Remarks P/N Designator Model Manuf Manuf P/N Type Gain (dBi) P/N Std-N Rev-N Cable Type Length loss (dB) 1) Gain (dBi) LUCENT 012741 AOU24-OD-10 Telex 2439 LT Omni 10 011463 na LMR400 20ft 2.9 7.1 010998 010999 LMR200 20ft 4.5 5.5 011000 010317 LMR400 50ft 4.5 5.5 011001 011002 LMR400 75ft 5.3 4.7 012742 AOU24-WA-12-A Wide angle Superpass SPWB4PDGE11N Directional 12 011463 na LMR400 20ft 2.9 9.1 patch 010998 010999 LMR200 20ft 4.5 7.5 011000 010317 LMR400 50ft 4.5 7.5 011001 011002 LMR400 75ft 5.3 6.7 012742 AOU24-WA-12-B Wide angle Telex 2443LT Directional 12 011463 na LMR400 20ft 2.9 9.1 010998 010999 LMR200 20ft 4.5 7.5 011000 010317 LMR400 50ft 4.5 7.5 011001 011002 LMR400 75ft 5.3 6.7 012743 AOU24-DI-24 Parabolic Conifer Andrew 26T2400F Directional 23.5 011463 na LMR400 20ft 2.9 20.6 grid 010998 010999 LMR200 20ft 4.5 19.0 011000 010317 LMR400 50ft 4.5 19.0 011001 011002 LMR400 75ft 5.3 18.2 011003 AOU24-YA-1414 Yagi Telex 2415LTN Directional 13.5 011463 na LMR400 20ft 2.9 10.6 (010191, See 010998 010999 LMR200 20ft 4.5 9.0 note 4) 011000 010317 LMR400 50ft 4.5 9.0 011001 011002 LMR400 75ft 5.3 8.2 011005 (011006) AOU24-OD-77 MaxRad Z483 Omni 7 011463 na LMR400 20ft 2.9 4.1 010998 010999 LMR200 20ft 4.5 2.5 011000 010317 LMR400 50ft 4.5 2.5 011001 011002 LMR400 75ft 5.3 1.7 010994 (010993) AOU24-OD-55 Larssen FB45ST2400WA Omni 5 011161 011160 Filotex 2.5m 3.3 1.7 012843 AOU24-OD-55 - B Telex Mobile Omni 5 Fixed na Filotex 2.5m 3.3 1.7 010096 AIN24-OD-0202-0 Lucent -- Omni -- na na Filotex 1.5m -- 2.0 RF connector na 010777 010995 Filotex 50cm 0.9 RF IEEE cable na 010997 010996 na 0.4 Lightning Protector LXE 155845-0001 -- Spire LXE 155845-0001 Omni 6 -- RG-58 5.25 in. 1 5 155846-0001 -- Spire LXE 155846-0001 Omni 3 -- RG-58 5.25 in. 1 2 153180-0001 -- None Cushcraft RTN2400SXR Omni 2.2 -- Filotex 8 inch 1 1.2 480429-0400 -- None MaxRad MHWS2400WRPC Omni 2.2 -- Filotex 8 inch 1 1.2 NOTES: 1. Total loss LMR cable assy includes LMR cable + Surge Arrestor + RF IEEE cable 2. Cable type LMR 200 (Times Microwave) identical toTWB2001 (Amph enol) and LMR400 identical to TWB40001. Note that Amphenol own s Times Microwave. 3. The antenna part numbers shown between brackets refer to the Reversed N connector attached. 4. This part number supersedes pn 011004 as initially assigned. T he latter was also used in the different test reports of the Y agi antenna. No functional differences. Just a wrong part number

TNO Electronic Products & Services (EPS) B.V. Nederlandse Organisatie voor toegepast-natuurwetenschappelijk onderzoek / Netherlands Organisation for Applied Scientific Research Smidshornerweg 18 P.O. Box 15 9822 ZG Niekerk The Netherlands www.tno.nl T +31 594 505005 F +31 594 504804 E [email protected] Subject Cover letter Date July 5, 2002 Our reference 02K0654 Your reference - Page 1 of 3 Our General Terms and Conditions, as filed at the Chamber of Commerce in Groningen, are applicable to all orders given to TNO Electronic Products & Services (EPS) B.V. TNO Electronic Products & Services (EPS) B.V. is registered at the Chamber of Commerce in Groningen with no. 27247331. Return address: P.O. Box 15, 9822 ZG Niekerk, The Netherlands Telefication B.V. Attn.: W. Blom Edisonstraat 12a 6902 PK Zevenaar The Netherlands Dear Mr. Blom, On behalf of our customer Agere Systems Nederland B.V., we hereby would like to apply for FCC certification (modular approval, see attachment to this letter) of the following device: FCC ID : IMRWLPC2411R Brand : Agere Model number : PC24-11-FC/R Description : 2.4 GHz low power integrated PCMCIA card The following PDF files (exhibits) are electronically submitted: 1. Cover letter with request for FCC certification 2. Request for confidentiality 3. Form 731 4. Test reports in conformity with 47 CFR Part 15 5. Block diagram 6. Operational description 7. Bill of materials 8. Circuit diagram 9. Interior photographs 10. Exterior photographs 11. Test setup photographs 12. Label information 13. User manual including professional installer statement 14. RF exposure statement 15. Antenna information and photographs 16. Authorization letter Best regards, TNO Electronic Products & Services (EPS) B.V. P.A.J.M. Robben, B.Sc.E.E. Marketing Manager Nederlandse Organisatie voor toegepast-natuurwetenschappelijk onderzoek / Netherlands Organisation for Applied Scientific Research Date July 5, 2002 Our reference 02K0654 Your reference - Page 2 of 3 Excerpt of DA 00-1407 In order to obtain a modular transmitter approval, a cover letter requesting modular approval must be submitted and the numbered requirements identified below must be addressed in the application for equipment authorization. 1. The modular transmitter must have its own RF shielding. This is intended to ensure that the module does not have to rely upon the shielding provided by the device into which it is installed in order for all modular transmitter emissions to comply with Part 15 limits. It is also intended to prevent coupling between the RF circuitry of the module and any wires or circuits in the device into which the module is installed. Such coupling may result in non-compliant operation. Remark: The transmitter has its own RF shielding. 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. Remark: The transmitter has buffered modulation/data inputs. 3. The modular transmitter must have its own power supply regulation. This is intended to ensure that the module will comply with Part 15 requirements regardless of the design of the power supplying circuitry in the device into which the module is installed. Remark: The transmitter has its own integrated and dedicated power supply regulation. 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The antenna must either be permanently attached or employ a ìuniqueî antenna coupler (at all connections between the module and the antenna, including the cable). Any antenna used with the module must be approved with the module, either at the time of initial authorization or through a Class II permissive change. The ìprofessional installationî provision of Section 15.203 may not be applied to modules. Remark: The transmitter has unique antenna connectors, which are manufactured solely for the manufacturer of the transmitter. 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified or commercially available (see Section 15.31(i)). Nederlandse Organisatie voor toegepast-natuurwetenschappelijk onderzoek / Netherlands Organisation for Applied Scientific Research Date July 5, 2002 Our reference 02K0654 Your reference - Page 3 of 3 Remark: The transmitter will only be sold to integrators, which are instructed to retest radiated and conducted emissions in accordance with Part 15 with the transmitter built into a typical configuration. 6. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: ìContains Transmitter Module FCC ID: XYZMODEL1î or ìContains FCC ID: XYZMODEL1.î Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the applicat…

Text truncated - open the document above for the full version.

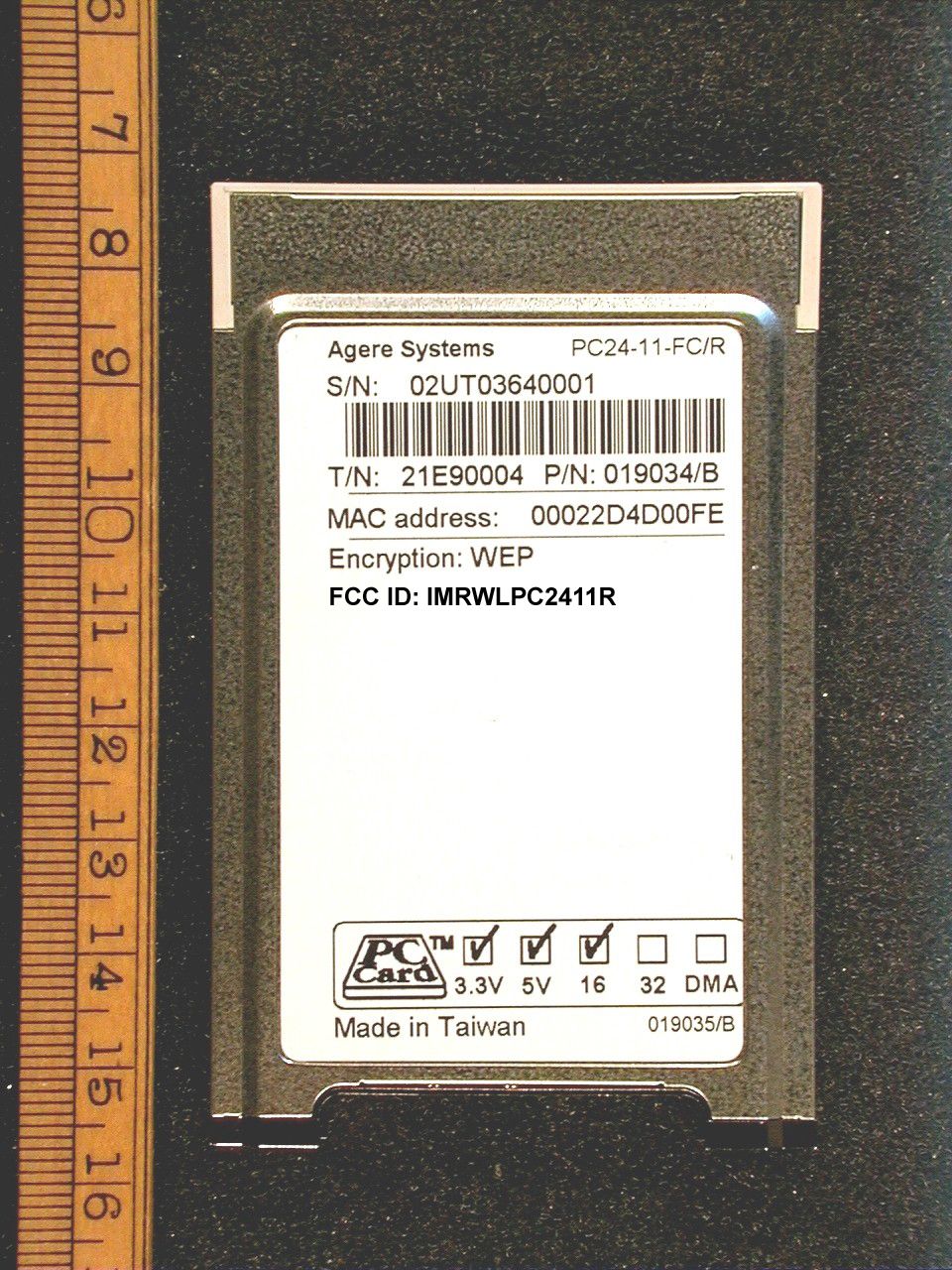

Testing and certification of, consultancy and research concerning, electronic and electric appliances, systems, installations and telecommunication systems TNO Electronic Products & Services (EPS) B.V. P.O. Box 15 9822 ZG Niekerk (NL) Smidshornerweg 18 9822 TL Niekerk (NL) Telephone: +31 594 505005 Telefax: +31 594 504804 E-mail: [email protected] Project number: 02060302.p02 Page 1 of 7 EXTERIOR PHOTOGRAPHS OF A 2.4 GHZ LOW POWER WLAN INTEGRATED PCMCIA CARD, BRAND AGERE, TYPE PC24-11-FC/R. Description of EUT: Manufacturer: Brand mark: Type: FCC ID: 2.4 GHz low power WLAN integrated PCMCIA card Agere Systems Nederland B.V. Agere PC24-11-FC/R IMRWLPC2411R Project number: 02060302.p02 Page 2 of 7 Description of test item Test item : 2.4 GHz low power WLAN integrated PCMCIA card Manufacturer : Agere Systems Nederland B.V. Brand : Agere Type : PC24-11-FC/R Serial number : 02UT03640001 Revision : n.a. Receipt number : 2 Receipt date : March 25, 2002 Applicant information Applicant's representative : Mr. M. Koop Company : Agere Systems Nederland B.V. Address : Zadelstede 1-10 Postal code : 3431 JZ City : Nieuwegein PO-box : 755 Postal code : 3430 AT City : Nieuwegein Country : The Netherlands Telephone number : +31 30 607 6520 Telefax number : +31 30 609 7556 Order number : n.a. This report is in conformity with NEN-EN-ISO/IEC 17025: 2000. This report shall not be reproduced, except in full, without the written permission of TNO Electronic Products & Services (EPS) B.V. The test results relate only to the item(s) tested. Description of EUT: Manufacturer: Brand mark: Type: FCC ID: 2.4 GHz low power WLAN integrated PCMCIA card Agere Systems Nederland B.V. Agere PC24-11-FC/R IMRWLPC2411R Project number: 02060302.p02 Page 3 of 7 Table of contents 1 Exterior photographs. .............................................................................................................................................................. 4 1.1 Top view. ......................................................................................................................................................................... 4 1.2 Bottom view. ................................................................................................................................................................... 5 1.3 Side view (antenna connectors). ...................................................................................................................................... 6 1.4 Side view (PCMCIA connector). .................................................................................................................................... 7 Description of EUT: Manufacturer: Brand mark: Type: FCC ID: 2.4 GHz low power WLAN integrated PCMCIA card Agere Systems Nederland B.V. Agere PC24-11-FC/R IMRWLPC2411R Project number: 02060302.p02 Page 4 of 7 1 Exterior photographs. 1.1 Top view. Description of EUT: Manufacturer: Brand mark: Type: FCC ID: 2.4 GHz low power WLAN integrated PCMCIA card Agere Systems Nederland B.V. Agere PC24-11-FC/R IMRWLPC2411R Project number: 02060302.p02 Page 5 of 7 1.2 Bottom view. Description of EUT: Manufacturer: Brand mark: Type: FCC ID: 2.4 GHz low power WLAN integrated PCMCIA card Agere Systems Nederland B.V. Agere PC24-11-FC/R IMRWLPC2411R Project number: 02060302.p02 Page 6 of 7 1.3 Side view (antenna connectors). Description of EUT: Manufacturer: Brand mark: Type: FCC ID: 2.4 GHz low power WLAN integrated PCMCIA card Agere Systems Nederland B.V. Agere PC24-11-FC/R IMRWLPC2411R Project number: 02060302.p02 Page 7 of 7 1.4 Side view (PCMCIA connector).

Testing and certification of, consultancy and research concerning, electronic and electric appliances, systems, installations and telecommunication systems TNO Electronic Products & Services (EPS) B.V. P.O. Box 15 9822 ZG Niekerk (NL) Smidshornerweg 18 9822 TL Niekerk (NL) Telephone: +31 594 505005 Telefax: +31 594 504804 E-mail: [email protected] Project number: 02060302.p04 Page 1 of 12 EXTERIOR PHOTOGRAPHS OF ANTENNAS INTENDED TO USED IN COMBINATION WITH A 2.4 GHZ LOW POWER WLAN INTEGRATED PCMCIA CARD, BRAND AGERE, TYPE PC24-11-FC/R. Description of EUT: Manufacturer: Brand mark: Type: FCC ID: 2.4 GHz low power WLAN integrated PCMCIA card Agere Systems Nederland B.V. Agere PC24-11-FC/R IMRWLPC2411R Project number: 02060302.p04 Page 2 of 12 Description of test item Test item : 2.4 GHz low power WLAN integrated PCMCIA card Manufacturer : Agere Systems Nederland B.V. Brand : Agere Type : PC24-11-FC/R Serial number : 02UT03640001 Revision : n.a. Receipt number : 2 Receipt date : March 25, 2002 Applicant information Applicant's representative : Mr. M. Koop Company : Agere Systems Nederland B.V. Address : Zadelstede 1-10 Postal code : 3431 JZ City : Nieuwegein PO-box : 755 Postal code : 3430 AT City : Nieuwegein Country : The Netherlands Telephone number : +31 30 607 6520 Telefax number : +31 30 609 7556 Order number : n.a. This report is in conformity with NEN-EN-ISO/IEC 17025: 2000. This report shall not be reproduced, except in full, without the written permission of TNO Electronic Products & Services (EPS) B.V. The test results relate only to the item(s) tested. Description of EUT: Manufacturer: Brand mark: Type: FCC ID: 2.4 GHz low power WLAN integrated PCMCIA card Agere Systems Nederland B.V. Agere PC24-11-FC/R IMRWLPC2411R Project number: 02060302.p04 Page 3 of 12 Table of contents 1 Exterior photographs. .............................................................................................................................................................. 4 1.1 Omni-directional antenna, type AIN24-OD-0202-0. ...................................................................................................... 4 1.2 Omni-directional antenna, type AIN24-OD-03............................................................................................................... 5 1.3 Omni-directional antenna, type AOU24-OD-55-B. ........................................................................................................ 6 1.4 Omni-directional antenna, type AOU24-OD-77. ............................................................................................................ 7 1.5 Omni-directional antenna, type AOU24-OD-10. ............................................................................................................ 8 1.6 Wide-angle directional antenna, type AOU24-WA-12-x................................................................................................ 9 1.7 Directional Yagi antenna, type AOU24-YA-1414. ....................................................................................................... 10 1.8 Adapter cable N to non-standard connector. ................................................................................................................. 11 1.9 Surge arrestor................................................................................................................................................................. 12 Description of EUT: Manufacturer: Brand mark: Type: FCC ID: 2.4 GHz low power WLAN integrated PCMCIA card Agere Systems Nederland B.V. Agere PC24-11-FC/R IMRWLPC2411R Project number: 02060302.p04 Page 4 of 12 1 Exterior photographs. 1.1 Omni-directional antenna, type AIN24-OD-0202-0. Description of EUT: Manufacturer: Brand mark: Type: FCC ID: 2.4 GHz low power WLAN integrated PCMCIA card Agere Systems Nederland B.V. Agere PC24-11-FC/R IMRWLPC2411R Project number: 02060302.p04 Page 5 of 12 1.2 Omni-directional antenna, type AIN24-OD-03. Description of EUT: Manufacturer: Brand mark: Type: FCC ID: 2.4 GHz low power WLAN integrated PCMCIA card Agere Systems Nederland B.V. Agere PC24-11-FC/R IMRWLPC2411R Project number: 02060302.p04 Page 6 of 12 1.3 Omni-directional antenna, type AOU24-OD-55-B. Description of EUT: Manufacturer: Brand mark: Type: FCC ID: 2.4 GHz low power WLAN integrated PCMCIA card Agere Systems Nederland B.V. Agere PC24-11-FC/R IMRWLPC2411R Project number: 02060302.p04 Page 7 of 12 1.4 Omni-directional antenna, type AOU24-OD-77. Description of EUT: Manufacturer: Brand mark: Type: FCC ID: 2.4 GHz low power WLAN integrated PCMCIA card Agere Systems Nederland B.V. Agere PC24-11-FC/R IMRWLPC2411R Project number: 02060302.p04 Page 8 of 12 1.5 Omni-directional antenna, type AOU24-OD-10. Description of EUT: Manufacturer: Brand mark: Type: FCC ID: 2.4 GHz low power WLAN integrated PCMCIA card Agere Systems Nederland B.V. Agere PC24-11-FC/R IMRWLPC2411R Project number: 02060302.p04 Page 9 of 12 1.6 Wide-angle directional antenna, type AOU24-WA-12-x. Description of EUT: Manufacturer: Brand mark: Type: FCC ID: 2.4 GHz low power WLAN integrated PCMCIA card Agere Systems Nederland B.V. Agere PC24-11-FC/R IMRWLPC2411R Project number: 02060302.p04 Page 10 of 12 1.7 Directional Yagi antenna, type AOU24-YA-1414. Description of EUT: Manufacturer: Brand mark: Type: FCC ID: 2.4 GHz low power WLAN integrated PCMCIA card Agere Systems Nederland B.V. Agere PC24-11-FC/R IMRWLPC2411R Project number: 02060302.p04 Page 11 of 12 1.8 Adapter cable N to non-standard connector. Description of EUT: Manufacturer: Brand mark: Type: FCC ID: 2.4 GHz low power WLAN integrated PCMCIA card Agere Systems Nederland B.V. Agere PC24-11-FC/R IMRWLPC2411R Project number: 02060302.p04 Page 12 of 12 1.9 Surge arrestor.

Testing and certification of, consultancy and research concerning, electronic and electric appliances, systems, installations and telecommunication systems TNO Electronic Products & Services (EPS) B.V. P.O. Box 15 9822 ZG Niekerk (NL) Smidshornerweg 18 9822 TL Niekerk (NL) Telephone: +31 594 505005 Telefax: +31 594 504804 E-mail: [email protected] Project number: 02060302.p03 Page 1 of 7 INTERIOR PHOTOGRAPHS OF A 2.4 GHZ LOW POWER WLAN INTEGRATED PCMCIA CARD, BRAND AGERE, TYPE PC24-11-FC/R. Description of EUT: Manufacturer: Brand mark: Type: FCC ID: 2.4 GHz low power WLAN integrated PCMCIA card Agere Systems Nederland B.V. Agere PC24-11-FC/R IMRWLPC2411R Project number: 02060302.p03 Page 2 of 7 Description of test item Test item : 2.4 GHz low power WLAN integrated PCMCIA card Manufacturer : Agere Systems Nederland B.V. Brand : Agere Type : PC24-11-FC/R Serial number : 02UT03640001 Revision : n.a. Receipt number : 2 Receipt date : March 25, 2002 Applicant information Applicant's representative : Mr. M. Koop Company : Agere Systems Nederland B.V. Address : Zadelstede 1-10 Postal code : 3431 JZ City : Nieuwegein PO-box : 755 Postal code : 3430 AT City : Nieuwegein Country : The Netherlands Telephone number : +31 30 607 6520 Telefax number : +31 30 609 7556 Order number : n.a. This report is in conformity with NEN-EN-ISO/IEC 17025: 2000. This report shall not be reproduced, except in full, without the written permission of TNO Electronic Products & Services (EPS) B.V. The test results relate only to the item(s) tested. Description of EUT: Manufacturer: Brand mark: Type: FCC ID: 2.4 GHz low power WLAN integrated PCMCIA card Agere Systems Nederland B.V. Agere PC24-11-FC/R IMRWLPC2411R Project number: 02060302.p03 Page 3 of 7 Table of contents 1 Interior photographs. ............................................................................................................................................................... 4 1.1 Top view PCB (with shielding). ...................................................................................................................................... 4 1.2 Top view PCB (without shielding).................................................................................................................................. 5 1.3 Bottom view PCB. ........................................................................................................................................................... 6 1.4 PCMCIA card assembly. ................................................................................................................................................. 7 Description of EUT: Manufacturer: Brand mark: Type: FCC ID: 2.4 GHz low power WLAN integrated PCMCIA card Agere Systems Nederland B.V. Agere PC24-11-FC/R IMRWLPC2411R Project number: 02060302.p03 Page 4 of 7 1 Interior photographs. 1.1 Top view PCB (with shielding). Description of EUT: Manufacturer: Brand mark: Type: FCC ID: 2.4 GHz low power WLAN integrated PCMCIA card Agere Systems Nederland B.V. Agere PC24-11-FC/R IMRWLPC2411R Project number: 02060302.p03 Page 5 of 7 1.2 Top view PCB (without shielding) Description of EUT: Manufacturer: Brand mark: Type: FCC ID: 2.4 GHz low power WLAN integrated PCMCIA card Agere Systems Nederland B.V. Agere PC24-11-FC/R IMRWLPC2411R Project number: 02060302.p03 Page 6 of 7 1.3 Bottom view PCB. Description of EUT: Manufacturer: Brand mark: Type: FCC ID: 2.4 GHz low power WLAN integrated PCMCIA card Agere Systems Nederland B.V. Agere PC24-11-FC/R IMRWLPC2411R Project number: 02060302.p03 Page 7 of 7 1.4 PCMCIA card assembly.

Declaration on radiation safety standard conformance To whom it may concern: Agere Systems Nederland B.V. Zadelstede 1-10 3431 JZ Nieuwegein The Netherlands declares that the following product Description : 2.4 GHz low power WLAN integrated PCMCIA card FCC ID : IMRWLPC2411R Manufacturer : Agere Systems Nederland B.V. Brand : Agere Type number : PC24-11-FC/R has a maximum peak output power of +18.4 dBm (69.2 mW). This intentional radiator is intended for connection to fixed-mounted antennas, which must be installed with a separation distance of at least 2 meters from all persons during normal operation. It has been determined that the worst-case antenna (with respect to antenna gain) which may be connected to the 2.4 GHz low power WLAN integrated PCMCIA card, has an effective antenna gain of 21.5 dBi. This means that the worst-case prediction of power density (100% reflection) at 200 cm distance (worst-case) can be calculated as follows: EIRP S = 4*π * R 2 (power density without reflection) 2 2 *EIRP S = 4*π * R 2 (power density with 100% reflection) 2 2 *EIRP 9774.75 mW S = 4*π * R 2 = π*(200cm) 2 = 0.08 mW/cm 2 (limit = 1.0 mW/cm 2 ) This means that according to OET Bulletin 65 (Edition 97-01), Supplement C (Edition 01-01), the equipment fulfills the requirements on power density for general population/uncontrolled exposure and therefore fulfills the requirements of CFR 47 Part 15.247(b)(4).

Testing and certification of, consultancy and research concerning, electronic and electric appliances, systems, installations and telecommunication systems TNO Electronic Products & Services (EPS) B.V. P.O. Box 15 9822 ZG Niekerk (NL) Smidshornerweg 18 9822 TL Niekerk (NL) Telephone: +31 594 505005 Telefax: +31 594 504804 E-mail: [email protected] Project number: 02060302.r01 Page 1 of 38 TEST REPORT OF A 2.4 GHZ LOW POWER WLAN INTEGRATED PCMCIA CARD, BRAND AGERE, TYPE PC24-11-FC/R, IN CONFORMITY WITH 47 CFR PART 15 (2001-12-18). Test specification(s): Description of EUT: Manufacturer: Brand mark: Type: FCC ID: 47 CFR Part 15 (2001-12-18) 2.4 GHz low power WLAN integrated PCMCIA card Agere Systems Nederland B.V. Agere PC24-11-FC/R IMRWLPC2411R Project number: 02060302.r01 Page 2 of 38 MEASUREMENT/TECHNICAL REPORT Agere Systems Nederland B.V. Model : PC24-11-FC/R FCC ID: IMRWLPC2411R April 29, 2002 This report concerns: Original grant/certification Class 2 c…
