INGJH-D5Wireless Microphone

List of Exhibit EXHIBIT A Sample Label EXHIBIT B Test Report EXHIBIT C User Manual EXHIBIT D Circuit Diagram EXHIBIT E Block Diagram EXHIBIT F Photographs of EUT EXHIBIT A Sample Label LABEL Format: This device complies with Part 74 of the FCC Rules FCC ID:INGJH-D5 LABEL Size: 30 X 20 mm LABEL Position:

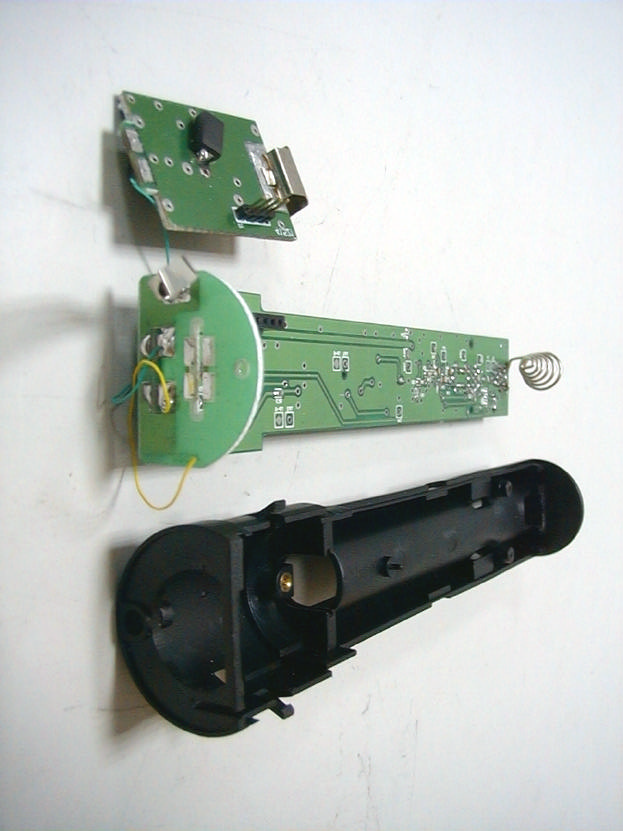

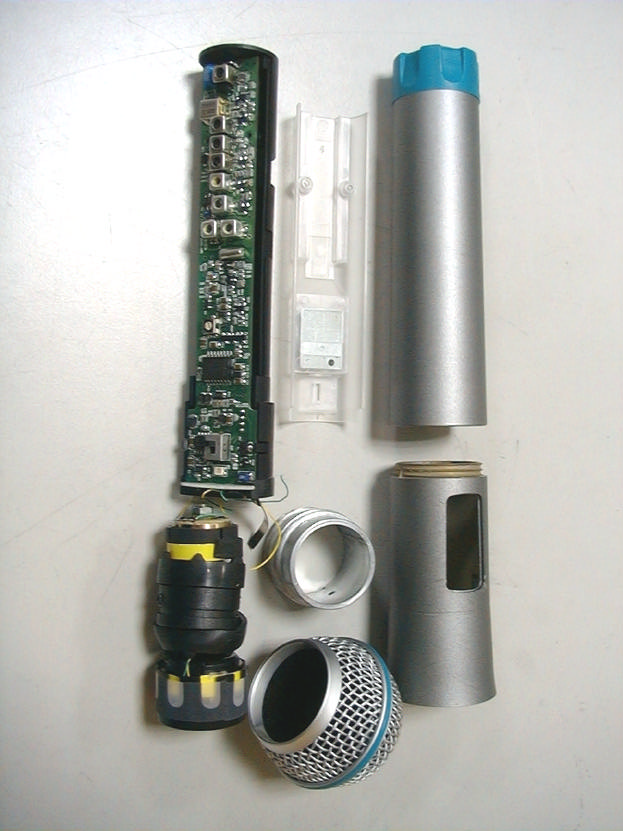

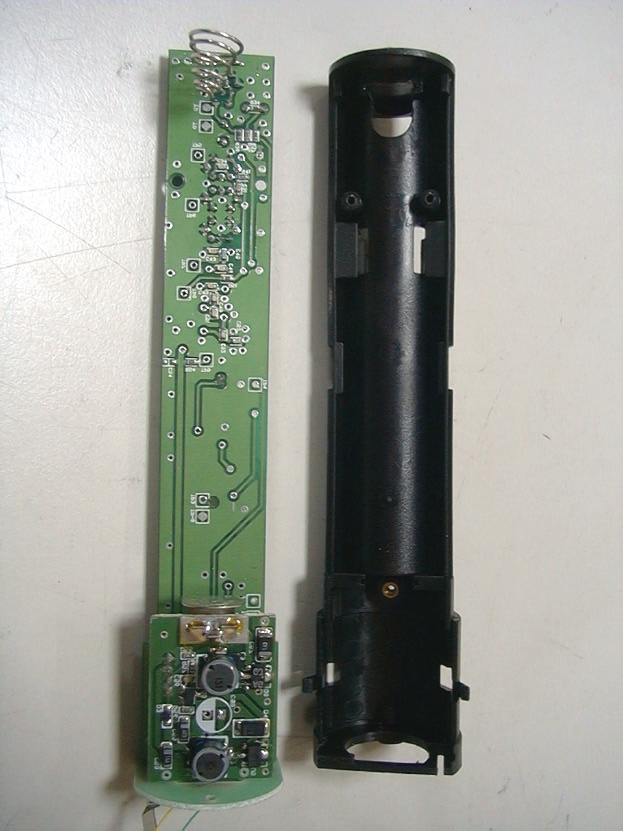

EXHIBIT F Photographs of EUT

EXHIBIT B Test Report Test Report ------------------------------------------------------------------------------ 2/38 Report No.: T6474181 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Contents Chapter 0Application for Certification........................................................ 4 Chapter 1General 1.1 Introduction.................................................................................................................... 5 1.2 Description of Support Equipment.................................................................................. 5 1.3 Configuration of System Under Test................................................................................ 6 1.4 Location of the Measurement Site................................................................................... 6 1.5 General Test Condition................................................................................................... 6 Chapter 2Power Output Measurement 2.1 Rules and Specification Limits......................................................................................... 7 2.2 Measurement Condition and Setup................................................................................. 7 2.3 List of Measurement Instrument...................................................................................... 8 2.4 Measurement Configuration............................................................................................ 9 2.5 Measurement Result...................................................................................................... 10 Chapter 3Modulation Characteristics Measurement 3.1 Rules and Specification Limits........................................................................................ 11 3.2 Test Configuration & List of Test Instruments................................................................. 11 3.3 Measurement Condition & Setup................................................................................... 12 3.4 Frequency Response of Audio Low Pass Filter Measurement Condition & Setup........... 12 3.5 Modulation Limiting Measurement Condition & Setup.................................................... 12 Chapter 4Occupied Bandwidth Measurement & Calculation 4.1 Rules and Specification Limits........................................................................................ 15 4.2 Test Condition & Test Instruments................................................................................. 15 4.3 Measurement Procedure................................................................................................ 16 4.4 Measurement Result...................................................................................................... 16 Test Report ------------------------------------------------------------------------------ 3/38 Report No.: T6474181 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Chapter 5Field Strength of Spurious Radiation Measurement 5.1 Rules and Specification Limits........................................................................................ 17 5.2 Measurement Condition & Setup................................................................................... 17 5.3 List of Measurement Instruments.................................................................................... 18 5.4 Measurement Configuration........................................................................................... 19 5.5 Measurement Result...................................................................................................... 21 Chapter 6Frequency Stability Tolerance Measurement 6.1 Rules and Specification limits......................................................................................... 33 6.2 Measurement Condition & Setup with Temperature Variation......................................... 33 6.3 List of Measurement Instruments with Temperature Variation......................................... 33 6.4 Measurement Configuration with Temperature Variation................................................. 34 6.5 Measurement Result with Temperature Variation............................................................ 35 6.6 Measurement Condition & Setup with Voltage Variation................................................ 36 6.7 List of Measurement Instruments with Voltage Variation................................................. 36 6.8 Measurement Configuration with Voltage Variation........................................................ 37 6.9 Measurement Result with Voltage Variation................................................................... 38 Test Report ------------------------------------------------------------------------------ 4/38 Report No.: T6474181 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Chapter 0 Application for Certification 2.1033 ( c )( 1 ):TAKY ELECTRONICS CO., LTD.– applicant and manufacturer 2.1033 ( c )( 2 ):The equipment is a transmitter, wireless microphone Model No.: JH-D5 2.1033 ( c )( 3 ):Quantity production is planned. See Exhibit C 2.1033 ( c )( 4 ):Type of emission – F3E- FM Modulation 2.1033 ( c )( 5 ):100Hz ~ 16.484KHz 2.1033 ( c )( 6 ):0.732 mW 2.1033 ( c )( 7 ):Specification of 250 mW is met by the equipment in the applicable part 74.861 (e)(1) 2.1033 ( c )( 8 ):Final RF amplifier stage current : 3V, UM-3*2 2.1033 ( c )( 9 ):Description follows 2.1033 ( c )( 10 ):Complete circuit diagrams are included. No modification was made 2.1033 ( c )( 11 ):See Exhibit A. Instruction sheet to user included 2.1033 ( c )( 12 ):See Exhibit F. 2.1033 ( c )( 13 ):N/A 2.1033 ( c )( 14 ):Description follows. 2.1033 ( c )( 15 ) : N/A 2.1033 ( c )( 16 ) : N/A 2.1033 ( c )( 17 ) : N/A Test Report ------------------------------------------------------------------------------ 5/38 Report No.: T6474181 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Chapter…

Text truncated - open the document above for the full version.

EXHIBIT B Test Report Test Report ------------------------------------------------------------------------------ 2/38 Report No.: T6474181 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Contents Chapter 0Application for Certification........................................................ 4 Chapter 1General 1.1 Introduction.................................................................................................................... 5 1.2 Description of Support Equipment.................................................................................. 5 1.3 Configuration of System Under Test................................................................................ 6 1.4 Location of the Measurement Site................................................................................... 6 1.5 General Test Condition................................................................................................... 6 Chapter 2Power Output Measurement 2.1 Rules and Specification Limits......................................................................................... 7 2.2 Measurement Condition and Setup................................................................................. 7 2.3 List of Measurement Instrument...................................................................................... 8 2.4 Measurement Configuration............................................................................................ 9 2.5 Measurement Result...................................................................................................... 10 Chapter 3Modulation Characteristics Measurement 3.1 Rules and Specification Limits........................................................................................ 11 3.2 Test Configuration & List of Test Instruments................................................................. 11 3.3 Measurement Condition & Setup................................................................................... 12 3.4 Frequency Response of Audio Low Pass Filter Measurement Condition & Setup........... 12 3.5 Modulation Limiting Measurement Condition & Setup.................................................... 12 Chapter 4Occupied Bandwidth Measurement & Calculation 4.1 Rules and Specification Limits........................................................................................ 15 4.2 Test Condition & Test Instruments................................................................................. 15 4.3 Measurement Procedure................................................................................................ 16 4.4 Measurement Result...................................................................................................... 16 Test Report ------------------------------------------------------------------------------ 3/38 Report No.: T6474181 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Chapter 5Field Strength of Spurious Radiation Measurement 5.1 Rules and Specification Limits........................................................................................ 17 5.2 Measurement Condition & Setup................................................................................... 17 5.3 List of Measurement Instruments.................................................................................... 18 5.4 Measurement Configuration........................................................................................... 19 5.5 Measurement Result...................................................................................................... 21 Chapter 6Frequency Stability Tolerance Measurement 6.1 Rules and Specification limits......................................................................................... 33 6.2 Measurement Condition & Setup with Temperature Variation......................................... 33 6.3 List of Measurement Instruments with Temperature Variation......................................... 33 6.4 Measurement Configuration with Temperature Variation................................................. 34 6.5 Measurement Result with Temperature Variation............................................................ 35 6.6 Measurement Condition & Setup with Voltage Variation................................................ 36 6.7 List of Measurement Instruments with Voltage Variation................................................. 36 6.8 Measurement Configuration with Voltage Variation........................................................ 37 6.9 Measurement Result with Voltage Variation................................................................... 38 Test Report ------------------------------------------------------------------------------ 4/38 Report No.: T6474181 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Chapter 0 Application for Certification 2.1033 ( c )( 1 ):TAKY ELECTRONICS CO., LTD.– applicant and manufacturer 2.1033 ( c )( 2 ):The equipment is a transmitter, wireless microphone Model No.: JH-D5 2.1033 ( c )( 3 ):Quantity production is planned. See Exhibit C 2.1033 ( c )( 4 ):Type of emission – F3E- FM Modulation 2.1033 ( c )( 5 ):100Hz ~ 16.484KHz 2.1033 ( c )( 6 ):0.732 mW 2.1033 ( c )( 7 ):Specification of 250 mW is met by the equipment in the applicable part 74.861 (e)(1) 2.1033 ( c )( 8 ):Final RF amplifier stage current : 3V, UM-3*2 2.1033 ( c )( 9 ):Description follows 2.1033 ( c )( 10 ):Complete circuit diagrams are included. No modification was made 2.1033 ( c )( 11 ):See Exhibit A. Instruction sheet to user included 2.1033 ( c )( 12 ):See Exhibit F. 2.1033 ( c )( 13 ):N/A 2.1033 ( c )( 14 ):Description follows. 2.1033 ( c )( 15 ) : N/A 2.1033 ( c )( 16 ) : N/A 2.1033 ( c )( 17 ) : N/A Test Report ------------------------------------------------------------------------------ 5/38 Report No.: T6474181 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Chapter…

Text truncated - open the document above for the full version.

Training Research Co., Ltd. 2, Lane 194, Huan-Ho Street, Hsichih, Taipei Hsien 221, Taiwan Tel: 886-2-2693-5155 Fax: 886-2-26934440 To:Mr. Frank Coperich [email protected] FCC Application Processing Branch Re: FCC ID:INGJH-D5 Application: Taky Electronics Co., Ltd. Correspondence Reference number:17779 731 Confirmation Number: EA99327 In response to your e-mail on 2001/01/23. We choose two operating frequency of EUT which apply ANSI/EIA/TIA-603- 1992. Operating Frequency: 174.600 MHz (E.I.R.P.) Angle of Turn Table ( °) Spectrum Reading (dBuV/m) Corrected (dB) Actually Value (dBuV/m) E.I.R.P. (mW) 8 position of Average (mW) 0°73.86-13.0386.890.14659 45°73.83-13.0386.860.14558 90°56.05-13.0369.080.00242 135°71.66-13.0384.690.08833 180°73.95-13.0386.980.14966 225°73.72-13.0386.750.14194 270°52.29-13.0365.320.00102 315°70.39-13.0383.420.06593 0.09268 Corrected (dB) = AF(dB) + [CL(dB) – Amplitude Gain] = –13.03 dB/m Actually Value (dBμV/m) = Spectrum Reading (dBμV/m) – Corrected (dB) = 73.95– (–13.03) = 86.98 dBμV/m The maximum field measured is 86.98 dBμV/m RF output power ( Volt ) = 10 86.98/20 X 10 -6 = 0.022335722 V E.I.R.P.( mW ) = (0.022335722 X 3 ) 2 / 30K = 0.1496653 mW (K=1) Operating Frequency: 174.600 MHz (E.R.P.) Angle of Turn Table ( °) Spectrum Reading (dBuV/m) Corrected (dB) Actually Value (dBuV/m) E.R.P. (mW) 8 position of Average (mW) 0°73.86-13.0386.890.08938 45°73.83-13.0386.860.08877 90°56.05-13.0369.080.00148 135°71.66-13.0384.690.05386 180°73.95-13.0386.980.09125 225°73.72-13.0386.750.08655 270°52.29-13.0365.320.00062 315°70.39-13.0383.420.04020 0.04059 Corrected (dB) = AF(dB) + [CL(dB) – Amplitude Gain] = –13.03 dB/m Actually Value (dBμV/m) = Spectrum Reading (dBμV/m) – Corrected (dB) = 73.95 – (–13.03) = 86.98 dBμV/m The maximum field measured is 86.98 dBμV/m RF output power ( Volt ) = 10 86.98/20 X 10 -6 = 0.022335722 V E.R.P.( mW ) = (0.022335722 X 3 ) 2 / 30K = 0.0912593556 mW (K=1.64) Operating Frequency: 213.200MHz (E.I.R.P.) Angle of Turn Table ( °) Spectrum Reading (dBuV/m) Corrected (dB) Actually Value (dBuV/m) E.I.R.P. (mW) 8 position of Average (mW) 0°81.46-14.5195.971.18609 45°78.03-14.5192.540.53842 90°58.95-14.5173.460.00665 135°78.82-14.5193.330.64583 180°81.37-14.5195.881.16177 225°77.70-14.5192.210.49902 270°59.64-14.5174.150.00780 315°78.77-14.5193.280.63844 0.58550 Corrected (dB) = AF(dB) + [CL(dB) – Amplitude Gain] = –14.51 dB/m Actually Value (dBμV/m) = Spectrum Reading (dBμV/m) – Corrected (dB) = 81.46 – (–14.51) = 95.97 dBμV/m The maximum field measured is 95.97 dBμV/m RF output power ( Volt ) = 10 95.97/20 X 10 -6 = 0.062878185 V E.I.R.P.( mW ) = (0.062878185 X 3 ) 2 / 30K = 1.18609986 mW (K=1) Operating Frequency: 213.200MHz (E.R.P.) Angle of Turn Table ( °) Spectrum Reading (dBuV/m) Corrected (dB) Actually Value (dBuV/m) E.R.P. (mW) 8 position of Average (mW) 0°81.46-14.5195.970.72323 45°78.03-14.5192.540.32830 90°58.95-14.5173.460.00405 135°78.82-14.5193.330.39380 180°81.37-14.5195.880.70839 225°77.70-14.5192.210.30428 270°59.64-14.5174.150.00475 315°78.77-14.5193.280.38929 0.35700 Corrected (dB) = AF(dB) + [CL(dB) – Amplitude Gain] = –14.51 dB/m Actually Value (dBμV/m) = Spectrum Reading (dBμV/m) – Corrected (dB) = 81.46 – (–14.51) = 95.97 dBμV/m The maximum field measured is 95.97 dBμV/m RF output power ( Volt ) = 10 95.97/20 X 10 -6 = 0.062878185 V E.I.R.P.( mW ) = (0.062878185 X 3 ) 2 / 30K = 0.72323 mW (K=1.64) Question 3 & 4: We had up-load to your OET system on 2001/2/19. Best regards, Jack Tsai 2001/2/22
