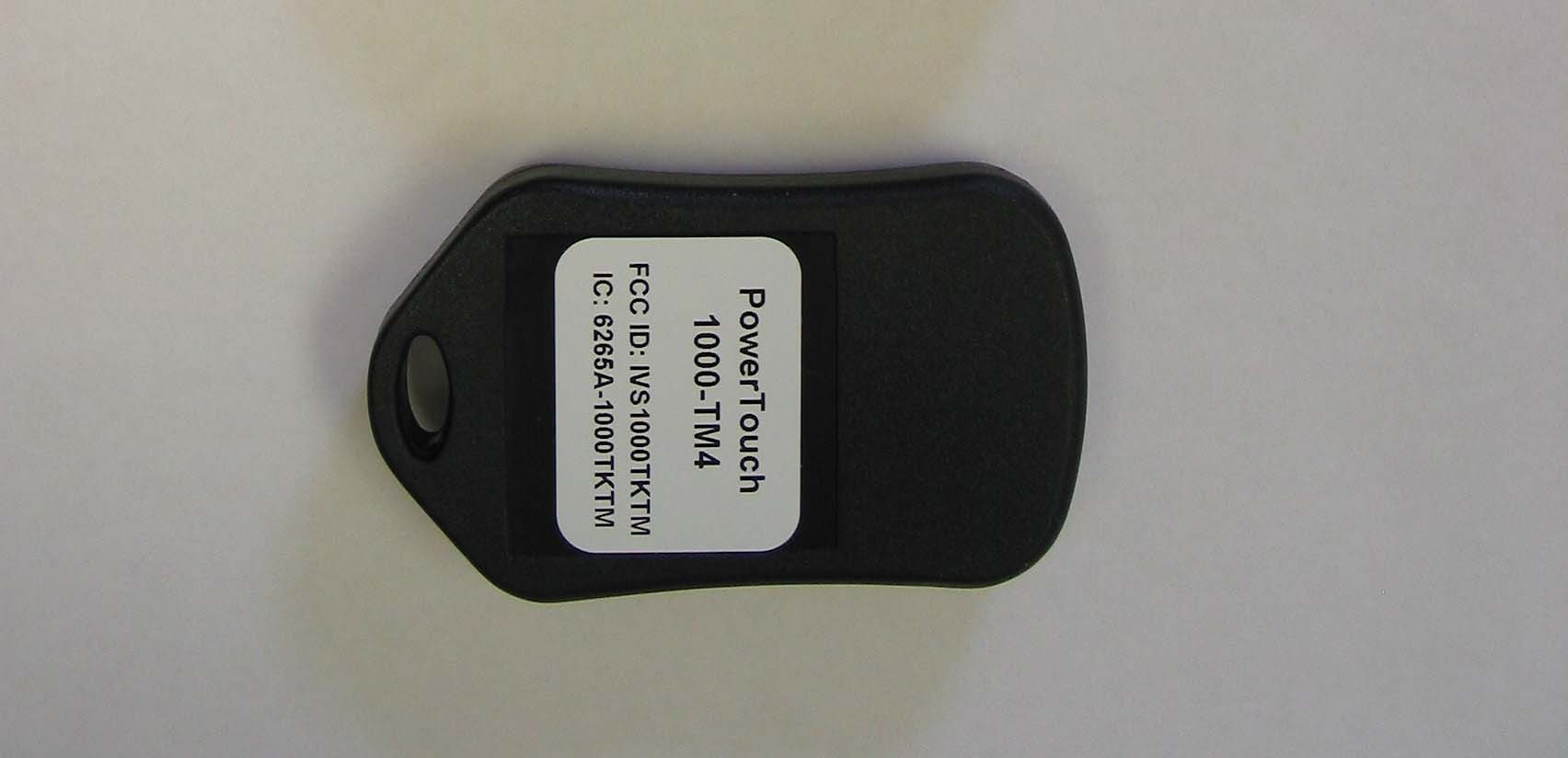

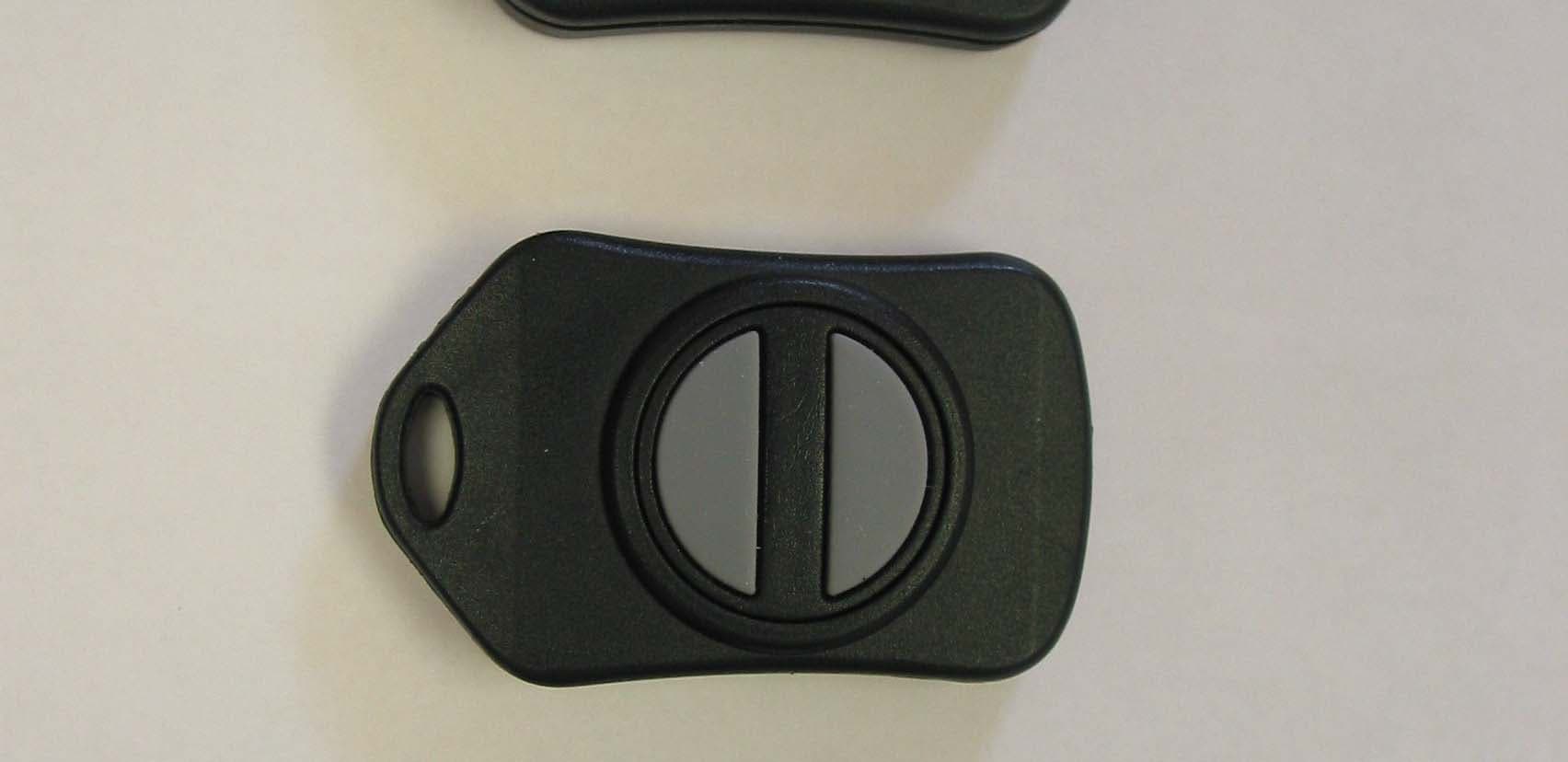

IVS1000TKTMSecurity/Remote Control Transmitter

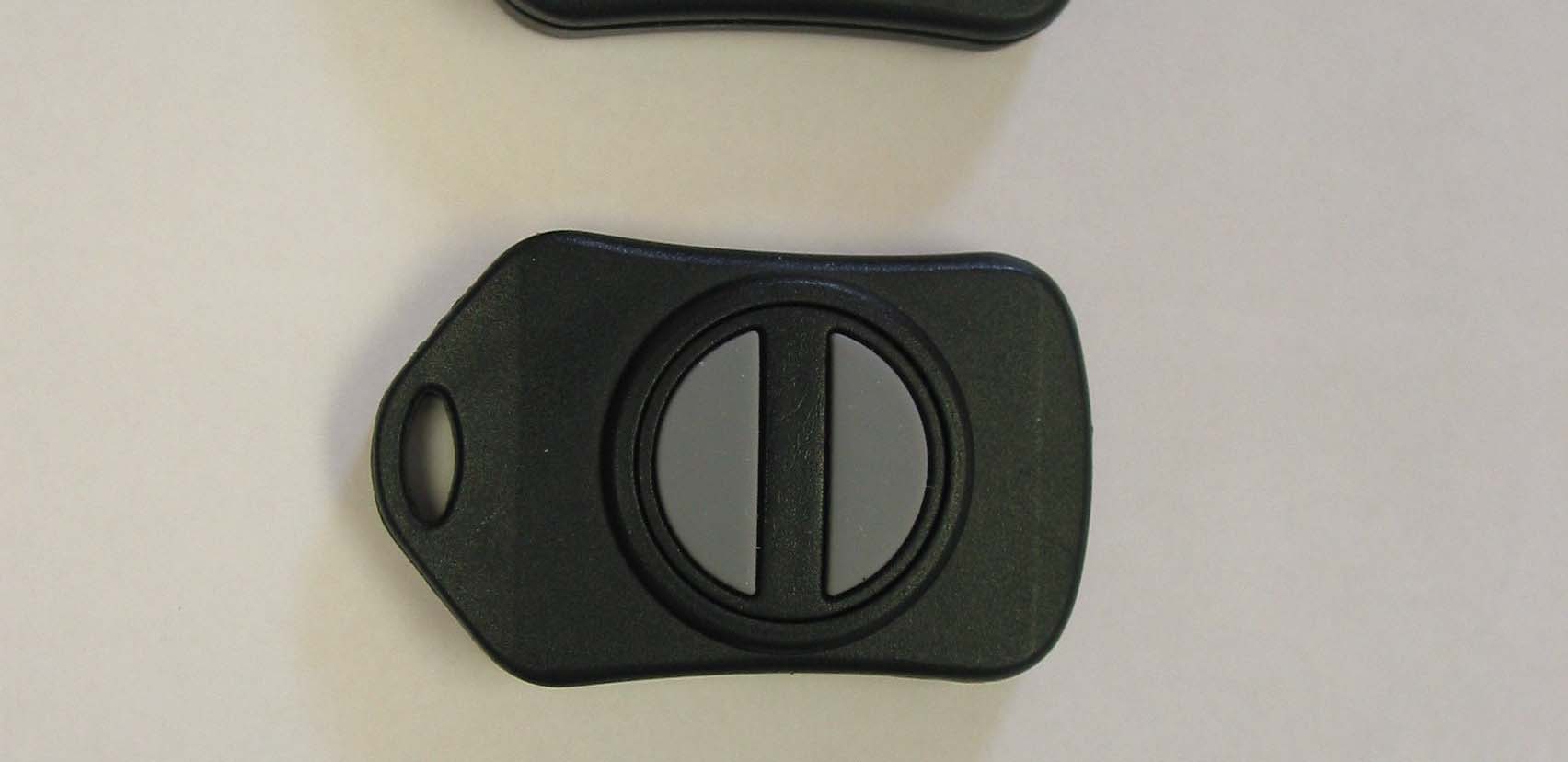

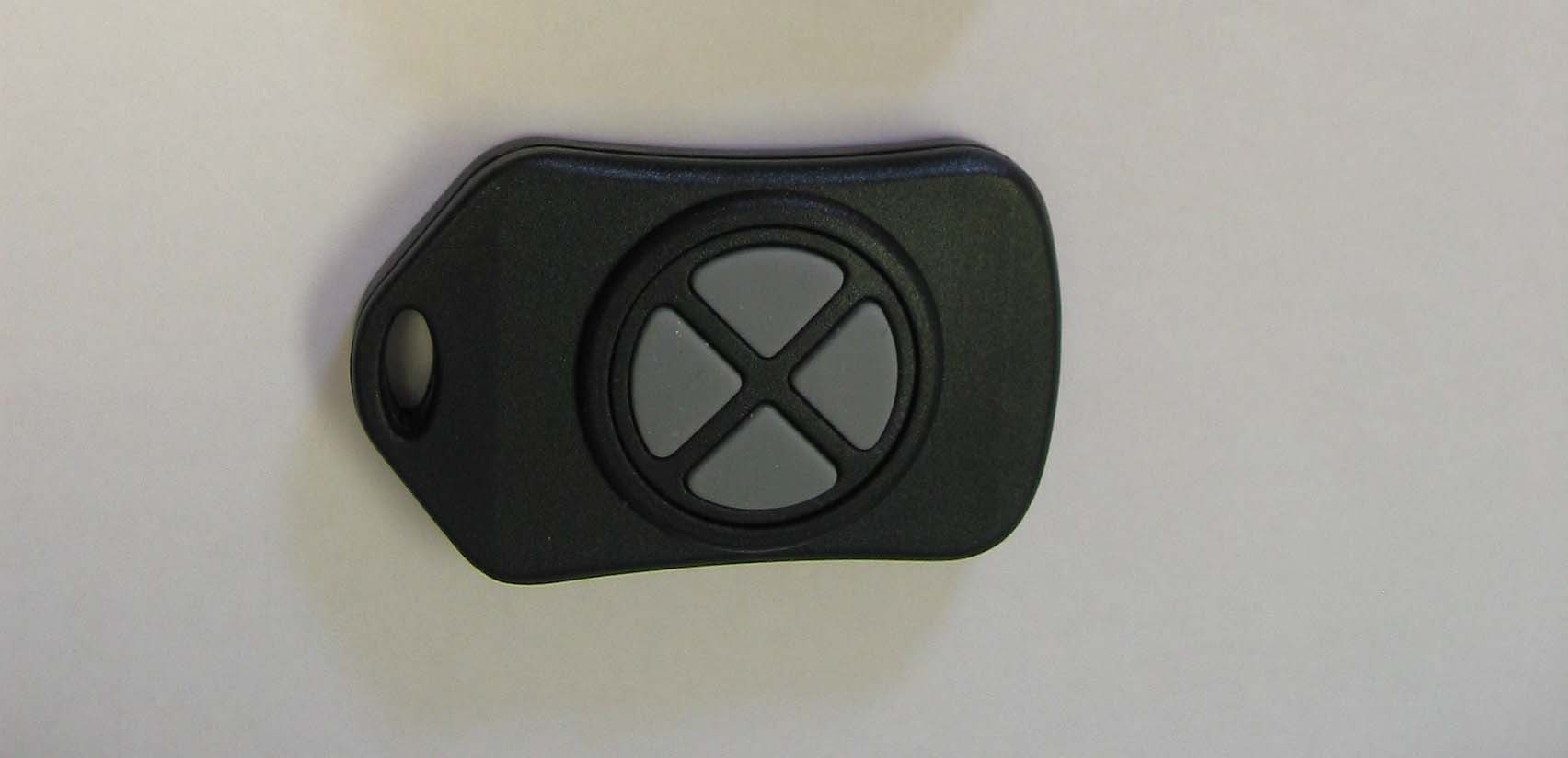

RF Remote Control System Owner’s Manual POWERTouch 1000POWERTouch 1000 By TouchTronics, Inc. Easy Installation... Reduces Costs 1010-R 1011-R 1012-R 1013-R 1020-R 1021-R 1022-R 1023-R 1030-R 1031-R 1032-R 1033-R 1040-R 1041-R 1042-R 1043-R Receiver Model x x x x x x x x 4 - R e l a y s x x x x x x x x 7 - R e l a y s x x x x x x x x 1 2 V D C x x x x x x x x 2 4 V D C x x x x x x x x 3 0 A C o n n e c t o r x x x x x x x x F i x e d A n t e n n a x x x x x x x x T N C C o n n e c t o r x x x x x x x x x x x x x x x x 2 S w i t c h I n p u t s x x x x x x x x 6 A d d ’ l S w i t c h I n p u t s x x x x x x x x I n p u t S t a t u s L E D s 1000-TF2 1000-TF4 1000-TF6 1000-TX2(S) 1000-TX4(S) 1000-TX6(S) 1000-TK1 1000-TK2 1000-TK4 1000-TM1 1000-TM2 1000-TM4 Receiver Selection Chart Transmitter Selection Chart Model Large key fob, 2 button Large key fob, 4 button Large key fob, 6 button Oval hand-held, 2 button, (S) = power switch Oval hand-held, 4 button, (S) = power switch Oval hand-held, 6 button, (S) = power switch Small key fob, 1 button Small key fob, 2 button Small key fob, 4 button Mini key fob, 1 button Mini key fob, 2 button Mini key fob, 4 button 1000 Series Receiver Specifications Voltage 9 - 16 Volt DC (12 Volt DC Nominal) 24 Volt DC Optional Current 5A / Output - 10A System Max Switch Inputs 2 (6 Additional Optional) Outputs 4 or 7 Frequency 433 MHz Antenna Standard Fixed Optional Removable 6” Whip / TNC Exterior / 14’ Cable 1000 Series System Specifications Range-Pulsed 100 Feet Typical 300 Feet Clear Field Range-Continuous 50 Feet Typical Codes Number Over 16,000,000 Type Digital Rolling Codes Enrolling Self-Learning 1000 Series Transmitter Specifications Frequency 433 MHz Battery Lithium, Coin style (*CR2032) Voltage 3 Volt DC Battery Life 50,000 2-Second Presses *All transmitter styles 1000 Series Physical Dimensions Receiver Enclosures Standard (unsealed) 6.50” x 5.50” x 1.00” (LxWxH) Optional (sealed) 9.25” x 5.25” x 1.25” (LxWxH) Transmitter Enclosures Large Key Fob (sealed) 3.25” x 2.00” (LxW) Oval (water resistant) 4.50” x 2.00” (LxW) Small Key Fob (sealed) 2.60” x 2.00” (LxW) Mini Key Fob 2.10” x 1.40” (LxW) (water resistant) System Specifications Manual NST11424-1 Rev 2008-02-18 TouchTronics, Inc. 57315 Nagy Drive, Elkhart, IN 46517, 1-800-294-2570 Description 5A-1 R IC: 626 000 1 33-R 0 Sealed x x x x x x All Channels are User Programmable Oval Hand-Held Transmitter Not Shown Option 4 - Courtesy Light Output #7 turns ON for 20-seconds whenever output #1 is activated. Switch Input A1 controls output #1 Switch Input A2 turns OFF all outputs as long as it is active. PowerTouch Remote Control Systems - 1000 Series (2 - 6) Functions Page -2- ON OFF Receiver 1 Operation Out # 1 ON OFF DIP Switch 7 - OFF DIP Switch 8 - OFF DIP Switch 7 - OFF DIP Switch 8 - ON Option 2 - Hydraulic Pump Output #7 is ON anytime outputs 1 - 6 are active. Switch Input A1 controls output #1 Switch Input A2 controls output #2 DIP Switch 7 - ON DIP Switch 8 - OFF Option 3 - Cascade Output #7 turns ON for 2-seconds whenever output #1 is activated. Switch Input A1 controls output #1 Switch Input A2 controls output #2 DIP Switch 7 - ON DIP Switch 8 - ON DIP Switches 7 & 8 Transmitter Styles Receiver Connection Schematic DIP switch located inside receiver enclosure Signal Transmissions Standard - Press & Release Button No maximum signal duration Option - Multi-channel signal Status LED Standard - One flash per second transmitting - No flash if low battery Inputs (DIP switch programmable) Switch Input A1 Switch Input A2 Outputs (DIP switch programmable) 1Momentary or Latching 2Momentary or Latching 3Momentary or Latching 4Momentary or Latching ------------------------------------------------------ 5Momentary or Latching 6Momentary or Latching 7See DIP Switch Options Below ENROLLING NEW TRANSMITTERS - Self-Learning Receiver 1. Remove cover from receiver enclosure. 2. Locate LEARN switch (small, square push-button style switch located in the corner of the printed circuit board). 3. Press and release the LEARN switch and observe LEARN LED (next to LEARN switch). 4. LED is flashing when unit is in LEARN Mode and new codes can be enrolled. 5. When LEARN LED is flashing, press any button on transmitter. 6. LEARN LED blinks to confirm enrollment. Release transmitter button. 7. Press any button on the new transmitter to confirm that the new code has been enrolled. 8. Replace receiver enclosure cover. Output 7 J2-14 Output 6 J2-13 Output 5 J2-12 Output 4 J2-11 Output 2 J2-9 Output 3 J2-10 Output 1 J2-8 Switch Input A2, J2-2 NO INP BUS, J1-1 (Optional: Typ PWR) NO INP BUS, J2-6 NO INP BUS, J2-7 Switch Input A1, J2-1 Logic Power, J2-4 Logic Ground, J2-3 DIP Switch Options ON OFF Out # 3 Out # 2 Out # 4 Out # 5 Out # 6 2345678 78 ON OFF 78 ON OFF 78 ON OFF 78 ERASING ALL ENROLLED TRANSMITTERS 1. Press and hold the LEARN switch. 2. LEARN LED will flash rapidly for about 10 seconds, followed by two long flashes. 3. Release LEARN switch. 4. All transmitter codes are now erased. Optional Enrolling Method 1. Remove and reconnect power to unit. This will place unit into LEARN mode for 5-seconds. 2. Press any button on transmitter. Wait 5-seconds and confirm the transmitter has been enrolled by pressing any button and verifying the correct output turned ON. 4-Relay Models 7-Relay Models DIP Switches 1 - 6 control outputs 1 - 6 respectively: OFF = Momentary ON = Latching L O G I C Option 1 - Direct Switch Inputs Switch Input A1 controls output #1 Switch Input A2 controls output #2 Standard - Large Key Fob 2, 4 & 6 Button Option - Large Oval Hand-Held 2, 4 & 6 Button (Power Switch Optional) Option- Small Key Fob 1, 2 & 4 Button Option - Mini Key Fob 1, 2 & 4 Button Photos Not To Scale SWITCH INPUT A1 SWITCH INPUT A2 CHASSIS GROUND LOGIC POWER REVERSAL REST @ GROUND - OPTION RELAY POWER OPTIONAL RELAY POWER CHANNEL 1 - RELAY OUTPUT 1 (RR@G*) CHANNEL 2 - RELAY OUTPUT 2 (RR@G*) CHANNEL 3 - RELAY OUTPUT 3 (RR@G*) CHANNEL 4 - RE…

Text truncated - open the document above for the full version.

NVLAP ACCREDITED NARTE Certified Engineer Professional Engineer ELITE Electronic EngineeringFebruary 29, 2008 TCB Services 1516 Centre Circle Downers Grove, IL 60515-1082 Re: Application for Certification of TouchTronics' 1000-TK/1000-TM under 47CFR 15.231. FCC ID: IVS1000TKTM Gentlemen: On behalf of the applicant, TouchTronics Inc., please find attached the submittal materials for certification of the transceiver, 1000-TK/1000-TM. This product operates at a frequency of 433.92MHz. The contents list of the Exhibits in this submittal package appears on Page 2 of this cover letter. A letter of authorization, file ‘2_Power_of_Attorney.pdf’, is included to establish that AHD EMC Laboratory has been authorized to be signatory on behalf of TouchTronics Inc. and that TouchTronics certifies to the drug enforcement code. The Federal Communications Commission will be notified, in writing, of any changes in the software/programming of the device that could affect the device’s RF characteristics. Your prompt consideration of this application for product certification will be greatly appreciated. Should you have any questions regarding the content of this report, kindly contact me. Sincerely, Gordon L.Helm, Technical Lab Manager Narte Certified Engineer, #EMC-002401-NE tel/fax: 269. 424.7014 email: [email protected] AHD, 92723 Mich Hwy 152, Sister Lakes, MI 49047, (269) 424-70140_TCB_CvrLttr1.doc COVER Letter: Page 1 of 2 Test report #0801093FCC 15.231 for 1000-TK/1000-TMFCC ID: IVS1000TKTM Tested Feb 8, 2008 Table of Contents Cover Letter / Table of ContentsTotal Pages2 Request for Confidentiality Letter, confidentiality letter1000tktm.pdf Total Pages1 Power of Attorney, 2_Power_of_Attorney.pdfTotal Pages1 EXHIBIT A: ID Label / Location Label Placement on EUTEXA_LabelLocation1.jpgTotal Pages1 Label Placement on EUTEXA_LabelLocation2.jpgTotal Pages1 EXHIBIT B: Description of Product; Operation; Block Diagram B1 – EXB.zipOperational Description - 1000-TKTM Transmitters.pdfTotal Pages1 B2 – EXB.zipSCM11662-1_B_CONFIDENTIAL.pdfTotal Pages1 B3 – EXB.zipSCM11678-1_B_CONFIDENTIAL.pdfTotal Pages1 EXHIBIT C: Product photosThree photosTotal Pages3 C1EXC_EUT_PCB.jpg C2EXC_EUT_PCB case.jpg C3EXC_EUT_Pre_Screen.jpg EXHIBIT D: User’s Manual EXD_UserManual.pdfTotal Pages4 EXHIBIT E: Setup photos Three photosTotal Pages3 EXE_EUT_setup_RFlat.jpg EXE_EUT_setup_Rside.jpg EXE_EUT_setup_REnd.jpg Report of Measurements EXE_TestRport_1093.pdf Total Pages 16 Misc. EXHIBIT: RF Exposure Information EXmisc_RFexpose.pdfTotal Pages1 REL Listing Requirements Acknowledgment of IC listing requirements.pdfTotal Pages1 IC Application 1000-TKTM_CSF-20-03 IC Application.pdfTotal Pages1 AHD, 92723 Mich Hwy 152, Sister Lakes, MI 49047, (269) 424-70140_TCB_CvrLttr1.doc COVER Letter: Page 2 of 2

FCC ID: IVS1000TKTM Request for Confidentiality In accordance with 47 C.F.R. Section 0.459, we, TOUCHTRONICS. INC., hereby request confidentiality for the block diagram, schematic and product description presented for certification. In support of the Request for Confidentiality, the following is stated: Enclosed within this application is technical information which we deem to be trade secrets and proprietary. If made public, the information might be used to our disadvantage. To assist in assuring that we receive the full value of our product and protect its competitive posture, we respectfully request this grant of confidentiality. Sincerely, Gordon L. Helm Technical Lab Manager Narte Certified Engineer, # EMC-002401-NE Tel. 269 313-2433 / Fax 269 429-9016 Email: [email protected]

Test report #0801093FCC 15.231 for 1000-TK/1000-TMFCC ID: IVS1000TKTM Tested Feb 8, 2008 EXHIBIT E: REPORT OF MEASUREMENTS [2.1033(B6)] Test Report for FCC ID: IVS1000TKTM FCC Part 2.1031, Part 15 Subpart C(15.231b) Report #0801093 Issued 2/29/2008 433.92MHZ POWERTOUCH 1000-TK / 1000-TM TRANSMITTER Prepared for:TOUCHTRONICS. INC.. 57315 Nagy Drive Elkhart, IN 46517 Test Date(s): Feb 8, 2008 Data recorded by Gordan L. Helm, NCE This report prepared by: Gordan L. Helm, NCE Technical Manager/Test Engineer, AHD AHD, Michigan Hwy 152, Sister Lakes, MI 49047, (269) 424-70140801093.doc EXHIBIT E: Page 1 of 17 Test report #0801093FCC 15.231 for 1000-TK/1000-TMFCC ID: IVS1000TKTM Tested Feb 8, 2008 Table of Contents EXHIBIT E: Report of Measurements [2.1033(b6)]....................................................................................1 Statements Concerning this Report......................................................................................................3 Manufacturer/Applicant [2.1033(b1)]...................................................................................................4 Measurement/Test Site Facility & Equipment ......................................................................................4 Test Site [2.948, 2.1033(b6)]........................................................................................................4 Measurement Equipment Used [2.947(d), 15.231(b)]..................................................................4 Environment.........................................................................................................................................4 Summary of Results:............................................................................................................................6 EUT Description...........................................................................................................................................7 EUT Pictures........................................................................................................................................7 Tested Configuration /Setup: ...............................................................................................................8 Support Equipment & Cabling.......................................................................................................8 Setup Diagram..............................................................................................................................8 Standards Applied to Test: .................................................................................................................10 Equipment Configuration....................................................................................................................10 Test Methodology: .............................................................................................................................10 FORMULAS AND SAMPLE CALCULATIONS:...........................................................................12 Test Data ...........................................................................................................................................15 Radiated Field Strength Measurements: [15.231(b), 15.205]....................................................15 Occupied Bandwidth [15.231(c)] ................................................................................................15 Radiated Field Strength Measurements: [15.231(b), 15.205, 15.209)]......................................16 Field Strength Measurements of Fundamental & LO..........................................................16 Out of Band Emissions [15.231(b)].............................................................................................17 Spurious Emissions: [15.205].............................................................................................17 AHD, Michigan Hwy 152, Sister Lakes, MI 49047, (269) 424-70140801093.doc EXHIBIT E: Page 2 of 17 Test report #0801093FCC 15.231 for 1000-TK/1000-TMFCC ID: IVS1000TKTM Tested Feb 8, 2008 Statements Concerning this Report NVLAP Accreditation: NVLAP Lab Code 200129-0 The scope of AHD accreditation is the conducted emissions, radiated emissions test methods of: IEC/CISPR 22:Limits and methods measurement of radio disturbance characteristics of information technology equipment. FCC Method – 47 CFR Part 15 – Digital Devices. AS/NZS 3548:Electromagnetic Interference – Limits and Methods of Measurement of Information Technology Equipment. IEC61000-4-2 and Amend.1:ElectroStatic Discharge Immunity IEC61000-4-5:Surge Immunity Test Data: This test report contains data covered by the NVLAP accreditation.. Test Traceability: The calibration of all measuring and test equipment and the measured data using this equipment are traceable to the National Institute for Standards and Technology (NIST). Limitations on results: The test results contained in this report relate only to the Item(s) tested. Any electrical or mechanical modification made to the test item subsequent to the test date shall invalidate the data presented in this report. Any electrical or mechanical modification made to the test item subsequent to this test date shall require an evaluation to verify continued compliance. Limitations on copying: This report shall not be reproduced, except in full, without the written approval of AHD. Limitations of the report: This report shall not be used to claim product endorsement by NVLAP, FCC, or any agency of the US Government. Statement of Test Results Uncertainty:Following the guidelines of NAMAS publication NIS81 and NIST Technical Note 1297, the Measurement Uncertainty at a 95% confidence level is determined to be:± 1.4 dB Retention of Records: 1)For equipment verified to comply with FCC regulations, the manufacturer is obliged to retain this report with the product records for two years following the manufacture of the equipment that was tested. A…
