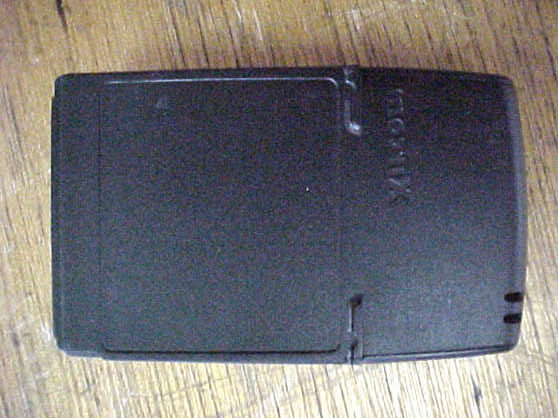

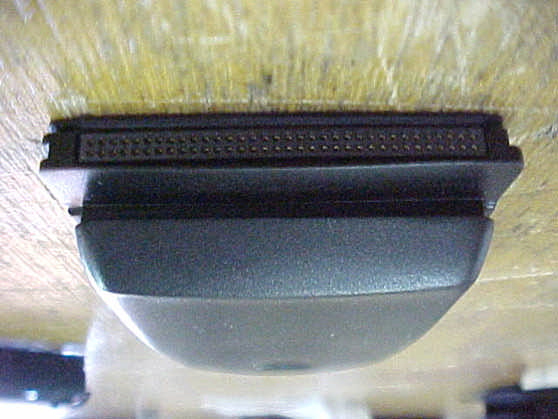

J3OSWE1100B802.11b Wireless Ethernet Adaptor (30mW version)

Product Specifications Xircom SpringPort™ Wireless Ethernet Adapter Model SWE1100 SpringPort™ Wireless Ethernet module System Requirements Handspring™ Visor™ handheld, Palm® Operating System Compatible with all Visor models Standard IEEE 802.11b high-rate standard for Wireless Local Area Networks Network Architecture Types Supports peer-to-peer networking and communication to wired networks via access points Data Rates Supported 1,2,5.5 and 11 Mbps Modulation 11 Mbps and 5.5 Mbps: CCK; 2 Mbps: DQPSK; 1 Mbps: DBPSK Wireless Medium Direct Sequence Spread Spectrum (DSSS) Media Access Protocol Carrier Sense Multiple Access with Collision Avoidance (CSMA/CA) Security Supports 0, 40 or 128-bit WEP (Wired Equivalent Privacy) encryption Bundled Software AvantGo and MultiMail SE Frequency Band 2400-2483.5 MHz Operating Channels 11 channels (US, Canada) 13 channels (ETSI) 4 channels (France) 14 channels (Japan) Simultaneous Channels Three non-overlapping channels Roaming IEEE 802.11b compliant Typical Range at 11 Mbps Up to 300 ft (90 m) in open environments and 100 ft (30 m) in office environments Typical Range at 1 Mbps Up to 1000 ft (300 m) in open environments and 300 ft (90 m) in office environments Battery Li-ION rechargeable (2 hours of continuous transmission) LED Indicators Active, Status and Charging Certifications FCC Class B, FCC Part 15.247, Canada ICES Class B, CE, UL, CSA Call for other information outside the USA Warranty One-year limited warranty 812-1736-001A 1 SpringPort Wireless Ethernet Module Regulatory and Safety Notices FCC Regulations - Part 15 Declaration of Conformity (DoC) Xircom, Inc. declares that the equipment described in this document is within the requirements of the Code of Federal Regulations listed below: Title 47 Part 15, Subpart B, Class B for a digital device. This declaration is based upon compliance of the Xircom SpringPort Wireless Ethernet module model SWE1100 to the above standards. Xircom has determined that this model has been shown to comply with the applicable technical standards if no unauthorized change is made in the equipment and if the equipment is properly maintained and operated. These units are identical to the units tested and found acceptable with the applicable standards. Records maintained by Xircom continue to reflect that units being produced under this Declaration of Conformity, within the variation that can be expected due to quantity production and tested on a statistical basis, continue to comply with the applicable technical standards. R.W. Bass, Vice President, Operations, Xircom, Inc., 2300 Corporate Center Drive, Thousand Oaks, California 91320 U.S.A. Federal Communications Commission Information for the User This device complies with Part 15 rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential environment. This equipment generates, uses, and radiates radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference. However, there is no guarantee that interference will not occur. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment on and off, the user is encouraged to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from which the receiver is connected. • Consult the dealer or an experienced radio/TV technician. CAUTION: The Part 15 radio device operates on a non-interference basis with other devices operating at this frequency. Any changes or modification to said product not expressly approved by Xircom could void the user's authority to operate this device. 812-1723-001A 2 Canadian Department of Communications Industry Canada (IC) Notice This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications. Le présent appareil numérique n'émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de Classe B prescrites dans le règlement sur le brouillage radioélectrique édicté par le Ministère des Communications du Canada. This device complies with Class B Limits of Industry Canada. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. The device is certified to the requirements of RSS-139-1 and RSS-210 for 2.4 GHz spread spectrum devices. The use of this device in a system operating either partially or completely outdoors may require the user to obtain a license for the system according to the Canadian regulations. For further information, contact your local Industry Canada office. European Community - CE Mark Declaration of Conformity Xircom, Inc. declares that the equipment described in this document is in conformance with the requirements of the European Council Directive listed below: 73/23/EEC Low Voltage Directive with Amendment 93/68/EEC 89/336/EEC EMC Directive with Amendments 92/31/EEC and 93/68/EEC 1999/5/EC Radio and Telecommunications Terminal Equipment Directive This declaration is based upon compliance of the product to the following standards: ETS 300 328/A1 (1997-07, Edition 2) Radio Equipment and Systems (RES); wideband transmission systems; tec…

Text truncated - open the document above for the full version.

TCB RF Exposure Review Procedure Statement FCC ID:J3OSWE1100B Transmitter Category Device Type Product Category Approval and Review Procedures Used Specific Procedures: VI Wireless Ethernet Adaptor for PDA Part 15 Portable Transmitters Section L SP(2), SP(4) with xx=5.0, SP(5), SP(6), SP(7), SP(8), SP(9) and SP(10) • Grant Condition : This device and its antenna(s) must operate with a separation distance of at least 5 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-usersmust be provided with specific operating instructions for satisfying RF exposure compliance i . SP2 EUT is a 2.4GHz Direct Sequence Spread Spectrum 802.11b Wireless Ethernet Adapter to be usedwith PDA. No duty cycle needs to be considered. Applicable FCC rule parts: Part 15, section15.247. Output power ratings have been verified by comparing Page 59 of test report. Outputpower was measured with Power Meter. The highest rating measured is 14.7dBm@Channel11(30mW). SP4 Page 5 of Owner Manual. RF exposure information to user specified 5 cm separation distance. SP5 Device is operating at single 2.4GHz frequency band. Operating Frequency Range: 2412 – 2462MHz SP6 Device is an Ethernet Adapter. Not a transmitter module. SP7 Device is designed to have two types of antenna. Antenna specifications provided by the applicantare detailed enough to ensure the antenna can not be changed by the end user. All two antennas areequipped with unique connector. SP8 Page 5 of Owner Manual. SP9 Grant conditions have been reviewed by TCB and the determination has been made that the devicecomplied with RF Exposure review procedures. SP10 By design, device and its antenna can ensure the separation distance of 2.5 cm from a person’shands, wrists, feet and ankles. Reviewed by Barbara L. JudgeCompliance Certification ServicesJune 5, 2001

T e c h n i c a l S p e c i f i c a t i o n S h e e t 2.4 GHz Bluetooth™ Antenna — P/N 100902 Ultima™ Series Antennas This small embedded antenna provides the most reliable, easy-to-use, and adjustment-free antenna technology for handling during assembly and implementation by developers. Typical Mounting Typical VSWR Typical Pattern Features •Small and lightweight •No tuning components •Available in tape and reel or tray packing for automatic mounting Electrical Frequency Range2400 – 2500 MHz Peak Gain (1) 0 dBi VSWR (1) less than 2.0:1 Polarizationlinear Azimuth Beamwidthomnidirectional Power Handling10 Watt cw Feed Point Impedance50 Ohms unbalanced Note (1) Figures dependent on ground plane size Mechanical Size18.2 x 3.9 x 1.6 mm Weightless than 1 g Mountingsurface mount technology Dimensions Typical Pad Layout © 2000 RangeStar Wireless, Inc. RangeStar, RangeStar Wireless, and Ultima are trademarks or registered trademarks of RangeStar Wireless, Inc. All rights reserved. Protected by one or more U.S. Patents 5,507,012; 5,666,125; 5,777,586; 5,945,954; 5,999,140; D417,221; 6,095,820; and other U.S. and foreign patents pending. Specification subject to change without notice. http://www.rangestar.com201T262D-2 5.0 4.0 3.0 2.0 1.0 24002475245024752500 Frequency (MHz) Ratio (:1) 0° 90°270° azimuth plane – red elevation plane – blue 18.2 mm 3.9 mm 1.6 mm Land Copper with Solder Resist Board Material signal ground not to scale +5 dBi 0 dBi RangeStar™ antenna test PCB ground

FOR HOME OR OFFICE USE Tested to Comply with FCC Standards SpringPort ™ Wireless Ethernet SWE1100 C US LISTED E178682 E178682 I.T.E.I.T.E. U L CAUTION! RISK OF EXPLOSION IF BATTERY IS REPLACED BY INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE MANUFACTURER'S INSTRUCTIONS. A/W# 832-2623-001A Master 2 FAB #830-1744-001 ECN 22311 Wirelesss by Cisco Systems FCC ID: J3OSWE1100B Canada: XXX XXXX XXXXA XXXX T-A99-00-0668 GZAEXXXX NYAEXXXX D01-XXXXJP 2.4 DS4 CANADA ICES/NMB-003 Class/Classe (B) 90LP0011

FCC ID: J3OSWE1100B Report Number: B10518D1 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 1 of 23 FCC PART 15, SUBPART C TEST METHOD: ANSI C63.4-1992 for 802.11B WIRELESS ETHERNET ADAPTER Model: SWE1100 Prepared for XIRCOM, INC. 2300 CORPORATE CENTER DRIVE THOUSAND OAKS, CALIFORNIA 91320 COMPATIBLE ELECTRONICS INC. 114 OLINDA DRIVE BREA, CALIFORNIA 92823 (714) 579-0500 DATE: APRIL 24, 2001 REPORT APPENDICES TOTAL BODY A B C D E F PAGES 23 2 2 14 50 2 2 95 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. FCC ID: J3OSWE1100B Report Number: B10518D1 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 2 of 23 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 1. PURPOSE 6 2. ADMINISTRATIVE DATA 7 2.1 Location of Testing 7 2.2 Traceability Statement 7 2.3 Cognizant Personnel 7 2.4 Date Test Sample was Received 7 2.5 Disposition of the Test Sample 7 2.6 Abbreviations and Acronyms 7 3. APPLICABLE DOCUMENTS 8 4. Description of Test Configuration 9 4.1 Description of Test Configuration - EMI 9 4.1.1 Cable Construction and Termination 10 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 11 5.1 EUT and Accessory List 11 5.2 EMI Test Equipment 12 6. TEST SITE DESCRIPTION 13 6.1 Test Facility Description 13 6.2 EUT Mounting, Bonding and Grounding 13 7. CHARACTERISTICS OF THE TRANSMITTER 14 7.1 Transmitter Power 14 7.2 Channel Number and Frequencies 14 7.3 Chipping Rate 14 7.4 Spreading Gain 14 7.5 Antenna Gain 14 7.6 Description of Transmitter 15 7.7 Processing Gain 16 8. Test Procedures 17 8.1 RF Emissions 17 8.1.1 Conducted Emissions Test 17 8.1.2 Radiated Emissions (Spurious and Harmonics) Test 18 8.2 6 dB Bandwidth for Direct Sequence Systems 20 8.3 Peak Output Power 20 8.4 Spectral Density Output 20 8.5 RF Antenna Conducted Test 21 8.6 RF Band Edges 21 8.7 Processing Gain 22 9. CONCLUSIONS 23 FCC ID: J3OSWE1100B Report Number: B10518D1 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 3 of 23 LIST OF APPENDICES APPENDIX TITLE A Modifications to the EUT B Additional Models Covered Under This Report C Diagrams, Charts and Photos • Test Setup Diagrams • Radiated and Conducted Emissions Photos • Antenna and Effective Gain Factors D Data Sheets E Laboratory Recognitions F Description of Transmitter LIST OF FIGURES FIGURE TITLE 1 Conducted Emissions Test Setup 2 Plot Map And Layout of Test Site FCC ID: J3OSWE1100B Report Number: B10518D1 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 4 of 23 GENERAL REPORT SUMMARY This electromagnetic emission test report is generated by Compatible Electronics Inc., which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced in any form unless done so in full with the written permission of Compatible Electronics. This report must not be used to claim product endorsement by NVLAP or any other agency of the U.S. Government. Device Tested: 802.11b Wireless Ethernet Adapter Model: SWE1100 S/N: N/A Modifications: The EUT was not modified in order to meet the specifications. Product Description: The EUT is the 30 mW version of the FCC-ID: J3OSWE1100 that has been previous approved. This version will only use the Rangestar antenna. Manufacturer: Xircom, Inc. 2300 Corporate Center Drive Thousand Oaks, California 91320 Test Dates: May 16 and 18, 2001 File # For Canada IC2154-D Test Specifications : EMI requirements FCC Title 47, Part 15 Subpart B; and Subpart C, sections 15.205, 15.207, 15.209, and 15.247 Test Procedure: ANSI C63.4: 1992 Test Deviations: The test procedure was not deviated from during the testing. FCC ID: J3OSWE1100B Report Number: B10518D1 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 5 of 23 SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Conducted RF Emissions, 450 kHz – 30 MHz Complies with the relevant requirements of FCC Title 47, Part 15, Subpart C, section 15.207 2 Spurious Radiated RF Emissions, 10 kHz – 25000 MHz Complies with the relevant requirements of FCC Title 47, Part 15, Subpart C, section 15.247(c) 3 Fundamental and Emissions produced by the intentional radiator in non-restricted bands, 10 kHz – 25 GHz Complies with the relevant requirements of FCC Title 47, Part 15, Subpart C, section 15.247(c) 4 Emissions produced by the intentional radiator in restricted bands, 10 kHz – 25 GHz Complies with the relevant requirements of FCC Title 47, Part 15, Subpart C, section 15.205 and 15.209(a) 5 6 dB Bandwidth Complies with the relevant requirements of FCC Title 47, Part 15, Subpart C, section 15.247 (a)(2) 6 Maximum Peak Output Power Complies with the relevant requirements of FCC Title 47, Part 15, Subpart C, section 15.247 (b)(1) 7 RF Antenna Conducted Complies with the relevant requirements of FCC Title 47, Part 15, Subpart C, section 15.247 (c) 8 Peak Power Spectral Density Conducted from the Intentional Radiator to the Antenna Complies with the relevant requirements of FCC Title 47, Part 15, Subpart C, section 15.247 (d) 9 Processing Gain Complies with the relevant requirements of FCC Title 47, Part 15, Subpart C, section 15.247 (e) FCC ID: J3OSWE1100B Report Number: B10518D1 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 6 of 23 1. PURPOSE This document is a qualification test report based on the Electromagnetic Interference (EMI) tests performed on the 802.11b Wireless Ethernet Adapter Model: SWE1100. The EMI measurements were performed according to the measurement procedure described in ANSI C63.4: 199…
