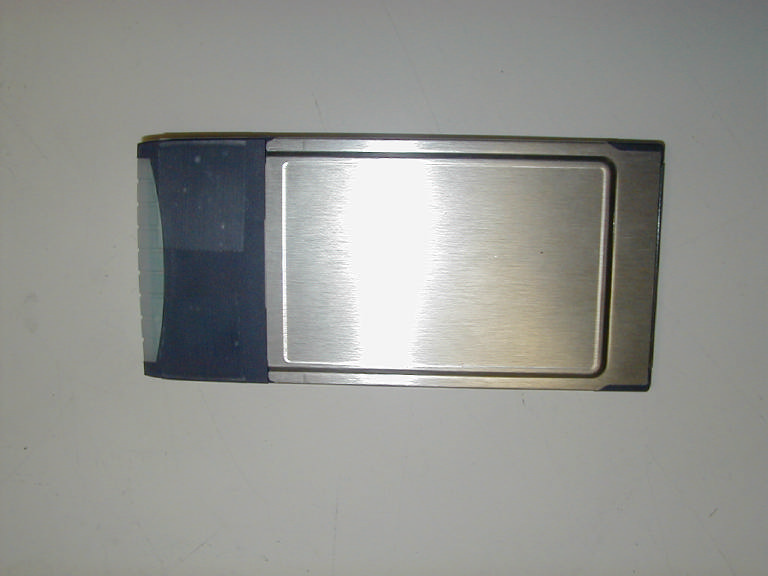

J3OWCB5000AIntel PRO/ Wireless 5000 Cardbus Adapter

Intel® PRO/Wireless 5000 LAN Products Quick Installation Guide 2 Copyright © 2001, Intel Corporation. All rights reserved. Intel Corporation assumes no responsibility for errors or omissions in this document. Nor does Intel make any commitment to update the information contained herein. Intel is a registered trademark of Intel Corporation. Other product and corporate names may be trademarks of other companies and are used only for explanation and to the owners' benefit, without intent to infringe. 801-0311-001A November 2001 3 Table of Contents Installing the Access Point.......................... 4 Installing the CardBus Adapter ................. 11 Installing the PCI Adapter.......................... 14 4 Intel® PRO/Wireless 5000 LAN Products User Documentation In addition to this Quick Installation Guide, Intel provides extensive online documentation for the PRO/Wireless 5000 LAN product line on the Intel CD- ROM in HTML format. Note: The Intel CD-ROM may contain documentation for other Intel products in addition to the PRO/Wireless 5000 LAN Products. Please disregard the documentation for other products. All documentation for the PRO/Wireless 5000 LAN Products is accessible by clicking a button on the autorun menu screen displayed when the Intel CD- ROM is inserted into the computer (if this screen does not appear, run autorun.exe from the root directory of the Intel CD-ROM). Disregard any documentation on the CD-ROM that is not accessible through this autorun menu screen. Installing the Access Point Package Contents x Intel® PRO/Wireless 5000 LAN Access Point (model WSAP5000) x Mounting hardware x Power supply and power cord x CD-ROM containing software and online documentation x Quick Installation Guide (this manual) Installation Options and Requirements x (Recommended) To set up and configure the access point, use a wired client workstation connected to the access point directly or connected to the wired LAN to which the access point is connected. Initial setup and configuration must be done over a wired connection, but subsequent changes can be made over a wireless connection. x (Optional) Use DHCP server support for automatic assignment of an IP address to the access point over the wired network. You can configure the access point to use DHCP to get its IP address. See Using DHCP on page 8. 5 Connect and Power Up the Access Point Connect the Access Point to the Wired Network x Plug an RJ-45 Category 5 Ethernet cable into the RJ-45 connector on the access point and into a 10/100 Ethernet wall connector or hub. Connect the Access Point to an AC Power Source x Plug the power adapter into a wall outlet. x Plug the power adapter cable into the socket on the bottom of the access point. LED Indicators Once the access point is connected to a wired network and is powered on, check the LED indicators to verify that the unit is functioning correctly. If the access point fails to initialize, restart it by disconnecting and reconnecting power. x The "Ready" LED at the bottom of the row of LEDs should be lit. x If the access point is connected to a LAN through an Ethernet cable, the "Wired Link" LED should be lit (green for 10 Mbps, orange for 100 Mbps) and the "Wired network activity" LED should be blinking. x If the access point is communicating with a wireless adapter, the "Wireless radio activity" LED should be flashing. Viewed top to bottom, the LED indicators on the access point have the following functions. Wired link  Green for 10 Mbps wired network speed, orange for 100 Mbps.  Wired network activity  Yellow blinking shows activity.  Wireless radio association  Green will be ON if a client is associated to the access point and OFF if not.  Wireless radio activity  Yellow flashes steadily if no adapter associated, and more rapidly when transferring data.  Wireless radio association  Future use.  Wireless radio activity  Future use.  Ready  Green. This indicator will stay illuminated after the access point has completed the initialization sequence.  6 Configuring the Access Point for the First Time 1. Set up a portable or desktop computer as a configuration workstation from which to view the browser-based Configuration Management System used to configure the access point. 2. Connect the configuration workstation to the access point either directly (using a crossover RJ-45 cable) or through a hub or switch (using a standard RJ-45 cable). 3. The configuration workstation must be running Microsoft Windows® XP, 2000, Me, or 98, and one of the following web browsers: Microsoft Internet Explorer version 5.50 or Netscape Navigator version 4.78 or 5.x 4. Set up the configuration workstation initially with an IP address compatible with the default IP address and default subnet of the access point. For example, based on the access point default IP address 192.0.2.1 and default subnet 255.255.0.0, the client workstation could be set to 192.0.2.2, 192.0.2.3, or a similar address not in use by another device. 5. Once the workstation has been configured as just described, type the default access point IP address as a URL in the browser address field: http://192.0.2.1. 6. To access the Express Setup pages, type a user name and a password. The default for both is: Intel. The password is case-sensitive: capital "I," lower case "ntel." 7. Use Express Setup to configure the access point with a new IP address, subnet, and other settings suitable for the network to which it will be permanently connected (see table on page 7). 8. Click Apply first, then click Restart AP. After the access point has restarted, connect it to the required network. 9. Once the access point has been configured and connected to the network, the configuration interface can be viewed from any workstation on the same network segment or subnet. Open a compatible browser and type the actual IP address of the access point as a URL in the address field. Note: To view configuration, function or option changes on the browser p…

Text truncated - open the document above for the full version.

Intel® PRO/Wireless 5000 LAN Products Safety and Regulatory Notices This section provides the following safety and regulatory notices covering the following products: Intel® PRO/Wireless 5000 LAN Access Point and Intel® PRO/Wireless 5000 LAN CardBus Adapter. • Safety Notices • FCC Regulations • Canadian Department of Communications • Japan Regulatory Notices Safety Notices The FCC with its action in ET Docket 96-8 has adopted a safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC certified equipment. The Intel PRO/Wireless 5000 LAN products the Intel® PRO/Wireless 5000 LAN Access Point model WSAP5000, the Intel PRO/Wireless CardBus Adapter model WCP5000, and the Intel PRO/Wireless PCI Adapter model WPCI5000 meet the uncontrolled environmental limits found in OET-65 and ANSI C95.1, 1991. Proper operation of this radio according to the instructions found in this manual will result in exposure substantially below the FCC’s recommended limits. • Do not touch or move antenna while the unit is transmitting or receiving. • Do not hold any component containing the radio such that the antenna is very close or • touching any exposed parts of the body, especially the face or eyes, while transmitting. • Do not operate the radio or attempt to transmit data unless the antenna is connected; if • not, the radio may be damaged. • Use in specific environments: o The use of wireless devices in hazardous locations is limited to the constraints posed by the safety directors of such environments. o The use of wireless devices on airplanes is governed by the Federal Aviation Administration (FAA). o The use of wireless devices in hospitals is restricted to the limits set forth by each hospital. • Antenna use: o High-gain, wall-mount, or mast-mount antennas are designed to be professionally installed and should be located at a minimum distance of 12 inches (30 cm) or more from the body of all persons. Please contact your professional installer, VAR, or antenna manufacturer for proper installation requirements. • Explosive Device Proximity Warning (see below) • Warning for Laptop Users (see below) • Use on Aircraft Caution (see below) • Other Wireless Devices (see below) Explosive Device Proximity Warning Warning: Do not operate a portable transmitter (such as a wireless network device) near unshielded blasting caps or in an explosive environment unless the device has been modified to be especially qualified for such use. Use On Aircraft Caution Caution: Regulations of the FCC and FAA prohibit airborne operation of radio-frequency wireless devices because their signals could interfere with critical aircraft instruments. Other Wireless Devices Safety Notices for Other Devices in the Wireless Network: Refer to the documentation supplied with wireless Ethernet adapters or other devices in the wireless network. FCC Regulations FCC Regulations Part 15 Declaration of Conformity (DoC) Intel Corporation declares that the equipment described in this document is within the requirements of the Code of Federal Regulations listed below: Title 47 Part 15, Subpart B, Class B for a digital device. This declaration is based upon the compliance of the Intel PRO/Wireless CardBus Adapter model WCP5000, and the Intel PRO/Wireless PCI Adapter model WPCI5000 to the above standards. Intel has determined that the models listed have been shown to comply with the applicable technical standards if no unauthorized change is made in the equipment and if the equipment is properly maintained and operated. These units are identical to the units tested and found acceptable with the applicable standards. Records maintained by Intel continue to reflect that units being produced under this Declaration of Conformity, within the variation that can be expected due to quantity production and tested on a statistical basis, continue to comply with the applicable technical standards. Responsible Party: R.W. Bass, Vice President and General Manager, Xircom Inc, an Intel company, 2300 Corporate Center Drive, Thousand Oaks, California 91320 U.S.A. FCC Rules and Regulations - Part 15 The Intel® PRO/Wireless 5000 LAN Access and Intel PRO/Wireless CardBus Adapter model WCP5000 device complies with Part 15 of the FCC rules. Operation is subject to the conditions: 1. This device may not cause harmful interference and, 2. This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and the receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. CAUTION: The Part 15 radio device operates on a non-interference basis with other devices operating at this frequency. Any changes or modification to said product not expressly approved by Intel could void the user's authority to operate this device. Canadian Department of Communications Industry Canada (IC) Notice This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio …

Text truncated - open the document above for the full version.

Overview Welcome to the Intel® PRO/Wireless 5000 LAN Adapter User's Guide. This guide covers software installation, configuration, and troubleshooting. To select a topic, click a link in the contents column to the left. After installing the adapter, register your adapter online. Go to the Intel Product Registration Web site. Copyright © 2002 Intel Corporation. Legal Information Introduction to Wireless Networking The Intel® PRO/Wireless 5000 LAN Adapter is an Intel® PRO/Wireless 5000 LAN network product. Intel® PRO/Wireless 5000 LAN network products are based on the IEEE 802.11a standard and connect computers together to form a wireless network. Intel® PRO/Wireless 5000 LAN Adapters offer 54 Mbps data rates using clean spectrum 5 GHz transmissions. A Local Area Network (LAN) is a network in a central location. Users at that location share files, printers, and other services. In a LAN, a networked computers that request services are called clients, while servers in a LAN provide services. In a wireless LAN (WLAN), wireless adapters are installed in clients. A wireless client communicates with the WLAN without cables. Instead, wireless clients send and receive information through the air. A wireless client operates in either infrastructure mode or peer-to-peer mode. Infrastructure Mode: A WLAN with Access Points In infrastructure mode, wireless clients send and receive information through access points. When a wireless client communicates with another, it transmits to the access point. The access point receives the information and rebroadcasts it. Then the other device receives the information. Access points are strategically located within an area to provide optimal coverage for wireless clients. A large WLAN uses multiple access points to provide coverage over a wide area. Access points can connect to a LAN through a wired Ethernet connection. Access points send and receive information from the LAN through this wired connection. Peer-to-Peer Mode: A WLAN without Access Points In peer-to-peer mode, also called Ad Hoc Mode, wireless clients send and receive information to other wireless clients without using an access point. In contrast to infrastructure mode, this type of WLAN only contains wireless clients. You can use peer-to-peer mode to network computers in a home or small office, or to set up a temporary wireless network for a meeting. Identifying a WLAN All adapters and access points in a WLAN use a Network Name, or Service Set Identifier (SSID) to identify the WLAN. The SSID indicates what WLAN you are communicating with. Wireless Security Wireless networking devices transmit information through the air. Without implementing security, it is easy for an unauthorized person to intercept the information. A common way of implementing security and protecting information is encryption. Before sending information, the wireless client or access point encrypts or scrambles information using an encryption key. The device receiving the information uses the same key to decrypt or unscramble the information. The information is only readable to wireless devices that have the correct encryption key. 64-bit or 128-bit security The IEEE 802.11 wireless LAN standard specifies the Wired Equivalent Privacy (WEP) encryption and decryption algorithm. The standard includes two levels of security, using a 64-bit key or a 128-bit key. Some vendors refer to 64-bit encryption as 40-bit. These are identical. A wireless device that claims to have 64-bit encryption interoperates with a device that claims to have 40-bit encryption. To implement WEP , use either the 64-bit or 128-bit method. For better security, use a 128-bit key. A 128-bit key has several trillion times as many possible combinations as a 64-bit key. For added security, change your keys often. The same device, host computer or front-end processor usually performs both encryption and decryption. The algorithm, like the pattern of a lock, is standardized and may be used by anyone, but the encrypted data is unreadable without the appropriate key, which is known only by the sender and receiver of the transmitted data. You should change your keys often for added security. Copyright © 2002 Intel Corporation. Legal Information Installation • Intel® PRO/Wireless 5000 LAN Adapter Features • LED Descriptions • Install Drivers Under Windows • PROSet II Software • Uninstall the Adapter and Utility Software • Update a Wireless Driver • Reinstall the Adapter and Utility Software Intel® PRO/Wireless 5000 LAN Adapter Features Unless otherwise specified, the information in this document applies to both the Intel® PRO/Wireless 5000 LAN CardBus Adapter and the Intel® PRO/Wireless 5000 LAN PCI Adapter. Features of the Intel® PRO/Wireless 5000 LAN Adapters include: • IEEE 802.11a specification compatibility. This open architecture allows Intel® PRO/Wireless 5000 LAN devices to communicate with wireless devices from other vendors that comply with the IEEE 802.11a standard. • Up to 54 Mbps data rate for high-capacity, fast operation, including superior speeds even at increased range • Driver support for Microsoft Windows* XP, 98, Me, and 2000 • 128, 64 (called 40 by some vendors), and 0 bit Wired Equivalent Privacy (WEP) data security and VPN compatibility • Operation in 5 GHz UNII spectrum prevents interference from cordless phones, microwaves, Bluetooth* or 802.11b devices • 802.1x authentication compatibility for Windows XP Notes on the Intel® PRO/Wireless 5000 LAN CardBus Adapter The Intel® PRO/Wireless 5000 LAN CardBus Adapter can only be installed in a CardBus PC Card slot in a suitably equipped computer. The adapter contains a built-in radio antenna that protrudes when inserted into the slot. The Intel® PRO/Wireless 5000 LAN CardBus Adapter allows Personal Computer Memory Card International Association (PCMCIA) 3.3-volt Type II PC Card slot-equipped computers to configure, connect to and establish an Intel® PRO/Wireless 5000 LAN network. The exposed end of the I…

Text truncated - open the document above for the full version.

Page 1 of 2 Re: FCC ID J3OWCB5000A Applicant: Xircom Correspondence Reference Number: 22044 731 Confirmation Number: EA240240 1. Please provide the 5 GHz tissue simulant mixture parameters used for SAR testing. The tissue was formulated using the values as presented in "Supplement C" page 35. The dielectric values presented for 5.8 GHz and 3 GHz were used as the starting basis to calculate the epsilon and sigma "Target Values" for 5.24 GHz. These values were used to interpolate the target values for 5.24 GHz. Page 13 table 3 of the SAR report provides the values measured for the mixture used for this project. Stuart Nicol Director Product Develpoment 2. Please provide the 5 GHz probe calibration data. The probe was calibrated for sensitivity in air using a horn antenna, within an anechoic chamber (rated from 2 GHz to 28 GHz) using a predetermined process. The controlled environment was evaluated for reflections, and then set-up with the horn antenna transmitting at a specified amplitude at a frequency of 5.24 GHz. The amplitude of the signal from the horn antenna was then normalized so that the probe was detecting a 1 mW field. At this point measurements were then taken at each 10 degree increment for each sensor and then logged. From this the sensitivities were calculated and used during the thermal calibration. A dipole was manufactured using the parameters for 5.24 GHz while coupled to the tissue. A series of measurements were then made to determine the E-Slope vs. the T-Slope and the tissue enhancement factor was then calculated. Page 13 table 3 provides the conversion factor used for the measurements. Due to the additional research which was carried out by APREL Laboratories a number of proprietary elements were utilized for the Xircom project which APREL do not wish to be revealed to the public domain. If any further information is required we will be more than happy to provide this direct to the FCC for consultation. Stuart Nicol Director Product Develpoment Page 2 of 2 3. Explain how the RF power and power spectral density were measured at the integrated antenna terminals, if so. If these were made by radiated method, provide the data. The power output was re-measured using the new provided procedure from Joe Dichoso. The Power Spectral Density was measured using the UNII procedure that was provided to all the TCB’s. Procedure and data for both power output and power density have been uploaded. All data was taken at the antenna terminal using the antenna-conducted method. Do to the new peak output power measurement, please change the 731 form to reflect the new power which will be 0.1 Watts max power from 5180 – 5320 MHz. Hopefully this answers all of your questions. Please contact me via [email protected] if you require more information. Regards, Juan Martinez Sr. EMC Engineer

File: R45558 November 30, 2001 Chief, Equipment Authorization Branch, Authorization and Evaluation Division, Office of Engineering and Technology FEDERAL COMMUNICATIONS COMMISSION P.O. Box 358315 Pittsburgh, PA 15251-5315 Gentlemen: The enclosed documents constitute a formal submittal and application for a Grant of Equipment Authorization pursuant to Subpart E of Part 15 of FCC Rules (CFR 47) regarding intentional radiators. Data within this report demonstrates that the equipment tested complies with the FCC limits for intentional radiators. Elliott Laboratories, as duly authorized agent prepared this submittal. A copy of the letter of our appointment as agent is enclosed. If there are any questions or if further information is needed, please contact Elliott Laboratories for assistance. Sincerely, Juan Martinez Senior EMC Engineer JM/dmg Enclosures: Agent Authorization Letter Emissions Test Report with Exhibits

Printed By: Robert PaxmanReference Only unless DC stampedDate Printed: 07-Nov-2001 11:53:01 Number: 23945Rev: CCBStatus: CCB FOR HOME OR OFFICE USE Tested to Comply with FCC Standards R-LARN-00-0243 C US LISTED E178682 E178682 I.T.E.I.T.E. U L FCC ID: J3OWCB5000A CANADA ICES/NMB-003 Class/Classe (B) Canada: XXX XXXX XXXXA SCT TTDXIMXXX-XXX CNC XX-XXXX U.S. and Foreign Patents Pending 071301-AQV1137 GZAEXXXX NYAEXXXX D01-XXXXJP 2.4 DS 4 Approved by IDA for use in Singapore. DA02941 90LP0011 Malaysia sticker Intel ® PRO/Wireless 5000 LAN CardBus Adapter Model WCB5000 REVISIONS REV.DESCRIPTIONDATEAPPROVED APer ECN 23528N. Guetschoff UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN INCHES TOLERANCES ARE: FRACTIONS DECIMALS ANGLES ±.008 MATERIAL FINISH DO NOT SCALE DRAWING CONTRACT NO. APPROVALS DATE DRAWN N. Guetschoff10-18-01 CHECKED K. Hovsepian APPROVED T. Aerden B. Winter L. Thum LABEL, BOTTOM, WCB5000 SIZE FSCM NO.DRAWING NO.REV. A830-1774-001 A SCALE = 1” = 1”SHEET 1 OF 1 THIS DOCUMENT CONTAINS INFORMATION PROPRIETARY TO XIRCOM, INC. AND IS FURNISHED TO FOR THE PURPOSE OF INSTALLATION, OPERATION OR MAINTENANCE OF THE ITEM(S) DESCRIBED HEREIN. ALL OTHER USES OF THIS DOCUMENT OR ITS CONTENTS ARE NOT AUTHORIZED BY XIRCOM, INC. © 2001 ALL RIGHTS RESERVED. COPYING OF THIS DOCUMENT IS UNLAWFUL WITHOUT THE WRITTEN PERMISSION OF XIRCOM, INC., THOUSAND OAKS, CA 91320-1420. 3 7 1 2 1 2 • REF. ELECTRONIC ARTWORK #832-2672-001A, ADOBE ILLUSTRATOR 9.0 FILE • LABEL MATERIAL AND SUPPLIER MUST BE UL APPROVED • A/W PART NUMBERS TO PRINT ON ALL FILM LAYERS (100% SCREEN OF PMS OR CMYK COLORS) IF FILM IS REQD • CLEANING TEST: PERFORM LABEL CLEANING TEST PER XIRCOM QA LABEL CLEANING TEST #QAI-020 • GAP BETWEEN LABELS ON ROLL TO BE BETWEEN 10.16MM (.400") TO 12.70MM (.500") • ALL TEXT AND GRAPHICS REVERSE OUT WHITE UNLESS OTHERWISE SPECIFIED ON FAB OR IN ART FILE • BLACK • FOR LABEL ORIENTATION ON ROLL, REF: FAB DWG #802-0016-001, PAGEMAKER 5.0 FILE • MARK PART NUMBER AND REVISION IN CONSPICUOUS AREA ON OUTSIDE OF BULK PACKAGING FINISH• MATTE MATERIAL • MYLAR, WHITE, 2.3 MIL FACESTOCK, 3M#7815; ACRYLIC PERM ADHESIVE, 3M#310, 0.8 MIL(PENANG REQMT) OR XIRCOM APPROVED EQUIVALENT NOTES:(UNLESS OTHERWISE SPECIFIED) 45.57mm (1.794”) 8 42.57mm (1.676”) 1.27mm (.050”) R 4 PLACES 4 9 11 10 5 5 19.13mm (.753”) 66.70mm (2.626”) WHITE RECTANGLE IS FOR POST- PRINTING OF BAR CODE & CONTROL DATA WHICH WILL OCCUR AT TIME OF MANUFACTURING .64mm (.025”) 2 EDGES 6 10 A/W #832-2672-001 A Master 2.4 WCB5000 FAB #830-1774-001 ECN 23528 FOR HOME OR OFFICE USE Tested to Comply with FCC Standards R-LARN-00-0243 C US LISTED E178682 E178682 I.T.E.I.T.E. U L FCC ID: J30WCB5000A CANADA ICES/NMB-003 Class/Classe (B) Canada: XXX XXXX XXXXA SCT TTDXIMXXX-XXX CNC XX-XXXX U.S. and Foreign Patents Pending HHHHAAAA-FFFF GZAEXXXX NYAEXXXX D01-XXXXJP 2.4 DS 4 Approved by IDA for use in Singapore. DB02941 90LP0011 Malaysia sticker Intel ® PRO/Wireless 5000 LAN CardBus Adapter Model WCB5000

Assembly View Top side of board – shield in place Top of board – shield removed Bottom side of board

Read this before installing your Intel® PRO/Wireless 5000 LAN Products Late-breaking News The following FCC Notices are additions to the printed Regulatory Notices provided with your product. FCC Notice This unit is a mobile device that uses radio transmissions to operate. Please keep it at least 20 cm from any persons during operation. In addition, it should not operate in the same location with any other antenna or radio transmitter. The Intel WCB5000 PRO/Wireless 5000 LAN CardBus Adapter has passed all necessary tests, and FCC applications are pending to classify the product as a portable device that can be operated in close proximity to the human body. WARNING To comply with the FCC and ANSI C95.1 RF exposure limits, it is recommended for the Access Point, or a PCI Adapter card, installed in a desktop computer, that the antenna for this device be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or radio transmitter. Installers and end-users must follow the installation instructions provided in this user guide. Radio Frequency Interference Requirements This device is restricted to indoor use due to its operation in the 5.15 to 5.25 GHz frequency range. FCC requires this product to be used indoors for the frequency range 5.15 to 5.25 GHz to reduce the potential for harmful interference to co-channel Mobile Satellite systems. High power radars are allocated as primary users of the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands. These radar stations can cause interference with and /or damage this device. WARNING To comply with the FCC and ANSI C95.1 RF exposure limits, it is recommended when using a wireless device with an integrated antenna, for the CardBus Adapter inserted into a laptop computer that the antenna should not be positioned closer than 20 cm (8 inches) from your body or nearby persons for extended periods of time while it is transmitting (or operating). If the antenna is positioned less than 5 cm (two inches) from the user, it is recommended that the user limit exposure time. The Device must not be co-located or operating in conjunction with any other antenna or radio transmitter. Installers and end-users must follow the installation instructions provided in this user guide. This device is restricted to indoor use due to its operation in the 5.15 to 5.25 GHz frequency range. FCC requires this product to be used indoors for the frequency range 5.15 to 5.25 GHz to reduce the potential for harmful interference to co-channel Mobile Satellite systems. High power radars are allocated as primary users of the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands. These radar stations can cause interference with and /or damage this device. The following Canadian Department of Communications Industry Canada (IC) Notice supersedes the printed matter provided with your product. Canadian Department of Communications Industry Canada (IC) Notice This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications. December 2001 812-1753-001A For support and drivers: http://support.intel.com Late-breaking News Page 2 Le présent appareil numérique n'émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de Classe B prescrites dans le règlement sur le brouillage radioélectrique édicté par le Ministère des Communications du Canada. This device complies with Class B Limits of Industry Canada. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. The device is certified to the requirements of the RSS-210 for LELAN devices. The use of this device in a system operating either partially or completely outdoors may require the user to obtain a license for the system according to the Canadian regulations. For further information, contact your local Industry Canada office. Use the Latest Release of Your Intel Installation CD-ROM If you have more than one Intel Installation CD-ROM for your PRO/Wireless 5000 LAN products, always use the CD-ROM with the highest version number. Use the Latest Version of PROSet II The Intel PRO/Wireless LAN software (PROSet II) included in this release supports the following: • Intel PRO/Wireless 5000 LAN CardBus Adapter* • Intel PRO/Wireless 2011/2011B LAN Adapter Note: (*) Previous versions of PROSet II will NOT support the Intel PRO/Wireless 5000 LAN CardBus Adapter. Please use the version of PROSet II that is included in this release. Installing ProSet II • If the software installation program displays the message “PROSet II can not be installed due to an incompatibility with the currently installed adapter driver,” remove the driver for your wired Intel adapter and install an updated driver from the installation CD-ROM. Then restart the software installation. • When installing the Intel PRO/Wireless LAN software, an …

Text truncated - open the document above for the full version.
