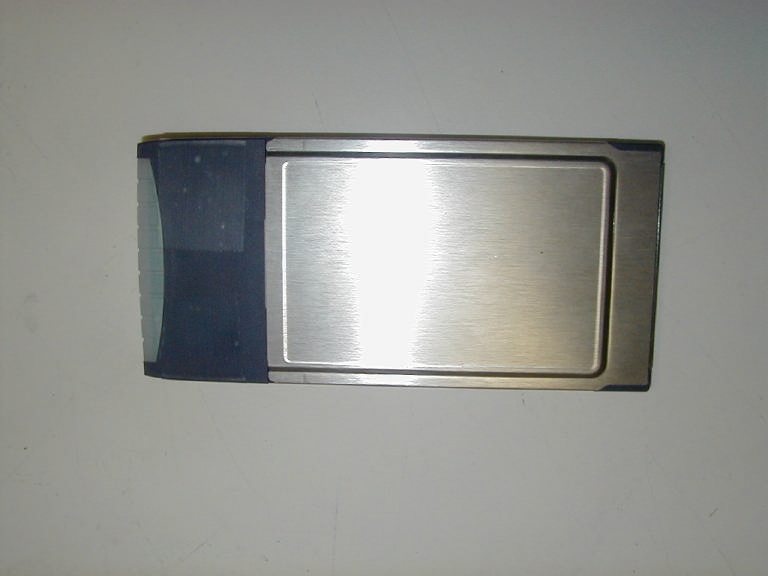

J3OWCB5000Cardbus Wireless LAN Adapter

Intel® PRO/Wireless 5000 LAN Products Quick Installation Guide 2 Copyright © 2001, Intel Corporation. All rights reserved. Intel Corporation assumes no responsibility for errors or omissions in this document. Nor does Intel make any commitment to update the information contained herein. Intel is a registered trademark of Intel Corporation. Other product and corporate names may be trademarks of other companies and are used only for explanation and to the owners' benefit, without intent to infringe. 801-0311-001A November 2001 3 Table of Contents Installing the Access Point.......................... 4 Installing the CardBus Adapter ................. 11 Installing the PCI Adapter.......................... 14 4 Intel® PRO/Wireless 5000 LAN Products User Documentation In addition to this Quick Installation Guide, Intel provides extensive online documentation for the PRO/Wireless 5000 LAN product line on the Intel CD- ROM in HTML format. Note: The Intel CD-ROM may contain documentation for other Intel products in addition to the PRO/Wireless 5000 LAN Products. Please disregard the documentation for other products. All documentation for the PRO/Wireless 5000 LAN Products is accessible by clicking a button on the autorun menu screen displayed when the Intel CD- ROM is inserted into the computer (if this screen does not appear, run autorun.exe from the root directory of the Intel CD-ROM). Disregard any documentation on the CD-ROM that is not accessible through this autorun menu screen. Installing the Access Point Package Contents x Intel® PRO/Wireless 5000 LAN Access Point (model WSAP5000) x Mounting hardware x Power supply and power cord x CD-ROM containing software and online documentation x Quick Installation Guide (this manual) Installation Options and Requirements x (Recommended) To set up and configure the access point, use a wired client workstation connected to the access point directly or connected to the wired LAN to which the access point is connected. Initial setup and configuration must be done over a wired connection, but subsequent changes can be made over a wireless connection. x (Optional) Use DHCP server support for automatic assignment of an IP address to the access point over the wired network. You can configure the access point to use DHCP to get its IP address. See Using DHCP on page 8. 5 Connect and Power Up the Access Point Connect the Access Point to the Wired Network x Plug an RJ-45 Category 5 Ethernet cable into the RJ-45 connector on the access point and into a 10/100 Ethernet wall connector or hub. Connect the Access Point to an AC Power Source x Plug the power adapter into a wall outlet. x Plug the power adapter cable into the socket on the bottom of the access point. LED Indicators Once the access point is connected to a wired network and is powered on, check the LED indicators to verify that the unit is functioning correctly. If the access point fails to initialize, restart it by disconnecting and reconnecting power. x The "Ready" LED at the bottom of the row of LEDs should be lit. x If the access point is connected to a LAN through an Ethernet cable, the "Wired Link" LED should be lit (green for 10 Mbps, orange for 100 Mbps) and the "Wired network activity" LED should be blinking. x If the access point is communicating with a wireless adapter, the "Wireless radio activity" LED should be flashing. Viewed top to bottom, the LED indicators on the access point have the following functions. Wired link  Green for 10 Mbps wired network speed, orange for 100 Mbps.  Wired network activity  Yellow blinking shows activity.  Wireless radio association  Green will be ON if a client is associated to the access point and OFF if not.  Wireless radio activity  Yellow flashes steadily if no adapter associated, and more rapidly when transferring data.  Wireless radio association  Future use.  Wireless radio activity  Future use.  Ready  Green. This indicator will stay illuminated after the access point has completed the initialization sequence.  6 Configuring the Access Point for the First Time 1. Set up a portable or desktop computer as a configuration workstation from which to view the browser-based Configuration Management System used to configure the access point. 2. Connect the configuration workstation to the access point either directly (using a crossover RJ-45 cable) or through a hub or switch (using a standard RJ-45 cable). 3. The configuration workstation must be running Microsoft Windows® XP, 2000, Me, or 98, and one of the following web browsers: Microsoft Internet Explorer version 5.50 or Netscape Navigator version 4.78 or 5.x 4. Set up the configuration workstation initially with an IP address compatible with the default IP address and default subnet of the access point. For example, based on the access point default IP address 192.0.2.1 and default subnet 255.255.0.0, the client workstation could be set to 192.0.2.2, 192.0.2.3, or a similar address not in use by another device. 5. Once the workstation has been configured as just described, type the default access point IP address as a URL in the browser address field: http://192.0.2.1. 6. To access the Express Setup pages, type a user name and a password. The default for both is: Intel. The password is case-sensitive: capital "I," lower case "ntel." 7. Use Express Setup to configure the access point with a new IP address, subnet, and other settings suitable for the network to which it will be permanently connected (see table on page 7). 8. Click Apply first, then click Restart AP. After the access point has restarted, connect it to the required network. 9. Once the access point has been configured and connected to the network, the configuration interface can be viewed from any workstation on the same network segment or subnet. Open a compatible browser and type the actual IP address of the access point as a URL in the address field. Note: To view configuration, function or option changes on the browser p…

Text truncated - open the document above for the full version.

Intel® PRO/Wireless 5000 LAN Products Safety and Regulatory Notices This section provides the following safety and regulatory notices covering the following products: Intel® PRO/Wireless 5000 LAN Access Point and Intel® PRO/Wireless 5000 LAN CardBus Adapter. • Safety Notices • FCC Regulations • Canadian Department of Communications • Japan Regulatory Notices Safety Notices The FCC with its action in ET Docket 96-8 has adopted a safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC certified equipment. The Intel PRO/Wireless 5000 LAN products the Intel® PRO/Wireless 5000 LAN Access Point model WSAP5000, the Intel PRO/Wireless CardBus Adapter model WCP5000, and the Intel PRO/Wireless PCI Adapter model WPCI5000 meet the uncontrolled environmental limits found in OET-65 and ANSI C95.1, 1991. Proper operation of this radio according to the instructions found in this manual will result in exposure substantially below the FCC’s recommended limits. • Do not touch or move antenna while the unit is transmitting or receiving. • Do not hold any component containing the radio such that the antenna is very close or • touching any exposed parts of the body, especially the face or eyes, while transmitting. • Do not operate the radio or attempt to transmit data unless the antenna is connected; if • not, the radio may be damaged. • Use in specific environments: o The use of wireless devices in hazardous locations is limited to the constraints posed by the safety directors of such environments. o The use of wireless devices on airplanes is governed by the Federal Aviation Administration (FAA). o The use of wireless devices in hospitals is restricted to the limits set forth by each hospital. • Antenna use: o High-gain, wall-mount, or mast-mount antennas are designed to be professionally installed and should be located at a minimum distance of 12 inches (30 cm) or more from the body of all persons. Please contact your professional installer, VAR, or antenna manufacturer for proper installation requirements. • Explosive Device Proximity Warning (see below) • Warning for Laptop Users (see below) • Use on Aircraft Caution (see below) • Other Wireless Devices (see below) Explosive Device Proximity Warning Warning: Do not operate a portable transmitter (such as a wireless network device) near unshielded blasting caps or in an explosive environment unless the device has been modified to be especially qualified for such use. Use On Aircraft Caution Caution: Regulations of the FCC and FAA prohibit airborne operation of radio-frequency wireless devices because their signals could interfere with critical aircraft instruments. Other Wireless Devices Safety Notices for Other Devices in the Wireless Network: Refer to the documentation supplied with wireless Ethernet adapters or other devices in the wireless network. FCC Regulations FCC Regulations Part 15 Declaration of Conformity (DoC) Intel Corporation declares that the equipment described in this document is within the requirements of the Code of Federal Regulations listed below: Title 47 Part 15, Subpart B, Class B for a digital device. This declaration is based upon the compliance of the Intel PRO/Wireless CardBus Adapter model WCP5000, and the Intel PRO/Wireless PCI Adapter model WPCI5000 to the above standards. Intel has determined that the models listed have been shown to comply with the applicable technical standards if no unauthorized change is made in the equipment and if the equipment is properly maintained and operated. These units are identical to the units tested and found acceptable with the applicable standards. Records maintained by Intel continue to reflect that units being produced under this Declaration of Conformity, within the variation that can be expected due to quantity production and tested on a statistical basis, continue to comply with the applicable technical standards. Responsible Party: R.W. Bass, Vice President and General Manager, Xircom Inc, an Intel company, 2300 Corporate Center Drive, Thousand Oaks, California 91320 U.S.A. FCC Rules and Regulations - Part 15 The Intel® PRO/Wireless 5000 LAN Access and Intel PRO/Wireless CardBus Adapter model WCP5000 device complies with Part 15 of the FCC rules. Operation is subject to the conditions: 1. This device may not cause harmful interference and, 2. This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and the receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. CAUTION: The Part 15 radio device operates on a non-interference basis with other devices operating at this frequency. Any changes or modification to said product not expressly approved by Intel could void the user's authority to operate this device. Canadian Department of Communications Industry Canada (IC) Notice This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio …

Text truncated - open the document above for the full version.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 December 17, 2001 RE: Intel / Xircom FCC ID: J3OWCB5000 I have a few comments on this Application. 1.) The file entitled “Install Guide Regulatory 2 of 2” appears to indicate there will be multiple antennas associated with this device. These antennas must be listed and identified by type, and/or part numbers and gain, and included in the RF Exposure information. In addition, the language used is not consistent with FCC requirements for mobile devices. 2.) The FCC will not allow the inclusion of internal photographs in Confidentiality requests. Supply revised Confidentiality request. 3.) Block diagram does not meet the requirements of 2.1033(b)(5). Please supply a more detailed diagram. William H. Graff President and Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

RE: Intel / Xircom FCC ID: J3OWCB5000 In response to your comments on the above application, please find our responses to each issue in the text below: 1.) The file entitled “Install Guide Regulatory 2 of 2” appears to indicate there will be multiple antennas associated with this device. These antennas must be listed and identified by type, and/or part numbers and gain, and included in the RF Exposure information. In addition, the language used is not consistent with FCC requirements for mobile devices. The file “Install Guide Regulatory 2 of 2” is a generic document provided with the full series of products. The information that references multiple antennas is for devices in the Enterprise series solution that are still in development. Page 13 of 18 in the file “Install Guide 1 of 2” contains the relevant information. An additional document was provided as a part of the rf exposure information. This has further information that will be included in the final manual for the cardbus product. This document has been uploaded a second time as “Theory of Operations – addendum”. 2.) The FCC will not allow the inclusion of internal photographs in Confidentiality requests. Supply revised Confidentiality request. The client does not want the identity of the chipset used in the device to be revealed. I have studied the internal pictures and believe that the chipsets cannot be identified from the photographs provided. If you could also please confirm that the identity of the chipset cannot be determined from these photographs then this is acceptable. The Confidentiality request has been revised and uploaded in anticipation of this. 3.) Block diagram does not meet the requirements of 2.1033(b)(5). Please supply a more detailed diagram. The majority of the frequency-determining circuitry is included in the chipset. The only external clock/frequencies are a 32MHz reference clock for the chipset and the 33MHz CardBus interface bus. Intel are not privy to the block diagram for the chipset. If this is needed it may be possible to provide ATCB with a copy from the chip set manufacturer. The block diagram has been modified to better show the external clocks. Please advise if the chipset block diagram will be required. If you have any questions, please contact me via [email protected] Regards, Mark Briggs

FOR HOME OR OFFICE USE Tested to Comply with FCC Standards R-LARN-00-0243 C US LISTED E178682 E178682 I.T.E.I.T.E. U L FCC ID: J3OWCB5000 CANADA ICES/NMB-003 Class/Classe (B) Canada: XXX XXXX XXXXA SCT TTDXIMXXX-XXX CNC XX-XXXX U.S. and Foreign Patents Pending 071301-AQV1137 GZAEXXXX NYAEXXXX D01-XXXXJP 2.4 DS 4 Approved by IDA for use in Singapore. DA02941 90LP0011 Malaysia sticker Intel ® PRO/Wireless 5000 LAN CardBus Adapter Model WCB5000 REVISIONS REV.DESCRIPTIONDATEAPPROVED APer ECN 23528N. Guetschoff UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN INCHES TOLERANCES ARE: FRACTIONS DECIMALS ANGLES ±.008 MATERIAL FINISH DO NOT SCALE DRAWING CONTRACT NO. APPROVALS DATE DRAWN N. Guetschoff10-18-01 CHECKED K. Hovsepian APPROVED T. Aerden B. Winter L. Thum LABEL, BOTTOM, WCB5000 SIZE FSCM NO.DRAWING NO.REV. A830-1774-001 A SCALE = 1” = 1”SHEET 1 OF 1 THIS DOCUMENT CONTAINS INFORMATION PROPRIETARY TO XIRCOM, INC. AND IS FURNISHED TO FOR THE PURPOSE OF INSTALLATION, OPERATION OR MAINTENANCE OF THE ITEM(S) DESCRIBED HEREIN. ALL OTHER USES OF THIS DOCUMENT OR ITS CONTENTS ARE NOT AUTHORIZED BY XIRCOM, INC. © 2001 ALL RIGHTS RESERVED. COPYING OF THIS DOCUMENT IS UNLAWFUL WITHOUT THE WRITTEN PERMISSION OF XIRCOM, INC., THOUSAND OAKS, CA 91320-1420. 3 7 1 2 1 2 • REF. ELECTRONIC ARTWORK #832-2672-001A, ADOBE ILLUSTRATOR 9.0 FILE • LABEL MATERIAL AND SUPPLIER MUST BE UL APPROVED • A/W PART NUMBERS TO PRINT ON ALL FILM LAYERS (100% SCREEN OF PMS OR CMYK COLORS) IF FILM IS REQD • CLEANING TEST: PERFORM LABEL CLEANING TEST PER XIRCOM QA LABEL CLEANING TEST #QAI-020 • GAP BETWEEN LABELS ON ROLL TO BE BETWEEN 10.16MM (.400") TO 12.70MM (.500") • ALL TEXT AND GRAPHICS REVERSE OUT WHITE UNLESS OTHERWISE SPECIFIED ON FAB OR IN ART FILE • BLACK • FOR LABEL ORIENTATION ON ROLL, REF: FAB DWG #802-0016-001, PAGEMAKER 5.0 FILE • MARK PART NUMBER AND REVISION IN CONSPICUOUS AREA ON OUTSIDE OF BULK PACKAGING FINISH• MATTE MATERIAL • MYLAR, WHITE, 2.3 MIL FACESTOCK, 3M#7815; ACRYLIC PERM ADHESIVE, 3M#310, 0.8 MIL(PENANG REQMT) OR XIRCOM APPROVED EQUIVALENT NOTES:(UNLESS OTHERWISE SPECIFIED) 45.57mm (1.794”) 8 42.57mm (1.676”) 1.27mm (.050”) R 4 PLACES 4 9 11 10 5 5 19.13mm (.753”) 66.70mm (2.626”) WHITE RECTANGLE IS FOR POST- PRINTING OF BAR CODE & CONTROL DATA WHICH WILL OCCUR AT TIME OF MANUFACTURING .64mm (.025”) 2 EDGES 6 10 FOR HOME OR OFFICE USE Tested to Comply with FCC Standards R-LARN-00-0243 C US LISTED E178682 E178682 I.T.E.I.T.E. U L FCC ID: J3OWCB5000 CANADA ICES/NMB-003 Class/Classe (B) Canada: XXX XXXX XXXXA SCT TTDXIMXXX-XXX CNC XX-XXXX U.S. and Foreign Patents Pending 071301-AQV1137 GZAEXXXX NYAEXXXX D01-XXXXJP 2.4 DS 4 Approved by IDA for use in Singapore. DA02941 90LP0011 Malaysia sticker Intel ® PRO/Wireless 5000 LAN CardBus Adapter Model WCB5000 REVISIONS REV.DESCRIPTIONDATEAPPROVED APer ECN 23528N. Guetschoff UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN INCHES TOLERANCES ARE: FRACTIONS DECIMALS ANGLES ±.008 MATERIAL FINISH DO NOT SCALE DRAWING CONTRACT NO. APPROVALS DATE DRAWN N. Guetschoff10-18-01 CHECKED K. Hovsepian APPROVED T. Aerden B. Winter L. Thum LABEL, BOTTOM, WCB5000 SIZE FSCM NO.DRAWING NO.REV. A830-1774-001 A SCALE = 1” = 1”SHEET 1 OF 1 THIS DOCUMENT CONTAINS INFORMATION PROPRIETARY TO XIRCOM, INC. AND IS FURNISHED TO FOR THE PURPOSE OF INSTALLATION, OPERATION OR MAINTENANCE OF THE ITEM(S) DESCRIBED HEREIN. ALL OTHER USES OF THIS DOCUMENT OR ITS CONTENTS ARE NOT AUTHORIZED BY XIRCOM, INC. © 2001 ALL RIGHTS RESERVED. COPYING OF THIS DOCUMENT IS UNLAWFUL WITHOUT THE WRITTEN PERMISSION OF XIRCOM, INC., THOUSAND OAKS, CA 91320-1420. 3 7 1 2 1 2 • REF. ELECTRONIC ARTWORK #832-2672-001A, ADOBE ILLUSTRATOR 9.0 FILE • LABEL MATERIAL AND SUPPLIER MUST BE UL APPROVED • A/W PART NUMBERS TO PRINT ON ALL FILM LAYERS (100% SCREEN OF PMS OR CMYK COLORS) IF FILM IS REQD • CLEANING TEST: PERFORM LABEL CLEANING TEST PER XIRCOM QA LABEL CLEANING TEST #QAI-020 • GAP BETWEEN LABELS ON ROLL TO BE BETWEEN 10.16MM (.400") TO 12.70MM (.500") • ALL TEXT AND GRAPHICS REVERSE OUT WHITE UNLESS OTHERWISE SPECIFIED ON FAB OR IN ART FILE • BLACK • FOR LABEL ORIENTATION ON ROLL, REF: FAB DWG #802-0016-001, PAGEMAKER 5.0 FILE • MARK PART NUMBER AND REVISION IN CONSPICUOUS AREA ON OUTSIDE OF BULK PACKAGING FINISH• MATTE MATERIAL • MYLAR, WHITE, 2.3 MIL FACESTOCK, 3M#7815; ACRYLIC PERM ADHESIVE, 3M#310, 0.8 MIL(PENANG REQMT) OR XIRCOM APPROVED EQUIVALENT NOTES:(UNLESS OTHERWISE SPECIFIED) 45.57mm (1.794”) 8 42.57mm (1.676”) 1.27mm (.050”) R 4 PLACES 4 9 11 10 5 5 19.13mm (.753”) 66.70mm (2.626”) WHITE RECTANGLE IS FOR POST- PRINTING OF BAR CODE & CONTROL DATA WHICH WILL OCCUR AT TIME OF MANUFACTURING .64mm (.025”) 2 EDGES 6 10 Printed By: Robert PaxmanReference Only unless DC stampedDate Printed: 07-Nov-2001 11:53:01 Number: 23945Rev: CCBStatus: CCB

MPECalculations FCCpart1.1310,Table1limitsthepowerdensityforuncontrolledex posureto1mW/ cm 2 forsyst emsoperatingintheUNIIbands .Thedi stance,d(cm)fr omtheantennaat whichthepowerdensity,P d (mW/cm 2 )isbelowthislimitiscalculat edfr omthe maximumEIRP,P t (mW)usingtheequation: P d =P t /(4πd 2 ) Re-arr an gingforthedi stanceatwhichthepowerdensityis1mW/c m2gives: d=√(P t /(4π)) Thedeviceundertes tisdes ignedtouseanintegralantenna,whic hcanisco nfiguredto giveanOmni-Dire ctionalpatter n.Thegaingainsstatedfo rtheomniconfig urationis3.9 dBi.Themaximumoutputpoweracrossallchannelsis15.7dBm. ThemaximumEIRPfor5. 15to5.25GHzis,therefore,14.3dBm+3.9dBi=18.2dBm (66mW): d=√(66/(4 π))=2.23cm ThemaximumEIRPfor5.25to5.3 5GHzis,therefore,15.4dBm+3.9dBi=19.3dBm (85.1mW): d=√(85.1/(4 π))=2.60cm Thedistancefr omtheantennathatthepowerdensityis1mW/cm 2 is,therefore,2.6cm. Theus ersguideinst ruct stheus ertoinstallthedevicesu chthatitha saseparationofat least20cmfr ompersons(seetextbelow)tocomplywiththeFCC’srequirements.This separationof20c mmorethanmee tstheFCC’sandIndustryCanadaRFexposu re requirements. Frequency range(GHz) EIRP Calculated(cm) 5.15–5.25 18.2dBm(66mW) 2.23 5.25–5.35 19.3dBm (85.1mW) 2.60 RFExposureRequirements Toensur ecompli an cewithFCCRFexposurerequirements ,theante nnause dforth isde vicemust beins tall edtoprovidease parationdistanceofatleast20cmfro mallpersonsandmustnotbeco- loca tedorop eratinginconjunctionwithanyotherantenn aorradiotransmitter.Installersandend- usersmustfollowtheinstallationinstructionsprovi dedinthisuserguide. Thewarningstatementis attachedtothisdocument. Antenna information has been uploaded. Read this before installing your Intel® PRO/Wireless 5000 LAN Products Late-breaking News The following FCC Notices are additions to the printed Regulatory Notices provided with your product. FCC Notice This unit is a mobile device that uses radio transmissions to operate. Please keep it at least 20 cm from any persons during operation. In addition, it should not operate in the same location with any other antenna or radio transmitter. The Intel WCB5000 PRO/Wireless 5000 LAN CardBus Adapter has passed all necessary tests, and FCC applications are pending to classify the product as a portable device that can be operated in close proximity to the human body. WARNING To comply with the FCC and ANSI C95.1 RF exposure limits, it is recommended for the Access Point, or a PCI Adapter card, installed in a desktop computer, that the antenna for this device be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or radio transmitter. Installers and end-users must follow the installation instructions provided in this user guide. Radio Frequency Interference Requirements This device is restricted to indoor use due to its operation in the 5.15 to 5.25 GHz frequency range. FCC requires this product to be used indoors for the frequency range 5.15 to 5.25 GHz to reduce the potential for harmful interference to co-channel Mobile Satellite systems. High power radars are allocated as primary users of the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands. These radar stations can cause interference with and /or damage this device. WARNING To comply with the FCC and ANSI C95.1 RF exposure limits, it is recommended when using a wireless device with an integrated antenna, for the CardBus Adapter inserted into a laptop computer that the antenna should not be positioned closer than 20 cm (8 inches) from your body or nearby persons for extended periods of time while it is transmitting (or operating). If the antenna is positioned less than 5 cm (two inches) from the user, it is recommended that the user limit exposure time. The Device must not be co-located or operating in conjunction with any other antenna or radio transmitter. Installers and end-users must follow the installation instructions provided in this user guide. This device is restricted to indoor use due to its operation in the 5.15 to 5.25 GHz frequency range. FCC requires this product to be used indoors for the frequency range 5.15 to 5.25 GHz to reduce the potential for harmful interference to co-channel Mobile Satellite systems. High power radars are allocated as primary users of the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands. These radar stations can cause interference with and /or damage this device. The following Canadian Department of Communications Industry Canada (IC) Notice supersedes the printed matter provided with your product. Canadian Department of Communications Industry Canada (IC) Notice This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications. December 2001 812-1753-001A For support and drivers: http://support.intel.com

File: R45558 Page 1 of 19 Electromagnetic Emissions Test Report and Application for Grant of Equipment Authorization pursuant to FCC Part 15, Subpart E (UNII Devices) and Industry Canada RSS 210 Issue 4 (LELEAN Devices) on the Intel Corporation Model: WCB5000 FCC ID: J3OWCB5000 GRANTEE: Intel Corporation 2300 Corporate Center Drive Thousand Oaks, CA. 91320 TEST SITE: Elliott Laboratories, Inc. 684 W. Maude Avenue Sunnyvale, CA 94086 REPORT DATE: November 30, 2001 FINAL TEST DATE: November 27, 2001 AUTHORIZED SIGNATORY: ______________________________ Mark Briggs Director of Engineering This report shall not be reproduced, except in its entirety, without the written approval of Elliott Laboratories, Inc. Elliott Laboratories, Inc. -- EMC Department Test Report Report Date: November 30, 2001 File: R45558 Page 2 of 19 Pages DECLARATIONS OF COMPLIANCE Equipment Name and Model: WCB5000 Manufacturer: Intel Corporation 2300 Corporate Center Drive Thousand Oaks, CA. 91320 Tested to applicable standards: RSS-210, Issue 4, December 2000 (Low Power License-Exempt Radiocommunication Devices) FCC Part 15 Subpart E (UNII Devices) Measurement Facility Description Filed With Department of Industry: Departmental Acknowledgement Number: IC2845 SV1 Dated July 30, 2001 Departmental Acknowledgement Number: IC2845 SV3 Dated July 30, 2001 Departmental Acknowledgement Number: IC2845 SV4 Dated July 19, 2001 I declare that the testing was performed or supervised by me; that the test measurements were made in accordance with the above mentioned departmental standards (through the use of ANSI C63.4 as detailed in section 5.3 of RSS-210, Issue 4); and that the equipment performed in accordance with the data submitted in this report. Signature ______________________________ Name Mark Briggs Title Director of Engineering Company Elliott Laboratories Inc. Address 684 W. Maude Ave Sunnyvale, CA 94086 USA Date: November 30, 2001 Maintenance of compliance with the above standards is the responsibility of the manufacturer. Any modification of the product which may result in increased emissions should be checked to ensure compliance has been maintained (i.e., printed circuit board layout changes, different line filter, different power supply, harnessing or I/O cable changes, etc.). Elliott Laboratories, Inc. -- EMC Department Test Report Report Date: November 30, 2001 File: R45558 Page 3 of 19 Pages TABLE OF CONTENTS COVER PAGE..................................................................................................................................................................................1 DECLARATIONS OF COMPLIANCE......................................................................................................................................2 TABLE OF CONTENTS...............................................................................................................................................................3 SCOPE.............................................................................................................................................................................................4 OBJECTIVE...................................................................................................................................................................................4 SUMMARY OF RESULTS...........................................................................................................................................................5 MEASUREMENT UNCERTAINTIES....................................................................................................................................6 EQUIPMENT UNDER TEST (EUT) DETAILS..........................................................................................................................7 GENERAL...................................................................................................................................................................................7 ANTENNA.................................................................................................................................................................................7 ENCLOSURE.........................................................................................................................................…
