J69CB461Wireless Help Button

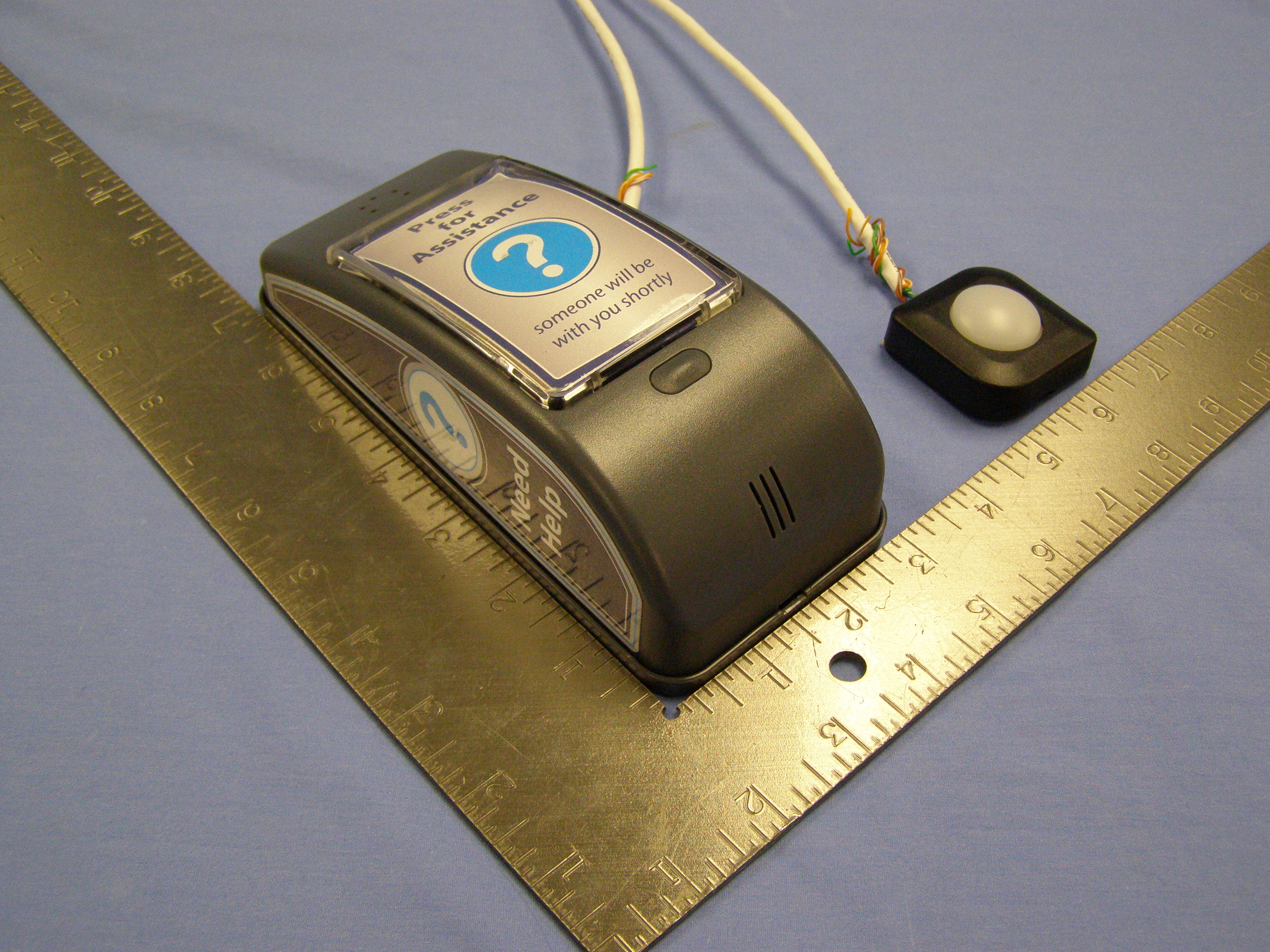

Technical Document 430735-00 Rev. D Indyme Solutions, Inc. 8295 Aero Place  San Diego, CA 92123 USA +1.858.268.0717  +1.800.829.6141Page 1 of 4 CB461 Wireless Help Button Programming and Installation Instructions Overview The CB461 is a 1-button voice assurance Help Button designed for use at Customer Service locations. The CB461 has a dual voice assurance option designed for bi-lingual applications. The help button must be properly programmed to communicate with a control unit. Un-programmed help buttons default to Alarm Code 001. Triggering a help button at this address may trigger an advisory message or trigger no message at all. Programming a help button requires a series of button presses. The specific buttons vary by help button type. On the CB461, SET is the “Press for Assistance” button and RESET is a small oval below the SET button. The assurance LED is red and is located BEHIND the SET button. This LED will flash during programming to indicate your progress. Help Button Programming Help buttons use a hierarchy based menu structure. You must enter the Programming Menu first, to select the desired submenu. Each submenu may have one or more options available. These options are used to assign specific operational characteristics to the help button. Review the submenus/options before you begin programming. The submenus/options will vary by help button model. Enter the Programming Menu Press and hold the RESET button until the assurance LED flashes one time. Press and hold the SET button, until the assurance LED flashes two times. Press and hold the RESET button, until the assurance LED flashes three times. The help button is now in the Programming Menu mode, proceed to the desired submenu. The help button will automatically exit any programming menu if no buttons are pressed for 30-seconds. Programming Menu Address N/A Operation N/A N/A Menu-1 Menu-2 Menu-3 Menu-7 Menu-8 CB461 RESET Technical Document 430735-00 Rev. D Indyme Solutions, Inc. 8295 Aero Place  San Diego, CA 92123 USA +1.858.268.0717  +1.800.829.6141Page 2 of 4 Menu-1: Address Programming Assigns the help button to a corresponding alarm event programmed in the control unit. A help button address is a three digit number from 001 to 999. Leading zeros are required. After entering the Programming Menu; Press the SET button one time for Menu-1, RESET once to save. The assurance LED will flash one time to indicate Menu-1 was selected. Use SET and RESET to program the 3-digit address as follows; SET = digits 1-9, RESET = digit 0 and SAVE. Leading zeros are required For example, program Alarm-082 as follows:  Press RESET once to represent the zero. (0)  Press SET eight times, RESET once to save. (8)  Press SET two times, RESET once to save. (2) Note: When the RESET button is pressed to save the 3 rd digit, the assurance LED will flash to indicate the address that was entered. The assurance LED will indicate digit zero by a long flash. (approximately 1-sec.) Menu-3: Operating Mode Assigns the help button operating characteristics; timeout duration, RESET signal and number of active buttons. Operating Modes will vary by help button type, below are the default modes for this help button. After entering the Programming Menu; Press the SET button three times for Menu-3, RESET once to save. The assurance LED will flash three times to indicate Menu-3 was selected. Press the SET button to select a help button Operating Mode: <1, 2, >, RESET once to save. The assurance LED will flash to indicate the selected Operating Mode.  Mode 1 - Standard 5-min timeout, No Reset (Single VA Message) Press the SET button to trigger the alarm state; the corresponding LED will flash and the first voice assurance message will play. The LED will flash for 5 minutes, then extinguish with no reset sent. The RESET button will send a reset signal for all active channels.  Mode 2 - Standard 5-min timeout, No Reset (Dual VA Message) Same as above, first and second voice assurance message will play. Technical Document 430735-00 Rev. D Indyme Solutions, Inc. 8295 Aero Place  San Diego, CA 92123 USA +1.858.268.0717  +1.800.829.6141Page 3 of 4 INSTALLATION AND TROUBLESHOOTING TIPS 1. Identify all programming characteristics before you begin programming or installation.  Help Button Addresses  Help Button Mode  Mounting Location 2. Program the Alarm Address and Mode of each help button. 3. Install the help button in accordance with store policy, Indyme work order and/or Americans with Disabilities Act guidelines where applicable. The CB461 help button uses two 2/3A-size 3.0-volt lithium batteries. Always use the same type of battery for optimum performance. DO NOT use rechargeable batteries in the help button. To replace the batteries, remove the help button from its mounting location. Turn the help button over to the back of the help button. Remove the old batteries from the battery holders. Install the new lithium batteries. The help button does not lose the programmed characteristics when the batteries are removed. Location Considerations Help buttons are typically located at cash registers, service counters or other areas in which customers require assistance. Stores and installers should be aware of the Americans with Disabilities Act (ADA) requirements for accessibility. Help buttons use a low powered transmitter, and operate best with a clear line of sight to the nearest receiver. Tall shelving, merchandise and metal signs can block or reduce the help button signal. Install the Help button 1. Verify help button placement with the Store Manager and according to provided instructions. Determine the best mounting method before installing the help button, verify address programming.  Wall Mount  Counter Top Mount  Store Shelving 2. The CB461 has 2-different mounting options available; wall or counter top. Choose the appropriate option for your situation. Reference the CB64 Counter Top Installation document for details. P/N:430738-00 Wall M…

Text truncated - open the document above for the full version.

1 x .75 Inches, White Vinyl, Black Print Material: RF T -4911 Overlaminate: 1mil Clear Polypropylene, RL-TCC-UL2000 or QS800XC Adhesive: TS523 All materials and finishes shall comply with European Union restrictions of hazardous substances. (RoHS) Alternate materials must have RoHS compliance and be approved by Indyme. .750 1.000 R.075 For art detail reference Indyme control document PS file: 220198-28_B CB461 FCC Label.eps REVISIONS REV.DESCRIPTIONDATEAPPROVED ARelease for manufacture1/13/12Greg K BAdd FCC/TC ID12/19/12Andrea B 63 μIN .X .XX .XXX ±.031 ±.015 ±.005 ± 0.5 º 4/13/11 MFG APPR ENG APPR DRAWN APPROVALSDATE CHECKED COMMENTS INTERPRET GEOMETRIC TOL PER: ASME Y14.100 - 2000 Label, FCC/IC, CB461 4/13/11 White Vinyl RF T-4911 220198-28 B FILE NAME: 220198-28_B CB461 FCC Label Sheet 1 of 1 UNLESS OTHERWISE SPECIFIED DIMENSION TOLERANCES ARE DECIMAL: INCHES: ANGLES: FINISH MATERIAL A SCALE REV DWG NO. CAGE CODE SIZE THIS DOCUMENT IS THE PROPERTY OF INDYME AND IS CONSIDERED COMPANY CONFIDENTIAL. THE REPRODUCTION OR USE OF INFORMATION HEREIN, ALL OR IN PART, IS EXPRESSLY PROHIBITED WITHOUT WRITTEN CONFIRMATION FROM A PRINCIPAL MEMBER OF MANAGEMENT AT INDYME. 4:1 indyme Solutions 4/13/11 Greg K Noah K Larry O All materials and finishes shall comply with European Union restrictions of hazardous substances. (RoHS) Alternate materials must have RoHS compliance and be approved by Indyme. For art detail reference Indyme control document EPS file: 2.250 .750 FCC Label CB526 Part 15 220198-05C G King10/17/08 See Notes Materials: (or equivalent) 1. Use White 2mil polyester (3m #7810) with #300 adhesive. 2. Overlaminate with 3M #7742 1mil clear matte with #400 adhesive. 3. Print using black ink on white material. Larry O 10/23/08 Fred A10/23/08 220198-05_C FCC Label.eps REVISIONS REV.DESCRIPTIONDATEAPPROVED ARelease to manufacture10/23/08Fred A BAdded Canadian ICES note7/1/09Fred A CRemoved ICES, Add French12/19/12Andrea B DO NOT SCALE DRAWING SHEET 1 OF 1 SCALE: 1:1 WEIGHT: REV DWG. NO. A SIZE TITLE: NAMEDATE COMMENTS: Q.A. MFG APPR. ENG APPR. CHECKED DRAWN FINISH MATERIAL INTERPRET GEOMETRIC TOLERANCING PER: PROPRIETARY AND CONFIDENTIAL THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF INDYME SOLUTIONS. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF INDYME SOLUTIONS IS PROHIBITED. 5 4 3 2 1 Indyme Solutions UNLESS OTHERWISE SPECIFIED DIMENSION TOLERANCES ARE DECIMAL: INCHES: ANGLES: INTERPRET GEOMETRIC TOL PER: ASME Y14.100 - 2000 ± 0.5 º ±.05 ±.025 ±.010 .X .XX .XXX 63 μIN

Report Number: D21211R1 FCC Part 15 Subpart C Section 15.231 Test Report Shopper Call Box - FCC ID: J69CB461 Model: CB461 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 1 of 18 FCC PART 15, SUBPART B and SUBPART C TEST REPORT for CUSTOMER CALLBOX MODEL: CB461 Prepared for INDYME SOLUTIONS, INC. 8295 AERO PLACE SAN DIEGO, CA 92123 Prepared by:_____________________ MATT HARRISON Approved by:____________________ JOSH HANSEN COMPATIBLE ELECTRONICS INC. 20621 Pascal Way LAKE FOREST, CA 92630 (949) 587-0400 DATE: MARCH 19, 2013 REPORT APPENDICES TOTAL BODY A B C D E PAGES 18 2 2 2 15 21 60 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. Report Number: D21211R1 FCC Part 15 Subpart C Section 15.231 Test Report Shopper Call Box - FCC ID: J69CB461 Model: CB461 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 2 of 18 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 5 SIX HIGHEST RADIATED EMISSIONS READINGS 5 1. PURPOSE 6 2. ADMINISTRATIVE DATA 7 2.1 Location of Testing 7 2.2 Traceability Statement 7 2.3 Cognizant Personnel 7 2.4 Date Test Sample was Received 7 2.5 Disposition of the Test Sample 7 2.6 Abbreviations and Acronyms 7 3. APPLICABLE DOCUMENTS 8 4. DESCRIPTION OF TEST CONFIGURATION 9 4.1 Description Of Test Configuration - EMI 9 4.1.1 Photograph Test Configuration 9 4.1.1 Cable Construction and Termination 10 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 11 5.1 EUT and Accessory List 11 5.2 EMI Test Equipment 12 6. TEST SITE DESCRIPTION 13 6.1 Test Facility Description 13 6.2 EUT Mounting, Bonding and Grounding 13 6.3 Facility Environmental Characteristics 13 7. CHARACTERISTICS OF THE TRANSMITTER 14 7.1 Channel Number and Frequency 14 7.2 Antenna 14 8. TEST PROCEDURES 15 8.1 RF Emissions 15 8.1.1 Conducted Emissions Test 15 8.1.2 Radiated Emissions (Spurious and Harmonics) Test 16 8.1.3 Radiated Emissions (Spurious and Harmonics) Test (Continued) 17 8.1.4 Bandwidth of the Fundamental 17 8.1.5 Fundamental Field Strength 17 8.1.7 Duty Cycle 18 8.1.8 Duration Time 18 9. TEST PROCEDURE DEVIATIONS 18 10. CONCLUSIONS 18 Report Number: D21211R1 FCC Part 15 Subpart C Section 15.231 Test Report Shopper Call Box - FCC ID: J69CB461 Model: CB461 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 3 of 18 LIST OF APPENDICES APPENDIX TITLE A Laboratory Recognitions B Modifications to the EUT C Additional Models Covered Under This Report D Diagrams, Charts, and Photos Test Setup Diagrams Radiated Emissions Photos Antenna and Effective Gain Factors E Data Sheets LIST OF FIGURES FIGURE TITLE 1 Plot Map And Layout of Test Site Below 1GHz 2 Plot Map And Layout of Test Site Above 1GHz Report Number: D21211R1 FCC Part 15 Subpart C Section 15.231 Test Report Shopper Call Box - FCC ID: J69CB461 Model: CB461 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 4 of 18 GENERAL REPORT SUMMARY This electromagnetic emission test report is generated by Compatible Electronics Inc., which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced without the written permission of Compatible Electronics, unless done so in full. This report must not be used to claim product endorsement by NVLAP, NIST or any other agency of the U.S. Government. Device Tested: Customer Callbox Model: CB461 Product Description: The CB461 is a Customer Callbox. The call boxes function as local alert transmitters used for customer service notification in a retail service environment. Modifications: The EUT was not modified in order to comply with specifications. Manufacturer: Indyme Solutions, Inc. 8295 Aero Place San Diego, CA 92123 Test Date: December 11 th , 2012, January 30 th , 2013, and March 11 th , 2013. Test Specifications: CFR Title 47, Part 15 Subpart B, Section 15.109 and Subpart C, Sections 15.205, 15.209 and 15.231 Test Procedure: ANSI C63.4: 2009 ANSI C63.10: 2009 Test Deviations: The test procedure was not deviated from during the testing. Report Number: D21211R1 FCC Part 15 Subpart C Section 15.231 Test Report Shopper Call Box - FCC ID: J69CB461 Model: CB461 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 5 of 18 SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Radiated RF Emissions, 0.01 - 30MHz Complies with the limits of CFR Title 47, Part 15, Subpart C, Section 15.205 & 15.209 2 Radiated RF Emissions, 30 - 4000 MHz Complies with the limits of CFR Title 47, Part 15, Subpart B, Section 15.109, and Subpart C, Sections 15.205, 15.209, & 15.231 3 -20 dB…
