J9C-65VE240P1WLAN b/g/n miniPCI Adapter

65-VE240-P1 802.11b/g/n MiniPCI Adapter for 2.4 GHz AP Applications Product Specification and Modular Installation Rev 0.2 • http://www.cdmatech.com/products/wlan.jsp • Page 1 of 16 Qualcomm Confidential Information Document # 640-00134-01 65-VE240-P1 MiniPCI Adapter (MA423Gd) Product Specification and Modular Installation Document Number 640-00134-01 Published November 2007 65-VE240-P1 802.11b/g/n MiniPCI Adapter for 2.4 GHz AP Applications Product Specification and Modular Installation Rev 0.2 • http://www.cdmatech.com/products/wlan.jsp • Page 2 of 16 Qualcomm Confidential Information Document # 640-00134-01 Table of Contents Product Description............................................................................................................ 4 Chipset................................................................................................................................4 Key Features and Benefits.................................................................................................. 4 Additional Hardware Features............................................................................................ 4 Data Rates Supported.......................................................................................................... 6 Modulation Types Supported.............................................................................................. 6 Security Features................................................................................................................. 6 Quality of Service (QoS) and Value-Added MAC Features.............................................. 6 Antenna Connections.......................................................................................................... 6 Manufacturing-Ready Software.......................................................................................... 6 Interfaces............................................................................................................................. 6 Physical............................................................................................................................... 6 Operating Voltage............................................................................................................... 6 Recommended Operating Temperature Range................................................................... 7 Recommended Operating Humidity Range........................................................................ 7 Recommended Storage Temperature Range....................................................................... 7 Recommended Storage Humidity Range............................................................................ 7 Peak Power Consumption................................................................................................... 7 Typical Receiver Sensitivity............................................................................................... 8 Operating Frequencies/Bands........................................................................................... 11 Maximum Transmit Output Power................................................................................... 11 Physical Dimensions......................................................................................................... 12 Modular Installation.......................................................................................................... 13 65-VE240-P1 Antenna Specifications.............................................................................. 14 Product Labeling............................................................................................................... 15 Product Usage................................................................................................................... 15 Product Documentation.................................................................................................... 16 Table of Figures Figure 1 65-VE240-P1 MiniPCI Adapter (top view, RF shield intact).............................. 5 Figure 2 65-VE240-P1 Block Architecture........................................................................ 5 Figure 3 PCB and Shield Mechanical Drawing (dimensions in millimeters)................... 12 Figure 4 Radio Module Alignment................................................................................... 14 Table of Tables Table 1 2.4 GHz Power Consumption................................................................................ 7 Table 2 802.11b Rx Sensitivity........................................................................................... 8 Table 3 802.11g Rx Sensitivity........................................................................................... 9 65-VE240-P1 802.11b/g/n MiniPCI Adapter for 2.4 GHz AP Applications Product Specification and Modular Installation Rev 0.2 • http://www.cdmatech.com/products/wlan.jsp • Page 3 of 16 Qualcomm Confidential Information Document # 640-00134-01 Table 4 802.11n 20 MHz Rx Sensitivity............................................................................ 9 Table 5 802.11n 40 MHz Rx Sensitivity.......................................................................... 10 Table 6 Operating Frequencies/Bands.............................................................................. 11 Table 7 Tx Power.............................................................................................................. 12 65-VE240-P1 802.11b/g/n MiniPCI Adapter for 2.4 GHz AP Applications Product Specification and Modular Installation Rev 0.2 • http://www.cdmatech.com/products/wlan.jsp • Page 4 of 16 Qualcomm Confidential Information Document # 640-00134-01 Product Description QUALCOMM’s 65-VE240-P1 MiniPCI Adapter design is based on QUALCOMM’s advanced multi-radio WFB4030 Baseband/MAC IC and WFR4031 RF IC, the worlds first commercially available IEEE 802.11b/g/n wireless LAN solution t…

Text truncated - open the document above for the full version.

_____________________________________________________________________________________________ QUALCOMM Incorporated 900 Arastradero Road +1 650 475 1900 Palo Alto, CA 94304 www.cdmatech.com/products/wlan.jsp Date: April 20, 2007 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize the Testing Division of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization for J9C- 65VE240P1, including signing of all documents relating to these matters. Any and all acts carried out by CCS on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS Testing Division as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; QUALCOMM. 900 Arastradero Road Palo Alto, CA 94304 TEL 650.475.1900 FAX 650.475.1708 www.cdmatech.com/products/wlan.jsp f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid for the J9C-65VE240P1 application until further written notice from the applicant. Sincerely Yours, Fang Han QUALCOMM. 900 Arastradero Road Palo Alto, CA 94304 TEL 650.475.1900 FAX 650.475.1708 www.cdmatech.com/products/wlan.jsp

_____________________________________________________________________________________________ QUALCOMM Incorporated 5775 Morehouse Dr +1 858 587-1121 San Diego, CA 92121 www.cdmatech.com/products/wlan.jsp Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: J9C-65VE240P1 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments: External Photos Internal Photos Test Setup Photos User Manual Product Specification It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. 1 Best Regards Fang Han Senior Staff Engineer Engineering Regulatory Group QUALCOMM Inc. December 13, 2007 2

Qualcomm J9C-65VE240P2 Request for transmitter modular approval Transmitter Module Characteristics Item Requirements EUT 1 Have its own RF shielding Device is equipped with metal shielding to cover RF section. Refer to external photos 2 Have buffered modulation/data inputs (if such inputs are provided), All inputs to the modules are buffered through logic or microprocessor inputs. 3 Have it own power supply regulation Internal 1.8V power regulator. Refer to Block diagram in the theory of operations 4 Meet the antenna requirements of Section 15.203 Device is equipped with unique antenna ( u.FL(v)- LP-040) connector. Refer to external photos 5 Be tested in a stand-alone configuration, i.e., the antenna, AC or DC power and data input/output lines must be connected to the module but, the module must not be inside another case during testing Refer to setup photos. 6 Be labeled with its own FCC ID number, and if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. Two proposed FCC ID label format are included in the filing. One label will be placed on the module. The other label will be placed on the outside of the system. Refer to FCC ID label format and location exhibit and user manual. 7 The modular transmitter is manufactured so that the user cannot influence the operation of the transmitter that will operate outside of the scope of the regulations. Refer to “Product Specification and Modular Installation” Exhibit 8 Compliance with RF exposure requirements is the responsibility of the grantee and will be addressed for all final host configurations. Refer to “Product Specification and Modular Installation” Exhibit

1 Lucy Tsai From: September Radecki Sent: Friday, December 14, 2007 9:34 AM To: Lucy Tsai Cc: Thu Chan Subject: RE: Qualcomm Incorporated, FCC ID: J9C-65VE240P1, Assessment NO.: AN07T7404, Notice#1 Attachments: J9C-65VE240P1_FCC_Modular_Request_Form_00.pdf; 07U10873-1E FCC DTS Report_Setup Photos.pdf; 07U10873-1E FCC DTS Report_Part 1.pdf; 07U10873-1E FCC DTS Report_Part 2.pdf; Block Diagrams Updated.pdf; J9C-65VE240P1 _ConfidentialityRequestv3.pdf Hi Lucy, Below are the replies to your questions on this application. Q#1: Per module approval request letter, another label format for end product is also attached. However, there is only a format for the module filed. Please provide another one for the end product. Or please revise the modular request letter, stating that the labeling for end product has been instructed in the user manual for OEM integrator. <CCS Answer:> Revised modular approval letter is attached. Q#2: Per the operational description, this device can be configured to operate in any of the fourteen channel center frequencies in the 2.4 GHz ISM band (2.4‐2.4835 MHz) and connected to one of three integral printed circuit antennas, each with a maximum gain of less than 2 dBi. Also, the block diagram in the operational description also indicates that this transmitter is capable of transmitting and receiving in 5GHz. All these configurations don't agree with the application, please address. <CCS Answer:> Please see revised operational description and for USA, only channel 1-11 will be used, Q#3: Please clearly indicate which exhibits are asked for long‐term confidentiality and which are required for short‐term confidentiality. Also, for short‐term confidentiality request, the letter should contain a specific STC date or period per 2007 TCB workshop training. At the end, please also ensure that non‐ confidential exhibits(include those inside the short‐term confidential exhibits)do not contain permanent confidential information. <CCS Answer:> Corrected Confidentiality request is attached. Q#4: Test result of 6dB bandwidth in page 12 of test report doesn't agree with the test plots Please correct. <CCS Answer:> Please see attached revised test report. Q#5: Per antenna specification, the antenna gain is 2dBi but in page 64 and page 217of test report indicate antenna gain is 3dBi. Please clarify and revise if necessary. <CCS Answer:> Please see attached revised test report. Q#6: Page 160 test plot for conducted spurious emission is same as page 159. Please revise. <CCS Answer:> Please see attached revised test report. Thanks and happy holidays! September ‐‐‐‐‐Original Message‐‐‐‐‐ other channels will be disabled by software.

External view, Top side 65-VE240-P1 (MA423GD) FCC ID: J9C-65VE240P1 External view, Bottom side 65-VE240-P1 (MA423GD) FCC ID: J9C-65VE240P1

QUALCOMM, Inc. QUALCOMM RoHS WLAN MiniPCI b/g/n Adapter for 2.4 GHz AP Applications FCC ID: J9C-65VE240P1 IC ID: 2723-65VE240P1 FCC ID: J9C-65VE240P1 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference than may cause undesired operation IC ID: 2723-65VE240P1 Model No.: 65-VE240-P1 Rear side of EUT Label location

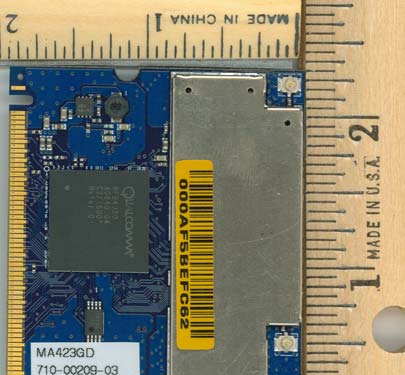

Internal view, Top side 65-VE240-P1 (MA423GD) FCC ID: J9C-65VE240P1 Internal view, Bottom side 65-VE240-P1 (MA423GD) FCC ID: J9C-65VE240P1

APPROVAL SHEET CUSTOMER FILE NO . : ESCRIPTION : 802.11 a+b ANTENNIQUES P/N : FCF-003-103-02 CUSTOMER P/N : DATE : 91 9 18 Customer Approval Antenniques Co.,Ltd 12265 TEL02-2668-5793 FAX02-2668-5795 5F,No.6,Laine 122, Sec 2,Ganyun St, Shulin Chulin City, Taipei Hsien,238 Taiwan R.O.C. [email protected] www.antenniques.com.tw TECHNICAL DATA Electrical Properties Frequency Range 2.42.5GHz & 5.15~5.85 GHz Impedance 50 Ohm nominal VSWR 2.0 Gain 5.15`~~5.85 GHz GAIN 3dBi : 2.4~~~2.5 GHZ GAIN 2dBi Radiation Omni Polarization Vertical Electrical Wave Dipole ARRAY Connector IPEX Plug Mechanical Properties Antenna Cover PU Color Black Operation Temperature2060 Storage Temperature -3075 SPECIFICATION OF COAX 50 Ohms AWG32 CORE PTFE D=1.13 mm AXON’CABLE S.A.S. CABLE & INTERCONNECT ROUTE DE CHALONS-SUR-MARNE 51210 MONTMIRAIL-FRANCE Tel : (33) 03 26 81 70 00 Fax : (33) 03 26 81 28 83 e-mail : [email protected] N° P530738A Page 1/1 This document is the property of AXON’CABLE SA, and is issued on the condition that it is not copied or disclosed to any third party without prior written consent from AXON’CABLE SA Index Date Designed by Approval Description of the Modifications A 02/04/02 PV SW CREATION I – Scope This specification presents a PTFE jacketed COAXIAL cable AWG32, 1.13 mm O.D.for internal wiring of electronic equipment, such as Computer / Notebook with wireless communication systems. II – Construction Item Unit Details Material - Silver Plated Copper Composition No./mm AWG32 or 7 x 0.079 1-Inner Conductor Nom. O.D. mm 0.237 Material - Extruded PTFE Nom. O.D. mm 0.68 2-Dielectric Color - Natural Material - Tin Plated Copper Composition - Braided Shield AWG44 3-Outer Conductor Approx. O.D. mm 0.90 Material - Extruded FEP O.D. (mm) mm 1.13±0.05 5-Outer Jacket Color - P530738A^ P530738A^V1 P530738A^V2 : Light Grey : Black : Dark Grey III – Characteristics Item Unit Nom. Value Inner Conductor resistance @20°C Ω/km 525 max. Characteristic Impedance Ω 50 ± 2 Capacitance PF/m 98 @ 1.0 GHz 1.8 @ 1.5 GHz 2.3 @ 2.0 GHz 2.6 @ 2.45 GHz 3.0 @ 5.2 GHz 4.6 Nom. Attenuation (dB/m) @ 5.8 GHz 5.0 Temperature Rating °C 150 Approx. Weight g/m 3.5

FCC CFR47 PART 15 SUBPART C CERTIFICATION TEST REPORT FOR WLAN B/G/N MINIPCI ADAPTER MODEL NUMBER: 65-VE240-P1 FCC ID: J9C-65VE240P1 REPORT NUMBER: 07U10873-1, REVISION E ISSUE DATE: DECEMBER 4, 2007 Prepared for QUALCOMM INCORPORATED 900 ARASTRADERO ROAD PALO ALTO, CA 94304, USA Prepared by COMPLIANCE CERTIFICATION SERVICES 47173 BENICIA STREET FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 07U10873-1E DATE: DECEMBER 4, 2007 EUT: WLAN b/g/n miniPCI Adapter FCC ID: J9C-65VE240P1 Page 2 of 269 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Issue Date Revisions Revised By -- 04/17/07 Initial Issue T. Chan B 08/03/07 Removed FCC ID T. Hong C 11/29/07 Re-added FCC ID T. Hong D 12/03/07 Modified EUT description T. Hong E 12/04/07 1. Corrected 6dB BW data on page 12 2. Corrected antenna gain on pages 64 and 217 3. Replaced conducted spurious plot on page 160 4. Corrected radiated BE plot on page 223 T. Chan REPORT NO: 07U10873-1E DATE: DECEMBER 4, 2007 EUT: WLAN b/g/n miniPCI Adapter FCC ID: J9C-65VE240P1 Page 3 of 269 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS............................................................................................. 4 2. TEST METHODOLOGY .................................................................................................................. 5 3. FACILITIES AND ACCREDITATION .......................................................................................... 5 4. CALIBRATION AND UNCERTAINTY.......................................................................................... 5 4.1. MEASURING INSTRUMENT CALIBRATION ............................................................................. 5 4.2. MEASUREMENT UNCERTAINTY ............................................................................................... 5 5. EQUIPMENT UNDER TEST............................................................................................................6 5.1. DESCRIPTION OF EUT ..............................................................................................................6 5.2. MAXIMUM OUTPUT POWER .................................................................................................... 6 5.3. DESCRIPTION OF AVAILABLE ANTENNAS ............................................................................. 7 5.4. SOFTWARE AND FIRMWARE .................................................................................................... 7 5.5. WORST-CASE CONFIGURATION AND MODE......................................................................... 7 5.6. DESCRIPTION OF TEST SETUP ................................................................................................ 8 6. TEST AND MEASUREMENT EQUIPMENT .............................................................................. 10 7. LIMITS AND RESULTS ................................................................................................................. 11 7.1. CHANNEL TESTS FOR THE 2400 TO 2483.5 MHz BAND ...................................................... 11 7.1.1. 6 dB BANDWIDTH ........................................................................................................... 11 7.1.2. 99% BANDWIDTH AND 26 dB BANDWIDTH .............................................................. 37 7.1.3. MAXIMUM OUTPUT POWER ........................................................................................ 63 7.1.4. AVERAGE POWER......................................................................................................... 101 7.1.5. PEAK POWER SPECTRAL DENSITY .......................................................................... 103 7.1.6. CONDUCTED SPURIOUS EMISSIONS........................................................................ 142 7.1.7. MAXIMUM PERMISSIBLE EXPOSURE ...................................................................... 215 7.2. RADIATED EMISSIONS........................................................................................................... 218 7.2.1. TRANSMITTER RADIATED SPURIOUS EMISSIONS ............................................... 218 7.2.2. TRANSMITTER ABOVE 1 GHz FOR 2400 TO 2483.5 MHz BAND ........................... 221 7.3. POWERLINE CONDUCTED EMISSIONS .............................................................................. 261 8. SETUP PHOTOS ............................................................................................................................ 265 REPORT NO: 07U10873-1E DATE: DECEMBER 4, 2007 EUT: WLAN b/g/n miniPCI Adapter FCC ID: J9C-65VE240P1 Page 4 of 269 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: QUALCOMM INCORPORATED 900 ARASTRADERO ROAD PALO ALTO, CA 94304, USA EUT DESCRIPTION: WLAN B/G/N MINIPCI ADAPTER MODEL: 65-VE240-P1 SERIAL NUMBER: 4405 DATE TESTED: MARCH 05-12, 2007 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 15 SUBPART C NO NON-COMPLIANCE NOTED Compliance Certification Services, Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as…

Text truncated - open the document above for the full version.

REPORT NO: 07U10873-1E DATE: DECEMBER 4, 2007 EUT: WLAN b/g/n miniPCI Adapter FCC ID: J9C-65VE240P1 Page 101 of 269 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 7.1.4. AVERAGE POWER AVERAGE POWER LIMIT None; for reporting purposes only. TEST PROCEDURE The transmitter output is connected to a power meter. Each chain is measured separately and the total power is calculated using: Total Power = 10 log (10^ (Chain 0 Power / 10) + 10^ (Chain 2 Power / 10)) REPORT NO: 07U10873-1E DATE: DECEMBER 4, 2007 EUT: WLAN b/g/n miniPCI Adapter FCC ID: J9C-65VE240P1 Page 102 of 269 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. RESULTS No non-compliance noted: The cable assembly insertion loss of 18dB (including 10 dB pad,.6.5dB Power Splitter and 1.5 dB cable) was entered as an offset in the power meter to allow for direct reading of power. ModeFrequency Average Power Average Power Average Power ChannelChain 0Chain 1Total (MHz)(dBm)(dBm)(dBm) 802.11b Mode Low241221.0321.524.3 Mid243721.3521.324.3 High246221.5321.624.6 802.11g Mode Low241218.3018.421.3 Mid243718.3718.421.4 High246218.2118.221.2 802.11n HT20 Mode Low241218.418.321.4 Mid243718.318.421.4 High246218.318.521.4 802.11n HT40 Mode Low242218.118.321.2 Mid243718.418.421.4 High245718.218.421.3 REPORT NO: 07U10873-1E DATE: DECEMBER 4, 2007 EUT: WLAN b/g/n miniPCI Adapter FCC ID: J9C-65VE240P1 Page 103 of 269 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 7.1.5. PEAK POWER SPECTRAL DENSITY LIMIT §15.247 (d) For direct sequence systems, the peak power spectral density conducted from the intentional radiator to the antenna shall not be greater than 8 dBm in any 3 kHz band during any time interval of continuous transmission. TEST PROCEDURE The transmitter output is connected to a spectrum analyzer. The test is performed in accordance with Option 2 procedures in FCC document “Measurement of Digital Transmission Systems Operating under Section 15.247”, March 23, 2005. The conditions for sample detection are satisfied. The PPSD is the highest level found across the emission in any 3 kHz band. Each chain is measured separately and the total PPSD is calculated using: Total PPSD = 10 log (10^ (Chain 0 PPSD / 10) + 10^ (Chain 2 PPSD / 10)) REPORT NO: 07U10873-1E DATE: DECEMBER 4, 2007 EUT: WLAN b/g/n miniPCI Adapter FCC ID: J9C-65VE240P1 Page 104 of 269 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. RESULTS No non-compliance noted: ModeFrequencyPPSDPPSDPPSD LimitMargin ChannelChain 0Chain 1Total (MHz)(dBm)(dBm)(dBm)(dBm)(dB) 802.11b Mode Low24120.63-0.593.078-4.93 Mid24370.862.714.898-3.11 High24621.052.304.738-3.27 802.11g Mode Low2412-1.66-2.401.008-7.00 Mid2437-0.96-0.812.138-5.87 High2462-0.92-1.661.748-6.26 802.11n HT20 Mode Low2412-1.381.143.078-4.93 Mid2437-1.64-0.172.178-5.83 High2462-1.77-0.162.128-5.88 802.11n HT40 Mode Low2422-1.72-1.631.348-6.66 Mid2437-0.66-0.792.298-5.71 High2452-0.70-1.811.798-6.21 REPORT NO: 07U10873-1E DATE: DECEMBER 4, 2007 EUT: WLAN b/g/n miniPCI Adapter FCC ID: J9C-65VE240P1 Page 105 of 269 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. RESULTS WITH COMBINER No non-compliance noted: ModeFrequencyPPSD LimitMargin ChannelUsing Combiner (MHz)(dBm)(dBm)(dB) 802.11b Mode Low24125.848-2.16 Mid24374.468-3.54 High24624.988-3.02 802.11g Mode Low2412-0.598-8.59 Mid24371.798-6.21 High24621.298-6.71 802.11n HT20 Mode Low24121.628-6.38 Mid24371.648-6.36 High24620.798-7.21 802.11n HT40 Mode Low2422-1.728-9.72 Mid2437-0.668-8.66 High2452-0.708-8.70 REPORT NO: 07U10873-1E DATE: DECEMBER 4, 2007 EUT: WLAN b/g/n miniPCI Adapter FCC ID: J9C-65VE240P1 Page 106 of 269 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. (802.11b MODE CHAIN 0) LOW CH (802.11b mode chain 0) REPORT NO: 07U10873-1E DATE: DECEMBER 4, 2007 EUT: WLAN b/g/n miniPCI Adapter FCC ID: J9C-65VE240P1 Page 107 of 269 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. MID CH (802.11b mode chain 0) REPORT NO: 07U10873-1E DATE: DECEMBER 4, 2007 EUT: WLAN b/g/n miniPCI Adapter FCC ID: J9C-65VE240P1 Page 108 of 269 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall…
