J9C-QCNCM865Qualcomm WiFi 7/BT Combo module

For additional information or to submit technical questions, go to: https://createpoint.qti.qualcomm.com Confidential – Qualcomm Technologies, Inc. and/or its affiliated companies – May Contain Trade Secrets NO PUBLIC DISCLOSURE PERMITTED: Please report postings of this document on public servers or websites to: [email protected]. Confidential Distribution: Use or distribution of this item, in whole or in part, is prohibited except as expressly permitted by written agreement(s) and/or terms with Qualcomm Incorporated and/or its subsidiaries. Not to be used, copied, reproduced, or modified in whole or in part, nor its contents revealed in any manner to others without the express written permission of Qualcomm Technologies, Inc. All Qualcomm products mentioned herein are products of Qualcomm Technologies, Inc. and/or its subsidiaries. Qualcomm is a trademark or registered trademark of Qualcomm Incorporated. Other product and brand names may be trademarks or registered trademarks of their respective owners. This technical data may be subject to U.S. and international export, re-export, or transfer (“export”) laws. Diversion contrary to U.S. and international law is strictly prohibited. Qualcomm Technologies, Inc. 5775 Morehouse Drive San Diego, CA 92121 U.S.A. © 2023 Qualcomm Technologies, Inc. and/or its subsidiaries. All rights reserved. QCNCM865 OEM Integrator Instructions 80-58493-3 Rev. AD April 19, 2023 80-58493-3 Rev. AD Confidential – Qualcomm Technologies, Inc. and/or its affiliated companies – May Contain Trade Secrets 2 MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION Revision history Revision Date Description AA January 2023 Initial release AB March 2023 Revision to include FCC 6GHz statement. Added NCM835 and model number plan. Updated chip model. AC March 2023 Added EU and UK EIRP power information. Added Canada antenna separation distance. Added RED and UKCA DoC instruction. AD April 2023 Removed chip variants information from Chapter 1 80-58493-3 Rev. AD Confidential – Qualcomm Technologies, Inc. and/or its affiliated companies – May Contain Trade Secrets 3 MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION Contents 1 Introduction ............................................................................................................................................... 6 2 Applicable Module ..................................................................................................................................... 7 3 Available Global Modular Approvals from Qualcomm .............................................................................. 8 4 Additional Regulatory Conformance Testing and/or Submissions Required by the Integrator ................ 9 5 Compliant/Allowable Tx Power File ......................................................................................................... 10 6 Allowable Antennas to Use with the Radio Module ................................................................................ 11 7 Antenna Placement Inside the Host System and RF Exposure ................................................................ 13 8 Simultaneous Transmission with Other Integrated or Plug-In Radios ..................................................... 14 9 Module May Not Be Installed by End Users ............................................................................................ 15 10 Required Labeling on the Outside of the Host ....................................................................................... 16 10.1 FCC ............................................................................................................................................ 16 10.2 Taiwan NCC ............................................................................................................................... 17 10.3 European Community Radio Equipment Directive (RED) ......................................................... 17 10.4 UKCA ......................................................................................................................................... 18 11 Required Labeling on the Module ......................................................................................................... 19 11.1 FCC labeling on the Module ..................................................................................................... 19 11.2 Rest of world labeling on the Module ...................................................................................... 19 11.3 Instructions to download the sample global label artwork with certification IDs ........................................................................................................................................ 19 12 Required Regulatory Wording for User Manual/Installation Manual ................................................... 20 12.1 FCC compliance information .................................................................................................... 20 12.2 Industry Canada Notices ........................................................................................................... 21 12.3 European Community (RED) user manual wording and declaration ....................................... 22 12.4 European Community (RED) Declaration of Conformity for System ........................................ 24 12.5 RED and UKCA Declaration of Conformity for System ............................................................. 24 12.6 UKCA output power .................................................................................................................. 25 12.7 Taiwan user manual wording ................................................................................................... 25 12.8 Korea user manual wording ..................................................................................................... 25 QCNCM865 OEM Integrator Instructions Contents 80-58493-3 Rev. AD Confide…

Text truncated - open the document above for the full version.

Wednesday, March 01, 2023 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Certification designating a U.S. agent for service of process pursuant to Part 2.911(d)(7) To whom it may concern, Qualcomm Technologies, Inc., Grantee Code J9C (“the applicant”) certifies that, as of the date of the filing of application, Paul Guckian is designated as the U.S. agent for the purpose of accepting service of process on behalf of the applicant. FRN: 0022707111 The physical U.S. address and email for the designated agent are: 5775 Morehouse Drive, San Diego, CA 92121, USA [email protected] The applicant accepts to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. The agent accepts the designation by (the applicant) as the U.S. agent to accept service of process includes, but is not limited to, delivery of any correspondence, notices, orders, decisions, and requirements of administrative, legal, or judicial process related to Commission proceedings. Sincerely, Paul Guckian Qualcomm Technologies, Inc. VP, Engineering, EMC-Regulatory [email protected] Qualcomm Technologies, Inc. 5775 Morehouse Drive, San Diego, CA 92121 www.qualcomm.com

Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Date: March 3, 2023 Subject: Certifications concerning “covered” equipment pursuant to Part 2.911(d)(5)(i) and (ii) To whom it may concern, Qualcomm Technologies, Inc. (“the applicant”) certifies that the equipment FCC ID: J9C-QCNCM865 for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Qualcomm Technologies, Inc. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, _________________________ Stanley Lin/Wireless Regulatory, Staff Qualcomm Technologies Inc. Qualcomm Technologies, Inc. 5775 Morehouse Drive, San Diego, CA 92121 www.qualcomm.com

Date: 2023/03/03 FCC ID: J9C-QCNCM865 To the attention of: Federal Communications Commission Authorization and Evaluation Division Declaration Letter for Client Devices We, Qualcomm Technologies, Inc., attest that this device under FCC ID: J9C-QCNCM865 complies with device protocol requirements and operational restrictions for Client Devices. a) This device will only associate and connect with an indoor access point or subordinate device and never directly connects to other client devices. b) Client devices must be under control of an U-NII-4, Indoor access point or subordinate device. c) Clients shall passively scan to associate with access point or subordinate. d) Clients are permitted to initiate a brief probe message requesting to join and associated with a specific Access Point or Subordinate. e) Clients cannot have a direct connection to the internet to source the internet to other clients, access points, subordinates or clients from a wired or direct connection. f) We acknowledge this device is subject to and in full compliance with the device restrictions listed below. All users are notified of these restrictions through the user manual. • A statement in a conspicuous location on the device and the user's manual: “Section 15.19 Statement (if not on the device) If you should have any questions regarding this declaration, please do not hesitate to contact us, thank you! Sincerely yours, Stanley Lin/Wireless Regulatory, Staff Qualcomm Technologies Inc. Qualcomm Technologies, Inc. 5775 Morehouse Drive, San Diego, CA 92121-1714 www.qualcomm.com

Qualcomm Technologies, Inc. 5775 Morehouse Drive San Diego, CA 92121-1714 www.qualcomm.com 9/12/2022 Attestation Letter To Whom It May Concern: With this letter, we (Qualcomm Technologies, Inc.) confirm the Qualcomm Access Point reference board Model: RDP433, FW version: IPQ9574.ILQ.12.1-00307-P-1 used in this application is designed per IEEE 802.11be Draft Version 2.0 Published July 2022. Best Regards, Paul Guckian Vice President, Engineering Qualcomm Technologies, Inc.

Qualcomm Technologies, Inc. 5775 Morehouse Drive, San Diego, CA 92121-1714 www.qualcomm.com 23 March 2023 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: J9C-QCNCM865 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. • Schematics Diagram • Block Diagram • Theory of Operation • Software Security Statement Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 180 days. • External photos • Test Setup photos • Internal Photos • Integrator Instruction It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and that information will be available for public review once the grant of equipment authorization is issued. Best Regards Stanley Lin Qualcomm Technologies, Inc.

Qualcomm Technologies, Inc. 5775 Morehouse Drive, San Diego, CA 92121-1714 www.qualcomm.com 3 March 2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Attn: OET Dept. To whom it may concern: I, the undersigned, hereby authorize Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch to act on our behalf in all manners relating to application for equipment authorization of J9C- QCNCM865 1. Receiving and exchanging data for the purposes of obtaining FCC grant for model FCC ID: J9C- QCNCM865 under this permissive change application. 2. Such authorization includes and is limited to preparing and submitting applications and corresponding documentation and information for certification of model FCC ID:J9C- QCNCM865 This authorization expires 1 year past the date indicated at the top of this letter. This authorization supersedes all previous authorizations provided by the undersigned. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch. as our representative, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Best Regards Stanley Lin Qualcomm Technologies, Inc.

FCC ID: J9C-QCNCM865 Modular Approval Request Letter Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch March 21, 2023 Dear Application Examiner, Qualcomm Technologies, Inc., Qualcomm WiFi 7/BT Combo module, FCC ID: J9C-QCNCM865 would like to have your authorization as a modular approval specific to the mobile RF exposure condition. The requirements of KDB 996369 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.” The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip WCN6856. 3. “The modular transmitter must have its own power supply regulation.” The part number of this regulator is WCN6856. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via an ExpressCard connector. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: J9C-QCNCM865 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the User’s Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Regards, Andrea Hsia Supervisor Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Tel: 886-3-318 3232 ext. 1628 Fax: 886-3-327 0892 Email: [email protected]

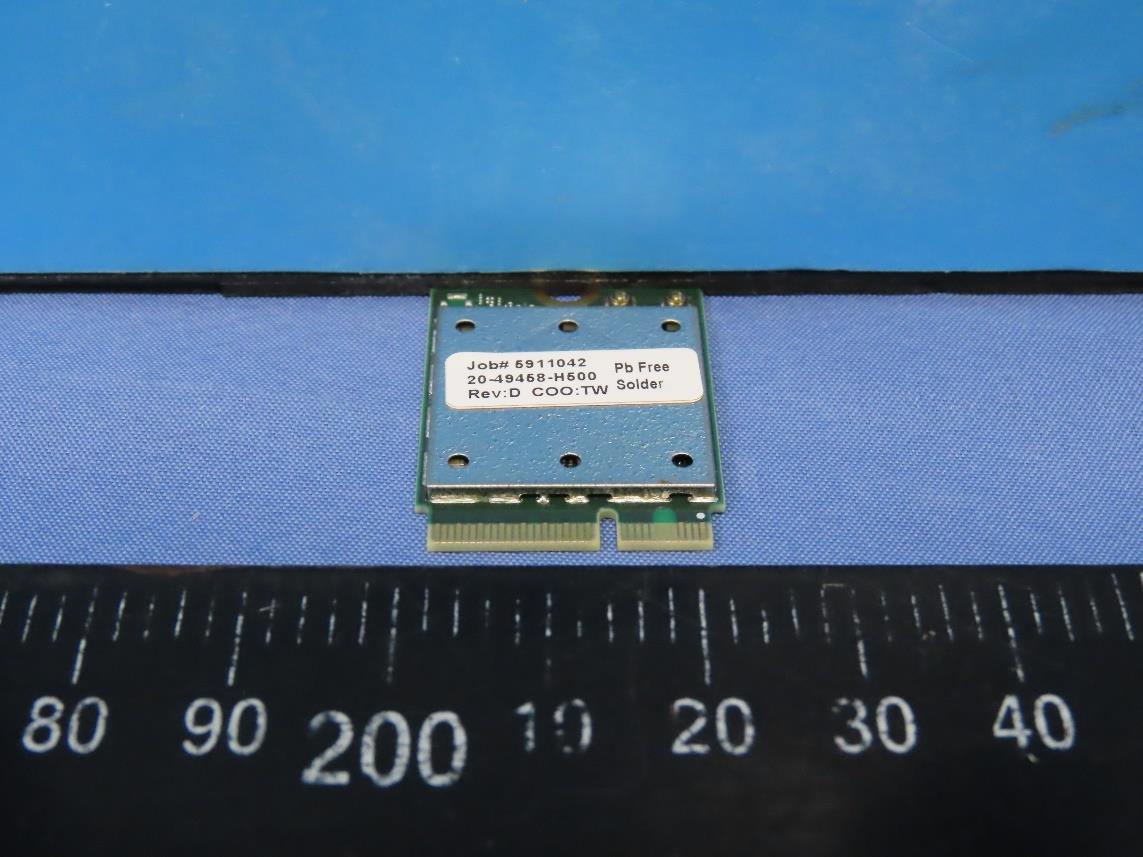

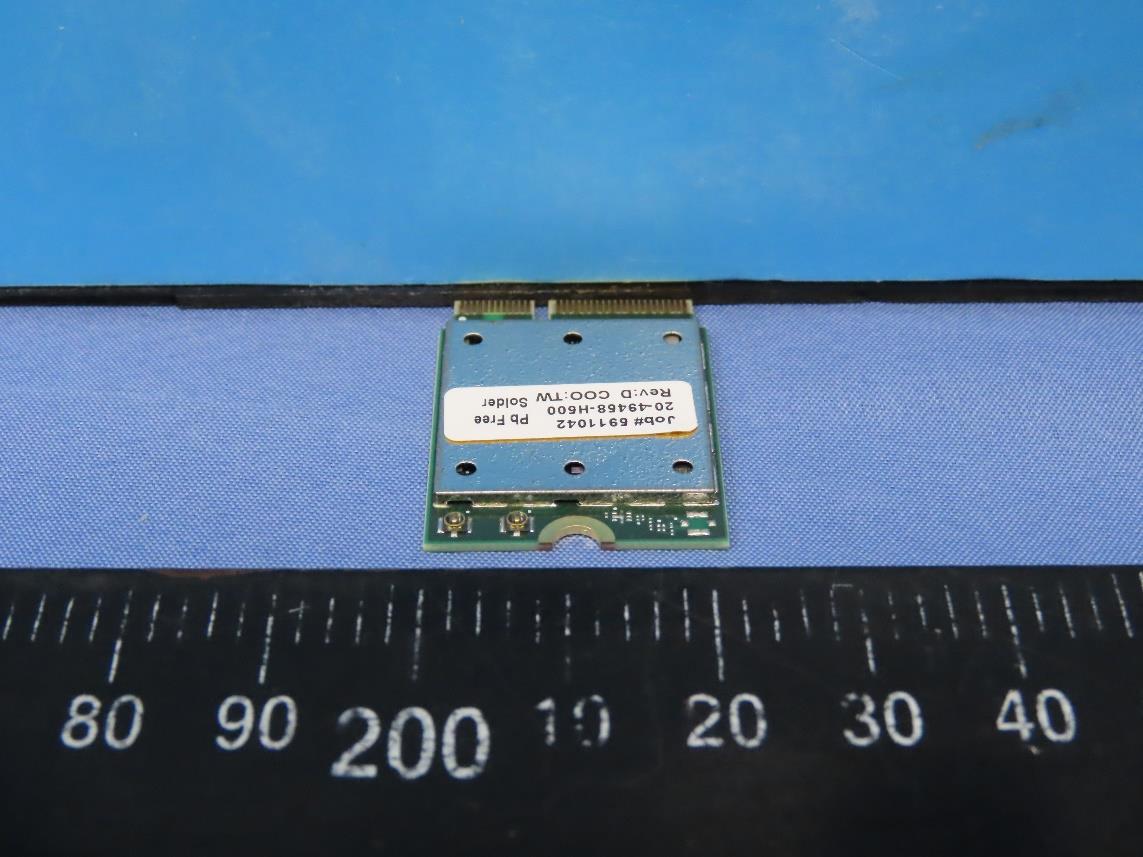

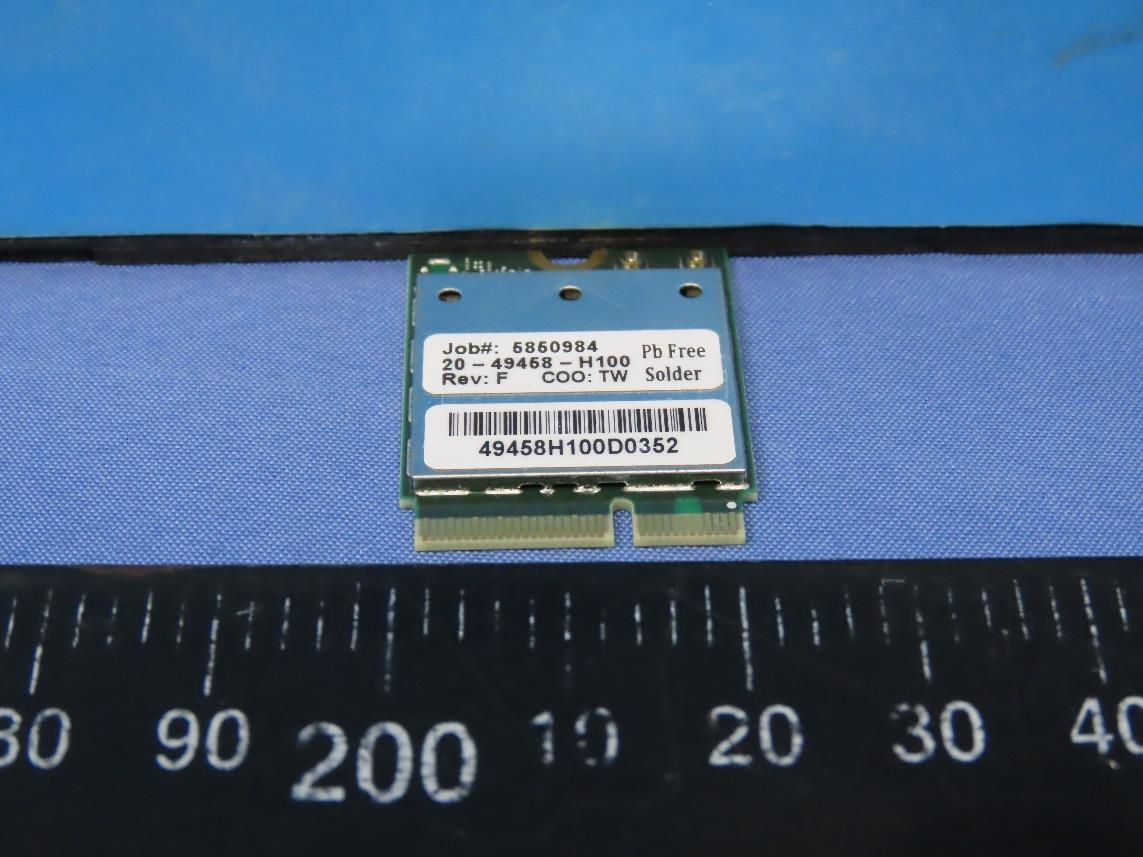

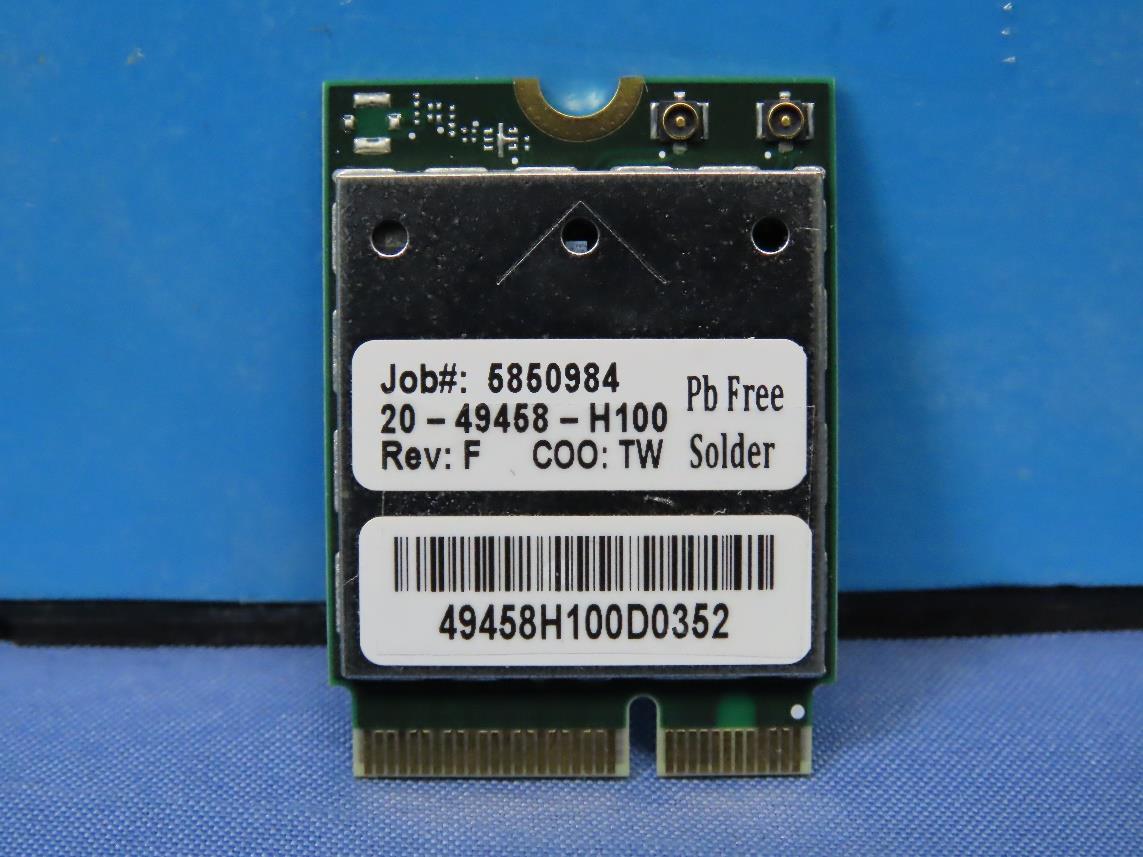

Reference No.:BWIN-WTW-P22110682_EXT Page 1/14 CONSTRUCTION PHOTOS OF EUT SKU: NCM865 Reference No.:BWIN-WTW-P22110682_EXT Page 2/14 Reference No.:BWIN-WTW-P22110682_EXT Page 3/14 Reference No.:BWIN-WTW-P22110682_EXT Page 4/14 Reference No.:BWIN-WTW-P22110682_EXT Page 5/14 SKU: NCM865A Reference No.:BWIN-WTW-P22110682_EXT Page 6/14 Reference No.:BWIN-WTW-P22110682_EXT Page 7/14 Reference No.:BWIN-WTW-P22110682_EXT Page 8/14 Reference No.:BWIN-WTW-P22110682_EXT Page 9/14 SKU: NCM835 Reference No.:BWIN-WTW-P22110682_EXT Page 10/14 Reference No.:BWIN-WTW-P22110682_EXT Page 11/14 Reference No.:BWIN-WTW-P22110682_EXT Page 12/14 SKU: NCM835A Reference No.:BWIN-WTW-P22110682_EXT Page 13/14 Reference No.:BWIN-WTW-P22110682_EXT Page 14/14

PROPOSED FCC ID LABEL AND LOCATION Top of EUT FCC / IC Label Location (on Shielding cover) QUALCOMM TECHNOLOGIES, INC. FCC ID: J9C-QCNCM865 IC: 2723A-QCNCM865 Model: QCNCM865 CMIIT ID: XXXXXXXXXXX (M)

Reference No.:BWIN-WTW-P22110682_INT Page 1/15 CONSTRUCTION PHOTOS OF EUT SKU: NCM865 Reference No.:BWIN-WTW-P22110682_INT Page 2/15 Reference No.:BWIN-WTW-P22110682_INT Page 3/15 SKU: NCM865A Reference No.:BWIN-WTW-P22110682_INT Page 4/15 Reference No.:BWIN-WTW-P22110682_INT Page 5/15 Reference No.:BWIN-WTW-P22110682_INT Page 6/15 SKU: NCM835 Reference No.:BWIN-WTW-P22110682_INT Page 7/15 Reference No.:BWIN-WTW-P22110682_INT Page 8/15 SKU: NCM835A Reference No.:BWIN-WTW-P22110682_INT Page 9/15 Reference No.:BWIN-WTW-P22110682_INT Page 10/15 Antenna (260-25094) Reference No.:BWIN-WTW-P22110682_INT Page 11/15 Reference No.:BWIN-WTW-P22110682_INT Page 12/15 Antenna (260-25083) Reference No.:BWIN-WTW-P22110682_INT Page 13/15 Reference No.:BWIN-WTW-P22110682_INT Page 14/15 Antenna (260-25084) Reference No.:BWIN-WTW-P22110682_INT Page 15/15

Report No.: MFBWIN-WTW-P22110682 Page No. 1 / 12 Report Format Version: 7.1.0 Reference No.: BWIN-WTW-P22110682 RF EXPOSURE REPORT CERTIFICATE OF CONFORMITY FCC Rule Part: FCC Part 2 (Section 2.1091) Report No.: MFBWIN-WTW-P22110682 FCC ID: J9C-QCNCM865 Product: Qualcomm WiFi 7/BT Combo module Brand: Qualcomm Model No.: QCNCM865 Received Date: 2022/11/24 Test Date: 2023/2/23 Issued Date: 2023/3/21 Applicant: Qualcomm Technologies, Inc. Address: 5775 Morehouse Drive, San Diego, CA 92121-1714 Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory Lab Address: E-2, No.1, Li Hsin 1st Road, Hsinchu Science Park, Hsinchu City 300, Taiwan Test Location: E-2, No.1, Li Hsin 1st Road, Hsinchu Science Park, Hsinchu City 300, Taiwan FCC Registration / Designation Number: 723255 / TW2022 Approved by: , Date: 2023/3/21 May Chen / Manager This test report consists of 12 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. Prepared by : Vivian Huang / Specialist This report is governed by, and incorporates by reference, the Conditions of Testing as posted at the date of issuance of this report at http://www.bureauveritas.com/home/about-us/our- business/cps/about-us/terms-conditions/ and is intended for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. Measurement uncertainty is only provided upon request for accredited tests. Statements of conformity are based on simple acceptance criteria without taking measurement uncertainty into account, unless otherwise requested in writing. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence or if you require measurement uncertainty; provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Report No.: MFBWIN-WTW-P22110682 Page No. 2 / 12 Report Format Version: 7.1.0 Reference No.: BWIN-WTW-P22110682 Table of Contents Release Control Record ....................................................................................................................................................... 3 1 Certificate .................................................................................................................................................................... 4 2 Applicable RF Exposure Limit .................................................................................................................................. 5 3 Test Results ................................................................................................................................................................ 8 3.1 RF Exposure ............................................................................................................................................................. 8 4 Conclusion ................................................................................................................................................................ 11 5 Information of the Testing Laboratories ................................................................................................................ 12 Report No.: MFBWIN-WTW-P22110682 Page No. 3 / 12 Report Format Version: 7.1.0 Reference No.: BWIN-WTW-P22110682 Release Control Record Issue No. Description Date Issued MFBWIN-WTW-P22110682 Original release. 2023/3/21 Report No.: MFBWIN-WTW-P22110682 Page No. 4 / 12 Report Format Version: 7.1.0 Reference No.: BWIN-WTW-P22110682 1 Certificate Product: Qualcomm WiFi 7/BT Combo module Brand: Qualcomm Test Model: QCNCM865 Sample Status: Engineering sample Applicant: Qualcomm Technologies, Inc. Test Date: 2023/2/23 FCC Rule Part: FCC Part 2 (Section 2.1091) Standard: KDB 447498 D04 Interim General RF Exposure Guidance v01 The above equipment has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s RF characteristics under the conditions specified in this report. Report No.: MFBWIN-WTW-P22110682 Page No. 5 / 12 Report Format Version: 7.1.0 Reference No.: BWIN-WTW-P22110682 2 Applicable RF Exposure Limit § 1.1310 Radiofrequency radiation exposure limits. (a) Specific absorption rate (SAR) shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in § 1.1307(b) of this part within the frequency range of 100 kHz to 6 GHz (inclusive). (b) The SAR limits for occupational/controlled exposure are 0.4 W/kg, as averaged over the whole body, and a peak spatialaverage SAR of 8 W/kg, averaged over any 1 gram of tissue (defined as a tissue volume in the shape of a cube). Exceptions are the parts of the human body treated as extrem…

Text truncated - open the document above for the full version.

Doc.No.:3.8.05 Rev – 10.3 Regulatory WLAN Antenna Information 1/13 Regulatory WLAN Antenna Information (Template) English Language Required for Regulatory Review / Approval \ Platform information Brand Tester’s name Tester’s signature Test Date platform (ex: Yes, No or NA) Platform type (ex: regular NB, convertible PC, AIO...etc) *SAR minimum separation (mm) Hong-Bo Eason Tseng 2021/1/14 NA WiFi Monopole *****Please fill in exact product model name and make sure the model name is visible on product cover or any parts for end users recognize for authority inspection. Antenna information Vendor Type Antenna Part number (Main) Hong-Bo Monopole 260-25084 Peak gain w/ cable loss (dBi)* 2.4GHz 2400-2483.5 MHz 5.2GHz 5150-5250MHz 5.3GHz 5250-5350MHz 5.6GHz 5470-5725MHz 5.8GHz 5725-5850MHz 5.9GHz 5850-5925MH 6.2GHz 5925-6425MHz 6.5GHz 6425-6525MHz 6.7GHz 6525-6875MHz 7.0 GHz 6875-7125MHz Main 3.22 3.35 3.42 4.77 4.72 4.71 4.75 4.29 4.81 4.74 Doc.No.:3.8.05 Rev – 10.3 Regulatory WLAN Antenna Information 2/13 Table of contents 1. Applicable test method 2. Test & System Description a. Test setup b. Equipment list 3. Setup photo Section 1. Antenna Assembly Specifications Section 2. Radiation characteristics of antenna loaded in Host Platform 4. Antenna information used for conformity with limits Doc.No.:3.8.05 Rev – 10.3 Regulatory WLAN Antenna Information 3/13 1. Applicable test methods This test report is prepared for PIFA antenna testing under a AMS-8500 Full Anechoic Chamber. ETS-Lindgren AMS-8500 system is 3D fully anechoic chamber, it is applied to the "Conical Cut test method" the detail description is described as below, The Conical Cut method requires the ability of the Measurement Antenna to be physically rotated in the theta plane (overhead) of the EUT for implementations using a single Measurement Antenna, Eleven conical cuts are required to capture data at every 15 degrees from the EUT, with the top (0 degrees) and bottom (180 degrees) cuts not being measured. Typically, the EUT will remain affixed to a turntable during the entire measurement process. The Measurement Antenna will be positioned at a starting theta angle. The EUT will then be rotated around the full 360 degrees of phi rotation, The Measurement Antenna will then be positioned at the next theta angle, and the process repeated. 2. Test & System Description b. Equipment list Doc.No.:3.8.05 Rev – 10.3 Regulatory WLAN Antenna Information 4/13 Name Manufacture Type/Model Serial Number Cal. Date Cal. Due Date ENA Series Network Analyze Keysight E5071C MY46108594 2021/8/3 2023/8/3 RF Switch Keysight 3499A MY4200955 NCR NCR Multi-Axis Positioner Controller ETS-Lindgren 2090 N/A NCR NCR Medium-Duty Positioner ETS-Lindgren 2015 N/A NCR NCR Measurement Horn Antenna EMCO Aug-64 86722 NCR NCR Measurement software ETS-Lindgren EM-Quest 1195 NCR NCR Doc.No.:3.8.05 Rev – 10.3 Regulatory WLAN Antenna Information 5/13 3. Setup photo Doc.No.:3.8.05 Rev – 10.3 Regulatory WLAN Antenna Information 6/13 Antenna Information Section 1. Antenna Assembly Specifications 1A 1B 1C 1D 1E 1F 1G 1H Antenna Part Number Manufacturer Antenna Type Cable Assembly Part Number and Information Freq Range MHz * Peak Gain W/ Cable loss (dBi) Peak Gain w/o Cable Loss (dBi) Max VSWR Cable Loss (dB) 260-25084 Hong-Bo Monopole 50 ohm Coaxial length: 200mm diameter: 1.13LLS Connector type: MHF4L MHF-B13-N-01 2400-2483.5 3.22 3.71 2.5 0.49 5150-5250 3.35 4.11 2.5 0.76 5250-5350 3.42 4.19 2.5 0.77 5470-5725 4.77 5.57 2.5 0.80 5725-5850 4.72 5.56 2.5 0.84 5850-5925 4.71 5.55 2.5 0.84 5925-6425 4.75 5.61 2.5 0.86 6425-6525 4.29 5.2 2.5 0.91 6525-6875 4.81 5.77 2.5 0.96 6875-7125 4.74 5.72 2.5 0.98 Note: The individual antenna gain is by measurement as indicated in above table. For module transmitter supports MIMO and use same antenna at multiple antenna ports. The direction gain values shall follow section FCC KDB 662911 D01.  3D Antenna Peak Gain required being test in system basis. Frequency Peak Gain Theta angle Phi angle Frequency Peak Gain Theta angle Phi angle MHz (dBi) ( ° ) ( ° ) MHz (dBi) ( ° ) ( ° ) 2412 3.14 120 180 5470 4.46 120 105 2422 3.14 120 180 5500 4.77 120 105 2437 3.14 120 180 5725 4.29 120 105 2442 3.22 120 180 5785 4.49 120 105 2452 3.18 120 180 5805 4.72 120 105 2484 3.12 120 180 5850 4.71 120 105 5150 3.…

Text truncated - open the document above for the full version.
