J9C-65VE241P1802.11 b/g/n CardBus Adapter

Installation and User Guide: WFB/WFR4xxx Windows Wireless LAN Client March 2007 Installation and User Guide WFB/WFR4xxx Windows Wireless LAN Client Adapters Copyright © 2007 by QUALCOMM, Inc. All Rights Reserved. No part of this work may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of unless such copying is expressly permitted by U.S. copyright law. Page 2 of 28 Installation and User Guide: WFB/WFR4xxx Windows Wireless LAN Client Contents PREFACE....................................................................................................................................................................4 OVERVIEW................................................................................................................................................................5 Device Types...................................................................................................................................................5 Shipping Package Contents.......................................................................................................................5 System Requirements.................................................................................................................................5 Inserting and Removing the Wireless LAN Client Adapter.............................................................5 Checking Adapter Activity............................................................................................................................................... 6 Installing the Wireless LAN Client Adapter Driver............................................................................6 Installation Steps............................................................................................................................................................... 6 Confirming the Installation........................................................................................................................9 Uninstalling the Windows Wireless Drivers.......................................................................................11 INTRODUCTION TO WIRELESS ZERO CONFIGURATION.........................................................................13 Service Set Identifiers...............................................................................................................................13 Wireless Bands and Channels.................................................................................................................13 WZC Overview..............................................................................................................................................14 Accessing WZC.............................................................................................................................................14 CONFIGURATION OVERVIEW...........................................................................................................................19 Scanning for Available Networks.............................................................Error! Bookmark not defined. Working with Profiles...................................................................................Error! Bookmark not defined. Wireless Security.........................................................................................................................................17 REGULATORY........................................................................................................................................................21 GLOSSARY...............................................................................................................................................................22 INDEX........................................................................................................................................................................28 Installation and User Guide: WFB/WFR4xxx Windows Wireless LAN Client Page 3 of 28 Preface This guide explains how to install and configure the Windows Wireless LAN Client Adapter, which provides PC laptop and desktop users with access to 802.11 access points. The guide is intended for business and consumer users who want to install and configure Qualcomm WFB/WFR4xxx-based Windows Wireless LAN Client Adapters quickly and easily. It is also intended for users who are interested in advanced configuration and troubleshooting. The products include the following device options: ¾ PC Card (CardBus) adapter for use in laptop and notebook computers ¾ PCI Express (PCIe) miniCard adapter for use in laptop computer PCIe minCard expansion slots ¾ USB (Universal Serial Bus) adapter for use in laptop, notebook and desktop computers. This guide assumes that the PC used with Qualcomm WFB/WFR4xxx-based Windows Wireless LAN Client Adapters is configured to support Microsoft Wireless Zero Configuration (WZC) 1 . The Client Utility, a software tool designed to provide basic configuration options for the device, is shipped with each unit along with the device drivers. Organization of this Guide This guide consists of the following chapters: Chapter 1 describes the features of the Windows Wireless LAN Client Adapter and explains how to install it. Chapter 2 provides an overview of Microsoft Wireless Zero Configuration Chapter 3 describes configuration settings available through Microsoft Device Manager Advanced Properties Page Glossary defines terms that apply to wireless and networking technology and the product suite. Conventions Used in this Guide This guide uses the following conventions for instructions and information. Notes, Cautions, and Warnings Notes, cautions, and time-saving tips use the following conventions and symbols. NOTE: Notes contain helpful suggestions or information that is important to the task at hand. CA…

Text truncated - open the document above for the full version.

Chris Harvey From: vicky.liu [[email protected]] Sent: Thursday, May 24, 2007 3:09 AM To: [email protected] Cc: [email protected] Subject: Re:QUALCOMM INCORPORATED, FCC ID: J9C-65VE241P1, Assessment NO.: AN07T6821, Notice#1 Attachments: 65-VE241-P1_Descripition of Operation(960524).pdf Page 1 of 2 5/24/2007 Dear Charvey: Thank you for your reply and my answer is as belowing. ----- 轉呈者 vicky.liu/ccsemc 於 2007/05/22 08:57 AM ----- <[email protected]> 2007/05/22 12:50 AM 收件人： <[email protected]> 副本抄送： <[email protected]> 主旨： QUALCOMM INCORPORATED, FCC ID: J9C-65VE241P1, Assessment NO.: AN07T6821, Notice#1 Dear Vicky Liu, You are listed as the contact for the above referenced TCB application. The following items need to be addressed before the review can be continued: 1. The Operational Description indicates that this card can be configured to operate on any of 14 available channels. How is the operation restricted to prevent the users from accessing frequencies/channels for which FCC approval is not issued? Ans:Please find the attachment which is revised the Descripition of Operation. There has additional of Remark #1 and #2 on P1 and P2. 2. Please confirm that this device uses only Spatial Multiplexing MIMO in which the elements are always driven incoherently at each frequency. Ans: Yes, it is. The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. Best regards, Chris Harvey [email protected] ________________________________________________________________________ This e-mail transmission is confidential and intended solely for being reviewed by the recipient(s) identified above. If you are not an identified recipient, please ensure that this communication remains confidential and promptly return it to the sender. Please contact immediately by phone (Tel: 886-2-2299-9720) for any problem with this transmission. Thank you for your attention. Page 2 of 2 5/24/2007

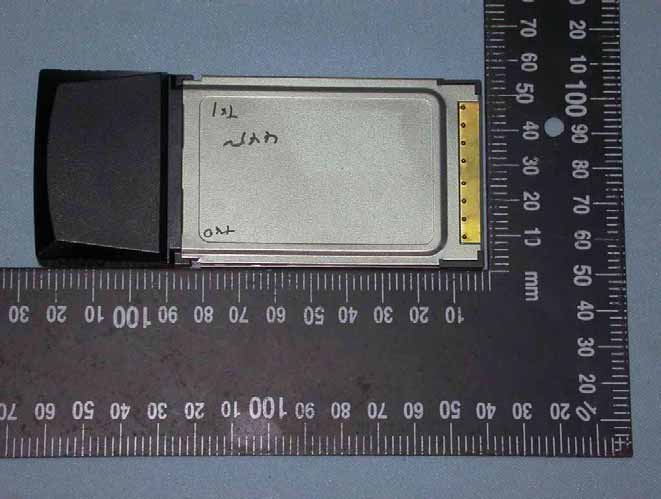

Compliance Certification Services Inc. Report No.70403205 Page 1 of 8 External Photo

Company : QUALCOMM INCORPORATED Model : 65-VE241-P1 Product : Qualcomm RoHS WLAN CardBus b/g/n Adapter for 2.4 GHz Client Applications Label Here

Compliance Certification Services Inc. Report No.70403205 Page 2 of 8 Internal Photo Compliance Certification Services Inc. Report No.70403205 Page 3 of 8 Compliance Certification Services Inc. Report No.70403205 Page 4 of 8 Compliance Certification Services Inc. Report No.70403205 Page 5 of 8 Compliance Certification Services Inc. Report No.70403205 Page 6 of 8 Compliance Certification Services Inc. Report No.70403205 Page 7 of 8 Compliance Certification Services Inc. Report No.70403205 Page 8 of 8

Document Code: Version: 1Page - 1 DUT : Qualcomm Cardbus printed Antenna DATE : 2007/04/04 Document Code: Version: 1Page - 2 1. Experimental Setup ¦Measurement Item : a. Return loss b. Radiation pattern ¦Return Loss : a. Instrument : vector network analyzer – Agilent N5230A b. Calibration method : SOLT ¦3D Radiation Pattern : a. Instrument: Satimo StarLab X Z x Y Document Code: Version: 1Page - 3 2. Return loss LEFT S11 MIDDLE S22 RIGHT S33 Return loss Isolation Document Code: Version: 1Page - 4 3.Antenna Matching Circuit Diagram Antenna 0 Ohm I/O Antenna 0 Ohm I/O 8.2nHGround Antenna 2.2pF I/O 3.3nHGN Document Code: Version: 1Page - 5 Y-Z Plane 4. Radiation Patterns Horizontal Polarization Frequency(GHz) Max Value(dBi)Average(dBi) 2.4-2.3-8.36 2.45-2.65-8.41 2.5-2.03-7.82 Frequency(GHz) Max Value(dBi)Average(dBi) 2.4-2.34-8.03 2.45-2.58-8.23 2.5-2.36-8.33 LEFT RIGHT MIDDLE Frequency(GHz) Max Value(dBi)Average(dBi) 2.4-1.34-7.52 2.45-1.08-7.3 2.5-1.02-7.55 Document Code: Version: 1Page - 6 Y-Z Plane Vertical Polarization Frequency(GHz) Max Value(dBi)Average(dBi) 2.4-1.18-4.34 2.45-1.32-4.48 2.5-1.82-4.52 Frequency(GHz) Max Value(dBi)Average(dBi) 2.4-16.78-20.02 2.45-18.52-22.99 2.5-17.54-23.43 Frequency(GHz) Max Value(dBi)Average(dBi) 2.4-0.6-3.81 2.45-1.21-4.17 2.5-1.23-3.92 LEFTMIDDLE RIGHT Document Code: Version: 1Page - 7 Y-Z Plane TOTAL Frequency(GHz) Max Value(dBi)Average(dBi) 2.40.44-2.89 2.450.31-3 2.50.55-2.85 Frequency(GHz) Max Value(dBi)Average(dBi) 2.4-2.22-7.76 2.45-2.51-8.08 2.5-2.29-8.2 Frequency(GHz) Max Value(dBi)Average(dBi) 2.41.34-2.27 2.451.22-2.45 2.51.44-2.35 LEFT MIDDLE RIGHT Document Code: Version: 1Page - 8 X-Z Plane Horizontal Polarization Frequency(GHz)Max Value(dBi)Average(dBi) 2.40.83-4.14 2.450.85-4.09 2.51.13-3.98 Frequency(GHz) Max Value(dBi)Average(dBi) 2.4-1.07-5.48 2.45-1.68-5.63 2.5-2.15-5.66 Frequency(GHz) Max Value(dBi)Average(dBi) 2.40.89-4.07 2.450.71-4.07 2.50.59-4.01 LEFT MIDDLE RIGHT Document Code: Version: 1Page - 9 X-Z Plane Vertical Polarization Frequency(GHz) Max Value(dBi)Average(dBi) 2.4-23.99-28.05 2.45-22.74-28.36 2.5-22.1-29.09 Frequency(GHz) Max Value(dBi)Average(dBi) 2.4-21.87-27.2 2.45-19.77-26.39 2.5-20-26.16 Frequency(GHz) Max Value(dBi)Average(dBi) 2.4-23.77-28.91 2.45-26.11-31.99 2.5-24.28-30.36 LEFT MIDDLE RIGHT Document Code: Version: 1Page - 10 X-Z Plane TOTAL Frequency(GHz) Max Value(dBi)Average(dBi) 2.40.84-4.12 2.450.86-4.08 2.51.13-3.97 Frequency(GHz) Max Value(dBi)Average(dBi) 2.4-1.04-5.45 2.45-1.66-5.59 2.5-2.12-5.62 Frequency(GHz) Max Value(dBi)Average(dBi) 2.40.9-4.06 2.450.71-4.07 2.50.59-4 LEFT MIDDLE RIGHT Document Code: Version: 1Page - 11 X-Y Plane Horizontal Polarization Frequency(GHz) Max Value(dBi)Average(dBi) 2.4-3.84-7.97 2.45-4.34-8.26 2.5-4.58-8.63 Frequency(GHz) Max Value(dBi)Average(dBi) 2.4-13.59-17.71 2.45-14.34-17.96 2.5-13.76-17.49 Frequency(GHz) Max Value(dBi)Average(dBi) 2.4-3.69-7.61 2.45-4.37-8.39 2.5-4.75-8.71 LEFT MIDDLE RIGHT Document Code: Version: 1Page - 12 X-Y Plane Vertical Polarization Frequency(GHz) Max Value(dBi)Average(dBi) 2.4-5.02-6.89 2.45-4.67-6.53 2.5-4.14-6.29 Frequency(GHz) Max Value(dBi)Average(dBi) 2.4-3.48-6.3 2.45-3.45-6.38 2.5-3.18-6.4 Frequency(GHz) Max Value(dBi)Average(dBi) 2.4-3.73-5.64 2.45-3.3-5.43 2.5-2.63-5.35 LEFT MIDDLE RIGHT Document Code: Version: 1Page - 13 X-Y Plane TOTAL Frequency(GHz) Max Value(dBi)Average(dBi) 2.4-3.04-4.38 2.45-3.26-4.3 2.5-3.25-4.3 Frequency(GHz) Max Value(dBi)Average(dBi) 2.4-3.42-6 2.45-3.41-6.09 2.5-3.13-6.07 Frequency(GHz) Max Value(dBi)Average(dBi) 2.4-2.21-3.5 2.45-2.58-3.65 2.5-2.42-3.7 LEFT MIDDLE RIGHT Document Code: Version: 1Page - 14 5. Measurement Results Max ValueAverageMax ValueAverageMax ValueAverage 2.4-2.3-8.36 -1.18-4.340.44 -2.89 2.45-2.65 -8.41 -1.32-4.480.31-3 2.5-2.03 -7.82 -1.82-4.520.55 -2.85 2.4-2.34 -8.03 -16.78 -20.02 -2.22 -7.76 2.45-2.58 -8.23 -18.52 -22.99 -2.51 -8.08 2.5-2.36 -8.33 -17.54 -23.43 -2.29 -8.2 2.4-1.34 -7.52-0.6-3.811.34 -2.27 2.45-1.08-7.3-1.21-4.171.22 -2.45 2.5-1.02 -7.55 -1.23-3.921.44 -2.35 Max ValueAverageMax ValueAverageMax ValueAverage 2.40.83-4.14 -23.99 -28.05 0.84 -4.12 2.450.85-4.09 -22.74 -28.36 0.86 -4.08 2.51.13-3.98 -22.1 -29.09 1.13 -3.97 2.4-1.07 -5.48 -21.87 -27.2-1.04 -5.45 2.45-1.68 -5.63 -19.77 -26.39 -1.66 -5.59 2.5-2.15 -5.66-20-26.16 -2.12 -5.62 2.40.89-4.07 -23.77 -28.910.9-4.06 2.450.71-4.07 -26.11 -31.99 0.71 -4.07 2.50.59-4.01 -24.28 -30.36 0.59-4 Max ValueAverageMax ValueAverageMax ValueAverage 2.4-3.84 -7.97 -5.02-6.89-3.04 -4.38 2.45-4.34 -8.26 -4.67-6.53-3.26 -4.3 2.5-4.58 -8.63 -4.14-6.29-3.25 -4.3 2.4-13.59 -17.71 -3.48-6.3-3.42-6 2.45 -14.34 -17.96 -3.45-6.38-3.41 -6.09 2.5-13.76 -17.49 -3.18-6.4-3.13 -6.07 2.4-3.69 -7.61 -3.73-5.64-2.21 -3.5 2.45-4.37 -8.39-3.3-5.43-2.58 -3.65 2.5-4.75 -8.71 -2.63-5.35-2.42 -3.7 RIGHT Antenna Frequency (GHz) Y-Z Plane Horizontal (dBi) Vertical (dBi)Total(dBi) LEFT MIDDLE Antenna Frequency (GHz) RIGHT X-Z Plane Horizontal (dBi) Vertical (dBi) Total(dBi) LEFT MIDDLE Antenna Frequency (GHz) RIGHT LEFT MIDDLE X-Y Plane Horizontal (dBi) Vertical (dBi)Total(dBi)

Compliance Certification Services Inc. Report No.: 70403205-SF FCC ID: J9C-65VE241P1 Date of Issue: May 9, 2007 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 27 Rev. 00 ANSI/IEEE Std. C95.1-1992 in accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C FCC TEST REPORT For Qualcomm RoHS WLAN CardBus b/g/n Adapter for 2.4 GHz Client Applications Model: 65-VE241-P1 Trade: Qualcomm Issued to Qualcomm Incorporated 5775 Morehouse Drive San Diego, California United States 92121 Issued by Compliance Certification Services Inc. No. 11, Wugong 6th Rd., Wugu Industrial Park, Taipei Hsien 248, Taiwan. http://www.ccsemc.com.tw [email protected] Compliance Certification Services Inc. Report No.: 70403205-SF Date of Issue: May 9, 2007 Page 2 Rev. 00 TABLE OF CONTENTS 1. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) ......................................................3 2. EUT DESCRIPTION ....................................................................................................................4 3. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC .........................5 4. DOSIMETRIC ASSESSMENT SYSTEM ...................................................................................5 4.1 MEASUREMENT SYSTEM DIAGRAM .........................................................................6 4.2 SYSTEM COMPONENTS.................................................................................................7 5. EVALUATION PROCEDURES ..................................................................................................9 6. MEASUREMENT UNCERTAINTY .........................................................................................13 7. EXPOSURE LIMIT ....................................................................................................................14 8. TYPICAL COMPOSITION OF INGREDIENTS FOR LIQUID TISSUE PHANTOMS .........15 9. MEASUREMENT RESULTS ....................................................................................................16 9.1 SYSTEM PERFORMANCE CHECK..............................................................................16 9.2 TEST LIQUID CONFIRMATION...................................................................................17 9.3 EUT TUNE-UP PROCEDURES AND TEST MODE.....................................................18 9.4 SAR MEASUREMENTS RESULTS...............................................................................21 10. EUT PHOTOS.............................................................................................................................24 11. EQUIPMENT LIST & CALIBRATION STATUS....................................................................25 12. FACILITIES...............................................................................................................................26 13. REFERENCES ............................................................................................................................26 14. ATTACHMENTS .......................................................................................................................27 Compliance Certification Services Inc. Report No.: 70403205-SF Date of Issue: May 9, 2007 Page 4 Rev. 00 2. EUT DESCRIPTION Product Qualcomm RoHS WLAN CardBus b/g/n Adapter for 2.4 GHz Client Applications Trade Name Qualcomm Model Number 65-VE241-P1 Model Discrepancy N/A Frequency Range 802.11b/g: 2400 ~ 2483.5 MHz 802.11n: 2400 ~ 2483.5 MHz Max. O/P Power: (Conducted/Peak) 802.11b: 21.72 dBm 802.11g: 19.73 dBm 802.11n: 24.81 dBm Host 1(Sony Host) 802.11b: 0.626 W/kg Host 2(Sony Host) 802.11b: 0.722 W/kg Max. SAR (1g): Host 3(IBM Host) 802.11b: 0.620 W/kg Modulation Technique 802.11b: Direct Sequence Spread Spectrum(DSSS) 802.11g: Orthogonal Frequency Division Multiplexing (OFDM) 802.11n: Orthogonal Frequency Division Multiplexing (OFDM) Antenna Specification Antenna type: Printed antenna Host 1 SONY, Model: PCG-GRT309Z, SN: 3001496 Host 2 SONY, Model: VGN-B55T, SN: 28185570 7600483 Host 3 SONY, Model: VGN-S44TP, SN: 28198080 8100339 Remark: The sample selected for test was prototype that approximated to production product and was provided by manufacturer. Compliance Certification Services Inc. Report No.: 70403205-SF Date of Issue: May 9, 2007 Page 5 Rev. 00 3. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC The US Federal Communications Commission has released the report and order “Guidelines for Evaluating the Environmental Effects of RF Radiation", ET Docket No. 93-62 in August 1996 [1]. The order requires routine SAR evaluation prior to equipment authorization of portable transmitter devices, including portable telephones. For consumer products, the applicable limit is 1.6 mW/g for an uncontrolled environment and 8.0 mW/g for an occupational/controlled environment as recommended by the ANSI/IEEE standard C95.1-1992 [6]. According to the Supplement C of OET Bulletin 65 “Evaluating Compliance with FCC Guide-lines for Human Exposure to Radio frequency Electromagnetic Fields", released on Jun 29, 2001 by the FCC, the device should be evaluated at maximum output power (radiated from the antenna) under “worst-case” conditions for normal or intended use, incorporating normal antenna operating positions, device peak performance frequencies and positions for maximum RF energy coupling. 4. DOSIMETRIC ASSESSMENT SYSTEM These measurements were performed with the automated near-field scanning system DASY4 from Schmid & Partner Engineering AG (SPEAG). The system is based on a high precision robot (working range greater than 0.9 m) which positions the probes with a positional repeatability of better than ± 0.02 mm. Specia…

Text truncated - open the document above for the full version.

Date/Time: 5/7/2007 1:25:03 PM Test Laboratory: Compliance Certification Services Inc. D2450V2 SN-728 Body DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:728 Communication System: CW2450; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; ı = 1.92 mho/m; İ r = 51.6; ȡ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:25.7 deg C;Liquid Temperature:24.6 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: z Probe: EX3DV3 - SN3531; ConvF(7.88, 7.88, 7.88); z Sensor-Surface: 4mm (Mechanical Surface Detection) z Electronics: DAE3 Sn500; Calibrated: 8/23/2006 z Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Pin=250mW,d=10mm/Area Scan (6x6x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 9.98 mW/g Pin=250mW,d=10mm/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 90.9 V/m; Power Drift = -0.121 dB Peak SAR (extrapolated) = 32.8 W/kg SAR(1 g) = 14 mW/g; SAR(10 g) = 6.13 mW/g Maximum value of SAR (measured) = 15.6 mW/g Pin=250mW,d=10mm/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 15.8 mW/g Page1 Page2 Date/Time:5/7/2007 2:27:11 PM Test Laboratory: Compliance Certification Services Inc. 802.11b Bottom Flat Touched mode Sony PCG-GRT309Z DUT: 65-VE241-P1; Type: Wireless USB Adapter; Serial: N/A Communication System: IEEE 802.11b WLAN; Frequency: 2412 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2412 MHz; ı = 1.84 mho/m; İ r = 51.9; ȡ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:25.7 deg C;Liquid Temperature:24.6 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: z Probe: EX3DV3 - SN3531; ConvF(7.88, 7.88, 7.88); z Sensor-Surface: 2.5mm (Mechanical Surface Detection) z Electronics: DAE3 Sn500; Calibrated: 8/23/2006 z Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Low CH, Rate=1M/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.641 mW/g Low CH, Rate=1M/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 11.0 V/m; Power Drift = -0.024 dB Peak SAR (extrapolated) = 0.910 W/kg SAR(1 g) = 0.500 mW/g; SAR(10 g) = 0.274 mW/g Maximum value of SAR (measured) = 0.662 mW/g Page1 Page2 Date/Time:5/7/2007 2:11:55 PM Test Laboratory: Compliance Certification Services Inc. 802.11b Bottom Flat Touched mode Sony PCG-GRT309Z DUT: 65-VE241-P1; Type: Wireless USB Adapter; Serial: N/A Communication System: IEEE 802.11b WLAN; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2437 MHz; ı = 1.89 mho/m; İ r = 51.7; ȡ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:25.7 deg C;Liquid Temperature:24.6 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: z Probe: EX3DV3 - SN3531; ConvF(7.88, 7.88, 7.88); z Sensor-Surface: 2.5mm (Mechanical Surface Detection) z Electronics: DAE3 Sn500; Calibrated: 8/23/2006 z Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.7Build53; Postprocessing SW: SEMCAD, V1.8 Build 172 Middle CH, Rate=1M/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.796 mW/g Middle CH, Rate=1M/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 11.9 V/m; Power Drift = -0.056 dB Peak SAR (extrapolated) = 1.14 W/kg SAR(1 g) = 0.626 mW/g; SAR(10 g) = 0.339 mW/g Maximum value of SAR (measured) = 0.837 mW/g Middle CH, Rate=1M/Z Scan (1x1x26): Measurement grid: dx=20mm, dy=20mm, dz=4mm Maximum value of SAR (measured) = 0.173 mW/g Page1 Page2 Date/Time:5/7/2007 2:42:23 PM Test Laboratory: Compliance Certification Services Inc. 802.11b Bottom Flat Touched mode Sony PCG-GRT309Z DUT: 65-VE241-P1; Type: Wireless USB Adapter; Serial: N/A Communication System: IEEE 802.11b WLAN; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2462 MHz; ı = 1.94 mho/m; İ r = 51.5; ȡ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:25.7 deg C;Liquid Temperature:24.6 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: z Probe: EX3DV3 - SN3531; ConvF(7.88, 7.88, 7.88); z Sensor-Surface: 2.5mm (Mechanical Surface Detection) z Electronics: DAE3 Sn500; Calibrated: 8/23/2006 z Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.7Build53; Postprocessing SW: SEMCAD, V1.8 Build 172 High CH, Rate=1M/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.668 mW/g High CH, Rate=1M/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 9.74 V/m; Power Drift = -0.049 dB Peak SAR (extrapolated) = 1.01 W/kg SAR(1 g) = 0.543 mW/g; SAR(10 g) = 0.292 mW/g Maximum value of SAR (measured) = 0.728 mW/g Page1 Page2 Date/Time:5/7/2007 2:57:39 PM Test Laboratory: Compliance Certification Services Inc. 802.11g Bottom Flat Touched mode Sony PCG-GRT309Z DUT: 65-VE241-P1; Type: Wireless USB Adapter; Serial: N/A Communication System: IEEE 802.11g WLAN; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2437 MHz; ı = 1.89 mho/m; İ r = 51.7; ȡ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:25.7 deg C;Liquid Temperature:24.6 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: z Probe: EX3DV3 - SN3531; ConvF(7.88, 7.88, 7.88); z Sensor-Surface: 2.5mm (Mechanical Surface Detection) z Electronics: DAE3 Sn500; Calibrated: 8/23/2006 z Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.7 Build 53; Postprocessing…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc.FCC ID J9C-65VE241P1 Report No.70403205-RP1 Page 1 of 167 FCC 47 CFR PART 15 SUBPART C AND ANSI C63.4 : 2003 TEST REPORT For Qualcomm RoHS WLAN CardBus b/g/n Adapter for 2.4 GHz Client Applications Model : 65-VE241-P1 Trade Name : Qualcomm Issued for QUALCOMM INCORPORATED 5775 Morehouse Drive San Diego California United States 92121 Issued by Compliance Certification Services Inc. Hsinchu Lab. Rm. 258, Bldg. 17, NO.195, Sec.4 Chung HsingRd., ChuTung Chen, Hsinchu, Taiwan 310, R.O.C TEL: (03) 591-0068 FAX: (03) 582-5720 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. Ltd. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Compliance Certification Services Inc.FCC ID J9C-65VE241P1 Report No.70403205-RP1 Page 2 of 167 TABLE OF CONTENTS TITLE PAGE NO. 1. TEST REPORT CERTIFICATION........................................................................................... 3 2. EUT DESCRIPTION.................................................................................................................. 4 2.1 DESCRIPTION OF EUT & POWER.................................................................................... 4 3. DESCRIPTION OF TEST MODES .......................................................................................... 5 4. TEST METHODOLOGY............................................................................................................6 5. FACILITIES AND ACCREDITATIONS .................................................................................. 6 5.1 FACILITIES .......................................................................................................................... 6 5.2 EQUIPMENT ........................................................................................................................ 6 5.3 LABORATORY ACCREDITATIONS LISTINGS................................................................... 6 5.4 TABLE OF ACCREDITATIONS AND LISTINGS ................................................................ 7 6. CALIBRATION AND UNCERTAINTY .................................................................................... 8 6.1 MEASURING INSTRUMENT CALIBRATION ..................................................................... 8 6.2 MEASUREMENT UNCERTAINTY....................................................................................... 8 7. SETUP OF EQUIPMENT UNDER TEST................................................................................ 9-10 8. APPLICABLE LIMITS AND TEST RESULTS ....................................................................... 11 8.1 6dB BANDWIDTH ................................................................................................................ 11-28 8.2 99% BANDWIDTH ............................................................................................................... 29-46 8.3 MAXIMUM PEAK OUTPUT POWER ................................................................................. 47-65 8.4 MAXIMUM PERMISSIBLE EXPOSURE ............................................................................. 66-67 8.5 POWER SPECTRAL DENSITY ............................................................................................ 68-96 8.6 CONDUCTED SPURIOUS EMISSION................................................................................ 97-121 8.7 RADIATED EMISSIONS ...................................................................................................... 122 8.7.1 TRANSMITTER RADIATED SUPURIOUS EMSSIONS............................................. 122-1…

Text truncated - open the document above for the full version.
