J9C-65VF320P2WLAN a/b/g/n miniPCI Adapter

65-VF320-P2 WLAN MiniPCI a/b/g/n Adapter Product Specification and Modular Installation Rev 0.2 • http://www.cdmatech.com/products/wlan.jsp • Page 1 of 21 Qualcomm Confidential Information Document # MA423D_H_PS_V2 65-VF320-P2 MiniPCI Adapter (MA423D_H) Product Specification and Modular Installation Document Number MA423D_H_PS_V1 Published December 2007 65-VF320-P2 WLAN MiniPCI a/b/g/n Adapter Product Specification and Modular Installation Rev 0.2 • http://www.cdmatech.com/products/wlan.jsp • Page 2 of 21 Qualcomm Confidential Information Document # MA423D_H_PS_V2 Table of Contents Product Description............................................................................................................ 4 Chipset................................................................................................................................4 Key Features and Benefits.................................................................................................. 4 Additional Hardware Features............................................................................................ 4 Data Rates Supported.......................................................................................................... 5 Modulation Types Supported.............................................................................................. 5 Security Features................................................................................................................. 5 Quality of Service (QoS) and Value-Added MAC Features.............................................. 6 Antenna Connections.......................................................................................................... 6 Manufacturing-Ready Software.......................................................................................... 6 Interfaces............................................................................................................................. 6 Physical............................................................................................................................... 6 Operating Voltage............................................................................................................... 6 Recommended Operating Temperature Range................................................................... 6 Recommended Operating Humidity Range........................................................................ 6 Recommended Storage Temperature Range....................................................................... 6 Recommended Storage Humidity Range............................................................................ 6 Peak Power Consumption................................................................................................... 6 Typical Receiver Sensitivity............................................................................................... 8 Operating Frequencies/Bands........................................................................................... 15 Maximum Transmit Output Power................................................................................... 16 Physical Dimensions......................................................................................................... 16 Modular Installation.......................................................................................................... 18 65-VF320-P2 Antenna Specifications.............................................................................. 19 Product Labeling............................................................................................................... 20 Product Usage................................................................................................................... 20 Product Documentation.................................................................................................... 20 Table of Figures Figure 1 65-VF320-P2 MiniPCI Adapter (top view, RF shield intact).............................. 5 Figure 2 PCB and Shield Mechanical Drawing (dimensions in millimeters)................... 17 Figure 3 Radio Module Alignment................................................................................... 19 Table of Tables Table 1 2.4 GHz Power Consumption................................................................................ 7 Table 2 5 GHz Power Consumption................................................................................... 7 Table 3 802.11b Rx Sensitivity.......................................................................................... 8 Table 4 802.11g Rx sensitivity.......................................................................................... 9 Table 5 802.11a Rx sensitivity......................................................................................... 10 65-VF320-P2 WLAN MiniPCI a/b/g/n Adapter Product Specification and Modular Installation Rev 0.2 • http://www.cdmatech.com/products/wlan.jsp • Page 3 of 21 Qualcomm Confidential Information Document # MA423D_H_PS_V2 Table 6 802.11n 20 MHz 2.4 GHz Rx sensitivity............................................................ 11 Table 7 802.11n 40MHz 2.4 GHz Rx sensitivity............................................................. 12 Table 8 802.11n 20 MHz 5 GHz Rx sensitivity............................................................... 13 Table 9 802.11n 40 MHz 5 GHz Rx sensitivity............................................................... 14 Table 10 Operating Frequencies/Bands 2.4 GHz............................................................. 15 Table 11 Operating Frequency/Bands 5 GHz................................................................... 15 Table 12 Tx Power 2.4 GHz............................................................................................. 16 Table 13 Tx Power 5 GHz................................................................................................…

Text truncated - open the document above for the full version.

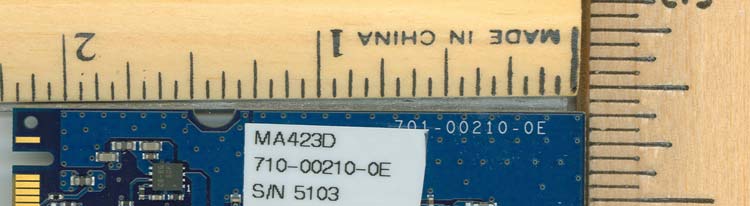

External view, Top side 65-VF320-P2 (MA423D_H) FCC ID: J9C-65VF320P2 External view, Bottom side 65-VF320-P2 (MA423D_H) FCC ID: J9C-65VF320P2

QUALCOMM, Inc. QUALCOMM WLAN MiniPCI a/b/g/n Adapter FCC ID: J9C-65VF320P2 IC ID: 2723-65VF320P2 Module Label Internal on Module FCC ID: J9C-65VF320P2 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference than may cause undesired operation IC ID: 2723-65VF320P2 Model No.: 65-VF320-P2 Placement of Internal Module Label Modular Label External on AP/BBGW Qualcomm Part Number 65-VF320-P2 Contains Transmitter Module FCC ID: J9C-65VF320P2 Placement of External (bottom of AP/BBGW) Modular Label

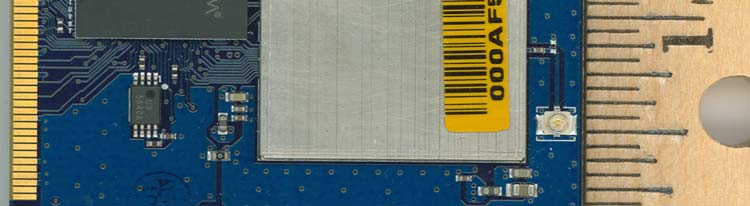

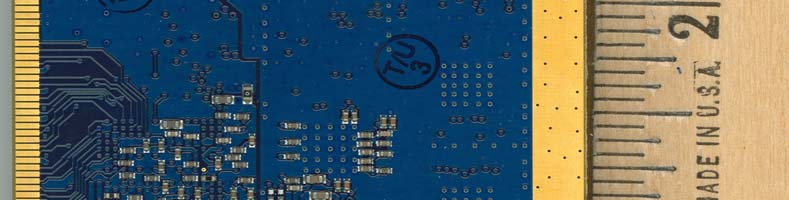

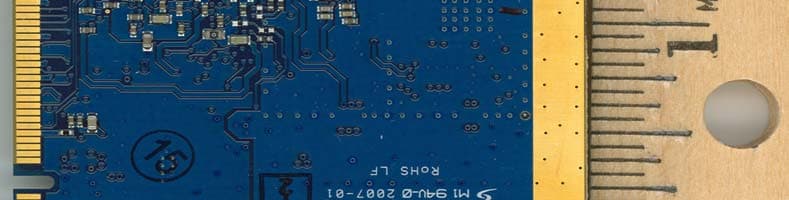

Internal view, Top side 65-VF320-P2 (MA423D_H) FCC ID: J9C-65VF320P2 Internal view, Bottom side 65-VF320-P2 (MA423D_H) FCC ID: J9C-65VF320P2

APPROVAL SHEET CUSTOMER FILE NO . : ESCRIPTION : 802.11 a+b ANTENNIQUES P/N : FCF-003-103-02 CUSTOMER P/N : DATE : 91 9 18 Customer Approval Antenniques Co.,Ltd 12265 TEL02-2668-5793 FAX02-2668-5795 5F,No.6,Laine 122, Sec 2,Ganyun St, Shulin Chulin City, Taipei Hsien,238 Taiwan R.O.C. [email protected] www.antenniques.com.tw TECHNICAL DATA Electrical Properties Frequency Range 2.42.5GHz & 5.15~5.85 GHz Impedance 50 Ohm nominal VSWR 2.0 Gain 5.15`~~5.85 GHz GAIN 3dBi : 2.4~~~2.5 GHZ GAIN 2dBi Radiation Omni Polarization Vertical Electrical Wave Dipole ARRAY Connector IPEX Plug Mechanical Properties Antenna Cover PU Color Black Operation Temperature2060 Storage Temperature -3075 SPECIFICATION OF COAX 50 Ohms AWG32 CORE PTFE D=1.13 mm AXON’CABLE S.A.S. CABLE & INTERCONNECT ROUTE DE CHALONS-SUR-MARNE 51210 MONTMIRAIL-FRANCE Tel : (33) 03 26 81 70 00 Fax : (33) 03 26 81 28 83 e-mail : [email protected] N° P530738A Page 1/1 This document is the property of AXON’CABLE SA, and is issued on the condition that it is not copied or disclosed to any third party without prior written consent from AXON’CABLE SA Index Date Designed by Approval Description of the Modifications A 02/04/02 PV SW CREATION I – Scope This specification presents a PTFE jacketed COAXIAL cable AWG32, 1.13 mm O.D.for internal wiring of electronic equipment, such as Computer / Notebook with wireless communication systems. II – Construction Item Unit Details Material - Silver Plated Copper Composition No./mm AWG32 or 7 x 0.079 1-Inner Conductor Nom. O.D. mm 0.237 Material - Extruded PTFE Nom. O.D. mm 0.68 2-Dielectric Color - Natural Material - Tin Plated Copper Composition - Braided Shield AWG44 3-Outer Conductor Approx. O.D. mm 0.90 Material - Extruded FEP O.D. (mm) mm 1.13±0.05 5-Outer Jacket Color - P530738A^ P530738A^V1 P530738A^V2 : Light Grey : Black : Dark Grey III – Characteristics Item Unit Nom. Value Inner Conductor resistance @20°C Ω/km 525 max. Characteristic Impedance Ω 50 ± 2 Capacitance PF/m 98 @ 1.0 GHz 1.8 @ 1.5 GHz 2.3 @ 2.0 GHz 2.6 @ 2.45 GHz 3.0 @ 5.2 GHz 4.6 Nom. Attenuation (dB/m) @ 5.8 GHz 5.0 Temperature Rating °C 150 Approx. Weight g/m 3.5

REPORT NO: 07U11488-2 DATE: JANUARY 10, 2008 FCC ID: J9C-65VF320P2 Page 132 of 139 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 10. MAXIMUM PERMISSIBLE EXPOSURE FCC RULES §1.1310 The criteria listed in Table 1 shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in §1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of §2.1093 of this chapter. REPORT NO: 07U11488-2 DATE: JANUARY 10, 2008 FCC ID: J9C-65VF320P2 Page 133 of 139 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. CALCULATIONS Given E = √ (30 * P * G) / d and S = E ^ 2 / 3770 where E = Field Strength in Volts/meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power Density in milliwatts/square centimeter Combining equations, rearranging the terms to express the distance as a function of the remaining variables, changing to units of Power to mW and Distance to cm, and substituting the logarithmic form of power and gain yields: d = 0.282 * 10 ^ ((P + G) / 20) / √ S where d = MPE distance in cm P = Power in dBm G = Antenna Gain in dBi S = Power Density Limit in mW/cm^2 Rearranging terms to calculate the power density at a specific distance yields S = 0.0795 * 10 ^ ((P + G) / 10) / (d^2) The power density in units of mW/cm^2 is converted to units of W/m^2 by multiplying by a factor of 10. REPORT NO: 07U11488-2 DATE: JANUARY 10, 2008 FCC ID: J9C-65VF320P2 Page 134 of 139 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. LIMITS From FCC §1.1310 Table 1 (B), the maximum value of S = 1.0 mW/cm^2 RESULTS NOTE: For mobile or fixed location transmitters, the minimum separation distance is 20 cm, even if calculations indicate that the MPE distance would be less. ModeFrequency MPEOutputAntennaFCC Power RangeDistancePowerGainDensity (MHz)(cm)(dBm)(dBi)(mW/cm^2) 802.11a5180 - 524020.013.693.000.01 802.11n HT205180 - 524020.012.883.000.01 802.11n HT405190 - 523020.015.553.000.01

FCC CFR47 PART 15 SUBPART E CERTIFICATION TEST REPORT FOR WLAN a/b/g/n miniPCI Adapter MODEL NUMBER: 65-VF320-P2 FCC ID: J9C-65VF320P2 REPORT NUMBER: 07U11488-2 ISSUE DATE: JANUARY 10, 2008 Prepared for QUALCOMM INCORPORATED 900 ARASTRADERO ROAD PALO ALTO, CA 94304, U.S.A. Prepared by COMPLIANCE CERTIFICATION SERVICES 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 07U11488-2 DATE: JANUARY 10, 2008 FCC ID: J9C-65VF320P2 Page 2 of 139 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Issue Date Revisions Revised By -- 01/10/08 Initial Issue T. Chan REPORT NO: 07U11488-2 DATE: JANUARY 10, 2008 FCC ID: J9C-65VF320P2 Page 3 of 139 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS .................................................................................. 5 2. TEST METHODOLOGY ...................................................................................................... 6 3. FACILITIES AND ACCREDITATION .................................................................................. 6 4. CALIBRATION AND UNCERTAINTY ................................................................................. 6 4.1. MEASURING INSTRUMENT CALIBRATION ................................................................ 6 4.2. MEASUREMENT UNCERTAINTY................................................................................. 6 5. EQUIPMENT UNDER TEST ................................................................................................ 7 5.1. DESCRIPTION OF EUT................................................................................................. 7 5.2. MAXIMUM OUTPUT POWER........................................................................................ 7 5.3. DESCRIPTION OF AVAILABLE ANTENNAS................................................................ 7 5.4. SOFTWARE AND FIRMWARE...................................................................................... 7 5.5. WORST-CASE CONFIGURATION AND MODE ........................................................... 7 5.6. DESCRIPTION OF TEST SETUP.................................................................................. 8 6. TEST AND MEASUREMENT EQUIPMENT...................................................................... 10 7. ANTENNA PORT TEST RESULTS................................................................................... 11 7.1. 802.11a DUAL CHAIN LEGACY MODE IN THE LOWER 5.2 GHz BAND .................. 11 7.1.1. 26 dB and 99% BANDWIDTH ................................................................................ 11 7.1.2. OUTPUT POWER .................................................................................................. 15 7.1.3. AVERAGE POWER ............................................................................................... 23 7.1.4. PEAK POWER SPECTRAL DENSITY................................................................... 24 7.1.5. PEAK EXCURSION ............................................................................................... 31 7.1.6. CONDUCTED SPURIOUS EMISSIONS................................................................ 35 7.2. 802.11n HT20 MODE IN THE LOWER 5.2 GHz BAND............................................... 45 7.2.1. 26 dB and 99% BANDWIDTH ................................................................................ 45 7.2.2. OUTPUT POWER .................................................................................................. 49 7.2.3. AVERAGE POWER ............................................................................................... 57 7.2.4. PEAK POWER SPECTRAL DENSITY................................................................... 58 7.2.5. PEAK EXCURSION ............................................................................................... 65 7.2.6. CONDUCTED SPURIOUS EMISSIONS................................................................ 69 7.3. 802.11n HT40 MODE IN THE LOWER 5.2 GHz BAND............................................... 77 7.3.1. 26 dB and 99% BANDWIDTH ................................................................................ 77 REPORT NO: 07U11488-2 DATE: JANUARY 10, 2008 FCC ID: J9C-65VF320P2 Page 4 of 139 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 7.3.2. OUTPUT POWER .................................................................................................. 80 7.3.3. AVERAGE POWER ............................................................................................... 86 7.3.4. PEAK POWER SPECTRAL DENSITY................................................................... 87 7.3.5. PEAK EXCURSION ............................................................................................... 93 7.3.6. CONDUCTED SPURIOUS EMISSIONS................................................................ 96 8. RADIATED TEST RESULTS........................................................................................... 104 8.1. TRANSMITTER ABOVE 1 GHz ................................................................................. 106 8.1.1. TRANSMITTER ABOVE 1 GHz FOR 802.11a DUAL CHAIN LEGACY MODE IN THE LOWER 5.2 GHz BAND ............................................................................... 106 8.1.2. TRANSMITTER ABOVE 1 GHz FOR 802.11n HT20 MODE IN THE LOWER 5.2 GHz BAND ....................…

Text truncated - open the document above for the full version.

REPORT NO: 07U11488-2 DATE: JANUARY 10, 2008 FCC ID: J9C-65VF320P2 Page 135 of 139 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 11. SETUP PHOTOS ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP ANTENNA PORT CONDUCTED PHOTO REPORT NO: 07U11488-2 DATE: JANUARY 10, 2008 FCC ID: J9C-65VF320P2 Page 136 of 139 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED RF MEASUREMENT SETUP RADIATED FRONT PHOTO REPORT NO: 07U11488-2 DATE: JANUARY 10, 2008 FCC ID: J9C-65VF320P2 Page 137 of 139 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED BACK PHOTO REPORT NO: 07U11488-2 DATE: JANUARY 10, 2008 FCC ID: J9C-65VF320P2 Page 138 of 139 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP LINE CONDUCTED FRONT PHOTO REPORT NO: 07U11488-2 DATE: JANUARY 10, 2008 FCC ID: J9C-65VF320P2 Page 139 of 139 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. END OF REPORT LINE CONDUCTED BACK PHOTO
