J9C2NET3G/UNLICENSED WIRELESS HUB

2net™ Hub User Manual 80-KA125-1 Rev. A 2 MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION 80-KA125-1 Rev. A Qualcomm Labs, Inc. and Qualcomm Incorporated Confidential and Proprietary 80-KA125-1 Rev. A MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION 3 Qualcomm Labs, Inc. and Qualcomm Incorporated Confidential and Proprietary Contents 1. 2net Hub intended use ..............................................................................3 1.1 Use, care, and maintenance ...............................................................3 2. Getting to know your 2net Hub ................................................................4 2.1 What does each part do? ..............................................................................4 2.2 What do the lights mean? ..........................................................................5-6 3. Using your 2net Hub .................................................................................7 3.1 Plugging in the 2net Hub.....................................................................7 3.2 Making the 2net Hub work with your medical device(s) ......................8 3.2.1 Pairing one device to the 2net Hub in 3 easy steps..................8 3.2.2 Pairing more than one device to the same Hub........................9 4. Troubleshooting tips .................................................................................9 5. Safety and usage information ..................................................................9 5.1 Food and Drug Administration (FDA) classification ..........................10 5.2 Federal Communications Commission (FCC) .............................10-11 1. 2net Hub intended use Your 2net™ Hub is a small plug-and-play radio communications unit. It does not contain any medical sensors. It collects data from your medical devices over short-range radio communications links. It then wirelessly delivers this data over a cellular network (similar to a mobile phone) to your medical device company’s website/server. The 2net Hub is easy to use and is designed for use in a residential environment. Just plug it into a standard US, electrical wall outlet at your home or office. It does not need any batteries. IMPORTANT: 2net Hub is for home use only and not intended for hospital or emergency room use. 1.1 Use, care, and maintenance Follow the instructions in the Quick Start Section 1.2 for how to use the 2net Hub. The 2net Hub is not intended to be: • A diagnostic tool • Used for accessing the Internet • Used in hospitals or emergency rooms • Used for active patient monitoring Operate the 2net Hub only as intended. Do not use the device for any other purpose. • Do not let the 2net Hub get wet. • Store the 2net Hub in a clean, safe place. • Do not take the 2net Hub apart or try to repair the 2net Hub 4 MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION 80-KA125-1 Rev. A Qualcomm Labs, Inc. and Qualcomm Incorporated Confidential and Proprietary 80-KA125-1 Rev. A MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION 5 Qualcomm Labs, Inc. and Qualcomm Incorporated Confidential and Proprietary Standard AC power wall plug 2. Getting to know your 2net Hub 2.1 What does each part do? Table 2-1 Table 2-2 Cellular signal status Cellular signal symbol Product labelSerial Number USB Port (For troubleshooting only, not for power charging) Short-range radio communication symbol 2.2 What do the lights mean? There are two symbols on the front of your 2net Hub that light up in different colors to give you information. The bars symbol shows you the status of the cellular network signal. Table 2-2 explains what it means when this symbol changes color. The house symbol shows you the status of the 2net Hub’s short-range radio communication links. Table 2-3 explains what it means when this symbol changes color. Symbol color Cellular signal status Solid GREEN Cellular coverage is good. Solid YELLOW 2net Hub is starting up. Solid RED 2net Hub needs to be reset. 2net Hub will automatically start reset process. No user intervention is needed. Flashing GREEN 2net Hub is sending or receiving data via cellular network. Flashing YELLOW 2net Hub is starting up; searching for cellular signal. Flashing RED Cellular signal is not strong enough. Tip: Wait for up to 5 (about 10 times minutes to see if cellular signal is found and symbol turns a second) solid GREEN. If not, unplug the 2net Hub and move it to a new location with better cellular coverage. Move all the medical device(s) you want to use with the 2net Hub to the same place. Slowly flashing RED 2net Hub is unable to deliver data to the medical device (about 3 times company’s website/server. Please contact the medical a second) device company where you bought the 2net Hub. No color No AC power is being applied to the 2net Hub, or 2net Hub is not plugged in. 6 MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION 80-KA125-1 Rev. A Qualcomm Labs, Inc. and Qualcomm Incorporated Confidential and Proprietary 80-KA125-1 Rev. A MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION 7 Qualcomm Labs, Inc. and Qualcomm Incorporated Confidential and Proprietary Table 2-3 Short-range radio communication status Symbol color Short-range radio communication status Solid GREEN Your medical device has successfully paired with the 2net Hub. Solid YELLOW 2net Hub is starting. After successful start-up, the solid YELLOW light means the 2net Hub is ready to pair with medical device. Solid RED 2net Hub needs to be reset. It will automatically start this reset process. No user intervention is needed. Flashing GREEN 2net Hub is collecting data from your medical device. Flashing YELLOW 2net Hub start up is in progress. Flashing RED 2net Hub is unable to pair with your medical device. (about 10 times Tip: Try pairing the 2net Hub and device again. Follow the a second) easy 3-step process in the section “Making the 2net Hub work with your medical de…

Text truncated - open the document above for the full version.

80-KA125-2 Rev. B ©2012 Qualcomm Life, Inc. All rights reserved. QUALCOMM is a trademark of QUALCOMM incorporated, registered in the United States and other countries. 2net and Qualcomm Life are trademarks of QUALCOMM Incorporated. Important Customer Information 2 MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION Contents 1. How Wireless Works ............................................................................3 1.1 Use, Care and Maintenance ........................................................3 2 Important Safety Instructions ..............................................................3 3 2net Hub Regulatory Information ........................................................5 3.1 Food and Drug Administration (FDA) Classification ....................5 3.2 Safety Warnings ...........................................................................5 3.4 Implantable Medical Devices .......................................................6 3.3.1 Safety and Wireless Devices ............................................7 4 Transmitter Information .....................................................................11 4.1 List of Transmitters .....................................................................11 4.2 Medical Equipment Standards ...................................................12 MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION 15 Table 4-5. IEC 60601-1-2 Recommended Separation Distance Be- tween RF Communication Equipment and the 2net Hub Recommended separation distances between portable and mobile RF communications equipment and the 2net Hub The 2net Hub is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the 2net Hub can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the 2net Hub as recommended below, according to the maximum output power of the communications equipment. Rated maximum output power of transmitter (W) Separation distance according to frequency of transmitter (m) 150 kHz to 80 MHz d = [ 3,5 ] P V 1 80 MHz to 800 MHz [ 3,5 ] / E1 * sqrt P 800 MHz to 2,5 GHz d = [ 7 ] P E 0.010.120.120.23 0.10.370.370.74 11.171.172.33 103.693.697.38 10011.6711.6723.33 For transmitters rated at a maximum output power not listed above, the recommended separation distance d in metres (m) can be estimated using the equation applicable to the frequency of the transmitter, where P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer. NOTE 1: At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies. NOTE 2: These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people. 14 MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION Table 4-4. IEC 60601-1-2 Electromagnetic Immunity Performance Criteria – Part 2 Guidance and manufacturer’s declaration – electromagnetic immunity The 2net Hub is intended for use in the electromagnetic environment specified below. The customer or the user of the 2net HUB should assure that it is used in such an environment. Immunity Test IEC 60601 Test Level Compliance LevelElectromagnetic Environment – Guidance Conducted RF IEC 61000-4-6 Radiated RF IEC 61000-4-3 3 Vrms 150 kHz to 80 MHz 3 V/m 80 MHz to 2,5 GHz 3 V 3 V/m Portable and mobile RF communications equipment should be used no closer to any part of the2net Hub, including cables, than the recommended separation distance calculated from the equation applicable to the frequency of the transmitter Recommended separation distance d = 1.2√ P 80 MHz to 800 MHz d = 2.3√ P 800 MHz to 2.5 GHz where P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer and d is the recommended separation distance in meters (m). b Field strengths from fixed RF transmitters, as determined by an electromagnetic site survey,a should be less than the compliance level in each frequency range. b Interference may occur in the vicinity of equipment marked with the following symbol: NOTE 1: At 80 MHz and 800 MHz, the higher frequency range applies. NOTE 2: These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people. a) Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the 2net Hub is used exceeds the applicable RF compliance level above, the 2net Hub should be observed to verify normal operation. If abnormal operation is observed, additional measures may be necessary, such as reorienting or relocating the 2net Hub. b) Over the frequency range 150 kHz to 80 MHz, field strengths should be less than [V1] V/m. MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION 3 Your wireless service is different from your home or business phone service. Unlike the data calls you make on a home or business wired internet service, wireless communications travel over the air and can react to the environment. Rain, snow, fog, falling leaves, water, mountains, canyons and even buildings may affect service. All wireless services are subject to “dead zones” or “no coverage” areas. 1.1 Use, Care and Maintenance The 2net™ Hub is not intended to be: • A diagnostic tool • Used for accessing the Internet • Used in hospitals or emergency rooms • Used for active patient monitoring Operate the 2net Hub only as intended. Do not use…

Text truncated - open the document above for the full version.

QUALCOMM Incorporated 5775 Morehouse Drive San Diego, CA 92121-1714 www.qualcomm.com Federal Communications Commision Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, Maryland 21046 December 1, 2011 Subject: Application for 2Net Hub Qualcomm Incorporated herein submits the Application for Equipment Authorization (FCC Form 731) and Exhibits for Type Acceptance for FCC ID J9C2NET of a • Part 22/24 GSM/GPRS/EDGE Transceiver • Part 22/24 UMTS/HSDPA Transceiver • Part 15.247 2.4GHz 802.11 b/g Transceiver • Part 15.247 2.4GHz Bluetooth Transceiver • Part 15.249 2.4GHz ANT+ Transceiver Applicant: Qualcomm Incorporated 5775 Morehouse Drive San Diego, CA 92121-1714 The 2net Hub is a single self contained unit that plugs into an AC outlet for power. The 2net HUB incorporates two internal antennas to support the licensed and unlicensed transmitters. Test reports have not been provided for other frequency bands supported by the 2net HUB not utilized in the United States. All necessary information is provided in the supporting attachments. Please contact me at (858) 845-7428 or Email: [email protected] if there are any questions or additional information needed. Sincerely, John Forrester Principal Engineer Qualcomm Incorporated

QUALCOMM Incorporated 5775 Morehouse Drive San Diego, CA 92121-1714 www.qualcomm.com December 2, 2011 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Subject: Request of Confidentiality for FCC ID: J9C2NET To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR47), Qualcomm Incorporated hereby requests confidential treatment of information accompanying this Application as outlined in the table below. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters may be harmful to the Applicant and provide unjust benefits to its competitors. The requested Confidential and Temporary Confidential exhibits are listed in the table below. The Applicant understands that pursuant to Rule -.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant of the Application Confidentiality Type Name Exhibit Type Long Term Confidential 2net HUB Operation Description Operation Description & Documentation 2net HUB Block Diagram Block Diagram 2net HUB Parts List Parts List and Tune-up Procedure 2net HUB Schematic Schematic Huawei FCC ID QISMU509C Schematic Schematic Huawei FCC ID QISMU509C Operational Description/Tune-up Parts List and Tune-up Procedure Huawei FCC ID QISMU509C Block Diagram Block diagram Huawei FCC ID QISMU509C Parts List Parts List and Tune-up Procedure Murata LBEH59XUHCH497 Data sheet Schematic Furthermore, pursuant to Public Notice DA 04-1705 in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, we request the following exhibits be withheld from public viewing for a short term limited time of 45 days from the date of the Grant of Equipment Authorization, due to the sensitive business information. The subjected exhibit is: Confidentiality Type Name Exhibit Type Short Term Confidential 2net HUB Internal Photos Internal Photos 2net HUB User manual User manual Sincerely, John Forrester Principal Engineer Qualcomm Incorporated

QUALCOMM Incorporated _________ 5775 Morehouse Drive San Diego, CA 92121-1714 www.qualcomm.com April 29, 2011 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Authorization of Handling FCC Regulatory Applications To Whom It May Concern: I, hereby, authorize Mr. John Forrester, to handle FCC Regulatory related applications for QUALCOMM Incorporated and sign all required application documents. Best Regards, Paul Guckian VP, Engineering QUALCOMM Incorporated 5775 Morehouse Drive San Diego, CA 92121 Office: 858-651-1547 [email protected]

Date: June 23, 2008 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Ms. Claire Hoque/Application Examiner of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Ms. Claire Hoque of CCS on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Paul Guckian VP, EMC/Regulatory Engineering QUALCOMM Incorporated

1 Mark Briggs From:EASADMIN <[email protected]> Sent: Friday, February 17, 2012 10:11 AM To: Mark Briggs; Evelyn Cherry Subject: RE: Final version of manual to upload to existing filing From: Mark Briggs [mailto:[email protected]] Sent: Monday, February 13, 2012 2:48 PM To: EASADMIN Subject: Final version of manual to upload to existing filing Dear easadmin, I have received the final version of the User Manual for FCC ID: J9C2NET. This manual needs to be uploaded to the appropriate filings. In addition, the draft manual and attestation letter (attesting that Qualcomm will provide the final version of the manual) will need to be superseded. Please could you place the related filings into audit mode to allow me to update the application? Thanks, Mark Mark Briggs Director, UL CCS Certification Program UL Verification Services, WiSE Business Segment (Wireless, Interoperability, payment Security, & EMC) From: EASADMIN [mailto:[email protected]] Sent: Tuesday, February 14, 2012 11:59 AM To: Mark Briggs Subject: RE: Final version of manual to upload to existing filing Hello Mark, What are the changes to the manual and do any changes to the user manual affect the grant? Thanks From: Mark Briggs [mailto:[email protected]] Sent: Friday, February 17, 2012 12:38 AM To: EASADMIN Subject: RE: Final version of manual to upload to existing filing Hello, The manual has been updated to include information required by the FDA/IEC 60601‐1‐2 related to the product being considered a medical device. No changes were made that would affect the grant conditions. 2 All the appropriate FCC statements remain in the document. Regards, Mark

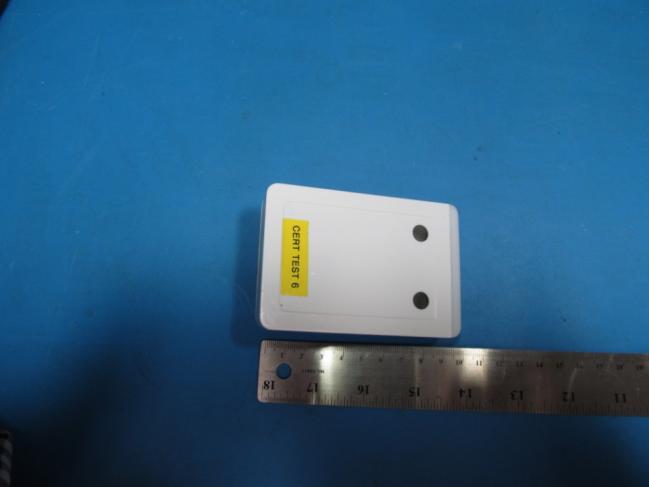

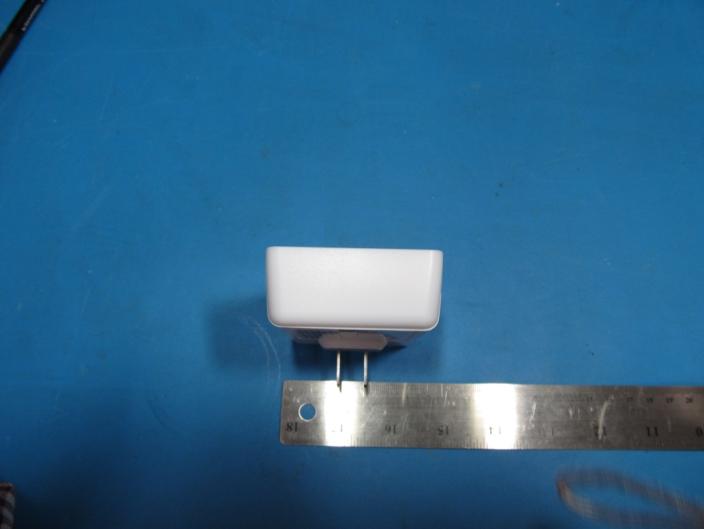

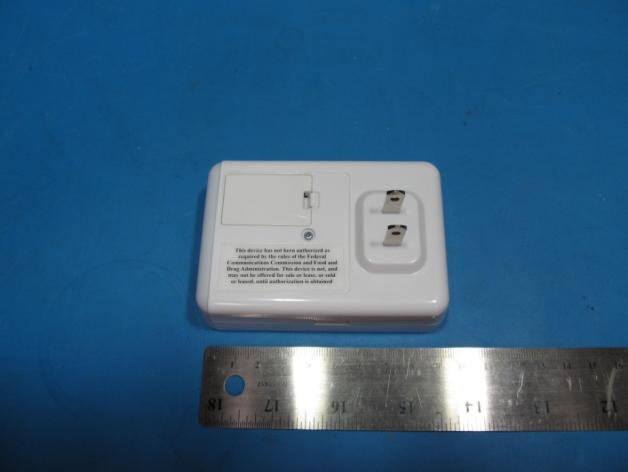

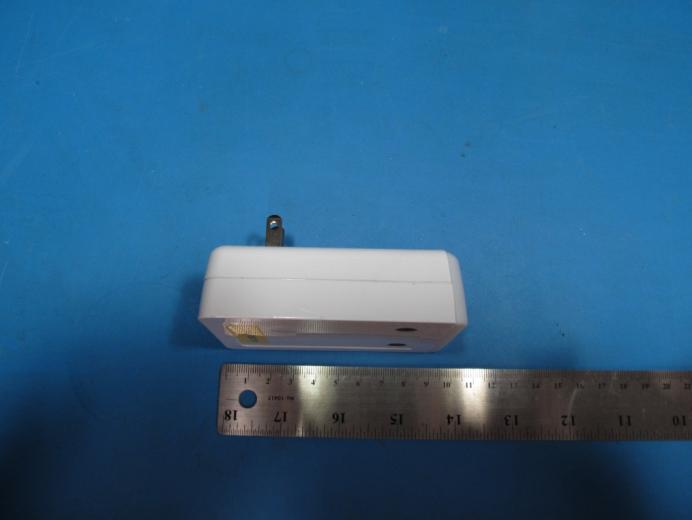

2net Hub Regulatory External Photos 80-KA088-102 Rev. A November 2011 80-KA088-102 Rev. A Qualcomm Labs, Inc. ii MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION Qualcomm Services Labs, Inc. 5775 Morehouse Drive San Diego, CA 92121-1714 U.S.A. 2net Hub Regulatory External Photos 80-KA088-102 Rev. A November 2011 QUALCOMM is a registered trademark of QUALCOMM Incorporated in the United States and may be registered in other countries. Other product and brand names may be trademarks or registered trademarks of their respective owners. This technical data may be subject to U.S. and international export, re-export, or transfer (“export”) laws. Diversion contrary to U.S. and international law is strictly prohibited. Copyright © 2011 Qualcomm Services Labs, Inc. All rights reserved. 80-KA088-102 Rev. A Qualcomm Labs, Inc. 1 MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION 1 External Photos Figure 1-1: Rear View Figure 1-2: Front View 2net Hub Regulatory External Photos 80-KA088-102 Rev. A Qualcomm Labs, Inc. 2 MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION Figure 1-3: Top View Figure 1-4: Bottom View 2net Hub Regulatory External Photos 80-KA088-102 Rev. A Qualcomm Labs, Inc. 3 MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION Figure 1-5: Left Side View Figure 1-6: Right Side View

2net Hub Regulatory Label & Location 80-KA088-106 Rev. A November 2011 80-KA088-106 Rev. A Qualcomm Labs, Inc. ii MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION Qualcomm Services Labs, Inc. 5775 Morehouse Drive San Diego, CA 92121-1714 U.S.A. 2net Hub Regulatory Label & Location 80-KA088-106 Rev. A November 2011 QUALCOMM is a registered trademark of QUALCOMM Incorporated in the United States and may be registered in other countries. Other product and brand names may be trademarks or registered trademarks of their respective owners. This technical data may be subject to U.S. and international export, re-export, or transfer (“export”) laws. Diversion contrary to U.S. and international law is strictly prohibited. Copyright © 2011 Qualcomm Services Labs, Inc. All rights reserved. 80-KA088-106 Rev. A Qualcomm Labs, Inc. 1 MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION 1 Regulatory Label Figure 1-1: Regulatory Label Figure 1-2: Regulatory Label Location Label goes here

2net Hub Regulatory Internal Photos 80-KA088-103 Rev. A November 2011 80-KA088-103 Rev. A Qualcomm Labs, Inc. ii MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION Qualcomm Services Labs, Inc. 5775 Morehouse Drive San Diego, CA 92121-1714 U.S.A. 2net Hub Regulatory Internal Photos 80-KA088-103 Rev. A November 2011 QUALCOMM is a registered trademark of QUALCOMM Incorporated in the United States and may be registered in other countries. Other product and brand names may be trademarks or registered trademarks of their respective owners. This technical data may be subject to U.S. and international export, re-export, or transfer (“export”) laws. Diversion contrary to U.S. and international law is strictly prohibited. Copyright © 2011 Qualcomm Services Labs, Inc. All rights reserved. 80-KA088-103 Rev. A Qualcomm Labs, Inc. 3 MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION 1 Internal Photos Figure 1-1: Disassembled with only power supply installed Figure 1-2: Disassembled with power supply and 2net board installed 2net Hub Regulatory Internal Photos Internal Photos 80-KA088-103 Rev. A Qualcomm Labs, Inc. 4 MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION Figure 1-3: Rear Housing with power supply Figure 1-4: 2net board top with shields on 2net Hub Regulatory Internal Photos Internal Photos 80-KA088-103 Rev. A Qualcomm Labs, Inc. 5 MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION Figure 1-5: 2net board bottom with shields on Figure 1-6: 2net board top with shields off 2net Hub Regulatory Internal Photos Internal Photos 80-KA088-103 Rev. A Qualcomm Labs, Inc. 6 MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION Figure 1-7: 2net board bottom with shields off

2net Hub FCC/IC RF Exposure Report (MPE) 80-KA088-104 Rev. A November 2011 80-KA088-104 Rev. A Qualcomm Labs, Inc. ii MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION Qualcomm Services Labs, Inc. 5775 Morehouse Drive San Diego, CA 92121-1714 U.S.A. 2net Hub FCC/IC RF Exposure Report (MPE) 80-KA088-104 Rev. A November 2011 QUALCOMM is a registered trademark of QUALCOMM Incorporated in the United States and may be registered in other countries. Other product and brand names may be trademarks or registered trademarks of their respective owners. This technical data may be subject to U.S. and international export, re-export, or transfer (“export”) laws. Diversion contrary to U.S. and international law is strictly prohibited. Copyright © 2011 Qualcomm Services Labs, Inc. All rights reserved. 80-KA088-104 Rev. A Qualcomm Labs, Inc. iii MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION Contents 1 Introduction ................................................................................................................ 1 1.1 Device Description ............................................................................................................................ 1 2 Product Declarations ................................................................................................. 2 2.1 Collocated Transmitters .................................................................................................................... 2 3 RF Exposure Limits and Equations .......................................................................... 3 4 MPE Calculations ....................................................................................................... 4 4.1 Stand Alone Transmitter Calculations .............................................................................................. 4 4.2 Collocated MPE Calculations ........................................................................................................... 5 2net Hub FCC/IC RF Exposure Report (MPE) Contents 80-KA088-104 Rev. A Qualcomm Labs, Inc. iv MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION Figures No table of figures entries found. Tables Table 1 Transmitter Declarations .................................................................................................................. 2 Table 2 Limits for FCC Maximum Permissible Exposure (MPE) .................................................................. 3 Table 3 Standalone MPE Calculations ......................................................................................................... 4 Table 4 Collocation Power Density Calculations .......................................................................................... 5 80-KA088-104 Rev. A Qualcomm Labs, Inc. 1 MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION 1 Introduction This Maximum Permissive Exposure (“MPE”) report demonstrates compliance for the 2net Hub with FCC CFR 47 §1.1310 and 2.1091 and RSS GEN for standalone and collocated simultaneous transmission in mobile exposure conditions. The MPE analysis is valid for transmitters operating within the parameters defined in Table 2 used for analysis. The mobile classification applies when 20 cm or more separation distance is maintained between the end user and both Bluetooth® and WLAN transmission antennas. The MPE calculations in the filing are based on measured radiated values extracted from the radiated emissions report for this filing. 1.1 Device Description The 2net Hub is a small self contained radio communications unit that plugs into an AC electrical outlet. The Hub incorporates both short range and WWAN radios as follows: • GSM/GPRS 850/900/1800/1900 MHz • UMTS 850/1900 MHz • 2.4 GHz 802.11 b/g • 2.4 GHz Bluetooth 2.0 + EDR • 2.4 GHz ANT+ The 2net Hub incorporates two PIFA antennas: • WWAN TX/RX • Unlicensed 2.4GHz TX/TX 80-KA088-104 Rev. A Qualcomm Labs, Inc. 2 MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION 2 Product Declarations Table 1 Summarizes transmitter parameters associated with this application. For WWAN, the EIRP was extracted from the appropriate Part 22/24 radiated test reports. WLAN EIRP was calculated from conducted test report data + 3.8dBi antenna gain. Table 1 Nominal Transmitter Declarations Technology Frequency Band Max Transmitter Duty Cycle Transmit Frequency Range (MHz) Receive Frequency Range (MHz) Radiated Transmit Power (EIRP) Test Reports GSM/EDGE/GPRS 850 MHz 25% 824-849 869-894 3,311 mW / 35.2dBm (Peak Power) 900 MHz 25% 880-915 925-960 3,311 mW / 35.2dBm (Peak Power) 1800 MHz 100% 1710-1785 1805-1880 1,738 mW / 32.4dBm (Peak Power) 1900 MHz 100% 1850-1910 1930-1990 1,738 mW / 32.4dBm (Peak Power) UMTS/HSDPA 850 MHz (Band II) 100% 824-849 869-894 316 mW / 25dBm (Average Power) 1900 MHz (Band IV) 100% 1850-1910 1930-1990 479 mW / 26.8dBm (Average Power) 802.11b 2.4 GHz 100% 2400-2484 100 mW / 20dBm (Average Power) 802.11g 2.4 GHz 100% 2400-2484 38 mW / 15.85dBm (Average Power) Bluetooth 2.1+EDR 2.4 GHz 100% 2402 - 2480 13 mW / 11.02dBm (Peak Power) ANT+ 2.4 GHz 100% 13 mW / 11.02dBm (Average Power) 2.1 Collocated Transmitters The 2net Hub contains two antennas and does not support any form of MIMO (i.e. single TX antennas only). • Antenna 1: 2G/3G TX/RX only • Antenna 1: 802.11/ANT+/Bluet…
