J9CQSEC2700Dual Band Cellular Phone

 QSec-2700 Phone User Guide ® ®
 ii This user guide is based on the production version of the QSec ® -2700 phone. Software changes may have occurred after this printing. QUALCOMM Incorporated reserves the right to make changes in technical and product specifications without prior notice. The products and equipment described in this document are manufactured under one or more of the following U.S. Patents: D424,052D361,065D397,110D413,117D427,143D386,186D429,210 D429,212D426,219D422,262D412,483D416,555D356,560D409,561 D424,573D407,701D375,740D376,804D411,823D393,856D413,857 D413,860D410,893D375,937D421,9814,901,3075,056,1095,099,204 5,101,5015,103,4595,107,2255,109,3905,193,0945,228,0545,257,283 5,265,1195,267,2615,267,2625,280,4725,283,5365,289,5275,307,405 5,309,4745,337,3385,339,0465,341,4565,383,2195,392,2875,396,516 5,408,6975,414,7285,414,7965,416,7975,426,3925,437,0555,442,322 5,442,6275,452,4735,461,6395,469,1155,469,4715,471,4975,475,870 5,479,4755,483,6965,485,4865,487,1755,490,1655,497,3955,499,280 5,504,7735,506,8655,509,0155,509,0355,511,0675,511,0735,513,176 5,515,1775,517,3235,519,7615,528,5935,530,9285,533,0115,535,239 5,539,5315,544,1965,544,2235,546,4595,548,8125,559,8655,559,881 5,561,6185,564,0835,566,0005,566,2065,566,3575,568,4835,574,773 5,574,9875,576,6625,577,0225,577,2655,588,0435,589,7565,590,069 5,590,4065,590,4085,592,5485,594,7185,596,5705,600,7545,602,833 5,602,8345,603,0965,604,4595,604,7305,608,7225,614,8065,617,060 5,621,7525,621,7845,621,8535,625,8765,627,8575,629,9555,629,975 5,638,4125,640,4145,642,3985,644,5915,644,5965,646,9915,652,814 5,654,9795,655,2205,657,4205,659,5695,663,8075,666,1225,673,259 5,675,5815,675,6445,680,3955,687,2295,689,5575,691,9745,692,006 5,696,4685,697,0555,703,9025,704,0015,708,4485,710,5215,710,758 5,710,7685,710,7845,715,2365,715,5265,722,0445,722,0535,722,061 5,722,0635,724,3855,727,1235,729,5405,732,1345,732,3415,734,716 5,737,6875,737,7085,742,7345,748,1045,751,7255,751,7615,751,901 5,754,5335,754,5425,754,7335,757,7675,757,8585,758,2665,761,204 5,764,6875,774,4965,777,9905,778,0245,778,3385,781,5435,781,856 5,781,8675,784,4065,784,5325,790,5895,790,6325,793,3385,799,005 5,799,2545,802,1055,805,6485,805,8435,812,0365,812,0945,812,097 5,812,5385,812,6075,812,6515,812,9385,818,8715,822,3185,825,253 5,828,3485,828,6615,835,0655,835,8475,839,0525,841,8065,842,124 5,844,7845,844,8855,844,8995,844,9855,848,0635,848,0995,850,612 5,852,4215,854,5655,854,7865,857,1475,859,6125,859,8385,859,840 5,861,8445,862,4715,862,4745,864,7605,864,7635,867,5275,867,763 5,870,4275,870,4315,870,6315,870,6745,872,4815,872,7745,872,775 5,872,8235,877,9425,878,0365,881,0535,881,3685,884,1575,884,193 5,884,1965,892,1785,892,7585,892,7745,892,8165,892,9165,893,035 5,898,9205,903,5545,903,8625,907,1675,909,4345,910,7525,911,128 5,912,8825,914,9505,915,2355,917,7085,917,8115,917,8125,917,837 5,920,2845,920,8345,923,6505,923,7055,926,1435,926,4705,926,500 5,926,7865,926,7865,930,2305,930,6925,933,4625,933,7815,933,787 5,936,5825,937,0195,940,3835,940,7615,942,9295,943,3615,943,606 5,943,6155,946,6145,946,6185,949,8145,953,3205,953,3225,953,648 5,953,6745,956,6515,956,6835,959,5835,960,3615,960,3625,963,867 5,966,6525,970,4135,974,0415,974,3565,978,6795,982,3155,982,333 5,982,7605,983,0995,983,1145,983,1195,984,6975,986,6205,987,076 5,987,1225,987,3265,988,5835,990,8475,991,2845,991,3455,995,821 5,997,3145,999,8165,999,8286,002,9336,005,5066,005,8556,006,108 6,007,3786,008,7626,009,3076,011,7966,011,9786,016,5686,021,122 6,023,7176,026,2926,028,8846,028,9846,032,0396,035,2096,037,750 6,038,0376,044,0746,044,1036,049,3056,055,4286,058,3386,060,949 6,061,3366,064,6786,067,4586,069,5256,069,5266,069,8806,069,888 6,070,0856,070,8356,073,0076,073,0136,075,8476,075,8596,075,974 6,078,2846,081,2296,081,7246,084,8706,085,0856,085,3496,091,299
 iii 6,094,4656,097,3396,097,9726,101,1686,101,1736,101,1796,101,397 6,107,8786,107,9596,107,9696,107,9776,108,3646,108,3726,108,536 6,108,5916,111,8656,114,9966,115,1426,115,6076,118,2506,118,765 6,118,8266,122,3846,124,8106,125,1076,130,9236,134,2156,134,421 6,134,4346,134,4406,137,3216,137,4416,137,8406,147,6476,147,964 6,147,9786,147,9816,148,0106,148,0426,148,0796,148,2836,149,443 6,150,8526,151,2966,151,3116,151,5026,154,1016,154,1586,157,611 6,157,6686,157,8156,167,2706,173,0076,185,2466,215,7776,216,004 6,240,0716,240,1436,243,5616,249,6836,252,8656,252,9586,253,085 6,256,3016,275,4786,282,2506,285,6556,298,0516,304,5636,304,755 6,314,1256,317,4356,351,4606,351,6506,356,5286,359,8686,360,100 6,366,7786,373,8236,377,6076,377,8096,378,0996,389,0006,389,067 6,393,2956,396,8046,396,8676,414,9886,421,5406,424,6196,426,960 6,480,5216,480,5286,496,5436,501,7876,510,2286,512,9256,526,030 6,535,5636,535,7396,542,4886,545,9896,546,2486,549,5256,553,064 6,574,2106,584,3136,587,4466,597,7056,597,9226,603,7516,603,752 6,606,4856,611,566 Other patents pending. FCC/IC Notice This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution The user is cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the warranty and user’s authority to operate the equipment. Caution Use only QUALCOMM-approved accessories with QUALCOMM phones. Use of any unauthorized accessories will invalidate the phone warranty if said accessories cause damage to the phone. Export of this technology may be controlled by the United States Government. Diversion contrary to U.S. law prohibited. QUALCOMM ® and QSec ® are registered trademarks and registered service marks of QUALCOMM Incorporated. All other trademarks and registered trademarks are the property of their respective owners. © 2003 QUALCOMM Incorporated. All rights reserved. 80-R0920-1 Rev A
 iv This page i…

Text truncated - open the document above for the full version.

Applicant: Qualcomm Inc. FCC ID: J9CQSEC2700 Federal Communications Commission Authorization and Evaluation Division Re: Application for Cellular and PCS Transceiver Type Acceptance Qualcomm Inc. herein submits the Application for Equipment Authorization (FCC Form 731) and Exhibits for Type Acceptance of a Cellular & PCS Transceiver, FCC ID: J9CQSEC2700. Applicant: Qualcomm Inc. 5775 Morehouse Drive-1714 San Diego, CA 92121 Manufacture: Qualcomm Inc. 5525 Morehouse Drive San Diego, California 92121-1710 The equipment, Qualcomm model QSec-2700, is for mobile station cellular and PCS system use. The QSec-2700 is in full compliance with all parts of EIA/TIA/IS-98-B Mobile Station-Land Station Compatibility Specification, issue July 1998, and also in full compliance with all parts of ANSI J-STD-018, Recommended Minimum Performance Requirements for 1.8 to 2 GHz Code Division Multiple Access (CDMA) Personal Stations, issue July 1996. Information concerning how the ESN protection requirements are met is provided in Exhibit 3. Qualcomm Inc. Robert J Scodellaro EMC Engineer, Senior Staff

Applicant: Qualcomm Inc. FCC ID: J9CQSEC2700 Request of Confidentiality Federal Communications Commission Authorization and Evaluation Division Re: Request of Confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: All schematics All parts lists QSec 2700 block diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. Qualcomm Inc. Robert J Scodellaro EMC Engineer, Senior Staff

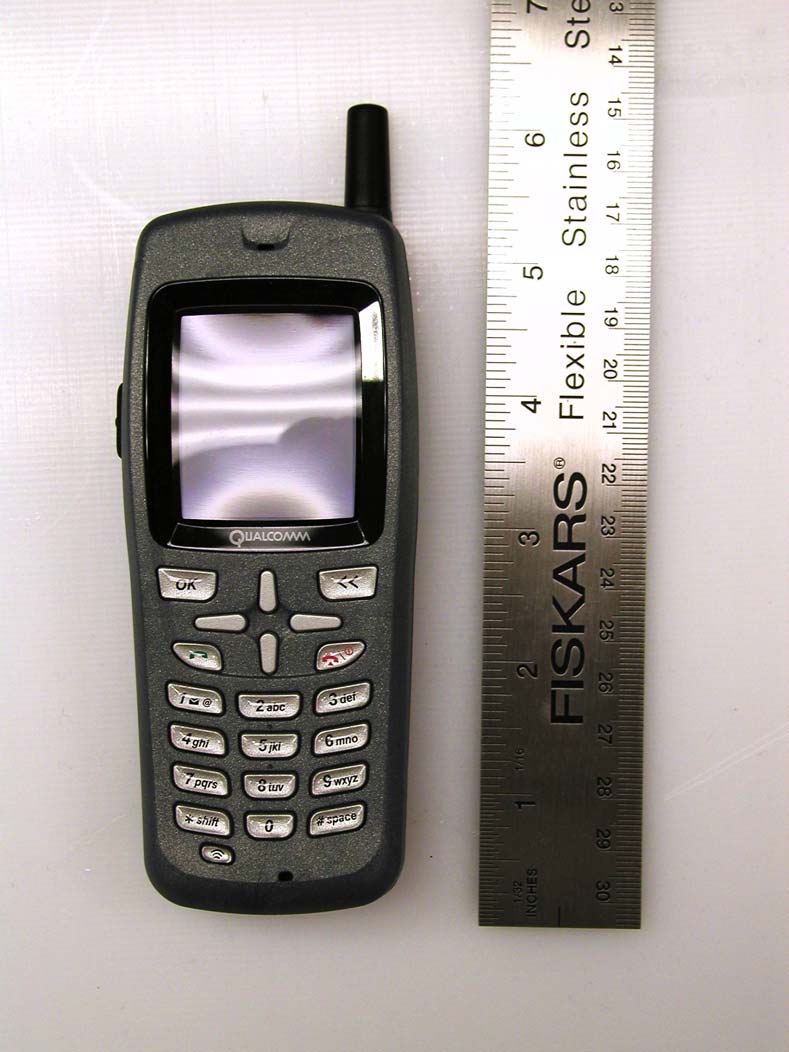

QSEC 2700 External Photographs Front view of QSEC-2700 Rear view of QSEC-2700 QSEC-2700 with Slim Battery installed QSEC-2700 with Standard Battery installed Standard Battery (left) and Slim Battery Side view of QSEC-2700 with Belt Clip installed Belt clip, model DXBLC0011(2 views)

QSEC 2700 External Photographs Front view of QSEC-2700 Rear view of QSEC-2700 QSEC-2700 with Slim Battery installed QSEC-2700 with Standard Battery installed Standard Battery (left) and Slim Battery Side view of QSEC-2700 with Belt Clip installed Belt clip, model DXBLC0011(2 views)

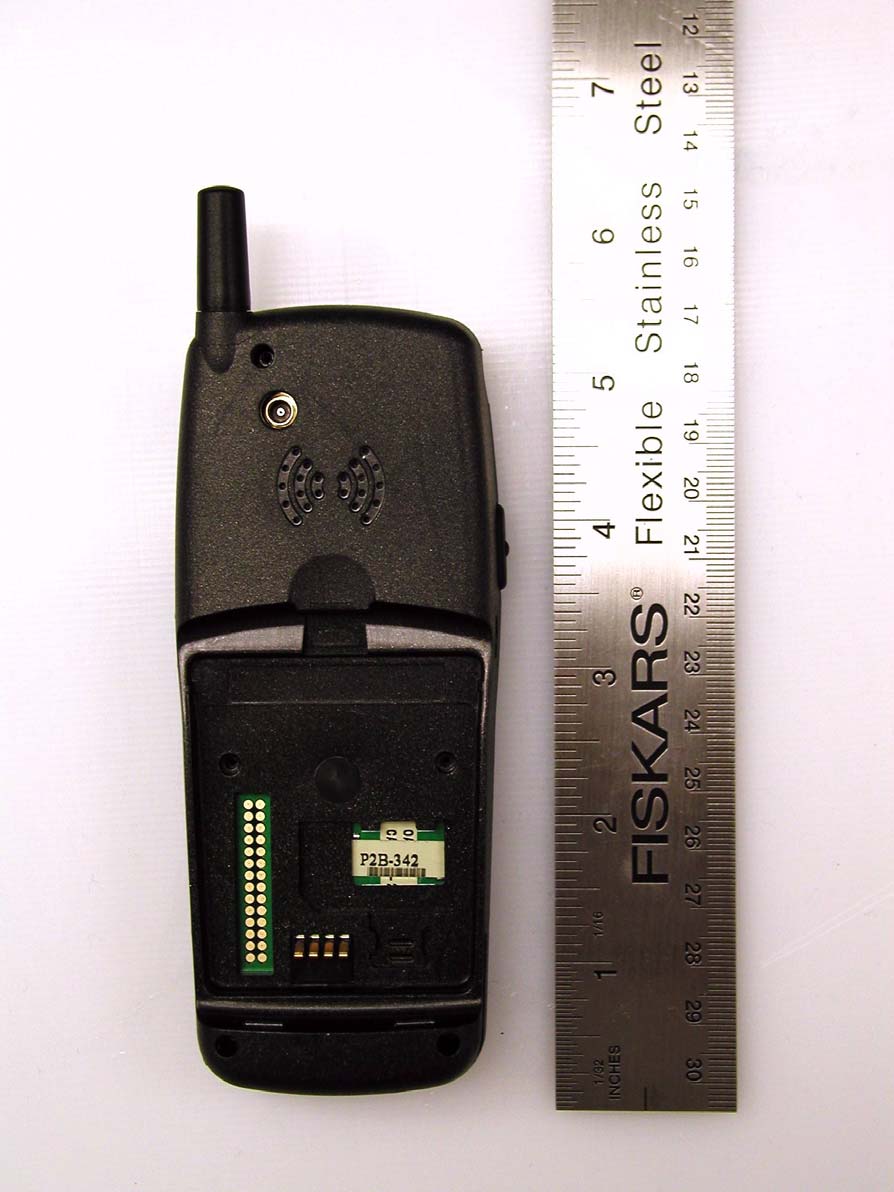

The FCC label for the QSec2700 is located in the battery well on the rear of the phone. The label is visible when the battery is removed from the rear of the phone.

QSEC 2700 Internal Photographs 1 Rear housing removed Front housing assembly with main printed wiring board removed Front housing with keypad printed wiring board removed Front housing with keypad removed Rear housing

QSEC 2700 Internal Photographs 2 Keyboard with dome layer Keyboard rear view Main board front view Main board rear view

Additional Internal Photos With The Shielding Removed

Additional Internal Photos With The Shielding Removed

Additional Internal Photos With The Shielding Removed

Additional Internal Photos With The Shielding Removed

Additional Internal Photos With The Shielding Removed

Additional Internal Photos With The Shielding Removed

Applicant: QUALCOMM Incorporated. QSEC-2700 FCC Type Acceptance Report FCC ID: J9CQSEC2700 80-R0946-1 1 Operational Description and Circuit Diagrams Technical Description The Dual Band Phone consists of Code Division Multiple Access (CDMA) mode in the cellular band and CDMA mode in the PCS band. The Portable Phone is designed to meet the requirements of TIA/EIA/IS-98-B standards for Dual-Mode Wideband Spread Spectrum Cellular Mobile Stations, and ANSI J-STD_018 standard for 1.8GHz to 2.0GHz Code Division Multiple Access (CDMA) Personal Stations. Frequency Range of operation: 824 - 849 MHz transmitter and 869 - 894 receiver for cellular band, 1850 – 1910MHz transmitter and 1930 – 1990 receiver for PCS band. Max RF power output is: 0.318W for CDMA in cellular band and 0.335W for CDMA in PCS band. Power Supply requirements: 4.2V DC Li-Ion battery. Modulation: The audio input is sampled, digitally limited, and then filtered to amplitude and frequency limit the signal applied to the modulator. The device has an operating temperature range of -30 to +60 C. The functions include Compandor, PLL lock detect for received data, audio signal filtering for signals. Power limiting: Transmitted power is monitored by a RF detector diode which is coupled from the Power Amplifier (PA) output. The detected DC voltage is fed into a microprocessor which uses a calibration table along with an offset correction and temperature correction table to control power limits. When the RF power exceeds a predetermined limit the gain of the stage preceding the PA is reduced. Block and Circuit Diagrams Block and circuit diagrams are included in separate attachments.

QSEC-2700 FCC SAR Test Report October 31, 2003 80-R0923-1 Rev. A Submit technical questions to: [email protected] J9CQSEC2700 QSEC-2700 FCC SAR Test Report ii 80-R0923-1 Rev. A All data and information contained in or disclosed by this document are confidential and proprietary information of QUALCOMM Incorporated, and all rights therein are expressly reserved. By accepting this material, the recipient agrees that this material and the information contained therein are held in confidence and in trust and will not be used, copied, reproduced in whole or in part, nor its contents revealed in any manner to others without the express written permission of QUALCOMM Incorporated. Information in this document is preliminary and subject to change and does not represent a commitment on the part of QUALCOMM Incorporated. QUALCOMM Incorporated 5775 Morehouse Drive San Diego, CA 92121-1714 This technology is controlled by the United States Government. Diversion contrary to U.S. law prohibited. Copyright  2003 QUALCOMM Incorporated. All rights reserved. October 31, 2003 QSEC-2700 FCC SAR Test Report 80-R0923-1 Rev. A QSEC-2700 FCC SAR Test Report J9CQSEC2700 Revision History 80-R0923-1 Rev. A iii Revision history Revision Date Description A August 2003 Initial release QSEC-2700 FCC SAR Test Report J9CQSEC2700 Overview 80-R0923-1 Rev. A v 5775 Morehouse Dr. San Diego CA 92121 Overview Test Report Reference: 80-R0923-1 Rev. A Responsible Engineer: Robert Scodellaro Signature: Test Engineer: Mark Ortlieb Signature: Date of issue: 31 October 2003 Test Laboratory: QUALCOMM Incorporated 5775 Morehouse Dr. San Diego CA 92121 (General Telephone) 1 858 587 1121 Model Tested: QSEC-2700 Test Specification Standard(s): ANSI/IEEE C95.1-1992 IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz ANSI/IEEE C95.3-1992 IEEE Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields-RF and Microwave FCC/OET Bulletin 65, including Supplement C, Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields ANSI/IEEE P1528/D1.2 Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques Results: The QSEC-2700 cellular phone complies with the requirements of the aforementioned standards. The QSEC-2700 cellular phone is in compliance with the FCC Part 2.1093 RF exposure limit. QSEC-2700 FCC SAR Test Report J9CQSEC2700 Contents 80-R0923-1 Rev. A vii Contents Overview......................................................................................................................................................... v Contents ....................................................................................................................................................... vii Figures........................................................................................................................................................... ix Tables ............................................................................................................................................................. x 1. Test summary .........................................................................................................................................1-1 1.1 Equipment tested ....................................................................................................... 1-1 1.2 Maximum (Worst Case Results) ............................................................................... 1-1 1.3 Measurement Uncertainty ......................................................................................... 1-1 1.4 SAR Limits................................................................................................................ 1-1 2. EUT Description......................................................................................................................................2-1 2.1 General ...................................................................................................................... 2-1 2.2 Pictures of DUT ........................................................................................................ 2-2 2.3 Antenna Description................................................................................................ 2-14 2.4 Battery .....................................................................................................................2-14 2.5 Body worn accessories ............................................................................................ 2-14 3. SAR Test Facility ....................................................................................................................................3-1 3.1 General ...................................................................................................................... 3-1 3.2 Dosimetry System ..................................................................................................... 3-1 3.3 E-field probe..............................................................................................................3-2 3.4 Phantom.....................................................................................................................3-2 3.5 Liquid Dielectric........................................................................................................ 3-3 4. SAR Measurement Procedure ...............................................................................................................4-1 4.1 Power Verification .................................................................................................... 4-1 4.2 Test Configurations ................................................................................................... 4-1 4.3 Test positions.....................…

Text truncated - open the document above for the full version.

QSEC-2700 FCC SAR Test Report J9CQSEC2700 Test Data 80-R0923-1 Rev. A 7-3 7.2 Plots The following shows graphical plots of SAR data for the different positions tested. Test Data J9CQSEC2700 QSEC-2700 FCC SAR Test Report 7-4 80-R0923-1 Rev. A 7.2.1 Band Class 0 (CDMA Cellular) Plots Date/Time: 09/09/03 12:07:41 Test Laboratory: QUALCOMM Incorporated File Name: sn 361 -LH -09-09 cdma835.da4 sn 361 -LH -09-09 cdma835 DUT: Casper; Type: Phone; Serial: P2b-361 Program: Compliance Testing: P1528 Protocol (Left-Hand Side) Communication System: CDMA835; Frequency: 824.7 MHz;Duty Cycle: 1:1 Medium: HSL835 (σ = 0.870846 mho/m, ε r = 40.0195, ρ = 1000 kg/m 3 ), Temp=22 deg. C, Humidity 51% Phantom section: Left Section DASY4 Configuration: - Probe: ET3DV6 - SN1733; ConvF(6.5, 6.5, 6.5); Calibrated: 12/3/2002 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn566; Calibrated: 5/23/2003 - Phantom: SAM with CRP; Type: SAM; Serial: 001 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Touch position - Low/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 33 V/m Power Drift = -0.1 dB Maximum value of SAR = 1.2 mW/g Touch position - Low/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 1.66 W/kg SAR(1 g) = 1.09 mW/g; SAR(10 g) = 0.776 mW/g Reference Value = 33 V/m Power Drift = -0.1 dB Maximum value of SAR = 1.13 mW/g 0 dB = 1.13mW/g Page 1 of 1 10/3/2003file://C:\Program%20Files\DASY4\Printuts\sn%20361%20-LH%20-09-09%20cdma835-1... Date/Time: 09/09/03 12:07:41 Test Laboratory: QUALCOMM Incorporated File Name: sn 361 -LH -09-09 cdma835.da4 sn 361 -LH -09-09 cdma835 DUT: Casper; Type: Phone; Serial: P2b-361 Program: Compliance Testing: P1528 Protocol (Left-Hand Side) Communication System: CDMA835; Frequency: 836.49 MHz;Duty Cycle: 1:1 Medium: HSL835 (σ = 0.889468 mho/m, ε r = 39.7531, ρ = 1000 kg/m 3 ), Temp=22 deg. C, Humidity 51% Phantom section: Left Section DASY4 Configuration: - Probe: ET3DV6 - SN1733; ConvF(6.5, 6.5, 6.5); Calibrated: 12/3/2002 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn566; Calibrated: 5/23/2003 - Phantom: SAM with CRP; Type: SAM; Serial: 001 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Touch position - Middle/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 34 V/m Power Drift = -0.1 dB Maximum value of SAR = 1.24 mW/g Touch position - Middle/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 1.72 W/kg SAR(1 g) = 1.16 mW/g; SAR(10 g) = 0.837 mW/g Reference Value = 34 V/m Power Drift = -0.1 dB Maximum value of SAR = 1.24 mW/g 0 dB = 1.24mW/g Page 1 of 1 10/3/2003file://C:\Program%20Files\DASY4\Printuts\sn%20361%20-LH%20-09-09%20cdma835-3... Date/Time: 09/09/03 12:07:41 Test Laboratory: QUALCOMM Incorporated File Name: sn 361 -LH -09-09 cdma835.da4 sn 361 -LH -09-09 cdma835 DUT: Casper; Type: Phone; Serial: P2b-361 Program: Compliance Testing: P1528 Protocol (Left-Hand Side) Communication System: CDMA835; Frequency: 848.31 MHz;Duty Cycle: 1:1 Medium: HSL835 (σ = 0.901565 mho/m, ε r = 39.6708, ρ = 1000 kg/m 3 ), Temp=22 deg. C, Humidity 51% Phantom section: Left Section DASY4 Configuration: - Probe: ET3DV6 - SN1733; ConvF(6.5, 6.5, 6.5); Calibrated: 12/3/2002 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn566; Calibrated: 5/23/2003 - Phantom: SAM with CRP; Type: SAM; Serial: 001 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Touch position - High/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 33.1 V/m Power Drift = -0.08 dB Maximum value of SAR = 1.22 mW/g Touch position - High/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 1.81 W/kg SAR(1 g) = 1.15 mW/g; SAR(10 g) = 0.786 mW/g Reference Value = 33.1 V/m Power Drift = -0.08 dB Maximum value of SAR = 1.22 mW/g 0 dB = 1.22mW/g Page 1 of 1 10/3/2003file://C:\Program%20Files\DASY4\Printuts\sn%20361%20-LH%20-09-09%20cdma835-9... Date/Time: 09/09/03 12:07:41 Test Laboratory: QUALCOMM Incorporated File Name: sn 361 -LH -09-09 cdma835.da4 sn 361 -LH -09-09 cdma835 DUT: Casper; Type: Phone; Serial: P2b-361 Program: Compliance Testing: P1528 Protocol (Left-Hand Side) Communication System: CDMA835; Frequency: 824.7 MHz;Duty Cycle: 1:1 Medium: HSL835 (σ = 0.870846 mho/m, ε r = 40.0195, ρ = 1000 kg/m 3 ), Temp=22 deg. C, Humidity 51% Phantom section: Left Section DASY4 Configuration: - Probe: ET3DV6 - SN1733; ConvF(6.5, 6.5, 6.5); Calibrated: 12/3/2002 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn566; Calibrated: 5/23/2003 - Phantom: SAM with CRP; Type: SAM; Serial: 001 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Tilt position - Low/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 30 V/m Power Drift = -0.2 dB Maximum value of SAR = 0.841 mW/g Tilt position - Low/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 1.13 W/kg SAR(1 g) = 0.768 mW/g; SAR(10 g) = 0.505 mW/g Reference Value = 30 V/m Power Drift = -0.2 dB Maximum value of SAR = 0.817 mW/g 0 dB = 0.817mW/g Page 1 of 1 10/3/2003file://C:\Program%20Files\DASY4\Printuts\sn%20361%20-LH%20-09-09%20cdma835-2... Date/Time: 09/09/03 12:07:41 Test Laboratory: QUALCOMM Incorporated File Name: sn 361 -LH -09-09 cdma835.da4 sn 361 -LH -09-09 cdma835 DUT: Casper; Type: Phone; Serial: P2b-361 Program: Compliance Testing: P1528 Protocol (Left-Hand Side) Communication System: CDMA835; Frequency: 836.49 MHz;Duty Cycle: 1:1 Medium: HSL835 (σ = 0.889468 mho/m, ε r = 39.7531, ρ = 1000 kg/m 3 ), Temp=22 deg. C, Humidity 51% Phantom section: Left Section DASY4 Configuration: - Probe: ET3DV6 - SN1733; ConvF(6.5, 6.5, 6.5); Calibrated: 12/3/2002 - Sensor-Surface:…

Text truncated - open the document above for the full version.

QSEC-2700 FCC SAR Test Report J9CQSEC2700 Test Data 80-R0923-1 Rev. A 7-5 7.2.2 Band Class 1 (PCS) Plots Date/Time: 08/21/03 08:48:28 Test Laboratory: QUALCOMM Incorporated File Name: sn 361 -LH -08-20.da4 sn 361 -LH -08-20 DUT: Casper; Type: Phone; Serial: P2b-361 Program: Compliance Testing: P1528 Protocol (Left-Hand Side) Communication System: CDMA PCS; Frequency: 1851.25 MHz;Duty Cycle: 1:1 Medium: HSL1800 (σ = 1.43771 mho/m, ε r = 40.75, ρ = 1000 kg/m 3 ), Temp=22 deg. C, Humidity 59% Phantom section: Left Section DASY4 Configuration: - Probe: ET3DV6 - SN1733; ConvF(5.4, 5.4, 5.4); Calibrated: 12/3/2002 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn566; Calibrated: 5/23/2003 - Phantom: SAM with CRP; Type: SAM; Serial: 001 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Touch position - Low/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 27.9 V/m Power Drift = -0.005 dB Maximum value of SAR = 1.57 mW/g Touch position - Low/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 2.46 W/kg SAR(1 g) = 1.37 mW/g; SAR(10 g) = 0.801 mW/g Reference Value = 27.9 V/m Power Drift = -0.005 dB Maximum value of SAR = 1.46 mW/g 0 dB = 1.46mW/g Page 1 of 1 10/3/2003file://C:\Program%20Files\DASY4\Printuts\sn%20361%20-LH%20-08-20-1.htm Date/Time: 08/21/03 08:48:28 Test Laboratory: QUALCOMM Incorporated File Name: sn 361 -LH -08-20.da4 sn 361 -LH -08-20 DUT: Casper; Type: Phone; Serial: P2b-361 Program: Compliance Testing: P1528 Protocol (Left-Hand Side) Communication System: CDMA PCS; Frequency: 1880 MHz;Duty Cycle: 1:1 Medium: HSL1800 (σ = 1.47677 mho/m, ε r = 40.6, ρ = 1000 kg/m 3 ), Temp=22 deg. C, Humidity 59% Phantom section: Left Section DASY4 Configuration: - Probe: ET3DV6 - SN1733; ConvF(5.1, 5.1, 5.1); Calibrated: 12/3/2002 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn566; Calibrated: 5/23/2003 - Phantom: SAM with CRP; Type: SAM; Serial: 001 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Touch position - Middle/Area Scan (81x111x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 27.9 V/m Power Drift = -0.2 dB Maximum value of SAR = 1.58 mW/g Touch position - Middle/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 2.48 W/kg SAR(1 g) = 1.36 mW/g; SAR(10 g) = 0.779 mW/g Reference Value = 27.9 V/m Power Drift = -0.2 dB Maximum value of SAR = 1.47 mW/g 0 dB = 1.47mW/g Page 1 of 1 10/3/2003file://C:\Program%20Files\DASY4\Printuts\sn%20361%20-LH%20-08-20-2.htm Date/Time: 08/21/03 10:25:08 Test Laboratory: QUALCOMM Incorporated File Name: sn 361 -LH -08-21.da4 sn 361 -LH -08-21 DUT: Casper; Type: Phone; Serial: P2b-361 Program: Compliance Testing: P1528 Protocol (Left-Hand Side) Communication System: CDMA PCS; Frequency: 1908.75 MHz;Duty Cycle: 1:1 Medium: HSL1800 (σ = 1.48682 mho/m, ε r = 39.3191, ρ = 1000 kg/m 3 ), Temp=22 deg. C, Humidity 59% Phantom section: Left Section DASY4 Configuration: - Probe: ET3DV6 - SN1733; ConvF(5.1, 5.1, 5.1); Calibrated: 12/3/2002 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn566; Calibrated: 5/23/2003 - Phantom: SAM with CRP; Type: SAM; Serial: 001 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Touch position - High/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 29 V/m Power Drift = 0.1 dB Maximum value of SAR = 1.74 mW/g Touch position - High/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 2.66 W/kg SAR(1 g) = 1.43 mW/g; SAR(10 g) = 0.828 mW/g Reference Value = 29 V/m Power Drift = 0.1 dB Maximum value of SAR = 1.57 mW/g 0 dB = 1.57mW/g Page 1 of 1 10/3/2003file://C:\Program%20Files\DASY4\Printuts\sn%20361%20-LH%20-08-21-1.htm Date/Time: 08/21/03 08:48:28 Test Laboratory: QUALCOMM Incorporated File Name: sn 361 -LH -08-20.da4 sn 361 -LH -08-20 DUT: Casper; Type: Phone; Serial: P2b-361 Program: Compliance Testing: P1528 Protocol (Left-Hand Side) Communication System: CDMA PCS; Frequency: 1851.25 MHz;Duty Cycle: 1:1 Medium: HSL1800 (σ = 1.43771 mho/m, ε r = 40.75, ρ = 1000 kg/m 3 ), Temp=22 deg. C, Humidity 59% Phantom section: Left Section DASY4 Configuration: - Probe: ET3DV6 - SN1733; ConvF(5.4, 5.4, 5.4); Calibrated: 12/3/2002 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn566; Calibrated: 5/23/2003 - Phantom: SAM with CRP; Type: SAM; Serial: 001 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Tilt position - Low/Area Scan (81x111x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 29.9 V/m Power Drift = 0.1 dB Maximum value of SAR = 1.48 mW/g Tilt position - Low/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 2.29 W/kg SAR(1 g) = 1.35 mW/g; SAR(10 g) = 0.785 mW/g Reference Value = 29.9 V/m Power Drift = 0.1 dB Maximum value of SAR = 1.44 mW/g 0 dB = 1.44mW/g Page 1 of 1 10/3/2003file://C:\Program%20Files\DASY4\Printuts\sn%20361%20-LH%20-08-20-3.htm Date/Time: 08/21/03 08:48:28 Test Laboratory: QUALCOMM Incorporated File Name: sn 361 -LH -08-20.da4 sn 361 -LH -08-20 DUT: Casper; Type: Phone; Serial: P2b-361 Program: Compliance Testing: P1528 Protocol (Left-Hand Side) Communication System: CDMA PCS; Frequency: 1880 MHz;Duty Cycle: 1:1 Medium: HSL1800 (σ = 1.47677 mho/m, ε r = 40.6, ρ = 1000 kg/m 3 ), Temp=22 deg. C, Humidity 59% Phantom section: Left Section DASY4 Configuration: - Probe: ET3DV6 - SN1733; ConvF(5.1, 5.1, 5.1); Calibrated: 12/3/2002 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn566; Calibrated: 5/23/2003 - Phantom: SAM with CRP; Type: SAM; Serial: 001 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Tilt position - Middle/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm…

Text truncated - open the document above for the full version.

QSEC-2700 FCC SAR Test Report J9CQSEC2700 System Specifications and Calibration 80-R0923-1 Rev. A 8-1 8. System Specifications and Calibration 8.1 System Specifications Figure 8-1 shows a diagram of the Schmid & Partner DASY4 system. Figure 8-1 Diagram of DASY4 System, from S&P Applications Notes System Description and Setup Data Acquisition Processor Intel Pentium 4, 2.40 GHz Operating System MS Windows XP Software DASY4 V4.1 Build 47.1, Schmid & Partners Eng. AG, Switzerland SEMCAD V1.6 Build 115 System Specifications and Calibration J9CQSEC2700 QSEC-2700 FCC SAR Test Report 8-2 80-R0923-1 Rev. A Surface Detection Optical and Mechanical E-Field Probe Offset tip to sensor center 2.7 mm Offset surface to probe tip 1.8 ± 0.2 Frequency 30 MHz to 3.0 GHz Dynamic Range 5μW/g to 100 mW/g Isotropy ±0.15 dB (in brain liquid) Phantom Dielectric EGSM band: Homogeneous sugar/salt/cellulose liquid DCS/IMT bands: Homogeneous water/glycol/salt liquid Shell 2 mm ± 0.…
