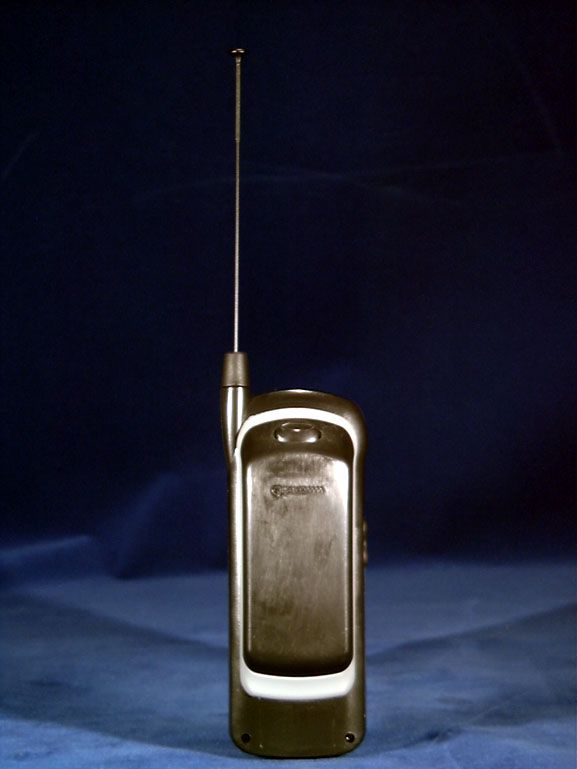

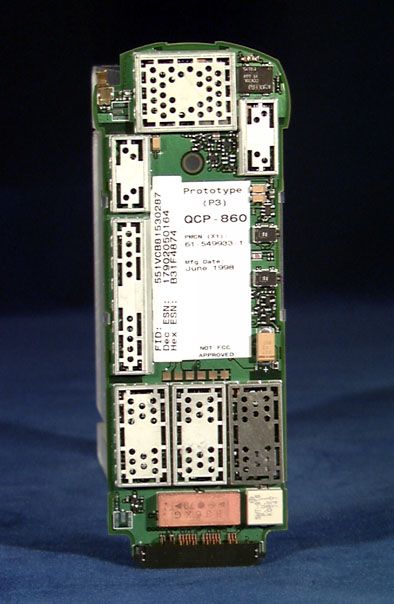

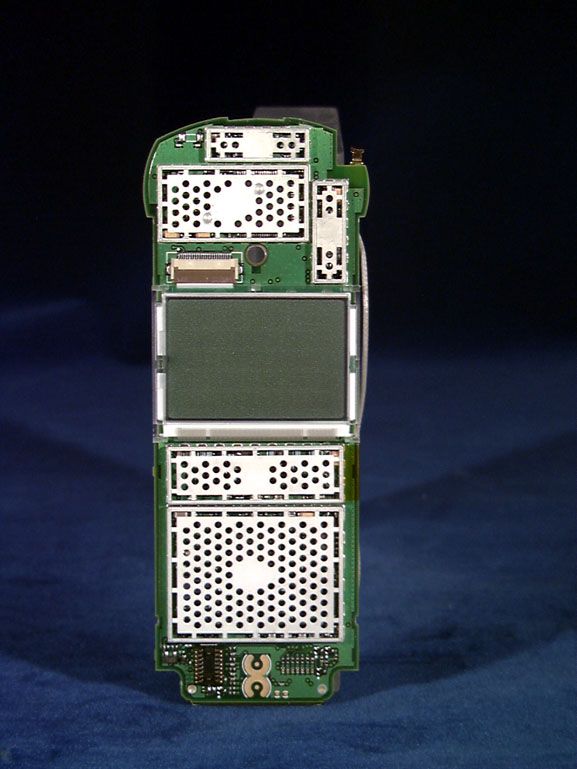

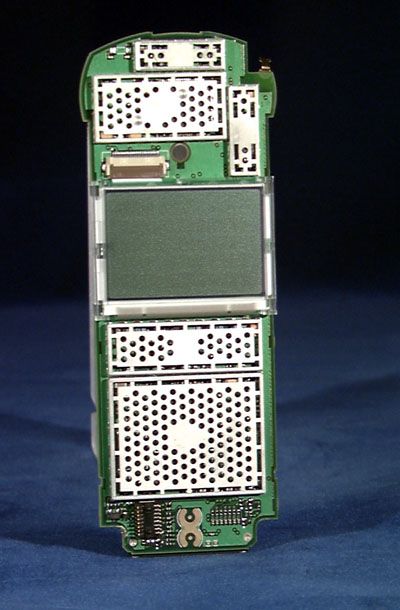

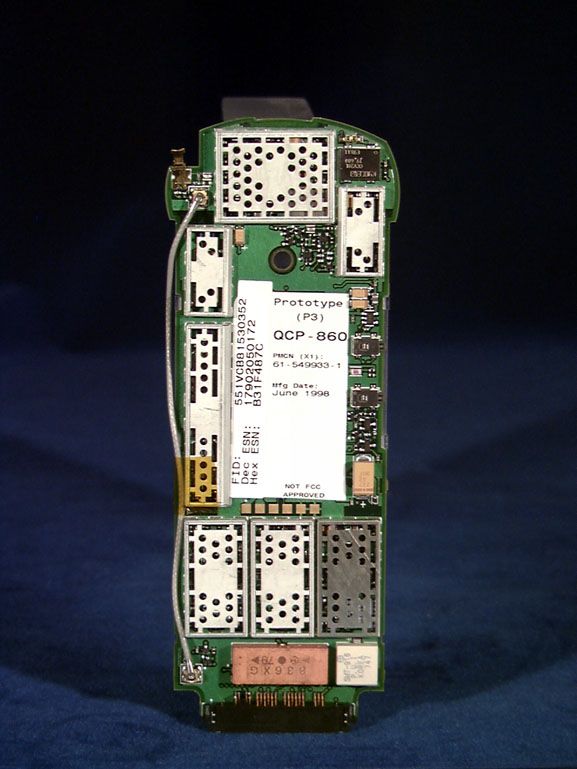

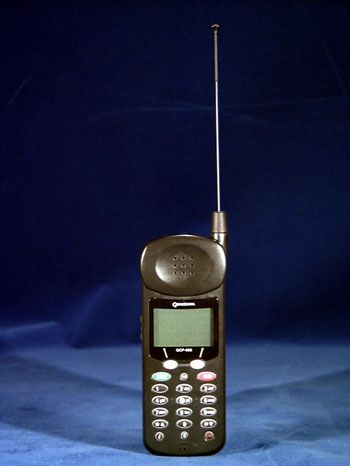

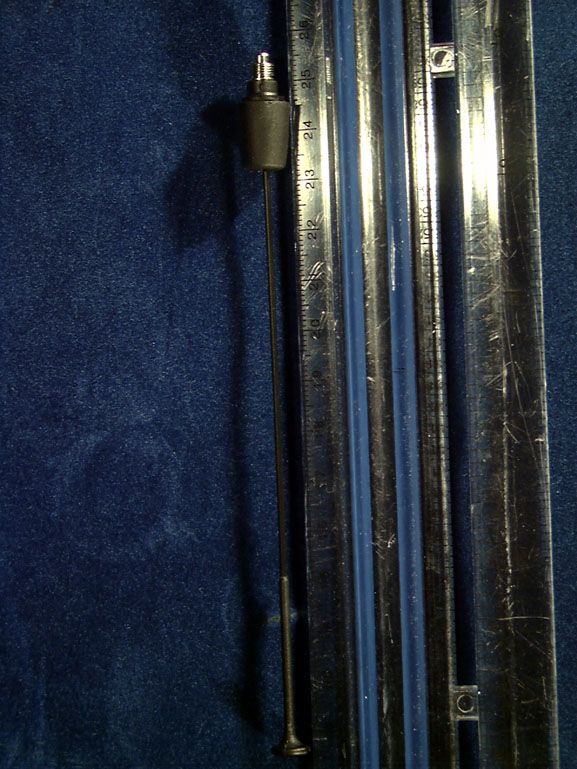

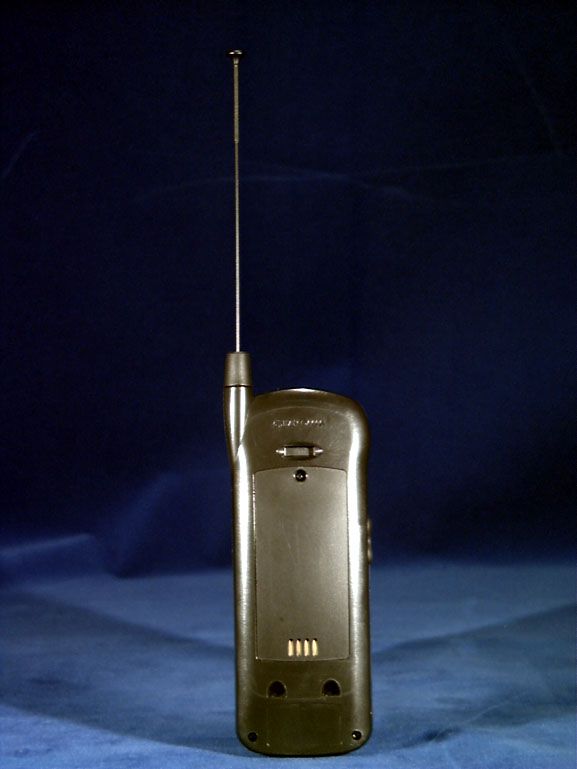

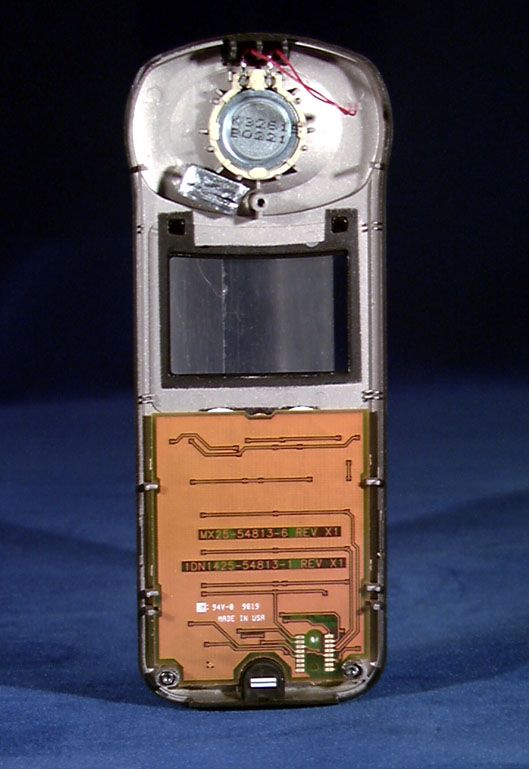

J9CRJS2Dual Mode Cellular Phone

Applicant : QUALCOMMFCC ID: J9CRJS2 page ___ Cover Letter Federal Communications Commission Authorization and Evaluation Division Re:Application for Cellular Transceiver Type Acceptance QUALCOMM herein submits the Application for Equipment Authorization (FCC Form 731) and Exhibits for Type Acceptance of a Cellular Transceiver, FCC ID J9CRJS2. Applicant:QUALCOMM, INC. 6455 Lusk Blvd. San Diego, California 92121 Manufacture:QUALCOMM, INC. 10300 Campus Point Drive San Diego, California 92121 The equipment, QUALCOMM model # QCP 860, is for mobile station cellular system use, and is in full compliance with all parts of EIA/TIA/IS-98-A Mobile Station-Land Station Compatibility Specification, issue July 1996. Information concerning how the ESN protection requirements are met is provided in Exhibit 3. Applicant : QUALCOMMFCC ID: J9CRJS2 page ___ Request of Confidentiality Federal Communications Commission Authorization and Evaluation Division Re:Request of Confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Description All schematics/block diagrams All parts lists The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. QUALCOMM, INC. Robert J. Scodellaro Senior EMC Engineer Applicant : QUALCOMMFCC ID: J9CRJS2 page ___ List of Exhibits ExhibitDescriptionFCC Reference 1Certification of Test Data2.911 2General Information2.983(c), (d), 2.1061, 3ESN Protection22.919 4List of Semiconductor Devices2.983(d)(6) 5RF Output Power Measured Data2.985 6Modulation Audio Response Measured Data2.987(a), 22.907(a) 7Modulation Limiting Measured Data2.987(b), 8Occupied Bandwidth Measured Data2.989, 22.917 9Conducted Spurious Emissions Measured Data2.991 10Radiated Spurious Emissions Measured Data2.993 11Frequency Stability vs. Temperature and Voltage Measured Data 2.995 12Measurement Procedures and Techniques 13FCC Letter of Site Recognition 14Circuit Diagram2.983(d)(7) 15Identification (Labels) Information2.983(f) 16Photographs2.983(g) 17User’s Manual2.983(d)(8) 18 SAR data Applicant : QUALCOMMFCC ID: J9CRJS2 page ___ Exhibit 1 Certification of Test Data The data , data evaluation and equipment configuration represented herein are a true and accurate representation of the measurements of the sample’s radio frequency interference emissions characteristics as of the dates and at the times of the test under the conditions herein specified. This applies to all tests that where performed that did not require an Open Area Test Site (OATS). Test that required an OATS site were performed by TUV Product Services. Equipment Tested: Dates of Test:July 21 – August 12 1998 Test Performed by: Engineer:Robert J. Scodellaro, __________________ Applicant : QUALCOMMFCC ID: J9CRJS2 page ___ Exhibit 2 General Information 1.Production Plans - Section 2.983 (c) Quantity Production Planned 2.Technical Description - Section 2.983 (d) (1)Types of emission 40K0F8W 40K0F1D 1M25F9W F3E voice F3D supervisory audio tones, signaling tones F1D wideband data signal (2)Frequency range The frequency range of the equipment if Domestic Public Cellular Radio Telecommunications Service bands, 824 - 849 MHz and 869 - 894 MHz regardless of whether in cellular system operation for FM or CDMA modulation. The channel spacing is 30 kHz for Fm and 1.25 MHz for CDMA. (3)Operating power levels The transmitter output power is independent of whether the equipment operates in the cellular system FM or CDMA mode. The equipment supports Class 3 Mobile Station Power Class, and its power output capability is reported to the Land Station via Station Class Mark. The equipment will respond to commands from the Land Station to change power levels as defined in the EIA/TIA/IS-98 Specification. (4)Maximum output power The equipment supports the maximum output power for Class 3 Mobile Station which is -2 dBW ERP, and meets the 7 W ERP (+8 dBW) maximum power limitation of Section 22.904. (5)DC supply voltage and current range The equipment is powered by lithium ion rechargeable batteries which have a voltage range of 4.1 to 3.5 Vdc. (6)List of semiconductor active devices See exhibit 4. Applicant : QUALCOMMFCC ID: J9CRJS2 page ___ (7)Circuit diagram See exhibit 14. (8)User’s manual See exhibit 17. (9)Transmitter adjustment procedure All frequency adjustments are set at the factory and there are no frequency field adjustments for this product. Under digital mode, frequency is locked to the base station and controlled by VCTCXO adjustments to offset any possible errors. (10)Frequency stability device A voltage controlled, temperature compensated, crystal oscillator (VCTCXO) is employed as a frequency reference for all of the transceiver local oscillators. This crystal oscillator is specified to remain within +/- 2.5 ppm over temperature and voltage variations. The lock status indicator of all synthesizers is monitored by the microprocessor and an out of lock condition will inhibit transmission. In FM and CDMA modes, the mobile receiver monitors the received signal and adjusts the frequency of the VCTCXO, this corrects any errors between the mobile frequency and the base station transmitter. The mobile is locked to the base station. (11)Spurious radiation suppression devices Reference Designator Part NameFunction FL6duplexerProvides protection against transmitter spurious emissions and receiver local oscillator leakages. FL4RX SAW filterProvides protection against receiver local oscillator leakages. FL5ceramic filterProvides suppression of spurious energy and transmitter ha…

Text truncated - open the document above for the full version.

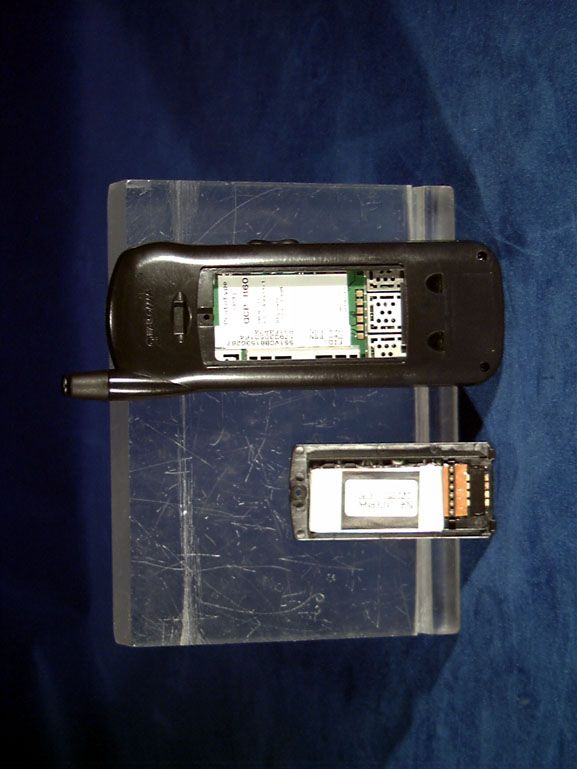

Applicant : QUALCOMMFCC ID: J9CRJS2 page ___ QCP 860 Label Drawing Enlarged version of the label that is placed on the rear side near the bottom of the phone. Actual size of the label that is placed on the rear side near the bottom of the phone. Actual size of the label that is placed inside the battery well, under the internal battery. Enlarged version of the label that is placed inside the battery well, under the internal battery.

© 1998 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B 6660-B DobbinDobbin Road Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290-6652 TEL (410) 290-6652 •• FAX (410) 290-6654 FAX (410) 290-6654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) QUALCOMM INCORPORATEDDates of Tests: July 21-22, 1998 6455 Lusk BoulevardTest Report S/N: SAR.980724504.J9C San Diego, CA 92121-2779Test Site: PCTEST Lab, Columbia MD Attn: Mr. Jay Moulton – Director of Engineering Regulatory FCC ID J9CRJS2 APPLICANT QUALCOMM INCORPORATED EUT Type:Dual Mode Cellular Phone (AMPS/CDMA) Tx Frequency:824.04 – 849.97 MHz Rx Frequency:869.04 – 893.97 MHz Max Output Power:0.6 W (AMPS) / 0.35 W (CDMA) Trade Name/Model(s):QUALCOMM QCP860 FCC Classification:Non-Broadcast Transmitter Held to Ear (TNE) Application Type:Type Acceptance Serial Number:n/a (pre production) FCC Rule Part(s):2.1093; ET Docket 96.326; 22(H) This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992. (See Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a) 980724504.J9C SAR Measurement ReportFCC Part 22 Type Acceptance © 1998 PCTEST Labi Table of Contents SCOPE .............................................................................1 INTRODUCTION / SAR DEFINITION ......................................2 SAR MEASUREMENT SET-UP .............................................3 E-FIELD PROBE SYSTEM ...................................................4 PHANTOM & BRAIN EQUIVALENT MATERIAL ......................7 SYSTEM SPECIFICATIONS ................................................. 8 MEASUREMENT PROCESS ................................................9 TEST POSITION OF THE PHONE .........................................10 ANSI/IEEE C95.1 RF EXPOSURE LIMITS ..............................11 MEASUREMENT UNCERTAINTIES ......................................12 TEST DATA SUMMARY ...................................................... 13 SAR TEST EQUIPMENT LIST .............................................. 14 CONCLUSION / REFERENCES ...........................................15 ATTACHMENT A – TEST PLOTS ATTACHMENT B – PHOTOGRAPHS ATTACHMENT C – ANTENNA SPECIFICATIONS Test Report S/N: SAR.980724504.J9CSAR Measurement Report Test Dates: July 21-22, 1998FCC Part 22 Type Acceptance Dual Mode Cellular Phone (Tx 824-849 MHz) © 1998 PCTEST LabQUALCOMM FCC ID: J9CRJS2 (Model: QCP860)1 SAR MEASUREMENT REPORT Scope - Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human head tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Company Name:QUALCOMM INCORPORATED ADDRESS:6455 Lusk Boulevard San Diego, CA 92121-2779 U.S.A. Attention:Jay Moulton, Director of Engineering Regulatory • EUT Type:Dual Mode Cellular Phone (AMPS/CDMA) • Trade Name:QUALCOMM • FCC IDENTIFIER:J9CRJS2 • Model:QCP860 • S/N:Pre-production • Tx Frequency:824.04 ~ 848.97 MHz • Rx Frequency:869.04 ~ 893.97 MHz • Application Type: Type Acceptance • FCC Classification:Non-Broadcast Transmitter Held to Ear (TNE) • FCC Rule Part(s):§ 2.1093, Docket 96-326; § 22(H) • Max. Output Power:0.6W (AMPS) / 0.35W (CDMA) • Modulation :AMPS / CDMA • Antenna:Helical (λ/2) • Antenna Dimensions:13.85 cm. (Length) • Date of Test(s):July 21-22, 1998 • Place of Test(s):PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.:SAR.980724504.J9C 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET-Docket 93-62. Figure 1. SAR Test Set-up Lab Code 100431-0 Test Report S/N: SAR.980724504.J9CSAR Measurement Report Test Dates: July 21-22, 1998FCC Part 22 Type Acceptance Dual Mode Cellular Phone (Tx 824-849 MHz) © 1998 PCTEST LabQUALCOMM FCC ID: J9CRJS2 (Model: QCP860)2 1.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave[3] is used for guidance in measuring SAR due to the RF radiation exposure from the Equipment Under Test (EUT). These criteria for SAR evaluation are similar to those recommended by the National Council on Radiation Protection and Measurement…

Text truncated - open the document above for the full version.

Report No. S8105-03 RADIATED EMISSIONS DATA FOR QUALCOMM PERSONAL ELECTRONICS 10300 Campus Point Drive San Diego, CA 92121 Prepared by TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Report No. S8105-03 Page 1 of 10 Rev.No 1.0 Report No. S8105-03 Page 2 of 10 Rev.No 1.0 Emissions Test Conditions: SPURIOUS RADIATED EMISSIONS The Spurious Radiated Emissions measurements were performed using the following equipment: Test Equipment Used : Model No.Prop. No.DescriptionManufacturerSerial No. n -3104235Antenna, BiconicalEMCO3031 n -8566B407Spectrum AnalyzerHewlett Packard2311A02209 n -85662B406Spectrum Analyzer DisplayHewlett Packard2309A04682 n -3146418Log Periodic AntennaEMCO-- Remarks: Report No. S8105-03 Page 3 of 10 Rev.No 1.0 Report No. S8105-03 Page 4 of 10 Rev.No 1.0 Report No. S8105-03 Page 5 of 10 Rev.No 1.0 Report No. S8105-03 Page 6 of 10 Rev.No 1.0 Report No. S8105-03 Page 7 of 10 Rev.No 1.0 Testing Facilities Certificates of Approval Report No. S8105-03 Page 8 of 10 Rev.No 1.0 Report No. S8105-03 Page 9 of 10 Rev.No 1.0 Report No. S8105-03 Page 10 of 10 Rev.No 1.0
