JCQ3BT-3720MARHand Held Remote

Re: Certification for Martec Transmitter Model(s): SP-7240 FCC ID: JCQ3BT-3720MAR USER'S MANUAL INFORMATION (PRELIMINARY) The User's Manual is in preparation. The following material will be contained in the manual: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modifications not expressively approved by the party responsible for compliance could void the user's authority to operate the equipment.

Re: Certification for Martec Transmitter Model(s): SP-7240 FCC ID: JCQ3BT-3720MAR POWER OF ATTORNEY A letter granting Valdis V. Liepa the Power of Attorney is on file and can be provided when so requested. Re: Certification for Martec Transmitter Model(s): SP-7240 FCC ID: JCQ3BT-3720MAR REQUEST FOR CONFIDENTIALITY Pursuant to 47 CRF 0.459, Martec requests that a part of the subject application be held confidential. This comprises Exhibits (5) Schematics (10) Parts List (Part of Exhibit only) Martec has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. If there are any questions regarding this request, please contact me at the above address or call 734-483-4211, fax 734-647-2106 or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist University of Michigan October 22, 2006 Re: Certification for Martec Transmitter Model(s): SP-7240 FCC ID: JCQ3BT-3720MAR STATEMENT OF MODIFICATIONS There were no modifications made to the DUT by this test laboratory. (Also see Section 3.1 of the attached Test Report). _____________________ Valdis V. Liepa Research Scientist Re: Certification for Martec Transmitter Model(s): SP-7240 FCC ID: JCQ3BT-3720MAR GENERAL PRODUCT INFORMATION The device, for which certification is pursued, has been designed by: Martec Access Products Inc 240 Sheffield Street Mountainside, New Jersey 07092 Frank Cedzik Tel: 908-233-0691 x 63 Fax: 908-233-0691 It will be manufactured by: Martec Access Products Inc 240 Sheffield Street Mountainside, New Jersey 07092 Frank Cedzik Tel: 908-233-0691 x 63 Fax: 908-233-0691 Canadian Contact: Bob McEwan, General Manager Wayne-Dalton of Canada 254 Matheson Blvd East Mississauga, Ontario L4Z 1P5 Canada Tel 905-890-1402 Fax 905-890-5182

DCBA 4321 DCBA 4321 DCBA 4321 DCBA 4321 DCBA 4321 DCBA 4321 Rev . Des c r ipt ion: Who: Dat e: MARTEC ACCESS PRODUCTS, Inc. 240 Sheffield St. Mountainside, NJ 07092 Title:Size: Number: Rev. Date Drawn by: : Filename: Check by: Sheet 1 of 1 NOTES:1. "WW" - DATE CODE MFG WEEK2. "YY" - DATE CODE MFG YEAR3. "XXX" - BOM REVISION LEVEL4. COLOR: GRAY BACKGROUND BLACK SILKSCREEN5. THE LABEL HAS TO BE PLACED ON BOTTOM SIDE OF THE PLASTIC CASE. Refer to instruction manual for important FCC information. MARTEC ACCESS PRODUCTS Inc. Made in China DATE: WW YY XXX FREQ: 372.0MHz FCC ID: JCQ3BT-3720MAR R = 40mi l. BOTTOM VIEW OF THE PLASTIC CASE A FCC LABEL FOR SP-7240 F.C. 06/23/06 FCC LABEL FOR SP-7240 MDN246 B NOT TO SCALE 06/27/06 MDN246B.VSD F.C. 1.180" 0.580" MODEL: SP-7240 BATTERY TYPE: 2 x CR2032 B Add Battery Type CR-2032 F.C. 06/27/06 0.58 1.18 Refer to i nstruction manua l for import ant FC C in format ion. MA RTE C A C C ESS PR OD UC TS I nc . Made in C hina DATE: WW Y Y XXX FRE Q: 372.0MHz FCC ID: JC Q3 BT-3720 MAR MODEL: SP-7240 BATTERY TYPE: 2 x CR2032 SCALE 1:1

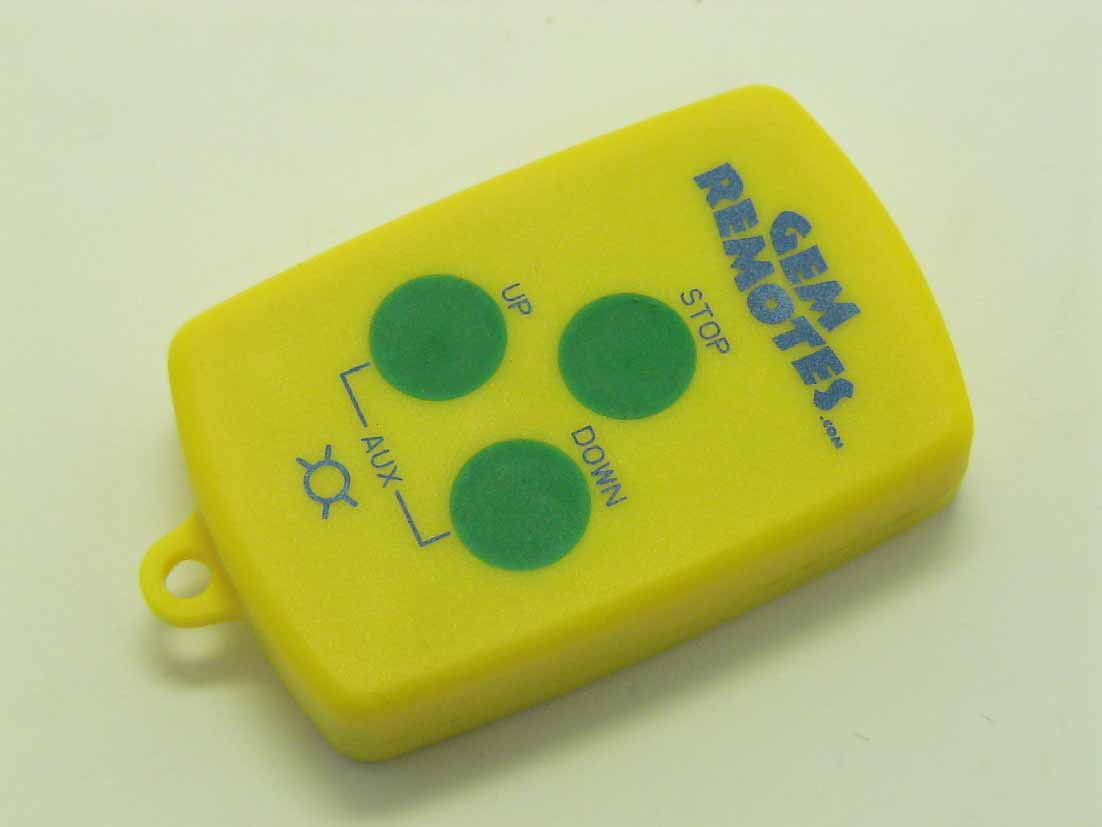

5380-(SP-7240)-3-Button TX, 372.0 MHz Operating Description.doc This device, a portable low-power transmitter, consists of an SAW RF oscillator at 372.0 MHz, power supply, and a microcontroller clocked by a 4 MHz internal signal. The transmitter is normally off until any button is activated. Any button activation enables the microcontroller, which activates the RF oscillator. The microcontroller generates the data waveform (pulse width modulation, On/Off keying) for the RF oscillator. When the activated button is release, the RF oscillator turns off. The difference between the buttons is in the data sent. The RF antenna is printed circuit based and is not removable and not changeable. Martec Access Products Inc. 5380-(SP-7240)-3-Button TX, 372.0 MHz Operating Description.doc

University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 415031-338 Page 1 of 11 The University of Michigan Radiation Laboratory 3228 EECS Building Ann Arbor, MI 48109-2122 Tel: (734) 764-0500 Measured Radio Frequency Emissions From Martec Transmitter Model(s): SP-7240 Report No. 415031-338 October 22, 2006 Copyright © 2006 For: Martec Access Products Inc 240 Sheffield Street Mountainside, New Jersey 07092 Contact: Frank Cedzik Tel: 908-233-0691 x 63 Fax: 908-233-0691 PO: Vebal Tests supervised by: Measurements made by: Valdis V. Liepa Report approved by: _____________________ Valdis V. Liepa Test Report Prepared by: Joseph D. Brunett Research Scientist Summary Tests for compliance with FCC Regulations Part 15, Subpart C, and Industry Canada RSS-210/GEN, were performed on Martec model(s) SP-7240. This device is subject to the Rules and Regulations as a Transmitter. In testing completed on September 6, 2006, the device tested in the worst case met the allowed FCC specifications for radiated emissions by 0.9 dB (see p. 6). Besides harmonics, there were no other significant spurious emissions found; emissions from digital circuitry were negligible. The conducted emission tests do not apply, since the device is powered from two 3 VDC batteries. University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 415031-338 Page 2 of 11 1. Introduction Martec model SP-7240 was tested for compliance with FCC Regulations, Part 15, adopted under Docket 87-389, April 18, 1989 as subsequently amended, and with Industry Canada RSS-210/Gen, Issue 6, September 2005. The tests were performed at the University of Michigan Radiation Laboratory Willow Run Test Range following the procedures described in ANSI C63.4-2003 "Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz". The Site description and attenuation characteristics of the Open Area Tes Site are on file with FCC Laboratory, Columbia, Maryland (FCC Reg. No: 91050) and with Industry Canada, Ottawa, ON (File Ref. No: IC 2057). 2. Test Procedure and Equipment Used The pertinent test equipment commonly used in our facility for measurements is listed in Table 2.1 below. The middle column identifies the specific equipment used in these tests. Table 2.1 Test Equipment. Test Instrument Eqpt. Used Manufacturer/Model Spectrum Analyzer (0.1-1500 MHz) Hewlett-Packard, 182T/8558B Spectrum Analyzer (9kHz-22GHz) X Hewlett-Packard 8593A SN: 3107A01358 Spectrum Analyzer (9kHz-26GHz) X Hewlett-Packard 8593E, SN: 3412A01131 Spectrum Analyzer (9kHz-26GHz) Hewlett-Packard 8563E, SN: 3310A01174 Spectrum Analyzer (9kHz-40GHz) Hewlett-Packard 8564E, SN: 3745A01031 Power Meter Hewlett-Packard, 432A Power Meter Anritsu, ML4803A/MP Harmonic Mixer (26-40 GHz) Hewlett-Packard 11970A, SN: 3003A08327 Harmonic Mixer (40-60 GHz) Hewlett-Packard 11970U, SN: 2332A00500 Harmonic Mixer (75-110 GHz) Hewlett-Packard 11970W, SN: 2521A00179 Harmonic Mixer (140-220 GHz) Pacific Millimeter Prod., GMA, SN: 26 S-Band Std. Gain Horn S/A, Model SGH-2.6 C-Band Std. Gain Horn University of Michigan, NRL design XN-Band Std. Gain Horn University of Michigan, NRL design X-Band Std. Gain Horn S/A, Model 12-8.2 X-band horn (8.2- 12.4 GHz) Narda 640 X-band horn (8.2- 12.4 GHz) Scientific Atlanta , 12-8.2, SN: 730 K-band horn (18-26.5 GHz) FXR, Inc., K638KF Ka-band horn (26.5-40 GHz) FXR, Inc., U638A U-band horn (40-60 GHz) Custom Microwave, HO19 W-band horn(75-110 GHz) Custom Microwave, HO10 G-band horn (140-220 GHz) Custom Microwave, HO5R Bicone Antenna (30-250 MHz) X University of Michigan, RLBC-1 Bicone Antenna (200-1000 MHz) X University of Michigan, RLBC-2 Dipole Antenna Set (30-1000 MHz) X University of Michigan, RLDP-1,-2,-3 Dipole Antenna Set (30-1000 MHz) EMCO 2131C, SN: 992 Active Rod Antenna (30 Hz-50 MHz) EMCO 3301B, SN: 3223 Active Loop Antenna (30 Hz-50 MHz) EMCO 6502, SN:2855 Ridge-horn Antenna (300-5000 MHz) X University of Michigan Amplifier (5-1000 MHz) X Avantak, A11-1, A25-1S Amplifier (5-4500 MHz) X Avantak Amplifier (4.5-13 GHz) Avantek, AFT-12665 Amplifier (6-16 GHz) Trek Amplifier (16-26 GHz) Avantek LISN Box University of Michigan Signal Generator Hewlett-Packard 8657B University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 415031-338 Page 3 of 11 3. Device Under Test 3.1 Identification The DUT is a 372 MHz low power transmitter, 1.75 x 3 x 0.5 inches in size. The carrier is SAW stabilized and the microcontroller is clocked by a 4 MHz internal signal. The DUT was designed and manufactured by Martec Access Products Inc, 240 Sheffield Street, Mountainside New Jersey 07092. It is identified as: Martec Transmitter Model: SP-7240 FCC ID: JCQ3BT-3720MAR 3.2 Models There is only one model of the DUT, and since the DUT transmits continuously so long as the button remains depressed, no modified versions were required for testing. 3.3 Modes of Operation There is only one mode of operation for this device. In addition, the DUT is manually activated and ceases to transmit within 5 seconds of deactivation. See Figure 6.1. 3.4 EMI/EMC Relevant Modifications There were no modifications made to the DUT by this laboratory. 4. Emission Limits The DUT tested falls under the category of an Intentional Radiators and the Digital Devices. For FCC, it is subject to Part 15, Subpart C, (Section 15.231(a-c), 15.209), and Subpart A, (Section 15.33). For Industry Canada it is subject to RSS-210 (Section 2.6 and 2.7). The applicable testing frequencies with corresponding emission limits are given in Tables 4.1 and 4.2 below. 4.1 Radiated Emission Limits Table 4.1. Radiated Emission Limits (FCC: 15.33, 15.35, 15.209; IC: RSS-210, 2.7 Table 2). (Digital Class B) Freq. (MHz) E lim (3m) μV/m E lim dB(μV/m) 30-88 100 40.0 88-216 150 43.5 216-960 200 46.0 960-2000 500 54.0 Note: Average readings apply above 1000 MHz (1 MHz BW) Quasi-Peak readin…
