Re:Certification for Martec DM-3003 Transmitter Model: DM-3003 FCC ID: JCQ993 IC: 1907A-993 USER'S MANUAL INFORMATION (PRELIMINARY) The User's Manual is in preparation. The following material will be contained in the manual: FCC ID: JCQ993IC: 1907A-993 This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modifications not expressively approved by the party responsible for compliance could void the user's authority to operate the equipment. The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met.

Re:Certification for Martec DM-3003 Transmitter Model: DM-3003 FCC ID: JCQ993 IC: 1907A-993 POWER OF ATTORNEY A letter granting Valdis V. Liepa the Power of Attorney is on file and can be provided when so requested. Re:Certification for Martec DM-3003 Transmitter Model: DM-3003 FCC ID: JCQ993 IC: 1907A-993 REQUEST FOR CONFIDENTIALITY Pursuant to 47 CRF 0.459, Martec requests that a part of the subject application be held confidential. This comprises Exhibits (5) Schematics (10)Parts List (Part of Exhibit only) Martec has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. If there are any questions regarding this request, please contact me at the above address or call 734-483-4211, fax 734-647-2106 or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist University of Michigan Re:Certification for Martec DM-3003 Transmitter Model: DM-3003 FCC ID: JCQ993 IC: 1907A-993 GENERAL PRODUCT INFORMATION The device, for which certification is pursued, has been designed by: Martec Access Products Inc 1907A-993 240 Sheffield Street Mountainside, NJ 07092 Cathie A Moran Tel:908-233-5766 Fax: 908-233-0691 It will be manufactured by: Martec Access Products Inc 240 Sheffield Street Mountainside, NJ 07092 Cathie A Moran Tel:908-233-5766 Fax:908-233-0691 Canadian Contact: Wayne-Dalton of Canada-Mississauga 245 Matheson Blvd East Missisauga, ON L42 1P5

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 July 25, 2002 RE: Martec Access Products, Inc. FCC ID: JCQ993 After a review of the submitted information, I have a few comments on the above referenced Application. 1) FYI, The label frequency appears as ".303". This may or may not be intentional. 2) The test report states on page 4 "the transmitter was activated using the lock/unlock button, with a special wooden clamp...". Please explain as this product does not appear to be activated in this manner. 3) Please show compliance with the device shutting off in < 5 seconds after the alarm condition is over (vibration has stopped). Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

July 29, 2002 American Telecommunications Certification Body 6731 Whittier Ave. McLean VA, 22101 RE: Comments for FCC ID: JCQ933 1) FYI, The label frequency appears as ".303". This may or may not be intentional. This is as the manufacturer intended. 2) The test report states on page 4 "the transmitter was activated using the lock/unlock button, with a special wooden clamp...". Please explain as this product does not appear to be activated in this manner. See revised test report. 3) Please show compliance with the device shutting off in < 5 seconds after the alarm condition is over (vibration has stopped). See revised test report.

MMYYVX.XXMODEL:DM-3003 FCCID:JCQ993FREQUENCY:.303 IC:1907A-993 MARTECACCESSPRODUCTSINC. RefertoinstructionmanualforimportantFCCinformation MADEINCHINA USEONCOMMERCIALOPERATORS FULLSIZEARTWORK VRFIDLABEL 0993-29REV.B

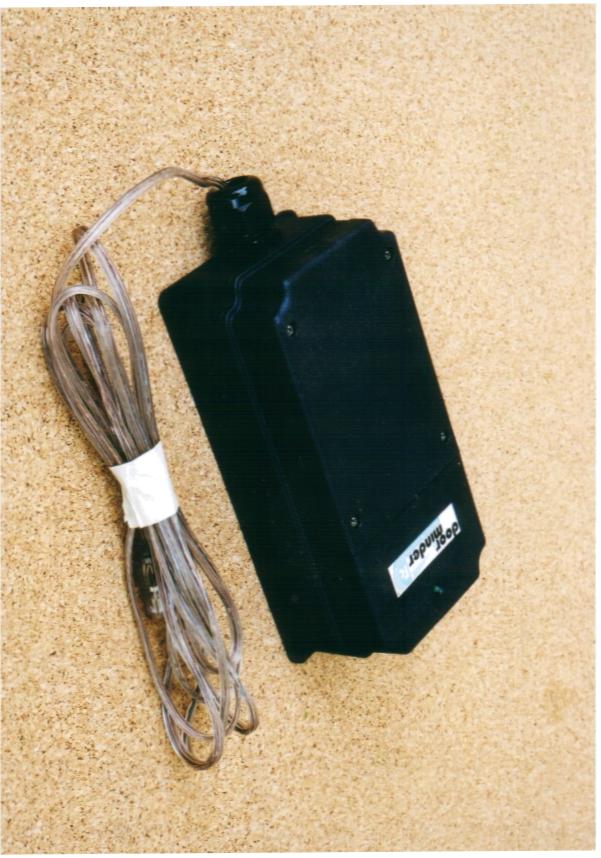

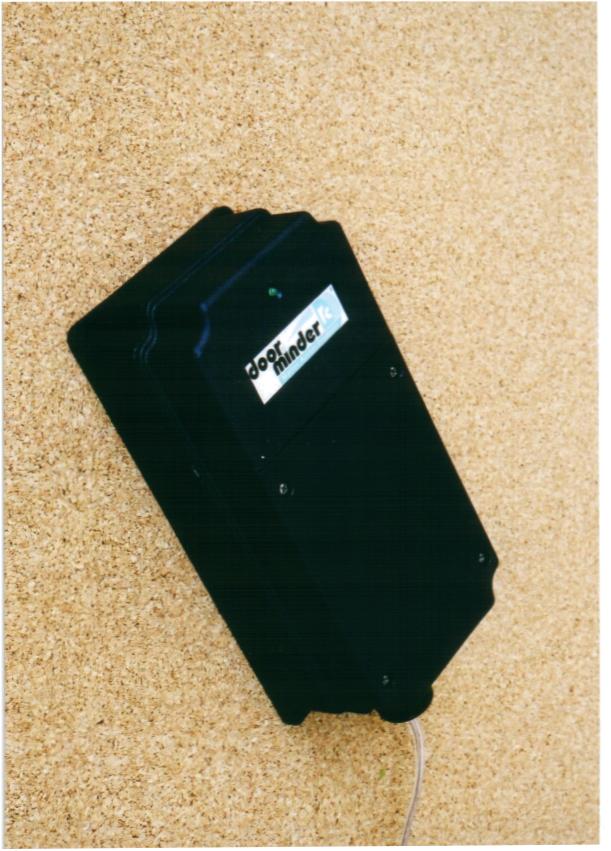

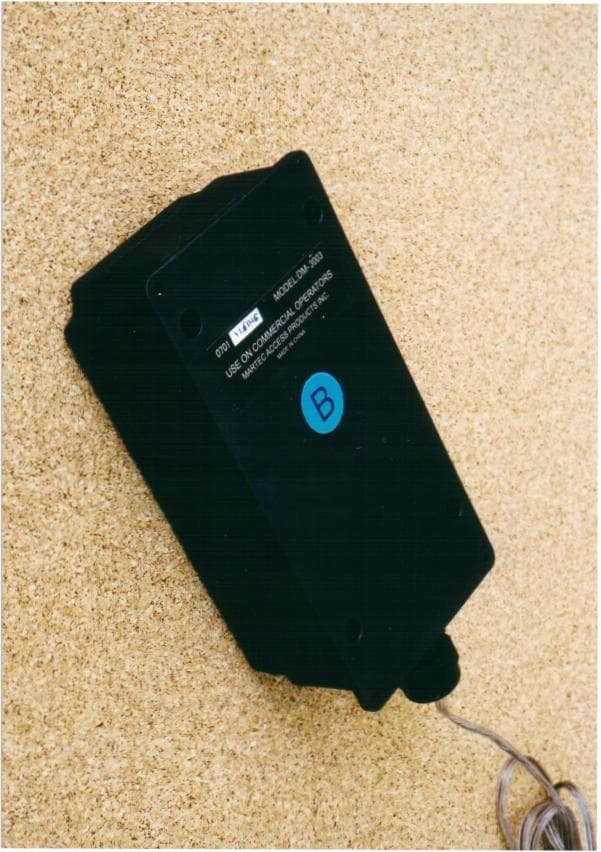

Description of Operation The Martec Doorminder DM-3003 is a garage door safety transmitter. It operates at 303 MHz and is mechanically activated through a motion sensor on the PCB. When the device is shaking (when the garage door is moving) the DUT transmits repetitively to a nearby receiver indicating that the garage door is in motion. When the garage door ceases motion, the DUT no longer transmits.

The University of Michigan Radiation Laboratory 3228 EECS Building Ann Arbor, MI 48109-2122 Tel: (734) 764-0500 Measured Radio Frequency Emissions From Martec Transmitter Model: DM-3003 Report No. 415031-124 July 29, 2002 For: Martec Access Products Inc 240 Sheffield Street Mountainside, NJ 07092 Contact: Cathie A Moran Tel: 908-233-5766 Fax: 908-233-0691 PO: Verbal Tests supervised by: Measurements made by: Report approved by: _____________________ Valdis V. Liepa Valdis V. Liepa Joseph D. Brunett Research Scientist Summary Tests for compliance with FCC Regulations Part 15, Subpart C, and Industry Canada RSS-210, were performed on Martec model DM-3003. This device is subject to the Rules and Regulations as a Transmitter. In testing completed on 17-Jul-02, the device tested in the worst case met the allowed FCC specifications for radiated emissions by 1.0 dB (see p. 6). Besides harmonics, there were no other significant spurious emissions found; emissions from digital circuitry were negligible. The conducted emission tests do not apply, since the device is powered from three 1.5 VDC batteries. 2 1. Introduction Martec model DM-3003 was tested for compliance with FCC Regulations, Part 15, adopted under Docket 87-389, April 18, 1989, and with Industry Canada RSS-210, Issue 5, November, 2001. The tests were performed at the University of Michigan Radiation Laboratory Willow Run Test Range following the procedures described in ANSI C63.4-1992 "Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz". The Site description and attenuation characteristics of the Open Site facility are on file with FCC Laboratory, Columbia, Maryland (FCC Reg. No: 91050) and with Industry Canada, Ottawa, ON (File Ref. No: IC 2057). 2. Test Procedure and Equipment Used The pertinent test equipment commonly used in our facility for measurements is listed in Table 2.1 below. The middle column identifies the specific equipment used in these tests. Table 2.1 Test Equipment. Test Instrument Eqpt. Used Manufacturer/Model Spectrum Analyzer (0.1-1500 MHz) Hewlett-Packard, 182T/8558B Spectrum Analyzer (9kHz-22GHz) X Hewlett-Packard 8593A SN: 3107A01358 Spectrum Analyzer (9kHz-26GHz) X Hewlett-Packard 8593E, SN: 3412A01131 Spectrum Analyzer (9kHz-26GHz) Hewlett-Packard 8563E, SN: 3310A01174 Spectrum Analyzer (9kHz-40GHz) Hewlett-Packard 8564E, SN: 3745A01031 Power Meter Hewlett-Packard, 432A Power Meter Anritsu, ML4803A/MP Harmonic Mixer (26-40 GHz) Hewlett-Packard 11970A, SN: 3003A08327 Harmonic Mixer (40-60 GHz) Hewlett-Packard 11970U, SN: 2332A00500 Harmonic Mixer (75-110 GHz) Hewlett-Packard 11970W, SN: 2521A00179 Harmonic Mixer (140-220 GHz) Pacific Millimeter Prod., GMA, SN: 26 S-Band Std. Gain Horn S/A, Model SGH-2.6 C-Band Std. Gain Horn University of Michigan, NRL design XN-Band Std. Gain Horn University of Michigan, NRL design X-Band Std. Gain Horn S/A, Model 12-8.2 X-band horn (8.2- 12.4 GHz) Narda 640 X-band horn (8.2- 12.4 GHz) Scientific Atlanta , 12-8.2, SN: 730 K-band horn (18-26.5 GHz) FXR, Inc., K638KF Ka-band horn (26.5-40 GHz) FXR, Inc., U638A U-band horn (40-60 GHz) Custom Microwave, HO19 W-band horn(75-110 GHz) Custom Microwave, HO10 G-band horn (140-220 GHz) Custom Microwave, HO5R Bicone Antenna (30-250 MHz) X University of Michigan, RLBC-1 Bicone Antenna (200-1000 MHz) X University of Michigan, RLBC-2 Dipole Antenna Set (30-1000 MHz) X University of Michigan, RLDP-1,-2,-3 Dipole Antenna Set (30-1000 MHz) EMCO 2131C, SN: 992 Active Rod Antenna (30 Hz-50 MHz) EMCO 3301B, SN: 3223 Active Loop Antenna (30 Hz-50 MHz) EMCO 6502, SN:2855 Ridge-horn Antenna (300-5000 MHz) X University of Michigan Amplifier (5-1000 MHz) X Avantak, A11-1, A25-1S Amplifier (5-4500 MHz) X Avantak Amplifier (4.5-13 GHz) Avantek, AFT-12665 Amplifier (6-16 GHz) Trek Amplifier (16-26 GHz) Avantek LISN Box University of Michigan Signal Generator Hewlett-Packard 8657B 3 3. Configuration and Identification of Device Under Test The DUT is a 303 MHz transmitter, 3 x 2 x 9 inches in size. The carrier is AM modulated and LC stabilized; the modulating circuit is stabilized within the IC. The antenna is integrated into the PCB. The DUT was designed and manufactured by Martec Access Products Inc., 240 Sheffield Street, Mountainside, NJ 07092. It is identified as: Martec Access Products Transmitter Model: DM-3003 S/N or P/N: Proto FCC ID: JCQ993 IC: 1907A-993 Since the transmitter transmits continuously as long as it detects a vibration, only one transmitter was used in all of the measurements. Note: The DUT mechanically activated and ceases to transmit within 5 seconds of deactivation, see Figure 6.4. See Attachments file in this submittal for specific details about the Safety/Emergency Equipment designation for this device. 3.1 Modifications Made The R44 resistor on the DUT was changed to 604 ohms from 330 ohms after the device failed to pass the radiated emissions limits. 4. Emission Limits The DUT tested falls under the category of an Intentional Radiators and the Digital Devices. For FCC, it is subject to Part 15, Subpart C, (Section 15.231), Subpart B, (Section 15.109), and Subpart A, (Section 15.33). For Industry Canada it is subject to RSS-210, (Sections 6.1 and 6.3). The applicable testing frequencies with corresponding emission limits are given in Tables 4.1 and 4.2 below. As a digital device, the DUT is considered as a Class B device. 4.1 Radiated Emission Limits Table 4.1. Radiated Emission Limits (FCC: 15.33, 15.35, 15.109; IC: RSS-210, 6.2.2(r)). (Digital Class B) Freq. (MHz) E lim (3m) μV/m E lim dB(μV/m) 30-88 100 40.0 88-216 150 43.5 216-960 200 46.0 960-2000 500 54.0 Note: Average readings apply above 1000 MHz (1 MHz BW) Quasi-Peak readings apply to 1000 MHz (120 kHz BW) 4 Table 4.2. Radiated Emission Limits (FCC: 15.231(b), 15.205(a); IC: RSS-210; 6.1, 6.3). (Transmitter) Fundamental Spurious** Frequency Ave. E lim (3m) Ave. E lim (3m) (MHz) (μV/m) …
