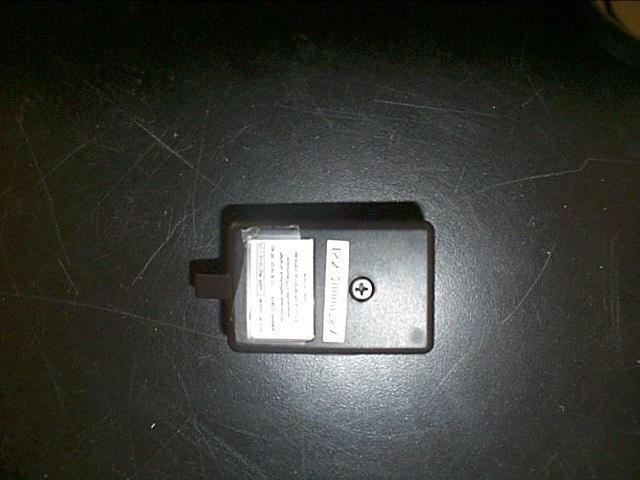

FCC ID: JCQMK-5036 External Front External Back

FCC ID:JCQMK-5036 Internal Front Internal Back

Emissions Testing Performed on the Martec 2-Button Remote Transmitter Model: 5036 To FCC Part 15 Subpart C, 15.231 Date of Test: May 10, 2001 Page 1 of 24 Report Number: J20048167 Contact: Mr. Bernard Kasmir All services undertaken are subject to the following general policy: Reports are submitted for exclusive use of the client to whom they are addressed. Their significance is subject to the adequacy and representative character of the samples and to the comprehensiveness of the tests, examinations or surveys made. No quotations from reports or use of Intertek Testing Services NA Inc. name is permitted except as expressly authorized by Intertek Testing Services NA Inc. in writing. This report must not be used to claim product endorsement by NVLAP, NIST or any other agency of the U.S. Government. Intertek Testing Services NA, Inc. Part 15 Laboratory Measurements and ANSI C63.4-1992Job Number: J20048167 Revision March 24, 2000Page 2 of 24 This document may not be reproduced except in its entirety without written permission from ITS. Table of Contents TABLE OF CONTENTS ................................................................................................................................................ 2 I – INTRODUCTION AND SUMMARY........................................................................................................................ 3 II – TECHNICAL REQUIREMENTS ............................................................................................................................. 4 15.1SCOPE.............................................................................................................................................................. 4 15.15GENERAL TECHNICAL REQUIREMENTS .................................................................................................. 4 15.27SPECIAL ACCESSORIES ............................................................................................................................... 5 15.31MEASUREMENT STANDARDS.................................................................................................................... 5 15.33 FREQUENCY RANGE OF MEASUREMENT................................................................................................ 5 15.35MEASUREMENT DETECTOR FUNCTIONS AND BANDWIDTH.............................................................. 5 15.37TRANSITION PROVISIONS ........................................................................................................................... 5 15.105 INFORMATION TO THE USER...................................................................................................................... 6 15.107 CONDUCTED LIMITS..................................................................................................................................... 6 15.201 CERTIFICATION ............................................................................................................................................. 6 15.203 ANTENNA REQUIREMENTS......................................................................................................................... 6 15.204 EXTERNAL RADIO AMPLIFIER ................................................................................................................... 6 15.205 RESTRICTED BANDS OF OPERATION....................................................................................................... 6 15.207 CONDUCTED LIMITS..................................................................................................................................... 6 15.209 RADIATED EMISSION LIMITS; GENERAL REQUIREMENTS................................................................... 7 15.231 PERIODIC OPERATION IN THE BAND 40.66-40.70 MHZ AND ABOVE 70 MHZ.................................... 7 2.201EMISSION MODULATION AND TRANSMISSION CHARACTERISTICS............................................... 10 2.1041 MEASUREMENT PROCEDURES................................................................................................................. 10 2.1091 RADIOFREQUENCY RADIATION EXPOSURE EVALUATION: MOBILE DEVICES............................. 10 2.1093 RADIOFREQUENCY RADIATION EXPOSURE EVALUATION: PORTABLE DEVICES ....................... 10 III - ATTESTATION..................................................................................................................................................... 11 IV - SITE DESCRIPTION AND MEASUREMENT EQUIPMENT.............................................................................. 12 V – SUMMARY OF EQUIPMENT UNDER TEST ...................................................................................................... 14 VI - CONFIGURATION INFORMATION ................................................................................................................... 15 VII - CONFIGURATION PHOTOGRAPHS................................................................................................................. 16 VIII - SAMPLE CALCULATION................................................................................................................................. 19 IX - DATA TABLES .................................................................................................................................................... 20 X - DUTY CYCLE (AVERAGE FACTOR) ................................................................................................................. 21 XI - BANDWIDTH....................................................................................................................................................... 24 Intertek Testing Services NA, Inc. Part 15 Laboratory Measurements and ANSI C63.4-1992Job Number: J20048167 Revision March 24, 2000Page 3 of 24 This document may not be reproduced except in its entirety without written permission from ITS. I – Introduction and Summary TO:Mr. Bernard Kasmir FROM:Nicholas Abbo…

Text truncated - open the document above for the full version.

FCC ID: JCQMK-5036Duty cycle data amended 5/3/02 Testing of the 5036 transmitter was performed using what was considered to be a worst case mode at the time. However, the product manual, which was received after testing was complete, specifies that the pulse train used by the transmitter to talk to the appropriate receiver varies by dip switch settings. It was determined from this information that the configuration tested was in fact NOT the worst case. Presented below is the original data and a calculation of the actual worst case duty cycle averaging factor. It is shown that the EUT meets the requirements in the worst case as well. Here is the original data from testing of the 5036 transmitter. Note that the duty cycle correction factor is determined to be 12.4 dB. Also note that the highest emission, the fundamental, has a 7.6 dB margin. Company:Tested by: Model :Locati on: Job No.:Detector: Date:Antenna: Standard:PreAmp: Cabl e(s): Notes:Dist ance: 3meters Ant.AntennaCabl eDuty Cycl e Di st ance Pol .Frequency Readi ngFactorLossAverageFactorNetLi mi tMargi n (V/H)MHzdB(uV)dB(1/m)dBFactor, dBdBdB(uV/ m)dB(uV/m)dB H299. 00064.113.22.112.40.067.074.6-7.6Peak H598. 00018.420.33.312.40.029.654.6-25. 0Peak H897. 00016.024.04.312.40.031.954.6-22. 7Peak H1196.00016.925.95.212.40.035.654.6-19. 0Peak H1495.00016.226.76.412.40.036.854.6-17. 8Peak H1794.00016.827.97.212.40.039.554.6-15. 1Peak 2C, 3 METER, PRIMARY Aver age val ues f or comparison to limits were obt ai ned by applyi ng a dut y cycl e aver age f act or t o peak readings. 05/ 10/ 01LOG4, HORN3 FCC15.231None 5036Sit e 2C J20048167HP 8542E, Agilent E7405A Intertek Testing Services Radiated Emissions / Interference Tabl e: 1 Mart ec Access Pr oductsNi chol as Abbondante Worst Case Duty Cycle (Average Factor) The average factor is subtracted from peak readings to compare emissions readings to average limits. The average factor is calculated from duty cycle measurements from the following plots. The average factor is 20 Log (ON- TIME/PERIOD) of the emission. If the period is longer than 100 milliseconds, then 100 milliseconds is used for the period. Average factor is determined using the worst-case duty cycle. Model 5036 Duty Cycle Derivation The Model 5036 2-button Remote Transmitter generates a pulse of fixed duration and period. The transmit pulse waveform is shown below. The period betwen pulses is 40.79ms. There are 10 wide peaks. The next plot shows the width of the peaks. The wide peaks are 1.5ms. Given 10 wide peaks of 1.5ms, and a transmission length of 40.8ms, we can perform the average factor calculation. 20 Log((1.5ms*10) /40.8ms) = -12.4 dB Maximum duty cycle over a 40.8ms period is 36.8% resulting in an averaging factor of – 8.7 dB. The original calculated duty cycle was 23.9% resulting in an averaging factor of –12.4 dB. The difference is 3.7 dB. Since the closest the EUT comes to the limits is 7.6 dB, the new duty cycle data shows that the EUT still has a margin of 3.9 dB in the worst case duty cycle configuration.
