JCQMIC-TXDoor or Gate Opener Transmitter

The FCC warns that changes or modifications of the unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

December 2, 2009 Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315 Re: Certification for Martec Transmitter Model/PN(s): MK 00647, MK00653, MK00659, MK00660 FCC ID: JCQMIC-TX IC: 1907A-MICTX Please find enclosed application materials for certification of Martec Transmitter. We tested it and found it to comply with FCC Part 15. If there are any questions regarding the application or testing performed, please contact me at the above address or call 734-483-4211, fax 734-647-2106, or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist

Re: Certification for Martec Transmitter FCC ID: JCQMIC-TX IC: 1907A-MICTX REQUEST FOR CONFIDENTIALITY Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, Martec requests that a part of the subject application be held confidential. Martec has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Type of Confidentiality Requested Exhibit Short Term Permanent (1) ID Label & Location Short Term Permanent (3) External Photos Short Term Permanent 1 (4) Block Diagram Short Term Permanent (5) Schematics Short Term Permanent (7) Test Setup Photos Short Term Permanent (8) User’s Manual Short Term Permanent (9) Internal Photos Short Term Permanent (10) Parts List & Placement Short Term Permanent (11) RF Exposure Short Term Permanent (12) Description of Operation 1. Block Diagram includes internal oscillator frequency information that the manufacturer considers to be proprietary. Permanent Confidentiality: Martec requests the exhibits listed above as permanently confidential be permanently withheld from public review. Short-Term Confidentiality (FCC Only): Martec requests the exhibits selected above as short term confidential be withheld from public view for a period of 45 days from the date of the Grant of Equipment Authorization and prior to marketing. If there are any questions regarding this request, please contact me at the above address or call 734-483-4211, fax 734-647-2106 or e-mail [email protected]. Sincerely, Valdis V. Liepa, Research Scientist University of Michigan

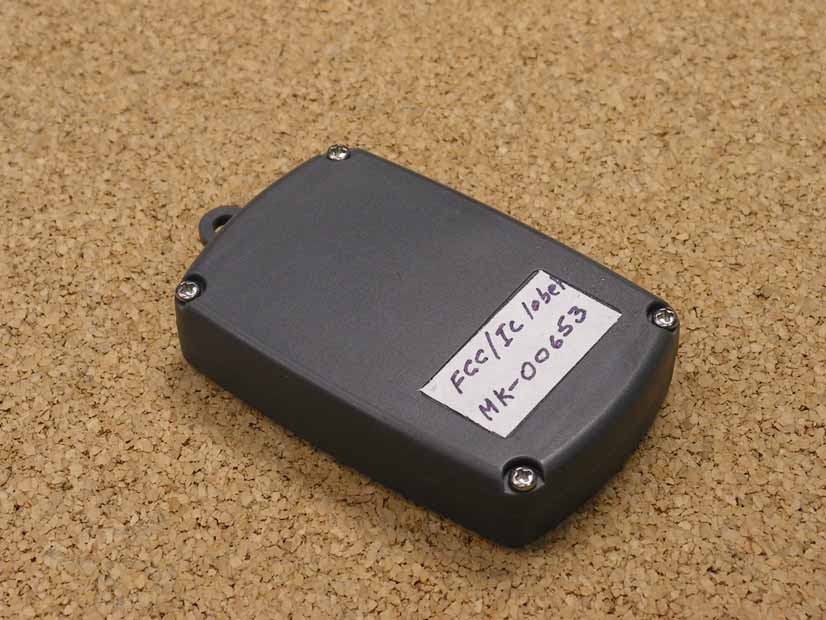

DC BA 4321 DC BA 4321 DC BA 4321 DC BA 4321 DC BA 4321 DC BA 4321 Rev. Description: Who: Date: MARTEC ACCESS PRODUCTS, Inc. 240 Sheffield St. Mountainside, NJ 07092 Title:Size: Number: Rev. Date Drawn by: : Filename: Check by: Sheet 1 of 1 NOTES:1. "WW" - DATE CODE MFG WEEK2. "YY" - DATE CODE MFG YEAR3. "X" - BOM REVISION LEVEL4. COLOR: GRAY BACKGROUND BLACK SILKSCREEN5. THE LABEL HAS TO BE PLACED ON BOTTOM SIDE OF THE PLASTIC CASE. MICANAN Made in China MFG: WW YY XFREQ: 372.0MHz FCC ID: JCQMIC-TX R =40mil. BOTTOM VIEW OF THE PLASTIC CASE A FCC LABEL FOR MK00653 F.C. 09/30/08 FCC LABEL FOR MK00653 6045-055 C NOT TO SCALE 12/03/09 6045-055_C.VSD F.C. 1.180" 0.580" MODEL: MK0 0653 0.58 1.18 SCALE 1:1 C.O. IC: 1907A-MICTX MADE BY MARTEC EXCLUSIVELY FOR MICANAN THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES AND WITH RSS-210 OF INDUSTRY CANADA. B MODIFIED L ABEL F.C. 03/09/09 ECN: 5044 C MODIFIED L ABEL F.C. 12/03/09 MICANAN Made in China MFG: WW YY XFREQ: 372.0MHz FCC ID: JCQMIC-TX MODEL: MK00653 IC: 1907A-MICTX MADE BY MARTEC EXCLUSIVELY FOR MICANAN THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES AND WITH RSS-210 OF INDUSTRY CANADA. DC BA 4321 DC BA 4321 DC BA 4321 DC BA 4321 DC BA 4321 DC BA 4321 Rev. Description: Who: Date: MARTEC ACCESS PRODUCTS, Inc. 240 Sheffield St. Mountainside, NJ 07092 Title:Size: Number: Rev. Date Drawn by: : Filename: Check by: Sheet 1 of 1 NOTES:1. "WW" - DATE CODE MFG WEEK2. "YY" - DATE CODE MFG YEAR3. "X" - BOM REVISION LEVEL4. COLOR: GRAY BACKGROUND BLACK SILKSCREEN5. THE LABEL HAS TO BE PLACED ON BOTTOM SIDE OF THE PLASTIC CASE. R =40mil. BOTTOM VIEW OF THE PLASTIC CASE A FCC LABEL FOR MK00647 F.C. 09/30/08 FCC LABEL FOR MK00647 6045-066 C NOT TO SCALE 12/03/09 6045-066_C.VSD F.C. 1.180" 0.580" 0.58 1.18 SCALE 1:1 C.O. MICANAN Made in China MFG: WW YY XFREQ: 372.0MHz FCC ID: JCQMIC-TX MODEL: MK0 0647 IC: 1907A-MICTX MADE BY MARTEC EXCLUSIVELY FOR MICANAN THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES AND WITH RSS-210 OF INDUSTRY CANADA. B MODIFIED L ABEL F.C. 03/09/09 5044 C MODIFIED L ABEL F.C. 12/03/09 MICANAN Made in China MFG: WW YY XFREQ: 372.0MHz FCC ID: JCQMIC-TX MODEL: MK00647 IC: 1907A-MICTX MADE BY MARTEC EXCLUSIVELY FOR MICANAN THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES AND WITH RSS-210 OF INDUSTRY CANADA. DC BA 4321 DC BA 4321 DC BA 4321 DC BA 4321 DC BA 4321 DC BA 4321 Rev. Description: Who: Date: MARTEC ACCESS PRODUCTS, Inc. 240 Sheffield St. Mountainside, NJ 07092 Title:Size: Number: Rev. Date Drawn by: : Filename: Check by: Sheet 1 of 1 NOTES:1. "WW" - DATE CODE MFG WEEK2. "YY" - DATE CODE MFG YEAR3. "X" - BOM REVISION LEVEL4. COLOR: GRAY BACKGROUND BLACK SILKSCREEN5. THE LABEL HAS TO BE PLACED ON BOTTOM SIDE OF THE PLASTIC CASE. R =40mil. BOTTOM VIEW OF THE PLASTIC CASE A FCC LABEL FOR MK00659 F.C. 09/30/08 FCC LABEL FOR MK00659 6045-098 C NOT TO SCALE 12/03/09 6045-098_C.VSD F.C. 1.180" 0.580" 0.58 1.18 SCALE 1:1 C.O. MICANAN Made in China MFG: WW YY XFREQ: 372.0MHz FCC ID: JCQMIC-TX MODEL: MK0 0659 IC: 1907A-MICTX MADE BY MARTEC EXCLUSIVELY FOR MICANAN THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES AND WITH RSS-210 OF INDUSTRY CANADA. B MODIFIED L ABEL F.C. 03/09/09 5044 C MODIFIED L ABEL F.C. 12/03/09 MICANAN Made in China MFG: WW YY XFREQ: 372.0MHz FCC ID: JCQMIC-TX MODEL: MK00659 IC: 1907A-MICTX MADE BY MARTEC EXCLUSIVELY FOR MICANAN THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES AND WITH RSS-210 OF INDUSTRY CANADA. DC BA 4321 DC BA 4321 DC BA 4321 DC BA 4321 DC BA 4321 DC BA 4321 Rev. Description: Who: Date: MARTEC ACCESS PRODUCTS, Inc. 240 Sheffield St. Mountainside, NJ 07092 Title:Size: Number: Rev. Date Drawn by: : Filename: Check by: Sheet 1 of 1 NOTES:1. "WW" - DATE CODE MFG WEEK2. "YY" - DATE CODE MFG YEAR3. "X" - BOM REVISION LEVEL4. COLOR: GRAY BACKGROUND BLACK SILKSCREEN5. THE LABEL HAS TO BE PLACED ON BOTTOM SIDE OF THE PLASTIC CASE. R =40mil. BOTTOM VIEW OF THE PLASTIC CASE A FCC LABEL FOR MK00660 F.C. 09/30/08 FCC LABEL FOR MK00660 6045-103 C NOT TO SCALE 12/03/09 6045-103_C.VSD F.C. 1.180" 0.580" 0.58 1.18 SCALE 1:1 C.O. MICANAN Made in China MFG: WW YY XFREQ: 372.0MHz FCC ID: JCQMIC-TX MODEL: MK0 0660 IC: 1907A-MICTX MADE BY MARTEC EXCLUSIVELY FOR MICANAN THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES AND WITH RSS-210 OF INDUSTRY CANADA. B MODIFIED L ABEL F.C. 03/09/09 5044 C MODIFIED L ABEL F.C. 12/03/09 MICANAN Made in China MFG: WW YY XFREQ: 372.0MHz FCC ID: JCQMIC-TX MODEL: MK00660 IC: 1907A-MICTX MADE BY MARTEC EXCLUSIVELY FOR MICANAN THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES AND WITH RSS-210 OF INDUSTRY CANADA.

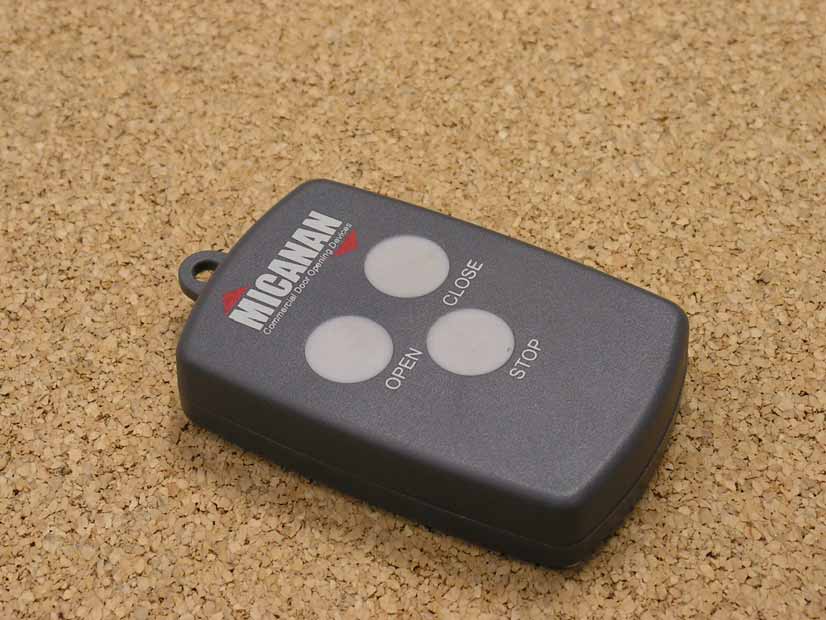

5380-(SP-7240)-3-Button TX, 372.0 MHz Operating Description.doc This device, a portable low-power transmitter, consists of an SAW RF oscillator at 372.0 MHz, power supply, and a microcontroller clocked by a 4 MHz internal signal. The transmitter is normally off until any button is activated. Any button activation enables the microcontroller, which activates the RF oscillator. The microcontroller generates the data waveform (pulse width modulation, On/Off keying) for the RF oscillator. When the activated button is release, the RF oscillator turns off. The difference between the buttons is in the data sent. The RF antenna is printed circuit based and is not removable and not changeable. Martec Access Products Inc. 5380-(SP-7240)-3-Button TX, 372.0 MHz Operating Description.doc

University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 417124-542 Page 1 of 12 The University of Michigan Radiation Laboratory 3228 EECS Building Ann Arbor, MI 48109-2122 Tel: (734) 764-0500 Fax: (734) 647-2106 Measured Radio Frequency Emissions From Martec Access Products Inc. Transmitter FCC ID: JCQMIC-TX IC: 1907A-MICTX Test Report No. 417124-542 December 2, 2009 Copyright © 2009 For: Martec Access Products Inc. 240 Sheffield Street, Mountainside, New Jersey 07092 Contact: Frank Cedzik [email protected] Phone: 908-233-0691 x 63 Fax: 908-233-0691 Testing supervised by: Measurements made by: Valdis V. Liepa Report Approved by:__________________________ Valdis V. Liepa Test report written by: Joseph D. Brunett Research Scientist Summary Tests for compliance with FCC Regulations, CFR 47, Part 15 and with Industry Canada RSS-210/Gen, were performed on a Martec, FCC ID: JCQMIC-TX, IC: 1907A-MICTX. This device under test (DUT) is subject to the rules and regulations as a Transmitter. In testing completed on September 22, 2009, the DUT tested met the allowed specifications for radiated emissions by 0.9 dB. Conducted emissions are not subject to regulation as the DUT is powered by a 6 VDC battery. University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 417124-542 Page 2 of 12 Table of Contents 1. Introduction ...................................................................................................................................... 3 2. Equipment Used ............................................................................................................................... 3 3. Device Under Test ........................................................................................................................... 4 3.1 Description & Block Diagram .............................................................................................. 4 3.2 Variants and Samples ............................................................................................................ 4 3.3 Modes of Operation .............................................................................................................. 4 3.4 Exemptions ........................................................................................................................... 4 3.5 EMC Relevant Modifications ............................................................................................... 4 4. Emissions Limits .............................................................................................................................. 5 4.1 Radiated Emissions Limits .................................................................................................... 5 4.2 Power Line Conducted Emissions Limits ............................................................................. 5 5. Measurement Procedures ................................................................................................................. 6 5.1 Semi-Anechoic Chamber Radiated Emissions ...................................................................... 6 5.2 Outdoor Radiated Emissions ................................................................................................. 6 5.3 Radiated Field Computations ................................................................................................ 6 5.4 Indoor Power Line Conducted Emissions ............................................................................. 6 5.5 Supply Voltage Variation ...................................................................................................... 7 6. Test Results ...................................................................................................................................... 7 6.1 Radiated Emissions ............................................................................................................... 7 6.1.1 Correction for Pulse Operation ......................................................................................... 7 6.1.2 Emission Spectrum ........................................................................................................... 7 6.1.3 Emission Bandwidth ......................................................................................................... 7 6.1.4 Supply Voltage and Supply Voltage Variation ................................................................. 7 6.2 Conducted Emissions ............................................................................................................ 7 University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 417124-542 Page 3 of 12 1. Introduction This Martec Transmitter was tested for compliance with FCC Regulations, Part 15, adopted under Docket 87-389, April 18, 1989 as subsequently amended, and with Industry Canada RSS-210/Gen, Issue 7, June 2007. Tests were performed at the University of Michigan Radiation Laboratory Willow Run Test Range following the procedures described in ANSI C63.4-2003 "Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz". The Site description and attenuation characteristics of the Open Site facility are on file with FCC Laboratory, Columbia, Maryland (FCC Reg. No: 91050) and with Industry Canada, Ottawa, ON (File Ref. No: IC 2057A-1). 2. Equipment Used The test equipment commonly used in our facility is listed in Table 2.1. Except where indicated as a pre- test, monitoring, or support device; all equipment listed below is a part of the University of Michigan Radiation Laboratory (UMRL) quality system. This quality system has been established to ensure all equipment has a clearly identifiable classification, calibration expiry date, and that all calibrations are traceable to national standards. Table 2.1 Test Equipment. Test Instrument Used Manufacturer/Model Q Number…
