JOFRS51033CB RADIO TRANSCEIVER

288 CB/ICOM CB Radio / ICOM SystemCB/ICOM IntroductionIn the U.S.A., refer to the Federal Commu-nications Commission (FCC) Plain Rules pamphlet accompanying this rider’s manual for a comprehensive guide of citizens band (CB) radio rules and regulations. Headset UseThe use of helmet-mounted headsets may be restricted or prohibited in some areas. Always obey all applicable regulations and laws.The headsets have three separate volume settings: Intercom (ICOM) volume, CB receive volume and entertainment (ENT) volume. See page 281. 14 CB Radio ICOM.fm Page 288 Monday, May 11, 2009 2:26 PM 289 CB/ICOM CB Radio / ICOM System Getting StartedTip: To minimize distractions while riding, always make adjustments to the CB/ICOM system prior to operating your motorcycle. Tip: To prevent battery drain, do not leave the key in the ACC position for long periods. VICTORY recommends using the audio system only when the engine is running. The ignition key must be in the ACC or ON position to use the audio system. 1. Press the power button to turn the audio system on. 2. Press COM on the left control to acti-vate the CB/COM system. 14 CB Radio ICOM.fm Page 289 Monday, May 11, 2009 2:26 PM 290 CB/ICOM CB Radio / ICOM SystemCB ChannelsWhen the CB radio system is active, “CB” and the active channel will display.Press and hold COM on the upper left control to access the CHANNEL ADJUST screen. Push COM or ICOM on the left control or (+) or (-) on the console panel to change channels. Tip: Changing to a new channel may require changing the squelch setting. Press S/E on the left control to exit the screen and return to the main display. FM ICOM CB19 P1 ST 100.5 COM +/- ICOM CB 19 CHANNEL ADJUST 14 CB Radio ICOM.fm Page 290 Monday, May 11, 2009 2:26 PM 291 CB/ICOM CB Radio / ICOM System Push-to-Talk (PTT)Press and hold the top or bottom of the PTT button to trans-mit over CB radio. The passenger must push and hold the rear PTT button. “TX” will display on the console screen when one of the PTT buttons is pressed. “RX” will display when the CB is receiving a transmission. FM ICOM RX19 100.5 FM ICOM TX19 100.5 Transmitting Receiving 14 CB Radio ICOM.fm Page 291 Monday, May 11, 2009 2:26 PM 292 CB/ICOM CB Radio / ICOM SystemSquelchSquelch blocks undes-ired signals and noise by allowing the recep-tion of signals only over a specified level.Press and release the SQ (+) or SQ (-) buttons to adjust the squelch to any level between OPEN and CLOSED. When squelch is set to OPEN, no filtering occurs. Setting squelch to CLOSED blocks all signals, including strong signals.To set the squelch level, first lower the squelch level until noise or static is audible. Gradually increase the squelch level until the noise or static is gone.Press S/E on the left control to exit the screen and return to the main display. + SQ - SQUELCH 8 14 CB Radio ICOM.fm Page 292 Monday, May 11, 2009 2:26 PM 293 CB/ICOM CB Radio / ICOM System Driver CB Radio VolumeTo change settings, enter the mode menu. Press (+) or (-) on the console panel to adjust settings. Press S/E to save and exit.Tip: The CB volume can also be set using the hand control when the CB is receiving. Passenger CB Radio VolumeThe passenger can control rear headset vol-ume when Entertainment, CB radio or ICOM is active.Tip: Each volume setting is inde-pendently adjustable. Press (+) or (-) on the passen-ger control to raise or lower volume. CB VOL 15 + - 14 CB Radio ICOM.fm Page 293 Monday, May 11, 2009 2:26 PM 294 CB/ICOM CB Radio / ICOM SystemLocal/Distant CB Radio ModeTo change mode settings, enter the mode menu. Press (+) or (-) on the console panel to set the CB to local (LO) or distant (DX) mode. Press S/E to save and exit. Distant: Use this setting for weaker signals. Receiver sensitivity will be increased. Static and noise levels are increased.Local: Use this setting for stronger signals or in high density areas. Receiver sensitivity will be decreased. Static and noise levels are decreased. CB LO / DX MODE DISTANT CB LO / DX MODE LOCAL + - + - 14 CB Radio ICOM.fm Page 294 Monday, May 11, 2009 2:26 PM 295 CB/ICOM CB Radio / ICOM System CB Radio FrequenciesThe FCC has designated 40 citizen band (CB) channel s for consumer use. Channel 9 is des- ignated as an EMERGENCY channel for emergency use o nly. CB Channels / Frequencies Ch. Freq. Ch. Freq. Ch. Freq. Ch. Freq. Ch. Freq. Ch. Freq. 1 26.965 8 27.055 15 27.135 22 27.225 29 27.295 36 27.365 2 26.975 9 27.065 16 27.155 23 27.255 30 27.305 37 27.375 3 26.985 10 27.075 17 27.165 24 27.235 31 27.315 38 27.385 4 27.005 11 27.085 18 27.175 25 27.245 32 27.325 39 27.395 5 27.015 12 27.105 19 27.185 26 27.265 33 27.335 40 27.405 6 27.025 13 27.115 20 27.205 27 27.275 34 27.345 7 27.035 14 27.125 21 27.125 28 27.285 35 27.355 14 CB Radio ICOM.fm Page 295 Monday, May 11, 2009 2:26 PM 296 CB/ICOM CB Radio / ICOM SystemICOM SystemPress and release ICOM on the left control to activate the intercom sys-tem.When the intercom system is active, ICOM will display on the console screen. VOX Break Setting The intercom is opened and closed using a voice-operated switch (VOX). The volume sensitivity level required to open the inter-com can be adjusted using the VOX sensi-tivity setting.Press and hold ICOM on the upper left control to access the VOX sensitivity set screen. FM ICOM CB19 92.5 14 CB Radio ICOM.fm Page 296 Monday, May 11, 2009 2:26 PM 297 CB/ICOM CB Radio / ICOM System ICOM System VOX Break Setting Push COM or ICOM or (+) or (-) on the console panel to adjust the sensitivity set-ting. Tip: Lower settings require less volume to open the intercom. If wind or ambient vehicle noise trigger the VOX to open, set the VOX sensitivity to a higher level. Press S/E on the left control to exit the screen and return to the main display.“VOX” will display on the console screen whenever the driver or passenger are communicating over the intercom system. COM +/- ICOM VOX 15 100.5 FM VOX CB19 14 CB Radio ICOM.fm Page 297 Monday, May 11, 2009 2:26 PM 298 CB/…

Text truncated - open the document above for the full version.

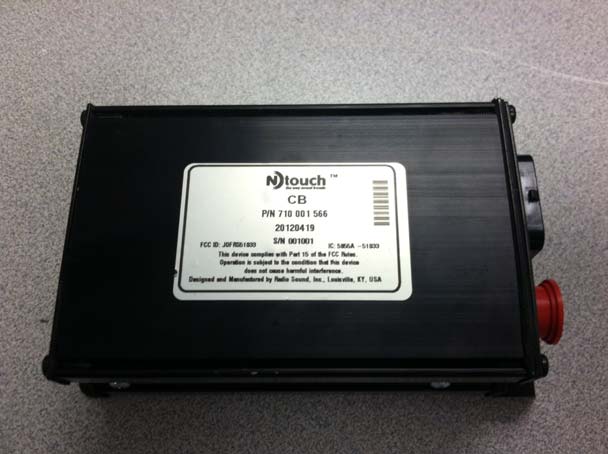

US Tech: 12-0243 Client: Radio Sound Issue Date: 07-02-2012 Model: RS-51033 FCC ID: JOFRS51033 IC ID: 5855A-51033 Page 1 of 2 Annex 3 - External Photographs Figure 1- Top View Figure 2- Side 1 US Tech: 12-0243 Client: Radio Sound Issue Date: 07-02-2012 Model: RS-51033 FCC ID: JOFRS51033 IC ID: 5855A-51033 Page 2 of 2 Figure 3- Side 2 Figure 4- Bottom View

US Tech: 12-0243 Client: Radio Sound Issue Date: 07-02-2012 Model: RS-51033 FCC ID: JOFRS51033 IC ID: 5855A-51033 Page 1 of 7 Annex 2 - Internal Photographs Figure 1- Side 1 US Tech: 12-0243 Client: Radio Sound Issue Date: 07-02-2012 Model: RS-51033 FCC ID: JOFRS51033 IC ID: 5855A-51033 Page 2 of 7 Figure 2- Side 2 US Tech: 12-0243 Client: Radio Sound Issue Date: 07-02-2012 Model: RS-51033 FCC ID: JOFRS51033 IC ID: 5855A-51033 Page 3 of 7 Figure 3- Top view Layer 1 and 2 US Tech: 12-0243 Client: Radio Sound Issue Date: 07-02-2012 Model: RS-51033 FCC ID: JOFRS51033 IC ID: 5855A-51033 Page 4 of 7 Figure 4- Layer 1 Top View US Tech: 12-0243 Client: Radio Sound Issue Date: 07-02-2012 Model: RS-51033 FCC ID: JOFRS51033 IC ID: 5855A-51033 Page 5 of 7 Figure 5- Layer 2 Top View US Tech: 12-0243 Client: Radio Sound Issue Date: 07-02-2012 Model: RS-51033 FCC ID: JOFRS51033 IC ID: 5855A-51033 Page 6 of 7 Figure 6- Layer 2 Bottom View US Tech: 12-0243 Client: Radio Sound Issue Date: 07-02-2012 Model: RS-51033 FCC ID: JOFRS51033 IC ID: 5855A-51033 Page 7 of 7 Figure 7- Layer 1 Bottom View

U.S. Tech Test Report: FCC Part 95 Certification FCC ID: JOFRS51033 IC: 5855A-51033 Report Number: 12-0243 Issue Date: June 27, 2012 Customer: Radio Sound Inc. Model: RS-51033 Page 1 of 1 RF Exposure Requirements (1.1310 & 2.1091) Limits § 1.1310: The criteria listed in Table 1 of this section shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). Maximum Public Exposure to RF (MPE) The maximum exposure level to the public from the RF power of the EUT shall not exceed the following: Occupational/Controlled Exposure, S controlled [mW/cm 2 ] =900/(27 MHz^2)= 1.23 mW/cm 2 = 12.3W/m 2 General population/Uncontrolled Exposure, S uncontrolled [mW/cm 2 ] =180/(27 MHz^2)= 0.25 mW/cm 2 = 2.5 W/m 2 Therefore, for: Gain Antenna= 0 dBi Peak Power (Watts) = 3.98 (from Table 3 of Test Report) Gain of Transmit Antenna = 0 dB i = 1, r controlled = √(PG/ 4πS)= 3.98(1)/4*π*12.3= 0.16 m= 16 cm r uncontrolled = √(PG/ 4πS)= 3.98(1)/4*π*2.5= 0.36 m= 35.6 cm

Page 1 of 30 Application For Title 47 FCC Part 2, Subpart J, and FCC Part 95, Subpart D Certification and ANSI/TIA-603-C-2003, Unbridled CB AM Communications Equipment Measurement and Performance Standards For RADIO SOUND, INC. N-Touch Model RS-51033 27 MHz CB Transceiver FCC ID: JOFRS51033 IC: 5855A-51033 UST Project No: 12-0243 June 27, 2012 3505 Francis Circle Alpharetta, GA 30004 PH: 770-740-0717 Fax: 770-740-1508 www.ustech-lab.com Page 2 of 30 I certify that I am authorized to sign for the Test Agency and that all of the statements in this report and in the Exhibits attached hereto are true and correct to the best of my knowledge and belief: US Tech (Agent Responsible For Test): By: Name: George Yang Title: Laboratory Manager- Test Engineer Date: June 27, 2012 This report shall not be reproduced except in full. This report may be copied in part only with the prior written approval of US Tech. The results contained in this report are subject to the adequacy and representative character of the sample provided. 3505 Francis Circle Alpharetta, GA 30004 PH: 770-740-0717 Fax: 770-740-1508 www.ustech-lab.com Page 3 of 30 MEASUREMENT/TECHNICAL REPORT This report concerns (check one): Original grant X Class II change_____ Equipment type: Transceiver Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? yes_____ No X If yes, defer until:_________________ date N.A. agrees to notify the Commission by N.A. date of the intended date of announcement of the product so that the grant can be issued on that date. Report prepared by: US Tech 3505 Francis Circle Alpharetta, GA 30004 Phone Number: (770) 740-0717 Fax Number: (770) 740-1508 U.S. Tech Test Report: FCC Part 95 Certification FCC ID: JOFRS51033 IC: 5855A-51033 Report Number: 12-0243 Issue Date: June 27, 2012 Customer: Radio Sound Inc. Model: RS-51033 Page 4 of 30 TABLE OF CONTENTS Paragraph Title Page 1 General Information ............................................................................................... 6 1.1 Product Description ........................................................................................... 6 1.2 Related Submittal(s)/Grant(s) ........................................................................... 6 2 Test and Measurements ........................................................................................ 7 2.1 Configuration of Tested System ........................................................................ 7 2.2 Characterization of Tested System ................................................................... 7 2.3 Test Facility ....................................................................................................... 7 2.4 Test Equipment ................................................................................................. 7 2.5 Modifications to Equipment under Test (EUT) .................................................. 7 2.6 Antenna Description ........................................................................................ 13 2.7 CB transmitter power (FCC Section 2.1046, 95.337 and 95.667) ................... 13 2.8 Audio Frequency Response (2.1047(a) & 95.637) .......................................... 15 2.8.1 Audio Frequency Requirements .............................................................................. 15 2.8.2 Audio Frequency Test Results ................................................................................ 15 2.8.3 Modulation Characteristics ...................................................................................... 17 2.9 Occupied Bandwidth (FCC Section 2.1049, 95.635) ....................................... 20 2.10 Unwanted radiation per FCC 95.635 ............................................................... 20 2.11 Spurious Emissions at Antenna Terminals (FCC 2.1051, 2.1057, 90.210) ..... 23 2.11.1 Spurious Emissions Limits .................................................................................. 23 2.12 Field Strength of Spurious Radiation (FCC Section 2.1053, 2.1057, 90.210) . 24 2.13 Frequency Stability (FCC 2.1055, 95.625) ...................................................... 25 2.13.1 Frequency Stability Requirements....................................................................... 25 2.13.2 Frequency Stability Test Data ............................................................................. 25 2.14 RF Exposure Requirements (1.1310 & 2.1091) .............................................. 26 2.14.1 Limits ................................................................................................................... 26 2.14.2 Maximum Public Exposure to RF (MPE) ............................................................. 26 2.15 Emission Designation...................................................................................... 26 2.16 Unintentional Radiator, Radiated Emissions (CFR 15.109 (a)) ....................... 27 2.17 Unintentional Radiator Power Lines Conducted Emissions (CFR 15.107) ...... 29 2.18 Measurement Uncertainty ............................................................................... 30 2.18.1 Conducted Emissions Measurement Uncertainty ................................................ 30 2.18.2 Radiated Emissions Measurement Uncertainty ................................................... 30 U.S. Tech Test Report: FCC Part 95 Certification FCC ID: JOFRS51033 IC: 5855A-51033 Report Number: 12-0243 Issue Date: June 27, 2012 Customer: Radio Sound Inc. Model: RS-51033 Page 5 of 30 List of Figures Figure Title Page Figure 1 - Test Configuration ........................................................................................... 8 Figure 2 - Photograph of Spurious Radiation Test Setup, (Front View) ........................... 9 Figure 3 - Photograph of Spurious Radiation Test Setup, Rear View ............................ 10 Figure 4 - Plot of Low band Output ............................................................................... 14 Fi…

Text truncated - open the document above for the full version.

US Tech: 12-0243 Client: Radio Sound Issue Date: 07-02-2012 Model: RS-51033 FCC ID: JOFRS51033 IC ID: 5855A-51033 Page 1 of 2 Annex 4 – Test Configuration Photographs Figure 1- Front View US Tech: 12-0243 Client: Radio Sound Issue Date: 07-02-2012 Model: RS-51033 FCC ID: JOFRS51033 IC ID: 5855A-51033 Page 2 of 2 Figure 2- Rear View (Below 200 MHz) Figure 3- Rear View (above 200 MHz)
