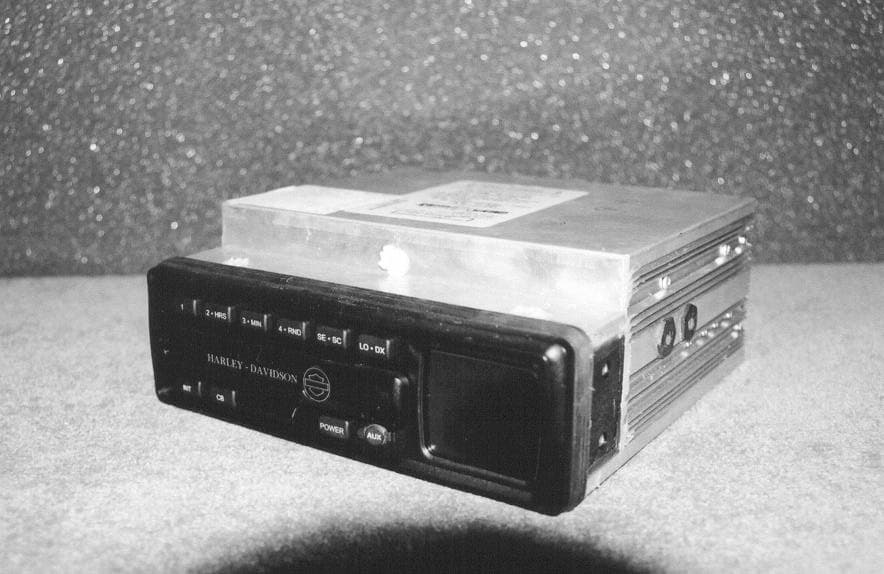

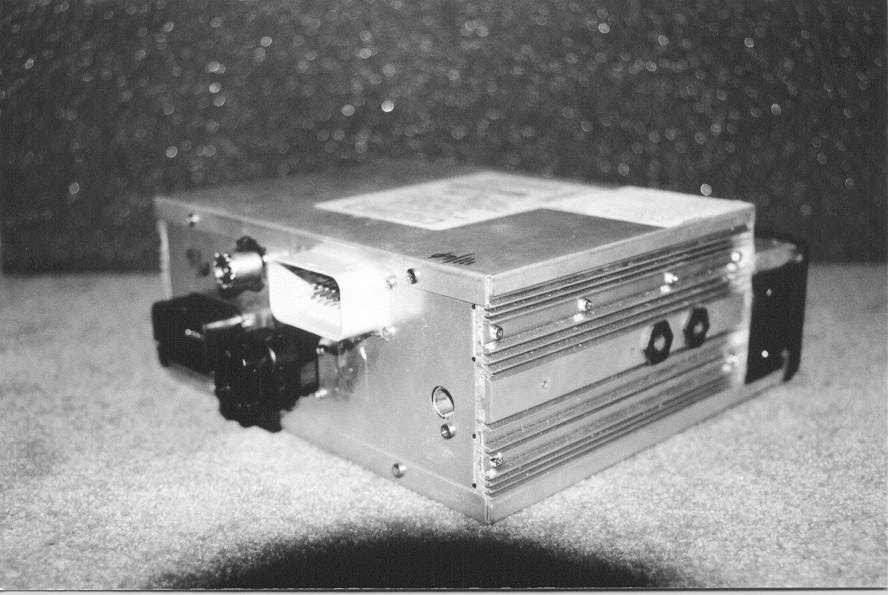

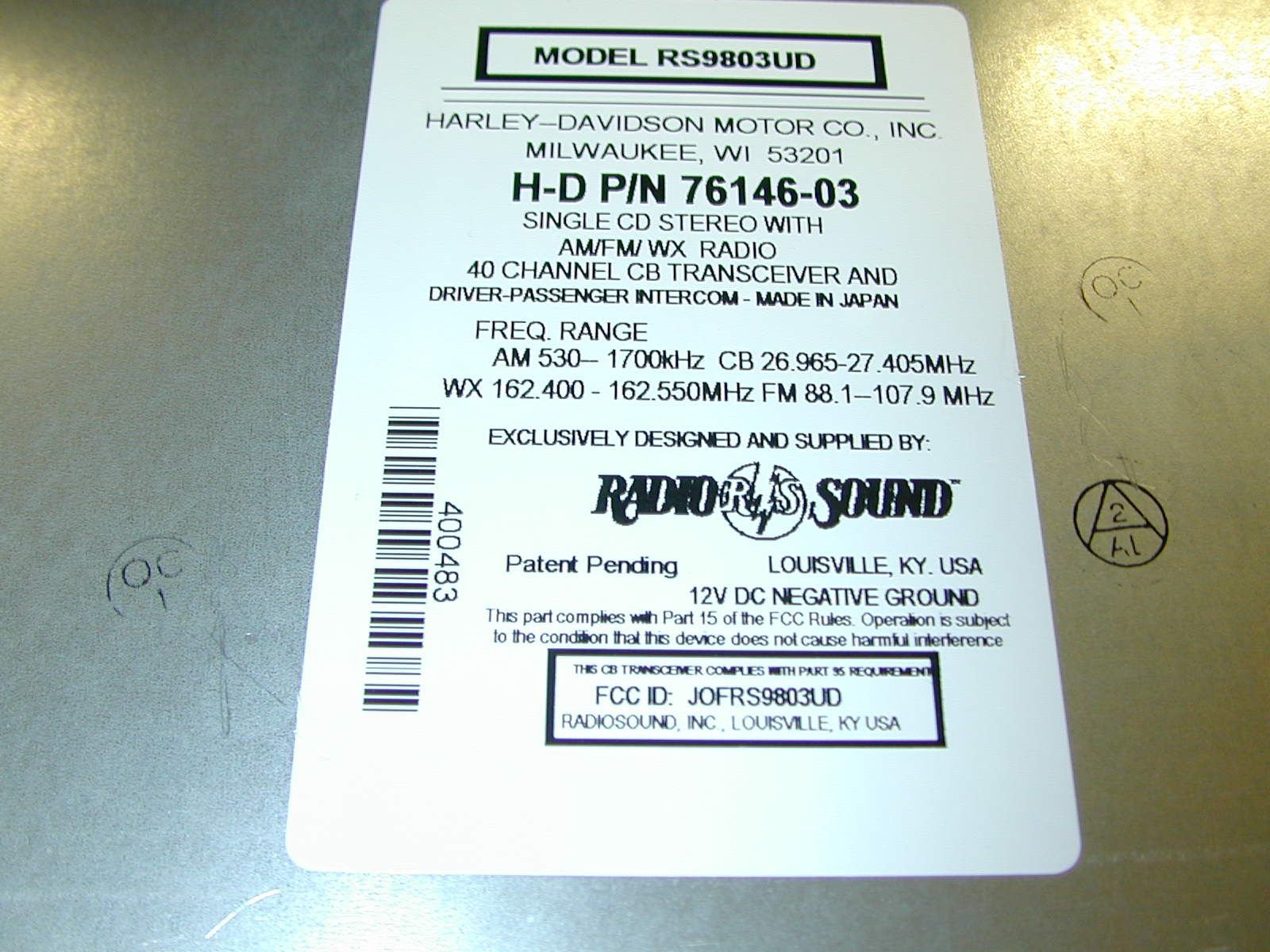

JOFRS9803UDIntegrated Motorcycle 40 Channel AM CB Transceiver

13 14

February 14, 2001 Mr. Eric Weber Radio Sound, Inc. 1713 Cobalt Drive Louisville, KY 40299-2449 Dear Mr. Weber, Enclosed please find the results of testing on January thru February 12, 2002 by Philips Consumer Electronics Company (reference FCC Part 2 and Part 95, April 2, 1996 General rules and Regulations Applicable to the Equipment Authorization Program) on a Citizen Band Transceiver Model # RS9803UD manufactured by Radio Sound, Inc. This measurement report indicates that Radio Sound Model RS9803UD Citizen Band Transceiver complies with FCC Part 2 and Part 95 General Rules and Regulations Applicable to the Equipment Authorization Program. If you have any questions concerning the above, please refer to report number 20221. Sincerely, Richard K. Moyers Richard K. Moyers Business Coordinator - EMI/EMC RKM/rw Enclosure LIST OF EXHIBITS REPORT # 20221 FCC D: JOFRS9803UD 1. Engineering Statement 2. Technical Specifications 3. List of Test Equipment 4. NVLAP Certificate and Scope of Accrediation 5. 2.1046 RF Power Output 6. 2.1047(B) Modulation Characteristics Modulation Verses Frequency 7. 2.1047(B) Modulation Characteristics Modulation Verses Voltage 8. 2.1047 Over Modulation Transient Response 9. 2.1049 Occupied Bandwidth 10. 2.1051 Spurious Emissions at Antenna Terminals 11. 2.1053 Spurious Radiation 12. 2.1055 Frequency Stability 13. 15.111 Antenna Conducted 14. 95.631 Spurious Emissions 15. 95.635 Maximum Transmitter Power 16. 8 x 10Photographs of EUT 17. User Manual and Schematics SECTION 1 ENGINEERING STATEMENT REPORT # 20221 FCC D: JOFRS9803UD Engineering Statement All measurement data on the attached reports was taken pursuant to FCC Rules and Regulations on the Philips Consumer Electronics Company test facility at Knoxville, Tennessee, which is recognized by the FCC. Although this data is taken under stringent laboratory conditions and to the best of our knowledge, represents accurate data, it must be recognized that emissions from this type equipment may be greatly affected by the final installation of the equipment. Therefore, Philips Consumer Electronics Company, while supporting the accuracy of the data in this report, takes no responsibility for use of equipment based on these tests. The manufacturer of this equipment must take full responsibility for any field problems, which may arise, and agrees that Philips Consumer Electronics Company, in performing its functions in accordance with its objectives and purposes, does not assume or undertake to discharge any responsibility of the manufacturer to any other party or parties. This measurement report was compiled and approved by: Richard K. Moyers Business Coordinator EMI/EMC SECTION 2 TECHNICAL SPECIFICATIONS SECTION 3 LIST OF EQUIPMENT TEST EQUIPMENT REPORT # 20221 FCC D: JOFRS9803UD MODEL S/N CAL DATE Regulated DC Power Supply HP8498A 50 Ohm Pad Wavetek 144 Function Generator HP8482A Power Sensor 2652A18534 5-18-01 HP438A Power Meter 2445A01258 5-18-01 Marconi 2305 Modulation Analyzer 169849014 4-24-01 HP8568B Spectrum Analyzer T-29655 3-28-01 HP5386A Frequency Counter 2704A01588 5-18-01 Envirotronics EH510-2-30 Temperature /HumidityTest Chamber 04/961466 5-24-01 Tektronix 2230 Oscilloscope 25795 4-23-01 Fluke 8050A Digital Multimeter 4105077 7-23-01 HP3325A Function Generator 2652A24162 4-23-01 HP8112A Pulse Generator SECTION 4 NVLAP CERTIFICATE AND SCOPE OF ACCREDITATION SECTION 5 2.1046 RF POWER OUTPUT TEST PROCEDURES 2.1046 RF POWER OUTPUT REPORT # 20221 FCC D: JOFRS9803UD The CB antenna output connector was connected to an HP 8498A 30 dB attenuator, which was connected to an HP 438A power meter with an HP 8482A power sensor. The CB was then powered on and channel 1 was selected. The microphone was then keyed and subjected to a tone 1000 Hz using a HP model 3325A Function generator. The (1000 Hz) tone was determined to provide maximum modulation under normal DC power conditions. The carrier power output was measured to determine compliance with the 4 watts carrier power limit. This procedure was then performed on channels 2 - 40. TEST PROCEDURES 2.1046 RF POWER OUTPUT REPORT # 20221 FCC D: JOFRS9803UD Report #: 20221 Radio Sound Power Sensor Function Generator HP 3325A Regulated Power Supply DC RS9803UD Transceiver HP 8498A 50 Ohm Pad HP 8482A 2.1046 RF POWER OUTPUT TEST SET UP DC 13.8 V HP 438A Power Meter FCC PART 2 (2.1046 RF POWER OUTPUT) REPORT # 20221 FCC D: JOFRS9803UD Model Number: RS9803UD Manufacturer: Radio Sound Device: Citizen Band Transceiver (27 MHz) Test Condition: 13.8 VDC, Modulation = 0% CHANNEL POWER (WATTS) CHANNEL POWER (WATTS) 1 3.46 21 3.69 2 3.48 22 3.69 3 3.49 23 3.69 4 3.51 24 3.69 5 3.53 25 3.69 6 3.54 26 3.69 7 3.55 27 3.69 8 3.57 28 3.69 9 3.58 29 3.69 10 3.59 30 3.69 11 3.60 31 3.69 12 3.61 32 3.68 13 3.63 33 3.68 14 3.63 34 3.68 15 3.64 35 3.67 16 3.66 36 3.67 17 3.67 37 3.66 18 3.67 38 3.65 19 3.67 39 3.65 20 3.68 40 3.64 FCC PART 2 (2.1046 POWER OUTPUT) REPORT # 20221 FCC D: JOFRS9803UD Model Number: RS9803UD Manufacturer: Radio Sound Device: Citizen Band Transceiver (27 MHz) Test Condition: 13.8VDC, Modulation = 1000 Hz tone at a level 16 dB greater than that necessary to produce 50% modulation. CHANNEL POWER (WATTS) CHANNEL POWER (WATTS) 1 3.60 21 3.93 2 3.63 22 3.94 3 3.64 23 3.96 4 3.67 24 3.94 5 3.69 25 3.95 6 3.70 26 3.96 7 3.72 27 3.97 8 3.75 28 3.98 9 3.77 29 3.98 10 3.78 30 3.98 11 3.79 31 3.98 12 3.82 32 3.98 13 3.83 33 3.98 14 3.84 34 3.98 15 3.85 35 3.98 16 3.87 36 3.98 17 3.88 37 3.98 18 3.89 38 3.98 19 3.91 39 3.98 20 3.92 40 3.98 SECTION 6 2.1047 (B) MODULATION CHARACTERISTICS MODULATION VS. FREQUENCY TEST PROCEDURES 2.1047(B) MODULATION CHARACTERISTICS MODULATION VS. FREQUENCY REPORT # 20221 FCC D: JOFRS9803UD The CB antenna output connector was connected to an HP 8498A 30 dB attenuator, and was connected to a Marconi 2305 Modulation Analyzer. The CB was then powered on and channel 1 was selected. A HP3325A Function generator was coupled to the microphone input, which was …

Text truncated - open the document above for the full version.

SECTION 10 2.1051 SPURIOUS EMISSIONS AT ANTENNA TERMINALS TEST PROCEDURES 2.1051 SPURIOUS EMISSIONS AT ANTENNA TERMINALS REPORT # 20221 FCC D: JOFRS9803UD This test was performed to show the magnitude of each spurious and harmonic emissions that can be detected when the equipment is operated under the conditions specified in 2.1049. The CB antenna output connector was connected to an HP 8498A 30 dB attenuator, which was connected to an HP 8568B spectrum analyzer. The CB was powered on and channel 1 was selected. The microphone was then keyed under normal operating conditions and the level of the highest spurious or harmonic emission was recorded. This procedure was then performed on channels 19 and 40. Note: In order to measure the harmonic emissions an additional Texscan Tunable Bandpass filter was connected between the HP 8498A 30 dB attenuator and the analyzer in order to eliminate overloading the S.A. front end. 2.1051 SPURIOUS EMISSIONS AT ANTENNA TERMINALS REPORT # 20221 FCC D: JOFRS9803UD Report #: 20221 Radio Sound Spectrum Analyzer Function Generator HP 3325A Regulated Power Supply DC RS9803UD Transceiver HP 8498A 50 Ohm Pad HP 8568B 2.1051 SPURIOUS EMISSIONS TEST SET UP DC 13.8 V 2.1051 SPURIOUS EMISSIONS AT ANTENNA TERMINALS REPORT # 20221 FCC D: JOFRS9803UD Channel 19 = 27.18508 MHz Transmit Level = 141.5 dB1V HARMONIC LEVEL LIMIT 54.37 MHz 73.75 dB1V 82.5 dB1V 81.56 MHz 66.65 dB1V 82.5 dB1V 108.740 MHz >20dB Below Limit 82.5 dB1V 135.930 MHz >20 dB Below Limit 82.5 dB1V 163.110 MHz >20 dB Below Limit 82.5 dB1V 190.300 MHz >20 dB Below Limit 82.5 dB1V 217.480 MHz >20 dB Below Limit 82.5 dB1V 244.670 MHz >20 dB Below Limit 82.5 dB1V 271.850 MHz >20 dB Below Limit 82.5 dB1V 299.040 MHz >20 dB Below Limit 82.5 dB1V 2.1051 SPURIOUS EMISSIONS AT ANTENNA TERMINALS REPORT # 20221 FCC D: JOFRS9803UD Channel 1 = 26.9652 MHz Transmit Level = 141.2 dB1V HARMONIC LEVEL LIMIT 53.93 MHz 70.0 dB1V 82.5 dB1V 80.90 MHz 67.2 dB1V 82.5 dB1V 107.860 MHz 40.5 dB1V 82.5 dB1V 134.830 MHz >20 dB Below Limit 82.5 dB1V 161.790 MHz >20 dB Below Limit 82.5 dB1V 188.760 MHz >20 dB Below Limit 82.5 dB1V 215.720 MHz >20 dB Below Limit 82.5 dB1V 242.690 MHz >20 dB Below Limit 82.5 dB1V 269.650 MHz >20 dB Below Limit 82.5 dB1V 296.620 MHz >20 dB Below Limit 82.5 dB1V 2.1051 SPURIOUS EMISSIONS AT ANTENNA TERMINALS REPORT # 20221 FCC D: JOFRS9803UD Channel 40 = 27.4052 MHz Transmit Level = 141.5 dB1V HARMONIC LEVEL LIMIT 54.81 MHz >20 dB Below Limit 82.5 dB1V 82.22 MHz >20 dB Below Limit 82.5 dB1V 109.620 MHz >20 dB Below Limit 82.5 dB1V 137.030 MHz >20 dB Below Limit 82.5 dB1V 164.430 MHz >20 dB Below Limit 82.5 dB1V 191.840 MHz >20 dB Below Limit 82.5 dB1V 219.240 MHz >20 dB Below Limit 82.5 dB1V 246.650 MHz >20 dB Below Limit 82.5 dB1V 274.650 MHz >20 dB Below Limit 82.5 dB1V 301.460 MHz >20 dB Below Limit 82.5 dB1V SECTION 11 2.1053 SPURIOUS RADIATION 2.1053 SPURIOUS RADIATION REPORT # 20221 FCC D: JOFRS9803UD The EUT was placed in a typical configuration on a wooden table 80cm above a rotate able metal turntable mounted level with the metal ground plane. A receiving Bicon antenna was placed 3 meters away from the EUT on a 4-meter fiberglass mast. The receiving antenna was connected to the 50 O input of the HP8566B spectrum analyzer. The EUT was powered by a 13 VDC supply and was configured into its normal operational mode. The 30 to 40 MHZ band was observed on the spectrum analyzer while the EUT power and control leads were adjusted to maximize emissions. The peak frequencies for this band were recorded. This search for emissions continued from 40 MHZ up to 1000 MHz. The receiving antennas were varied in height from 1 to 4 meters and the remote turntable was rotated 360 degrees to find the maximum emissions. This test was performed for all modes of operation. All significant emissions are reported on the attached data report. To verify that the E.M.I. emissions measured were generated by the E.U.T., the system power was interrupted at peak reading while observing the Spectrum Analyzer. Unless otherwise specified, all Radiated Emissions are recorded as "PEAK" spectrum analyzer readings. The Radiated Field Strength was calculated as follows: Maximum Emission Received (dB) + Antenna Factor (dB) + Cable Loss (dB) = Field Strength dBuv/Meter. 2.1053 SPURIOUS RADIATION REPORT # 20221 FCC D: JOFRS9803UD Report #: 20221 Radio Sound Spectrum Analyzer Function Generator HP 3325A Regulated Power Supply DC RS9803UD Transceiver Dipole Antenna HP 8568B 2.1053 FIELD STRENGTH OF SPURIOUS RADIATION TEST SET UP 50 OHM Load Set 3 Meters

REPORT #:12183-2 MANUFACTURER: MODEL #:RS9803UD DATE:8-21-2001 SUPPORT EQUIPMENT CHANNEL 1 - TRANSMITTING FREQUENCY (MHz) HORIZONTAL dBμV/m VERTICAL dBμV/m H DELTA dBμV V DELTA dBμV LIMIT CLASS "B" 544350.3-39.5-32.282.5 81.148.553.4-34-29.182.5 108ambientambient#VALUE!#VALUE!82.5 134.938.644.2-43.9-38.382.5 161.822.326.9-60.2-55.682.5 188.930.937.6-51.6-44.982.5 215.823.225.2-59.3-57.382.5 24326.526.6-56-55.982.5 269.829.126-53.4-56.582.5 296.825.723.1-56.8-59.482.5 323.733.828.2-48.7-54.382.5 350.831.929.8-50.6-52.782.5 377.740.234.9-42.3-47.682.5 404.538.735.3-43.8-47.282.5 431.740.639-41.9-43.582.5 458.428.330.5-54.2-5282.5 485.73030.5-52.5-5282.5 512.44039.6-42.5-42.982.5 539.63938.6-43.5-43.982.5 566.440.139.4-42.4-43.182.5 593.542.943.9-39.6-38.682.5 620.344.644.5-37.9-3882.5 647.33734.9-45.5-47.682.5 674.240.737.3-41.8-45.282.5 701.340.135.7-42.4-46.882.5 728.236.131.9-46.4-50.682.5 75535.833.6-46.7-48.982.5 782.132.732.1-49.8-50.482.5 LIMIT OdBμV = (RATED POWER OUTPUT OF TRANSMITTER T 10M) - 60dB LIMIT OdBμV = (142.5 dBμV) - 60 dBμV LIMIT OdBμV = 82.5 dBμV PHILIPS CONSUMER ELECTRONICS COMPANY EMI LAB P. O. BOX 14810 VBW: 100KHz KNOXVILLE, TENNESSEE 37914 Tel.: (865) 521-4720 Fax: (865) 521-4786 RADIATED RF LEVEL THE FOLLOWING ARE PEAK READINGS WITH CABLE AND ANTENNA FACTORS INCLUDED EXCEPT AS NOTED BY "QP". 2.1053 FIELD STRENGTH OF SPURIOUS EMISSIONS RADIO SOUND TEST DISTANCE BETWEEN DEVICE UNDER TEST AND RECEIVING ANTENNA WAS 10 METERS. "QP" = QUASI PEAK READING AT THAT FREQUENCY SPECTRUM ANALYZER SETTINGS: RBW: 100KHz REPORT #:12183-2 MANUFACTURER: MODEL #:RS9803UD DATE:8-16-2001 SUPPORT EQUIPMENT CHANNEL 19 - TRANSMITTING FREQUENCY (MHz) HORIZONTAL dBμV/m VERTICAL dBμV/m H DELTA dBμV V DELTA dBμV LIMIT CLASS "B" 54.443.850.9-38.7-31.682.5 81.647.556.8-35-25.782.5 108.824.738.7-57.8-43.882.5 135.941.245.9-41.3-36.682.5 163.12424.4-58.5-58.182.5 190.437.936.5-44.6-4682.5 21822.125-60.4-57.582.5 244.923.525.3-59-57.282.5 272.917.220.6-65.3-61.982.5 299.233.314.8-49.2-67.782.5 326.322.723.7-59.8-58.882.5 353.425.521.6-57-60.982.5 380.834.731.1-47.8-51.482.5 407.92824.3-54.5-58.282.5 435.239.324.9-43.2-57.682.5 462.928.737.4-53.8-45.182.5 489.628.928.1-53.6-54.482.5 516.742.337-40.2-45.582.5 54441.737.4-40.8-45.182.5 571.241.341.4-41.2-41.182.5 598.446.743.5-35.8-3982.5 625.343.943.8-38.6-38.782.5 652.536.636.9-45.9-45.682.5 679.739.639.2-42.9-43.382.5 706.839.336.2-43.2-46.382.5 73435.932.6-46.6-49.982.5 761.244.730.6-37.8-51.982.5 788.540.128.2-42.4-54.382.5 815.728.326.9-54.2-55.682.5 8432828-54.5-54.582.5 LIMIT OdBμV = (142.5 dBμV) - 60 dBμV LIMIT OdBμV = 82.5 dBμV TEST DISTANCE BETWEEN DEVICE UNDER TEST AND RECEIVING ANTENNA WAS 10 METERS. PHILIPS CONSUMER ELECTRONICS COMPANY EMI LAB P. O. BOX 14810 LIMIT OdBμV = (RATED POWER OUTPUT OF TRANSMITTER T 10M) - 60dB VBW: 100KHz KNOXVILLE, TENNESSEE 37914 Tel.: (865) 521-4720 Fax: (865) 521-4786 "QP" = QUASI PEAK READING AT THAT FREQUENCY SPECTRUM ANALYZER SETTINGS: RBW: 100KHz RADIATED RF LEVEL THE FOLLOWING ARE PEAK READINGS WITH CABLE AND ANTENNA FACTORS INCLUDED EXCEPT AS NOTED BY "QP". 2.1053 FIELD STRENGTH OF SPURIOUS EMISSIONS RADIO SOUND REPORT #:12183.-2 MANUFACTURER: MODEL #:RS9803UD DATE:8-21-2001 SUPPORT EQUIPMENT CHANNEL 40 - TRANSMITTING FREQUENCY (MHz) HORIZONTAL dBμV/m VERTICAL dBμV/m H DELTA dBμV V DELTA dBμV LIMIT CLASS "B" 54.844.254.5-38.3-2882.5 82.247.354-35.2-28.582.5 109.620.233.8-62.3-48.782.5 137.24439.2-38.5-43.382.5 164.424.331.3-58.2-51.282.5 191.924.425.8-58.1-56.782.5 219.422.221.5-60.3-6182.5 246.823.725.5-58.8-5782.5 274.126.223.2-56.3-59.382.5 301.620.525.5-62-5782.5 328.930.625.6-51.9-56.982.5 356.42928.8-53.5-53.782.5 383.831.234.3-51.3-48.282.5 4111.135.137-47.4-45.582.5 438.733.338.4-49.2-44.182.5 46618.628.7-63.9-53.882.5 493.722.829.8-59.7-52.782.5 520.843.142-39.4-40.582.5 548.442.337.7-40.2-44.882.5 575.939.640.4-42.9-42.182.5 602.949.843.4-32.7-39.182.5 630.339.937.9-42.6-44.682.5 357.845.641.5-36.9-4182.5 685.141.538.2-41-44.382.5 712.539.135.1-43.4-47.482.5 74039.233.2-43.3-49.382.5 767.530.629.8-51.9-52.782.5 794.727.926.8-54.6-55.782.5 822.427.826.6-54.7-55.982.5 LIMIT OdBμV = (RATED POWER OUTPUT OF TRANSMITTER T 10M) - 60dB LIMIT OdBμV = (142.5 dBμV) - 60 dBμV LIMIT OdBμV = 82.5 dBμV PHILIPS CONSUMER ELECTRONICS COMPANY EMI LAB P. O. BOX 14810 VBW: 100KHz KNOXVILLE, TENNESSEE 37914 Tel.: (865) 521-4720 Fax: (865) 521-4786 RADIATED RF LEVEL THE FOLLOWING ARE PEAK READINGS WITH CABLE AND ANTENNA FACTORS INCLUDED EXCEPT AS NOTED BY "QP". 21053 FIELD STRENGTH OF SPURIOUS EMISSIONS RADIO SOUND TEST DISTANCE BETWEEN DEVICE UNDER TEST AND RECEIVING ANTENNA WAS 10 METERS. "QP" = QUASI PEAK READING AT THAT FREQUENCY SPECTRUM ANALYZER SETTINGS: RBW: 100KHz SECTION 12 2.1055 FREQUENCY STABILITY TEST PROCEDURES 2.1055 FREQUENCY STABILITY REPORT # 20221 FCC D: JOFRS9803UD The CB antenna output connector was connected to an HP 8498A 30 dB attenuator, which was connected to an HP 5386A frequency counter. The CB was then powered on and channel 1 was selected. The microphone was then keyed under normal operating conditions and the frequency was then measured to determine compliance with the .005% frequency tolerance. This procedure was then performed on channel 2 - 40. The procedure was repeated while varying the temperature from -30 deg. C to +50 deg. C. 2.1055 FREQUENCY STABILITY REPORT # 20221 FCC D: JOFRS9803UD Report #: 20221 Radio Sound Frequency Counter Regulated Power Supply DC RS9803UD Transceiver HP 8498A 50 Ohm Pad HP 5386A 2.1055 FREQUENCY STABILITY TEST SET UP EnvirontronicsEH510-2-30 Temp/Humidity Test Chamber FCC PART 2 (2.1055 FREQUENCY STABILITY) REPORT # 20221 FCC D: JOFRS9803UD Model Number: RS9803UD Manufacturer: Radio Sound Device: Citizen Band Transceiver (27 MHz) Test Condition: Transceiver Operating at -300C CHANNEL FREQUENCY (MHz) CHANNEL FREQUENCY (MHz) 1 26.9645 21 27.2145 2 26.9745 22 27.2245 3 26.9845 23 27.2545 4 27.0045 24 27.2345 5 27.0145 25 27.2445 6 27.0245 26 27.264…

Text truncated - open the document above for the full version.
