K5B-CB500Wireless CAN Bridge

Technical Manual Wireless CAN Bridge 500 (CB-500) Matric Technical Manual 185-XXXX, V1 Page 1 of 11 Description: The Wireless CAN Bridge functions as a wireless link that transfers CAN messages. Using the Wireless CAN Bridge, nodes on either side of a wireless link can communicate at a typical separation of 500 feet. A full 64 node DeviceNet* can be implemented depending on scan rates and frame density. Since actual CAN messages are transferred, the Wireless CAN Bridge supports any type of CAN bus standard including CAN Open and CAN Kingdom. CAN BRIDGE SCANNER NODE MOTOR CONTROL NODE SENSOR NODE Virtual Trunk Line TerminatorTap Trunk Line Trunk Line (extended by CAN Bridge) I/O BLOCK NODE CAN BRIDGE Technical Manual Wireless CAN Bridge 500 (CB-500) Matric Technical Manual 185-XXXX, V1 Page 2 of 11 SPECIFICATIONS: Functional 1200 frames per second transfer rate (max) Supports any CAN Bus or DeviceNet* (Bosch CAN 2.0b) Five pin male micro connector 16 bit CPU CPU watchdog Radio Typical range of 50 feet 2.4 – 2.4835 GHz with 16 channels FSK modulation Output power, .003 mW Single heterodyne conversion Radio complies with FCC Part 15B, no user license required Configuration Options Configuration via internal dip switches Radio link master or slave Standard versus extended CAN frame formats Host Interface baud rate (125K, 250K, 500K) Channel (1-16) Radio retry level Power Source 7-30VDC, 200 mA at 24VDC +/- 5% Status Indicators Signal strength Bus loading Data Loss Cause Power Physical Size: 3 1/8 X 3 X 6 5/16 Inches Weight: 1 Lb DIN rail or panel mount Sealed enclosure Operational temperature 0°C to 70°C Storage temperature -40ºC to 85ºC Technical Manual Wireless CAN Bridge 500 (CB-500) Matric Technical Manual 185-XXXX, V1 Page 3 of 11 APPLICATION: The Wireless CAN Bridge provides a frame transfer rate of 1200 CAN frames per second (fps) which is roughly equivalent to a fully loaded 125k baud system. The effectiveness of the CAN Bridge in any particular application depends on network loading (including bursts). The loading on a CAN based network is effected by a number of factors including: polling rate of the network scanner, node count, and change-of-state activity. According to ODVA, 30% loading is recommended for DeviceNet systems employing change-of-state devices and 80% loading is recommended for polled DeviceNet systems. Heavily loaded systems increase the probability that CAN messages will be discarded due to RF bandwidth limitations. The transfer rate of 1200 fps is based on a typical scenario of 500 feet separation without significant RF obstacles. The actual transfer rate in any application is dependent upon the quality of the RF link. Structural components such as steel walls or decking, earth tunnels, and metal equipment can effect the quality of the RF link. Also, radiation sources such as other radio systems, high power switching, and magnetic fields can effect the quality of the RF link. A site assessment should be performed at any site where a new RF control is to be installed. The Wireless CAN Bridge provides a point-to-point data transfer in order to achieve the required throughput over the wireless link. A system requiring multiple wireless links can accomplish this using multiple pairs of the Wireless CAN Bridge. Up to three CAN Bridge pairs can be operated in close proximity in most situations. To operate in close proximity, use channels with the widest possible separation (channels 0, 7, and 14). System integrators must be aware of potential Near / Far problems and the complexity related to operating DSSS radios in such installations. Also, the number of radio pairs that can be operated in proximity is dependent upon the actual distances between radios. Refer to the installation section for details regarding radio issues, site assessment, and optimal antenna placement. The rate at which CAN frames are received and transmitted by the Wireless CAN Bridge falls within the timing constraints of Bosch CAN Standard 2.0b. While meeting network requirements for data link and higher levels of communication, the time required for retransmission may still have an effect on the overall timing of a control system. Technical Manual Wireless CAN Bridge 500 (CB-500) Matric Technical Manual 185-XXXX, V1 Page 4 of 11 S1 1 2 3 4 RADIO BOARD LED CONNECTOR 6 5 S2 OFF ON 1 2 3 4 6 5 OFF ON CONFIGURATION: Configuration of the Wireless CAN Bridge is accomplished by manually setting switches inside its enclosure. The CAN Bridge enclosure lid must be removed to access the configuration switches. Users may only perform the configuration described in this manual. Changing other switch or trimmer settings may invalidate agency approvals. To access configuration switches, first, use a flat screwdriver to pry off the two decorative covers at the right and left ends of the lid. Four pry slots are provided as shown below. Then unscrew the four screws that attach the lid to the chassis of the Wireless CAN Bridge using a philips or a flat screwdriver. The Wireless CAN Bridge has 12 configuration switches arranged in 3 banks S1, S2, and S3. Each bank, contains 4 switches. These switches allow the user to easily customize the Wireless CAN Bridge to fit the desired application. POWER BUFFER OVERRUN RETRY EXHAUSTED HEAVY MODERATE NORMAL LIGHT LOADINGDATA LOSS CAUSE STRONG POOR WEAK SIGNAL WIRELESS CAN BRIDGE Technical Manual Wireless CAN Bridge 500 (CB-500) Matric Technical Manual 185-XXXX, V1 Page 5 of 11 IMPORTANT: Employ ESD precautions to avoid static discharge when touching the CAN Bridge circuit board. ESD can cause damage leading to catastrophic or intermittent product failure modes. The following paragraphs describe each switch setting in more detail. The format Sb:s, where b is the bank number and s is the switch number within that bank, will be used. The “as shipped” settings are shown with an asterisk “*”. The CB-500 must be reset (power cycled) before switch settings take effect. Switch S1:1 Sel…

Text truncated - open the document above for the full version.

Response to ATCB Comments FCC ID: KB5-CB500 1 Washington Laboratories, Ltd. 7560 LINDBERGH DRIVE GAITHERSBURG, MD 20879 (301) 417 – 0220 FAX # (301) 417 - 9069 November 8, 2005 Mr. Timothy Johnson American Telecommunications Certification Body Inc. 6731 Whittier Ave McLean, VA 22101 RE: Comments of November 2, 2005 APPLICATION: KB5-CB500 Matric Limited Dear Mr. Johnson: Below are the comments that you have provided regarding the application for certification referenced above. Our responses to those comments are in bold italic. Many responses refer you to additional exhibit(s) which has been uploaded to the application folder at the ATCB website. Thank you for your attention. Please feel free to contact us for any additional information that you may require. Regards, Gregory M. Snyder Chief EMC Engineer, Wireless/Telco Services Manager Brian J. Dettling Documentation Specialist WLL Project: 8862 1) The revised block diagram provided appears appropriate, however it is missing frequencies of all oscillators in the portion of the device being Certified as required by 2.1033(b)(5). Please update. R. The block diagram has been updated to include the frequencies. 2) Information in the Operational description appears to incorrectly list the frequency range of 2405 – 2475 MHz (vs 2480 MHz). Additionally the information states 5 GHz steps instead of 5 MHz. It is recommended to have this information corrected. R. The operational description has been revised to correct these errors. 3) Test photos still appear to support a lab power supply. Have these been updated? Response to ATCB Comments FCC ID: KB5-CB500 2 R. The test setup photographs exhibit has been updated. 4) Users manual appears to still be missing RF exposure information (i.e. 20 cm and non-colocation statements). Please update. R. This information has been added to the User’s Manual in the “Approvals” section. 5) Regarding IC labeling, the sample labeling information does not appear to include the manufacturer as specified by RSS-GEN 5.2. Additionally the model listed does not appear to match the information provided on the IC form. Please correct. R. The label has been revised. 6) If a transmitter device uses detachable antennas, the users manual should contain the information specified by RSS-GEN 7.1.4, issue 1? Please update. R. The required information on the antenna has been added to the User’s Manual. 7) For IC RX emissions (radiated and conducted) should be provided or reported. Please provide. R. The data recorded in the test report also covers the emissions for the receiver as the receiver was active during the testing. Additionally, the unit was scanned from 30MHz to 25GHz and not just in the restricted bands.

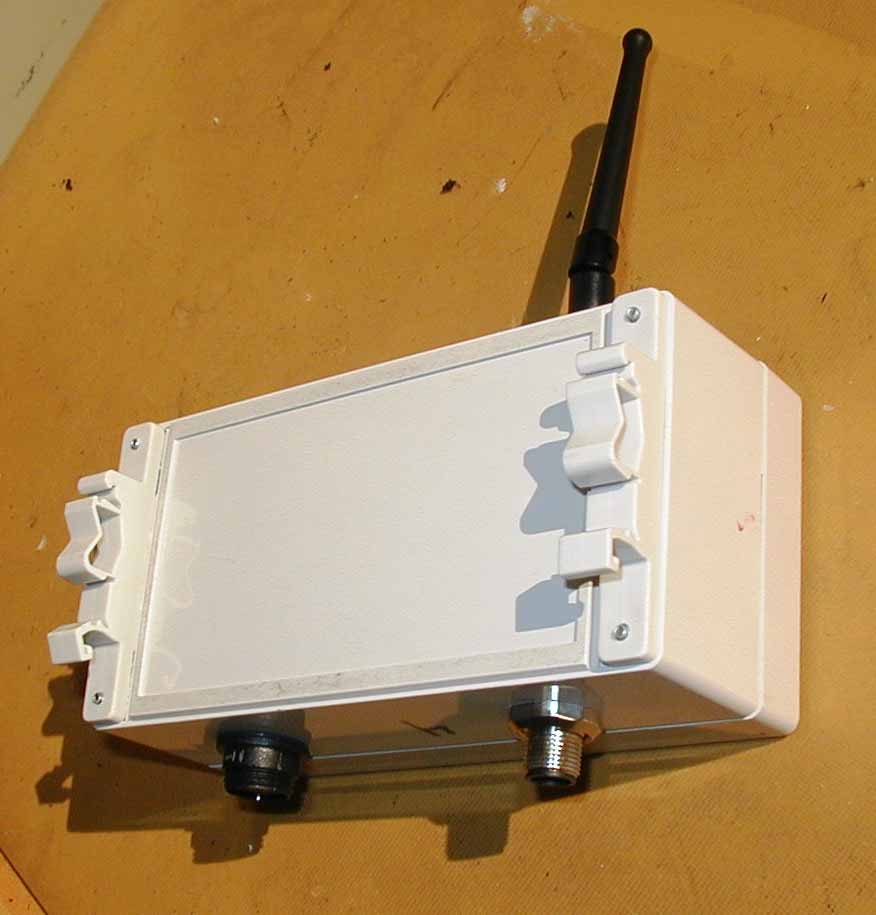

External Photos

FCC Label & Placement

Internal Photos Radio Board Processor Board Power Supply Board

Document 8862-MPE FCC ID: K5B-CB500 IC: 3926A-CB500 RF Exposure Test Report Washington Laboratories, Ltd September 2005 Maximum Permissible Exposure Evaluation for Matric Limited CAN Bridge 500 FCC ID: K5B-CB500 IC: 3926A-CB500 September 27, 2005 WLL PROJECT #: 8862X This report may not be reproduced, except in full, without the prior written consent of Washington Laboratories, Ltd. RF Exposure Evaluation Document 8862-MPE FCC ID: K5B-CB500 IC: 3926A-CB500 RF Exposure Test Report Washington Laboratories, Ltd September 2005 1 Maximum Permissible Exposure Evaluation for FCC ID: K5B-CB500 IC: 3926A-CB500 1.0 Introduction This report has been prepared on behalf of Matric Limited Model: CAN Bridge 500 to show compliance with the RF exposure requirements as defined in FCC §1.1307. 1.1 Requirements Three different categories of transmitters are defined by the FCC in OET Bulletin 65. These categories are fixed installation, mobile, and portable and are defined as follows: ƒ Fixed Installations: fixed location means that the device, including its antenna, is physically secured at a permanent location and is not able to be easily moved to another location. Additionally, distance to humans from the antenna is maintained to at least 2 meters. ƒ Mobile Devices: a mobile device is defined as a transmitting device designed to be used in other than fixed locations and to be generally used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter's radiating structures and the body of the user or nearby persons. Transmitters designed to be used by consumers or workers that can be easily re-located, such as a wireless modem operating in a laptop computer, are considered mobile devices if they meet the 20 centimeter separation requirement. The FCC rules for evaluating mobile devices for RF compliance are found in 47 CFR §2.1091. ƒ Portable Devices: a portable device is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. Portable device requirements are found in Section 2.1093 of the FCC's Rules (47 CFR§2.1093). For this test report the Matric Limited CAN Bridge 500 with 0dBd whip antenna is classified as a “Mobile Device” and the MPE will be evaluated at the 20cm test distance. Document 8862-MPE FCC ID: K5B-CB500 IC: 3926A-CB500 RF Exposure Test Report Washington Laboratories, Ltd September 2005 2 The FCC also categorizes the use of the device as based upon the user’s awareness and ability to exercise control over his or her exposure. The two categories defined are Occupational/ Controlled Exposure and General Population/Uncontrolled Exposure. These two categories are defined as follows: ƒ Occupational/Controlled Exposure: In general, occupational/controlled exposure limits are applicable to situations in which persons are exposed as a consequence of their employment, who have been made fully aware of the potential for exposure and can exercise control over their exposure. This exposure category is also applicable when the exposure is of a transient nature due to incidental passage through a location where the exposure levels may be higher than the general population/uncontrolled limits, but the exposed person is fully aware of the potential for exposure and can exercise control over his or her exposure by leaving the area or by some other appropriate means. Awareness of the potential for RF exposure in a workplace or similar environment can be provided through specific training as part of a RF safety program. If appropriate, warning signs and labels can also be used to establish such awareness by providing prominent information on the risk of potential exposure and instructions on methods to minimize such exposure risks. ƒ General Population/Uncontrolled Exposure: The general population / uncontrolled exposure limits are applicable to situations in which the general public may be exposed or in which persons who are exposed as a consequence of their employment may not be made fully aware of the potential for exposure or cannot exercise control over their exposure. Members of the general public would come under this category when exposure is not employment-related; for example, in the case of a wireless transmitter that exposes persons in its vicinity. Warning labels placed on low-power consumer devices such as cellular telephones are not considered sufficient to allow the device to be considered under the occupational/controlled category, and the general population/uncontrolled exposure limits apply to these devices. Since there are no warnings or training associated with this unit and it can be used by anyone, the Matric Limited CAN Bridge 500 is evaluated to the General Population/Uncontrolled Exposure limits. 1.2 Radio Frequency Radiation Exposure Evaluation The highest RF output power of the unit was measured at -7 dBm at 2405 MHz. According to §1.1310 of the FCC rules, the power density limit for General Population/Uncontrolled Exposure at 2405MHz is 1mW/cm 2 . As this is a mobile device the MPE shall be calculated at 20cm to show compliance with the power density limit. The following formula was used to calculate the minimum safe distance: Document 8862-MPE FCC ID: K5B-CB500 IC: 3926A-CB500 RF Exposure Test Report Washington Laboratories, Ltd September 2005 3 2 4R PG S π = Where: S = Power Density P = Output Power at the Antenna Terminals G = Gain of Transmit Antenna (linear gain) R = Distance from Transmitting Antenna For this device, the calculation is as follows: R = 20cm P = Output Power = 0.2 mW G = Worst Case Gain = 2.15dBi = INVLOG(2.15/10) = 1.64 )20( 4 )64.1()2.0( 2 ×× × = π S = 0.000065 mW/cm 2 (Based on continuous transmission) Based on continuous operation at 100% on time the CAN Bridge 500 is compliant with the Power Density limit at 20cm.

FCC & Industry Canada Certification Test Report For the Matric Limited CAN Bridge 500 K5B-CB500 3926A-CB500 WLL JOB# 8862/3 September 2005 Prepared for: Matric Limited 2099 Hill City Road Seneca, PA 16346 Prepared By: Washington Laboratories, Ltd. 7560 Lindbergh Drive Gaithersburg, Maryland 20879 Matric Limited CAN Bridge 500 FCC Certification Test Report September 2005 FCC & Industry Canada Certification Test Report for the Matric Limited CAN Bridge 500 FCC ID: K5B-CB500 IC ID: 3926A-CB500 September 2005 WLL JOB# 8862/3 Prepared by: Brian J. Dettling Documentation Specialist Reviewed by: Gregory M. Snyder Chief EMC Engineer Matric Limited CAN Bridge 500 FCC Certification Test Report September 2005 WLL Report #8862/3-01 - ii - © 2005 Washington Laboratories, Ltd. Abstract This report has been prepared on behalf of Matric Limited to support the attached Application for Equipment Authorization. The test report and application are submitted for a Digitally Modulated Transmitter under Part 15.247 of the FCC Rules and Regulations and Spectrum Management and Telecommunications Policy RSS-210 of Industry Canada.. This Certification Test Report documents the test configuration and test results for a Matric Limited CAN Bridge 500. Testing was performed on an Open Area Test Site (OATS) of Washington Laboratories, Ltd, 7560 Lindbergh Drive, Gaithersburg, MD 20879. Site description and site attenuation data have been placed on file with the FCC's Sampling and Measurements Branch at the FCC laboratory in Columbia, MD. The Industry Canada OATS numbers are 3035A-1 and 3035A-2 for Washington Laboratories, Ltd. Site 1 and Site 2, respectively. Washington Laboratories, Ltd. has been accepted by the FCC and approved by NIST NVLAP (NVLAP Lab Code: 200066-0) as an independent FCC test laboratory. The Matric Limited CAN Bridge 500 complies with the limits for a Digitally Modulated Transmitter device under FCC Part 15.247 and Industry Canada RSS-210. Matric Limited CAN Bridge 500 FCC Certification Test Report September 2005 WLL Report #8862/3-01 - iii - © 2005 Washington Laboratories, Ltd. Table of Contents Abstract ........................................................................................................................................... ii 1 Introduction..........................................................................................................................1 1.1 Compliance Statement .....................................................................................................1 1.2 Test Scope ........................................................................................................................1 1.3 Contract Information........................................................................................................1 1.4 Test Dates ........................................................................................................................1 1.5 Test and Support Personnel .............................................................................................1 2 Equipment Under Test .........................................................................................................2 2.1 EUT Identification & Description ...................................................................................2 2.2 Test Configuration ...........................................................................................................2 2.3 Testing Algorithm............................................................................................................2 2.4 Test Location ...................................................................................................................2 2.5 Measurements ..................................................................................................................3 2.5.1 References....................................................................................................................3 2.6 Measurement Uncertainty................................................................................................3 3 Test Equipment ....................................................................................................................4 4 Test Results ..........................................................................................................................5 4.1 RF Power Output: (FCC Part §2.1046/RSS-210) ............................................................5 4.2 Power Spectral Density (FCC Part 15.247/RSS-210) .....................................................8 4.3 Occupied Bandwidth: (FCC Part §2.1049/IC RSS-210) ...............................................11 4.4 Conducted Spurious Emissions at Antenna Terminals (FCC Part §2.1051/IC RSS-210)15 4.5 Radiated Spurious Emissions: (FCC Part §2.1053/RSS-210) .......................................36 4.5.1 Test Procedure.........................................................................................................36 4.6 AC Powerline Conducted Emissions: (FCC Part §15.207/RSS-210 Section 9)............45 List of Tables Table 1. Device Summary............................................................................................................... 2 Table 2: Test Equipment List.......................................................................................................... 4 Table 3. RF Power Output .............................................................................................................. 5 Table 4. Occupied Bandwidth Results.......................................................................................... 15 Table 5: Radiated Emission Test Data, Low Frequency Data (<1GHz) ...................................... 37 Table 6: Radiated Emission Test Data, High Frequency Data (>1GHz)...................................... 39 Table 7: AC Powerline Conducted Emissions............................................................................…

Text truncated - open the document above for the full version.

Addendum FCC & Industry Canada Certification Test Report for the Matric Limited CAN Bridge 500 FCC ID: K5B-CB500 IC: 3926A-CB500 October 28, 2005 Data included: 1) 6dB bandwidth plots 2) Radiated band edge data 3) Conducted emissions data (AC Mains) 1.0 Bandwidth (6dB) Data The following plots are the 6dB bandwidth plots with the device operating at the maximum 500kb/s. Figure 1: Low Channel 6dB Bandwidth at 500kb/s Figure 2: Mid Channel 6dB Bandwidth at 500kb/s Figure 3: High Channel 6dB Bandwidth at 500kb/s Frequency Bandwidth Limit (Minimum) Pass/Fail Low Channel 2405MHz 720kHz 500kHz Pass Mid Channel 2440MHz 673kHz 500kHz Pass High Channel 2480MHz 707kHz 500kHz Pass 2.0 Band Edge Radiated The following table contains the worse case (unit flat, antenna vertical) radiated band edge emissions while the device was transmitting at the high channel (2480MHz) and at the highest data rate of 500kb/s. Table 1: Radiated Band Edge Data CLIENT: Matric Limited DATE: 10/28/2005 TESTER: James Ritter JOB #: 8862 EUT Information: Test Requirements: EUT: Can Bridge 500 TEST STANDARD: FCC Part 15 CONFIGURATION: Transmitting at 2480 MHz DISTANCE: 3m CLASS: B NOTE: unit pulsed at 500usec = averaging done at 3kHz RBW Test Equipment/Limit: ANTENNA: A_00004 LIMIT: LFCC_3m_Class_B CABLE: CSITE2_HF AMPLIFIER (dB) A_00066 Frequency Polarity Az Ant. Hght SA Level Ant. Corr. Cable Corr. Amp Gain Corr. Level Corr. Level Limit Margin (MHz) H/V Deg (m) dBμV dB/m dB dB dBμV/m μV/m μV/m dB Unit Flat PEAK 2483.50 H 180.0 1.0 57.2 29.1 1.5 35.6 52.3 410.9 5000.0 -21.7 2483.50 V 270.0 1.0 58.2 29.1 1.5 35.6 53.3 460.0 5000.0 -20.7 AVG 2483.50 H 180.0 1.0 48.8 29.1 1.5 35.6 43.9 156.6 500.0 -10.1 2483.50 V 270.0 1.0 52.6 29.1 1.5 35.6 47.7 241.4 500.0 -6.3 3.0 Conducted Emissions, AC Mains The EUT was powered via an off-the-shelf 120Vac to 12Vdc wall transformer adapter and the conducted emissions were measured in accordance with §15.207. Following is the data for the conducted emissions. Table 2: AC Mains Conducted Emissions Data CLIENT: Matric Limited DATE: 10/28/2005 TESTER: James Ritter JOB #: 8862 EUT: Can Bridge 500 Power Supply: Ascend Model WP572012 DG TEST STANDARD: FCC_B LISN 1: A_00126 TEST SITE: CSITE2_CE VOLTAGE: 120VAC LISN 2: A_00125 LINE 1 - NEUTRAL (LISN 1) Frequency Level Cable LISN Corr Limit Margin Level Corr Limit Margin QP Loss Corr Level QP QP AVG Level AVG AVG MHz dBuV dB dB dBuV dBuV dB dBuV dBuV dBuV dB 0.157 50.1 10.1 1.4 61.6 65.6 -4.1 14.2 25.7 55.6 -29.9 0.173 49.3 10.1 1.2 60.6 64.8 -4.2 11.7 23.0 54.8 -31.8 0.224 46.6 10.2 0.8 57.6 62.7 -5.1 5.9 16.9 52.7 -35.8 0.774 23.3 10.4 0.5 34.2 56.0 -21.8 7.8 18.7 46.0 -27.3 1.824 25.7 10.5 0.3 36.5 56.0 -19.5 2.3 13.1 46.0 -32.9 3.335 14.1 10.5 0.4 25.0 56.0 -31.0 14.1 25.0 46.0 -21.0 3.871 10.8 10.5 0.4 21.7 56.0 -34.3 10.8 21.7 46.0 -24.3 7.169 11.9 11.2 0.4 23.5 60.0 -36.5 11.9 23.5 50.0 -26.5 LINE 2 - PHASE (LISN 2) Frequency Level Cable LISN Corr Limit Margin Level Corr Limit Margin QP Loss Corr Level QP QP AVG Level AVG AVG MHz dBuV dB dB dBuV dBuV dB dBuV dBuV dBuV dB 0.157 50.0 10.1 1.8 62.0 65.6 -3.6 15.2 27.1 55.6 -28.5 0.173 49.5 10.1 1.6 61.3 64.8 -3.5 14.0 25.7 54.8 -29.1 0.224 45.2 10.2 1.2 56.6 62.7 -6.1 7.6 19.0 52.7 -33.7 0.774 27.9 10.4 0.5 38.9 56.0 -17.1 3.8 14.8 46.0 -31.2 1.824 13.8 10.5 0.3 24.6 56.0 -31.4 1.7 12.5 46.0 -33.5 3.335 10.4 10.5 0.4 21.3 56.0 -34.7 10.4 21.3 46.0 -24.7 3.871 8.7 10.5 0.4 19.6 56.0 -36.4 8.7 19.6 46.0 -26.4 7.169 7.9 11.2 0.5 19.6 60.0 -40.4 7.9 19.6 50.0 -30.4
