K5B-TP105Industrial Remote Control

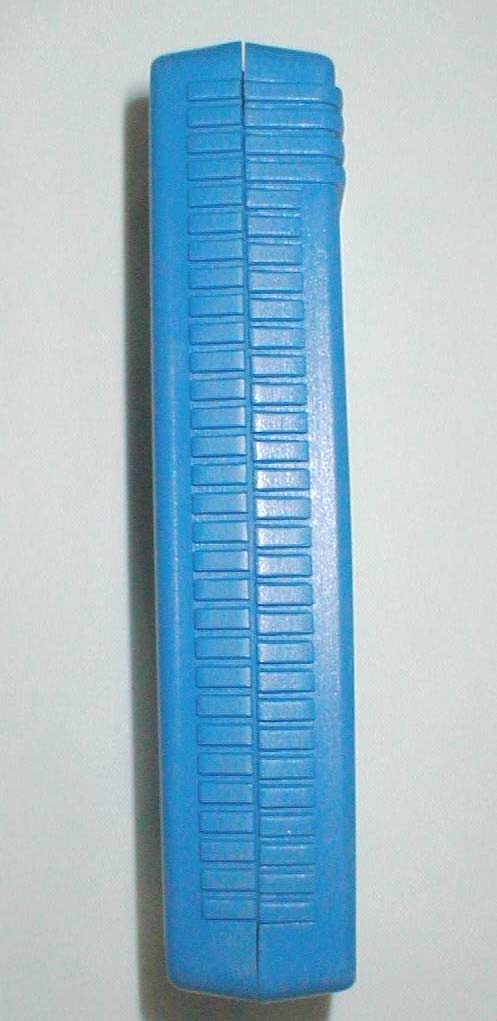

Page 1 TriggerPad TP -100/105 DESCRIPTION:_____________________________ Rugged wireless remote control is within reach. Ma- tric’s TriggerPad family of handheld transmitters are ideal for many ma- terial handling and process control ap- plications such as jib cranes, sifting grates, slurry barges, and belt controls. TriggerPad handhelds are pocket sized operator control stations that provide long switch life, one hand operation, and extended battery life. With a typical range of 300 feet and a rugged molded enclosure, the TriggerPad is right at home on the plant floor, in a quarry, or in your tool belt. Consult our online catalog for the latest models and features in the TriggerPad family of handheld transmitters. TRIGGERPAD 100 Page 2 SPECIFICATIONS:___________________________ •Sealed handheld enclosure •License free radio (FCC Part 15B) •One month battery life (typical) •Custom labeling available •8 bit controller with 2K flash and CPU watchdog •3 AA batteries give 1 month operation (32 hours continuous) •900MHz one way radio with 8 channels •Operational range of 0 - 300 feet •Internal antenna to prevent damage •Operational temperature range of 0ºC to +70ºC •Storage temperature range of -40ºC to +85ºC •2.75 inches X 1.375 inches X 7 inches, 12.5 oz •Sealed mechanical tactile switches with 1,000,000 cycle switch life •Eight button membrane switch available with 2 digit LED (TP-105) •Optional belt clip and custom labels available •CRC data error checking APPLICATION:______________________________ Please Note: The TriggerPad 100/105 is not intended for use as an emergency stop device. The TriggerPad 100/105 is a transmit on command device. Data is transmitted from the TriggerPad only when a button is being pressed by an operator. CRC data error checking and data message identifiers are used to insure that transmitted data is correctly received and inter- preted. The transmit on demand feature results in extended battery life (up to 1 month in most applications). However, without a continu- ously maintained communication link, the TriggerPad is not appropriate for applications that require a handheld shutdown for emergency or safety purposes. A system level risk assessment should be performed before any new control application is installed. Page 3 CONFIGURATION:___________________________ Label There are several standard label configurations available for the Trig- gerPad, each geared to a typical TriggerPad application. If your appli- cation requires a unique label, our engineering staff can create a cus- tom label according to your specifications. Please refer to the Trigger- Pad configuration sheet to select an off-the-shelf label or to specify a custom label. Radio Channel Configuration The TriggerPad supports eight channels to avoid interaction when mul- tiple systems are employed in close proximity situations. The radio channel can be configured at the factory prior to shipment or by a cus- tomer’s technician in the field. See the configuration sheet to specify a channel for factory configuration. *Factory default channel selection Channel Frequency 0 903.37 MHz 1* 906.37 MHz* 2 907.87 MHz 3 909.37 MHz 4 912.37 MHz 5 915.37 MHz 6 919.87 MHz 7 921.37 MHz For safety reasons, on site radio channel configuration requires the fol- lowing basic steps. 1.Power down and lock out any systems that could be operating at the frequencies shown above. 2.Set the TriggerPad channel. (See instructions below.) 3.Set the channel of the ProComm. (Refer to the appropriate receiver user manual, i.e. ProComm 100, for receiver configuration.) 4.Return processes and equipment to service. Please note, to avoid accidentally duplicating channels, it is recom- mended that the default channel NOT be used in a multi-station appli- cation. Page 4 The following procedure will select the appropriate TriggerPad channel for use with any applicable Matric receiver. 1.Disconnect the associated receiver from power and field wiring. Also, disable any other devices that could be inadvertently activated by the TriggerPad during this process. 2.Remove the four corner screws and open the back of the Trigger- Pad. 3.Remove batteries. 4.Install 22 gauge link wire into the LINK HEADER between position 7 and 8 as shown below. + - +- + - BATTERIES TP 100 Link Header + - +- + - BATTERIES TP 105 Link Header TP 105 LINK HEADER 10 1 246810 3579 TP 100 LINK HEADER 12 4 6 8 3 5 7 9 Page 5 5.Install batteries. Note polarity on circuit board under batteries. 6.The current channel will be displayed on the LED indicators on the front of the TriggerPad. The TP 105 will display the channel num- ber on the 2 digit LED display. The TP 100 will display the channel using the button LEDs as shown below. 7.Remove the channel setting link and replace the cover. The Trig- gerPad is now ready for operation. Channel 0Channel 1Channel 2Channel 3Channel 4Channel 5Channel 6Channel 7 5.To change the channel on a TP 100, press and re- lease the top but- ton and cycle through channels until the desired channel is dis- played. For the TP 105, press the left arrow button to change channels. TP 105TP 100 Press to change channel Channel Number Page 6 INDICATORS:______________________________ The TriggerPad 100 provides 4 red LED indicators. One LED is located beside each button. These LEDs serve three functions. First, the LED next to a button will be illuminated when the button is depressed. This is hardwired visual feedback that the button has been activated. However, the active button indicator does not show the status of data transmission. Second, when no buttons are depressed, the top LED will blink to indi- cate a low battery condition. Third, the LEDs are used to indicate the selected channel. See the con- figuration section for details of channel selection. The TriggerPad 105 provides a two digit seven segment LED display. This display is used to set the one byte value that is transmitted with the switch status from the TP-105. To change the value, press …

Text truncated - open the document above for the full version.

TXM-900-HP-II Transmitter Module AT90585358A1 Micro-controller Control Switches 3.686 MHz Oscillator LED Display Antenna Matric TP-105 Block Diagram

Response to Comments of ATCB The numbered items below are the original comments received from ATCB. The responses are below each comment, in italics. 1.) The Block Diagram is a little bit anemic on details. It does not fit the description as outlined in 2.1033(b)(5). Response: The block diagram has been updated to show the oscillator frequency. There is also a block diagram of the radio module in the TXM-900-HP-II users manual. 2.) This device appears larger than the palm of the hand, therefore it must have the two-part label statement as found in 15.19(a)(3) on the exterior of the device in addition to the FCC ID. Please address with your client. Response: New label drawings have been uploaded which contain the two-part label statement. See file AW145-962.pdf for new label. 3.) The manual states that custom labels can be created for many different applications. Please show how this is compliance with 2.925(d) 2.925(d)(1) and 2.925(d)(2) Response: These are custom labels for the keypad. The graphics on the front label can be changed to meet individual customer needs (i.e. customers may prefer words to arrows, etc.) 4.) The manual lists eight channels from 903.37 to 921.37. This range must be shown on the 731. Response: The 731 Form has been corrected. 5.) Since the operating frequency range is in excess of 10 MHz, the number of operating frequencies tested must comply with 15.31(m). Response: Three channels have been tested. Test data for the additional channels tested have been uploaded in the revised test report. 6.) Please provide radiated emissions data to the 10 th harmonic on all three channels. Be cautious of the restricted band emission limits of 15.205. Response: Three channels have been tested. Emissions test data for the additional channels tested have been uploaded in the revised test report. 7.) Please provide an occupied bandwidth plot with RBW set to 1% of the 20dB BW. Response: Occupied BW plots have been uploaded for the 3 channels. 8.) The product description says both digital and analog information can be transmitted. Please provide a worst-case occupied bandwidth for each. Response: Only digital data is transmitted at 9600 Baud. 9.) Please provide details on the RF module identified in the schematic as MOD1 [TXM-900-HP-11]. A specification sheet would suffice. Response: The TXM-900-HP-11 manual has been uploaded.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 May 15, 2001 RE: Matric Unlimited FCC ID: K5B-TB105 I have the following observations on this application. 1.) The Block Diagram is a little bit anemic on details. It does not fit the description as outlined in 2.1033(b)(5). 2.) This device appears larger than the palm of the hand, therefore it must have the two-part label statement as found in 15.19(a)(3) on the exterior of the device in addition to the FCC ID. Please address with your client. 3.) The manual states that custom labels can be created for many different applications. Please show how this is compliance with 2.925(d) 2.925(d)(1) and 2.925(d)(2) 4.) The manual lists eight channels from 903.37 to 921.37. This range must be shown on the 731. 5.) Since the operating frequency range is in excess of 10 MHz, the number of operating frequencies tested must comply with 15.31(m). 6.) Please provide radiated emissions data to the 10 th harmonic on all three channels. Be cautious of the restricted band emission limits of 15.205. 7.) Please provide an occupied bandwidth plot with RBW set to 1% of the 20dB BW. 8.) The product description says both digital and analog information can be transmitted. Please provide a worst-case occupied bandwidth for each. 9.) Please provide details on the RF module identified in the schematic as MOD1 [TXM-900-HP-11]. A specification sheet would suffice. William H. Graff Examining Engineer President and Director of Engineering mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

THEORY OF OPERATION The module is a high-performance, eight-channel, FM transmitter capable of transmitting analog or digital data. Digital information is modulated at the transmitter using FSK (frequency shift keying), the binary form of frequency modulation. FSK offers significant advantages over AM-based modulation methods, i.e., increased noise immunity and the ability of the receiver to “capture” in the presence of multiple signals. These advantages will be particularly appreciated in crowded bands like those in which the transmitter operates. While FSK modulation is not the most bandwidth-efficient manner of modulating digital data, it is an excellent choice for reliable, low-cost, low-power RF products. To transmit analog information the module reverts to FM modulation. In this mode simple to complex waveforms can be introduced at the transmitter’s data pin and recovered with minimal distortion at the receiver’s analog output pin. The user-supplied antenna is connected at pin 2. The transmitter is designed to operate with a 50-ohm load. An accurate 12.00MHz VCXO (voltage-controlled crystal oscillator) serves as the frequency reference for the transmitter. The modulation input pin is connected to the VCXO through a two-pole low-pass filter. The low-pass filter is used to shape the incoming data and limit the transmission bandwidth to 25kHz. The reference frequency is directly modulated. This method affords two benefits. First, it eliminates the need for a frequency conversion in the transmitter, reducing size, cost, and current consumption. Second, it allows the modulation to occur within the loop bandwidth of the frequency synthesizer allowing a wide modulation bandwidth of 50Hz to 25kHz. The modulated 12.00MHz reference frequency is applied to the Phase-Locked Loop (PLL). The PLL, combined with a 902-928MHz VCO, forms a stable frequency synthesizer that can be programmed to oscillate at a number of preset frequencies. An on-board micro-controller reads the channel-selection lines and programs the PLL to the desired channel frequency. The micro-controller also monitors the status of the PLL and indicates when the transmitter is stable and ready to transmit data by asserting the CTS line high. A buffer amplifier is used to isolate the VCO from the antenna and to increase the output power of the transmitter. The output of the buffer amplifier is connected to a LPF, which is used to suppress harmonic emissions. All harmonic specifications are based on a 50-ohm load.

APPLICATIONS INCLUDE: nContinuous Data Transfer nHome/Industrial Automation nWireless Networking nRemote Control nRemote Access nRemote Monitoring/Telemetry nFire/Security Alarms n Long-Range RFID n High-Quality Wireless Audio n Analog Signal Transfer n General Wire Elimination Page 1 HPSERIES-II TRANSMITTER MODULE DESIGNGUIDE FEATURES: n 8 Binary Selectable Transmission Frequencies n FM/FSK Modulation For Noise Immunity n C o s t - E ff e c t i v e n Precision Synthesized Frequency Reference n Direct Analog/Serial Interface n High Data Rate (50Kbps max.) n Can Be Used To Transmit Analog (Including Audio) or Digital Data n Wide Supply Range (2.7-16V DC) n Power-Down & CTS Functions n No Production Tuning nNo External RF Components Required (Except A n t e n n a ) n FCC Compliant Output Power (0dBm typical) DESCRIPTION: The HP Series-II transmitter module is designed for the c o s t - e f fe c t i ve, high-perfo rmance wireless tra n s fer of analog or digital data, in the popular 902-928MHz band. The transmitter offers eight selectable channels and, when paired with an HP Series-II receiver, is capable of transmitting analog and digital information for distances of up to 1000 ft.(under optimal conditions).To assure robust performance, the transmitter employs F M / F S K modulation and an advanced microprocessor-controlled s y n t h e s i zed architecture.L i ke all Linx modules, the HP S e ries-II requires no tuning and in most cases no ex t e rn a l RF components ( except an antenna), making integra t i o n s t ra i g h t fo r ward even for engineers lacking previous RF ex p e ri e n c e. Figure 1:Physical Dimensions HIGHPERFORMANCE RFMODULE TXM-900-HP-II PART# DESCRIPTION M D E V-900-HP-II E valuation Kit 900 MHz TXM-900-HP-II Transmitter 900 MHz RXM-900-HP-II R e c e i ver 900 MHz O R D E R I N GI N F O R M AT I O N Revised 2/1/00 Figure 3:Maximum ratings table Figure 2:Performance data table PERFORMANCEDATA TXM-900-HP-II Page 2 A B O U TT H E S EM E A S U R E M E N T S The performance parameters listed below are based on module operation at 25°C from a 5VDC supply unless otherwise noted. Absolute Maximum Ratings: Supply voltage Vcc, using pin 7-0.3to+18 VDC Operating temperature0°Cto+70°C Storage temperature-45°Cto+85°C Soldering temperature+260°C for 10 sec. Any input or output pin-0.3toVcc *NOTE* Exceeding any of the limits of this section may lead to permanent damage of the device.Furthermore, extended operation at these maximum ratings may reduce the life of this device. ParameterDesignationMin.TypicalMax.UnitsNotes Input Voltage (Vcc)V CC 2.7–16.0VDC– Supply currentI CC –1517mA– Sleep currentI CS ––50μA Operating frequencyF C 902–928MHz– Overall frequency accuracy-50–+50KHz– Output Power-30+4dBm– Spurious Emissions––-50dBc1 Harmonic Emissions––-50dBc– Occupied Bandwidth–32–KHz– PONto CTS High TimeT PON– 812mSec– Minimum OffT MINOFF 1––mSec– Channel Change TimeTime––1.2mSec– Fdev507595KHz p-p– * C AU T I O N * This product incorp o rates numerous static-sensitive components. A l ways wear an ESD wrist strap and observe proper ESD handling procedures when wo rking with this dev i c e. Failure to observe this precaution may result in module damage or fa i l u r e. 1.Tested to 2nd Harmonic Notes: Page 3 Figure 8:Modulation Linearity for Triangle Wave Input Figure 9:Output Power vs. Supply Voltage Figure 4:Power-On Timing TYPICALPERFORMANCEGRAPHS Figure 6:Modulation Linearity for Square Wave Input Figure 7:Modulation Linearity for Sine Wave Input Figure 5:Channel Change Timing PHYSICALPACKAGING The transmitter is packaged as a hybrid through- hole SIP-style module with 10 pins spaced at .1" i n t e rvals with a .3" gap between pins 2 & 3. Baseband components occupy the rear of the board while high-frequency components are grouped on the front. PRODUCTION CONSIDERATIONS The SIP module may be installed using hand- or wave-solder techniques.The module should not be subjected to reflow.If the module is subject to production wash cycles, adequate drying time should be allowed prior to power-up.If the wash cycle introduces contaminants, the module’s perfo rmance may be adversely affected. Figure 10:Physical package 1.00 V/div1.00 V/div +/-1.0 V 10.0 ms/div 0.0 s 120 mV 2.00 V/div1.00 V/div+/-1.0 V 500 μs/div 0.0 s1.67 V Page 4 PINDESCRIPTION Figure 11:Pin functions and equivalent circuits Page 5 THEORY OF OPERATION The HP-II-TXM is a high-performance, eight-channel, FM transmitter capable of transmitting analog or digital data. Digital information is modulated at the transmitter using FSK (frequency shift keying), the binary fo rm of frequency modulation. FSK offers significant advantages over AM-based modulation methods, i.e., increased noise immunity and the ability of the receiver to “capture”in the presence of multiple signals. These advantages will be particularly appreciated in crowded bands like those in which the HP-II operates.While FSK modulation is not the most bandwidth- efficient manner of modulating digital data, it is an excellent choice for reliable, low-cost, low-power RF products such as the HP Series-II. To transmit analog information the module reverts to FMmodulation.In this mode simple to complex waveforms can be introduced at the transmitter’s data pin and recovered with minimal distortion at the receiver’s analog output pin. The user-supplied antenna is connected at pin 2 (see Figure 1).The HP Series- II transmitters are designed to operate with a 50-ohm load. An accurate 12.00MHz VCXO (voltage-controlled crystal oscillator) serves as the frequency reference for the transmitter.The modulation input pin is connected to the VCXO through a two-pole low-pass filter.The low-pass filter is used to shape the incoming data and limit the transmission bandwidth to 25kHz. The reference frequency is directly modulated.This method affords two benefits. First, it eliminates the need for a frequency conversion in the transmitter, reducing size, cost, and current consumption.Second…

Text truncated - open the document above for the full version.

FCC CERTIFICATION TEST REPORT for Matric Limited Hill City Road R.R. #1 Box 421A Seneca, PA 16346 FCC ID: K5B-TP105 May 14, 2001 Revised: June 18, 2001 WLL PROJECT #: 6182X This report may not be reproduced, except in full, without the prior written consent of Washington Laboratories, Ltd. Matric Limited FCC ID:K5B-TP105 WLL Project #:6182X i TABLE OF CONTENTS 1.0 INTRODUCTION ................................................................................................................................... 1 1.1 SUMMARY.................................................................................................................................................... 1 2.0 DESCRIPTION OF EQUIPMENT UNDER TEST (EUT)............................................................ 1 2.1 ON-BOARD OSCILLATORS............................................................................................................................ 1 3.0 TEST CONFIGURATION .................................................................................................................. 1 3.1 TESTING ALGORITHM.................................................................................................................................. 1 3.2 CONDUCTED EMISSIONS TESTING............................................................................................................... 2 3.3 RADIATED EMISSIONS TESTING................................................................................................................... 2 3.3.1 Radiated Data Reduction and Reporting.................................................................. 2 Tables Table 1. Radiated Emissions Results Table 2. System Under Test Table 3. Interface Cables Used Table 4. Measurement Equipment Used Appendices Appendix A. Statement of Measurement Uncertainty Matric Limited FCC ID:K5B-TP105 WLL Project #:6182X 1 FCC CERTIFICATION TEST REPORT for FCC ID: K5B-TP105 1.0 Introduction This report has been prepared on behalf of Matric Limited to support the attached Application for Equipment Authorization. The test and application are submitted for an Intentional Radiator under Part 15.249 of the FCC Rules and Regulations. The Equipment Under Test was the Matric Limited Model: TP 105 control transmitter. All measurements herein were performed according to the 1992 version of ANSI C63.4. The measurement equipment conforms to ANSI C63.2 Specifications for Electromagnetic Noise and Field Strength Instrumentation. Calibration checks are made periodically to verify proper performance of the measuring instrumentation. All measurements are performed at Washington Laboratories, Ltd. test center in Gaithersburg, MD. Site description and site attenuation data have been placed on file with the FCC's Sampling and Measurements Branch at the FCC laboratory in Columbia, MD. Washington Laboratories, Ltd. has been accepted by the FCC and approved by NIST NVLAP (NVLAP Lab Code: 200066-0) as an independent FCC test laboratory. All results reported herein relate only to the equipment tested. The measurement uncertainty of the data contained herein is ±2.3 dB. Refer to Appendix A for Statement of Measurement Uncertainty. This report shall not be used to claim product endorsement by NVLAP or any agency of the US Government. 1.1 Summary The Matric Limited TP 105 complies with the limits for an Intentional Radiator under Part 15.249 of the FCC Rules and Regulations. 2.0 Description of Equipment Under Test (EUT) The Matric Limited TP (Trigger Pad) 105 (EUT) is a hand-held industrial control transmitter operated by three (3)“AA” type batteries at 4.5VDC. The unit operates on three channels from 903.37 MHz to 921.37 MHz and is used to control various material handling and process control applications. The TP 105 unit contains 8 bush- buttons for control. 2.1 On-board Oscillators The Matric Limited TP 105 contains the following oscillators: 3.686 MHz. 3.0 Test Configuration To complete the test configuration required by the FCC, the TP 105 was configured to continuously transmit. The EUT is a standalone unit and contains no I/O ports or cables. 3.1 Testing Algorithm The TP 105 was turned on and constantly transmitting. The unit was tested in all three orthogonal planes. Matric Limited FCC ID:K5B-TP105 WLL Project #:6182X 2 Worst case emissions are recorded in the data tables. 3.2 Conducted Emissions Testing The TP 105 is battery-powered, therefore no conducted emissions testing was performed. 3.3 Radiated Emissions Testing The EUT was placed on an 80 cm high 1 x 1.5 meters non-conductive motorized turntable for radiated testing on a 3-meter open field test site. The emissions from the EUT were measured continuously at every azimuth by rotating the turntable. Biconical and log periodic broadband antennas were mounted on an antenna mast to determine the height of maximum emissions. The height of the antenna was varied between 1 and 4 meters. The peripherals were placed on the table in accordance with ANSI C63.4-1992. Cables were varied in position to produce maximum emissions. Both the horizontal and vertical field components were measured. The output from the antenna was connected, via a preamplifier, to the input of the spectrum analyzer. The detector function was set to quasi-peak or peak, as appropriate. The measurement bandwidth on the spectrum analyzer system was set to at least 120 kHz, with all post-detector filtering no less than 10 times the measurement bandwidth. Measurements above 1 GHz were made with a 1 MHz measurement bandwidth. 3.3.1 Radiated Data Reduction and Reporting To convert the raw spectrum analyzer radiated data into a form that can be compared with the FCC limits, it is necessary to account for various calibration factors that are supplied with the antennas and other measurement accessories. These factors are grouped into a composite antenna factor (AFc) and are supplied in the AFc column of Table 1. In addition, the Duty Cycle Correction Factor (Afd) is su…

Text truncated - open the document above for the full version.

Low Channel Bandwidth Mid Channel Bandwidth High Channel Bandwidth

Typical Radiated Emissions Test Setup
