K7G2G4DSSG4NNN2.4GHz Frequency Hopping Cordless Telephone System

Giant Electronics Ltd

Click to zoom

Application Details

Equipment Class: DSS - Part 15 Spread Spectrum Transmitter
Date of Grant: Jun 24, 2002
Application Purpose: Original Equipment
Date of Application: Mar 21, 2002
Equipment Note: 2.4GHz Frequency Hopping Cordless Telephone System
Frequency Range: 2401.05600000 - 2482.27200000
Company: Giant Electronics Ltd
Country: Hong Kong

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

2.4GHz/Digita lSpread Spectrum Cordless Telephone with Call Waiting Caller ID Freedom Phone R Southwestern Bell GH4010 Owner's Manual Toll Free Help line 1-800-366-0937 http://www.swbfreedomphone.com IMPORTANT SAFETY INSTRUCTIONS 3 FCC WANTS YOU TO KNOW 5 HANDSET CONTROLS, INDICATORS 6 INTRODUCTION 8 INSTALLATION 9 AUTO REGISTRATION 13 CALL MANAGEMENT 14 BASESTATION PROGRAMMING 22 HANDSET MENU AND PROGRAMMING 23 TROUBLESHOOTING 27 PRODUCT CARE 31 SERVICE 32 LIMITED WARRANTY 33 CONTENTS 2 BEFORE USING YOUR TELEPHONE EQUIPMENT, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK AND INJURY TO PERSONS, INCLUDING THE FOLLOWING 1.Read and understand all instructions. 2.Follow all warnings and instructions marked on the product. 3.Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. 4.Do not use this product near water, for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool. 5.Do not place this product on an unstable cart, stand or table. The product may fall causing serious damage to the product. 6.Slots and openings in the cabinet and the back or bottom are provided for ventilation, to protect it from overheating, these openings must not be blocked or covered The openings should never be blocked by placing the product on the bed, sofa, rug, or other similar surface. This product should never be placed near or over a radiator or heat register. This product should not be placed in a built-in installation unless proper ventilation is provided. 7.This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your dealer or local power company. 8.Do not allow anything to rest on the power cord. Do not locate this product where the cord will be damaged by persons walking on it. 9.Do not overload wall outlets extension cords, as this can result in the risk of fire or electric shock. 10.Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a risk of fire or electric shock. Never spill liquid of any kind on this product. 11.To reduce the risk of electric shock, do not disassemble this product. Instead, when some repair work is required, take the unit to a qualified technician. Opening or removing covers may expose you to dangerous voltages or other risks. Incorrect reassembly can cause electric shock when the appliance is subsequently used. 12.Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: a. When the power supply cord or plug is damaged or frayed. b. If liquid has been spilled into the product. c. If the product has been exposed to rain or water. d. If the product does not operate normally by following the operating instructions. Adjust only those controls, that are covered by the operating instructions because improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal operation. e. If the product has been dropped or cabinet has be damaged. f. If the product exhibits a distinct change in performance. 13.Avoid using telephone(other than a cordless type) during an electrical storm. There may be a remote risk of electrical shock from lightning. 14.Do not use the telephone to report a gas leak in the vicinity of the leak. IMPORTANT SAFETY INSTRUCTIONS 3 Safety Instructions for Batteries Handset Battery Pack CAUTION: GP60AAASH3BMX 3.6V 600mAh GPI INTERNATIONAL LIMITED CONTAINS NICKEL-METAL HYDRIDE BATTERY. BATTERY MUST BE RECYCLED OR DISPOSED OF PROPERLY. a. Do not dispose of the battery in a fire. The cell may explode. Check with local codes for possible special disposal instructions. b. Do not open or mutilate the battery. Released electrolyte is corrosive and may cause damage to the eyes or skin. It may be toxic if swallowed. c. Exercise care in handling batteries in order not to short the battery with conducting materials such as rings, bracelets and keys. The battery or conductor may overheat and cause burns. d. Charge the batteries provided with or identified for use with this product only in accordance with the instructions and limitations specified in this manual. e. Observe proper polarity orientation between the battery(ies) and battery charger. f. Do not mix old and new batteries in this product. g. Do not mix batteries of different sizes or from different manufacturers in this product. The EPA certified RBRC* Battery Recycling Seal on the nickel-Metal Hydride(Ni-MH) battery indicates Southwestern Bell Freedom Phone Retail Sales is voluntarily participating in an industry program to collect and recycle these batteries at the end of their useful life, when taken out of service in the United States or Canada. The RBRC program provides a convenient alternative to placing used Ni-MH batteries into the trash or the municipal waste stream, which may be illegal in your area. Please call 1-800-8-BATTERY for information on Ni-MH battery recycling and disposal bans/restrictions in your area. Southwestern Bell Freedom phone Retail Sales involvement in this program is part of our commitment to preserving our environment and conserving our natural resources. *RBRC is registered trademark of the Rechargeable Battery Recycling Corporation. Save These Instructions R SAFETY INSTRUCTIONS FOR BATTERIES Use only a Southwestern Bell Freedom Phone approved battery pack in the handset of your GH4010 Cordless Telephone. To reduce the risk of fire or injury, always do the following when replacing, discarding or charging batter, When handling the batteries, be careful not to short the battery with conducting materials such as rings, bracelets, and keys. The Battery…

Text truncated - open the document above for the full version.

Users Manual

Text truncated - open the document above for the full version.

External Photos

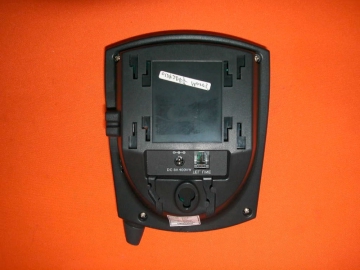

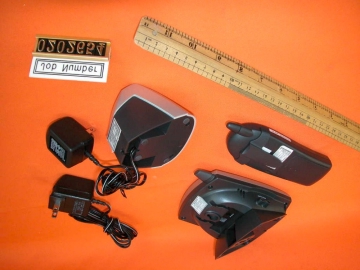

External photos FCC ID: K7G2G4DSSG4NNN External photos FCC ID: K7G2G4DSSG4NNN

ID Label/Location Info

MADE IN CHINA UPC bar code Model Number: XXXXXX 0-14337-90305-7 I.T.E. - + R Freedom Phone Southwestern Bell FCC ID: K7G2G4DSSG4NNN USES JACK: RJ11C US: 2X6WI00B2G4G4NNN REGISTRATION NUMBER: Complies with 47 CFR Part 68 Requirements REN: 0.0B MODEL NO. GH4010 R 2000197 US HAC CAUTION R 2000197 US HAC R Freedom PhoneSouthwestern Bell FCC ID: K7G2G4DSSG4NNNUSES JACK: RJ11CUS: 2X6WI00B2G4G4NNN REGISTRATION NUMBER:Complies with 47 CFR Part 68 Requirem ents REN: 0.0B MODEL NO. GH4010 MA DE IN C HINA I.T.E. MODEL NO. GH4000 MADE IN CHINA REN: 0.0B R USES JACK: RJ11CComplies with 47 CFR Part 68 RequirementsREGISTRATION NUMBER:US: 2X6WI00B2G4G4NNN FCC ID: K7G2G4DSSG4NNN Southwestern BellFreedom Phone I.T.E. HAC US 2000197 R MADE IN CHINA MODEL NO. GH4010 REN: 0.0B Com plies with 47 CF R Part 68 Requirements Southwestern BellFreedom Phone REGISTRATION NUMBER:US: 2X6WI00B2G4G4NNN USES JACK: RJ11C FCC ID: K7G2G4DSSG4NNN US D 2000197 L E S T I HAC I.T.E. R R 2000197 US: 2X6WI00B2G4G4NNN HAC FCC ID: K7G2G4DSSG4NNN USES JACK: RJ11C REN: 0.0B MADE IN CHINA REGISTRATION NUMBER:Com plies with 47 CF R Part 68 Requirements Freedom PhoneSouthwestern BellMODEL NO. GH4000 I.T.E. R R I T S D E L US MADE IN CHINA MODEL NO. GH4010 REN: 0.0B Complies with 47 CFR Part 68 Requirements Southwestern Bell Freedom Phone REGISTRATION NUMBER: US: 2X6WI00B2G4G4NNN USES JACK: RJ11C FCC ID: K7G2G4DSSG4NNN US D 2000197 L ES T I HAC I.T.E. R R 2000197 US: 2X6WI00B2G4G4NNN HAC FCC ID: K7G2G4DSSG4NNN USES JACK: RJ11C REN: 0.0B MADE IN CHINA REGISTRATION NUMBER: Complies with 47 CFR Part 68 Requirements Freedom Phone Southwestern Bell MODEL NO. GH4000 I.T.E. R R I T S D E L US

Internal Photos

Internal photosFCC ID: K7G2G4DSSG4NNN Base assembly Base Main PCB comp s ide Internal photosFCC ID: K7G2G4DSSG4NNN Base Main PCB keypad side Base Oscillator PCB co mp side Internal photosFCC ID: K7G2G4DSSG4NNN Base Oscillator PCB so lde r side Internal photosFCC ID: K7G2G4DSSG4NNN Ha ndse t asse mbly Ha ndse t Main PCB co mp s ide Internal photosFCC ID: K7G2G4DSSG4NNN Handset Main PCB display side Ha ndse t Oscillato r PCB co mp s ide Internal photosFCC ID: K7G2G4DSSG4NNN Ha ndse t Oscillato r PCB solde r side

RF Exposure Info

The following information will be included in the user manual. CAUTION: To maintain compliance with the FCC's RF exposure guidelines place the base unit at least 5 cm from nearby persons. For body worn operation, this phone has been tested and meets the FCC RF exposure guidelines when used with the belt clip supplied or designated for this product. Use of other accessories may not ensure compliance with FCC RF exposure guidelines.

RF Exposure Info

Page 1 of 30 This document shall not be copied or reproduced, except in full without the written permission of the Technical Director , EMC Technologies Pty. Ltd. www. emctech.com.au SAR Evaluation on 2.45 GHz Spread Spectrum Cordless Phone Model: G4010 FCC ID: K7G2G4DSSG4NNN For Intertek Testing Services Hong Kong Ltd to FCC OET Bulletin 65 – Supplement C (Edition 01-01) Report Number: M020404 Issue Date: 30 th April 2002 This report is not an endorsement of the subject product. The results within apply to the test sample as tested. EMC Technologies Pty Ltd A.C.N. 057 105 549 57 Assembly Drive Tullamarine Victoria Australia 3043 Ph: + 613 9335 3333 Fax: + 613 9338 9260 email: [email protected] EMC Technologies Report No. M020404 Page 2 of 30 This document shall not be copied or reproduced, except in full without the written permission of the Technical Director , EMC Technologies Pty. Ltd. www. emctech.com.au CONTENTS 1.0 GENERAL INFORMATION......................................................................................................................................3 2.0 DESCRIPTION OF DEVICE.....................................................................................................................................4 2.1 Description of Test Sample...........................................................................................................................4 2.2 Test Signal, Frequency and Output Power.............................................................................................4 2.3 Battery Status....................................................................................................................................................4 2.4 Modulation scheme.........................................................................................................................................4 2.5 Details of test laboratory 4 3.0 DESCRIPTION OF SAR MEASUREMENT SYSTEM....................................................................................5 3.1 Probe Positioning System.............................................................................................................................5 3.2 E-Field Probe Type and Performance......................................................................................................5 3.3 Calibration and Validation Procedures and Data..................................................................................5 3.4 Phantom Properties (Size, Shape, Shell Thickness, Tissue Material Properties).....................6 3.5 Simulated Tissue Properties........................................................................................................................6 4.0 SAR MEASUREMENT PROCEDURE USING DASY3..................................................................................6 4.1 Description of the Test Positions (Left and Right Hand Side)..........................................................8 4.2 List of All Test Cases (Antenna In/Out, Test Frequencies, User Modes etc)..............................8 4.3 FCC RF Exposure Limits for Un-controlled/Non – occupational.....................................................8 5.0 MEASUREMENT UNCERTAINTY........................................................................................................................9 6.0 SAR EVALUATION RESULTS............................................................................................................................10 7.0 COMPLIANCE STATEMENT...............................................................................................................................10 APPENDIX A1 TEST SAMPLE PHOTOGRAPHS.................................................................................................11 APPENDIX A2 TEST SET UP PHOTOGRAPHS...................................................................................................12 APPENDIX A3 TEST SET UP PHOTOGRAPHS...................................................................................................13 APPENDIX A4 TEST SET UP PHOTOGRAPHS...................................................................................................14 APPENDIX B PLOTS OF THE SAR MEASUREMENTS....................................................................................15 EMC Technologies Report No. M020404 Page 3 of 30 This document shall not be copied or reproduced, except in full without the written permission of the Technical Director , EMC Technologies Pty. Ltd. www. emctech.com.au SAR EVALUATION Giant Electronics Spread Spectrum Cordless Phone Model: G4010 Report Number: M020404 FCC ID: K7G2G4DSSG4NNN 1.0 GENERAL INFORMATION Test Sample: 2.4 GHz Spread Spectrum Cordless Phone Model Number: G4010 FCC ID: K7G2G4DSSG4NNN Manufacturer: Giant Electronics Ltd Address: 7/F., Elite Industrial Building, 135-137 Hoi Bun Road, Kwun Tong, Hong Kong Phone: +852-27973363 Fax: +852-23436224 Test Standard/s: Evaluating Compliance with FCC Guidelines For Human Exposure to Radiofrequency Electromagnetic Fields Supplement C (Edition 01-01) to OET Bulletin 65 (Edition 97-01) Test Dates: 12 th April to 23 rd April 2002 Tested for: Intertek Testing Services Hong Kong Ltd Address: 2/F, Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong Test Officer: Aaron Sargent B.Eng Authorised Signature: Chris Zombolas Technical Director, EMC Technologies Pty Ltd EMC Technologies Report No. M020404 Page 4 of 30 This document shall not be copied or reproduced, except in full without the written permission of the Technical Director , EMC Technologies Pty. Ltd. www. emctech.com.au SAR EVALUATION Giant Electronics Spread Spectrum Cordless Phone Model: G4010 Report Number: M020404 2.0 DESCRIPTION OF DEVICE 2.1 Description of Test Sample The phone tested was a Giant Electronics Spread Spectrum Cordless Phone operating in the 2450 MHz frequency band. It has an integral antenna. 2.2 Test Signal, Frequency and Output Power The Cordless Phone was …

Text truncated - open the document above for the full version.

RF Exposure Info

NATA Accredited Laboratory Number: 5292 EMC Technologies Pty. Ltd., 57 Assembly Dve., Tullamarine, Vic., 3043, Australia. Phone : +61 3 9335 3333 Fax: +61 3 9338 9260 www.emctech.com.au FCC ID: K7G2G4DSSG4NNN DATE: 24 May 2002 Refer to Document: “SAR Evaluation on 2.45 GHz Spread Spectrum Cordless Phone Model: G4010” EMC Technologies Report No: M020404 To whom it may concern, EMC Technologies Pty Ltd sources all of its SAR testing equipment and related calibrations from SPEAG. SPEAG has given estimations about the conversion factors at 2450MHz. SPEAG estimates that the conversion factor for 2450MHz body would be approximately 25% lower than the calibrated conversion factor from the 1800MHz data. This would equate to a conversion factor of 4.38 for 2450MHz body factors. Even using a conservative estimate of 50% lower conversion factor, we have the worst-case result for the belt-clip position as follows: Original Plot SAR PLOT 13 Title: “M020404 – Intertek – Belt Clip Position – CH#00 #2” SAR (1g) : 0.171mW/g SAR (10g): 0.0933mW/g Re-Evaluated Plot with extra-conservative probe conversion factors SAR PLOT Title: “M020404 – Intertek – Belt Clip Position – CH#00 #2 (Re evaluated)” SAR (1g): 0.321mW/g SAR (10g): 0.175mW/g Even with this worst-case assessment the highest SAR value is still 5 times below the 1.6mW/g limit. Kind Regards Chris Zombolas Technical Director EMC Technologies Pty Ltd EMC Technologies Pty Ltd ABN 82 057 105 549 57 Assembly Drive Tullamarine Victoria Australia 3043 Ph: + 613 9335 3333 Fax: + 613 9338 9260 email: [email protected] M020404 - Intertek - Belt Clip Position - CH#00 #2 (Re evaluated) Giant Electronics G4010 Generic Twin 2 Phantom; Flat Section; Position: (90°,90°); Frequency: 2450 MHz Probe: ET3DV6 - SN1377; ConvF(2.92,2.92,2.92) Crest factor: 8.0; Brain 2400 MHz: σ = 1.75 mho/m ε r = 43.0 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 0.321 mW/g, (Worst-case extrapolation) Cube 5x5x7: SAR (10g): 0.175 mW/g, (Worst-case extrapolation) Coarse: Dx = 25.0, Dy = 25.0, Dz = 15.0 Powerdrift: 0.03 dB SAR Tot [mW/g] 2.98E-25.96E-28.94E-21.19E-11.49E-11.79E-12.09E-12.38E-12.68E-12.98E-1 Date: 23-05-02

Test Report

• The test results rep orted in this rep ort shall refer only to the samp le actually tested and shall not refer or be deemed to refer to bulk from which such a samp le may be said to have been obtained. • This rep ort shall not be rep roduced excep t in full without p rior authorization form Giant Electronics Limit ed Limit ed FCC ID: K7G2G4DSSG4NNN Inte rte k Te sting Se rvice s Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2741 1693 Giant Electronics Ltd. Application For Certification 2.4GHz Frequency Hopping Spread Spectrum Cordless Phone (FCC ID: K7G2G4DSSG4NNN) WO# 0202654 WL/Sandy March 20, 2002 INTERTEK TESTING SERVICES FCC ID: K7G2G4DSSG4NNN i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: Summary of Tests EXHIBIT 2 :General Description EXHIBIT 3 :System Test Configuration EXHIBIT 4 :Measurement Results EXHIBIT 5 :Equipment Photographs EXHIBIT 6 :Product Labelling EXHIBIT 7 :Technical Specifications EXHIBIT 8 :Instruction Manual EXHIBIT 9 :Security Code Information INTERTEK TESTING SERVICES FCC ID: K7G2G4DSSG4NNN ii MEASUREMENT/TECHNICAL REPORT Giant Electronics Ltd. - MODEL: GH4010(XXXXX), GH41(XXXXX) FCC ID: K7G2G4DSSG4NNN This report concerns (check one)Original Grant X Class II Change Equipment Type: DSS-Part 15 Spread Spectrum Transmitter Deferred grant requested per 47 CFR 0.457(d)(1)(ii)?Yes No X If yes, defer until : date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37?Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [12-18-01 Edition] provision. Report prepared by:Tommy Leung Intertek Testing Services 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Phone:852-2173-8575 Fax:852-2741-1693 INTERTEK TESTING SERVICES FCC ID: K7G2G4DSSG4NNN iii Table of Contents 1.0 Summary of test results .......................................................................................1 2.0 General Description ................................................................................................................ 4 2.1 Product Description ............................................................................................................... 4 2.2 Related Submittal(s) Grants ................................................................................................... 5 2.3 Test Methodology .................................................................................................................. 5 2.4 Test Facility............................................................................................................................ 5 3.0 System Test Configuration ...................................................................................................... 7 3.1 Justification............................................................................................................................. 7 3.2 EUT Exercising Software ....................................................................................................... 7 3.3 Support Equipment List and Description ............................................................................... 8 3.4 Equipment Modification......................................................................................................... 9 4.0 Measurement Results ............................................................................................................ 11 4.1 Maximum Conducted Output Power at Antenna Terminals ................................................ 11 4.2 Maximum 20 dB RF Bandwidth........................................................................................... 13 4.3 Minimum Number of Hopping Frequencies ......................................................................... 15 4.4 Minimum Hopping Channel Carrier Frequency Separation ................................................. 16 4.5 Average Time of Occupancy................................................................................................ 18 4.6 Out of Band Conducted Emissions....................................................................................... 19 4.7 Out of Band Radiated Emissions.......................................................................................... 20 4.8 Transmitter Radiated Emissions in Restricted Bands........................................................... 21 4.9 Field Strength Calculation .................................................................................................... 22 4.10 Radiated Emission Configuration Photograph - Base Unit ................................................ 23 4.11 Radiated Emission Data - Base Unit .................................................................................. 24 4.12 Radiated Emission Configuration Photograph - Handset ................................................... 28 4.13 Radiated Emission Data - Handset ..................................................................................... 29 4.14 AC Line Conducted Emission ............................................................................................ 33 4.15 Line Conducted Configuration Photograph - Base Unit .................................................... 34 4.16 Line Conducted Emission Configuration Data................................................................... 35 4.17 Radiated Emission from Digital Section of Transceiver..................................................... 36 4.18 Transmitter Duty Cycle Calculation and Measurements.................................................... 39 5.0 Equipment Photographs ....................................................................................................... 41 6.0 Product Labelling .................................................................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos

The Worst Case Configuration Photographs FCC ID: K7G2G4DSSG4NNN Radiated Emission – Base Front View Re ar Vie w The Worst Case Configuration Photographs FCC ID: K7G2G4DSSG4NNN Radiated Emission – Handset Front View Re ar Vie w The Worst Case Configuration Photographs FCC ID: K7G2G4DSSG4NNN Conducted Emission Front View Re ar Vie w The Worst Case Configuration Photographs FCC ID: K7G2G4DSSG4NNN Conducted Emission Side View
