K7GD54XX14 Channel Family Radio Service (Transmitter)

@6864110R09@ 6881040B40-O Disney Cover Design Not Yet Available Introduction IntroductionDisney Motorola 2-way radios operate on Family Radio Service (FRS) designated frequencies. This license-free, two-way radio service was established specifically for family and group recreational use. Use of this radio outside the country where it was intended to be distributed is subject to government regulations and may be prohibited. Read this manual carefully and make sure you know how to properly operate radio before use. For a copy of a large-print version of this guide, or for product- related questions, please contact: 1-800-353-2729 U.S.A. 1-800-461-4575 Canada 1-888-390-6456 TTY (Text Telephone) On the web, please refer to: www.motorola.com/talkabout Congratulations on your purchase of a Motorola product! Product registration is an important step toward enjoying your new Motorola product. Registering helps us facilitate warranty service, and permits us to contact you should your Motorola product require an update or other service. Registration is not required for warranty coverage. To register your product on-line, visit www.motorola.com/warranty/radios . Please retain your original dated sales receipt for your records. For warranty service of your Motorola Personal Communications Product you will need to provide a copy of your dated sales receipt to confirm warranty status. Contents Introduction . . . . . . . . . . . . . . . . . . . . . . . . 7Safety and General Information . . . . . . . . 1Getting Started . . . . . . . . . . . . . . . . . . . . . . 9 Turning On Your Radio . . . . . . . . . . . . . . . 9Sharing Radio Channels . . . . . . . . . . . . . . 9 Diagram of Your Radio . . . . . . . . . . . . . . 10Display Symbols . . . . . . . . . . . . . . . . . . . 11Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Batteries . . . . . . . . . . . . . . . . . . . . . . . . . 12 Talking and Listening . . . . . . . . . . . . . . . 13 Talk Range . . . . . . . . . . . . . . . . . . . . . . . 13Changing Channels . . . . . . . . . . . . . . . . 14Changing Interference Eliminator Code . 15Changing Volume . . . . . . . . . . . . . . . . . . 16Monitoring a Channel . . . . . . . . . . . . . . . 17Time-Out Timer . . . . . . . . . . . . . . . . . . . . 17Locking the Keypad . . . . . . . . . . . . . . . . 17 Alerts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Sending and Changing Call Tones . . . . . 18Talk Confirmation Tone . . . . . . . . . . . . . 20Alert Tone . . . . . . . . . . . . . . . . . . . . . . . . 21 Troubleshooting . . . . . . . . . . . . . . . . . . . 23Use and Care . . . . . . . . . . . . . . . . . . . . . . 25 Limited Warranty . . . . . . . . . . . . . . . . . . .27FCC License . . . . . . . . . . . . . . . . . . . . . . .34Software Copyright Notice . . . . . . . . . . .34Export Law Assurances . . . . . . . . . . . . .35 Safety and General Information 1 SAFETY AND GENERAL INFORMATIONIMPORTANT INFORMATION ON SAFE AND EFFICIENT OPERATIONREAD THIS INFORMATION BEFORE USING YOUR RADIO The information provided in this document supersedes the general safety information contained in user guides published prior to July 2000. For information regarding radio use in a hazardous atmosphere please refer to the Factory Mutual (FM) Approval Manual Supplement or Instruction Card, which is included with radio models that offer this capability.Transmit and Receive ProcedureYour two-way radio contains a transmitter and a receiver. To transmit (talk), you must push the Push-to-Talk button; to receive (listen), release the Push-to-Talk button.Exposure To Radio Frequency EnergyYour Motorola radio is designed to comply with the following national and international standards and guidelines regarding exposure of human beings to radio frequency electromagnetic energy: • United States Federal Communications Commission, Code of Federal Regulations; 47 CFR part 2 sub-part J Safety and General Information 2 • American National Standards Institute (ANSI) / Institute of Electrical and Electronic Engineers (IEEE) C95. 1-1992 • Institute of Electrical and Electronic Engineers (IEEE) C95.1-1999 Edition • National Council on Radiation Protection and Measurements (NCRP) of the United States, Report 86, 1986 • International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1998 • Ministry of Health (Canada) Safety Code 6. Limits of Human Exposure to Radiofrequency Electromagnetic Fields in the Frequency Range from 3 kHz to 300 GHz, 1999 • Australian Communications Authority Radiocommunications (Electromagnetic Radiation - Human Exposure) Standard 1999 (applicable to wireless phones only) To assure optimal radio performance and make sure human exposure to radio frequency electromagnetic energy is within the guidelines set forth in the above standards, always adhere to the following procedures:PORTABLE RADIO OPERATION AND EME EXPOSUREAntenna CareUse only the supplied or an approved replacement antenna. Unauthorized antennas, modifications, or attachments could damage the radio and may violate FCC regulations. Safety and General Information 3 DO NOT hold the antenna when the radio is “IN USE.” Holding the antenna affects call quality and may cause the radio to operate at a higher power level than needed.Two-way Radio OperationWhen using your radio as a traditional two-way radio, hold the radio in a vertical position with the microphone one to two inches (2.5 to 5 cm) away from the lips.Body-worn OperationTo maintain compliance with FCC/Health Canada RF exposure guidelines, if you wear a radio on your body when transmitting, always place the radio in a Motorola supplied or approved clip, holder, holster, case, or body harness for this product. Use of non-Motorola-approved accessories may exceed FCC/Health Canada RF exposure guidelines. If you do not use one of the Motorola-supplied or approved body-worn accessories, and are not using the radio held in the normal use position, ensure the radio and i…

Text truncated - open the document above for the full version.

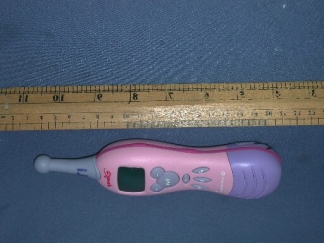

Test SetupFCCID : K7GD54XX External Photo -front External Photo - rear

Test SetupFCCID : K7GD54XX Internal Photo - 1 Internal Photo - 2 Test SetupFCCID : K7GD54XX Internal Photo – 3 Internal Photo –4 Test SetupFCCID : K7GD54XX Internal Photo – 5 Internal Photo – 6 Test SetupFCCID : K7GD54XX Internal Photo – 7

Alignment Procedure (K7GD54XX) 1) TX VCO ADJUSTMENT a. connect the DC voltmeter at TP3 b. press and hold PTT button c. adjust L11 to 1.0VDC +/-0.2V at CH1 2) FREQUENCY ADJUSTMENT a. connect the frequency counter meter to TP2 b. adjust C53 to TX frequency +/-200Hz 3) TX POWER CHECK a. connect the RF level meter to the TP2 b. press and hold PTT button c. check the TX power <500mW 4) DEVIATION LIMITING AND MIC SENSITIVITY a. connect the deviation meter to TP2 b. apply audio signal 1KHz 25mVrms to TP33 c. press and hold PTT button d. adjust VR1 to 2.2KHz DEV +/-0.2KHz e. check mic sensitivity between 1mVrms and 10mVrms at 1.5KHz DEV • TO PRESS AND HOLD THE PTT BUTTON FOR TX MODE TESTING • TO PRESS AND HOLD MENU AND +, THEN POWER UP FOR RADIO TEST MODE • THE RADIO CAN TRANSMITTING WITHOUT TIMEOUT UNDER TEST MODE

Modulation Frequency Response 0.00 0.50 1.00 1.50 2.00 2.50 20070012001700220027003200370042004700 Modulation Frequency (Hz) Frequency Deviation (kHz) Modulation Frequency Response 0.00 0.50 1.00 1.50 2.00 20070012001700220027003200370042004700 Modulation Frequency (Hz) Modulation Index (%)

Modulation Limiting Characteristic 0.00 0.50 1.00 1.50 2.00 2.50 475767778797107117127137 Modulation Input (dBSPL) Frequency Deviation (kHz) 500Hz 1000Hz 2500Hz 3125Hz

• The test results rep orted in this rep ort shall refer only to the samp le actually tested and shall not refer or be deemed a refer to bulk from which such a samp le may be said to have been obtained. • This rep ort shall not be rep roduced excep t in full without p rior authorization from Intertek Testing Services Hong Kong Limit ed • For Terms And Conditions of the services, it can be p rovided up on request. Inte rte k Te sting Se rvice s Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Giant Electronics Limited Application For Certification (FCC ID: K7GD54XX) May 6, 2002 WO# 0204618 WL/Sandy May 6, 2002 INTERTEK TESTING SERVICES FCC ID: K7GD54XX i SUMMARY OF CONTENTS LIST OF EXHIBITS EXHIBIT 1 :General Description EXHIBIT 2 :System Test Configuration EXHIBIT 3 :RF Power Output EXHIBIT 4 :Modulation Characteristics EXHIBIT 5 :Occupied Bandwidth EXHIBIT 6 :Spurious Emission EXHIBIT 7 :Frequency Stability EXHIBIT 8 :Technical Specifications EXHIBIT 9 :Product Labelling EXHIBIT 10 :Photographs EXHIBIT 11: Instruction Manual EXHIBIT 12: Tune Up Procedure EXHIBIT 13: Part List EXHIBIT 14: RF Exposure Info EXHIBIT 15: Confidentiality Request INTERTEK TESTING SERVICES FCC ID: K7GD54XX ii MEASUREMENT/TECHNICAL REPORT Application: Giant Electronics Limited Trade Name/Model No :MOTOROLA PRINCESS MOTOROLA CLASSIC MOTOROLA ADVENTURE Date: May 6, 2002 This report concerns (check one:)Original Grant X Class II Change Equipment Type: Family Radio Service, FRS Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Report prepared by:Wilson Loke Intertek Testing Services 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Phone: 852-2173-8575 Fax:852-2371-0521 INTERTEK TESTING SERVICES FCC ID: K7GD54XX iii Table of Contents 1.0 General Description .......................................................................................................... 2 1.1 Product Description ...................................................................................................... 2 1.2 Related Submittal(s) Grants .......................................................................................... 3 1.3 Test Methodology ......................................................................................................... 3 1.4 Test Facility................................................................................................................... 3 2.0 System Test Configuration ................................................................................................ 5 2.1 Justification ...................................................................................................................5 2.2 EUT Exercising Software .............................................................................................. 6 2.3 Special Accessories ....................................................................................................... 6 2.4 Measurement Uncertainty ............................................................................................. 6 2.5 Equipment Modification ................................................................................................ 6 3.0 RF Output Power (Section 95.639(d)) ............................................................................. 8 4.0 Modulation Characteristics (Section 95.637(a)) ........................................................... 12 4.1 Modulation Frequiency Response ............................................................................... 13 4.2 Modulation Limiting Characteristic............................................................................. 15 4.3 Audio Low Pass Filter Response................................................................................. 17 5.0 Occupied Bandwidth (Section 95.633(c)) ..................................................................... 19 6.0 Spurious Emission (Section 95.635(b)) .......................................................................... 21 6.1 Field Strength of Spurious Radiation .......................................................................... 22 7.0 Frequency Stability (Section 95.627) ............................................................................. 28 7.1 Frequency Tolerance ................................................................................................... 29 7.2 Temperature Extreme Condition ................................................................................. 31 7.3 Voltage Extreme Condition ......................................................................................... 34 8.0 Technical Specifications .................................................................................................. 37 9.0 Product Labelling ............................................................................................................ 41 10.0 Equipment Photographs ............................................................................................... 44 11.0 Instruction Mannal ........................................................................................................ 46 12.0 Tune Up Procedure ....................................................................................................... 48 13.0 Part List .......................................................................................................................... 50 14.0 RF Exposure Info ........................................................................................................... 52 15.0 Confidentiality Request ................................................................................................. 54 INTERTEK TESTING SERVICES FCC ID: K7GD54XX iv List of attached file Exhibit …

Text truncated - open the document above for the full version.

Audio Low Pass Filter Response -60.0 -50.0 -40.0 -30.0 -20.0 -10.0 0.0 10.0 110100 Frequency (kHz) dB relative to 1 kHz LPF Response TIA/EIA-603

Test SetupFCCID : K7GD54XX Radiated -front Radiated - rear
