K7GEM1000Two Way Radio with GMRS, FRS, and Weather Band Rx

EM1000 Series K EM-PK14190-67 Safety and General Information Important Information on Safe and Efficient Operation Read This Information Before Using Your Radio. The information provided in this document supersedes the general safety information in user guides published prior to December 1, 2002. Transmit and Receive Procedure Your two-way radio contains a transmitter and a receiver. To control your exposure and ensure compliance with the general population/ uncontrolled environment exposure limits, always adhere to the following procedure: •Transmit no more than 50% of the time. •To receive calls, release the PTT button. •To transmit (talk), press the Push to Talk (PTT) button. Transmitting 50% of the time, or less, is important because the radio generates measurable RF energy exposure only when transmitting (in terms of measuring standards compliance). Exposure to Radio Frequency Energy Your Motorola two-way radio complies with the following RF energy exposure standards and guidelines: •United States Federal Communications Commission, Code of Federal Regulations; 47CFR part 2 sub-part J. •American National Standards Institute (ANSI)/Institute of Electrical and Electronic Engineers (IEEE) C95. 1-1992. •Institute of Electrical and Electronics Engineers (IEEE) C95. 1-1999 Edition. •International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1998. • Ministry of Health (Canada) Safety Code 6. Limits of Human Exposure to Radiofrequency Electromagnetic Fields in the Frequency Range from 3 KHz to 300 GHz, 1999. •Australian Communications Authority Radiocommunications (Electromagnetic Radiation—Human Exposure) Standard, 2003. • ANA TEL ANNEX to Resolution No. 303 of July 2, 2002 “Regulation of limitation of exposure to electrical, magnetic and electromagnetic fields in the radio frequency range between 9 KHz and 300GHz” and “Attachment to resolution #303 from July 2, 2002”. To ensure optimal radio performance and make sure human exposure to radio frequency electromagnetic energy is within the guidelines set forth in the above standards, always adhere to the following procedures. Portable Radio Operation and EME Exposure Antenna Care Use only the supplied or an approved replacement antenna. Unauthorized antennas, modifications, or attachments could damage the radio and may violate FCC regulations. Do NOT hold the antenna when the radio is “IN USE.” Holding the antenna affects its effective range. Body-Worn Operation To maintain compliances with FCC/Health Canada RF exposure guidelines if you wear a radio on your body when transmitting a lways place the radio in a Motorola-supplied or approved clip holder, holster, case or body harness for this product. Use of non- Motorola-approved accessories may exceed FCC/Health Canada RF exposure guidelines. If you do not use one of the Motorola-supplied or approved body- worn accessories and are not using the radio held in the normal use p osition, e nsure the radio and its antenna are at least 1 inch (2.5 cm) from your body when transmitting. D ata Operation If applicable, when using any data feature of the radio with or without an accessory cable, position the radio and its antenna at least one inch (2.5 cm) from the body. Approved Accessories For a list of approved Motorola accessories, visit our Web site at www.motorola.com. E lectromagnetic Interference/Compatibility Note: Nearly every electronic device is susceptible to electromagnetic interference (EMI) if inadequately shielded, designed or otherwise configured for electromagnetic compatibility. This device complies with Part 15 of the FCC Rules. Operation is s ubject to the following two conditions: 1 . This device may not cause harmful interference; and 2. This device must accept any interference received, including interference that may cause undesired operation. Facilities To avoid electromagnetic interference and/or compatibility conflicts, t urn off your radio in any facility where posted notices instruct you to do so. Hospitals or health care facilities may be using equipment that is sensitive to external RF energy. Aircraft When instructed to do so, turn off your radio when onboard an aircraft. Any use of a radio must be in accordance with applicable regulations per airline crew instructions. Medical Devices – Pacemakers The Advanced Medical Technology Association recommends that a minimum separation of 6 inches (15 cm) be maintained between a handheld wireless radio and a pacemaker. These recommendations are consistent with the independent research by and recommendations of the U.S. Food and Drug Administration. People with pacemakers should: •ALWAYS keep the radio more than 6 inches (15 cm) from their pacemaker when the radio is turned ON. •Not carry the radio in the breast pocket. •Use the ear opposite the pacemaker to minimize the potential for interference. •Turn the radio OFF immediately if there is any reason to suspect that interference is taking place. Medical Devices – Hearing Aids Some digital wireless radios may interfere with some hearing aids. In the event of such interference, you may want to consult your hearing aid manufacturer to discuss alternatives. Medical Devices – Other If you use any other personal medical device, consult the manufacturer of your device to determine if it is adequately shielded from RF energy . Y our physician may be able to assist you in obtaining this information. Safety and General Use While Driving Check the laws and regulations regarding the use of radios in the area where you drive, and always obey them. If you do use your radio while driving, please: •Give full attention to driving and to the road. •Use hands-free operation, if available. •Pull off the road and park before making or answering a call if driving conditions so require. The use of a two-way radio while engaged in activities requiring concentration may cause distraction or otherwise impair your ability to safely participate in such activities. Always use technology safely.…

Text truncated - open the document above for the full version.

LETER OF AGENCY “I, am officer of Giant Electronics Ltd. do hereby authorize Intertek Testing Services (Mr.Ken Sit) to act on our behalf in front of the Federal Communications Commission with Respect to all matters relating to certification of equipment under part 15 and Part 95 of the FCC Rules until further notice.” I further certify that no party (as defined in 1.2002(b) of CFR 47, 1992) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 853(a). EQUIPMENT: 1) 462MHz Two Way Radio w/GMRS & FRS (10 Call tone, 22 RF Channel Scan, VOX, iVOX, 38 CTCSS Codes, 83 CDCSS codes, 11 Channel Weather Band & auto alert.) EM1000 2) 462MHz Two Way Radio w/GMRS & FRS(10 Call tone, 22 RF Channel Scan, VOX, iVOX, 38 CTCSS Codes, 83 CDCSS codes, 11 Channel Weather Band & auto alert.) Just the front penal cosmetic and color difference EM1010 3) 462MHz Two Way Radio w/GMRS & FRS (10 Call tone, 22 RF Channel Scan, VOX, iVOX, 38 CTCSS Codes, 83 CDCSS codes, 11 Channel Weather Band & auto alert.) Just the front penal cosmetic and color difference EM1020 4) 462MHz Two Way Radio w/GMRS & FRS (10 Call tone, 22 RF Channel Scan, VOX, iVOX, 38 CTCSS Codes, 83 CDCSS codes, 11 Channel Weather Band & auto alert.) Just the front penal cosmetic and color difference EM1050 Dated this: 15 th The content of this document is Giant Electronics Ltd.'s intellectual property and is the property of Giant. It is to be treated as strictly confidential and is not to be disclosed, reproduced, or used except as authorized in writing by Giant Electronics Ltd. In connection with the manufacture, maintenance and use of the Giant equipment to which it pertains. Copyright @Giant Electronics Ltd. All rights reserved. Letter of Agency day of December 2007 By : YK Ling Signature Printed Title: Electronic Engineer

Re: FCC ID: K7GEM1000 Pursuant to 47 CFR 0.459, Giant Electronics Ltd. request confidential protection of the following documents submitted electronically in furtherance of the above-reference application as containing propriety information listed below: ■ Schematic ■ Block Diagram ■ Operational Description ■ Tune Up Procedures ■ Parts List This information represents intellectual property of Giant Electronics Ltd. and it is subject to competition. This information should not be made routinely available for public inspection, and Giant Electronics Ltd. reserves the right to discern which parties can obtain access to this information. Dated this 15 th day of December 2007 By: YK Ling . Signature Printed Title : Electronic Engineer The content of this document is Giant Electronics Ltd.'s intellectual property and is the property of Giant. It is to be treated as strictly confidential and is not to be disclosed, reproduced, or used except as authorized in writing by Giant Electronics Ltd. In connection with the manufacture, maintenance and use of the Giant equipment to which it pertains. Copyright @Giant Electronics Ltd. All rights reserved. Confidentiality Request Letter

INTERTEK TESTING SERVICES External Photos FCC ID: K7GEM1000 external photos - 1 of 1 External Photo - Front External Photo - Rear

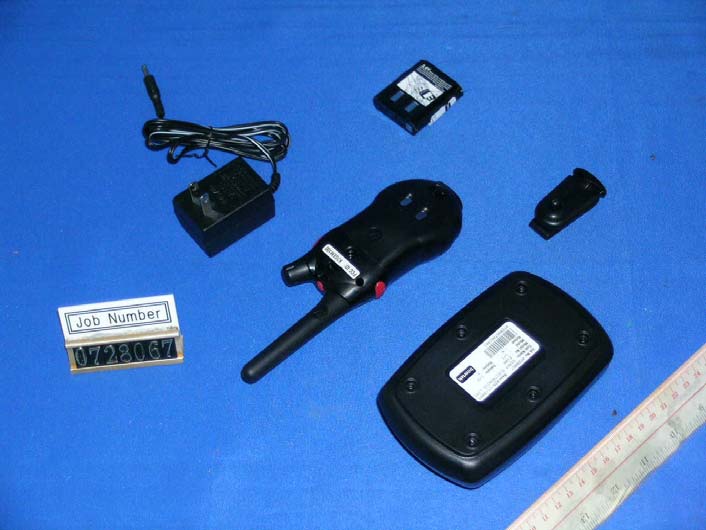

INTERTEK TESTING SERVICES Internal photos FCC ID: K7GEM1000 internal photos - 1 of 3 Internal Photo - 1 Internal Photo - 2 INTERTEK TESTING SERVICES Internal photos FCC ID: K7GEM1000 internal photos - 2 of 3 Internal Photo - 3 Internal Photo - 4 INTERTEK TESTING SERVICES Internal photos FCC ID: K7GEM1000 internal photos - 3 of 3 Internal Photo - 5

Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com December 21, 2007 Giant Electronics Ltd. 7/F., Elite Industrial Building, 135-137 Hoi Bun Road, Kwun Tong, Kowloon, Hong Kong. Dear Mr. Y. K. Ling: Enclosed you will find your file copy of a Part 95 Certification (FCC ID: K7GEM1000). For your reference, TCB will normally take another 15-20 days for reviewing the report. Approval will then be granted when no query is sorted. Please contact me if you have any questions regarding the enclosed material. Sincerely, Leung Wai Leung, Tommy Senior Manager Enclosure - The evaluation data of the report will be kept for 3 years from the date of issuance. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Giant Electronics Ltd. Application For Certification Two Way Radio with GMRS, FRS, and Weather Band Receiver (FCC ID: K7GEM1000) 07280671 TL/ ac December 21, 2007 INTERTEK TESTING SERVICES FCC ID: K7GEM1000 i SUMMARY OF CONTENTS LIST OF EXHIBITS EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: RF Power Output EXHIBIT 4: Modulation Characteristics EXHIBIT 5: Occupied Bandwidth EXHIBIT 6: Spurious Emission EXHIBIT 7: Frequency Stability EXHIBIT 8: Technical Specifications EXHIBIT 9: Product Labelling EXHIBIT 10: Photographs EXHIBIT 11: Instruction Manual EXHIBIT 12: Tune Up Procedure EXHIBIT 13: Part List EXHIBIT 14: Input Current EXHIBIT 15: RF Exposure Info EXHIBIT 16: Letter of Agency EXHIBIT 17: Confidentiality Request INTERTEK TESTING SERVICES FCC ID: K7GEM1000 ii MEASUREMENT/TECHNICAL REPORT Application : Giant Electronics Ltd. Trade Name/Model No : Motorola EM1000 Motorola EM1010 Motorola EM1020 Motorola EM1050 Date : December 21, 2007 This report concerns (check one:)Original Grant X Class II Change Equipment Type: FRF – Part 95 Family Radio Face Held Transmitter CXX - Communications Rcvr for use w/ licensed Tx and CBs Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Report prepared by: Leung Wai Leung, Tommy Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Phone: 852-2173-8538 Fax: 852-2741-1693 INTERTEK TESTING SERVICES FCC ID: K7GEM1000 iii Table of Contents 1.0 General Description............................................................................................................... 2 1.1 Product Description .............................................................................................................. 2 1.2 Related Submittal(s) Grants .................................................................................................. 3 1.3 Test Methodology ................................................................................................................. 3 1.4 Test Facility.......................................................................................................................... 3 2.0 System Test Configuration .................................................................................................... 5 2.1 Justification........................................................................................................................... 5 2.2 EUT Exercising Software ...................................................................................................... 6 2.3 Special Accessories.............................................................................................................. 6 2.4 Measurement Uncertainty .....................................................................................................6 2.5 Equipment Modification......................................................................................................... 6 3.0 RF Power Output (Section 95.639(d)) .................................................................................. 8 4.0 Modulation Characteristics (Section 95.637(a)) .................................................................. 12 4.1 Modulation Frequency Response ...................................................................................... 13 4.2 Modulation Limiting Characteristics ................................................................................... 15 4.3 Audio Low Pass Filter Response....................................................................................... 17 5.0 Occupied Bandwidth (Section 95.633(c)) ......................................................................... 19 6.0 Spurious Emission (Section 95.635(b)) .............................................................................. 21 6.1 Field Strength of Spurious Radiation (Section 95.635)................................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES Occupied Bandwidth Plots FCC ID: K7GEM1000 bw - 1 of 1 Plot CH4 Plot CH11

INTERTEK TESTING SERVICES A udio Low Pass Filter Response -70.0-60.0-50.0-40.0-30.0-20.0-10.0 0.0 10.0 1 10 100 Frequency (kHz) dB relative to 1 kHz LPF ResponseTIA/EIA-603B Audio Input Strength = 800 mVrms FCC ID: K7GEM1000 lpf - 1 of 1 60 log (F/3)

INTERTEK TESTING SERVICES Modulation Frequency Response 0.0000.5001.0001.5002.0002.500 100 600 1100 1600 2100 2600 3100 3600 4100 4600 Modulation Frequency (Hz) Frequency Deviation (kHz) FCC ID: K7GEM1000 mfr - 1 of 2 INTERTEK TESTING SERVICES Modulation Frequency Response 0.000.501.001.502.002.503.003.504.004.505.005.506.00 100 600 1100 1600 2100 2600 3100 3600 4100 4600 Modulation Frequency (Hz) Modulation Index (%) FCC ID: K7GEM1000 mfr - 2 of 2

INTERTEK TESTING SERVICES Modulation Limiting Characteristic 0.0000.5001.0001.5002.0002.500 47 57 67 77 87 97 107 117 127 137 Modulation Input (dBSPL) Frequency Deviation (kHz) 500Hz1000Hz2500Hz3125Hz FCC ID: K7GEM1000 mlc - 1 of 1

INTERTEK TESTING SERVICES Spurious Emission Plots FCC ID: K7GEM1000 spurious - 1 of 1 Plot CH4 Plot CH11

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Transmitter FCC ID: K7GEM1000 config photos (radiated emission) - 1 of 1 Radiated Emission Front View Rear View

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Weather Band Receiver FCC ID: K7GEM1000 config photos (radiated emission) - 1 of 1 Radiated Emission Front View Rear View
