K7GFV225Two Way Radio with FRS

FV225 1 462.5625 MHz FRS 8 467.5625 MHz FRS 2 462.5875 MHz FRS 9 467.5875 MHz FRS 3 462.6125 MHz FRS 10 467.6125 MHz FRS 4 462.6375 MHz FRS 11 467.6375 MHz FRS 5 462.6625 MHz FRS 12 467.6625 MHz FRS 6 462.6875 MHz FRS 13 467.6875 MHz FRS 7 462.7125 MHz FRS 14 467.7125 MHz FRS

The content of this document is Giant Electronics Ltd.'s intellectual property and is the property of Giant. It is to be treated as strictly confidential and is not to Re: FCC ID: K7GFV225 Pursuant to 47 CFR 0.459, Giant Electronics Ltd. request confidential protection of the following documents submitted electronically in furtherance of the above-reference application as containing propriety information listed below: ■ Schematic ■ Block Diagram ■ Operational Description This information represents intellectual property of Giant Electronics Ltd. and it is subject to competition. This information should not be made routinely available for public inspection, and Giant Electronics Ltd. reserves the right to discern which parties can obtain access to this information. Dated this 13th day of January 2005 By : YK Ling . Signature Printed Title : Electronic Engineer Confidentiality Request Letter be disclosed, reproduced, or used except as authorized in writing by Giant Electronics Ltd. In connection with the manufacture, maintenance and use of the Giant equipment to which it pertains. Copyright @Giant Electronics Ltd. All rights reserved.

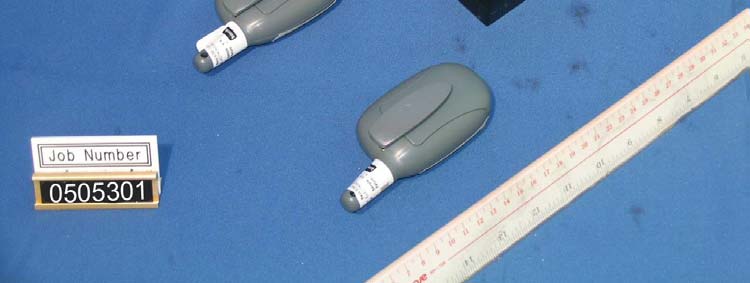

External Photos FCC ID : K7GFV225 External Photo - front External Photo - rear

Label Location FCC ID : K7GFV225 The label content and size will follow the specification of page1 in this file.

Internal Photos FCC ID : K7GFV225 Internal Photo - 1 Internal Photo - 2 Internal Photos FCC ID : K7GFV225 Internal Photo - 3 Internal - Photo 4 Internal Photos FCC ID : K7GFV225 Internal - Photo 5

Giant Electronics Ltd. Parent FV225XXXUSGY04 FRS RADIO GRAY TG EA 1 FV225BAXUSGYXA BASE UNIT GRAY SA 2 EA 0.2 FV225BCXUSGYXA BASE CASING GRAY SA 1 EA ..3 FV225BCXXX BASE CASING COMMON SA 1 EA...4 KEJW-SA30BK STRAND WIRE UL1007 #30 BLACK EN 0.035 M JW201...4 KEJW-SA30RD STRAND WIRE UL1007 #30 RED EN 0.03 M JW202...4 KEM-M15501 CONTACT A MA 1 EA...4 KEM-M15502 CONTACT B MA 1 EA...4 KEM-M15503 CONTACT C MA 1 EA...4 KEM-M15504 CONTACT D MA 1 EA...4 KEM-M15505 LCD BRACKET MA 1 EA...4 KEM-M15506 ANTENNA WIRE MA 1 EA...4 KEM-M9752 SHIELD CAN MA 1 EA E507...4 KEM-OT15501 KEYPAD MC 1 EA...4 KEM-OT15502 PTT BUTTON MC 1 EA...4 KEM-OT15503 SCREW COVER (COOL GRAY 8U) MC 1 EA...4 KEM-OT15504 METAL DOME MC 1 EA...4 KEM-OT15505 ZEBRA MC 1 EA...4 KEM-OT15506 PROTECTIVE FILM MC 1 EA E503...4 KEM-OT7357 SPEAKER SPONGE MC 1 EA...4 KEM-OT7358 SPONGE CUSHION MC 1 EA...4 KEM-OT9753 PTT METAL DOME MC 1 EA...4 KEM-OT9755 SPEAKER NET MC 1 EA E504...4 KEM-OT9757 TAPE FOR METAL DOME MC 1 EA...4 KEM-OT9758 PVC SHEET MC 1 EA E503...4 KEM-OT9760 CUSHION FOR FILTER MC 1 EA...4 KEM-OT9761 PVC SHEET FOR PTT PCB MC 1 EA...4 KEM-OT9763 CUSHION IN ANTENNA MC 1 EA E503...4 KEM-P15506A LCD HOLDER MD 1 EA E503...4 KEM-TS2306X4B TAPTITE SCREW X/HD T2.3X6 ML 5 EA E503...4 KESP-122-1 SPEAKER 32 OHM 0.5W 3632A505 EV 1 EA SPK1...4 KESP-172 MIC DB MIC C9745 42dB EV 1 EA MIC1..3 FV225BC1USSV BASE CASING US SILVER SA 1 EA...4 KEM-P15504A-02 FACE PLATE WITH PRINTING SA 1 EA....5 KEM-P15504A FACE PLATE WITHOUT PRINTING MD 1 EA....5 KEM-P15504A-02Z PRINTING FOR FACE PLATE MD 1 EA..3 FV225BC4GY BASE CASING GRAY SA 1 EA...4 KEM-P15501A FRONT CABINET ME 1 EA E503...4 KEM-P15502A REAR CABINET ME 1 EA E503...4 KEM-P15503A BATTERY DOOR MD 1 EA E503...4 KEM-P15505A BELT CLIP MD 1 EA E504 0.2 FV225B1XUSXXXX BASE RF & MAIN PCB US SA 1 EA ..3 FV2CCB1XXXC BASE RF & MAIN COMMON PART SA 1 EA...4 FV2CCB1SC BASE RF & MAIN COMMON SMT PART SA 1 EA....5 KCC-TR003-A CAP.CHIP TR1 10P ECRJA010A11 PANASONIC EA 1 EA C53....5 KCC-100FDNPOMUG CAP.CER.CHIP 50V D% 10PF NPO MURATA EA 2 EA C21,C17....5 KCC-101FJCOGGNG CAP CER CHIP 50V COG +/-5% 100PF EYANG EA 22 EA C1,C40,C44,C45,C57,C58,C7,C98,C114,C121,C96,C127 C128,C129,C140,C141,C151,C75,C5,C69,C88,C9 ....5 KCC-101FJNPOMUG CAP.CER.CHIP 50V CH J% 100PF MURATA EA 0 EA C1,C40,C44,C45,C57,C58,C7,C98,C114,C121,C96,C127 FV225 BOM.xls...FV225XXXUSGY04 BOM 2005-4-18 1 of 5 Giant Electronics Ltd. C128,C129,C140,C141,C151,C75,C5,C69,C88,C9 ....5 KCC-101FJNPOMUG CAP.CER.CHIP 50V CH J% 100PF MURATA EA 3 EA C92,C37,C18....5 KCC-101FRJU2JE CAP. CER. CHIP 50V U2J J% 100PF EA 1 EA C74....5 KCC-102FKBMUG CAP.CER.CHIP 50V B K% 0.001UF MURATA EA 5 EA C12,C87,C131,C115,C52....5 KCC-103DKBMUG CAP. CER. CHIP 16V X7R K 0.01UF EA 2 EA C77,C97....5 KCC-104DRKBE CAP. CER. CHIP 16V B K% 0.1UF EA 1 EA C42....5 KCC-104DZFEYG CAP CER CHIP 16V Y5V Z 0.1uF EYANG EA 15 EA C11,C28,C61,C63,C66,C112,C117,C139,C82,C89,C119 C49,C93,C142,C43 ....5 KCC-104DZFMUG CAP.CER.CHIP 16V F Z% 0.1UF MURATA EA 0 EA C11,C28,C61,C63,C66,C112,C117,C139,C82,C89,C119 C49,C93,C142 ....5 KCC-105DRZFB CAP. CER. CHIP 16V F Z% 1UF EA 1 EA C106....5 KCC-105DRZFM CAP. CER. CHIP 16V F Z% 1UF EA 2 EA C68,C94....5 KCC-106BRZFF CAP CER CHIP 10V F Z 10UF EA 3 EA C73,C122,C27....5 KCC-109FBCOGMUG CAP. CHIP 50V COG +/-0.1P 1PF 0402 EA 1 EA C31....5 KCC-120FJNPOMUG CAP.CER.CHIP 50V CH J% 12PF MURATA EA 3.25 EA C4,C14,C23,C70 FOR MATCH YELLOW CRYSTAL....5 KCC-129FBCOGMUG CAP. CHIP 50V COG +/-0.1P 1.2PF 0402 EA 1 EA C30....5 KCC-150FJNPOMUG CAP.CER.CHIP 50V CH J% 15PF MURATA EA 1 EA C3....5 KCC-152FKBMUG CAP CER CHIP 50V X7R K 0.0015UF MURATA EA 1 EA C55....5 KCC-180FJNPOMUG CAP.CER.CHIP 50V CH J% 18PF MURATA EA 2 EA C51,C22....5 KCC-200FJNPOTDG CAP. CER. CHIP 50V J 20PF TDK C1005COG1H EA 0.25 EA C72 FOR MATCH YELLOW CRYSTAL....5 KCC-209FCNPOMUG CAP.CER.CHIP 50V CH C% 2PF MURATA EA 1 EA C25....5 KCC-222ERKX7RE CAP CER CHIP 25V X7R K 2200PF 28295-17 GRM39X7R2 2 EA 1 EA C102 ....5 KCC-222FKBMUG CAP.CER.CHIP 50V B K% 0.0022UF MURATA EA 2 EA C54,C95....5 KCC-223DKBMUG CAP.CER.CHIP 16V B K% 22NF MURATA EA 3 EA C41,C133,C101....5 KCC-240FJNPOMUG CAP.CER.CHIP 50V CH J% 24PF MURATA EA 1 EA C8....5 KCC-270FJNPOMUG CAP. CER. CHIP 50V NPO J 27P 0402 EA 1 EA C62....5 KCC-309FBNPOMUG CAP CER CHIP 50V B NPO 3P EA 2 EA C26,C32....5 KCC-309FCNPOMUG CAP.CER.CHIP 50V CH C% 3PF MURATA EA 1 EA C15....5 KCC-330FJNPOMUG CAP.CER.CHIP 50V CH J% 33PF MURATA EA 0.25 EA C72 FOR MATCH GREEN CRYSTAL....5 KCC-333BRKBG CAP. CER. CHIP 10V B K% 0.033UF EA 2 EA C125,C64....5 KCC-334DRKBM CAP. CER. CHIP 16V B K% 0.33UF EA 2 EA C83,C48....5 KCC-390FJNPOMUG CAP CER CHIP 50V NPO J% 39PF MURATA EA 2 EA C13,C90....5 KCC-391FRJNPOE CAP CER CHIP 50V NPO J 390PF EA 1 EA C91....5 KCC-393BKBMUG CAP. CER. CHIP 10V K X7R 0.039UF 0402 EA 1 EA C60....5 KCC-409FCNPOMUG CAP.CER.CHIP 50V CH C% 4PF MURATA EA 2 EA C24,C34....5 KCC-471FJCOGEYB CAP CER CHIP 50V COG +/-5% 470PF EYANG EA 1 EA C6....5 KCC-471FRJNPOE CAP. CER. CHIP 50V CH J% 470PF EA 0 EA C6....5 KCC-471FJNPOMUG CAP.CER.CHIP 50V CH J% 470PF MURATA EA 1 EA C76....5 KCC-562FRKBB CAP. CER. CHIP 50V B K% 0.0056UF EA 1 EA C81....5 KCC-680FJNPOMUG CAP.CER. CHIP 50V NPO J% 68pF EA 1 EA C130....5 KCC-681FRJNPOE CAP. CER. CHIP 50V CH J% 680PF EA 1 EA C118....5 KCC-683BKBMUG CAP. CER. CHIP 50V X7R K 0.068UF EA 3 EA C116,C47,C149....5 KCC-689FCCOGMUG CAP CER CHIP 50V COG C 6.8PF 45768-11 GRM36COG6 R EA 1 EA C33 ....5 KCC-809FCNPOMUG CAP. CER. CHIP 50V CH C% 8PF MURATA EA 1.25 EA C20,C71 FOR MATCH GREEN CRYSTAL....5 KCC-821FJNPOMUG CAP.CER. CHIP 50V NPO J% 820pF EA 1 EA C134....5 KCC-821FRKBB CAP. CER. CHIP 50V B K% 820PF EA 2 EA C78,C79....5 KCC-909FDNPOMUG CAP. CER. CHIP 50V CH D 9PF MURATA 0402 EA 1.25 EA C71 FOR MATCH YELLOW CRYSTAL,C29....5 KCD-ZTZMC5V6 DIODE ZENER TZMC 5V6 0.5W EB 1 EA D8....5 KCD-1SS314 DIODE PIN 1SS314 EB 4 EA D1,D2,D4,D5 FV225 BOM.xls...FV225XXXUSGY04 BOM 2005-4-18 2 of 5 Giant Electronics Ltd. ....5 KCD-214 DIODE VARACTOR 1SV214 EB 1 EA D3....5 KCL-101MU-1 INDU…

Text truncated - open the document above for the full version.

GIANT ELECTRONICS LTD. Title: Alignment Procedure Model: FV225 Rev. A. PCB LEVEL (Test Condition: under CH1) NO ITEM ALIGNMENT METHOD REMARK 1. LCD display (Should enter test mode) 1. Turn on the radio power until a good key chirp is heard, finally, the LCD should be display ‘1’. 2. Press ‘DOWN’ key, then all LCD segments should be Anti clockwise displayed. 3. Finally, all the LCD segments should be shown for about 500ms as follows: 2. Standby current 1. Set A-METER, and RX mode. 2. Check the standby current <45mA DC. 3. Talk on current 1. Set A-METER, and TX mode @50ohm load. 2. Check the talk on current <500mA DC. 4. VCO 1. Set test mode 2. Check TP3 to provide0.8 ~ 2.3VDC. 3. Adjust L11 to provide 2.0 ± 0.1VDC at TP103 if VCO level are more than 2.4VDC on TX modeCH20. 5. TX Power 1. Set TX mode 2. Check transmit power to provide Ch 4: 0.14W ERP, Ch11: 0.13WERP. Test Voltage: DC 4.5 V 6. TX Frequency Adjust C53 to provide 462.5625MHz ± 50Hz. 7. TX Modulation & distortion 1.Set AF level 25mv, 1KHz,Adjust VR1 to provide Max TX deviation 2.25KHz to 2.35KHz. 2.Check input Mic level in 0.5~10 mV to provide normal Deviation 1.5KHz. 3.Check the demodulation distortion <= 5%. 1. Audio Frequency Response. a) Input a 2.0mV 1KHz audio frequency to TP33 and press ‘PTT’ switch. b) Check the response compare to 1KHz tone. i) 500Hz: -5.0 dB to –11.0 dB. ii) 2.5KHz: +3.0 dB to +9.0 dB. Filter set: 1.HPF 50Hz 2.LPF 15KHz 3. PK + All input at TP33 Page 1 of 4 THE CONTENT OF THIS DOCUMENT IS GIANT ELCT.LTD. INTELLECTUAL PROPERTY AND IS THE PROPERTY OF GIANT, IT IS TO BE TREATED AS STRICTLY AND IS NOT BE DISCLOSED, REPRODUCED, OR USED EXCEPT AS AUTHORIZED IN WRITING BY GIANT ELECTRONIC LTD. IN CONNECTION WITH THE MANUFACTURE, MAINTENANCE AND USE OF THE GIANT EQUIPMENT WHICH IT PERTAINS. COPYRIGHT @GIANT ELECT. LTD, ALL RIGHTS RESERVED. Page 2 of 4 THE CONTENT OF THIS DOCUMENT IS GIANT ELCT.LTD. INTELLECTUAL PROPERTY AND IS THE PROPERTY OF GIANT, IT IS TO BE TREATED AS STRICTLY AND IS NOT BE DISCLOSED, REPRODUCED, OR USED EXCEPT AS AUTHORIZED IN WRITING BY GIANT ELECTRONIC LTD. IN CONNECTION WITH THE MANUFACTURE, MAINTENANCE AND USE OF THE GIANT EQUIPMENT WHICH IT PERTAINS. COPYRIGHT @GIANT ELECT. LTD, ALL RIGHTS RESERVED. GIANT ELECTRONICS LTD. Title: Alignment Procedure Model: FV225 Rev. A. PCB LEVEL (Test Condition: under CH1) NO ITEM ALIGNMENT METHOD REMARK 8. Rx Audio test 1. Set RX mode CH10. 2. Set SG RF level to –50dBm with 1.5KHz deviation 1KHz modulation Signal. 3. Adjust L13 to provide minimum distortion & max output level at TP37. 4. Press the volume “+” key until display show 15, which give a Max audio output at TP37. 5. Check Max audio output level >1350mV. 6. Check Rx current <150mA. 7. Press the volume “-“ key until display show 13. 8. Check the 1KHz distortion <= 5%. 9. Set SG RF level to –119dBm with 1.5kHz deviation at 1KHz audio frequency. a). Check SINAD sensitivity <= -119dBm. @12dB SINAD at TP37. 10. Audio frequency response. a) Set SG RF level to –50dBm with 1.5kHz deviation at 1KHz audio frequency. b) Press the volume “-“key until display show 9. c) Vary the audio frequency from 300Hz to 3KHz. d) Check the RX response compare to 1KHz tone. i) 500Hz: +3.0 dB to +7.0 dB. ii) 2.5KHz: -6.0 dB to -11.0 dB. 11. Maximum and Minimum Audio Output Power. a) Set SG RF level to –50dBm with 1.5kHz deviation at 1KHz audio frequency. b) Press the volume “+”. Key until display show 15,which give a maximum output. c) Check the voltage at TP37 >/=1350mV. d) Set maximum audio output to 0dB, Press the volume “-“ key until display show 1, which give a minimum output. e) Check the minimum voltage -13dB to -30dB at T37 32 OHM 9. Noise- Detector 1. Set SG to –120dBm with 1.5KHz deviation. 1KHz AF on CH10. 2. Adjust VR102 for transient state @ 10dB SINAD. 3. Check high state @7 to 15dB SINAD. 10. Normal Batter level detect 1. Battery level: 3.85+/-0.15V level 1, 2.88+/-0.15V level 2, 11. Battery charging current 1. Switch to charger unit, check charger battery / walk talk charging current @3.6V battery:( coordinate 68 Ohm load.) 2. Adaptor input voltage 120V: 60±10mA. (For charger) 12. SCAN 1. Set SG RF level to –50dBm with 500hz deviation, 100 Hz modulation signal. 2. Press “Mon” key 1. Unit will shows channels number. Page 3 of 4 THE CONTENT OF THIS DOCUMENT IS GIANT ELCT.LTD. INTELLECTUAL PROPERTY AND IS THE PROPERTY OF GIANT, IT IS TO BE TREATED AS STRICTLY AND IS NOT BE DISCLOSED, REPRODUCED, OR USED EXCEPT AS AUTHORIZED IN WRITING BY GIANT ELECTRONIC LTD. IN CONNECTION WITH THE MANUFACTURE, MAINTENANCE AND USE OF THE GIANT EQUIPMENT WHICH IT PERTAINS. COPYRIGHT @GIANT ELECT. LTD, ALL RIGHTS RESERVED. GIANT ELECTRONICS LTD. Title: Alignment Procedure Model: FV225 Rev. B. CASING LEVEL NO ITEM ALIGNMENT METHOD REMARK 1. Current Consumption 1. Set A-METER. With volume switch OFF, check the OFF current <10μA. 2. With volume switch ON, check the standby current <50mA. Press 'PTT' switches and check the TX current <500mA. 2. TX Frequency 1. Check CH1=462.5625Mhz -/+500Hz. 2. Check CH22 =467.7125MHz+ /-500Hz. 3. Noise- Detector 1. Set the distance between antennas of SG and checked unit to 0.3M ~ 0.5M. 2. The antennas of SG and checked unit should be parallel to make the electromagnetic field of SG. 3. Radiate equably to the antenna of checked unit. 4. Set SG to -90dBm with 1.5KHz deviation, 1KHz tone on CH10. 5. Adjust VR102 for HIGH state: 7 ~ 15dB SINAD. When adjusting Noise-Det Should reduce any interference from other Instruments and body. 4. Audio RX Path CH10 1. Set SG RF level to -50dBm with 1.5kHz Dev.; 1kHz AF , Rotate the volume switch to the position, which give an Max output. 2. Check speaker O/P level >85dBspL(30cm distance). 3. Set SG RF level to -60dBm with 1.5kHz Dev.; 1kHz AF. 4. Plug the dummy speaker and dummy microphone into audio jet. 5. Rotate the volume switch to the position, which give an output 900+/-50mv. 6. Set SG RF level to -90dBm with 1.5kHz Dev.; 1kHz AF. 7. Check the radiate…

Text truncated - open the document above for the full version.

Modulation Frequency Response 0.000.501.001.502.00 200 700 1200 1700 2200 2700 3200 3700 4200 4700 Modulation Frequency (Hz) Frequency Deviation (kHz) FCC ID: K7GFV2 25 Modulation Frequency Response 0.000.501.001.50 300 800 1300 1800 2300 2800 3300 3800 4300 4800 Modulation Frequency (Hz) Modulation Index (%) FCC ID: K7GFV2 25

Modulation Limiting Characteristic 0.000.501.001.502.002.50 47 57 67 77 87 97 107 117 127 137 Modulation Input (dBSPL) Frequency Deviation (kHz) 500Hz1000Hz2500Hz3125Hz FCC ID: K7GFV2 25

• The test results reported in this report shall refer only to the sample actually tested and shall not refer or be deemed a refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2371 0521 Website: www.hk.intertek-etlsemko.com Giant Electronics Limited Application For Certification (FCC ID: K7GFV225) April 20, 2005 05053011 TL/ Ann Choy April 20, 2005 INTERTEK TESTING SERVICES FCC ID: K7GFV225 i SUMMARY OF CONTENTS LIST OF EXHIBITS EXHIBIT 1: General Description EXHIBIT 2 : System Test Configuration EXHIBIT 3: RF Power Output EXHIBIT 4: Modulation Characteristics EXHIBIT 5: Occupied Bandwidth EXHIBIT 6: Spurious Emission EXHIBIT 7: Frequency Stability EXHIBIT 8: Technical Specifications EXHIBIT 9: Product Labelling EXHIBIT 10: Photographs EXHIBIT 11: Instruction Manual EXHIBIT 12: Tune Up Procedure EXHIBIT 13: Part List EXHIBIT 14: Input Current EXHIBIT 15: RF Exposure Info EXHIBIT 16: Confidentiality Request INTERTEK TESTING SERVICES FCC ID: K7GFV225 ii MEASUREMENT/TECHNICAL REPORT Application : Giant Electronics Limited Trade Name/Model No : Motorola FV225 Date : April 20, 2005 This report concerns (check one:)Original Grant X Class II Change Equipment Type: FRF – Part 95 Family Radio Face Held Transmitter Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Report prepared by: Tommy Leung Intertek Testing Services 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Phone: 852-2173-8536 Fax: 852-2741-1693 INTERTEK TESTING SERVICES FCC ID: K7GFV225 iii Table of Contents 1.0 General Description ..............................................................................................2 1.1 Product Description ..........................................................................................2 1.2 Related Submittal(s) Grants.............................................................................3 1.3 Test Methodology.............................................................................................3 1.4 Test Facility ......................................................................................................3 2.0 System Test Configuration...................................................................................5 2.1 Justification .......................................................................................................5 2.2 EUT Exercising Software .................................................................................6 2.3 Special Accessories .........................................................................................6 2.4 Measurement Uncertainty................................................................................6 2.5 Equipment Modification ....................................................................................6 2.6 Support Equipment ...........................................................................................6 3.0 RF Output Power (Section 95.639(d)) ..................................................................8 4.0 Modulation Characteristics (Section 95.637(a)) ................................................12 4.1 Modulation Frequiency Response ..................................................................13 4.2 Modulation Limiting Characteristic ..................................................................15 5.0 Occupied Bandwidth (Section 95.633(c)) ........................................................18 6.0 Spurious Emission (Section 95.635(b)) .............................................................20 6.1 Field Strength of Spurious Radiation...............................................................22 7.0 Frequency Stability (Section 95.627) .................................................................27 7.1 Frequency Tolerance ......................................................................................28 7.2 Temperature Extreme Condition .....................................................................30 7.3 Voltage Extreme Condition .............................................................................33 8.0 Technical Specifications....................................................................................36 9.0 Product Labelling................................................................................................40 10.0 Equipment Photographs..................................................................................43 11.0 Instruction Manual............................................................................................45 12.0 Tune Up Procedure...........................................................................................47 13.0 Part List.............................................................................................................49 14.0 Input Current.....................................................................................................51 15.0 RF Exposure Info..............................................................................................53 16.0 Confidentiality Request....................................................................................55 INTERTEK TESTING SERVICES FCC ID: K7GFV225 iv List of attached file Exhibit type File Description Filename Operation Description Technical Description descri.pdf Test Report Bandwidth Plot bw.pdf Test Report Modulation Frequency Respon…

Text truncated - open the document above for the full version.

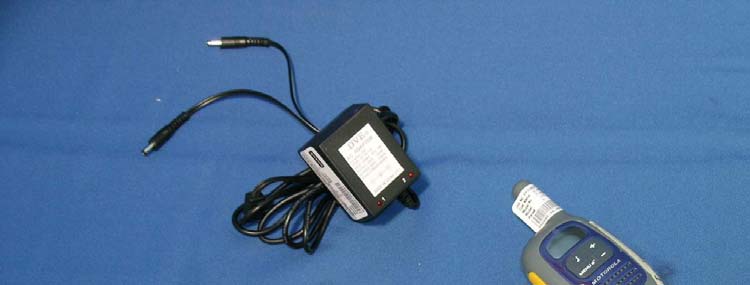

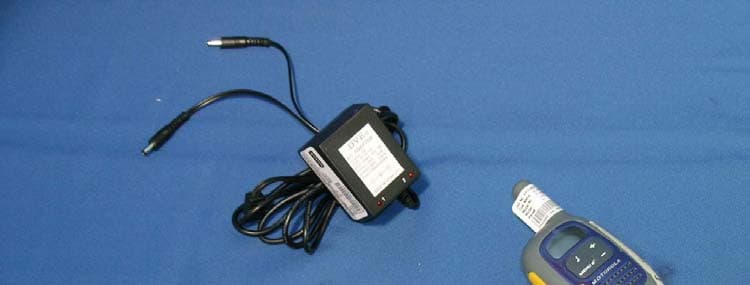

The Worst Case Configuration Photographs FCC ID: K7GFV225 Radiated Emission Front View Rear View
