K7GFV700Two Way Radio with GMRS, FRS, and Weather Band

Giant Electronics Ltd

Click to zoom

Application Details

Equipment Class: FRF - Part 95 Family Radio Face Held Transmitter
Date of Grant: Jan 09, 2007
Application Purpose: Original Equipment
Date of Application: Jan 09, 2007
Equipment Note: Two Way Radio with GMRS, FRS, and Weather Band
Frequency Range: 467.56250000 - 467.71250000
Company: Giant Electronics Ltd
Country: Hong Kong

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Setting the Volume Press and hold while rotating until you reach a comfortable listening level. 1. Rotate clockwise to increase the volume 2. Rotate counterclockwise to decrease the volume. Do not hold the radio close to your ear. If the volume is set to an uncomfortable level, it could hurt your ear. Two-Way Radio User’s Guide Model FV700/ FV750 series Safety and General InformationFCC Licensing Information Control Buttons Display Screen Guide KEM-PK14190-43 Important Information on Safe and Efficient Operation Read This Information Before Using Your Radio. The information provided in this document supersedes the general safety information in user guides published prior to December 1, 2002. Transmit and Receive Procedure Your two-way radio contains a transmitter and a receiver. To control your exposure and ensure compliance with the general population/uncontrolled environment exposure limits, always adhere to the following procedure: Transmit no more than 50% of the time. To receive calls, release the PTT button. To transmit (talk), press the Push to Talk (PTT) button. Transmitting 50% of the time, or less, is important because the radio generates measurable RF energy exposure only when transmitting (in terms of measuring standards compliance). Exposure to Radio Frequency Energy Your Motorola two-way radio complies with the following RF energy exposure standards and guidelines: United States Federal communications Commission, Code of Federal Regulations; 47CFR part 2 sub-part J American National Standards Institute (ANSI)/Institute of Electrical and Electronic Engineers (IEEE) C95. 1-1992 Institute of Electrical and Electronics Engineers (IEEE) C95.1-1999 Edition International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1998 Getting Started Installing the Batteries: Your radio uses three AAA Alkaline batteries and beeps when the batteries are low. 1. Turn the radio off. 2. With the back of the radio facing you, lift the battery latch up to release the battery cover and remove the cover. 3. Insert three AAA Alkaline batteries as shown on the inside of the battery compartment. 4. Reposition the battery cover and press down to secure. NOTE: The FV700/ FV750 model radio can use a NiMH rechargeable battery instead of three AAA batteries. Installing the NiMH Battery Pack: 1. Follow step 2 above to remove the battery cover. 2. Remove the battery pack from the clear plastic bag. Do not disassemble or unwrap the battery pack. 3. Insert the NiMH battery pack so the “This Side Up” is showing. 4. Reposition the battery cover and press down to secure. Battery Meter The battery icon shows the battery charge level, from full to empty . When the battery is empty, the radio chirps periodically or after releasing (Low Battery Alert). Note: Remove the batteries before storing your radio for extended periods of time. Batteries corrode over time and may cause permanent damage to your radio. Talking and Listening To communicate, all radios in your group must be set to the same channel and Interference Eliminator Code. 1. To talk, press and hold . 2. When you are finished talking, release . For maximum clarity, hold the radio two to three inches away from your mouth and speak directly into the microphone. Do not cover the microphone while talking. Talk Range Your radio is designed to maximize performance and improve transmission range. Do not use the radios closer than five feet apart. Monitor Button Pressing and holding for three seconds allows you to listen to the volume level of the radio when you are not receiving. This allows you to adjust the volume, if necessary. You can also press to check for activity on the current channel before you talk. Push to Talk Timeout Timer To prevent accidental transmissions and save battery life, the radio emits a continuous warning tone and stops transmitting if you press for 60 continuous seconds. Using the Battery Charger (Optional Accessory) The battery charger provides drop-in charging convenience for NiMH batteries and can be placed on any flat surface, such as a desk or workbench. Charge the NiMH battery overnight (at least 16 hours) before using it for the first time. After the initial charge, an empty battery is fully charged within 14 hours. 1. Follow the steps above to install a NiMH Battery Pack. 2. Plug the AC power supply into the plug on the desk stand. 3. Plug the AC power supply into a standard wall outlet. 4. With a radio facing forward, slide it into one of the charging pockets. Notes The light on the charging base will glow continuously when radio/battery is inserted. When moving between hot and cold temperatures, do not charge the battery until the battery temperature acclimates (usually about 20 minutes). For optimal battery life, remove the radio or battery from the charger within 16 hours. Do not store the radio in the charger. Turn radio off while in charging tray. Attaching and Removing the belt clip 1. Align the belt clip post with the hole in the back of the radio. 2. Gently push until the clip clicks in place To Remove 1. Push down on the release tab at the top of the belt clip to release the catch. 2. Pull the belt clip away from the back of the radio. Turning Your Radio On and Off Turn clockwise to turn the radio on and counterclockwise to turn the radio off. 1. The radio chirps and briefly shows all features icons available on your radio. 2. The display then shows the current channel, code and features that are selected. Initial Setup Selecting the Channel Your radios has 22 channels. Channels 8-14 are FRS 0.5 Watt only and all other channels are GMRS. 1. With the radio on, press . When the radio is on a 0.5 watt channel, displays. When the radio is on a 1 watt channel, displays. The current channel flashes. 2. Press or to set the channel. 3. Press to save the channel setting or to continue set up. For More Information For further information, you may call Motorola at 1-800-638-5119 (U.S. and Canada) or visit us on the Internet…

Text truncated - open the document above for the full version.

Cover Letter(s)

The content of this document is Giant Electronics Ltd.'s intellectual property and is the property of Giant. It is to be treated as strictly confidential and is not to be disclosed, reproduced, or used except as authorized in writing by Giant Electronics Ltd. In connection with the manufacture, maintenance and use of the Giant equipment to which it pertains. Copyright @Giant Electronics Ltd. All rights reserved. Re: FCC ID: K7GFV700 Pursuant to 47 CFR 0.459, Giant Electronics Ltd. request confidential protection of the following documents submitted electronically in furtherance of the above-reference application as containing propriety information listed below: ■ Schematic ■ Block Diagram ■ Operational Description This information represents intellectual property of Giant Electronics Ltd. and it is subject to competition. This information should not be made routinely available for public inspection, and Giant Electronics Ltd. reserves the right to discern which parties can obtain access to this information. Dated this 22 nd day of December 2006 By: YK Ling . Signature Printed Title : Electronic Engineer Confidentiality Request Letter

External Photos

INTERTEK TESTING SERVICES External Photos FCC ID: K7GFV700 external photos - 1 of 1 External Photo - Front External Photo - Rear

Internal Photos

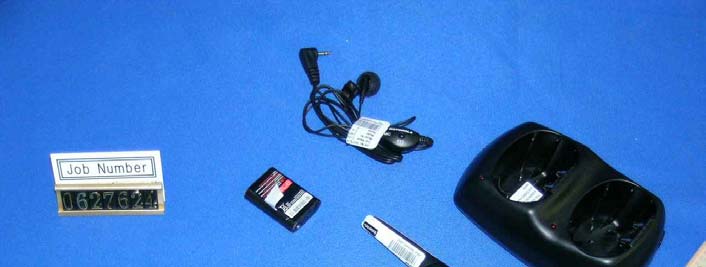

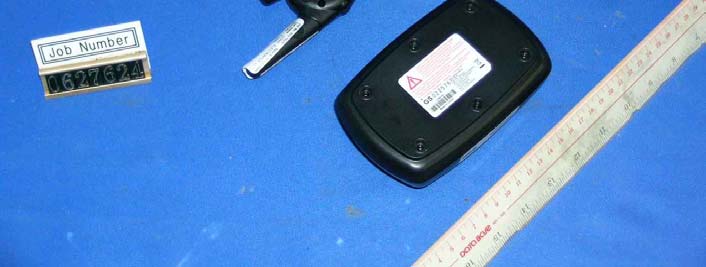

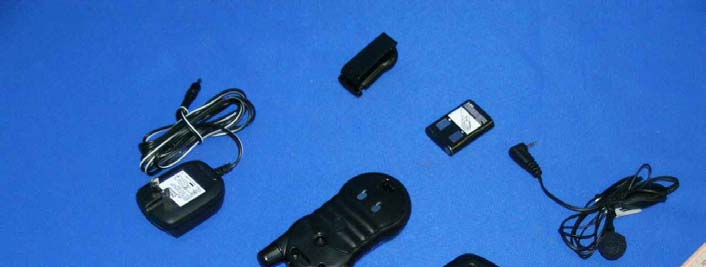

INTERTEK TESTING SERVICES Internal photos FCC ID: K7GFV700 internal photos - 1 of 3 Internal Photo - 1 Internal Photo - 2 INTERTEK TESTING SERVICES Internal photos FCC ID: K7GFV700 internal photos - 2 of 3 Internal Photo - 3 Internal Photo - 4 INTERTEK TESTING SERVICES Internal photos FCC ID: K7GFV700 internal photos - 3 of 3 Internal Photo - 5 Internal Photo - 6

Parts List/Tune Up Info

GIANT ELECTRONICS LTD. Title: Alignment Procedure Document No:ENG-FV700-08 Revision No.: A Model: FV700 Page No.: 2 Issue Date: Nov 27, 2006 A. PCB LEVEL (Test Condition: under CH15, Supply=4.5Vdc) NO ITEM ALIGNMENT METHOD REMARK 1. LCD display (Should enter test mode) 1. Press and hold the ‘+’ key and ‘Menu’ key together. 2. Turn on the radio power until a good key chirp is heard, and the backlight is on for about 500 ms . finally, the LCD should be display as fig. 1. 3. Press ‘-’ key , then all LCD segments should be anticlockwise displayed. 4. Finally, all the LCD segments should be shown for about 500ms as fig. 2. fig. 1 fig. 2 2. Standby current 1. Set A-METER, and RX mode. 2. Check the standby current <50mA DC. 3. Talk on current (Power supply 4.5V DC) 1. Set A-METER, and TX mode @50ohm load. 2. Set channel to 15, Check the talk on current <900mA. 3. Set channel to 14, Check the talk on current <500mA. 4. VCO 1. Set RX or TX mode 2. Check TP103 to provide 0.7~2.3VDC . 3. Adjust L603 to provide 2.2 ± 0.1VDC at TP103 if VCO level are more than 2.4VDC on CH14. 4. Set WX mode, check TP504 to provide 0.7~2.4VDC 5. TX Power (Power supply 4.5V DC) 1. Set TX mode CH15, Check the transmit power to provide 0.75W ERP. 2. Set CH14 TX power mode, Adjust VR801 to transmit Low-power to provide 0.17W ERP. *** 6. TX Frequency 1. Set TX mode 2. Adjust VC501 to provide 462.5500MHz ± 50Hz. 7. CTCSS Tone Frequency 1. Set CH15/CODE1 and Tx mode. 2. Check CTCSS tone frequency to be within 66.8Hz to 67.2Hz. 8. TX Modulation & distortion 1. Set AF level at 50mv;1KHz,Adjust VR1 to provide Max TX deviation 2.05KHz to 2.15KHz. 2.Check input Mic level in 3~15 mV to provide normal deviation 1.5KHz. 3.Check the demodulation distortion <= 6%. 1. Audio Frequency Response. a) Input a 2.0mV 1KHz audio frequency to TP113 and press ‘PTT’ switch. b) Check the response compare to 1KHz tone. i) 500Hz : -6.0 dB to –12.0 dB. ii) 2.5KHz : 1 dB to +7 dB . FILTER SET: 1.HPF 300Hz 2.LPF 3KHz 3. PK + 9. CDCSS Frequency 1. Set TX mode 2. Set CH15/CODE99 3. Check the Code 99 Octal Code to be 503 4. Set CH15/CODE39, check Octal Code to be 023 FILTER SET: 1.Input Level: 0.6KHz 10. CTCSS Tone Dev. 2. Set CH15/CODE1、AF input level to off, check DEV to be 300Hz~ 650Hz. 3. Set CH14/CODE38、AF input level to off, check DEV to be 300Hz~ 650Hz. FILTER SET: 1. <20HZ~300HZ 2.750μs De-emp ON 4. PK+ 5. FM DEV. AVG ON GIANT ELECTRONICS LTD. Title: Alignment Procedure Document No:ENG-FV700-08 Revision No.: A Model: FV700 Page No.: 3 Issue Date: Nov 27, 2006 A. PCB LEVEL (Test Condition: under CH15) NO ITEM ALIGNMENT METHOD REMARK 11. VOX Detector 1. Set VOX level at 1. 2. Set AF level at 11.0 +/- 2.0 mV,1KHz at TP116. 3. Unit start to transmit. 4. Set AF level at 8.0 +/- 2.0mV,1KHz at TP116. 5. Unit stop transmit. 6. Set VOX level at 2. 7. Set AF level at 9.0 +/-2.0mV,1KHz at TP116. 8. Unit start to transmit. 9. Set AF level at 5.5+/- 2.0mV,1KHz at TP116. 10. Unit stop transmit. 11. Set VOX level at 3 12. Set AF level at 5 .5+/- 1.5mV,1KHz at TP116. 13. Unit start to transmit. 14. Set AF level at 3.5+/- 1.5mV,1KHz at TP116. 15. Unit stop transmit. 12. IVOX Detector As same as item 11 13. Rx Audio test 1. Set RX mode CH7. 2. Set SG RF level to –50dBm with 1.5KHz deviation 1KHz modulation Signal. 3. Rotate the volume switch to the position, which give a Max audio output at TP117. 4. Check Max audio output level >1400mV. 5. Check Rx current <150mA. 6. Check the 1KHz distortion <= 5%. 7. Set SG RF level to –118dBm with 1.5kHz deviation at 1KHz audio frequency. a). Check SINAD sensitivity <= -118dBm. @12dB SINAD at TP117. 8. Audio frequency response. a) Set SG RF level to –50dBm with 1.5kHz deviation at 1KHz audio frequency. b) Rotate the volume switch to the position, which give an output 100mV±5mV at TP117. c) Vary the audio frequency from 300Hz to 3KHz. d) Check the RX response compare to 1KHz tone. i) 500Hz : -2.0 dB to 4.0 dB. ii) 2.5KHz : -17.0 dB to –23.0 dB 9. Maximum and Minimum Audio Output Power. a) Set SG RF level to –50dBm with 1.5kHz deviation at 1KHz audio frequency. b) Rotate the volume switch to the position, which give a maximum output . c) Check the voltage at TP117 >1400mV. d) Set maximum audio output to 0dB, rotate the volume switch to the position, which give a minimum output. e) Check the minimum voltage -23dB to -43dB at TP117 11. Set WX mode, Set SG RF level to –118dBm with 1.5KHz deviation at 1KHz audio frequency. a). Check SINAD sensitivity ≤ -118dBm. @12dB SINAD at TP117. GIANT ELECTRONICS LTD. Title: Alignment Procedure Document No:ENG-FV700-08 Revision No.: A Model: FV700 Page No.: 4 Issue Date: Nov 27, 2006 A. PCB LEVEL (Test Condition: under CH15) NO ITEM ALIGNMENT METHOD REMARK 14. Noise- Detector 1. Set SG to –120dBm with 1.5KHz deviation., 1KHz AF on CH7. 2. Press ”Mon” key and Adjust VR501 for transient state @ 10dB SINAD. 3. Check high state @7 to 15dB SINAD. When adjusting Noise-Det. , Should reduce any interference from other Instruments and body. 15. CTCSS Tone Detect 1. Set CH15/CODE1 and SG to –60dBm with 67Hz tone frequency, 400Hz deviation. 2. Check the Pin13 of IC1 to have square-wave, and low for RF modulation off. 3. Repeat item 1 and 2 for code38 (250.3Hz). 4. Repeat item 1 ~ 3 for CH14. 16. CDCSS Tone Detect 1. Set CH15/CODE99 and SG to –60dBm with 503 Octal Code tone frequency, 400Hz deviation. 2. Check the Pin42 of IC1 to have square-wave, and low for RF modulation off. 3. Repeat item 1 and 2 for code39 (023 Octal Code). 4. Repeat item 1 ~ 3 for CH14. 17. Quiet Noise Detect 1. Set unit to quiet noise mode 2. Set CH15/CODE1and SG to –60dBm with 67Hz tone frequency, 400Hz deviation and 55 Hz audio frequency, 1K deviation.. 3. 55 Hz tone frequency appear on the Pin13 of IC1. 18. Normal Batter level Detect 1. If the battery voltage level less than 3.15V, the battery icon should be displaied as . 2. If the battery voltage level more than 4.0V, the battery icon should be displaied as . 19 Weather Alert Det…

Text truncated - open the document above for the full version.

RF Exposure Info

Test Report No：0701FS11-01 Page 2 of 76 ©2005 A Test Lab Techno Corp. Contents 1. Description of Equipment Under Test (EUT).......................................................................................... 3 2. Other Accessories..................................................................................................................................... 5 3. Introduction................................................................................................................................................ 7 4. SAR Definition........................................................................................................................................... 8 5. SAR Measurement Setup.......................................................................................................................... 9 6. System Components................................................................................................................................. 11 6.1 DASY4 E-Field Probe System........................................................................................................... 11 6.1.1 ET3DV6 E-Field Probe Specification....................................................................................... 12 6.1.2 ET3DV6 E-Field Probe Calibration.......................................................................................... 13 6.2 Data Acquisition Electronic (DAE) System......................................................................................... 13 6.3 Robot.................................................................................................................................................. 14 6.4 Measurement Server.......................................................................................................................... 14 6.5 Device Holder for Transmitters.......................................................................................................... 14 6.6 Phantom-TWIN SAM V4.0................................................................................................................. 15 6.7 Data Storage and Evaluation............................................................................................................. 15 6.7.1 Data Storage............................................................................................................................ 15 6.7.2 Data Evaluation........................................................................................................................ 16 7. Test Equipment List.................................................................................................................................. 18 8. Tissue Simulating Liquids........................................................................................................................ 19 8.1 Liquid Confirmation............................................................................................................................ 20 8.1.1 Parameters...............................................................................................................................20 8.1.2 Liquid Depth............................................................................................................................. 21 9. Measurement Process.............................................................................................................................. 22 9.1 Device and Test Conditions................................................................................................................ 22 9.2 System Performance Check.............................................................................................................. 23 9.2.1 Symmetric Dipoles for System Validation................................................................................ 23 9.2.2 Validation.................................................................................................................................. 24 9.3 Dosimetric Assessment Setup........................................................................................................... 25 9.3.1 Headset Test Position - Body Worn.......................................................................................... 25 9.3.2 Measurement Procedures........................................................................................................ 26 9.4 Spatial Peak SAR Evaluation............................................................................................................. 27 10. Measurement Uncertainty......................................................................................................................... 28 11. SAR Test Results Summary...................................................................................................................... 30 11.1 450MHz SAR Test Results-FRS Face SAR -1.5 cm Spacing ...................................................... 30 11.2 450MHz SAR Test Results-GMRS Face SAR -1.5 cm Spacing ................................................... 31 11.3 450MHz SAR Test Results-FRS Body SAR With Belt-clip............................................................. 33 11.4 450MHz SAR Test Results-GMRS Body SAR With Belt-clip......................................................... 34 11.5 450MHz SAR Test Results-FRS Body SAR w/o Belt-clip -1.5cm Spacing.................................... 36 11.6 450MHz SAR Test Results-GMRS Body SAR w/o Belt-clip -1.5cm Spacing................................. 37 11.7 Std. C95.1-1999 Exposure Limit..................................................................................................... 39 12. Conclusion................................................................................................................................................. 40 13. References........................................................................................................…

Text truncated - open the document above for the full version.

Test Report

• The test results reported in this report shall refer only to the sample actually tested and shall not refer or be deemed a refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Giant Electronics Ltd. Application For Certification Two Way Radio with GMRS, FRS, and Weather Band Receiver (FCC ID: K7GFV700) 06276241 TL/ Ann Choy December 28, 2006 INTERTEK TESTING SERVICES FCC ID: K7GFV700 i SUMMARY OF CONTENTS LIST OF EXHIBITS EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: RF Power Output EXHIBIT 4: Modulation Characteristics EXHIBIT 5: Occupied Bandwidth EXHIBIT 6: Spurious Emission EXHIBIT 7: Frequency Stability EXHIBIT 8: Technical Specifications EXHIBIT 9: Product Labelling EXHIBIT 10: Photographs EXHIBIT 11: Instruction Manual EXHIBIT 12: Tune Up Procedure EXHIBIT 13: Part List EXHIBIT 14: Input Current EXHIBIT 15: RF Exposure Info EXHIBIT 16: Confidentiality Request INTERTEK TESTING SERVICES FCC ID: K7GFV700 ii MEASUREMENT/TECHNICAL REPORT Application : Giant Electronics Ltd. Trade Name/Model No : Motorola/ FV700 Motorola/ FV710 Motorola/ FV730 Motorola/ FV750 Date : December 28, 2006 This report concerns (check one:)Original Grant X Class II Change Equipment Type: FRF – Part 95 Family Radio Face Held Transmitter Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Report prepared by: Leung Wai Leung, Tommy Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Phone: 852-2173-8538 Fax: 852-2741-1693 INTERTEK TESTING SERVICES FCC ID: K7GFV700 iii Table of Contents 1.0 General Description............................................................................................ 2 1.1 Product Description......................................................................................... 2 1.2 Related Submittal(s) Grants ........................................................................... 3 1.3 Test Methodology........................................................................................... 3 1.4 Test Facility .................................................................................................... 3 2.0 System Test Configuration................................................................................. 5 2.1 Justification ..................................................................................................... 5 2.2 EUT Exercising Software ............................................................................... 6 2.3 Special Accessories ....................................................................................... 6 2.4 Measurement Uncertainty .............................................................................. 6 2.5 Equipment Modification................................................................................... 6 2.6 Support Equipment ......................................................................................... 6 3.0 RF Output Power (Section 95.639(d))................................................................. 8 4.0 Modulation Characteristics (Section 95.637(a))............................................... 12 4.1 Modulation Frequiency Response................................................................. 13 4.2 Modulation Limiting Characteristic ................................................................. 15 4.3 Audio Low Pass Filter Response ................................................................. 17 5.0 Occupied Bandwidth (Section 95.633(c)) ....................................................... 19 6.0 Spurious Emission (Section 95.635(b)) ........................................................... 21 6.1 Field Strength of Spurious Radiation ............................................................. 22 7.0 Frequency Stability (Section 95.627)............................................................... 28 7.1 Frequency Tolerance.................................................................................... 29 7.2 Temperature Extreme Condition.................................................................... 31 7.3 Voltage Extreme Condition............................................................................ 34 8.0 Technical Specifications.................................................................................. 37 9.0 Product Labelling.............................................................................................. 41 10.0 Equipment Photographs................................................................................ 44 11.0 Instruction Manual.......................................................................................... 46 12.0 Tune Up Procedure......................................................................................... 48 13.0 Part List........................................................................................................... 50 14.0 Input Current................................................................................................... 52 15.0 RF Exposure Info............................................................................................ 54 16.0 Confidentiality Request.................................................................................. 56 INTERTEK TESTING SERVICES FCC ID: K7GFV700 iv …

Text truncated - open the document above for the full version.

Test Report

INTERTEK TESTING SERVICES Occupied Bandwidth Plots FCC ID: K7GFV700 bw - 1 of 1 Channel 4 Channel 11

Test Report

INTERTEK TESTING SERVICES Modulation Frequency Response 0.0000.5001.0001.5002.0002.500 200 700 1200 1700 2200 2700 3200 3700 4200 4700 Modulation Frequency (Hz) Frequency Deviation (kHz) FCC ID: K7GFV700 mfr - 1 of 2 INTERTEK TESTING SERVICES Modulation Frequency Response 0.000.501.001.502.002.50 300 800 1300 1800 2300 2800 3300 3800 4300 4800 Modulation Frequency (Hz) Modulation Index (%) FCC ID: K7GFV700 mfr - 2 of 2

Test Report

INTERTEK TESTING SERVICES Modulation Limiting Characteristic 0.0000.5001.0001.5002.0002.500 47 57 67 77 87 97 107 117 127 137 Modulation Input (dBSPL) Frequency Deviation (kHz) 500Hz1000Hz2500Hz3125Hz FCC ID: K7GFV700 mlc - 1 of 1

Test Report

INTERTEK TESTING SERVICES A udio Low Pass Filter Response -70.0-60.0-50.0-40.0-30.0-20.0-10.0 0.0 10.0 1 10 100 Frequency (kHz) dB relative to 1 kHz LPF ResponseTIA/EIA-603B Audio Input Strength = 500mVrms FCC ID: K7GFV700 lpf - 1 of 1

Test Report

INTERTEK TESTING SERVICES Spurious Emission Plots FCC ID: K7GFV700 spurious - 1 of 1 Channel 4 Channel 11

Test Report

Text truncated - open the document above for the full version.

Contact Information

Applicant

Yumin Zou(A. Manager)

[email protected]852-27973363Fax: 852-23415922

Technical Contact

Intertek Testing Services Hong Kong Ltd.Kenneth Lam

[email protected]852-2173-8474

Flat D, 5/F., Garment Centre, · Kowloon · Hong Kong

Non-Technical Contact

Intertek Testing Services Hong Kong Ltd.Kenneth Lam

[email protected]852-2173-8474

Test Firm

Intertek Testing Services Hong KongBilly Chow

[email protected]852-2173-8528Fax: 852-2371-0914

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
2	95B	467.5625 MHz - 467.7125 MHz	170.00 mW	5K48F3E	1.22 ppm

Confidentiality

Long Term

Grant Notes

Power is ERP. This device is authorized to operate in the following radio services: FRS (Part 95B) or GMRS (Part 95A). There must be an informational insert inside the box (product package) that clearly informs the consumer (buyer/owner) when the radio is transmitting on GMRS frequencies, that operation on GMRS frequencies require an FCC license and such operation is subject to additional rules specified in 47 C.F.R. Part 95. For body worn operation, this radio has been tested and meets the FCC RF exposure guidelines when used with Motorola accessories designated for this product or when used with an accessory that contains no metal and that positions the handset a minimum of 1.5 cm from the body. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. The highest reported SAR values for push-to-talk held-to-face and body-worn configurations at 50% duty factor are: face-held 0.95 W/kg; body-worn 0.91 W/kg.
