K7GHCLE1069Short-Range Wireless Instant Message Device

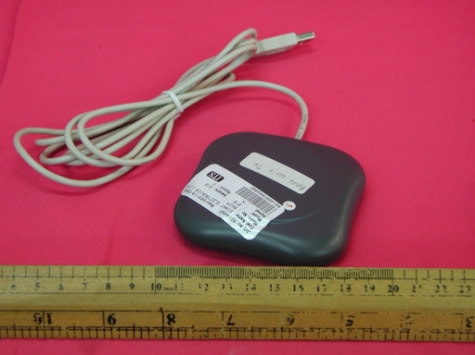

Test Setup FCCID :K7GHCLE1069 External Photo -front External Photo - rear

Test Setup FCCID : K7GHCLE1069 Internal Photo - 1 Internal Photo - 2 Test Setup FCCID : K7GHCLE1069 Internal Photo – 3 Internal Photo – 4

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Giant Electronics Ltd. Application For Certification (FCC ID: K7GHCLE1069) Transmitter with Computer Peripheral WO# 0214097 TL/Sandy October 30, 2002 INTERTEK TESTING SERVICES FCC ID: K7GHCLE1069 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1:General Description EXHIBIT 2:System Test Configuration EXHIBIT 3:Emission Results EXHIBIT 4:Equipment Photographs EXHIBIT 5:Product Labelling EXHIBIT 6:Technical Specifications EXHIBIT 7:Instruction Manual EXHIBIT 8:Miscellaneous Information EXHIBIT 9:Confidentiality Request INTERTEK TESTING SERVICES FCC ID: K7GHCLE1069 ii MEASUREMENT/TECHNICAL REPORT Giant Electronics Ltd. - MODEL: SWIM MX240a FCC ID: K7GHCLE1069 October 30, 2002 This report concerns (check one:)Original Grant X Class II Change Equipment Type: Low Power Transmitter with Computer Peripheral (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)?Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37?Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [12-18-01 Edition] provision. Report prepared by:Tommy Leung Intertek Testing Services 2/F., Garment Center, 576, Castle Peak Road, HONG KONG. Phone: 852-2173-8538 Fax:852-2371-0521 INTERTEK TESTING SERVICES FCC ID: K7GHCLE1069 iii Table of Contents 1.0 General Description............................................................................................................2 1.1 Product Description...........................................................................................................2 1.2 Related Submittal(s) Grants...............................................................................................2 1.3 Test Methodology..............................................................................................................3 1.4 Test Facility.......................................................................................................................3 2.0 System Test Configuration.................................................................................................5 2.1 Justification........................................................................................................................5 2.2 EUT Exercising Software..................................................................................................5 2.3 Special Accessories............................................................................................................5 2.4 Equipment Modification....................................................................................................6 2.5 Measurement Uncertainty..................................................................................................6 2.6 Support Equipment List and Description............................................................................6 3.0 Emission Results..................................................................................................................8 3.1 Field Strength Calculation..................................................................................................9 3.2 Radiated Emission Configuration Photograph..................................................................11 3.3 Radiated Emission Data...................................................................................................12 3.4 Conducted Emission Configuration Photograph...............................................................15 3.5 Conducted Emission Data .....................................................................................................16 4.0 Equipment Photographs...................................................................................................18 5.0 Product Labelling..............................................................................................................20 6.0 Technical Specifications....................................................................................................22 7.0 Instruction Manual...........................................................................................................24 8.0 Miscellaneous Information...............................................................................................26 8.1 Bandedge Plot..................................................................................................................27 9.0 Confidentiality Request.....................................................................................................29 INTERTEK TESTING SERVICES FCC ID: K7GHCLE1069 iv List of attached file Exhibit typeFile Descriptionfilename Test ReportTest Reportreport.pdf Operation DescriptionTechnical Descriptiondescri.pdf Test Setup PhotoRadiated Emissionradiated photos.pdf Test Setup PhotoConducted Emissionconducted photos.pdf Test ReportConducted Emission Test Resultconducted.pdf Test ReportBandedge Plotbw.pdf External PhotoExternal Photoexternal photos.pdf Internal PhotoInternal Photointernal photos.pdf Block DiagramBlock Diagramblock.pdf SchematicsCircuit Diagramcircuit.pdf ID Label/LocationLabel Artwork and Locationlabel.pdf User ManualUser Manualmanual.pdf Cover LetterConfiden…

Text truncated - open the document above for the full version.

Intertek Testing Services ETL SEMKO Report No.:0214097 Ctrl No.:N/A PAGE 1 Tested By:Hong, Report No.:0214097 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 450k 30M 5k 10k PK 20ms AUTO LN OFF 60dB Final Measurement: x QP Meas Time: 1 s Subranges: 16 Acc Margin: 20dB Transducer No. Start Stop Name 21 9k 30M EW0698 0 10 20 30 40 50 60 70 dBuV 80 0.4530 MHz 110 FCC15B Intertek Testing Services ETL SEMKO Report No.:0214097 Ctrl No.:N/A Tested By:Hong, Report No.:0214097 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 450k 30M 5k 10k PK 20ms AUTO LN OFF 60dB Final Measurement Results: Frequency QP Level QP Limit MHz dBuV dBuV 0.49500 31.5 48.0 0.59000 35.5 48.0 0.88000 31.1 48.0 0.99000 27.5 48.0 1.56500 29.0 48.0 2.16000 27.3 48.0 2.25500 31.2 48.0 3.66500 32.2 48.0 4.60500 33.7 48.0 4.95000 32.6 48.0 6.23500 32.3 48.0 10.40000 34.9 48.0 13.03000 38.5 48.0 13.72000 31.6 48.0 20.87500 25.6 48.0 29.78500 26.2 48.0 * limit exceeded

Test Setup FCCID : K7GHCLE1069 Radiated -front Radiated - rear

Test Setup FCCID : K7GHCLE1069 Conduct Photo - 1 Conduct Photo - 2 Test Setup FCCID : K7GHCLE1069 Conduct Photo – 3
