K7GL1010Two Way Radio with FRS

1 L1010 User Manual 2 SAFETY AND GENERAL INFORMATION Important Information for Safe and Efficient Operation Please read this information before using your radio. Safety and General 1. Do not transmit more than 50% of time. It is important as the radio generates measurable RF energy exposure only when transmitting. 2. Do not open the radio. Any unauthorized modification may violate FCC rules and invalidate the guarantee. 3. Radio frequency signals transmitted may cause interference to hearing aids. 4. Turn off the radio when near medical equipment. 5. This product should not be used by people with pacemakers. 6. Do not use the radio when driving a vehicle or operating machinery. 7. Do not use the radio when on board aircraft. 8. Do not hold the antenna when transmitting. 9. Do not use the radio when the antenna has damaged. 10. Turn off the radio and remove the batteries if you are not going to use it for a long time. 11. Do not attempt to charge alkaline batteries. 12. Only use the power adapter charger supplied. Using an unauthorized charger will invalidate the guarantee and may damage the product. 13. Only use the approved headsets with the radio. 3 Two-way Radio Operation The device was tested for typical body-worn operations using the supplied belt-clip. To maintain compliance with FCC RF exposure requirements, body-worn operations are restricted to the supplied belt-clip. For hand-held operation, the radio should be held at least 1 inch (2.5cm) from the user’s face. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements and should be avoided. For more information about RF exposure, please visit the FCC web site at www.fcc.gov. Approved Accessories For a list of approved RCA accessories, visit our Web site at www.RCA.com. OPERATIONAL CAUTIONS 1. Never dispose of batteries in a fire. There is a serious risk of explosion and /or the release of highly toxic chemicals. 2. Do not expose your product to direct sunlight, extreme cold or place it near heating appliances. 3. Do not submerge any part of your product in water and do not use it in damp, humid or wet conditions. 4. Do not expose your product to fire, explosive or other hazardous conditions. For example, at petrol stations or areas where explosive products are used. 4 FCC Information: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1 this device may not cause harmful interference, and 2 this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 5  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. Warning: Changes or modifications to this equipment not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Any adjustment to this equipment is recommended to be performed by or under the immediate supervision and responsibility of a person certified as technically qualified to perform transmitter maintenance and repair duties in the private land mobile services and fixed services by an organization or committee representative of users of those services. Replacement of any transmitter component (crystal, semiconductor, etc.) for this equipment could result in violation of FCC rules. CONTROL BUTTONS AND DISPLAY ICONS– MODEL R1010 SERIES 1. Antenna 6 2. LED - The red light stays on when transmitting 3. ‘VOL-’Volume decrease 4. Start transmitting and transmits with low power on all channels 5. Transmit your call tone to other radios set to the same channel and Interference Eliminator Code 6. MENU/ : Mode selection, Power ON/OFF, Key lock 7. Channel/Menu Decrease 8. Loud speaker 9. Plug-in Charger jack port 10. Headset jack port 11. LCD screen - Displays selected channel and other settings 12. ‘VOL+’ Volume increase 13. /Monitor/Scan 14. Channel/Menu Increase 15. Microphone Battery meter – Shows the battery level Channel display digit Interference Eliminator Code display digit CA – Shows the call melody VOX – Appears when the VOX function is turned on for hands-free use IVOX – Appears when the baby monitor function is turned on Keypad locked Talk confirmation tone 7 GETTING STARTED Congratulations on your purchase of this state-of-the-art RCA two-way radio! Please read this operation manual carefully before using your new radio to ensure that you operate it both correctly and safely. Installing the Batteries Your radio uses four AAA alkaline batteries and beeps when the batteries are low. 1. Turn the radio off. 2. With the back of the radio facing you, lift the battery latch up to release the battery cover and remove the cover. 3. Insert four AAA alkaline batteries as shown on the inside of the battery compartment. 4. Reposition the battery cover and press down to secure. 8 NOTE: The R1010 model radio can use a NiMH rechargeable battery instead of four AAA batteries. A rechargeable battery upgrade kit is avail…

Text truncated - open the document above for the full version.

The content of this document is Giant Electronics Ltd.'s intellectual property and is the property of Giant. It is to be treated as strictly confidential and is not to be disclosed, reproduced, or used except as authorized in writing by Giant Electronics Ltd. In connection with the manufacture, maintenance and use of the Giant equipment to which it pertains. Copyright @Giant Electronics Ltd. All rights reserved. Re: FCC ID: K7GL1010 Pursuant to 47 CFR 0.459, Giant Electronics Ltd. request confidential protection of the following documents submitted electronically in furtherance of the above-reference application as containing propriety information listed below: ■ Schematic ■ Block Diagram ■ Operational Description This information represents intellectual property of Giant Electronics Ltd. and it is subject to competition. This information should not be made routinely available for public inspection, and Giant Electronics Ltd. reserves the right to discern which parties can obtain access to this information. Dated this 06 th day of January 2006 By: YK Ling . Signature Printed Title : Electronic Engineer Confidentiality Request Letter

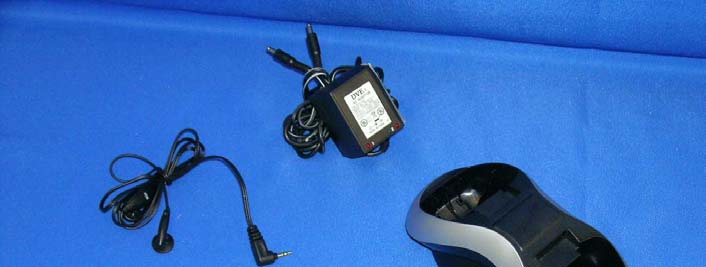

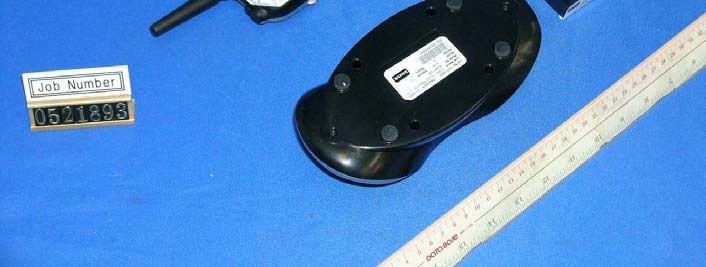

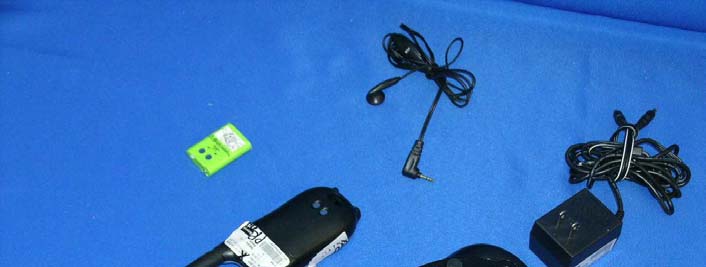

INTERTEK TESTING SERVICES External Photos FCC ID K7GL1010 external photos - 1 of 1 External Photo - Front External Photo - Rear

DATE DRAWN BY DATEAPPROVED BY DATECHECKED BY DATE C 1 D 23 B A 1 2 3 PROJECTION GIANT ELECTRONICS LTD. 4 PROPERTY AND IS THE PROPERTY OF GIANT. IT IS TO BETHE CONTENT OF THIS DOCUMENT IS GIANT INTELLECTUALTHE MANUFACTURE, MAINTENANCE AND USE OF THE GIANTWRITING BY GIANT ELECTRONCIS LTD. IN CONNECTION WITHDISCLOSED, REPRODUCED, OR USED EXCEPT AS AUTHORIZED INCOPYRIGHT @ GIANT ELECTRONICS LTD. ALL RIGHTS RESERVEDEQUIPMENT TO WHICH IT PERTAINS.TREATED AS STRICTLY CONFIDENTIAL AND IS NOT TO BE TOLERANCE TABLE FORUNTOLERANCED DIMENSIONS REV TITLE MATERIAL DESCRIPTION 56 DRAWING NO. SCALE UNIT GENERAL WALL THICKNESS DO NOT SCALE DRAWING GENERAL DRAFT ANGLE (MAX) SHEET OF SIZE MM APPROVED BY MODEL PREPARED BY 4 5 6 C DBA A4 ANGLES ±1.00° 100.00 AND ABOVE ±0.30 50.01 TO 100.00 ±0.2025.01 TO 50.00 ±0.15 0.00 TO 25.00 ±0.10 DIMENSIONS TOLERANCE BARRY LIU KELLY ZHUCHAK WAH LAM NOTES: 1.MATERIAL: 4.PRINTING COLOR: BLACK.3.THE MATERIALMUST PASS TEST AS THE B)THE HIGH AND LOW TEMPERATURE TEST.REQUEST. THE DETAIL AS FOLLOWS:C)THE HUMIDITY TEST. 2.PLEASE PROVIDE THE BLANK LABLE IN ROLL FORM. A)THE RUBBING TEST: INCLUDE USE THE WATER AND PETROLEUM.LINER: 3.2MIL 55# WHITE CENSIFIED KRAFT PAPER, SILICONE COATEDADHESIVE: 0.8MIL #350 HIGH-HODOING ACRYLIC ADHESIVEFACESTOCK: 2.0MIL GLOSS WHITE CAST VINYL NONTOPCOATED QA'S SPECIFICATION BLANK LABEL : KEM-PK7151-49A 45 7.5 L1010 KEM-PK JAN.4 06JAN.4 06JAN.4 06 11 FCC ID : K7GL1010 4.5VDC MDL : L1010 GIANT 1:1

INTERTEK TESTING SERVICES Internal photos FCC ID K7GL1010 internal photos - 1 of 4 Internal Photo - 1 Internal Photo - 2 INTERTEK TESTING SERVICES Internal photos FCC ID K7GL1010 internal photos - 2 of 4 Internal Photo - 3 Internal Photo - 4 INTERTEK TESTING SERVICES Internal photos FCC ID K7GL1010 internal photos - 3 of 4 Internal Photo - 5 Internal Photo - 6 INTERTEK TESTING SERVICES Internal photos FCC ID K7GL1010 internal photos - 4 of 4 Internal Photo - 7 Internal Photo - 8

GIANT ELECTRONICS LTD. Title: Alignment Procedure Revision No.: A Model: L1010 Date: JUNE 27, 2005 THE CONTENT OF THIS DOCUMENT IS GIANT ELCT.LTD. INTELLECTUAL PROPERTY AND IS THE PROPERTY OF GIANT, IT IS TO BE TREATED AS STRICTLY AND IS NOT BE DISCLOSED, REPRODUCED, OR USED EXCEPT AS AUTHORIZED IN WRITING BY GIANT ELECTRONIC LTD. IN CONNECTION WITH THE MANUFACTURE, MAINTENANCE AND USE OF THE GIANT EQUIPMENT WHICH IT PERTAINS. COPYRIGHT @GIANT ELECT. LTD, ALL RIGHTS RESERVED. tuneup.doc Page: 1 / 5 A. PCB LEVEL (Test Condition: under CH7, Supply=4.5Vdc) NO ITEM ALIGNMENT METHOD REMARK 1. LCD display (Should enter test mode) 1. Press and hold the ‘+’ key and ‘Menu’ key together. 2. Turn on the radio power until a good key chirp is heard, and the backlight is on for about 500ms, finally, the LCD should be display ‘ 1 CH ’. 3. Press ‘-’ key , then all LCD segments should be anticlockwise displayed. 4. Finally, all the LCD segments should be shown for about 500ms as follows: 218 88. . 2. Standby current 1. Set A-METER, and RX mode. 2. Check the standby current <50mA DC. 3. VCO 1. Set RX or TX mode 2. Check TP503 to provide 0.7~2.3V DC . 3. Adjust L509 to provide 2.2 ± 0.1VDC at TP503 if VCO level are more than 2.3VDC on CH14. 4. TX Power & TX current (Power supply 4.5V DC) 1. Set TX mode CH7, Check the transmit to 0.25 W ERP, the talk on current <1000mA. 2. Set TX mode CH14, adjust VR503 to 0.25 W ERP power, Check the talk on current <500mA. Test Voltage 4.5Vdc 5. TX Frequency 1. Set TX mode CH8; 2. Adjust VC501 to provide 467.5625MHz ± 50Hz. 6. CTCSS Tone Frequency 1. Set CH8/CODE1 and Tx mode. 2. Check CTCSS tone frequency to be within 66.8Hz to 67.2Hz. 7. TX Modulation & distortion 1. Set AF level at 50mv;1KHz,Adjust VL101 to provide Max TX deviation 2.1KHz to 2.3KHz. 2.Check input Mic level in 5~15 mV to provide normal deviation 1.5KHz. 3.Check the demodulation distortion <= 5%. 4.Audio Frequency Response. a) Input a 3.0mV 1KHz audio frequency to TP116 and press ‘PTT’ switch. b) Check the response compare to 1KHz tone. i) 500Hz : -12.5 dB to –6.5 dB. ii) 2.5KHz : +5.0 dB to +11 dB . ITEM1, 4 FILTER SET: I. HPF 50Hz II. LPF 15KHz ITEM2, 3 FILTER SET: I. HPF 300Hz II. LPF 3KHz 8. CTCSS Tone Dev. 1. Set CH8/CODE1、AF input level to off, check DEV to be 350Hz~ 650Hz. 2. Set CH8/CODE38、AF input level to off, check DEV to be 350Hz~ 650Hz. 3. Set CH8/CODE19 、 AF input level to off, check DEV to be 350Hz~ 650Hz. FILTER SET: 1. <20HZ~300HZ 2. 750μs De-emp ON 1. PK+ 2. FM DEV. AVG ON GIANT ELECTRONICS LTD. Title: Alignment Procedure Revision No.: A Model: L1010 Date: JUNE 27, 2005 THE CONTENT OF THIS DOCUMENT IS GIANT ELCT.LTD. INTELLECTUAL PROPERTY AND IS THE PROPERTY OF GIANT, IT IS TO BE TREATED AS STRICTLY AND IS NOT BE DISCLOSED, REPRODUCED, OR USED EXCEPT AS AUTHORIZED IN WRITING BY GIANT ELECTRONIC LTD. IN CONNECTION WITH THE MANUFACTURE, MAINTENANCE AND USE OF THE GIANT EQUIPMENT WHICH IT PERTAINS. COPYRIGHT @GIANT ELECT. LTD, ALL RIGHTS RESERVED. tuneup.doc Page: 2 / 5 A. PCB LEVEL (Test Condition: under CH7) NO ITEM ALIGNMENT METHOD REMARK 9. VOX Detector 1. Set VOX level at 1. 2. Set AF level at 12.5 +/- 1.5 mV,1KHz at TP116 . 3. Unit start to transmit. 4. Set AF level at 10.5 +/- 1.5mV,1KHz at TP116. 5. Unit stop transmit. 6. Set VOX level at 2. 7. Set AF level at 8 +/-1.5mV,1KHz at TP116. 8. Unit start to transmit. 9. Set AF level at 7.0+/- 1.5mV,1KHz at TP116. 10. Unit stop transmit. 11. Set VOX level at 3 12. Set AF level at 4.5 +/- 1mV,1KHz at TP116. 13. Unit start to transmit. 14. Set AF level at 3.5+/- 1mV,1KHz at TP116 . 15. Unit stop transmit. 10. IVOX Detector As same as item 11 11. Rx Audio test 1. Set RX mode CH7. 2. Set SG RF level to –50dBm with 1.5KHz deviation 1KHz modulation Signal. 3. Adjust the volume key to give a Max audio output at TP117. 4. Check Max audio output level >1450mV. 5. Check Rx current <150mA. 6. Check the 1KHz distortion <= 5%. 7. Set SG RF level to –118dBm with 1.5kHz deviation at 1KHz audio frequency. a). Check SINAD sensitivity <= -119dBm. @12dB SINAD at TP117. 8. Audio frequency response. a) Set SG RF level to –50dBm with 1.5kHz deviation at 1KHz audio frequency. b) Adjust the volume key to give an output 700mV ± 100mV at TP117. c) Vary the audio frequency from 300Hz to 3KHz. d) Check the RX response compare to 1KHz tone. i) 500Hz : -13 to –7.0 dB. ii) 2.5KHz : -15 to –9.0 dB 9. Maximum and Minimum Audio Output Power. a) Set SG RF level to –50dBm with 1.5kHz deviation at 1KHz audio frequency. b) Adjust the volume key to give a maximum out put. c) Check the voltage at TP117 ≥1450mV. d) Set maximum audio output to 0dB, Adjust the volume key to give a minimum output. e) Check the minimum voltage -20 to -12dB at TP117 GIANT ELECTRONICS LTD. Title: Alignment Procedure Revision No.: A Model: L1010 Date: JUNE 27, 2005 THE CONTENT OF THIS DOCUMENT IS GIANT ELCT.LTD. INTELLECTUAL PROPERTY AND IS THE PROPERTY OF GIANT, IT IS TO BE TREATED AS STRICTLY AND IS NOT BE DISCLOSED, REPRODUCED, OR USED EXCEPT AS AUTHORIZED IN WRITING BY GIANT ELECTRONIC LTD. IN CONNECTION WITH THE MANUFACTURE, MAINTENANCE AND USE OF THE GIANT EQUIPMENT WHICH IT PERTAINS. COPYRIGHT @GIANT ELECT. LTD, ALL RIGHTS RESERVED. tuneup.doc Page: 3 / 5 A. PCB LEVEL (Test Condition: under CH7) NO ITEM ALIGNMENT METHOD REMARK 12. Noise- Detector 1. Set SG to –120dBm with 1.5KHz deviation., 1KHz AF on CH7. 2. Press ”Mon” key and Adjust VR502 for transient state @ 10dB SINAD. 3. Check high state @8 to 12dB SINAD. 13. CTCSS Tone Detect 1. Set CH7/CODE1 and SG to –60dBm with 67Hz tone frequency, 400Hz deviation. 2. Check TP4, it have square-wave, and low for RF modulation off. 3. Repeat item 1 and 2 for code38 (250.3Hz). 4. Repeat item 1 ~ 3 for CH14. 14. Quiet Noise Detect 1. Set unit to quiet noise mode 2. Set CH7/CODE1and SG to –60dBm with 67Hz tone frequency, 400Hz deviation and 55 Hz audio frequency, 1K deviation. 3. 55 Hz tone Frequency appear on TP117. 15. Normal Batter level Detect 1. If th…

Text truncated - open the document above for the full version.

Giant Electronics Ltd. L1010 bom//BOMX32O153506 Print: 2006-1-5 Page 1 of 9 Giant Electronics Ltd. L1010 bom//BOMX32O153506 Print: 2006-1-5 Page 2 of 9 Giant Electronics Ltd. L1010 bom//BOMX32O153506 Print: 2006-1-5 Page 3 of 9 Giant Electronics Ltd. L1010 bom//BOMX32O153506 Print: 2006-1-5 Page 4 of 9 Giant Electronics Ltd. L1010 bom//BOMX32O153506 Print: 2006-1-5 Page 5 of 9 Giant Electronics Ltd. L1010 bom//BOMX32O153506 Print: 2006-1-5 Page 6 of 9 Giant Electronics Ltd. L1010 bom//BOMX32O153506 Print: 2006-1-5 Page 7 of 9 Giant Electronics Ltd. L1010 bom//BOMX32O153506 Print: 2006-1-5 Page 8 of 9 Giant Electronics Ltd. L1010 bom//BOMX32O153506 Print: 2006-1-5 Page 9 of 9

Modulation Frequency Response 0.0000.5001.0001.5002.0002.500 200 700 1200 1700 2200 2700 3200 3700 4200 4700 Modulation Frequency (Hz) Frequency Deviation (kHz) FCC ID K7GL1010 Modulation Frequency Response 0.000.501.001.502.002.50 300 800 1300 1800 2300 2800 3300 3800 4300 4800 Modulation Frequency (Hz) Modulation Index (%) FCC ID K7GL1010

Modulation Limiting Characteristic 0.0000.5001.0001.5002.0002.500 47 57 67 77 87 97 107 117 127 137 Modulation Input (dBSPL) Frequency Deviation (kHz) 500Hz1000Hz2500Hz3125Hz FCC ID K7GL1010

• The test results reported in this report shall refer only to the sample actually tested and shall not refer or be deemed a refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2371 0521 Website: www.hk.intertek-etlsemko.com Giant Electronics Ltd. Application For Certification Two Way Radio with FRS (FCC ID: K7GL1010) 0521893 TL/ Ann Choy December 19, 2005 INTERTEK TESTING SERVICES FCC ID: K7GL1010 i SUMMARY OF CONTENTS LIST OF EXHIBITS EXHIBIT 1: General Description EXHIBIT 2 : System Test Configuration EXHIBIT 3: RF Power Output EXHIBIT 4: Modulation Characteristics EXHIBIT 5: Occupied Bandwidth EXHIBIT 6: Spurious Emission EXHIBIT 7: Frequency Stability EXHIBIT 8: Technical Specifications EXHIBIT 9: Product Labelling EXHIBIT 10: Photographs EXHIBIT 11: Instruction Manual EXHIBIT 12: Tune Up Procedure EXHIBIT 13: Part List EXHIBIT 14: Input Current EXHIBIT 15: RF Exposure Info EXHIBIT 16: Confidentiality Request INTERTEK TESTING SERVICES FCC ID: K7GL1010 ii MEASUREMENT/TECHNICAL REPORT Application : Giant Electronics Ltd. Trade Name/Model No : Giant L1010 Date : December 19, 2005 This report concerns (check one:)Original Grant X Class II Change Equipment Type: FRF – Part 95 Family Radio Face Held Transmitter Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Report prepared by: Tommy Leung Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Phone: 852-2173-8538 Fax: 852-2741-1693 INTERTEK TESTING SERVICES FCC ID: K7GL1010 iii Table of Contents 1.0 General Description ..............................................................................................2 1.1 Product Description ..........................................................................................2 1.2 Related Submittal(s) Grants.............................................................................3 1.3 Test Methodology.............................................................................................3 1.4 Test Facility ......................................................................................................3 2.0 System Test Configuration...................................................................................5 2.1 Justification .......................................................................................................5 2.2 EUT Exercising Software .................................................................................6 2.3 Special Accessories .........................................................................................6 2.4 Measurement Uncertainty................................................................................6 2.5 Equipment Modification ....................................................................................6 2.6 Support Equipment ...........................................................................................6 3.0 RF Output Power (Section 95.639(d)) ..................................................................8 4.0 Modulation Characteristics (Section 95.637(a)) ................................................12 4.1 Modulation Frequiency Response ..................................................................13 4.2 Modulation Limiting Characteristic ..................................................................15 4.3 Audio Low Pass Filter Response ...................................................................17 5.0 Occupied Bandwidth (Section 95.633(c)) ........................................................19 6.0 Spurious Emission (Section 95.635(b)) .............................................................21 6.1 Field Strength of Spurious Radiation...............................................................22 7.0 Frequency Stability (Section 95.627).................................................................28 7.1 Frequency Tolerance ......................................................................................29 7.2 Temperature Extreme Condition .....................................................................31 7.3 Voltage Extreme Condition .............................................................................34 8.0 Technical Specifications....................................................................................37 9.0 Product Labelling................................................................................................41 10.0 Equipment Photographs..................................................................................44 11.0 Instruction Manual ............................................................................................46 12.0 Tune Up Procedure ...........................................................................................48 13.0 Part List .............................................................................................................50 14.0 Input Current .....................................................................................................52 15.0 RF Exposure Info ..............................................................................................54 16.0 Confidentiality Request ....................................................................................56 INTERTEK TESTING SERVICES FCC ID: K7GL1010 iv List of attached file Exhibit type File Description Filename…

Text truncated - open the document above for the full version.

A udio Low Pass Filter Response -70.0-60.0-50.0-40.0-30.0-20.0-10.0 0.0 10.0 1 10 100 Frequency (kHz) dB relative to 1 kHz LPF ResponseANSI/TIA-603-B Audio Input Strength = 50mVrms FCC ID K7GL1010

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs FCC ID K7GL1010 config photos (radiated emission) - 1 of 1 Radiated Emission Front View Rear View
