1 Cover LA8270 User Manual 2 SAFETY AND GENERAL INFORMATION Important Information for Safe and Efficient Operation Please read this information before using your radio. Safety and General 1. Do not transmit more than 50% of time. It is important as the radio generates measurable RF energy exposure only when transmitting. 2. Do not open the radio. Any unauthorized modification may invalidate the guarantee. 3. Radio frequency signals transmitted may cause interference to hearing aids. 4. Turn off the radio when near medical equipment. 5. This product should not be used by people with pacemakers. 6. Do not use the radio when driving a vehicle or operating machinery. 7. Do not use the radio when on board aircraft. 8. Do not hold the antenna when transmitting. 9. Do not use the radio when the antenna has damaged. 10. Turn off the radio and remove the batteries if you are not going to use it for a long time. 11. Do not attempt to charge alkaline batteries. 3 Transmit and Receive Procedures Your wireless hand-held portable transceiver contains a low power transmitter. When the Push-to-Talk (PTT) button is pushed it sends out radio frequency (RF) signals. The device is authorized to operate at a duty factor not to exceed 50%. In August 1996, the Federal Communications Commissions (FCC) adopted RF exposure guidelines with safety levels for hand-held wireless devices. RF Exposure CAUTION: To maintain compliance with the FCC's RF exposure guidelines hold the transmitter and antenna at least 1 inch (2.5 centimeters) from your face and speak in a normal voice, with the antenna pointed up and away from the face. If you wear the handset on your body while using the headset accessory, use only the supplied belt clip for this product and when transmitting, take it out of the belt to ensure that the antenna is at least 1 inch (2.5 centimeters) from your body. Use only the supplied antenna. Unauthorized antennas, modifications, or attachments could damage the transmitter and may violate FCC regulations. OPERATIONAL CAUTIONS 4 1. Never dispose of batteries in a fire. There is a serious risk of explosion and /or the release of highly toxic chemicals. 2. Do not expose your product to direct sunlight, extreme cold or place it near heating appliances. 3. Do not submerge any part of your product in water and do not use it in damp, humid or wet conditions. 4. Do not expose your product to fire, explosive or other hazardous conditions. For example, at petrol stations or areas where explosive products are used. 5. Turn off the radio when during charging. USING YOUR RADIO Read this manual carefully before use. Your radio has 14 channels. All radios in your group must be set to the same channel and Interference Eliminator Code in order to communicate with each other. • For maximum clarity, hold radios 5 to 7 centimeters from mouth. and speak into the microphone. • Press and hold • To receive messages, release . 1. Antenna 2. • Power on/off. • Increase/Decrease volume. 3. • Push to transmit, release to listen. • Pressing has 60 seconds limit. • In menu mode, push to confirm selection. 4. mon/ • Push to monitor/scan channels. 5 5. • Push to decreases the channel / CTCSS Code / select VOX level and call tone. 6. CALL • Short press to send a single call tone. • Long press to send the call tone maximum 10 times, and then returns to standby mode automatically. 7. LCD 8. mode/ • Short press enters menu mode -- Press one time to enter MENU mode, press or to select RF channel. -- Press two times to enter CTCSS mode, press or to set CTCSS code. -- Press three times to enter Call Tone mode, press or to set a new call tone. or to set sensitivity level. -- Press four times to enter Sensitivity Level mode, press -- Press five times to enter Stop Watch mode. Press to start/pause the stop watch, press to reset. -- Press six times to exit MENU mode. • Long press to lock/unlock keypad. It will be automatically exited the menu mode if you have not pressed any key for several seconds when you in any mode. 9. • Push to increases the channel / CTCSS Code / select VOX level and call tone. 6 : displays the battery level : displays the channel number : displays the CTCSS Code : Scanning : displays when VOX function turn on : keypad locked : talk confirmation tone Turning Your Radio On And Off Turn clockwise to turn your radio on. The radio chirps and the display will show all feature icons that your radio has available for a brief period. The display will show the channel 1 - 14 and interference eliminator code 0 - 38. Turn counterclockwise to turn your radio off. Volume Rotate while holding down mon/ key until you reach a comfortable listening level. Rotate clockwise to increase the volume or counterclockwise to decrease the volume. 7 Select Channel 1. Press mode/ button. The channel number will begin to flash. 2. Use or button to change channel. 3. Press button to set the new channel. CH FREQ (MHz) CH FREQ (MHz) 1 462.5625 8 467.5625 2 462.5875 9 467.5875 3 462.6125 10 467.6125 4 462.6375 11 467.6375 5 462.6625 12 467.6625 6 462.6875 13 467.6875 7 462.7125 14 467.7125 Scan Use scanning to monitor channels and codes for transmissions or to find someone in your group who has accidentally changed channels. To start scanning, briefly press and release mon/ key. The scan indicator is shown. 8 When the radio detects channel activity, it stops scanning and you can hear the transmission. To respond to the transmission, press . Note: If your radio’s Interference Eliminator Code is set to 0 while scanning, the radio checks for activity on each channel regardless of the code used on the channel. If your radio’s Interference Eliminator Code is set to 1-38 and ignores channels using code 0. Scan Advance If scan stops on a channel that you don’t want to listen, briefly press or button to resume scanning for the next active channel. Monitor There are multiple channels shared among all users on the “take turn” basis. For uninterrupted communication, do no…

Text truncated - open the document above for the full version.

The content of this document is Giant Electronics Ltd.'s intellectual property and is the property of Giant. It is to be treated as strictly confidential and is not to be disclosed, reproduced, or used except as authorized in writing by Giant Electronics Ltd. In connection with the manufacture, maintenance and use of the Giant equipment to which it pertains. Copyright @Giant Electronics Ltd. All rights reserved. Re: FCC ID: K7GL8270 Pursuant to 47 CFR 0.459, Giant Electronics Ltd. request confidential protection of the following documents submitted electronically in furtherance of the above-reference application as containing propriety information listed below: ■ Schematic ■ Block Diagram ■ Operational Description This information represents intellectual property of Giant Electronics Ltd. and it is subject to competition. This information should not be made routinely available for public inspection, and Giant Electronics Ltd. reserves the right to discern which parties can obtain access to this information. Dated this 18 th day of January 2006 By: YK Ling . Signature Printed Title : Electronic Engineer Confidentiality Request Letter

INTERTEK TESTING SERVICES External Photos FCC ID K7GL8270 external photos - 1 of 1 External Photo - Front External Photo - Rear

B

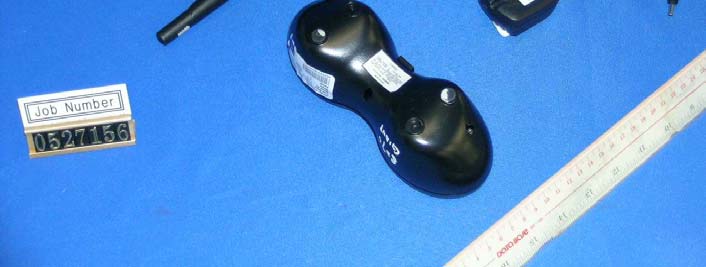

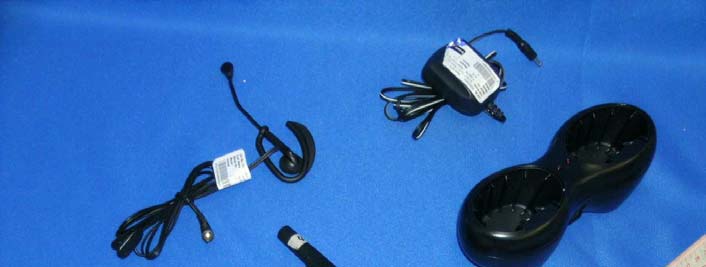

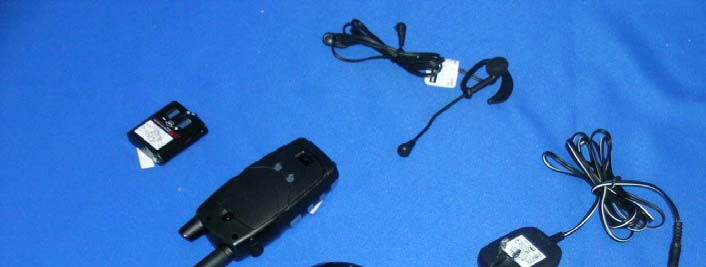

INTERTEK TESTING SERVICES Internal photos FCC ID K7GL8270 internal photos - 1 of 5 Internal Photo - 1 Internal Photo - 2 INTERTEK TESTING SERVICES Internal photos FCC ID K7GL8270 internal photos - 2 of 5 Internal Photo - 3 Internal Photo - 4 INTERTEK TESTING SERVICES Internal photos FCC ID K7GL8270 internal photos - 3 of 5 Internal Photo - 5 Internal Photo - 6 INTERTEK TESTING SERVICES Internal photos FCC ID K7GL8270 internal photos - 4 of 5 Internal Photo - 7 Internal Photo - 8 INTERTEK TESTING SERVICES Internal photos FCC ID K7GL8270 internal photos - 5 of 5 Internal Photo - 9 Internal Photo - 10

GIANT ELECTRONICS LTD. Title: Alignment Procedure Model: L8270 Document No.: ENG- Version Dated: 16 January 2006 Page 1 of 6 Prepare by Check by Approved by THE CONTENT OF THIS DOCUMENT IS GIANT ELEC. LTD. INTELLECTUAL PROPERTY AND IS THE PROPERTY OF GIANT. IT IS TO BE TREATED AS STRICTLY AND IS NOT BE DISCLOSED, REPRODUCED, OR USED EXCEPT AS AUTHORIZED IN WRITING BY GIANT ELECTRONIC LTD. IN CONNECTION WITH THE MANUFACTURE, MAINTENANCE AND USE OF THE GIANT EQUIPMENT TO WHICH IT PERTAINS. COPYRIGHT @GIANT ELECT LTD. ALL RIGHTS RESERVED. tuneup.doc A. PCB LEVEL (Test Condition: under CH1) NO ITEM ALIGNMENT METHOD REMARK 1. LCD display (Should enter test mode) 1. Press and hold the ‘+’ key and ‘Menu’ key together. 2. Turn on the radio power until a good key chirp is heard, and the backlight is on for about 500 ms. finally, the LCD should be display ‘1 CH ’ . 3. Press ‘DOWN’ key, then all LCD segments should be anticlockwise displayed. 4. Finally, all the LCD segments should be shown for about 500ms as follows: 18 88. . 2. Standby current 1. Set A-METER, and RX mode @50ohm load. 2. Check the standby current <45mA DC. 3. Talk on current 1. Set A-METER, and TX mode. 2. Check the talk on current <480mA DC. 4 VCO 1. Set TEST mode. 2. Adjust L113 to provide 0.7 ~2.2VDC at TP103 3. Check TP103 to provide 0.7 ~1.3VDC on Tx mode CH1. 5. TX Power 1. Set TX mode CH1. 2. Check transmit power to provide 19.8dBm ERP. 3. Set TX mode CH11. 4. Check transmit power to provide 19.9dBm ERP. Supply Voltage= 4.5VDC 6. TX Frequency Adjust C159 to provide 462.5625MHz ± 50Hz at CH1. 7. TX Modulation & distortion 1. Set 50mv AF level at TP116; 1KHz,Adjust VR101 to provide max TX deviation 2.0KHz to 2.35KHz. 2. Check input mic level in 5~15 mV to provide normal deviation 1.5KHz. 3. Check the demodulation distortion ≤ 5%. 4. Audio Frequency Response a) Input a 2.0mV 1KHz audio frequency to TP116 and press ‘PTT’ switch. b) Check the response compare to 1KHz tone i) 500Hz: -5.0 dB to –9.0dB. ii) 2.5KHz: +2.0 dB to + 9.0dB. Filter Setting HPF 50Hz LPF 15KHz PK +MAX GIANT ELECTRONICS LTD. Title: Alignment Procedure Model: L8270 Document No.: ENG- Version Dated: 16 January 2006 Page 2 of 6 Prepare by Check by Approved by THE CONTENT OF THIS DOCUMENT IS GIANT ELEC. LTD. INTELLECTUAL PROPERTY AND IS THE PROPERTY OF GIANT. IT IS TO BE TREATED AS STRICTLY AND IS NOT BE DISCLOSED, REPRODUCED, OR USED EXCEPT AS AUTHORIZED IN WRITING BY GIANT ELECTRONIC LTD. IN CONNECTION WITH THE MANUFACTURE, MAINTENANCE AND USE OF THE GIANT EQUIPMENT TO WHICH IT PERTAINS. COPYRIGHT @GIANT ELECT LTD. ALL RIGHTS RESERVED. tuneup.doc A. PCB LEVEL (Test Condition: under CH1) NO ITEM ALIGNMENT METHOD REMARK 8. Rx Audio test 1. Set RX mode CH4. 2. Set SG RF level to –50dBm with 1.5 kHz deviation 1KHz modulation Signal. 3. Adjust L114 to provide minimum distortion & max output level at TP117. 4. Rotate the volume switch to the position, which give a Max audio output at TP117. 5. Check Max audio output level >1400mV. 6. Check Rx current <150mA. 7. Check the 1KHz distortion ≤ 3.5%. 8. Set SG RF level to –119dBm with 1.5kHz deviation at 1KHz audio frequency. a). Check SINAD sensitivity ≤ -118dBm@ 12dB SINAD at TP117. 9. Audio frequency response. a) Set SG RF level to –50dBm with 1.5kHz deviation at 1KHz audio frequency. b) Rotate the volume switch to the position, which give an output 100mV±5mV at TP117. c) Vary the audio frequency from 300Hz to 3KHz. d) Check the RX response compare to 1KHz tone. i) 500Hz: -9 dB to -18dB. ii) 2.5KHz: -18.0 dB to –25.0 dB. 10. Maximum and Minimum Audio Output Power. a) Set SG RF level to –50dBm with 1.5kHz deviation at 1KHz audio frequency. b) Rotate the volume switch to the position, which give a maximum output. c) Check the voltage at TP117 ≤1400mV. d) Set maximum audio output to 0dB; rotate the volume switch to the position, which give a minimum output. e) Check the minimum voltage –23 to -40dB at TP117. 9. Noise- Detector 1. Set SG to –120dBm with 1.5KHz deviation. 1KHz AF on CH4. 2. Adjust VR1 for transient state @ 10dB SINAD. 3. Check high state @7 to 14dB SINAD. 10. Normal Battery level Detect 1. Provide 1.5V DC at BP102. 2. Battery level: 4.2±0.1V level 1, 3.8±0.1V level 2, 3.4±0.1V level 3, 3.1±0.1V level 4. 3. Disconnect 1.5V DC at BP102. 4. Battery level: 3.7±0.1V level 1, 3.4±0.1V level 2, 3.2±0.1V level 3, 3.1±0.1V level 4. GIANT ELECTRONICS LTD. Title: Alignment Procedure Model: L8270 Document No.: ENG- Version Dated: 16 January 2006 Page 3 of 6 Prepare by Check by Approved by THE CONTENT OF THIS DOCUMENT IS GIANT ELEC. LTD. INTELLECTUAL PROPERTY AND IS THE PROPERTY OF GIANT. IT IS TO BE TREATED AS STRICTLY AND IS NOT BE DISCLOSED, REPRODUCED, OR USED EXCEPT AS AUTHORIZED IN WRITING BY GIANT ELECTRONIC LTD. IN CONNECTION WITH THE MANUFACTURE, MAINTENANCE AND USE OF THE GIANT EQUIPMENT TO WHICH IT PERTAINS. COPYRIGHT @GIANT ELECT LTD. ALL RIGHTS RESERVED. tuneup.doc B. CASING LEVEL NO ITEM ALIGNMENT METHOD REMARK 1. Current Consumption 1. Set A-METER. 2. With volume switch OFF, check the OFF current <10μA. 3. With volume switch ON, check the standby current <45mA. 4. TX Current. a) Press 'PTT' switches and check the TX current <480mA. 2. TX Frequency 1. Check CH1=462.5625MHz -/+500Hz; 2. Check CH14=467.7125 MHz -/+500Hz. 3. Noise- Detector 1. Set the distance between antennas of SG and checked unit to 0.3M ~ 0.5M. 2. The antennas of SG and checked unit should be parallel to make the electromagnetic field of SG. 3. Radiate equably to the antenna of checked unit. 4. Set SG to –90dBm with 1.5KHz deviation, 1KHz tone on CH4. 5. Adjust VR102 for HIGH state: 7 ~ 13 dB SINAD. When adjusting Noise-Det. , Should reduce any interference from other Instruments and body. 4. Vox Detector 1.Set VOX level at 1. 2.Set AF level at 12 +/-0.2mV, 1KHz at TP116 3.Unit start to transmit. 4.Set AF level at 8.5 +/-0.2mV,1KHz at TP116 5.Unit stop to transmit 6.Set VOX level at 2. 7.Set AF level at 7.5 +/-0.2mV,1KHz at TP116 8.Unit s…

Text truncated - open the document above for the full version.

Giant Electronics Ltd. L8270 BOM...L8270AOLLASV01 Print:2006-1-17 1/7 L8270 BOM...L8270AOLLASV01 Print:2006-1-17 2/7 L8270 BOM...L8270AOLLASV01 Print:2006-1-17 3/7 L8270 BOM...L8270AOLLASV01 Print:2006-1-17 4/7 L8270 BOM...L8270AOLLASV01 Print:2006-1-17 5/7 L8270 BOM...L8270AOLLASV01 Print:2006-1-17 6/7 L8270 BOM...L8270AOLLASV01 Print:2006-1-17 7/7

INTERTEK TESTING SERVICES Modulation Frequency Response 0.0000.5001.0001.5002.0002.500 200 700 1200 1700 2200 2700 3200 3700 4200 4700 Modulation Frequency (Hz) Frequency Deviation (kHz) FCC ID K7GL8270 mfr - 1 of 2 INTERTEK TESTING SERVICES Modulation Frequency Response 0.000.501.001.502.002.50 300 800 1300 1800 2300 2800 3300 3800 4300 4800 Modulation Frequency (Hz) Modulation Index (%) FCC ID K7GL8270 mfr - 2 of 2

INTERTEK TESTING SERVICES Modulation Limiting Characteristic 0.000.501.001.502.002.50 47 57 67 77 87 97 107 117 127 137 Modulation Input (dBSPL) Frequency Deviation (kHz) 500Hz1000Hz2500Hz3125Hz FCC ID K7GL8270 mlc - 1 of 1

• The test results reported in this report shall refer only to the sample actually tested and shall not refer or be deemed a refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2371 0521 Website: www.hk.intertek-etlsemko.com Giant Electronics Ltd. Application For Certification Two Way Radio with FRS (FCC ID: K7GL8270) 0527156 TL/ Ann Choy April 4, 2006 INTERTEK TESTING SERVICES FCC ID: K7GL8270 i SUMMARY OF CONTENTS LIST OF EXHIBITS EXHIBIT 1: General Description EXHIBIT 2 : System Test Configuration EXHIBIT 3: RF Power Output EXHIBIT 4: Modulation Characteristics EXHIBIT 5: Occupied Bandwidth EXHIBIT 6: Spurious Emission EXHIBIT 7: Frequency Stability EXHIBIT 8: Technical Specifications EXHIBIT 9: Product Labelling EXHIBIT 10: Photographs EXHIBIT 11: Instruction Manual EXHIBIT 12: Tune Up Procedure EXHIBIT 13: Part List EXHIBIT 14: Input Current EXHIBIT 15: RF Exposure Info EXHIBIT 16: Confidentiality Request INTERTEK TESTING SERVICES FCC ID: K7GL8270 ii MEASUREMENT/TECHNICAL REPORT Application : Giant Electronics Ltd. Trade Name/Model No : Giant/ L8270 Date : April 4, 2006 This report concerns (check one:)Original Grant X Class II Change Equipment Type: FRF – Part 95 Family Radio Face Held Transmitter Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Report prepared by: Tommy Leung Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Phone: 852-2173-8538 Fax: 852-2741-1693 INTERTEK TESTING SERVICES FCC ID: K7GL8270 iii Table of Contents 1.0 General Description ..............................................................................................2 1.1 Product Description ..........................................................................................2 1.2 Related Submittal(s) Grants.............................................................................3 1.3 Test Methodology.............................................................................................3 1.4 Test Facility ......................................................................................................3 2.0 System Test Configuration...................................................................................5 2.1 Justification .......................................................................................................5 2.2 EUT Exercising Software .................................................................................6 2.3 Special Accessories .........................................................................................6 2.4 Measurement Uncertainty................................................................................6 2.5 Equipment Modification ....................................................................................6 2.6 Support Equipment ...........................................................................................6 3.0 RF Output Power (Section 95.639(d)) ..................................................................8 4.0 Modulation Characteristics (Section 95.637(a)) ................................................12 4.1 Modulation Frequiency Response ..................................................................13 4.2 Modulation Limiting Characteristic ..................................................................15 4.3 Audio Low Pass Filter Response ...................................................................17 5.0 Occupied Bandwidth (Section 95.633(c)) ........................................................19 6.0 Spurious Emission (Section 95.635(b)) .............................................................21 6.1 Field Strength of Spurious Radiation...............................................................22 7.0 Frequency Stability (Section 95.627).................................................................28 7.1 Frequency Tolerance ......................................................................................29 7.2 Temperature Extreme Condition .....................................................................31 7.3 Voltage Extreme Condition .............................................................................34 8.0 Technical Specifications....................................................................................37 9.0 Product Labelling................................................................................................41 10.0 Equipment Photographs..................................................................................44 11.0 Instruction Manual ............................................................................................46 12.0 Tune Up Procedure ...........................................................................................48 13.0 Part List .............................................................................................................50 14.0 Input Current .....................................................................................................52 15.0 RF Exposure Info ..............................................................................................54 16.0 Confidentiality Request ....................................................................................56 INTERTEK TESTING SERVICES FCC ID: K7GL8270 iv List of attached file Exhibit type File Description Filename Operat…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES A udio Low Pass Filter Response -70.0-60.0-50.0-40.0-30.0-20.0-10.0 0.0 10.0 1 10 100 Frequency (kHz) dB relative to 1 kHz LPF ResponseANSI/TIA-603-B Audio Input Strength = 800mVrms FCC ID K7GL8270 lpf - 1 of 1

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs FCC ID K7GL8270 config photos (radiated emission) - 1 of 1 Radiated Emission Front View Rear View
