K7GO24002.4GHz FHSS Cordless Telephone System

OLYMPIA ® OL2400 OWNER’S MANUAL 2OLYMPIA OL2400 Owner's Manual Copyright © 2002, Wave Industries Ltd. All Rights Reserved. Reproduction, adaptation, or translation without prior written permission is prohibited, except as allowed under the copyright laws. First Edition: June 2002 Trademark Information Olympia ® is a registered trademark of Olympia International Holdings Ltd. Warranty The information contained in this document is subject to change without notice. Wave Industries makes no warranty of any kind with respect to this information. Wave Industries shall not be liable for any direct, indirect, incidental, consequential, or other damage alleged in connection with the furnishing or use of this information. Printed in China OLYMPIA OL2400 Owner's Manual3 TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS.............................................................4 SAFETY INSTRUCTIONS FOR BATTERIES......................................................6 1Features.................................................................................................................7 2Layout of Keys and Indicators..............................................................................8 2.1 Key Functions:.............................................................................................8 2.2 LCD Display Indications............................................................................10 3Installation and Charging of the Battery Pack....................................................11 4Handset Registration Procedure.........................................................................13 5Display Messages & Audio Alert.......................................................................14 5.1 Display Message:.......................................................................................14 5.2 Audible Alerting.........................................................................................16 6Operation Guide.................................................................................................17 6.1 Making External Calls................................................................................17 6.2 Redialing....................................................................................................18 6.3 Receiving Calls...........................................................................................18 6.4 Flash...........................................................................................................19 6.5 Page Call....................................................................................................19 6.6 Making Internal Calls.................................................................................20 6.7 Call Toggling..............................................................................................20 6.8 Call Transfer/Forward................................................................................21 6.9 Call Back....................................................................................................22 6.10 Conference................................................................................................22 6.11 Muting the Microphone............................................................................23 6.12 Call Waiting.............................................................................................23 7Menu Structure...................................................................................................25 7.1 Call Log......................................................................................................26 7.2 Phone Book Operation...............................................................................28 7.3 Handset Volume.........................................................................................32 7.4 Ring Volume..............................................................................................32 7.5 Ring Pattern................................................................................................33 7.6 Auto Answer...............................................................................................34 7.7 Key Click....................................................................................................35 7.8 Key Lock....................................................................................................35 7.9 Handset Name............................................................................................37 7.10 Select LANGUAGE.................................................................................37 7.11 Clear Message Waiting.............................................................................38 7.12 Dial Method..............................................................................................38 8Overview of Telephone Functions......................................................................40 9Consumer Information........................................................................................45 4OLYMPIA OL2400 Owner's Manual IMPORTANT SAFETY INSTRUCTIONS BEFORE USING YOUR TELEPHONE EQUIPMENT, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK AND INJURY, INCLUDING THE FOLLOWING 1) Read and understand all instructions. 2) Follow all warnings and instructions marked on the product. 3) Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. 4) Do not use this product near water, for example, near a bath tub, wash bowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool. 5) Do not place this product on an unstable cart, stand, or table. The product may fall, causing serious damage to the product. 6) Slots and openings in the cabinet and the back or bottom are provided for ventilation. To protect it from overheating, these openings must not be bl…

Text truncated - open the document above for the full version.

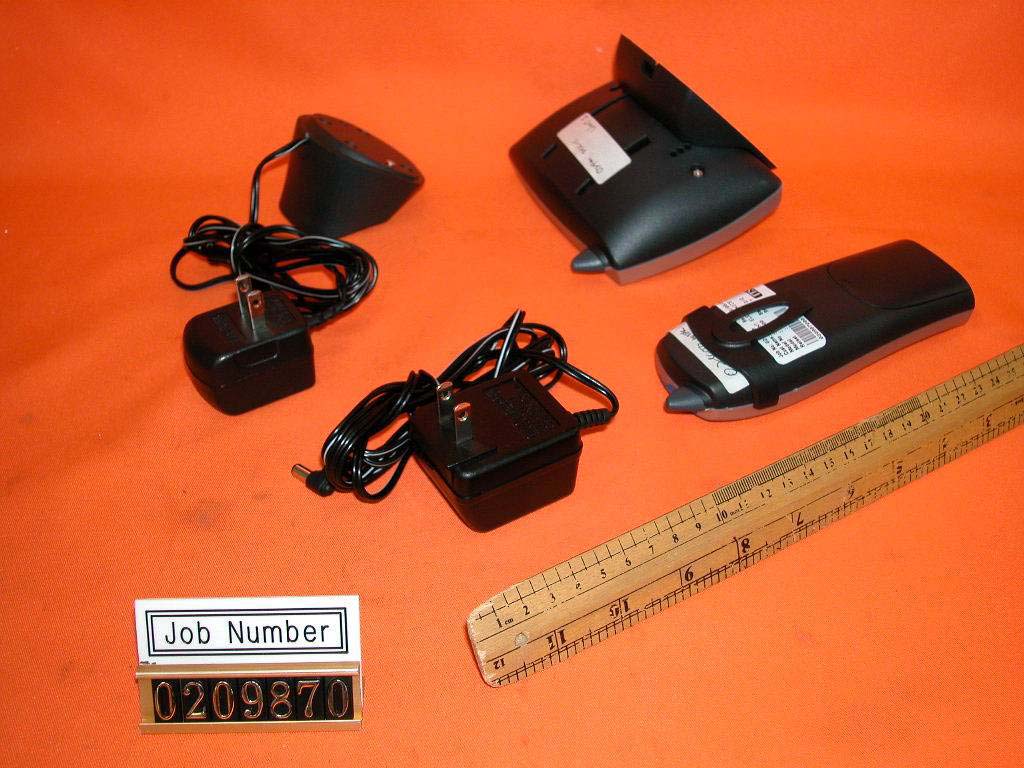

External photos FCC ID: K7GO2400 External photos FCC ID: K7GO2400

Internal photos FCC ID: K7GO2400 Base assembly (View 1) Base assembly (View 2) Internal photos FCC ID: K7GO2400 Base Main PCB comp side Base Main PCB solder side Internal photos FCC ID: K7GO2400 Handset assembly Handset Main PCB comp side (View 1) Internal photos FCC ID: K7GO2400 Handset Main PCB comp side (View 2) Handset Main PCB comp side (View 3) Internal photos FCC ID: K7GO2400 Handset Main PCB display side Handset Oscillator PCB comp side Internal photos FCC ID: K7GO2400 Handset Oscillator PCB solder side (View 1) Handset Oscillator PCB solder side (View 2)

in accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C for 2.4 GHz Frequency Hopping Spread Spectrum Cordless Phone MODEL: OL2400 FCC ID: K7GO2400 November 12, 2002 REPORT NO: 02I1630-1 Prepared for Giant Electronics Ltd 7/F, Elite Industrial Building, 135-137 Hoi Bun Road Kwun Tong, Hong Kong Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 REPORT NO: 02I1630-1 DATE: November 12, 2002 FCC ID: K7GO2400 COMPLIANCE CERTIFICATION SERVICES Page: 2 of 25 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) DATES OF TEST: November 12, 2002 REPORT NO: 02I1630-1 APPLICANT: Giant Electronics Ltd 7/F, Elite Industrial Building, 135-137 Hoi Bun Road Kwun Tong, Hong Kong MODEL: OL2400 FCC ID: K7GO2400 DEVICE CATEGORY: PORTABLE DEVICES EXPOSURE CATEGORY: GENERAL POPULATION/UNCONTROLLED EXPOSURE Test Sample is a: Production unit Modulation type: Frequency Hopping Spread Spectrum Operating Mode: Maximum continuous output Tx Frequency: 2401 ~ 2482 MHz Max. Conducted O/P Power: 20.12 dBm (2401 MHz) Max. SAR (1g): 0.196 W/Kg (at 2401 MHz, body worn position) Application Type: Certification FCC Rule Part(s): 15.247 This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC OET 65 Supplement C (released on 6/29/2001 see Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Steve Cheng EMC Engineering Manager REPORT NO: 02I1630-1 DATE: November 12, 2002 FCC ID: K7GO2400 COMPLIANCE CERTIFICATION SERVICES Page: 3 of 25 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENT 1. EUT DESCRIPTION................................................................................................................4 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC........................5 3. DOSIMETRIC ASSESSMENT SETUP...................................................................................5 3.1. MEASUREMENT SYSTEM DIAGRAM....................................................................................................................6 3.2. SYSTEM COMPONENTS...........................................................................................................................................7 4. EVALUATION PROCEDURE.................................................................................................9 5. MEASUREMENT UNCERTAINTY.......................................................................................12 6. EXPOSURE LIMIT................................................................................................................13 7. EUT ARRANGEMENT..........................................................................................................14 8. MEASUREMENT RESULTS................................................................................................15 8.1. SYSTEM VALIDATION..............................................................................................................................................15 8.2. TEST LIQUID CONFIRMATION..............................................................................................................................16 8.3. EUT TUNE-UP PROCEDURE.................................................................................................................................17 8.4. EUT SETUP PHOTOS..............................................................................................................................................18 8.5. SAR MEASUREMENT RESULTS...........................................................................................................................21 9. EUT PHOTOS........................................................................................................................22 10. EQUIPMENTS LIST & CALIBRATION INFORMATION.....................................................23 11. REFERENCES......................................................................................................................24 12. ATTACHMANTS...................................................................................................................25 REPORT NO: 02I1630-1 DATE: November 12, 2002 FCC ID: K7GO2400 COMPLIANCE CERTIFICATION SERVICES Page: 4 of 25 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. EUT DESCRIPTION APPLICANT: Giant Electronics Ltd 7/F, Elite Industrial Building, 135-137 Hoi Bun Road Kwun Tong, Hong Kong MODEL: OL2400 FCC ID: K7GO2400 DEVICE CATEGORY: PORTABLE DEVICES EXPOSURE CATEGORY: GENERAL POPULATION/UNCONTROLLED EXPOSURE Test Sample is a: Production unit Modulation type: Frequency Hopping Spread Spectrum Operating Mode: Maximum continuous output Tx Frequency: 2401 ~ 2482 MHz Max. Conducted O/P Power: 20.12 dBm (2401 MHz) Max. SAR (1g): 0.196 W/Kg (at 2401 MHz, body worn position) Application Type: …

Text truncated - open the document above for the full version.

System Validation - D2450V2 S/N:706 (Antenna input power: 250 mW) SAM-2; Flat Probe: ET3DV6 - SN1578; ConvF(4.50,4.50,4.50); Crest factor: 1.0 Head 2450MHz: σ = 1.97 mho/m ε r = 38.9 ρ = 1.00 g/cm 3 Cube 5x5x7: Peak: 30.0 mW/g, SAR (1g): 14.2 mW/g, SAR (10g): 6.39 mW/g, (Worst-case extrapolation) Penetration depth: 6.1 (5.9, 6.7) [mm] Powerdrift: 0.00 dB Ambient Temperature (degree C): 22.0 Liquid Temperature (degree C): 20.0 SAR Tot [mW/g] 1.57E+0 4.71E+0 7.85E+0 1.10E+1 1.41E+1 11/12/02 COMPLIANCE CERTIFICATION SERVICES System Validation - D2450V2 S/N:706 (Antenna input power: 250 mW) SAM-2; Probe: ET3DV6 - SN1578; ConvF(4.50,4.50,4.50); Crest factor: 1.0 Head 2450MHz: σ = 1.97 mho/m ε r = 38.9 ρ = 1.00 g/cm 3 : , , () Penetration depth: 6.2 (6.0, 6.8) [mm] Ambient Temperature (degree C): 22.0 Liquid Temperature (degree C): 20.0 11/12/02 COMPLIANCE CERTIFICATION SERVICES -10 0 10 20 30 102030405060708090100110 SAR tot [mW/g] [mm]

Giant (Model: OL2400), Frequency: 2401 MHz (Left Touch) Frequency: 2450 MHz; Crest factor: 13.0 Medium: Head 2450MHz: σ = 1.97 mho/m ε r = 38.9 ρ = 1.00 g/cm 3 SAM-2 Phantom; Left Hand Section; Position: (82°,60°) Probe: ET3DV6 - SN1578; ConvF(4.50,4.50,4.50); SAR:Cube 5x5x7: Peak: 0.179 mW/g, SAR (1g): 0.0962 mW/g, SAR (10g): 0.0503 mW/g, (Worst-case extrapolation) Penetration depth: 7.9 (7.6, 8.7) [mm]; Powerdrift: 0.02 dB Coarse: Dx = 15.0, Dy = 15.0, Dz = 10.0 Ambient Temperature (degree C): 22.0 Liquid Temperature (degree C): 20.2 SAR Tot [mW/g] 1.03E-2 3.09E-2 5.15E-2 7.21E-2 9.27E-2 11/12/02 COMPLIANCE CERTIFICATION SERVICES Giant (Model: OL2400), Frequency: 2401 MHz (Left Touch) Frequency: 2450 MHz; Crest factor: 13.0 Medium: Head 2450MHz: σ = 1.97 mho/m ε r = 38.9 ρ = 1.00 g/cm 3 SAM-2 Phantom; Section; Position: Probe: ET3DV6 - SN1578; ConvF(4.50,4.50,4.50); SAR:: , , () Penetration depth: 7.7 (7.5, 8.3) [mm]; Z-Axis: Dx = 0.0, Dy = 0.0, Dz = 2.0 Ambient Temperature (degree C): 22.0 Liquid Temperature (degree C): 20.2 11/12/02 COMPLIANCE CERTIFICATION SERVICES -0.02 0.00 0.02 0.04 0.06 0.08 0.10 0.12 0.14 0.16 0.18 102030405060708090 SAR tot [mW/g] [mm] Giant (Model: OL2400), Frequency: 2442 MHz (Left Touch) Frequency: 2450 MHz; Crest factor: 13.0 Medium: Head 2450MHz: σ = 1.97 mho/m ε r = 38.9 ρ = 1.00 g/cm 3 SAM-2 Phantom; Left Hand Section; Position: (82°,60°) Probe: ET3DV6 - SN1578; ConvF(4.50,4.50,4.50); SAR:Cube 5x5x7: Peak: 0.174 mW/g, SAR (1g): 0.0910 mW/g, SAR (10g): 0.0466 mW/g, (Worst-case extrapolation) Penetration depth: 7.5 (7.2, 8.3) [mm]; Powerdrift: -0.10 dB Coarse: Dx = 15.0, Dy = 15.0, Dz = 10.0 Ambient Temperature (degree C): 22.0 Liquid Temperature (degree C): 20.2 SAR Tot [mW/g] 8.40E-3 2.52E-2 4.20E-2 5.88E-2 7.56E-2 11/12/02 COMPLIANCE CERTIFICATION SERVICES Giant (Model: OL2400), Frequency: 2482 MHz (Left Touch) Frequency: 2450 MHz; Crest factor: 13.0 Medium: Head 2450MHz: σ = 1.97 mho/m ε r = 38.9 ρ = 1.00 g/cm 3 SAM-2 Phantom; Left Hand Section; Position: (82°,60°) Probe: ET3DV6 - SN1578; ConvF(4.50,4.50,4.50); SAR:Cube 5x5x7: Peak: 0.176 mW/g, SAR (1g): 0.0901 mW/g, SAR (10g): 0.0450 mW/g, (Worst-case extrapolation) Penetration depth: 7.3 (7.0, 8.1) [mm]; Powerdrift: -0.01 dB Coarse: Dx = 15.0, Dy = 15.0, Dz = 10.0 Ambient Temperature (degree C): 22.0 Liquid Temperature (degree C): 20.2 SAR Tot [mW/g] 8.90E-3 2.67E-2 4.45E-2 6.23E-2 8.01E-2 11/12/02 COMPLIANCE CERTIFICATION SERVICES Giant (Model: OL2400), Frequency: 2401 MHz (Left Tilt) Frequency: 2450 MHz; Crest factor: 13.0 Medium: Head 2450MHz: σ = 1.97 mho/m ε r = 38.9 ρ = 1.00 g/cm 3 SAM-2 Phantom; Left Hand Section; Position: (102°,60°) Probe: ET3DV6 - SN1578; ConvF(4.50,4.50,4.50); SAR:Cube 5x5x7: Peak: 0.158 mW/g, SAR (1g): 0.0852 mW/g, SAR (10g): 0.0446 mW/g, (Worst-case extrapolation) Penetration depth: 7.9 (7.7, 8.5) [mm]; Powerdrift: 0.01 dB Coarse: Dx = 15.0, Dy = 15.0, Dz = 10.0 Ambient Temperature (degree C): 22.0 Liquid Temperature (degree C): 20.2 SAR Tot [mW/g] 7.70E-3 2.31E-2 3.85E-2 5.39E-2 6.93E-2 11/12/02 COMPLIANCE CERTIFICATION SERVICES Giant (Model: OL2400), Frequency: 2401 MHz (Left Tilt) Frequency: 2450 MHz; Crest factor: 13.0 Medium: Head 2450MHz: σ = 1.97 mho/m ε r = 38.9 ρ = 1.00 g/cm 3 SAM-2 Phantom; Section; Position: Probe: ET3DV6 - SN1578; ConvF(4.50,4.50,4.50); SAR:: , , () Penetration depth: 7.8 (7.6, 8.4) [mm]; Z-Axis: Dx = 0.0, Dy = 0.0, Dz = 2.0 Ambient Temperature (degree C): 22.0 Liquid Temperature (degree C): 20.2 11/12/02 COMPLIANCE CERTIFICATION SERVICES -0.02 0.00 0.02 0.04 0.06 0.08 0.10 0.12 0.14 0.16 102030405060708090 SAR tot [mW/g] [mm] Giant (Model: OL2400), Frequency: 2442 MHz (Left Tilt) Frequency: 2450 MHz; Crest factor: 13.0 Medium: Head 2450MHz: σ = 1.97 mho/m ε r = 38.9 ρ = 1.00 g/cm 3 SAM-2 Phantom; Left Hand Section; Position: (102°,60°) Probe: ET3DV6 - SN1578; ConvF(4.50,4.50,4.50); SAR:Cube 5x5x7: Peak: 0.163 mW/g, SAR (1g): 0.0847 mW/g, SAR (10g): 0.0429 mW/g, (Worst-case extrapolation) Penetration depth: 7.4 (7.2, 7.9) [mm]; Powerdrift: -0.01 dB Coarse: Dx = 15.0, Dy = 15.0, Dz = 10.0 Ambient Temperature (degree C): 22.0 Liquid Temperature (degree C): 20.2 SAR Tot [mW/g] 8.30E-3 2.49E-2 4.15E-2 5.81E-2 7.47E-2 11/12/02 COMPLIANCE CERTIFICATION SERVICES Giant (Model: OL2400), Frequency: 2482 MHz (Left Tilt) Frequency: 2450 MHz; Crest factor: 13.0 Medium: Head 2450MHz: σ = 1.97 mho/m ε r = 38.9 ρ = 1.00 g/cm 3 SAM-2 Phantom; Left Hand Section; Position: (102°,60°) Probe: ET3DV6 - SN1578; ConvF(4.50,4.50,4.50); SAR:Cube 5x5x7: Peak: 0.154 mW/g, SAR (1g): 0.0825 mW/g, SAR (10g): 0.0425 mW/g, (Worst-case extrapolation) Penetration depth: 7.8 (7.6, 8.5) [mm]; Powerdrift: -0.04 dB Coarse: Dx = 15.0, Dy = 15.0, Dz = 10.0 Ambient Temperature (degree C): 22.0 Liquid Temperature (degree C): 20.2 SAR Tot [mW/g] 7.80E-3 2.34E-2 3.90E-2 5.46E-2 7.02E-2 11/12/02 COMPLIANCE CERTIFICATION SERVICES Giant (Model: OL2400), Frequency: 2401 MHz (Right Touch) Frequency: 2450 MHz; Crest factor: 13.0 Medium: Head 2450MHz: σ = 1.97 mho/m ε r = 38.9 ρ = 1.00 g/cm 3 SAM-2 Phantom; Righ Hand Section; Position: (82°,300°) Probe: ET3DV6 - SN1578; ConvF(4.50,4.50,4.50); SAR:Cube 5x5x7: Peak: 0.183 mW/g, SAR (1g): 0.0932 mW/g, SAR (10g): 0.0473 mW/g, (Worst-case extrapolation) Penetration depth: 7.3 (7.0, 8.2) [mm]; Powerdrift: -0.18 dB Coarse: Dx = 15.0, Dy = 15.0, Dz = 10.0 Ambient Temperature (degree C): 22.0 Liquid Temperature (degree C): 20.3 SAR Tot [mW/g] 8.30E-3 2.49E-2 4.15E-2 5.81E-2 7.47E-2 11/12/02 COMPLIANCE CERTIFICATION SERVICES Giant (Model: OL2400), Frequency: 2401 MHz (Right Touch) Frequency: 2450 MHz; Crest factor: 13.0 Medium: Head 2450MHz: σ = 1.97 mho/m ε r = 38.9 ρ = 1.00 g/cm 3 SAM-2 Phantom; Section; Position: Probe: ET3DV6 - SN1578; ConvF(4.50,4.50,4.50); SAR:: , , () Penetration depth: 7.3 (6.9, 8.2) [mm]; Z-Axis: Dx = 0.0, Dy = 0.0, Dz = 2.0 Ambient Temperature (degree C): 22.0 Liquid Temperature (degree C): 20.3 11/12/02 COMPLIANCE CERTIFICAT…

Text truncated - open the document above for the full version.

Spectrum plot to demonstrate the duty cycle that was used during the tests (Duty Cycle: 100 (0.8/0.988) = 8.09 %)

• The test results reported in this report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization form Giant Electronics Limited Limited FCC ID: K7GO2400 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2741 1693 Giant Electronics Ltd. Application For Certification 2.4GHz Frequency Hopping Spread Spectrum Cordless Phone with Caller ID (FCC ID: K7GO2400) WO# 0209870 TL/Ann Choy August 28, 2002 INTERTEK TESTING SERVICES FCC ID: K7GO2400 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: Summary of Tests EXHIBIT 2: General Description EXHIBIT 3: System Test Configuration EXHIBIT 4: Measurement Results EXHIBIT 5: Equipment Photographs EXHIBIT 6: Product Labelling EXHIBIT 7: Technical Specifications EXHIBIT 8: Instruction Manual EXHIBIT 9: Security Code Information INTERTEK TESTING SERVICES FCC ID: K7GO2400 ii MEASUREMENT/TECHNICAL REPORT Giant Electronics Ltd. - MODEL: OL2400, OL2420 FCC ID: K7GO2400 This report concerns (check one) Original Grant X Class II Change Equipment Type: DSS-Part 15 Spread Spectrum Transmitter Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until : date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [12-18-01 Edition] provision. Report prepared by: Tommy Leung Intertek Testing Services 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Phone: 852-2173-8538 Fax: 852-2741-1693 INTERTEK TESTING SERVICES FCC ID: K7GO2400 iii Table of Contents 1.0 Summary of test results ...................................................................................................... 2 2.0 General Description..................................................................................................................4 2.1 Product Description .................................................................................................................4 2.2 Related Submittal(s) Grants .....................................................................................................5 2.3 Test Methodology....................................................................................................................5 2.4 Test Facility.............................................................................................................................5 3.0 System Test Configuration .......................................................................................................7 3.1 Justification ..............................................................................................................................7 3.2 EUT Exercising Software.........................................................................................................7 3.3 Support Equipment List and Description ..................................................................................8 3.4 Equipment Modification...........................................................................................................9 4.0 Measurement Results..............................................................................................................10 4.1 Maximum Conducted Output Power at Antenna Terminals....................................................10 4.2 Maximum 20 dB RF Bandwidth ............................................................................................13 4.3 Minimum Number of Hopping Frequencies................................................................................ 15 4.4 Minimum Hopping Channel Carrier Frequency Separation ....................................................... 16 4.5 Average Time of Occupancy..................................................................................................18 4.6 Out of Band Conducted Emissions .............................................................................................. 19 4.7 Out of Band Radiated Emissions ............................................................................................20 4.8 Transmitter Radiated Emissions in Restricted Bands..............................................................21 4.9 Field Strength Calculation......................................................................................................22 4.10 Radiated Emission Configuration Photograph - Base Unit....................................................... 23 4.11 Radiated Emission Data - Base Unit.....................................................................................24 4.12 Radiated Emission Configuration Photograph - Handset ......................................................28 4.13 Radiated Emission Data - Handset .......................................................................................29 4.14 AC Line Conducted Emission ..............................................................................................33 4.15 Line Conducted Configuration Photograph - Base Unit........................................................34 4.16 Line Conducted Emission Configuration Data......................................................................35 4.17 Radiated Emission from Digital Section of Transceiver........................................................... 36 4.18 Transmitter Duty Cycle Calculation and Measurements ....................................................... 39 5.0 Equipment Photographs .........................................................................................................41 6.0 Product Labelling............................................................................…

Text truncated - open the document above for the full version.

The Worst Case Configuration Photographs FCC ID: K7GO2400 Radiated Emission – Base Front View Rear View The Worst Case Configuration Photographs FCC ID: K7GO2400 Radiated Emission – Handset Front View Rear View The Worst Case Configuration Photographs FCC ID: K7GO2400 Conducted Emission Front View Rear View The Worst Case Configuration Photographs FCC ID: K7GO2400 Conducted Emission Side View
