K7GS6C00Bluetooth Audio Gateway

ShoreTel 565g IP Phone Quick Install Guide & Warranty Document and Software Copyrights Copyright © 1998–2007 by ShoreTel, Inc., Sunnyvale, California, U.S.A. All rights reserved. Printed in the United States of America. Contents of this publication may not be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, without prior written authorization of ShoreTel, Inc. ShoreTel, Inc. reserves the right to make changes without notice to the specifications and materials contained herein and shall not be responsible for any damage (including consequential) caused by reliance on the materials presented, including, but not limited to, typographical, arithmetic, or listing errors. Trademarks ShoreCare, ShoreWare and ShoreGear are registered trademarks of ShoreTel, Inc. in the United States and/or other countries. ShoreTel, ShorePhone, Office Anywhere and ShoreTel Smart are trademarks of ShoreTel, Inc. in the United States and/or other countries. Microsoft, Windows, Windows NT, and ActiveX are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. VxWorks is a trademark of Wind River Systems. All other copyrights and trademarks herein are the property of their respective owners. Version Information PN 800-1100-01 ShoreTel 7.5 Version 1 ShoreTel 565g IP Phone Quick Install Guide & Warranty Date: May 24, 2007 Company Information ShoreTel, Inc. 960 Stewart Drive Sunnyvale, California 94085 USA Phone: +1.408.331.3300 OR +1.800.425.9385 Fax: +1.408.331.3333 www.shoretel.com 3 Installing Your ShoreTel 565g IP Phone This section shows how to install a ShoreTel 565g IP Phone. Instructions are provided for connecting phones with and without the AC power adapter. (This adapter may be necessary for networks that do not support the IEEE 802.3af standard for Power-over- Ethernet). Handset & handset cord Phone base Quick Install Guide Network cable (7-foot) ShoreTel 565g IP Phone Package Contents Vinyl overlay with international symbols (for Function Keys) AC Power Adapter Package (Optional) Power-over-Ethernet adapter and power cord Additional network cable (7-foot) Note: In order to achieve gigabit performance when using a power adapter with the 565g, one needs a gigabit-capable adapter. 4 1 Attach phone to base Rotate the two pillars down onto the smaller tabs and snap into place. Connect the base to the larger of the three tabs on the back of the phone. ba 5 2a Connect to powered network Share a single LAN wall jack between your IP phone and computer by daisy-chaining the PC off the second Ethernet port on your phone. (The phone connects to the wall jack and the PC connects to the phone.) Connect the network cable between the LAN port on the back of the phone and an Ethernet jack in the workspace (or on a data switch/router that supports Power-over- Ethernet). (no AC adapter required) optional If the LAN to which this phone will be connected supports power-over-Ethernet, no AC adapter is needed. The phone draws power from the Ethernet network. 6 2b Connect to power & network Share a single LAN wall jack between your IP phone and computer by daisy- chaining the PC off the second Ethernet port on your phone. (The phone connects to the wall jack and the PC connects to the phone.) (Non-powered Ethernet network requires AC power adapter) Connect the AC power cable between the adapter and an electrical socket. c Connect the second network cable to the DATA IN port** on the adapter and an Ethernet jack in the workspace (or on a data switch/router). b Connect a network cable to the DATA & POWER OUT port * on the adapter. The other end goes to the LAN port on the phone. a optional ON SOME ADAPTERS, THIS PORT MAY BE LABELED “DATA & PWR” OR “PHONE.” ON SOME ADAPTERS, THIS PORT MAY BE LABELED “DATA” OR “NETWORK.” * ** LED lights green to indicate that phone is connected and using power. LED lights green to indicate adapter has AC power. LED lights red to indicate there is a fault. 7 3 Connect handset Connect the short end of the handset cable to the jack on the phone body. For optimal use, attach the longer end of the handset cable to the handset. Connect a headset to connector on phone. Headset not included. optional Wireless Headset Support: Bluetooth The 565g IP phone supports various Plantronics Bluetooth wireless headsets (see illustration below). Please contact your ShoreTel representative for the latest list of supported models. Wireless Headset Support: Electronic Lifter The 565g IP phone has an internal electronic headset lifter, allowing some wireless headsets to be used without a mechanical lifter. 8 Important Safety Instructions For IP TELEPHONE, MODELS 110, 115, 212k, 230, 265, 560, 560g, 565g and BB24 This symbol is to alert you to important operating or servicing instructions that may appear in this owner’s manual. Always follow basic safety precautions when using this product to reduce the risk of injury, fire, or electric shock. •Read and understand all instructions in this manual. Observe all markings on the products. •Follow all warnings and instructions marked on this product. •For information on proper mounting instructions, consult the manual provided with this product. •This product should be operated only from the type of power source indicated on the marking label. •Telecommunication metallic-type connections are not intended to leave the building premises unless connected to other telecommunication devices that provide primary and secondary protection as applicable. •To reduce the risk of electrical shock, do not disassemble this product. Service should be performed by trained personnel only. Opening or removing covers and/ or circuit boards may expose you to dangerous voltages or other risks. Incorrect re-assembly can cause electrical shock when the unit is subsequently used. •If this product has a three-prong (grounding) plug or a polarized plug with one wide prong, it may not fit in non-pola…

Text truncated - open the document above for the full version.

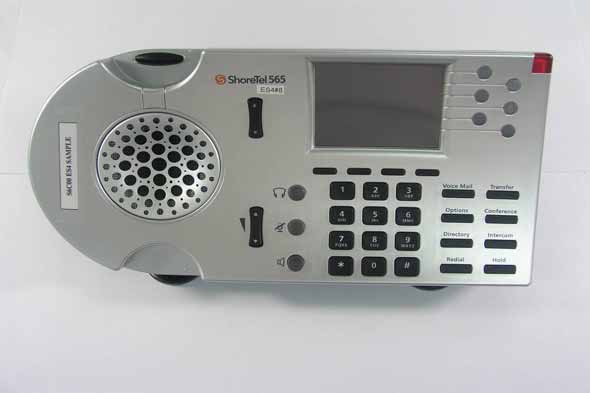

Report No ER/2007/30014 FCC ID: K7GS6C00 Issue Date: May. 02, 2007 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. , 列www.sgs.com 說不 更 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 北路134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw APPENDIX 2 PHOTOGRPHS OF EUT Report No ER/2007/30014 FCC ID: K7GS6C00 Issue Date: May. 02, 2007 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. , 列www.sgs.com 說不 更 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 北路134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw All View of EUT Front View of EUT Report No ER/2007/30014 FCC ID: K7GS6C00 Issue Date: May. 02, 2007 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. , 列www.sgs.com 說不 更 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 北路134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Back View of EUT Left View of EUT

SHOREPHONE MODEL S6C 001049XXXXXX RYYMM FCC ID:K7GS6C00FCC ID:K7GS6C00 38 mm 48 mm 2 3 m m 40 mm 2 8 m m 98 mm 4 3 m m

Report No ER/2007/30014 FCC ID: K7GS6C00 Issue Date: May. 02, 2007 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. , 列www.sgs.com 說不 更 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 北路134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw APPENDIX 3 PHOTOGRPHS OF EUT Report No ER/2007/30014 FCC ID: K7GS6C00 Issue Date: May. 02, 2007 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. , 列www.sgs.com 說不 更 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 北路134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Open View of EUT – 1 Open View of EUT – 2 Report No ER/2007/30014 FCC ID: K7GS6C00 Issue Date: May. 02, 2007 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. , 列www.sgs.com 說不 更 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 北路134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Internal of EUT – 1 Internal of EUT – 2 Antenna Report No ER/2007/30014 FCC ID: K7GS6C00 Issue Date: May. 02, 2007 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. , 列www.sgs.com 說不 更 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 北路134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Internal of EUT – 3 Internal of EUT – 4 Report No ER/2007/30014 FCC ID: K7GS6C00 Issue Date: May. 02, 2007 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. , 列www.sgs.com 說不 更 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 北路134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Internal of EUT – 5 Internal of EUT – 6 Report No ER/2007/30014 FCC ID: K7GS6C00 Issue Date: May. 02, 2007 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. , 列www.sgs.com 說不 更 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 北路134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Internal of EUT – 6

RF EXPOSURE STATEMENT 1. Standard Applicable According to 1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. This is a portable device. 2. Measurement Result: This is a portable device and the Max peak output power is 0.21dBm (0.00105W) lower than low threshold 60/fGHz mW (24.48mW), d<2.5cm in general population category. The SAR measurement is not necessary.

- 1 - Object Internal Antenna Page 1 of 8 Customer Date October 17, 2006 System Bluetooth Rev. IR Model Name W5I – BF – LS09 Written by W. I. KWAK Electrical Specifications Frequency Range ( MHz ) 2400 〜 2483.5 Band Width ( MHz ) 83.5 V.S.W.R ( Min ) 1.9 : 1 Gain ( Max ) 0.5 ± 1 ( dBi ) Input Impedance 50 ( Ω ) Polarization Linear Mechanical Specifications Antenna Size ( Width x Length x Height ) 10 × 4 × 1.2 mm Weight N / A Radiator Material Copper Operation Temperature – 30 〜 90 ( °C ) Operation Humidity 10 〜 90 ( % ) Option Remarks WINiZEN Co., Ltd. Specifications Sheet - 2 - Fig 1. Return Loss (Agilent E8357A 300KHz∼6GHz PNA Series Network Analyzer) Fig 2. V.S.W.R (Agilent E8357A 300KHz∼6GHz PNA Series Network Analyzer) - 3 - Fig 3. Smith Chart (Agilent E8357A 300KHz∼6GHz PNA Series Network Analyzer) - 4 - Fig 4. Measurement Configuration Fig 5. Axis Definitions (Antenna Center ) - 5 - Fig 6. Gain Patterns a. Azimuth Pattern Co - pol Cross - pol - 6 - b. Elevation Pattern Co - pol Cross - pol - 7 - c. Elevation Side Pattern Co - pol Cross - pol - 8 - Fig 7. Circuit Matching Fig 8. Photo

Report No ER/2007/30014 FCC ID: K7GS6C00 Issue Date: May. 02, 2007 Page: 1 of 54 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the con- tent or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. , 列www.sgs.com 說 不更 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 北路134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF Product Name: IP Telephone Brand Name: ShoreTel Model Name: S6C FCC ID: K7GS6C00 Report No.: ER/2007/30014 Issue Date: May. 02, 2007 FCC Rule Part: 15.247 Prepared for: Giant Electronics Ltd. 7/F., Elite Industrial Building, 135-137 Hoi Bun Road, Kwun Tong, kowloon, Hong Kong. Prepared by: SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei County, Taiwan. Note: This report shall not be reproduced except in full, without the written approval of SGS Taiwan Ltd. This document may be altered or revised by SGS Taiwan Ltd. personnel only, and shall be noted in the revision section of the document. Report No ER/2007/30014 FCC ID: K7GS6C00 Issue Date: May. 02, 2007 Page: 2 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. , 列www.sgs.com 說不 更 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 北路134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw VERIFICATION OF COMPLIANCE Applicant: Giant Electronics Ltd. 7/F., Elite Industrial Building, 135-137 Hoi Bun Road, Kwun Tong, kowloon, Hong Kong. Equipment Under Test: IP Telephone Brand Name: ShoreTel FCC ID Number: K7GS6C00 Model No.: S6C Model Difference: N/A File Number: ER/2007/30014 Date of test: Mar. 22, 2007 ~ Apr. 30, 2007 Date of EUT Received: Mar. 21, 2007 We hereby certify that: The above equipment was tested by SGS Taiwan Ltd. The test data, data evaluation, test proce- dures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2003) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.247 The test results of this report relate only to the tested sample identified in this report. Test By: Date May. 02, 2007 Danny Yeh / Engineer Prepared By: Date May. 02, 2007 Gigi Yeh / Clerk Approved By: Date May. 02, 2007 Vincent Su / Manager Report No ER/2007/30014 FCC ID: K7GS6C00 Issue Date: May. 02, 2007 Page: 3 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. , 列www.sgs.com 說不 更 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 北路134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Version Version No. Date 00 May. 02, 2007 Report No ER/2007/30014 FCC ID: K7GS6C00 Issue Date: May. 02, 2007 Page: 4 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. , 列www.sgs.com 說不 更 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 北路134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Table of Contents 1. GENERAL INFORMATION .........................................................................................................7 1.1. Product Description ............................................................................................................................7 1.2. Related Submittal(s) / Grant (s) ..........................................................................................................7 1.3. Test Methodology ...............................................................................................................................7 1.4. Test Facility................................................................................................…

Text truncated - open the document above for the full version.

Report No ER/2007/30014 FCC ID: K7GS6C00 Issue Date: May. 02, 2007 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. , 列www.sgs.com 說不 更 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 北路134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw APPENDIX 1 PHOTOGRPHS OF SET UP Report No ER/2007/30014 FCC ID: K7GS6C00 Issue Date: May. 02, 2007 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. , 列www.sgs.com 說不 更 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 北路134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Radiated Emission Set up Photo Report No ER/2007/30014 FCC ID: K7GS6C00 Issue Date: May. 02, 2007 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. , 列www.sgs.com 說不 更 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 北路134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Conducted Emission Set Up Photos
