K7GT5000Transmitter Portion of GMRS+FRS

T5000 & T5500 user guide --- Pg 2 2 Contents 3 11 12 14 14 14 15 16 16 17 17 17 18 19 19 19 Special Features Interference Eliminator Code Push to Talk Timeout Timer Locking the Keypad Scanning Channels Scan Advance Alerts Channel Busy Indicator Setting and Transmitting Call Tones Transmitting a Talk Confirmation Tone QT Noise Filtering Accessories Using Audio Accessories Voice Activation (VOX) Accessories Setting the Sensitivity Level Patent Information Copyright Information 20 20 20 20 21 21 22 22 22 23 23 25 25 25 26 27 28 T5000 & T5500 user guide --- Pg 1 1 Contect Safety and General Information FCC Licensing Information Control Buttons Getting Started Installing the the AA Batteries Installing the NiCd Battery Pack Battery Meter Attaching the Belt Clip Removing the Belt Clip Turning Your Radio On and Off Setting the Volume Setting a Channel Channels and Frequencies Talking and Listening Talk Range Check the Channel Before Transmitting Contents 4 T5000 & T5500 user guide --- Pg 4 T5000 & T5500 user guide --- Pg3 3 Safety and General Information Safety and General Information Important Information on Safe and Efficient Operation Read This Information Before Using Your Radio The information provided in this document supersedes the general safety information contained in user guides published prior to July 2000. Transmit and Receive Procedure Your two-way radio contains a transmitter and a receiver. To control your exposure and ensure compliance with the general population/uncontrolled environment exposure limits, always adhere to the following procedure: Exposure To Radio Frequency Energy Your Motorola radio is designed to comply with the following national and international standards and guidelines regarding exposure of human beings to radio frequency electromagnetic energy: Transmit no more than 50% of the time. To transmit (talk), press the Push to Talk (PTT) button. To receive calls, release the PTT button. • • • Transmitting 50% of the time, or less, is important because the radio generates measurable RF energy exposure only when transmitting (in terms of measuring standards compliance). •United States Federal Communications Commission, Code of Federal Regulations; 47 CFR part 2 sub-part J American National Standards Institute (ANSI) / Institute of Electrical and Electronic Engineers (IEEE) C95. 1-1992 Institute of Electrical and Electronic Engineers (IEEE) C95.1-1999 Edition International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1998 Ministry of Health (Canada) Safety Code 6. Limits of Human Exposure to Radio Frequency Electromagnetic Fields in the Frequency Range from 3 kHz to 300 GHz, 1999 Australian Communications Authority Radiocommunications (Electromagnetic Radiation - Human Exposure) Standard 2001 (applicable to wireless phones only) ANATEL, Brasil Regulatory Authority, Resolution 256 (April 11, 2002) "additional requirements for SMR, cellular, and PCS product certification." To assure optimal radio performance and make sure human exposure to radio frequency electromagnetic energy is within the guidelines set forth in the above standards, always adhere to the following procedures. Portable Radio Operation and EME Exposure Antenna Care Use only the supplied or an approved replacement antenna. Unauthorized antennas, modifications, or attachments could damage the radio and may violate FCC regulations. DO NOT hold the antenna when the radio is “IN USE.” Holding the antenna affects the effective range. • • • • • • Safety and General Information 5 Safety and General Information T5000 & T5500 user guide --- Pg 5 6 Safety and General Information T5000 & T5500 user guide --- Pg 6 Body-Worn Operation To maintain compliance with FCC/Health Canada RF exposure guidelines, if you wear a radio on your body when transmitting, always place the radio in a Motorola-supplied or approved clip, holder, holster, case, or body harness for this product. Use of non- Motorola-approved accessories may exceed FCC/Health Canada RF exposure guidelines. If you do not use one of the Motorola-supplied or approved body-worn accessories, and are not using the radio held in the normal use position, ensure the radio and its antenna are at least 1 inch (2.5 cm) from your body when transmitting * Data Operation If applicable, when using any data feature of the radio with or without an accessory cable, position the radio and its antenna at least 1 inch (2.5 cm) from the body. Approved Accessories For a list of approved Motorola accessories, please contact place of purchase. Electromagnetic Interference/Compatibility Note: Nearly every electronic device is susceptible to electromagnetic interference (EMI) if inadequately shielded, designed, or otherwise configured for electromagnetic compatibility. Two-way Radio Operation When using your radio as a traditional two-way radio, hold the radio in a vertical position with the microphone 1 to 2 inches (2.5 to 5 cm) away from the lips. Facilities To avoid electromagnetic interference and/or compatibility conflicts, turn off your radio in any facility where posted notices instruct you to do so. Hospitals or health care facilities may be using equipment that is sensitive to external RF energy. Aircraft When instructed to do so, turn off your radio when on board an aircraft. Any use of a radio must be in accordance with applicable regulations per airline crew instructions. Medical Devices - Pacemakers The Advanced Medical Technology Association recommends that a minimum separation of 6 inches (15 cm) be maintained between a handheld wireless radio and a pacemaker. These recommendations are consistent with the independent research by, and recommendations of the U.S. Food and Drug Administration. Persons with pacemakers should: • • • • ALWAYS keep the radio more than 6 inches (15 cm) from their pacemaker when the radio is turned ON. Not carry the radio in the breast pocket. Use the ear opposite the pacemaker to minimize the potential for interference. Turn the …

Text truncated - open the document above for the full version.

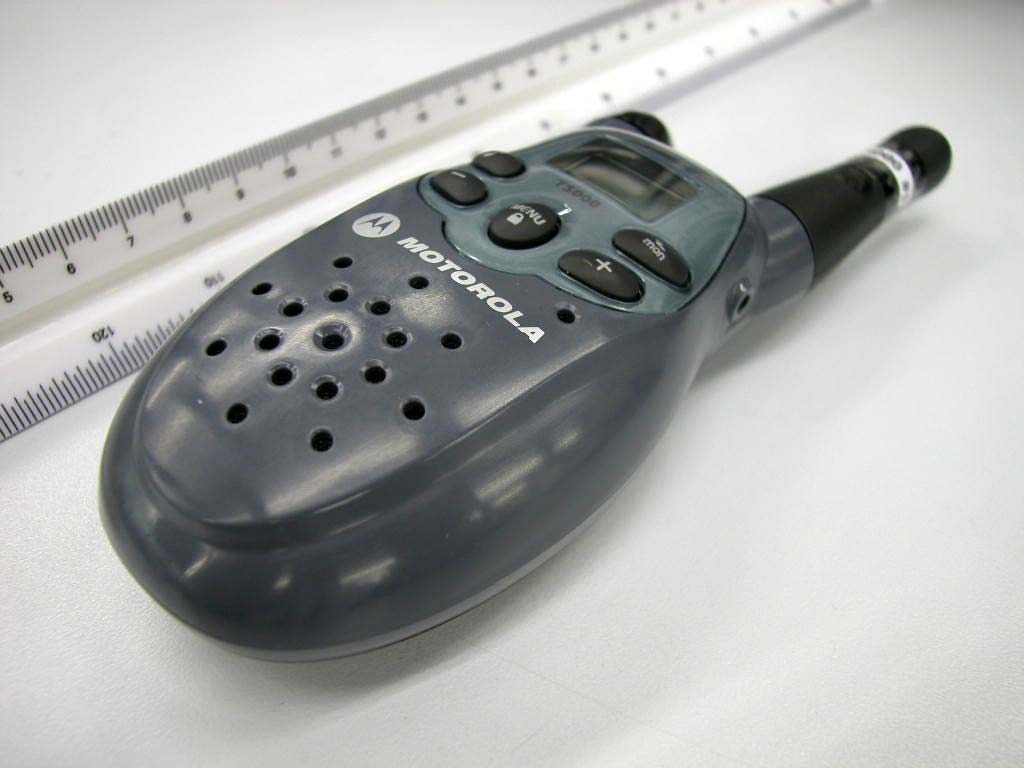

Test Setup FCC ID : K7GT5000 External Photo -front External Photo - rear

100% 45X8 mm 400%

Test Setup FCC ID : K7GT5000 Internal Photo – 1 Internal Photo - 2 Test Setup FCC ID : K7GT5000 Internal Photo – 3 Internal Photo – 4 Test Setup FCC ID : K7GT5000 Internal Photo – 5

Giant Electronics Ltd. Parent T5000XXXUSBK04 FRS RADIO USA BLACK WITH BLACKKEY EA 1 T5000BAXUSBKXX BASE UNIT USA BLACK WITH BLACKKEY 2 EA 0.2 T5000BCXUSBKXX BASE CASING USA BLACK WITH BLAACK KEY 1 EA ..3 T5000BCXXX BASE CASING COMMON 1 EA ...4 KEM-M7153 BATT PLATE "+" "-" (A) 1 EA ...4 KEM-M7154 BATT PLATE "-" "+" (B) 1 EA ...4 KEM-M7156A BATT PLATE "-" 1 EA ...4 KEM-M7160 CHARGING CONTACT 2 EA ...4 KEM-M7351A ANTENNA WIRE+BRACKET 1 EA ...4 KEM-OT5153 REMOTE MIC NET 1 EA ...4 KEM-OT7153 METAL DOME FOR KEYPAD 1 EA ...4 KEM-OT7186 SPEAKER CUSHION 1 EA E: ...4 KEM-OT7354A SPEAKER NET 1 EA ...4 KEM-OT7356 MIC SPONGE 1 EA ...4 KEM-OT7357 SPEAKER SPONGE 1 EA ...4 KEM-OT7358 SPONGE CUSHION 2 EA ...4 KEM-OT7362 MIC CUSHION COVER 1 EA ...4 KEM-TS2308X4B TAPTITE SCREW X/HD T2.3X8 4 EA ...4 KEM-WF03802005X WASHER 1 EA ..3 T5000BC4BK BASE CASING BLACK WITH BLACK KEY 1 EA ...4 KEM-OT10751 PTT BUTTON BLACK 1 EA ...4 KEM-OT7351-04 KEYPAD T5700 BLACK 1 EA ...4 KEM-P10751-02 FRONT HOUSING BLACK 1 EA ....5 KEM-P10751-02Z PRINTING FOR FRONT HOUSING BLACK 1 EA ....5 KEM-P10751-03 FRONT HOUSING BLACK W/O PRINTING 1 EA ...4 KEM-P10752-01 REAR HOUSING BLACK 1 EA ...4 KEM-P10753-01 BATTERY DOOR BLACK 1 EA ...4 KEM-P10754 VOLUME KNOB BLACK 1 EA ...4 KEM-P10755 ANTENNA SHROUD 1 EA ...4 KEM-P10756-01 LCD LENS FOR T5000 1 EA ....5 KEM-P10756 LCD LENS FOR T5000 W/O PRINTING 1 EA ....5 KEM-P10756-01Z PRINTING FOR LCD LENS 1 EA ...4 KEM-P10757 LED LENS FOR T5000 1 EA ...4 KEM-P10758-01 BELT CLIP COVER BLACK 1 EA ...4 KEM-P10759 PTT INSERT BLACK 1 EA 0.2 T5000B1 BASE RF & MAIN PCB (ALL) 1 EA ..3 T500CBCXXXC BASE CASING COMMON PARTS 1 EA ...4 KEJW-SA28BK STRAND WIRE UL1007 #28 BLACK 0.038 M JW201 ...4 KEJW-SA28RD STRAND WIRE UL1007 #28 RED 0.037 M JW202 ...4 KESP-122-1 SPEAKER 32 OHM 0.5W 3632A505 1 EA SPK101 ...4 KESP-172 MIC DB MIC C9745 42dB 0 EA * ...4 KESP-172-A MIC HORN EM9745PA-42 1 EA MIC101 ..3 T500CB1XXXC BASE RF & MAIN COMMON PART 1 EA partlist.xls ..T5000XXXUSBK04 2/14/2004 1 ...9 Giant Electronics Ltd. ...4 KEC-E106CRM0305 CAP ELECT 6.3V M 10UF 3X5MM 1 EA C235 ...4 KEC-E106CRM0405 CAP. ELECT 6.3V M 10UF 4X5MM 1 EA C172 ...4 KEC-E107CRM0505 CAP.ELECT 6.3V M 100UF 5X5MM 1 EA C242,E: ...4 KEC-E477CRM0608 CAP. ELECT 6.3V M 470UF 6X8MM 3 EA C237,C248,C2 66,E: ...4 KECF-0126-A SAW FILTER 465MHZ SF465 AEI 1 EA BPF101 ...4 KECF-0148-A CRYSTAL FILTER 21.4M AEI 21.4N7.5A UM-5 0 EA * ...4 KECF-0148-B-1 FILTER CRYSTAL 21.4MHZ CMT MU-5 1 EA BPF102 ...4 KECF-0166-A-1 CERAMIC FILTER CFT450HT-1 HUATAO 1 EA BPF105 ...4 KED-LC045-C LCD TB3198E O/P 3V 1/2 BIAS 1/4 DUTY 1 EA LCD101 ...4 KED-LC045-B 4 DIGIT WITH ICON 22X20X1.7MM 9 3492TF/E 0 EA * ...4 KEJ-308 DIA 2.5mm EARPHONE JACK ST-101 1 EA J101 ...4 KEJW-FC452-A HEAT SEAL CABLE P=0.6MM L=10MM 12PINS K&K 1 EA JW2 03 ...4 KEL-229CL-4 COIL FIXED 2U2H 5% 1 EA L112 ...4 KEM-M7151D LCD BRACKET FOR 1W 1 EA ...4 KEM-M7155 BATT PLATE "+' 1 EA ...4 KEM-M7169A VCO SHIELD CAN OFIW 1 EA ...4 KEM-M7175 VCO SHIELD CAN COVER 1 EA ...4 KEM-OT7156 WHITE SHEET 1 EA ...4 KEM-OT7163 LCD CUSHION 2 EA ...4 KEM-P7162B BACK DISPLAY LENS 1 EA ...4 KEOE-OT482 JTB 450KHZ CERAMIC DISCRIMINATOR 1 EA L114 ...4 KER-502F09115SA RES.SEMI.F-09115SA A5KB L14.6FCX7 1 EA VR103 ...4 KER-502RD901S14 RES. SEMI. RD901S-20-146F-A53-0038 (A5K) 0 EA * ...4 KESW-123 SLIDE TACT SWITCH TS-37-BH-DG 1 EA ...4 KEX-C074-1 CERAMIC RESONATOR 4MHZ +/-0.2% 1 EA X102 ...4 T500CB1SC BASE RF & MAIN PCB SMT COMMON PARTS 1 EA ....5 KEPC-810-A PCB RF 92.3X49X1.0 FR4 DS FOR T8210 1 EA ....5 T500CB1SBC BASE RF & MAIN PCB SMT BOTTOM COMMON PART 1 EA .....6 KCC-101FJNPOMUG CAP.CER.CHIP 50V CH J% 100PF MURATA 4 EA C23 1,C251,C210,C19 .....6 KCC-102FKBMUG CAP.CER.CHIP 50V B K% 0.001UF MURATA 4 EA C113, C148,C164,C214 .....6 KCC-103DKBMUG CAP. CER. CHIP 16V X7R K 0.01UF 3 EA C192,C194, C257 .....6 KCC-104DZFMUG CAP.CER.CHIP 16V F Z% 0.1UF MURATA 8 EA C170, C173,C175,C204,C207,C264,C205,C10 .....6 KCC-105DRZFM CAP. CER. CHIP 16V F Z% 1UF 1 EA C147 .....6 KCC-109FCNPOMUG CAP.CER.CHIP 50V CH C% 1PF MURATA 0.3 EA C 179 FOR MATCH YELLOW/B3 CRYSTAL .....6 KCC-120FJNPOMUG CAP.CER.CHIP 50V CH J% 12PF MURATA 0.3 EA C 180 FOR MATCH WHITE/B1 CRYSTAL .....6 KCC-123DKBMUG CAP.CER.CHIP 16V B K% 0.012UF MURATA 1 EA C184 .....6 KCC-150FJNPOMUG CAP.CER.CHIP 50V CH J% 15PF MURATA 0.75 EA C180 MATCH BLACK/YELLOW/B3 CRYSTALC171 FOR MATCH GREEN/B4 CRYSTAL .....6 KCC-151FRJNPOM CAP. CER. CHIP 50V CH J% 150P F 1 EA C274 .....6 KCC-152FRKBG CAP. CER. CHIP 50V B K% 0.0015UF 1 EA C163 .....6 KCC-153DKBMUG CAP. CER. CHIP 16V B K 0.015UF MURATA 1 EA C162 .....6 KCC-159FCNPOMUG CAP.CER.CHIP 50V CH C% 1.5PF MURATA 1 EA C12 3 .....6 KCC-180FJNPOMUG CAP.CER.CHIP 50V CH J% 18PF MURATA 0.15 EA C180 FOR MATCH B4 CRYSTAL partlist.xls ..T5000XXXUSBK04 2/14/2004 2 ...9 Giant Electronics Ltd. .....6 KCC-183DKBMUG CAP. CER. CHIP 16V B K 0.018UF 1 EA R11 .....6 KCC-200FJNPOMUG CAP. CER. CHIP 50V CH J% 20PF MURATA 0.45 EA C180 FOR MATCH GREEN CRYSTALC171 FOR MATCH BLACK/B1 CRYSTAL .....6 KCC-209FCNPOMUG CAP.CER.CHIP 50V CH C% 2PF MURATA 0.6 EA C 165 MATCH BLACK/WHITE/GREEN C179 FOR MATCH WHITE CRYSTAL .....6 KCC-220FJNPOMUG CAP.CER.CHIP 50V CH J% 22PF MURATA 0.45 EA C171 MATCH YELLOW/WHITE/B3 CRYSTAL .....6 KCC-222FKBMUG CAP.CER.CHIP 50V B K% 0.0022UF MURATA 1 EA C161 .....6 KCC-223DKBMUG CAP.CER.CHIP 16V B K% 22NF MURATA 7 EA C196, C228,C239,C258,C203,C6,C7 .....6 KCC-270FJNPOMUG CAP. CER. CHIP 50V NPO J 27P 0402 2 EA C190,C 155 .....6 KCC-300FJNPOMUG CAP.CER. CHIP 50V NPO J% 30pF 1 EA C133 .....6 KCC-309FCNPOMUG CAP.CER.CHIP 50V CH C% 3PF MURATA 1 EA C11 4 .....6 KCC-334DRKBM CAP. CER. CHIP 16V B K% 0.33UF 1 EA C186 .....6 KCC-390FJNPOMUG CAP CER CHIP 50V NPO J% 39PF MURATA 1 EA C202 .....6 KCC-391FRJNPOE CAP CER CHIP 50V NPO J 390PF 1 EA C187 .....6 KCC-409FCNPOMUG CAP.CER.CHIP 50V CH C% 4PF MURATA 0.15 EA C165 FOR MATCH B4 CRYSTAL .....6 KCC-470FJNPOMUG CAP CER CHIP 50V NPO J% 47PF MURATA 1 EA C201 .....6 KCC-473BKBMUG CAP. CER. CHIP 10V X7R K 0.047UF 2 EA C188,C256 .....6 KCC-…

Text truncated - open the document above for the full version.

GIANT ELECTRONICS LTD. Title: Alignment Procedure Model: T5000 Version: 01 THE CONTENT OF THIS DOCUMENT IS GIANT ELCT.LTD. INTELLECTUAL PROPERTY AND IS THE PROPERTY OF GIANT, IT IS TO BE TREATED AS STRICTLY AND IS NOT BE DISCLOSED, REPRODUCED, OR USED EXCEPT AS AUTHORIZED IN WRITING BY GIANT ELECTRONIC LTD. IN CONNECTION WITH THE MANUFACTURE, MAINTENANCE AND USE OF THE GIANT EQUIPMENT WHICH IT PERTAINS. COPYRIGHT @GIANT ELECT. LTD, ALL RIGHTS RESERVED new T5000 ALIGNMENT PROCEDURE v01A 1/5 A. PCB LEVEL (Test Condition: under CH15) NO ITEM ALIGNMENT METHOD REMARK 1. LCD display (Should enter test mode) 1. Press and hold the ‘+’ key and ‘Menu’ key together. 2. Turn on the radio power until a good key chirp is heard, and the backlight is on for about 500 ms . finally, the LCD should be display ‘1 CH ’. 3. Press ‘DOWN’ key , then all LCD segments should be anticlockwise displayed. 4. Finally, all the LCD segments should be shown for about 500ms as follows: 18 88. . 2. Standby current 1. Set A-METER, and RX mode. 2. Check the standby current <45mA DC. 3. Talk on current 1. Set A-METER, and TX mode @50ohm load. 2. Check the talk on current <900mA DC. 3. Set channel to 14. 4. Check the talk on current <500mA DC. 4. VCO 1. Set RX or TX mode 2. Check TP103 to provide 0.7 ~ 2.4VDC. 3. Adjust L113 to provide 2.0 ± 0.1VDC at TP103 if VCO level are more than 2.4VDC on CH14. 5. TX Power 1. Set TX mode CH15. 2. Check transmit power to provide <480mW 3. Set TX mode channel 14. 4. Adjust VR 1 to provide <260mW Test voltage is 4.5V DC. 6. CTCSS Tone Frequency 1. set CH1/CODE1. 2. Set Tx mode. 3. Check TP140 to be within 66.8Hz to 67.2Hz. 7. TX Frequency Adjust C159 to provide 462.5620MHz ± 50Hz. 8. CTCSS Tone Dev. 1. Set CH1/CODE1、AF input level to off, check DEV to be 350Hz~ 600Hz. 2. Set CH14/CODE38 、 AF input level to off, check DEV to be 350Hz~ 600Hz. FILTER SET: 1.50HZ~3KHZ 2.750μs De-emp ON 3. PK+ 4. FM DEV. AVG ON 9. TX Modulation & distortion 1.Set AF level at 25mv;1KHz,Adjust VR101 to provide Max TX deviation 2.25KHz to 2.35KHz. 2.Check input Mic level in 0.5~10 mV to provide normal deviation 1.5KHz. 3.Check the demodulation distortion <= 5%. 5. Audio Frequency Response. a) Input a 2.0mV 1KHz audio frequency to TP116 and press ‘PTT’ switch. b) Check the response compare to 1KHz tone. i) 500Hz : -5.0 dB to –11.0 dB. ii) 2.5KHz : +3.0 dB to +9.0 dB . Fliter set : 1.HPF 50Hz 2.LPF 15KHz 3. PK + All input at TP116 GIANT ELECTRONICS LTD. Title: Alignment Procedure Model: T5000 Version: 01 THE CONTENT OF THIS DOCUMENT IS GIANT ELCT.LTD. INTELLECTUAL PROPERTY AND IS THE PROPERTY OF GIANT, IT IS TO BE TREATED AS STRICTLY AND IS NOT BE DISCLOSED, REPRODUCED, OR USED EXCEPT AS AUTHORIZED IN WRITING BY GIANT ELECTRONIC LTD. IN CONNECTION WITH THE MANUFACTURE, MAINTENANCE AND USE OF THE GIANT EQUIPMENT WHICH IT PERTAINS. COPYRIGHT @GIANT ELECT. LTD, ALL RIGHTS RESERVED new T5000 ALIGNMENT PROCEDURE v01A 2/5 A. PCB LEVEL (Test Condition: under CH15) NO ITEM ALIGNMENT METHOD REMARK 10. VOX Detector (For T5500/T5510/T5010/T 5020) 1.Set VOX level at 1. 2.Set AF level at 15.4 +/-0.2 mV,1KHz at TP116. 3. Unit start to transmit. 4.Set AF level at 13.5 +/-0.2 mV,1KHz at TP116. 5.Unit start to transmit. 6. Set VOX level at 2. 7.Set AF level at 9.4 +/-0.2 mV,1KHz at TP116. 8.Unit start to transmit. 9.Set AF level at 5.8 +/-0.2 mV,1KHz at TP116. 10.Unit start to transmit. 11.Set VOX level at 3. 12.Set AF level at 4.0 +/-0.2 mV,1KHz at TP116. 13.Unit start to transmit. 14.Set AF level at 2.7 +/-0.2 mV,1KHz at TP116. 15.Unit start to transmit. 11. Rx Audio test 1. Set RX mode CH7. 2. Set SG RF level to –50dBm with 1.5KHz deviation 1KHz modulation Signal. 3. Rotate the volume switch to the position, which give a Max audio output at TP117. 4. Check Max audio output level >1300mV. 5. Check Rx current <150mA. 6. Check the 1KHz distortion <= 5%. 7. Set SG RF level to –119dBm with 1.5kHz deviation at 1KHz audio frequency. a). Check SINAD sensitivity <= -119dBm. @12dB SINAD at TP117. 8. Audio frequency response. a) Set SG RF level to –50dBm with 1.5kHz deviation at 1KHz audio frequency. b) Rotate the volume switch to the position, which give an output 100mV±5mV at TP117. c) Vary the audio frequency from 300Hz to 3KHz. d) Check the RX response compare to 1KHz tone. i) 500Hz : +1.0 dB to +5.0 dB. ii) 2.5KHz : -10.0 dB to –18.0 dB. 9. Maximum and Minimum Audio Output Power. a) Set SG RF level to –50dBm with 1.5kHz deviation at 1KHz audio frequency. b) Rotate the volume switch to the position, which give a maximum output . c) Check the voltage at TP117 >/=1500mV. d) Set maximum audio output to 0dB, rotate the volume switch to the position, which give a minimum output. e) Check the minimum voltage -23dB to -40dB at TP117 12. Noise- Detector 1. Set SG to –120dBm with 1.5KHz deviation., 1KHz AF on CH7. 2. Adjust VR102 for transient state @ 10dB SINAD. 3. Check high state @8 to 13dB SINAD. GIANT ELECTRONICS LTD. Title: Alignment Procedure Model: T5000 Version: 01 THE CONTENT OF THIS DOCUMENT IS GIANT ELCT.LTD. INTELLECTUAL PROPERTY AND IS THE PROPERTY OF GIANT, IT IS TO BE TREATED AS STRICTLY AND IS NOT BE DISCLOSED, REPRODUCED, OR USED EXCEPT AS AUTHORIZED IN WRITING BY GIANT ELECTRONIC LTD. IN CONNECTION WITH THE MANUFACTURE, MAINTENANCE AND USE OF THE GIANT EQUIPMENT WHICH IT PERTAINS. COPYRIGHT @GIANT ELECT. LTD, ALL RIGHTS RESERVED new T5000 ALIGNMENT PROCEDURE v01A 3/5 A. PCB LEVEL (Test Condition: under CH15) NO ITEM ALIGNMENT METHOD REMARK 13. CTCSS tone Detect 1. Set CH15/CODE1and SG to –122dBm with 67Hz tone frequency, 400Hz deviation. 2. Check the Pin31 of IC105 to have square-wave, and low for RF modulation off. 3. Repeat item 1 and 2 for code38(250.3Hz). 4. Repeat item 1 and 3 for CH14. 14. Quiet tone det 1.Set unit to quiet noise mode. 2.Set CH15/CODE 1and SG to –60dBm with 67Hz tone frequency, 400Hz deviation and 55Hz audio frequency, 400Hz deviation.. 4. 55Hz tone frequency appear on TP 117. 15. Normal Batter level Dete…

Text truncated - open the document above for the full version.

© 2004 Celltech Labs Inc. 1 of 20 Test Report S/N: 021704-478K7G Test Date(s): February 26, 2004 Test Type: FCC/IC SAR Evaluation Celltech Labs Inc. declares under its sole responsibility that this wireless portable device has demonstrated compliance with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC 47 CFR §2.1093 and Health Canada’s Safety Code 6. The device was tested in accordance with the measurement standards and procedures specified in FCC OET Bulletin 65, Supplement C (Edition 01-01) and Industry Canada RSS-102 Issue 1 (Provisional) for the General Population / Uncontrolled Exposure environment. All measurements were performed in accordance with the SAR system manufacturer recommendations. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. The results and statements contained in this report pertain only to the device(s) evaluated. Russell W. Pipe Senior Compliance Technologist Celltech Labs Inc. DECLARATION OF COMPLIANCE SAR RF EXPOSURE EVALUATION Test Lab CELLTECH LABS INC. Testing and Engineering Services 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone: 250-448-7047 Fax: 250-448-7046 e-mail: [email protected] web site: www.celltechlabs.com Applicant Information GIANT ELECTRONICS LTD. 7/F, Elite Industrial Bldg. 135-137 Hoi Bun Road Kwun Tong, Kowloon Hong Kong Rule Part(s): FCC 47 CFR §2.1093; IC RSS-102 Issue 1 (Provisional) Test Procedure(s): FCC OET Bulletin 65, Supplement C (Edition 01-01) Device Type: Portable UHF FRS/GMRS PTT Radio Transceiver FCC IDENTIFIER: K7GT5000 Model(s): T5000 / T5010 / T5020 Modulation: FM (UHF) Tx Frequency Range(s): 462.5500 - 462.7250 MHz (GMRS Channels 15-22) 462.5625 - 462.7125 MHz (FRS/GMRS Channels 1-7) 467.5625 - 467.7125 MHz (FRS Channels 8-14) RF Output Power Tested: 0.480 Watts ERP (GMRS 462.7125 MHz) Antenna Type(s) Tested: Fixed Battery Type(s) Tested: NiCd (4.2 V, 600mAh), Alkaline x3 (1.5 V AA) Alkaline Type 1: Duracell Procell (2850 mAh) Alkaline Type 2: Energizer E-Squared (3135 mAh) Body-Worn Accessories Tested: Plastic Belt-Clip (P/N: KEM-P5960A) Earbud with Lapel-Microphone (P/N: NTN8870C) Headset with Boom-Microphone (P/N: NTN8868B) Max. SAR Measured: 0.686 W/kg - Face-held (50% duty cycle) 0.600 W/kg - Body-worn (50% duty cycle) © 2004 Celltech Labs Inc. 2 of 20 Test Report S/N: 021704-478K7G Test Date(s): February 26, 2004 Test Type: FCC/IC SAR Evaluation TABLE OF CONTENTS 1.0INTRODUCTION.....................................................................3 2.0DESCRIPTION OF DUT............................................................ 3 3.0SAR MEASUREMENT SYSTEM ............................................... 4 4.0MEASUREMENT SUMMARY..................................................... 5 5.0DETAILS OF SAR EVALUATION............................................... 6 6.0EVALUATION PROCEDURES................................................... 6 7.0SYSTEM PERFORMANCE CHECK............................................. 7 8.0SIMULATED EQUIVALENT TISSUES......................................... 8 9.0SAR SAFETY LIMITS............................................................... 8 10.0ROBOT SYSTEM SPECIFICATIONS.......................................... 9 11.0PROBE SPECIFICATION......................................................... 10 12.0PLANAR PHANTOM................................................................ 10 13.0VALIDATION PHANTOM........................................................... 10 14.0DEVICE HOLDER.................................................................... 10 15.0TEST EQUIPMENT LIST........................................................... 11 16.0MEASUREMENT UNCERTAINTIES............................................ 12-13 17.0REFERENCES........................................................................14 APPENDIX A - SAR MEASUREMENT DATA............................................... 15 APPENDIX B - SYSTEM PERFORMANCE CHECK DATA............................ 16 APPENDIX C - SYSTEM VALIDATION PROCEDURES................................. 17 APPENDIX D - PROBE CALIBRATION...................................................... 18 APPENDIX E - MEASURED FLUID DIELECTRIC PARAMETERS................... 19 APPENDIX F - SAR TEST SETUP & DUT PHOTOGRAPHS.......................... 20 © 2004 Celltech Labs Inc. Giant Electronics Ltd. FCC ID: K7GT5000 (Models: T5000/T5010/T5020) 3 of 20 Portable PTT UHF FRS/GMRS Radio Transceiver (462.5500-467.7125MHz) Test Report S/N: 021704-478K7G Test Date(s): February 26, 2004 Test Type: FCC/IC SAR Evaluation This measurement report demonstrates compliance of the Giant Electronics Ltd. Models: T5000 / T5010 / T5020 Portable UHF FRS/GMRS PTT Radio Transceiver FCC ID: K7GT5000 with the SAR (Specific Absorption Rate) RF exposure requirements specified in FCC 47 CFR §2.1093 (see reference [1]), and Health Canada’s Safety Code 6 (see reference [2]) for the General Population / Uncontrolled Exposure environment. The test procedures described in FCC OET Bulletin 65, Supplement C (Edition 01-01) (see reference [3]) and IC RSS-102 Issue 1 (Provisional) (see reference [4]), were employed. A description of the product and operating configuration, detailed summary of the test results, methodology and procedures used in the evaluation, equipment used, and the various provisions of the rules are included within this test report. Rule Part(s) FCC 47 CFR §2.1093 IC Rule Part(s) RSS-102 Issue 1 (Provisional) Test Procedure FCC OET Bulletin 65, Supplement C (01-01) Device Type Portable UHF FRS/GMRS PTT Radio Transceiver FCC IDENTIFIER K7GT5000 Model(s) T5000 / T5010 / T5020 Serial No. # 1 (Producti…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES FCC ID: K7GT5000 i SUMMARY OF CONTENTS LIST OF EXHIBITS EXHIBIT 1 : General Description EXHIBIT 2 : System Test Configuration EXHIBIT 3 : RF Power Output EXHIBIT 4 : Modulation Characteristics EXHIBIT 5 : Occupied Bandwidth EXHIBIT 6 : Spurious Emission EXHIBIT 7 : Frequency Stability EXHIBIT 8 : Technical Specifications EXHIBIT 9 : Product Labelling EXHIBIT 10 : Photographs EXHIBIT 11: Instruction Manual EXHIBIT 12: Tune Up Procedure EXHIBIT 13: Part List EXHIBIT 14: Input Current EXHIBIT 15: RF Exposure Info EXHIBIT 16: Confidentiality Request INTERTEK TESTING SERVICES FCC ID: K7GT5000 ii MEASUREMENT/TECHNICAL REPORT Application : Giant Electronics Ltd. Trade Name/Model No : Giant T5000 Giant T5010 Giant T5020 Date : February 9, 2004 This report concerns (check one:)Original Grant X Class II Change Equipment Type: GMRS + FRS Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Report prepared by: Wilson Loke Intertek Testing Services 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Phone: 852-2173-8575 Fax: 852-2371-0521 INTERTEK TESTING SERVICES FCC ID: K7GT5000 iii Table of Contents 1.0 General Description......................................................................................................2 1.1 Product Description...................................................................................................2 1.2 Related Submittal(s) Grants......................................................................................3 1.3 Test Methodology.......................................................................................................3 1.4 Test Facility.................................................................................................................3 2.0 System Test Configuration.........................................................................................5 2.1 Justification.................................................................................................................5 2.2 EUT Exercising Software..........................................................................................6 2.3 Special Accessories..................................................................................................6 2.4 Measurement Uncertainty..........................................................................................6 2.5 Equipment Modification.............................................................................................6 3.0 RF Output Power (Section 95.639(d)).......................................................................8 4.0 Modulation Characteristics (Section 95.637(a))...................................................12 4.1 Modulation Frequiency Response..........................................................................13 4.2 Modulation Limiting Characteristic.........................................................................15 4.3 Audio Low Pass Filter Response...........................................................................17 5.0 Occupied Bandwidth (Section 95.633(c)) .............................................................19 6.0 Spurious Emission (Section 95.635(b))..................................................................21 6.1 Field Strength of Spurious Radiation.....................................................................22 7.0 Frequency Stability (Section 95.627)......................................................................28 7.1 Frequency Tolerance................................................................................................29 7.2 Temperature Extreme Condition.............................................................................31 7.3 Voltage Extreme Condition.....................................................................................34 8.0 Technical Specifications............................................................................................37 9.0 Product Labelling........................................................................................................41 10.0 Equipment Photographs.........................................................................................44 11.0 Instruction Manual.....................................................................................................46 12.0 Tune Up Procedure...................................................................................................48 13.0 Part List........................................................................................................................50 14.0 Input Current...............................................................................................................52 15.0 RF Exposure Info.......................................................................................................54 16.0 Confidentiality Request...........................................................................................56 INTERTEK TESTING SERVICES FCC ID: K7GT5000 iv List of attached file Exhibit type File Description Filename Operation Description Technical Description descri.pdf Test Report Bandwidth Plot bw.pdf Test Report Modulation Frequency Response mfr.pdf Test Report Modulation Limit Characteristic mlc.pdf Test Report Spurious Emission spurious.pdf Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf Test Report Test Report report.pdf Test Setu…
