K7GT5620Transmitter Portion of FRS + GMRS

T5600, T5620, T5700, T5710, T5720 Preliminary User Guide 10/28/2002 Introduction 1 P r el imi nar y IntroductionCongratulations on your purchase of a Motorola Product!Product registration is an important step toward enjoying your new Motorola product. Registering helps us facilitate warranty service, and permits us to contact you should your Motorola product require an update of other service. Registration is not required for warranty coverage. To register your product on-line, visit www.motorola.com/warranty/radios.Please retain your original dated sales receipt for your records. For warranty service of your Motorola Personal Communications Product you will need to provide a copy of your dated sales receipt to confirm warranty status.For a copy of a large-print version of this guide, or for product-related questions, call: 1-800-353-2729 in the USA 1-888-390-6456 TTY (Text Telephone) On the web, please refer to www.motorola.com/talkabout 1042b60o.book Page 1 Monday, October 28, 2002 5:03 PM P r el imi nar y Introduction . . . . . . . . . . . . . . . . . . . . . . . 1Safety and General Information . . . . . . . 3 Battery Charger Safety Instructions . . . . 9 Control Buttons - T5600, T5700 . . . . . . 11Control Buttons - T562 0, T5710, T5720 12 Getting Started . . . . . . . . . . . . . . . . . . . . 13 Installing the Batteries . . . . . . . . . . . . . 13Charging Desk Stand (Optional Accessory) . . . . . . . . . . . . 15 Turning Your Radio On and Off . . . . . . 16Setting the Volume . . . . . . . . . . . . . . . . 17Setting a Channel . . . . . . . . . . . . . . . . . 17 Talking and Listening . . . . . . . . . . . . . . 18 Monitor Button . . . . . . . . . . . . . . . . . . . 18Talk Range . . . . . . . . . . . . . . . . . . . . . . 19Radio Etiquette . . . . . . . . . . . . . . . . . . . 19 Special Features . . . . . . . . . . . . . . . . . . 20 Interference Eliminator Code . . . . . . . . 20Timeout Timer . . . . . . . . . . . . . . . . . . . . 21Keypad Lock . . . . . . . . . . . . . . . . . . . . . 21Scan (T5620, T5700, T5710 Only) . . . . 21Scan Advance . . . . . . . . . . . . . . . . . . . . 22Nuisance Delete . . . . . . . . . . . . . . . . . . 22 Alerts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Channel Busy Indicator . . . . . . . . . . . . . 23 Call Tone . . . . . . . . . . . . . . . . . . . . . . . .23Roger Beep/Talk Confirmation Tone . . .23QuieT6000™ (T5700, T5710, T5720 Only) . . . . . .24 Accessories . . . . . . . . . . . . . . . . . . . . . .26 To Use Audio Accessories . . . . . . . . . .26Hands-Free Use/Voice Activation (VOX) with Compatible VOX Accessories (T5710, T5720 Only) . . . . . . . . . . . . .27 Belt Clip (Included) . . . . . . . . . . . . . . . .29 Troubleshooting . . . . . . . . . . . . . . . . . . .30Use and Care . . . . . . . . . . . . . . . . . . . . .32Motorola Limited Warranty . . . . . . . . . .34Export Law Assurances . . . . . . . . . . . .40 Contents 1042b60o.book Page 2 Monday, October 28, 2002 5:03 PM Safety and General Information 3 P r el imi nar y Safety and General InformationImportant Information on Safe and Efficient OperationRead This Information Before Using Your RadioThe information provided in this document supersedes the general safety information contained in user guides published prior to July 2000. Transmit and Receive ProcedureYour two-way radio contains a transmitter and a receiver. To control your exposure and ensure compliance with the general population/uncontrolled environment exposure limits, always adhere to the following procedure: • Transmit no more than 50% of the time • To transmit (talk), push the Talk button • To receive calls, release the Talk button Transmitting 50% of the time, or less, is important because the radio generates measurable RF energy exposure only when transmitting (in terms of measuring standards compliance).Exposure to Radio Frequency EnergyYour Motorola radio is designed to comply with the following national and international standards and guidelines regarding exposure of human beings to radio frequency electromagnetic energy:• United States Federal Communications Commission, Code of Federal Regulations; 47 CFR part 2 sub-part J 1042b60o.book Page 3 Monday, October 28, 2002 5:03 PM Safety and General Information 4 P r el imi nar y • American National Standards Institute (ANSI) / Institute of Electrical and Electronic Engineers (IEEE) C95. 1-1992 • Institute of Electrical and Electronic Engineers (IEEE) C95.1-1999 Edition • International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1998 • Ministry of Health (Canada) Safety Code 6. Limits of Human Exposure to Radio Frequency Electromagnetic Fields in the Frequency Range from 3 kHz to 300 GHz, 1999 • Australian Communications Authority Radiocommunications (Electromagnetic Radiation - Human Exposure) Standard 2001 (applicable to wireless phones only) • ANATEL, Brasil Regulatory Authority, Resolution 256 (April 11, 2002) “additional requirements for SMR, cellular, and PCS product certification.” To assure optimal radio performance and make sure human exposure to radio frequency electromagnetic energy is within the guidelines set forth in the above standards, always adhere to the following procedures.Portable Radio Operation and EME ExposureAntenna CareUse only the supplied or an approved rep lacement antenna. Unauthorized antennas, modifications, or attachments could damage the radio and may violate FCC regulations. DO NOT hold the antenna when the radio is “IN USE.” Holding the antenna affects the effective range. 1042b60o.book Page 4 Monday, October 28, 2002 5:03 PM Safety and General Information 5 P r el imi nar y Two-Way Radio OperationWhen using your radio as a traditional two-way radio, hold the radio in a vertical position with the microphone one to two inches (2.5 to 5 cm) away from the lips. Body-Worn OperationTo maintain compliance with FCC/Health Canada RF exposure guidelines, if you wear a radio on your body when transmitting,…

Text truncated - open the document above for the full version.

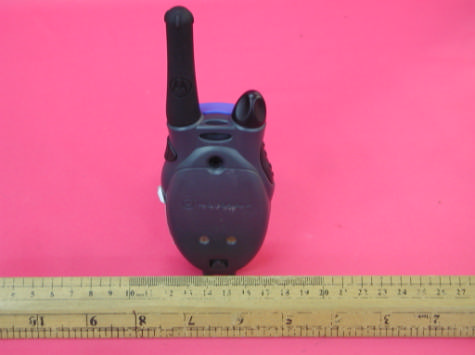

Test Setup FCCID : K7GT5620 External Photo -front External Photo - rear

Test Setup FCCID : K7GT5620 Internal Photo - 1 Internal Photo - 2 Test Setup FCCID : K7GT5620 Internal Photo – 3

Modulation Frequency Response 0.00 0.50 1.00 1.50 20070012001700220027003200370042004700 Modulation Frequency (Hz) Frequency Deviation (kHz)

Modulation Limiting Characteristic 0.00 0.50 1.00 1.50 2.00 2.50 475767778797107117127137 Modulation Input (dBSPL) Frequency Deviation (kHz) 500Hz 1000Hz 2500Hz 3125Hz

• The test results reported in this report shall refer only to the sample actually tested and shall not refer or be deemed a refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Giant Electronics Limited Application For Certification (FCC ID: K7GT5620) November 25, 2002 WO# 0214730 WL/Ann Choy November 25, 2002 INTERTEK TESTING SERVICES FCC ID: K7GT5620 i SUMMARY OF CONTENTS LIST OF EXHIBITS EXHIBIT 1:General Description EXHIBIT 2:System Test Configuration EXHIBIT 3:RF Power Output EXHIBIT 4:Modulation Characteristics EXHIBIT 5:Occupied Bandwidth EXHIBIT 6:Spurious Emission EXHIBIT 7:Frequency Stability EXHIBIT 8:Technical Specifications EXHIBIT 9:Product Labelling EXHIBIT 10:Photographs EXHIBIT 11:Instruction Manual EXHIBIT 12:Tune Up Procedure EXHIBIT 13:Part List EXHIBIT 14:Input Current EXHIBIT 15:RF Exposure Info EXHIBIT 16:Confidentiality Request INTERTEK TESTING SERVICES FCC ID: K7GT5620 ii MEASUREMENT/TECHNICAL REPORT Application:Giant Electronics Limited Trade Name/Model No:Motorola T5620 Motorola T5600 Date:November 25, 2002 This report concerns (check one:)Original Grant X Class II Change Equipment Type: GMRS + FRS Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Report prepared by:Wilson Loke Intertek Testing Services 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Phone:852-2173-8575 Fax:852-2371-0521 INTERTEK TESTING SERVICES FCC ID: K7GT5620 iii Table of Contents 1.0 General Description............................................................................................................2 1.1 Product Description.........................................................................................................2 1.2 Related Submittal(s) Grants..............................................................................................3 1.3 Test Methodology...........................................................................................................3 1.4 Test Facility.....................................................................................................................3 2.0 System Test Configuration.................................................................................................5 2.1 Justification......................................................................................................................5 2.2 EUT Exercising Software.................................................................................................6 2.3 Special Accessories.........................................................................................................6 2.4 Measurement Uncertainty.................................................................................................6 2.5 Equipment Modification....................................................................................................6 3.0 RF Output Power (Section 95.639(d))................................................................................8 4.0 Modulation Characteristics (Section 95.637(a))..............................................................12 4.1 Modulation Frequiency Response...................................................................................13 4.2 Modulation Limiting Characteristic..................................................................................15 4.3 Audio Low Pass Filter Response....................................................................................17 5.0 Occupied Bandwidth (Section 95.633(c)) .........................................................................19 6.0 Spurious Emission (Section 95.635(b)).............................................................................21 6.1 Field Strength of Spurious Radiation...............................................................................22 7.0 Frequency Stability (Section 95.627)................................................................................28 7.1 Frequency Tolerance......................................................................................................29 7.2 Temperature Extreme Condition.....................................................................................31 7.3 Voltage Extreme Condition.............................................................................................34 8.0 Technical Specifications....................................................................................................37 9.0 Product Labelling..............................................................................................................41 10.0 Equipment Photographs..................................................................................................44 11.0 Instruction Manual..........................................................................................................46 12.0 Tune Up Procedure.........................................................................................................48 13.0 Part List...........................................................................................................................50 14.0 Input Current...................................................................................................................52 15.0 RF Exposure Info.........................................................................................…

Text truncated - open the document above for the full version.

Audio Low Pass Filter Response -60.0 -50.0 -40.0 -30.0 -20.0 -10.0 0.0 10.0 110100 Frequency (kHz) dB relative to 1 kHz LPF Response TIA/EIA-603

Test Setup FCCID : K7GT5620 Radiated -front Radiated - rear
