K7GT6100GMRS+FRS

User Manual Model: T6100 SAFETY INFORMATION Transmit and Receive Procedure Your two-way radio contains a transmitter and a receiver. To control your exposure and ensure compliance with the general population/uncontrolled environment exposure limits, do not transmit more than 50% of the time. Transmitting 50% of the time, or less, is important because the radio generates measurable RF energy exposure only when transmitting (in terms of measuring standards compliance). Antenna Care Use only the supplied or an approved replacement antenna. Unauthorized antennas, modifications, or attachments could damage the radio and may violate FCC regulations. Two-way Radio Operation When using your radio as a traditional two-way radio, hold the radio in a vertical position with the mircrophone 1 to 2 inches (2.5 to 5 cm) away from the lips. Body-Worn Operation To maintain compliance with FCC/Health Canada RF exposure guidelines, if you wear a radio on your body when transmitting, always place the radio in a Motorola-supplied or approved clip, holder, holster, case, or body harness for this product. Use of non-Motorola-approved accessories may exceed FCC/Health Canada RF exposure guidelines. If you do not use one of the Motorola-supplied or approved body-worn accessories, and are not using the radio held in the normal use position, ensure the radio and its antenna are at least 1 inch (2.5 cm) from your body when transmitting. FCC Licensing Information Your radio operates on General Mobile Radio Service (GMRS) frequencies (from channel 1 to channel 7 and from channel 15 to channel 22) and is subject to the Rules and Regulations of the Federal Communications Commission (FCC). The FCC requires that all operator s using GMRS frequencies obtain a radio license before operating their equipment. To obtain the FCC forms, please request Form 605 and 159, which includes all forms and instructions. If you wish to have the document faxed or mailed, or have questions, please use the following contact information. Faxed Contact the Fax-On-Demand system at: 1-202-418-0177 Mailed Call the FCC forms hotline at: 1-800-418-FORM (1-800-418-3676) Questions Regarding FCC license Contact the FCC at: 1-888-CALL-FCC (1-888-225-5322) Or: http://www.fcc.gov Changes or modifications not expressly approved may void the user’s authority granted by the FCC to operate this radio and should not be made. To comply with FCC requirements, transmitter adjustments should be made only by or under the supervision of a person certified as technically qualified to perform transmitter maintenance and repairs in the private land mobile and fixed services as certified by an organization representative of the user of those services. Replacement of any transmitter component (crystal, semiconductor, etc.) not authorized by the FCC equipment authorization for this radio could violate FCC rules. Note: Use of this radio outside the country where it was intended to be distributed is subject to government regulations and may be prohibited. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit difference from that to which the receiver is connected • Consult the dealer or an experienced radio/TV technician for help YOUR NEW RADIO The two-way radios operate on FRS/GMRS 462/467 frequencies, and can be used in USA & Canada where the frequencies are authorized, subject to applicable regulations. Turning Your Radio On And Off Turn Volume button clockwise to turn your radio on. The radio chirps and the display will show all feature icons that your radio has available for a brief period. The display will show the channel 1 - 22 and interference eliminator code 0 - 38. Turn volume button anticlockwise to turn your radio off. Monitor Function It is good radio etiquette to monitor the channel for activity before you transmit, to ensure that you do not interrupt other users already on the channel. Press and hold "Mon" to check for channel activity. If you hear static, the channel is clear for use. The Battery Meter The battery meter located in the display indicates how much battery power you have remaining., to protect the rechargeable battery. When the battery meter has one segment left, the radio chirps after releasing “PTT” and every 10 minutes. TALKING AND LISTENING Read this manual carefully before use. Your radio has 22 channels. If you are in a group and you wish to talk to each other, all radios must be set to the same channel and interference eliminator code (CTCSS). If you experience interference and need to change channel, ensure that you change the channel and code of all radios in your group. • For maximum clarity, hold radio 5 to 7 centimeters from mouth. • Press and hold “PTT” and speak into the microphone. LED indicator light glows continuously when transmitting. • To receive messages, release “PTT”. V…

Text truncated - open the document above for the full version.

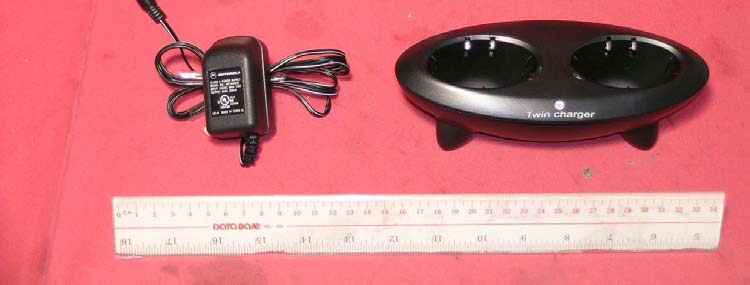

Test Setup FCC ID : K7GT6100 External Photo - front External Photo - rear

Label Location FCC ID : K7GT6100 The label content and size follow the specification of page1 in this file.

Test Setup FCC ID : K7GT6100 Internal Photo - 1 Internal Photo - 2 Test Setup FCC ID : K7GT6100 Internal Photo - 3 Internal Photo - 4 Test Setup FCC ID : K7GT6100 Internal Photo - 5

Prin t Descri p tion Q t y Schem a Yes BATTERY CONTACT COMPOSITE 1 Yes BATTERY CONTACT COMPOSITE R 1 Yes ANTENNA COIL 26 1 Yes BATTERY DOOR CONTACT 2 Yes BATTER CONTACT 1 Yes METAL DOME 1 E501 Yes SPEAKER NYLON NET DIA 35 1 Yes MIC CUSHION COVER 1 Yes SPEAKER CUSHION 1 Yes SPEAKER SPONGE 1 Yes PVC SHEET 1 E506 Yes BELT CLIP COVER BLACK 1 Yes ANTENNA INSERT 1 Yes DUST COVER 1 Yes LED PIPE 1 Yes TAPTITE SCREW X/HD T2.3X8 4 Yes KEY PAD BLACK 1 Yes FRONT HOUSING AT1 1 E505 Yes REAR HOUSING 1 E505 Yes BATTER DOOR BLACK 3C3X 1 E505 Yes LENS 3115C 1 E503 Yes BEZEL UP 1 Yes BEZEL DOWN ELECTROPLATING SILVER 1 Yes KEY RIGHT 1 Yes KEY LEFT 1 Yes ANTENNA COVER 1 Yes STRAND WIRE UL1007 #30 BLACK 0.037 Yes STRAND WIRE UL1007 #30 RED 0.037 Yes MIC EM-926A-622 WELLIN 1 Yes SPEAKER 32 OHM 0.5W 3632A505 1 Yes CAP. ELECT 6.3V M 10UF 4X5MM 1 C172 Yes CAP.ELECT 6.3V M 100UF 5X5MM 3 C2,C6,C242 Yes CAP. ELECT 6.3V M 220UF 6X5MM 1 C248 Yes CAP. ELECT 6.3V M 470UF 6X8MM 1 C237 Yes SAW FILTER 465MHZ SF465 AEI 1 BPF101 Yes CRYSTAL FILTER 21.4MHZ AEI 21.4N7.5A2 1 BPF102 Yes CERAMIC FILTER CFT450HT HUATAMO 1 BPF105 Yes LCD 4DIGIT 22X20X1.7MM TB4320B 1 LCD101 Yes DIA 2.5mm EARPHONE JACK ST-101 1 J101 Yes HEAT SEAL CABLE P=0.6MM L=10MM 12PINS K&K 1 Yes COIL FIXED 2U2H 5% 1 L112 Yes BATTERY CONTACT POSITIVE 1 第 1 頁，共 7 頁 Prin t Descri p tion Q t y Schem a Yes BATTERY CONTACT NEGATIVE 1 Yes SHIELD CAN 1 Yes LCD BRACKET 1 Yes SHEET STEEL 1 Yes SPONG SHEET 3 Yes WHITE SHEET 1 Yes LCD CUSHION 2 Yes LCD LIGHT GUIDE 1 Yes JTB 450KHZ CERAMIC DISCRIMINATOR 1 X1 Yes CERAMIC RESONATOR 4MHZ +/-0.2% 1 X102 Yes CAP CER CHIP 50V COG +/-5% 100PF EYANG 3 C128,C323,C324 Yes CAP. CER. CHIP 50V CH J% 100PF 1 C41 Yes CAP CER CHIP 50V X7R +/-10% 0.001u EYANG 1 C206 Yes CAP CER CHIP 16V X7R +/-10% 0.01uF EYANG 4 C139,C5,C143,C192 Yes CAP. CER. CHIP 50V B K% 0.01UF 1 C194 Yes CAP. CER. CHIP 16V B K% 0.1uF 3 C158,C204,C24 Yes CAP CER CHIP 16V Y5V Z 0.1uF EYANG 3 C280,C288,C86 Yes CAP. CER. CHIP 16V F Z% 1UF 4 C157,C243,C269,C279 Yes CAP. CER. CHIP 10V F Z% 10UF 2 C27,C43 Yes CAP. CER. CHIP 50V X7R K 0.0012UF 2 C270,C276 Yes CAP CER CHIP 16V X7R +/-10% 0.012u EYANG 1 C184 Yes CAP CER CHIP 16V X7R +/-10% 0.018u EYANG 2 C274,C273 Yes CAP CER CHIP 16V X7R +/-10% 0.022u EYANG 2 C196,C244 Yes CAP.CER.CHIP 50V CH J% 24PF MURATA 1 C155 Yes CAP. CER. CHIP 50V X7R K 390PF 0402 1 C187 Yes CAP. CER. CHIP 50V X7R K 0.0047UF 0402 1 C272 Yes CAP. CER. CHIP 10V X7R K 0.047UF 1 C188 Yes CAP.CER. CHIP 50V NPO J% 56 p F 1 C199 Yes CAP CER CHIP 10V X5R K 0.056UF EYANG 1 C191 Yes DIODE CHIP KDS160 KEC 1 D3 Yes LED CHIP KPA-3010EC RED 2 D107,D108 Yes LED CHIP KPT-2012EC RED 1 D109 Yes RES. CHIP 1/16W 0 OHM 1 L4 Yes RES. CHIP 1/16W 0 OHM 1 C271 Yes RES. CHIP 1/16W 1K 2 R245,R244 Yes RES. CHIP 1/16W 1K 1 R273 Yes RES. CHIP 1/16W 10K 1 R280 Yes RES. CHIP 1/16W 10K 3 R187,R168,R284 Yes RES. CHIP 1/16W 100K 2 R205,R204 Yes RES CHIP 1/16W 1.1M 5% 1 R167 Yes RES CHIP 1/16W 5% 120K 0402 2 R277,R148 Yes RES CHIP 1/16W 5% 13K 1 R156 第 2 頁，共 7 頁 Prin t Descri p tion Q t y Schem a Yes RES CHIP 1/16S 5% 1.3M 0402 1 R186 Yes RES. CHIP 1/16W 15K 1 R195 Yes RES. CHIP 1/16W 22K 1 R268 Yes RES. CHIP 1/16W 22K 4 R249,R285,R46,R66 Yes RES. CHIP 1/16W 220K 2 R154,R196 Yes RES CHIP 1/16W 5% 27K 0402 1 R289 Yes RES. CHIP 1/16W 270K 0402 2 R185,R155 Yes RES. CHIP 1/16W 330 OHM 0402 1 R188 Yes RES. CHIP 1/16W 33K 3 R160,R246,R54 Yes RES. CHIP 1/16W 5% 330K 0402 1 R172 Yes RES. CHIP 1/16W 390 1 R291 Yes RES. CHIP 1/16W 3.9K 2 R88,R288 Yes RES CHIP 1/16W 5% 390K 0402 2 R281,R87 Yes RES. CHIP 1/16W 4.7K 0402 4 R225,R226,R35,R247 Yes RES. CHIP 1/16W 47K 1 R250 Yes RES. CHIP 1/16W 470K 1 R203 Yes RES. CHIP 1/16W 470K 0402 7 R209,R210,R211,R208,R227,R240,R286 Yes RES. CHIP 1/16W 51K 1 R158 Yes RES. CHIP 1/16W 560 OHM 0402 1 R287 Yes RES. CHIP 1/16W 820 1 R278 Yes RES. CHIP 1/16W 8.2K 0402 1 R276 Yes TR.CHIP PNP 2SA1980UF SOT-323F 1 Q 119 Yes TR.CHIP NPN 2SC5343UF SOT-323F 8 Q 16, Q 116, Q 125, Q 118, Q 129, Q 130, Q 17, Q 15 Yes IC LM324D 14SOP ON 1 IC102 Yes DIE MCU JT5V13-5VF0 FOR T6100I6100R6100 1 IC105 Yes PCB 2LAYER 48.0X88.7X1.0MM FR4 1 E502,E507 Yes CAP. CHIP TR1MMER 10PF TZBX4100AA110 1 VC1 Yes CAP.CER.CHIP 50V D% 10PF NPO MURATA 2.25 C110,C140,C180 FOR MATCH B1 CRYSTAL Yes CAP CER CHIP 50V COG +/-5% 100PF EYANG 24 C34,C129,C153,C174,C178,C182,C183,C189,C210,C224 Yes C231,C233,C238,C30,C245,C23,C251,C25,C255,C262 Yes C263,C284,C311,C101 Yes C231,C233,C238,C30,C245,C23,C251,C25,C255,C262 Yes C263,C284,C311,C101 Yes CAP CER CHIP 50V X7R +/-10% 0.001u EYANG 10 C11,C214,C152,C246,C103,C250,C113,C148,C287,C1 Yes CAP. CER. CHIP 50V B K% 0.001UF 2 C164,C10 Yes CAP CER CHIP 16V X7R +/-10% 0.01uF EYANG 4 C13,C257,C135,C296 Yes CAP. CER. CHIP 16V B K% 0.1uF 3 C173,C264,C160 Yes CAP CER CHIP 16V Y5V Z 0.1uF EYANG 17 C4,C108,C116,C124,C125,C167,C170,C175,C208,C221 Yes C222,C227,C249,C252,C253,C22,C308 Yes C222,C227,C249,C252,C253,C22,C308 Yes CAP. CER. CHIP 6.3V B K 1UF 2 C166,C26 Yes CAP. CER. CHIP 16V F Z% 1UF 13 C147,C149,C29,C177,C186,C232,C126,C247,C259,C32 第 3 頁，共 7 頁 Prin t Descri p tion Q t y Schem a Yes C136,C310,C28 Yes CAP. CER. CHIP 10V F Z% 10UF 3 C145,C235,C109 Yes CAP.CER.CHIP 50V CH C% 1PF MURATA 0.5 C179 FOR MATCH B3/B4 CRYSTAL Yes CAP.CER.CHIP 50V CH J% 12PF MURATA 2 C289,C137 Yes CAP.CER.CHIP 50V CH J% 15PF MURATA 3.25 C14,C15,C180 FOR MATCH B3 CRYSTAL,C3 Yes CAP. CER. CHIP 50V CH J% 150PF MURATA 3 C102,C266,C322 Yes CAP. CER. CHIP 50V CH J% 150PF 1 C302 Yes CAP. CER. CHIP 50V CH J% 150P F 1 C261 Yes CAP CER CHIP 50V X7R K 0.0015UF MURATA 1 C161 Yes CAP.CER.CHIP 50V CH C% 1.5PF MURATA 1 C123 Yes CAP.CER.CHIP 50V CH J% 18PF MURATA 1.25 C20,C171 FOR MATCH B4 CRYSTAL Yes CAP CER CHIP 16V X7R +/-10% 0.018u EYANG 1 C241 Yes CAP. CER. CHIP 50V CH J% 20PF MURATA 0.25 C180 FOR MATCH B4 CRYSTAL Yes CAP.CER.CHIP 50V CH C% 2PF MURATA 3 C150,C138,C141 Yes CAP.CER.CHIP 50V CH J% 22PF MURATA 0.5 C171 FOR MATCH B1/B3 CRYSTAL Yes CAP.CER.CHIP 50V B K% 0.0022UF MURATA 1 C209 Yes CAP.CER.CHIP 16V …

Text truncated - open the document above for the full version.

Tune Procedure 1) TX VCO ADJUSTMENT a. connect the DC voltmeter at TP103 b. press and hold PTT button c. adjust L113 to 1.0VDC +/-0.2V at CH1 2) FREQUENCY ADJUSTMENT a. connect the frequency counter meter to TP101 b. adjust C159 to TX frequency +/-200Hz 3) TX POWER CHECK a. press and hold PTT button b. check the TX power < 0.23 W at CH14; <0.26 W at CH15 (ERP) 4) DEVIATION LIMITING AND MIC SENSITIVITY a. connect the deviation meter to TP101 b. apply audio signal 1KHz 25mVrms to TP116 c. press and hold PTT button d. adjust VR101 to 2.2KHz DEV +/-0.2KHz e. check mic sensitivity between 1mVrms and 10mVrms at 1.5KHz DEV Power Supply: Min 4.5V, Normal 5.2V, Max 6.0V • TO PRESS AND HOLD THE PTT BUTTON FOR TX MODE TESTING • TO PRESS AND HOLD MENU AND +, THEN POWER UP FOR RADIO TEST MODE • THE RADIO CAN TRANSMITTING WITHOUT TIMEOUT UNDER TEST MODE

• The test results reported in this report shall refer only to the sample actually tested and shall not refer or be deemed a refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2371 0521 Website: www.hk.intertek-etlsemko.com Giant Electronics Limited Application For Certification (FCC ID: K7GT6100) December 13, 2004 0416508 TL/ Ann Choy December 13, 2004 INTERTEK TESTING SERVICES FCC ID: K7GT6100 i SUMMARY OF CONTENTS LIST OF EXHIBITS EXHIBIT 1: General Description EXHIBIT 2 : System Test Configuration EXHIBIT 3: RF Power Output EXHIBIT 4: Modulation Characteristics EXHIBIT 5: Occupied Bandwidth EXHIBIT 6: Spurious Emission EXHIBIT 7: Frequency Stability EXHIBIT 8: Technical Specifications EXHIBIT 9: Product Labelling EXHIBIT 10: Photographs EXHIBIT 11: Instruction Manual EXHIBIT 12: Tune Up Procedure EXHIBIT 13: Part List EXHIBIT 14: Input Current EXHIBIT 15: RF Exposure Info EXHIBIT 16: Confidentiality Request INTERTEK TESTING SERVICES FCC ID: K7GT6100 ii MEASUREMENT/TECHNICAL REPORT Application : Giant Electronics Limited Trade Name/Model No : Giant / T6100 Date : December 13, 2004 This report concerns (check one:)Original Grant X Class II Change Equipment Type: GMRS + FRS Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Report prepared by: Tommy Leung Intertek Testing Services 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Phone: 852-2173-8536 Fax: 852-2741-1693 INTERTEK TESTING SERVICES FCC ID: K7GT6100 iii Table of Contents 1.0 General Description ..............................................................................................2 1.1 Product Description ..........................................................................................2 1.2 Related Submittal(s) Grants.............................................................................3 1.3 Test Methodology.............................................................................................3 1.4 Test Facility ......................................................................................................3 2.0 System Test Configuration...................................................................................5 2.1 Justification .......................................................................................................5 2.2 EUT Exercising Software .................................................................................6 2.3 Special Accessories .........................................................................................6 2.4 Measurement Uncertainty................................................................................6 2.5 Equipment Modification ....................................................................................6 2.6 Support Equipment ...........................................................................................6 3.0 RF Output Power (Section 95.639(d)) ..................................................................8 4.0 Modulation Characteristics (Section 95.637(a)) ................................................12 4.1 Modulation Frequiency Response ..................................................................13 4.2 Modulation Limiting Characteristic ..................................................................15 4.3 Audio Low Pass Filter Response ...................................................................17 5.0 Occupied Bandwidth (Section 95.633(c)) ........................................................19 6.0 Spurious Emission (Section 95.635(b)) .............................................................21 6.1 Field Strength of Spurious Radiation...............................................................22 7.0 Frequency Stability (Section 95.627).................................................................28 7.1 Frequency Tolerance ......................................................................................29 7.2 Temperature Extreme Condition .....................................................................31 7.3 Voltage Extreme Condition .............................................................................34 8.0 Technical Specifications....................................................................................37 9.0 Product Labelling................................................................................................41 10.0 Equipment Photographs..................................................................................44 11.0 Instruction Manual ............................................................................................46 12.0 Tune Up Procedure ...........................................................................................48 13.0 Part List .............................................................................................................50 14.0 Input Current .....................................................................................................52 15.0 RF Exposure Info ..............................................................................................54 16.0 Confidentiality Request ....................................................................................56 INTERTEK TESTING SERVICES FCC ID: K7GT6100 iv List of attached file Exhibit type File Description Filename Operation Description Technical Description descr…

Text truncated - open the document above for the full version.

Audio Low Pass Filter Response -70.0-60.0-50.0-40.0-30.0-20.0-10.0 0.0 10.0 1 10 100 Frequency (kHz) dB relative to 1 kHz LPF ResponseTIA/EIA-603A Audio InputStrength = 100mVrms

Modulation Frequency Response 0.000.501.001.502.00 200 700 1200 1700 2200 2700 3200 3700 4200 4700 Modulation Frequency (Hz) Frequency Deviation (kHz) Modulation Frequency Response 0.000.501.001.502.00 300 800 1300 1800 2300 2800 3300 3800 4300 4800 Modulation Frequency (Hz) Modulation Index (%)

Modulation Limiting Characteristic 0.000.501.001.502.002.50 47 57 67 77 87 97 107 117 127 137 Modulation Input (dBSPL) Frequency Deviation (kHz) 500Hz1000Hz2500Hz3125Hz

The Worst Case Configuration Photographs FCC ID: K7GT6100 Radiated Emission Front View Rear View
