K7GT710RTransmitter Portion of Two Way Radio w FRS & GMRS

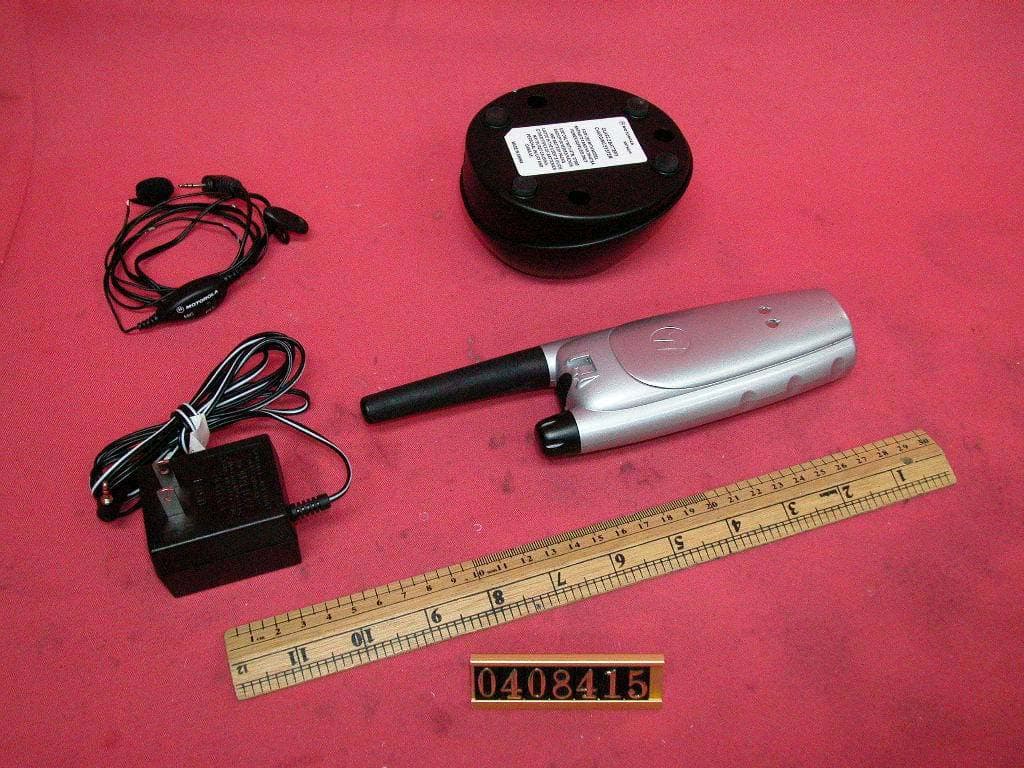

Test Setup FCC ID : K7GT710R External Photo -front External Photo - rear

Test Setup FCC ID : K7GT710R Internal Photo – 1 Internal Photo – 2 Test Setup FCC ID : K7GT710R Internal Photo – 3 Internal Photo - 4 Test Setup FCC ID : K7GT710R Internal Photo - 5 Internal Photo - 6 Test Setup FCC ID : K7GT710R Internal Photo - 7 Internal Photo - 8

Test Setup FCC ID : K7GT710R Internal Photo – 1 Internal Photo – 2 Test Setup FCC ID : K7GT710R Internal Photo – 3 Internal Photo - 4 Test Setup FCC ID : K7GT710R Internal Photo - 5 Internal Photo - 6 Test Setup FCC ID : K7GT710R Internal Photo - 7 Internal Photo - 8 Test Setup FCC ID : K7GT710R Internal Photo - 9 Internal Photo - 10

© 2004 Celltech Labs Inc. 1 of 20 Test Report S/N: 043004-504K7G Test Date(s): May 29 & June 1, 2004 Test Type: FCC/IC SAR Evaluation Celltech Labs Inc. declares under its sole responsibility that this wireless portable device has demonstrated compliance with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC 47 CFR §2.1093 and Health Canada’s Safety Code 6. The device was tested in accordance with the measurement standards and procedures specified in FCC OET Bulletin 65, Supplement C (Edition 01-01) and Industry Canada RSS-102 Issue 1 (Provisional) for the General Population / Uncontrolled Exposure environment. All measurements were performed in accordance with the SAR system manufacturer recommendations. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. The results and statements contained in this report pertain only to the device(s) evaluated. Russell W. Pipe Senior Compliance Technologist Celltech Labs Inc. DECLARATION OF COMPLIANCE SAR RF EXPOSURE EVALUATION Test Lab CELLTECH LABS INC. Testing and Engineering Services 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone: 250-448-7047 Fax: 250-448-7046 e-mail: [email protected] web site: www.celltechlabs.com Applicant Information GIANT ELECTRONICS LTD. 7/F, Elite Industrial Bldg. 135-137 Hoi Bun Road Kwun Tong, Kowloon Hong Kong Rule Part(s): FCC 47 CFR §2.1093; IC RSS-102 Issue 1 (Provisional) Test Procedure(s): FCC OET Bulletin 65, Supplement C (Edition 01-01) Device Type: Portable UHF FRS/GMRS PTT Radio Transceiver FCC IDENTIFIER: K7GT710R Model(s): T7100 / T7150 Modulation: FM (UHF) Tx Frequency Range(s): 462.5500 - 462.7250 MHz (GMRS Channels 15-22) 462.5625 - 462.7125 MHz (FRS/GMRS Channels 1-7) 467.5625 - 467.7125 MHz (FRS Channels 8-14) Max. RF Output Power Tested: 1.65 Watts ERP (GMRS 462.7125 MHz) Antenna Type(s) Tested: Fixed Battery Type(s) Tested: NiMH (4.8 V, 1400 mAh), Alkaline x4 (1.5 V AA) Alkaline Type 1: Duracell Procell (2850 mAh) Alkaline Type 2: Energizer E91 (2850 mAh) Body-Worn Accessories Tested: Plastic Belt-Clip (P/N: KEM-P8364B) Earbud with Lapel-Microphone (P/N: NTN8870C) Earpiece with Boom-Microphone (P/N: NTN9396BW) Headset with Boom-Microphone (P/N: NTN8868AW) Maximum SAR Levels: 1.37 W/kg - Face-held (50% duty cycle) 1.33 W/kg - Body-worn (50% duty cycle) © 2004 Celltech Labs Inc. 2 of 20 Test Report S/N: 043004-504K7G Test Date(s): May 29 & June 1, 2004 Test Type: FCC/IC SAR Evaluation TABLE OF CONTENTS 1.0INTRODUCTION......................................................................3 2.0DESCRIPTION OF DUT............................................................. 3 3.0SAR MEASUREMENT SYSTEM................................................. 4 4.0MEASUREMENT SUMMARY...................................................... 5 5.0DETAILS OF SAR EVALUATION................................................ 6 6.0EVALUATION PROCEDURES.................................................... 6 7.0SYSTEM PERFORMANCE CHECK............................................. 7 8.0SIMULATED EQUIVALENT TISSUES.......................................... 8 9.0SAR SAFETY LIMITS............................................................... 8 10.0ROBOT SYSTEM SPECIFICATIONS............................................ 9 11.0PROBE SPECIFICATION.......................................................... 10 12.0PLANAR PHANTOM................................................................. 10 13.0VALIDATION PHANTOM........................................................... 10 14.0DEVICE HOLDER.................................................................... 10 15.0TEST EQUIPMENT LIST........................................................... 11 16.0MEASUREMENT UNCERTAINTIES............................................ 12-13 17.0REFERENCES........................................................................14 APPENDIX A - SAR MEASUREMENT DATA............................................... 15 APPENDIX B - SYSTEM PERFORMANCE CHECK DATA............................ 16 APPENDIX C - SYSTEM VALIDATION PROCEDURES................................. 17 APPENDIX D - PROBE CALIBRATION...................................................... 18 APPENDIX E - MEASURED FLUID DIELECTRIC PARAMETERS................... 19 APPENDIX F - SAR TEST SETUP & DUT PHOTOGRAPHS.......................... 20 © 2004 Celltech Labs Inc. Giant Electronics Ltd. FCC ID: K7GT710R (Models: T7100/T7150) 3 of 20 Portable UHF FRS/GMRS PTT Radio Transceiver (462.5500-467.7125MHz) Test Report S/N: 043004-504K7G Test Date(s): May 29 & June 1, 2004 Test Type: FCC/IC SAR Evaluation This measurement report demonstrates compliance of the Giant Electronics Ltd. Models: T7100/T7150 Portable UHF FRS/GMRS PTT Radio Transceiver FCC ID: K7GT710R with the SAR (Specific Absorption Rate) RF exposure requirements specified in FCC 47 CFR §2.1093 (see reference [1]), and Health Canada’s Safety Code 6 (see reference [2]) for the General Population / Uncontrolled Exposure environment. The test procedures described in FCC OET Bulletin 65, Supplement C (Edition 01-01) (see reference [3]) and IC RSS-102 Issue 1 (Provisional) (see reference [4]), were employed. A description of the product and operating configuration, detailed summary of the test results, methodology and procedures used in the evaluation, equipment used, and the provisions of the rules are included within this test report. FCC 47 CFR §2.1093 Rule Part(s) IC RSS-102 Issue 1 (Provisional) Test Procedure FCC OET Bulletin 65, Supplement C (01-01) Device Type Portable UHF FRS/GMRS PTT Radio Transceiver FCC IDENTIFIER K7GT710R Model(s) T7100 / T7150 Serial …
