User Manual Model: T9000 SAFETY INFORMATION Transmit and Receive Procedure Your two-way radio contains a transmitter and a receiver. To control your exposure and ensure compliance with the general population/uncontrolled environment exposure limits, do not transmit more than 50% of the time. Transmitting 50% of the time, or less, is important because the radio generates measurable RF energy exposure only when transmitting (in terms of measuring standards compliance). Antenna Care Use only the supplied or an approved replacement antenna. Unauthorized antennas, modifications, or attachments could damage the radio and may violate FCC regulations. Two-way Radio Operation When using your radio as a traditional two-way radio, hold the radio in a vertical position with the mircrophone 1 to 2 inches (2.5 to 5 cm) away from the lips. Body-Worn Operation To maintain compliance with FCC/Health Canada RF exposure guidelines, if you wear a radio on your body when transmitting, always place the radio in a Motorola-supplied or approved clip, holder, holster, case, or body harness for this product. Use of non-Motorola-approved accessories may exceed FCC/Health Canada RF exposure guidelines. If you do not use one of the Motorola-supplied or approved body-worn accessories, and are not using the radio held in the normal use position, ensure the radio and its antenna are at least 1 inch (2.5 cm) from your body when transmitting. FCC Licensing Information Your radio operates on General Mobile Radio Service (GMRS) frequencies and is subject to the Rules and Regulations of the Federal Communications Commission (FCC). The FCC requires that all operators using GMRS frequencies obtain a radio license before operating their equipment. To obtain the FCC forms, please request Form 605 and 159, which includes all forms and instructions. If you wish to have the document faxed or mailed, or have questions, please use the following contact information. Faxed Contact the Fax-On-Demand system at: 1-202-418-0177 Mailed Call the FCC forms hotline at: 1-800-418-FORM (1-800-418-3676) Questions Regarding FCC license Contact the FCC at: 1-888-CALL-FCC (1-888-225-5322) Or: http://www.fcc.gov Changes or modifications not expressly approved may void the user’s authority granted by the FCC to operate this radio and should not be made. To comply with FCC requirements, transmitter adjustments should be made only by or under the supervision of a person certified as technically qualified to perform transmitter maintenance and repairs in the private land mobile and fixed services as certified by an organization representative of the user of those services. Replacement of any transmitter component (crystal, semiconductor, etc.) not authorized by the FCC equipment authorization for this radio could violate FCC rules. Note: Use of this radio outside the country where it was intended to be distributed is subject to government regulations and may be prohibited. Devices subject to FCC Part 15, Subpart B verification (not certification) must be labelled with the following statement. The label can be affixed at any space external to the product except the battery door or detachable parts. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit difference from that to which the receiver is connected • Consult the dealer or an experienced radio/TV technician for help YOUR NEW RADIO The two-way radios operate on FRS/GMRS 462/467 frequencies, and can be used in USA & Canada where the frequencies are authorized, subject to applicable regulations. Turning Your Radio On And Off Turn Volume button clockwise to turn your radio on. The radio chirps and the display will show all feature icons that your radio has available for a brief period. The display will show the channel 1 - 22 and interference eliminator code 0 - 38. Turn volume button anticlockwise to turn your radio off. Monitor Function It is good radio etiquette to monitor the channel for activity before you transmit, to ensure that you do not interrupt other users already on the channel. Press and hold "Mon" to check for channel activity. If you hear static, the channel is clear for use. The Battery Meter The battery meter located in the display indicates how much battery power you have remaining., to protect the rechargeable battery. When the battery meter has one segment left, the radio chirps after releasing “PTT” and every 10 minutes. TALKING AND LISTENING Read this manual carefully before use. Your radio has 22 channels. If you are in a group and you wish to talk to each other, all radios must be set to the same channel and interference eliminator code (CTCSS). If you experience interference and need to change channel, ensure that you change the channel and code of all radios in your group. • For maximum clarity, hold radio 5 to 7 centimeters…

Text truncated - open the document above for the full version.

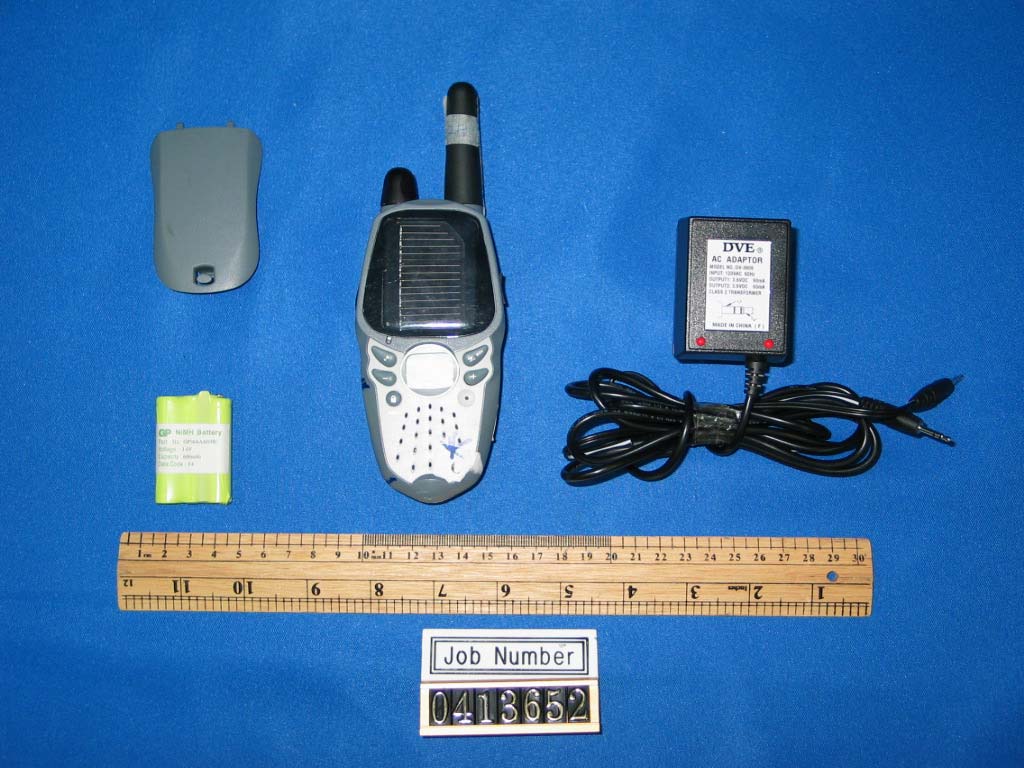

Test Setup FCC ID : K7GT9000 External Photo - front External Photo - rear

Label Location FCC ID : K7GT9000 The label content and size follow the specification of page1 in this file.

Test Setup FCC ID : K7GT9000 Internal Photo - 1 Internal Photo - 2 Test Setup FCC ID : K7GT9000 Internal Photo - 3 Internal Photo - 4 Test Setup FCC ID : K7GT9000 Internal Photo - 5 Internal Photo - 6

Tune Procedure 1) TX VCO ADJUSTMENT a. connect the DC voltmeter at TP103 b. press and hold PTT button c. adjust L113 to 1.0VDC +/-0.2V at CH1 2) FREQUENCY ADJUSTMENT a. connect the frequency counter meter to TP101 b. adjust C159 to TX frequency +/-200Hz 3) TX POWER CHECK a. connect the RF level meter to the TP101 b. press and hold PTT button c. check the TX power < 0.23 W at CH14; < 0.23 W at CH15 (ERP) 4) DEVIATION LIMITING AND MIC SENSITIVITY a. connect the deviation meter to TP101 b. apply audio signal 1KHz 25mVrms to TP116 c. press and hold PTT button d. adjust VR101 to 2.2KHz DEV +/-0.2KHz e. check mic sensitivity between 1mVrms and 10mVrms at 1.5KHz DEV Power Supply: Min 3.5V, Normal 4.2V, Max 4.5V • TO PRESS AND HOLD THE PTT BUTTON FOR TX MODE TESTING • TO PRESS AND HOLD MENU AND +, THEN POWER UP FOR RADIO TEST MODE • THE RADIO CAN TRANSMITTING WITHOUT TIMEOUT UNDER TEST MODE

DescriptionSchematics BATTERIES BOARD 38X46.1X3.2MM STRAND WIRE UL1007 #28 BLACKJW201L=50MM,JW301L=50MM STRAND WIRE UL1007 #28 REDJW202L=50MM,JW302L=50MM MIC EM-926A-622 WELLINMIC101 SPEAKER 32 OHM 0.5W 3632A505SPK101 CAP.ELECT 6.3V M 100UF 5X5MMC242 CAP. ELECT 6.3V M 220UF 6X5MMC248,C237 SAW DILTER 410MHZ YELBPF101 CRYSTAL FILTER 21.4MHZ AEI 21.4N7.5A2BPF102 CERAMIC FILTER CFT450HT HUATAMOBPF105 4DIGIT WITH ICON 22X20X1.7MM TB4320 ALCD101 DIA 2.5mm EARPHONE JACK ST-101J101 COIL FIXED 2U2H 5%L112 JTB 450KHZ CERAMIC DISCRIMINATORL114 RES.SEMI.F-09115SA A5KB L14.6FCX7VR103 CERAMIC RESONATOR 4MHZ +/-0.2%X102 PCB 2LAYER 106X50.8X1.0MM FR4E506,E507 CAP.CER.CHIP 50V CH J% 100PF MURATAC121,C158,C178,C224,C245,C255,C262,C283,C323,C CAP. CER. CHIP 50V B K% 1NFC113,C148,C164,C161,C9 CAP. CER. CHIP 16V X7R K 0.01UFC192 CAP.CER.CHIP 16V F Z% 0.1UF MURATAC108,C124,C170,C173,C175,C222,C243,C244,C253,C CAP. CER. CHIP 16V F Z% 1UFC136,C149,C157,C177,C269 CAP CER CHIP 10V F Z 10UFC172 CAP.CER.CHIP 16V B K% 0.012UF MURATAC184 CAP. CER. CHIP 50V CH J% 150PF MURATAC322 CAP. CER. CHIP 16V B K 0.015UF MURATAC258 CAP.CER.CHIP 50V CH C% 1.5PF MURATAC123,C130 CAP.CER.CHIP 16V B K% 22NF MURATAC239 CAP. CHIP 50V B COG 2.2P 0402C115 CAP.CER.CHIP 50V CH J% 24PF MURAT AC169 CAP.CER.CHIP 50V CH C% 3PF MURAT AC114 CAP. CER. CHIP 50V CH J% 33PFC133,C320 CAP CER CHIP 50V NPO J% 39PF MURATAC201,C202 CAP CER CHIP 25V B K 0.0039UF TDKC185 CAP. CER. CHIP 50V X7R K 470PF 0402C163 CAP. CER. CHIP 50V CH C% 5PF MURAT AC131 CAP. CER. CHIP 50V X7R K 560PFC111 CAP. CER. CHIP 25V B K% 0.0056UF MURATAC1 CAP CER CHIP 50V X7R K 680PF MURAT AC260 CAP. CER. CHIP 25V B K 0.0068UFC198,R286,C275 CAP. CER. CHIP 50V X7R K 0.068UFC220 BAS85 SCHOTTKY BARRIER DIODE SOD80CD5,D114 DIODE ARRAY CHIP DA204UD103 LED CHIP KPA-3010EC REDD107,D108 LED CHIP AMBER LT8AA2-54-UR91-T5 0603D109 DIODE CHIP SCHOTTKY BARRIER RB715FD3 INDUCTOR CHIP 100NH +-5% LQG11AR10J00T L117,L121 INDUCTOR CHIP 27NH +-5% LQG18HN27NJ00D L107,L110 第 1 頁，共 5 頁 DescriptionSchematics CHIP INDUCTOR 4n7H LQG11A4N7S00L116 RES. CHIP 1/16W 0 OHMR252,L120 RES. CHIP 1/16W 0 OHMC306,R1,R253,R294,R303 RES. CHIP 1/16W 10 OHMR139,R231 RES. CHIP 1/16W 100R188 RES. CHIP 1/16W 1KR245 RES. CHIP 1/16W 1KR112 RES. CHIP 1/16W 10KR131,R168,R228,R254,R32,R34,R35,R21,R22 RES. CHIP 1/16W 100 KR102,R145,R205 RES. CHIP 1/16W 1MR115,R206 RES CHIP 1/16W 1.1M 5%R167 RES. CHIP 1/16W 1.2 KR110 RES CHIP 1/16W 5% 120K 0402R136 RES. CHIP 1/16W 130KR148 RES. CHIP 1/16W 150 OHMR287 RES CHIP 1/16W 5% 1.8K 0402R33 RES CHIP 1/16W 5% 180K 0402R257 RES. CHIP 1/16W 2.2KR123 RES. CHIP 1/16W 22KR126 RES. CHIP 1/16W 22KR204,R230,R249,R268 RES. CHIP 1/16W 220KR105,R154 RES. CHIP 1/16W 2.7KR14 RES. CHIP 1/16W 2.7KR207 RES. CHIP 1/16W 270K 0402R117,R155 RES. CHIP 1/16W 330 OHM 0402TR105 RES. CHIP 1/16W 3.3K 0402R106,R151 RES. CHIP 1/16W 390R189 RES CHIP 1/16W 5% 390K 0402R132,R41 RES. CHIP 1/16W 470R3 RES. CHIP 1/16W 4.7 KR247 RES. CHIP 1/16W 4.7K 0402R250,R288,R276 RES. CHIP 1/16W 47 KR120 RES. CHIP 1/16W 470KR330 RES. CHIP 1/16W 470K 0402C276 RES. CHIP 1/16W 5.6K 0402R140 RES. CHIP 1/16W 680 OHM 0402R285,R127 RES. CHIP 1/16W 6.8 KR107 RES. CHIP 1/16W 6.8K 0402R292 RES CHIP 1/16W 5% 68K 0402R258 RES CHIP 1/16W 5% 680K 0402R141 RES. CHIP 1/16W 8.2K 0402R284 TR. CHIP PNP 2SA1611-T1 M6Q111,Q119 TR. CHIP NPN 2SC4177-T1 L6Q103,Q109,Q118,Q121,Q125,Q130,Q201 TR. CHIP NPN 2SC4901Q102,Q112 IC LOW POWER NARROW BAND FM I FIC101 IC XC6201T302PR 3V REGULATOR SOT-89IC108 DIE MCU JT5V13-XXXX FO RIC105 CRYSTALX101 第 2 頁，共 5 頁 DescriptionSchematics CAP. CHIP TR1MMER 10PF TZBX4100AA110C159 CAP.CER.CHIP 50V D% 10PF NPO MURATAC132,C180 FOR MATCH B1 CRYSTAL CAP CER CHIP 50V COG +/-5% 100PF EYANGC227 CAP.CER.CHIP 50V CH J% 100PF MURATAC101,C128,C142,C153,C174,C189,C2,C210,C231,C23 3,C238,C251,C259,C282,C284,C293,C310,C311,C139, C206,C309,C183,C16,C129 CAP. CER. CHIP 50V CH J% 100PFC182,C230,C263 CAP. CER. CHIP 50V B K% 1NFC103,C287,C250,C10,C15 CAP. CER. CHIP 16V X7R K 0.01UFC143,C194,C246,C257,C14,C208 CAP. CER. CHIP 50V B K% 0.01UFC135 CAP.CER.CHIP 16V F Z% 0.1UF MURATAC116,C125,C126,C167,C204,C221,C234,C288,C13 CAP. CER. CHIP 16V F Z% 1UFC147,C5,C186,C249,C166 CAP CER CHIP 10V F Z 10UFC109,C145,C232,C235 CAP.CER.CHIP 50V CH C% 1PF MURATAC179 FOR MATCH B3/B4 CRYSTAL CAP.CER.CHIP 50V CH J% 12PF MURATAC6,C151 CAP. CER. CHIP 50V X7R K 0.0012UFC214 CAP.CER.CHIP 50V CH J% 15PF MURATAC180 FOR MATCH B3 CRYSTAL CAP. CER. CHIP 50V CH J% 15PFC127 CAP. CER. CHIP 50V CH J% 150PF MURATAC285 CAP.CER.CHIP 50V CH C% 1.5PF MURATAC138 CAP.CER.CHIP 50V CH J% 18PF MURATAC112,C7,C171 FOR MATCH B4 CRYSTAL CAP. CER. CHIP 16V B K 0.018UFC241 CAP. CER. CHIP 50V CH J% 20PF MURATAC180 FOR MATCH B4 CRYSTAL CAP.CER.CHIP 50V CH C% 2PF MURATAC110 CAP.CER.CHIP 50V CH J% 22PF MURATAC171 FOR MATCH B1/B3 CRYSTAL,C12 CAP. CER. CHIP 16V B K% 0.0022UFC209 CAP.CER.CHIP 16V B K% 22NF MURATAC156,C196,C228,C274 CAP.CER.CHIP 50V CH J% 24PF MURATAC281 CAP. CER. CHIP 50V NPO J 27P 0402C155,C190 CAP.CER.CHIP 50V CH J% 270PF MURAT AC223 CAP. CER. CHIP 10V X7R K 0.027UFC162 CAP.CER.CHIP 50V CH C% 3PF MURAT AC267 CAP. CER. CHIP 50V CH J% 33PFC317 CAP. CER. CHIP 50V CH J% 33PFC146,C291,C295,C312,C314,C308,C325 CAP. CER. CHIP 50V CH J% 330PFC219 CAP. CER. CHIP 50V CH C% 3P3FC144 CAP. CER. CHIP 50V X7R K 390PF 0402C187 CAP CER CHIP 50V COG C 3.9PF 45768-08 GRMCOG3R9C050AD C150 CAP. CER. CHIP 50V COG B 3.9PFC141 CAP.CER.CHIP 50V CH C% 4PF MURAT AC303 CAP. CER. CHIP 50V CH J% 47PFC261 CAP.CER.CHIP 16V B K% 0.047UF MURATAC188,C256,C273 CAP. CER. CHIP 50V CH C% 5PF MURATAC165 FOR MATCH B3/B4 CRYSTAL CAP.CER. CHIP 50V NPO J% 56pFC199 CAP. CER. CHIP 50V X7R K 560PFC122 CAP. CER. CHIP 10V X7R K 0.056UFC191 CAP. CER. CHIP 50V CH C% 6PF MURAT AC266 第 3 頁，共 5 頁 DescriptionSchematics CAP. CER. CHIP 50V CH J% 62PF MURATAC176 CAP.CER. CHIP 50V NPO J% 68pFC236 CAP CER CHIP 50V X7R K 680PF MURATAC225 CAP. CER. CHIP 25V B K 0.0068UFC272 CAP. CER. CHIP 50V X7R K 0.068UFC160,C229 CAP. CER. CHIP 50V CH C% 8PF MURATAC…

Text truncated - open the document above for the full version.

• The test results reported in this report shall refer only to the sample actually tested and shall not refer or be deemed a refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2371 0521 Website: www.hk.intertek-etlsemko.com Giant Electronics Limited Application For Certification (FCC ID: K7GT9000) November 16, 2004 0413652 TL/ Ann Choy November 16, 2004 INTERTEK TESTING SERVICES FCC ID: K7GT9000 i SUMMARY OF CONTENTS LIST OF EXHIBITS EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: RF Power Output EXHIBIT 4: Modulation Characteristics EXHIBIT 5: Occupied Bandwidth EXHIBIT 6: Spurious Emission EXHIBIT 7: Frequency Stability EXHIBIT 8: Technical Specifications EXHIBIT 9: Product Labelling EXHIBIT 10: Photographs EXHIBIT 11: Instruction Manual EXHIBIT 12: Tune Up Procedure EXHIBIT 13: Part List EXHIBIT 14: Input Current EXHIBIT 15: RF Exposure Info EXHIBIT 16: Confidentiality Request INTERTEK TESTING SERVICES FCC ID: K7GT9000 ii MEASUREMENT/TECHNICAL REPORT Application : Giant Electronics Limited Trade Name/Model No : Giant / T9000 RCA/ T9000 Date : November 16, 2004 This report concerns (check one:)Original Grant X Class II Change Equipment Type: FRS + GMRS Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Report prepared by: Tommy Leung Intertek Testing Services 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Phone: 852-2173-8536 Fax: 852-2741-1693 INTERTEK TESTING SERVICES FCC ID: K7GT9000 iii Table of Contents 1.0 General Description..............................................................................................2 1.1 Product Description ..........................................................................................2 1.2 Related Submittal(s) Grants.............................................................................3 1.3 Test Methodology.............................................................................................3 1.4 Test Facility ......................................................................................................3 2.0 System Test Configuration ...................................................................................5 2.1 Justification .......................................................................................................5 2.2 EUT Exercising Software .................................................................................6 2.3 Special Accessories .........................................................................................6 2.4 Measurement Uncertainty................................................................................6 2.5 Equipment Modification....................................................................................6 3.0 RF Output Power (Section 95.639(d)) ..................................................................8 4.0 Modulation Characteristics (Section 95.637(a)) ................................................12 4.1 Modulation Frequiency Response ..................................................................13 4.2 Modulation Limiting Characteristic ..................................................................15 4.3 Audio Low Pass Filter Response ...................................................................17 5.0 Occupied Bandwidth (Section 95.633(c)) .........................................................19 6.0 Spurious Emission (Section 95.635(b)) .............................................................21 6.1 Field Strength of Spurious Radiation...............................................................22 7.0 Frequency Stability (Section 95.627).................................................................28 7.1 Frequency Tolerance ......................................................................................29 7.2 Temperature Extreme Condition .....................................................................31 7.3 Voltage Extreme Condition .............................................................................34 8.0 Technical Specifications....................................................................................37 9.0 Product Labelling................................................................................................41 10.0 Equipment Photographs..................................................................................44 11.0 Instruction Manual............................................................................................46 12.0 Tune Up Procedure ...........................................................................................48 13.0 Part List .............................................................................................................50 14.0 Input Current .....................................................................................................52 15.0 RF Exposure Info ..............................................................................................54 16.0 Confidentiality Request ....................................................................................56 INTERTEK TESTING SERVICES FCC ID: K7GT9000 iv List of attached file Exhibit type File Description Filename Operation Description Technical Description descri.pdf Test Report Bandwidth Plot bw.pdf Test Report Modulation Frequency Response mfr.pdf Test Report Modu…

Text truncated - open the document above for the full version.

Audio Low Pass Filter Response -80.0-70.0-60.0-50.0-40.0-30.0-20.0-10.0 0.0 10.0 1 10 100 Frequency (kHz) dB relative to 1 kHz LPF ResponseTIA/EIA-603A Audio Input Strength = 800mV rms

Modulation Frequency Response 0.000.501.001.502.00 200 700 1200 1700 2200 2700 3200 3700 4200 4700 Modulation Frequency (Hz) Frequency Deviation (kHz) Modulation Frequency Response 0.000.501.001.502.002.50 300 800 1300 1800 2300 2800 3300 3800 4300 4800 Modulation Frequency (Hz) Modulation Index (%)

Modulation Limiting Characteristic 0.000.501.001.502.002.50 47 57 67 77 87 97 107 117 127 137 Modulation Input (dBSPL) Frequency Deviation (kHz) 500Hz1000Hz2500Hz3125Hz

The Worst Case Configuration Photographs FCC ID: K7GT9000 Radiated Emission Front View Rear View
