Setting the Volume Press and hold while rotating until you reach a comfortable listening level. 1. Rotate clockwise to increase the volume 2. Rotate counterclockwise to decrease the volume. Do not hold the radio close to your ear. If the volume is set to an uncomfortable level, it could hurt your ear. Two-Way Radio User’s Guide Model T9500/ T9550 series Safety and General InformationFCC Licensing Information Control Buttons Display Screen Guide KEM-PK14190-50 Important Information on Safe and Efficient Operation Read This Information Before Using Your Radio. The information provided in this document supersedes the general safety information in user guides published prior to December 1, 2002. Transmit and Receive Procedure Your two-way radio contains a transmitter and a receiver. To control your exposure and ensure compliance with the general population/uncontrolled environment exposure limits, always adhere to the following procedure: • Transmit no more than 50% of the time. • To receive calls, release the PTT button. • To transmit (talk), press the Push to Talk (PTT) button. Transmitting 50% of the time, or less, is important because the radio generates measurable RF energy exposure only when transmitting (in terms of measuring standards compliance). Exposure to Radio Frequency Energy Your Motorola two-way radio complies with the following RF energy exposure standards and guidelines: • United States Federal communications Commission, Code of Federal Regulations; 47CFR part 2 sub-part J • American National Standards Institute (ANSI)/Institute of Electrical and Electronic Engineers (IEEE) C95. 1-1992 • Institute of Electrical and Electronics Engineers (IEEE) C95.1-1999 Edition • International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1998 Getting Start ed Installing the Batteries: Your radio uses three AA Alkaline batteries and beeps when the batteries are low. 1. Turn the radio off. 2. With the back of the radio facing you, lift the battery latch up to release the battery cover and remove the cover. 3. Insert three AA Alkaline batteries as shown on the inside of the battery compartment. 4. Reposition the battery cover and press down to secure. NOTE:The T9500/ T9550 model radio can use a NiMH rechargeable battery instead of three AA batteries. Installing the NiMH Battery Pack: 1. Follow step 2 above to remove the battery cover. 2. Remove the battery pack from the clear plastic bag. Do not disassemble or unwrap the battery pack. 3. Insert the NiMH battery pack so the “This Side Up” is showing. 4. Reposition the battery cover and press down to secure. Battery Meter The battery icon shows the battery charge level, from full to empty . When the battery is empty, the radio chirps periodically or after releasing (Low Battery Alert). Note:Remove the batteries before storing your radio for extended periods of time. Batteries corrode over time and may cause permanent damage to your radio. Talking and Listening To communicate, all radios in your group must be set to the same channel and Interference Eliminator Code. 1. To talk, press and hold . 2. When you are finished talking, release . For maximum clarity, hold the radio two to three inches away from your mouth and speak directly into the microphone. Do not cover the microphone while talking. Talk Range Your radio is designed to maximize performance and improve transmission range. Do not use the radios closer than five feet apart. Power Boost To boost your radio’s power up to two watts, press the top portion of the button when talking. If you know your party is close by, you can conserve your battery’s energy by pushing the lower part of the button to use less power. Note:If you are on an FRS only channel (see channel and frequencies chart) the radio will only use low power when either portion of the is pressed. Monitor Button Pressing and holding for three seconds allows you to listen to the volume level of the radio when you are not receiving. This allows you to adjust the volume, if necessary. You can also press to check for activity on the current channel before you talk. Push to Talk Timeout Timer To prevent accidental transmissions and save battery life, the radio emits a continuous warning tone and stops transmitting if you press for 60 continuous seconds. Using the Battery Charger (Optional Accessory) The battery charger provides drop-in charging convenience for NiMH batteries and can be placed on any flat surface, such as a desk or workbench. Charge the NiMH battery overnight (at least 16 hours) before using it for the first time. After the initial charge, an empty battery is fully charged within 14 hours. 1. Follow the steps above to install a NiMH Battery Pack. 2. Plug the AC power supply into the plug on the desk stand. 3. Plug the AC power supply into a standard wall outlet. 4. Remove the battery pocket inserts from the charger pockets. 5. With a radio facing forward, slide it into one of the charging pockets. Notes • The light on the desk stand charger will glow continuously when radio/battery is inserted. • When moving between hot and cold temperatures, do not charge the battery until the battery temperature acclimates (usually about 20 minutes). • For optimal battery life, remove the radio or battery from the charger within 16 hours. Do not store the radio in the charger. • Turn radio off while in charging tray. Using the Belt Holster Your radio includes a holster so you may carry it easily on your belt. 1. Adjust the holster’s clip so it fits onto your belt. 2. Slide your radio into the holster. Turning Your Radio On and Off Turn clockwise to turn the radio on and counterclockwise to turn the radio off. 1. The radio chirps and briefly shows all features icons available on your radio. 2. The display then shows the current channel, code and features that are selected. Initial Setup Selecting the Channel Your radios has 22 channels. Channels 8-14 are FRS 0.5 Watt only and all other channels are GMRS. When you press th…

Text truncated - open the document above for the full version.

The content of this document is Giant Electronics Ltd.'s intellectual property and is the property of Giant. It is to be treated as strictly confidential and is not to be disclosed, reproduced, or used except as authorized in writing by Giant Electronics Ltd. In connection with the manufacture, maintenance and use of the Giant equipment to which it pertains. Copyright @Giant Electronics Ltd. All rights reserved. Re: FCC ID: K7GT9500 Pursuant to 47 CFR 0.459, Giant Electronics Ltd. request confidential protection of the following documents submitted electronically in furtherance of the above-reference application as containing propriety information listed below: ■ Schematic ■ Block Diagram ■ Operational Description This information represents intellectual property of Giant Electronics Ltd. and it is subject to competition. This information should not be made routinely available for public inspection, and Giant Electronics Ltd. reserves the right to discern which parties can obtain access to this information. Dated this 04 th day of January 2007 By: YK Ling . Signature Printed Title : Electronic Engineer Confidentiality Request Letter

INTERTEK TESTING SERVICES External Photos FCC ID: K7GT9500 external photos - 1 of 1 External Photo - Front External Photo - Rear

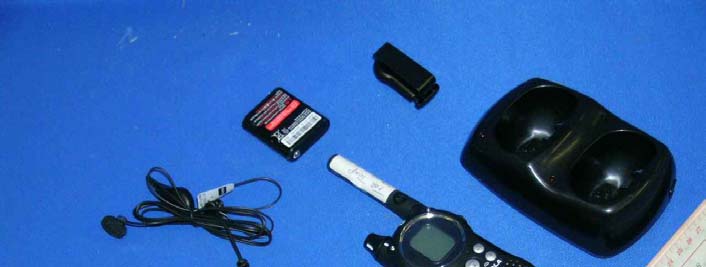

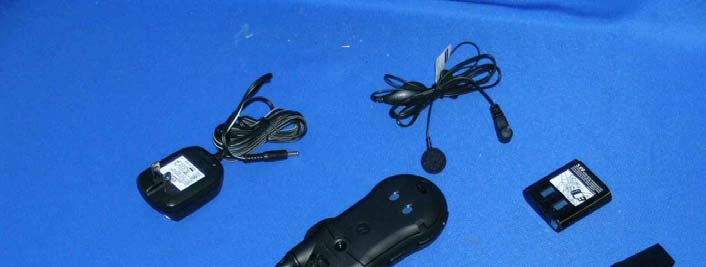

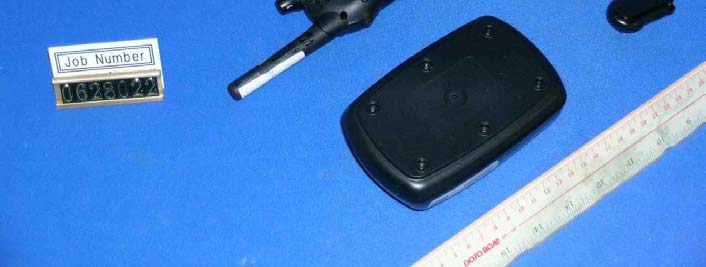

INTERTEK TESTING SERVICES Internal photos FCC ID: K7GT9500 internal photos - 1 of 3 Internal Photo - 1 Internal Photo - 2 INTERTEK TESTING SERVICES Internal photos FCC ID: K7GT9500 internal photos - 2 of 3 Internal Photo - 3 Internal Photo - 4 INTERTEK TESTING SERVICES Internal photos FCC ID: K7GT9500 internal photos - 3 of 3 Internal Photo - 5 Internal Photo - 6

• The test results reported in this report shall refer only to the sample actually tested and shall not refer or be deemed a refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Giant Electronics Ltd. Application For Certification Two Way Radio with GMRS, FRS, and Weather Band Receiver (FCC ID: K7GT9500) 06280221 TL/ Ann Choy January 16, 2007 INTERTEK TESTING SERVICES FCC ID: K7GT9500 i SUMMARY OF CONTENTS LIST OF EXHIBITS EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: RF Power Output EXHIBIT 4: Modulation Characteristics EXHIBIT 5: Occupied Bandwidth EXHIBIT 6: Spurious Emission EXHIBIT 7: Frequency Stability EXHIBIT 8: Technical Specifications EXHIBIT 9: Product Labelling EXHIBIT 10: Photographs EXHIBIT 11: Instruction Manual EXHIBIT 12: Tune Up Procedure EXHIBIT 13: Part List EXHIBIT 14: Input Current EXHIBIT 15: RF Exposure Info EXHIBIT 16: Confidentiality Request INTERTEK TESTING SERVICES FCC ID: K7GT9500 ii MEASUREMENT/TECHNICAL REPORT Application : Giant Electronics Ltd. Trade Name/Model No : Motorola/ T9500 Motorola/ T9510 Motorola/ T9530 Motorola/ T9550 Date : January 16, 2007 This report concerns (check one:)Original Grant X Class II Change Equipment Type: FRF – Part 95 Family Radio Face Held Transmitter Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Report prepared by: Leung Wai Leung, Tommy Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Phone: 852-2173-8538 Fax: 852-2741-1693 INTERTEK TESTING SERVICES FCC ID: K7GT9500 iii Table of Contents 1.0 General Description............................................................................................ 2 1.1 Product Description......................................................................................... 2 1.2 Related Submittal(s) Grants ........................................................................... 3 1.3 Test Methodology........................................................................................... 3 1.4 Test Facility .................................................................................................... 3 2.0 System Test Configuration................................................................................. 5 2.1 Justification ..................................................................................................... 5 2.2 EUT Exercising Software ............................................................................... 6 2.3 Special Accessories ....................................................................................... 6 2.4 Measurement Uncertainty .............................................................................. 6 2.5 Equipment Modification................................................................................... 6 2.6 Support Equipment ......................................................................................... 6 3.0 RF Output Power (Section 95.639(d))................................................................. 8 4.0 Modulation Characteristics (Section 95.637(a))............................................... 12 4.1 Modulation Frequiency Response................................................................. 13 4.2 Modulation Limiting Characteristic ................................................................. 15 4.3 Audio Low Pass Filter Response ................................................................. 17 5.0 Occupied Bandwidth (Section 95.633(c)) ....................................................... 19 6.0 Spurious Emission (Section 95.635(b)) ........................................................... 21 6.1 Field Strength of Spurious Radiation ............................................................. 22 7.0 Frequency Stability (Section 95.627)............................................................... 28 7.1 Frequency Tolerance.................................................................................... 29 7.2 Temperature Extreme Condition.................................................................... 31 7.3 Voltage Extreme Condition............................................................................ 34 8.0 Technical Specifications.................................................................................. 37 9.0 Product Labelling.............................................................................................. 41 10.0 Equipment Photographs................................................................................ 44 11.0 Instruction Manual.......................................................................................... 46 12.0 Tune Up Procedure......................................................................................... 48 13.0 Part List........................................................................................................... 50 14.0 Input Current................................................................................................... 52 15.0 RF Exposure Info............................................................................................ 54 16.0 Confidentiality Request.................................................................................. 56 INTERTEK TESTING SERVICES FCC ID: K7GT9500 iv Li…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES Occupied Bandwidth Plots FCC ID: K7GT9500 bw - 1 of 1 Plot CH4 Plot CH11

INTERTEK TESTING SERVICES A udio Low Pass Filter Response -70.0-60.0-50.0-40.0-30.0-20.0-10.0 0.0 10.0 1 10 100 Frequency (kHz) dB relative to 1 kHz LPF ResponseTIA/EIA-603B Audio Input Strength = 600 mVrms FCC ID: K7GT9500 lpf - 1 of 1

INTERTEK TESTING SERVICES Modulation Frequency Response 0.0000.5001.0001.5002.0002.500 200 700 1200 1700 2200 2700 3200 3700 4200 4700 Modulation Frequency (Hz) Frequency Deviation (kHz) FCC ID: K7GT9500 mfr - 1 of 2 INTERTEK TESTING SERVICES Modulation Frequency Response 0.000.501.001.502.002.503.003.504.004.505.005.506.00 300 800 1300 1800 2300 2800 3300 3800 4300 4800 Modulation Frequency (Hz) Modulation Index (%) FCC ID: K7GT9500 mfr - 2 of 2

INTERTEK TESTING SERVICES Modulation Limiting Characteristic 0.0000.5001.0001.5002.0002.500 47 57 67 77 87 97 107 117 127 137 Modulation Input (dBSPL) Frequency Deviation (kHz) 500Hz1000Hz2500Hz3125Hz FCC ID: K7GT9500 mlc - 1 of 1

INTERTEK TESTING SERVICES Spurious Emission Plots FCC ID: K7GT9500 spurious - 1 of 1 Plot CH4 Plot CH11

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs FCC ID: K7GT9500 config photos (radiated emission) - 1 of 1 Radiated Emission Front View Rear View
