KA324WAN6SkyMate Series, Model SkyMate

Page 1 Rev.No 1.0 ATTESTATION STATEMENT GENERAL REMARKS: SUMMARY: All tests performed per CFR 47, FCC Part 15, Paragraphs 15.205; 15.209; 15.247(a)(2); 15.247(b)(1); 15.247(c); and 15.247(d) were n - Performed The Equipment Under Test n - Fulfills the requirements of CFR 47, FCC Part 15, Paragraphs 15.205; 15.209; 15.247(a)(2); 15.247(b)(1); 15.247(c); and 15.247(d) - TÜV PRODUCT SERVICE, INC. - Responsible Engineer: Jim Owen (EMC Engineer)

Microprocessor/ FPGA/ Digital Subsystem AGC CTL DEMOD Memory I/O MOD TX ALC TX DAC TX ADC Q DAC I DAC Q ADC I ADC IF DAC RF ADC RF DAC PLL Ceramic BPF Power Detector 44MHz MCLK RF VCO 2034-2094MHz Saw Filter F c =374 MHz HFA3783 QUAD IF IF VCO 748MHz REF IN HFA3861 BBP 1 1 7 6 6 6 6 7 6 R S 2 3 2 I N T E R F A C E HFA3683 CONV. I/O LOPLL Div. By 2 50 Mhz CLK 37.768 kHz CLK

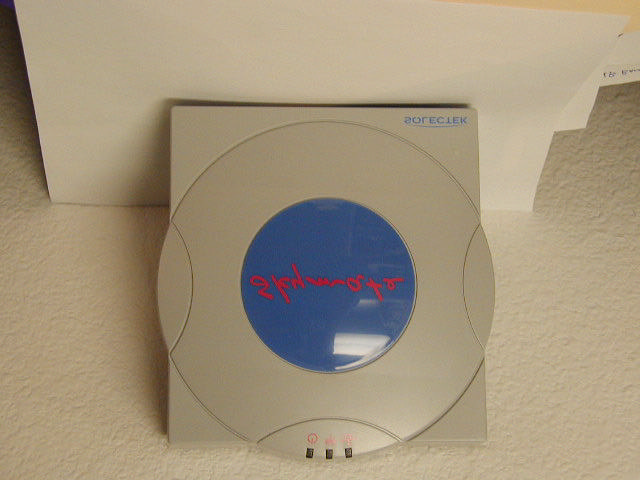

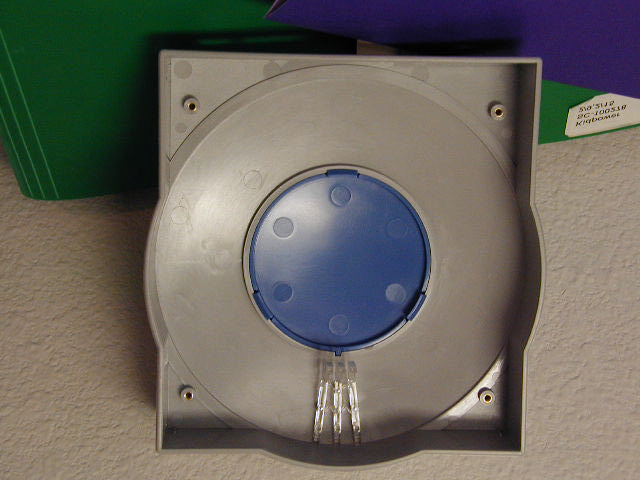

Top END Side Side Bottom Inside

FCC Label Placement (Underside of SkyMate) Series by www.solectek.com (PN) FCC ID.: KA324WAN6 I.C. ID.: 0000000000A Made in USA (SN) This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. For detailed information on your SkyMate product and International Regulatory Compliance, refer to your SkyMate documentation. Label PN: 00000000

Board with can Board end Board end Board top Board bottom Board container

6370 Nancy Ridge Drive, Suite 109 San Diego, CA 92121 DATE DESCRIPTION FCC ID # 3/16/01 FCC 1.1310 Radiated Exposure Limits KA324WAN6 FCC 1.1310 Radiated Exposure Limits The FCC Section 15.247(b)(4) requires compliance with the radiation exposure limits of paragraph 1.1307(b)(1). Paragraph 1.1307(b)(1) references 1.1310 and 2.1093. Paragraph 2.1093 applies to portable devices, however the EUT is not portable. Paragraph 1.1307(b)(1) would seem to exclude devices certified under 15.247, other than in the general sense. This analysis will assume the worst-case general requirement as specified in paragraph 1.1310, Table 1. The Maximum Permissible Exposure (MPE) at 2.4GHz, based on Table 1 of paragraph 1.1310, occurs under part (b) for uncontrolled exposure. The MPE is 1.0mW/cm 2 (61.4V/m) for an averaging time of 30 minutes. While it is unlikely that the EUT system would transmit continuously for 30 minutes (as it is a 2-way link), we will assume that it does as a worst-case scenario. The EUT’s strongest emission occurs with the MTI antenna, which has a gain of 18dBi. Applying the formula in paragraph 15.247(b)(3)(i), the maximum allowable EIRP is 41dBm, which is equivalent to 9.08 V/m at 3 meters. Using linear interpolation, the 61.4 V/m field strength might occur at a distance of about 27 inches from the reflector. But applying the Fraunhoffer Limit of 2D 2 /ë, the far field and coherent field pattern begins at a distance of 134 inches. Therefore it is not possible to see 61.4 V/m from this antenna. The SkyMate is compliant with the Radiated Exposure Limits with no restrictions.

TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Report No. 100923-08 Page 1 Rev.No 1.0 MEASUREMENT AND TECHNICAL REPORT SOLECTEK CORPORATION 6370 Nancy Ridge Drive San Diego, CA 92121 DATE: 03 April 2001 This Report Concerns:Original Grant: XClass II Change: Equipment Type:Skymate Deferred grant requested per 47 CFR 0.457(d)(1)(ii)?Yes: Defer until: No: X Company Name agrees to notify the Commission by:N/A of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37?Yes:*No: (*) FCC Part 15, Paragraphs 15.205; 15.209; 15.247(a)(2); 15.247(b)(1); 15.247(c); and 15.247(d) Report Prepared by: TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 858 546 3999 Fax: 858 546 0364 TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Report No. 100923-08 Page 2 Rev.No 1.0 TABLE OF CONTENTS Pages 1 GENERAL INFORMATION3 - 4 1.1Product Description3 1.2Related Submittal Grant4 1.3Tested System Details4 1.4Test Methodology4 1.5Test Facility4 2 SYSTEM TEST CONFIGURATION5 2.1Justification5 2.2EUT Exercise Software5 2.3Special Accessories5 2.4Equipment Modifications5 2.5Configuration of Tested System5 3CONDUCTED EMISSION EQUIPMENT/DATA6 - 30 4RADIATED EMISSION EQUIPMENT/DATA31 - 39 Field Strength Calculation39 5 CONDUCTED SPURIOUS and BANDWIDTH EQUIPMENT/DATA40 - 64 6 PEAK POWER SPECTRAL DENSITY65 - 68 7 PEAK POWER EQUIPMENT/DATA69 8ATTESTATION STATEMENT70 TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Report No. 100923-08 Page 3 Rev.No 1.0 1 GENERAL INFORMATION 1.1Product Description CUSTOMER CONTACT:Frank Harkins PRODUCT DESCRIPTION NAME, MODEL, SERIAL # OF EUT:Skymate Series DESCRIPTION OF EUT:Transciever in the 2.4Ghz ISM band using DSSS Techniques Components of EUT DescriptionModel NumberSerial NumberFCC ID Number Skymate SeriesSkymateNA ..protypeKA324WAN6 OPERATING MODE(S):Data rate of 11Mbs,5.5Mbs and 2Mbs using DSSS EUT CONFIGURATIONS:6volt dc powered only SELV Configured with 8 antennas POWER INTERFACE FREQUENCY/AC/DC VOLTAGE:I/P 100 to 250 volt ac @ 50 to 60 hz and O/P 6Volt @ 2 amps max PHASES ()/CURRENT (amps):Single phase OSCILLATOR FREQUENCIES:NA DESCRIPTION:AC to DC convertors (X3) MANUFACTURER, MODEL #, S/N #ArtesynSSL12-7632-NO1,IPS HUP 15 Series, CUI DTS050240U. SWITCHING FREQUENCY:NA POWERLINE FILTER: MODEL #:NA DESCRIPTION OF ENCLOSURE:UL Plastic type CRITICAL EMI COMPONENTS:NA INTERFACING AND/OR SIMULATORS PERIPHERAL EQUIPMENT: DescriptionModel #Serial #FCC ID/Other NANANANA I/O PORTS: Name of LineType of LineLength of Cable Status of LineKind of Transmission EthernetShielded6 feetActiveDigital MAJOR SUBASSEMBLIES OR INTERNAL DEVICES DescriptionModel #Serial #FCC ID # NANANANA Frequency hopping transmitters: N/A Scanning receivers: N/A Certification of transmitters operating within the 59 to 64 GHz band: N/A Tune-up procedure: N/A TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Report No. 100923-08 Page 4 Rev.No 1.0 1 GENERAL INFORMATION (continued) 1.2Related Submittal/Grant None 1.3Tested System Details The FCC IDs for all equipment, plus descriptions of all cables used in the tested system are: None 1.4Test Methodology Purpose of Test:To demonstrate compliance with the ANSI C63.4 setup. Test Performed:X1. Conducted Emissions, FCC Part 15, Paragraph 15.209; and 15.247(c) 2. Radiated Emissions EN55022: 1992 Class B limit, 30 - 1,000 MHz, 10 meters X3. Radiated Emission per FCC Part 15, Paragraph 15.205; 15.209; 15.247(c) 4. Engineering evaluations X5. Peak Power Spectral Density, Part 15, Paragraph 15.247(d) XBandwidth, Part 15, Paragraph 15.247(a)(2) Both Conducted and radiated testing were performed according to the procedures in FCC/ANSI C63.4 and CSA 108.8 - M1983. Radiated testing was performed at an antenna-to-EUT distance of 3 meters (1 - 25 GHz). 1.5Test Facility The open area test site and conducted measurement data were tested by: TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 619 546 3999 Fax: 619 546 0364 The Test Site Data and performance comply with ANSI 63.4 and are registered with the FCC, 7435 Oakland Mills Rd, Columbia Maryland 21046. All Measurement Data is acquired according to the content of FCC Measurement Procedure and ANSI C63.4, unless supplemented with additional requirements as noted in the test report. TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Report No. 100923-08 Page 5 Rev.No 1.0 2.SYSTEM TEST CONFIGURATION 2.1Justification The EUT was initially tested for FCC emission in the following configuration: See Block Diagram. 2.2EUT Exercise Software None 2.3Special Accessories None 2.4Modification None 2.5Configuration of Tested System See Block Diagram. TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Report No. 100923-08 Page 6 Rev.No 1.0 3CONDUCTED EMISSION EQUIPMENT/DATA The following data lists the significant emission frequencies, measured levels, correction factor (which includes cable and antenna corrections), the corrected reading, and the limit. See following page(s). LISN-3, 50 μH/250 μH/50 Ω /0.25 μF 4579252-50-R-24-BNCSolar Electronics Co.94172005/01 ESHS 20459EMI Test ReceiverRohde & Schwarz832354/00402/02 CAT-2060220 dB AttenuatorMini-Circuits--Verified NOTE: There were no measurable emission noted above 22 GHz. TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Report No. 100923-08 Page 31 Rev.No 1.0 4RADIATED EMISSION EQUIPMENT/DATA The following data lists the significant emission frequencies, measured levels, correction factor (which includes cable and antenna corrections), the corrected reading, and the limit. See following page(s). See test setup photos for radia…

Text truncated - open the document above for the full version.

Spectrum Analyzer EUT Conducted Spurious and Bandwidth Setup Spectrum Analyzer 3 dB Attenuator EUT Power Spectral Density Setup Peak Power Motor EUT Peak Power Output Setup Peak Power Probe Antenna EUT Spectrum Analyzer Pre- Amplifier 3m Radiated Emissions Test Report of SkyMate FCC Processing Gain Measurement 4 Setup diagram and Photographs 4 20 2 =20 Pad Power Attenuator SkyMate Unit 'A' (Base Station) Screen Room Peak Power Meter (HP 8900D) 2-Way Combiner (Mini-Circuits ZFSC-2-10G) S 70dB (HP 8495B) =10 Pad Power Attenuator 3 Peak Power Sensor (HP 84811A) 20 10 Sythesized Signal Generator (HP 8648C) 10 10 20 20 SkyMate Unit 'B' (Sub Station) 4-Way Splitter (Mini-Circuits ZA4PD-4) 50 ohms Termination Spectrum Analyzer (HP 8595E) 11dB (HP 8494B) 1 Figure 2 Test setup FCC ID: KA324WAN6 Page 15 of 16 Conducted Conducted Conducted Test Report of SkyMate FCC Processing Gain Measurement Figure 3 Base station setup (PC& SkyMate unit) Figure 4 Sub station setup (PC & SkyMate unit) with test equipment Figure 5 Setup of attenuators, Splitter, and combiner. FCC ID: KA324WAN6 Page 16 of 16
