KA358WAN1DIGITAL TRANSCEIVER SYSTEM

SKYWAY 5000 Series User’s Guide 1. Introduction Congratulations on your purchase of Solectek’s SKYWAY 5000 Series Bridge/Router, a feature rich, best-in-class wireless solution. This User’s Guide will describe the operation of your SKYWAY 5000 unit in detail. SYSTEM FEATURES • Based on field proven OFDM modulation allowing near line-of-sight deployment and strong immunity to interference and multi-path problems. • Data rates from 6 Mbps to 108 Mbps • High power radio (400mW) and improved radio sensitivity for best-in- class link ranges – over 10 miles with only 1 foot panel antenna • Power over Ethernet (POE) for easy cabling with a single outdoor CAT5 cable. • All-in-one integrated enclosure that houses everything, including antenna, radio, amplifier, and POE module. Mount one thing and you are done. • Latest AES encryption on board to provide the strongest security ad ultimate data protection. • Client access control via MAC address filtering Package Contents • SKYWAY client unit - 5100 Short range - 5300 Mid Range - 5500 Long Range • 24VDC Power Supply • Power over Ethernet injector (the receiver is integrated inside the SkyWay unit). • CD-ROM containing documentation • Registration Card • Warranty and Compliance Card NOTE: CAT5 Ethernet cable is not included in the package. UV-protected Ethernet cables for outdoor use can be purchased from Solectek in a variety of different length up to 300 feet. Also, a short Ethernet cable between the PC and the POE injector is necessary for unit configuration. Please contact Solectek Sales for details on purchasing Ethernet cables. System Requirements • Two CAT 5 UTP cables – straight cable if connecting to a hub/switch, cross-over cable if connecting to a PC. • A computer running TCP/IP over Ethernet. • A SkyWay 5000 Series base unit (5600 or 5700) for a live testing of the multipoint wireless network. 2. System Configuration A. CONNECTING THE SKYWAY UNIT FOR CONFIGURATION The following diagram explains the connection so that you can access the user interface for configuration • Power on your SKYWAY 5000: 1. Connect your SKYWAY and POE injector with an Ethernet cable. 2. Connect your PC to the POE injector using (a) crossover Ethernet cable or (b) straight cable and a hub/switch. 3. Power on the POE injector using the supplied AC to 24V DC adapter. B. SET UP YOUR COMPUTER’S TCP/IP PROPERTIES Open networking properties in your Windows OS. Find the TCP/IP setup window of your wired Ethernet adapter. The details on how to set the IP address of your computer’s Ethernet adapter are different, depending on Windows versions (95/95/2000/Me/XP). Please consult your Windows OS documentation. Shown below is the Windows 2000 TCP/IP Properties. Set the IP addresses to the following values. Ethernet’s IP Address: 192.168.0.2 Subnet Mask: 255.255.255.0 C. LOG-IN TO YOUR SKYWAY • Connect your computer and SKYWAY 5000 unit using an Ethernet cable. Use a straight CAT 5 cable if a network hub/switch is used or use a cross-over cable if a computer is directed connect to the SKYWAY 5000 unit. • Start a Web Browser on your computer (such as Netscape Navigator or Microsoft Explorer). • At the URL line, type in the following: http://192.168.0.1 to access the Status screen below. This screen can be referred back later for a summary view of the status of your SKYWAY 5000 unit. At the initial boot-up out of the box, only the factory default values should be displayed. • Click on the login menu option located in the navy-blue left menu bar. The following screen should appear. • Type in solectek for the username and solectek for the password. You can change the password later once you are in the interface screens. Click start and you will see the left menu bar changed to the following. g C. CONFIGURING THE BASIC SKYWAY 5000 PROPERTIES • Click the Configuration menu option in the left menu bar to access the following screen: • System name This is a description of the unit for convenience. This is not related to the identification of the unit on your local area network. • IP properties (LAN) - IP Address: This is the IP address of the unit. - Subnet Mask: This is the subnet mask of the unit. - Default Gateway: the default gateway of the unit. If you change any of the parameters, click on the Update button to make the changes effective. You can also restore the previous setting by clicking on Reset button. • Wireless properties - Radio Spectrum Bandwidth: There are two choices here: Normal (default setting) and Wideband. The following is the table for available radio frequency and data rate for each option If you change the Radio Spectrum bandwidth value, be sure to click the Select button just below. NORMAL (20MHz) Frequency (MHz) 5735, 5755,5775,5795, 5815, 5845 Data Rate (Mbps) 54, 48, 36, 24, 18, 12, 6 WIDEBAND (40MHz) Frequency (MHz) 5745, 5785, 5825 Data Rate (Mbps) 108, 96, 72, 48, 36, 24, 12 - Radio Frequency (MHz): the center frequency of the selected frequency channel. In the Normal mode, each channel is 20 MHz wide. In the wideband mode, it is 40 MHz. - Data Rate: air transmission/receive data rates. Note that different data rates are available for normal and wideband modes, as detailed in the table above. If you have edited any of the fields, click on the Update button on the bottom to write the changes into system memory. Clicking on the Clear button restores the original values before the changes. 4. Base Station Access Configuration • In the above screen, click on the Base info menu option under the Management parent menu in the left menu bar to access the following screen: You can add an authorized client by typing in the following information. - Base MAC: This is the hardware MAC address of the base station that the client unit is intended to connect. This can be found in the user interface of the base station unit. - Description: Type in any description that will easily identify the user of the base station with the above MAC address (e.g. main-street- branch…

Text truncated - open the document above for the full version.

REVISION RECORD REV ECO DESCRIPTION APVD DATE A CW67 RELEASED YAEL H. 6.3.03 SHEET REV SHEET REV SHEET REV SHEET REV A A A THIS DOCUMENT AND THE INFORMATION CONTAINED IN IT ARE PROPRIETARY AND CONFIDENTIAL TO MTI. NO PERSON IS ALLOWED TO COPY REPRINT REPRODUCE OR PUBLISH ANY PART OF THIS DOCUMENT NOR, DISCLOSE ITS CONTENTS TO OTHERS, NOR MAKE ANY USE OF IT NOR ALLOW OR ASSIST OTHERS TO MAKE ANY USE OF IT,- UNLESS BY THE PRIOR WRITTEN EXPRESS AUTHORIZATION OF MTI AND THEN ONLY TO THE EXTENT AUTHORIZED. (C) COPYRIGHT – MTI WIRELESS EDGE LTD. PRODUCT STATUS: PROPOSAL, INDEVELOPMENT PREPRODUCTION, PRODUCTION WIRELESS EDGE LTD. ACTION NAME SIGN DATE PREP Y.HARASH Y.H 25.12.02 TITLE CHKD D.FAINER D.F 3.3.03 SPECIFICATION FOR MT – 486004/N DSGN A.HVIV A.H 28.2.03 SUBSCRIBER ANTENNA PROJ M.ROSTMY M.R 25.2.03 5.15 - 5.875 GHz ,26 dBi SIZE A MTI WIRELESS EDGE DWG NO RD41262600C REV A SCALE NONE SHEET 2 OF 3 MFG SIZE CLASSIFICATION DWG NO QA M.MOTOVICH MOTI 25.2.03 A NONE RD41262600C MARK. D.SHANI D.S 3.3.03 SCALE NONE SHEET 1 OF 3 961-7/96 SIZE A MTI WIRELESS EDGE DWG NO RD41262600C REV A SCALE NONE SHEET 3 OF 3 SPECIFICATION FLAT PANEL SUBSCRIBER ANTENNA MTI PART NUMBER MT – 486004/N REGULATORY COMPLIANCE ETSI EN 302 085 V1.1.2,(2001-02) Range 1 1. ELECTRICAL FREQUENCY RANGE 5.15 - 5.875 GHz GAIN 26 dBi (min) VSWR 1.7:1 (max),1.5:1 (typ) 3 dB BEAMWIDTH 6° (typ) POLARIZATION Linear (Vertical or Horizontal) SIDELOBES LEVEL ETSI EN 302 085 V1.1.2, TS1-TS5 CROSS POLARIZATION ETSI EN 302 085 V1.1.2, TS1-TS5 -20 db (max) F/B RATIO ETSI EN 302 085 V1.1.2, TS1-TS5 -30 db (max) INPUT IMPEDANCE 50 (ohm) INPUT POWER 6W (max) LIGHTNING PROTECTION DC Grounded 2. MECHANICAL DIMENSIONS (LxWxD) 450 x 450 x 30mm (max) WEIGHT 3 (kg) (max) CONNECTOR N-TYPE Female RADOME Plastic BASE PLATE Aluminum with chemical conversion coating OUTLINE DRAWING RD41262700C 3. MOUNTING KIT See RD41191800C SIZE A MTI WIRELESS EDGE DWG NO RD41262600C REV A SCALE NONE SHEET 4 OF 3 4. ENVIRONMENTAL TEST STANDARD DURATION TEMPERTURE NOTES LOW TEMPERATURE IEC 68-2-1 72 h -55°C - HIGH TEMPERATURE IEC 68-2-2 72 h +71°C - TEMP. CYCLING IEC 68-2-14 1 h -45°C +70°C 3 Cycles VIBRATION IEC 60721-3-4 30 min/axis - Random 4M5 SHOCK MECHANICAL IEC 60721-3-4 - - 4M5 HUMIDITY ETSI EN300-2-4 T4.1E 144 h - 95% WATER TIGHTNESS IEC 529 - - IP67 SOLAR RADIATION ASTM G53 1000 h - - SALT SPRAY IEC 68-2-11 Ka 500 h - - ICE AND SNOW - - - 25mm Radial WIND SPEED SURVIVAL OPERATION - - - - - - 220 Km/h 160 Km/h WIND LOAD (SURVIVAL): FRONT THRUST SIDE THRUST - - - - - - 58.3 kg 3.9 kg

MTI part No.MT-485002 TypePlanar Array Regulatory ComplianceETSI EN 302 085 V1.1.2 (2001-02) Electrical Frequency Range5.15-5.35 GHz and 5.725-5.875 GHz Gain23 dBi (min) VSWR1.7:1 (max) 3 dB BW 9 (typ) PolarizationLinear (Vertical or Horizontal) Cross Polarization-28 dB (max) Sidelobe LevelETSI EN 302 085 V1.1.2 (2001-02) Range 1TS1- TS3 F/B Ratio-32 dB (max) Lightning ProtectionDC Grounded Mechanical Dimensions (LxWxD)305 x 305 x 25mm Weight1.5 kgs ConnectorN-Type Female* Temperature (operating)-45C to +70C Wind Load (Survival)220 km/hr Radial Ice Load25 mm Mounting KitMT-50001 + MT-120018 * Also available with SMA connector ubscriber AntennaSGHz .8 5

71 XtremeWave™ MFB Series XtremeWave™ Models 25007 (MMDS), MFB58009 (5.8 GHz ISM) and MFB19008A (PCS), MFB24006 and MFB24008 (2.4 GHz ISM) Antennas XtremeWave™ MFB24012 MFB24010 and MFB24012 An ISO-9001 Registered Company General Specifications: Omnidirectional base station antennas Radome Material: UV resistant pultruded fiberglass Polarization: Vertical Nominal Impedance: 50 Ohms Mounting Base Diameter: 1.25 inches (all models except MFB24012) 1.5 inches (model MFB24012) Mounting Method (sold separately): MMK1924 – L-bracket mount for wall or pipe mount (all models, except MFB24010 and MFB24012) MMK8 - Aluminum extruded bracket for mast mounting (all models, except model MFB24012) MMK11 - Ceiling mount bracket (for MFB24004, MFB24006 and MFB24008 only) MMK12 - Heavy duty bracket for mast mounting the MFB24012 MMK14 - Light duty mounting clamp for MFB24012 Termination: N female standard with all 2.4 GHz models, except MFB24012 N female, reverse polarity and reverse threaded connectors optional 16” RG-213 pigtail with N female connector for model MFB24012 only 5’ LMR400 pigtail with N male connector for model MFB58009PTNM only Features and Benefits: •UV stable, pultruded fiberglass radome. Allows outdoor installation even in harsh climates. •Vented system design. Provides reliable performance by protecting the electrical design against extreme moisture and/or temperatures. •Thread relief on connector (all models, except MFB24012 and MFB58009PTNM which have pigtails.) Improved accessibility for taping reduces installation time and improves overall effectiveness. •Internal o-ring seal in the base of the antenna with integrated connector at the base. Assures a watertight seal to prevent water from migrating into the antenna connector (all models, except MFB24012 which has a pigtail.) •Electrical downtilt options on select models. Provide system planners flexibility in challenging operating environments. The MAXRAD XtremeWave ™ wireless broadband omnidirectional antennas are designed to provide maximum performance and reliability under the toughest weather conditions. These antennas feature a UV stable, vented radome that provides ultimate protection against weather elements. The line includes MMDS, ISM, UNII and PCS models with gains ranging from 4 to 12 dBi. These an- tennas can be mast, wall or ceiling mounted. PCS, 2.4 GHz ISM, MMDS and 5.8 GHz ISM/UNII Omnidirectional Base Station Antenna Series Model #Frequency RangeGain Bandwidth @ 1.5:1 VSWR Vertical Beamwidth @ 1/2 Power VSWR Maximum Power Downtilt MFB19008A1850-1990 MHz8 dBi140 MHz12°< 1.5:125 WattsN/A MFB240042400-2483.5 MHz4 dBi100 MHz30°< 1.5:125 WattsN/A MFB240062400-2483.5 MHz6 dBi100 MHz20°< 1.5:125 WattsN/A MFB240082400-2483.5 MHz8 dBi100 MHz13°< 1.5:125 WattsN/A MFB24008DT32400-2483.5 MHz8 dBi100 MHz13°< 1.5:125 Watts3° MFB24008DT52400-2483.5 MHz8 dBi100 MHz13°< 1.5:125 Watts5° MFB24008DT72400-2483.5 MHz8 dBi100 MHz13°< 1.5:125 Watts7° MFB24008DT122400-2483.5 MHz8 dBi100 MHz13°< 1.5:125 Watts12° MFB240102400-2483.5 MHz10 dBi100 MHz9°< 1.5:125 WattsN/A MFB240122400-2500 MHz12 dBi100 MHz7°< 1.5:125 WattsN/A MFB250072500-2700 MHz7 dBi200 MHz13°< 1.5:125 WattsN/A MFB25007DT32500-2700 MHz7 dBi200 MHz13°< 1.5:125 Watts3° MFB515105150-5350 MHz10 dBi200 MHz7°< 1.8:125 WattsN/A MFB580095725-5875 MHz9 dBi150 MHz8°< 1.5:125 WattsN/A MFB58009PTNM5725-5825 MHz9 dBi100 MHz6°< 1.5:125 WattsN/A MFB580105725-5825 MHz10 dBi100 MHz6°< 1.5:125 WattsN/A Model # Wind Survival Equivalent Flat Plate Area Lateral Thrust @ Rated Wind Bending Moment @ Rated Wind HeightWeight MFB19008A125 mph .07 ft 2 5.9 lbs5.7 ft-lbs24.0” (609.6 mm)0.70 lbs (0.318 kg) MFB24004125 mph .02 ft 2 2.1 lbs0.7 ft-lbs8.1” (205.7 mm)0.34 lbs (0.154 kg) MFB24006125 mph .04 ft 2 3.0 lbs1.4 ft-lbs11.6” (294.6 mm)0.38 lbs (0.172 kg) MFB24008125 mph .06 ft 2 5.2 lbs4.4 ft-lbs20.2” (513.1 mm)0.50 lbs (0.226 kg) MFB24008DT3125 mph .06 ft 2 5.2 lbs4.4 ft-lbs20.2” (513.1 mm)0.50 lbs (0.226 kg) MFB24008DT5125 mph .06 ft 2 5.2 lbs4.4 ft-lbs20.2” (513.1 mm)0.50 lbs (0.226 kg) MFB24008DT7125 mph .06 ft 2 5.2 lbs4.4 ft-lbs20.2” (513.1 mm)0.50 lbs (0.226 kg) MFB24008DT12125 mph .06 ft 2 5.2 lbs4.4 ft-lbs20.2” (513.1 mm)0.50 lbs (0.226 kg) MFB24010125 mph .11 ft 2 10.1 lbs14.7 ft-lbs36.0” (914.4 mm)0.65 lbs (0.295 kg) MFB24012125 mph .25 ft 2 22.4 lbs41 ft-lbs44.0” (1,118 mm)3.00 lbs (1.400 kg) MFB25007125 mph .06 ft 2 5.2 lbs4.4 ft-lbs20.2” (513.1 mm)0.50 lbs (0.226 kg) MFB25007DT3125 mph .06 ft 2 5.2 lbs4.4 ft-lbs20.2” (513.1 mm)0.50 lbs (0.226 kg) MFB51510125 mph .06 ft 2 5.2 lbs4.4 ft-lbs20.2” (513.1 mm)0.50 lbs (0.226 kg) MFB58009125 mph .046 ft 2 4.1 lbs2.7 ft-lbs15.7” (398.8 mm)0.43 lbs (0.195 kg) MFB58009PTNM125 mph .06 ft 2 5.2 lbs4.4 ft-lbs20.2” (513.1 mm)0.50 lbs (0.226 kg) MFB58010125 mph .06 ft 2 5.2 lbs4.4 ft-lbs20.2” (513.1 mm)0.50 lbs (0.226 kg) Electrical Specifications 72 ORDER (800) 323-9122 FAX (630) 372-8077 www.maxrad.com Specifications MMK1924 MFB24004 with MMK11 MMK8 Vented System MMK12 Mechanical Specifications

6370 Nancy Ridge Dr., Suite 109 • San Diego, CA • 92121-3212 • Phone 858.450.1220 • Fax 858.457.2681 www.solectek.com “The Wireless Networking Company” October 1, 2003 TCB TÜV America, Inc. 10040 Mesa Rim Road San Diego, CA 92121 Dear Sir or Madam: We, Solectek Corporation (6370 Nancy Ridge Drive Suite 109, San Diego, CA 92121, Tel. (858) 450-1220), hereby authorize TÜV America, Inc. (10040 Mesa Rim Road, San Diego, CA 92121, Tel. (619) 546-3999) to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. I further certify that the applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. Section 862. This authorization expires on October 1, 2004. Sincerely, David Gell Hardware Manager Phone: (858) 450-1220 ext. 3020 Fax: (858) 457-2681 October 20, 2003 TCB TÜV America, Inc. 10040 Mesa Rim Road San Diego, CA 92121 Re: Request of Confidentiality Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying as outlined below: Schematics, Parts List, Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. Sincerely, David Gell Director of Engineering 858-450-1220 858-457-2681 (fax)

From: David Gell [[email protected]] Sent: Friday, October 24, 2003 12:49 PM To: Evans, Judy Subject: Re: TCB filing Here are the datasheets for all (3). Note the omni datasheet covers multiple antennas - the correct part number is part of the filename. Do you need anything else? -Dave Evans, Judy wrote: >Dave, >I previously requested information on the 3 antennae that are part of this filing. Please forward this information to me asap. > >Regards, > >Judy Evans >Project Manager >TUB America, Inc. >[email protected] >858 546 3999 > > >

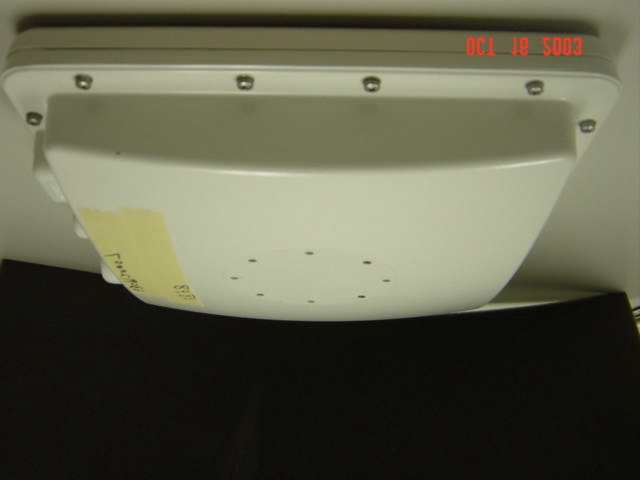

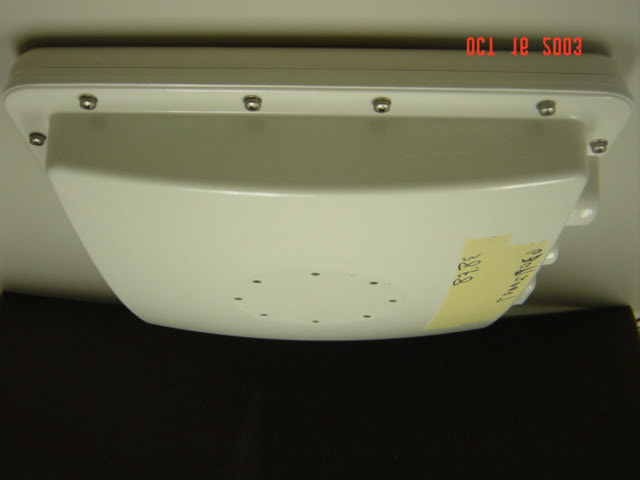

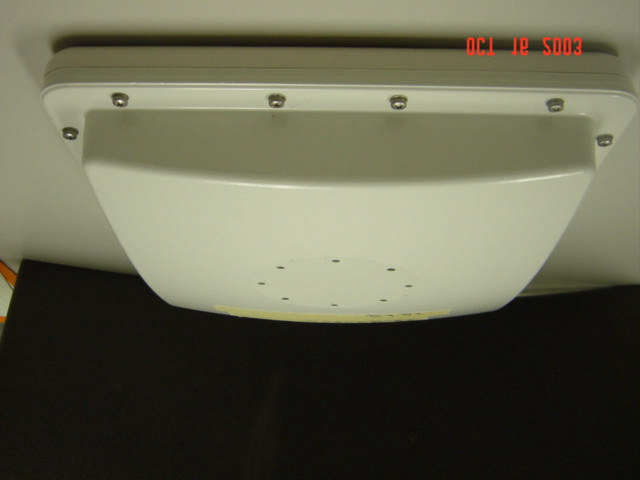

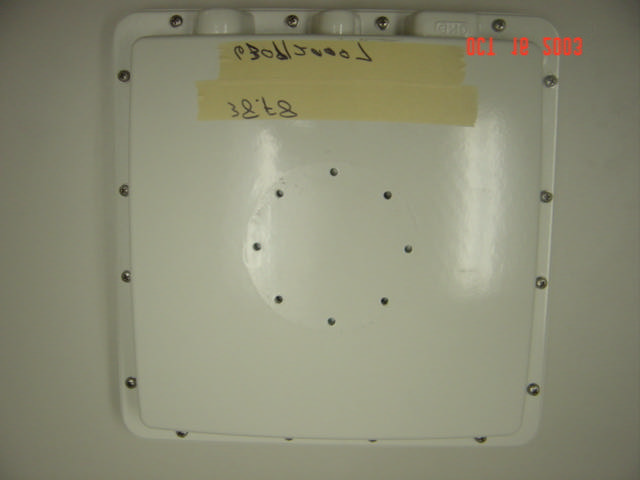

Skyway 5000 Series general description: Skyway 5000 Series is a high capacity wireless bridging and/or routing system. It makes use of OFDM digital modulation in the 5725 MHz to 5850MHz frequency band. The transceiver is integrated into the antenna. The system is intended for outdoor use such that the integrated transceiver and antenna is mounted outdoors and a single Ethernet cable connects it to the power supply and indoor user’s network. That is, it incorporates POE (power over Ethernet). The DC Power is injected into the Ethernet cable via an indoor Power Injector Unit (PIU). The PIU has two inputs, power supply and Ethernet, and one output, the POE. The Skyway 5000 Series comes in a variety of flavors. These include both Point-to-Point bridges and Point-to-Multipoint Routers with various EIRP dependent on which antenna is used. In addition, choices in software enable either custom-made proprietary networking or 802.11a networking.

TÜV AMERICA, INC. 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Report No. SC304352-03 Page 1 of 95 Rev.No 1.0 MEASUREMENT AND TECHNICAL REPORT SOLECTEK CORPORATION 6370 Nancy Ridge Drive, Suite 109 San Diego, CA 92121-3212 DATE: 07 October 2003 This Report Concerns: Original Grant: X Class II Change: Equipment Type: Skyway 5000 Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes: Defer until: No: X Company Name agrees to notify the Commission by: N/A of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes: *No: X (*) FCC Part 15, Paragraphs 15.2471(a), (b); (c); (d); RSS 210, 4.2, 5.9, 6.2.2(q1), 7.2 Report Prepared by: TÜV AMERICA, INC. 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 858 546 3999 Fax: 858 546 0364 TÜV AMERICA, INC. 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Report No. SC304352-03 Page 2 of 95 Rev.No 1.0 TABLE OF CONTENTS Pages 1 GENERAL INFORMATION 4 1.1 Product Description 5 1.2 Related Submittal Grant 5 1.3 Tested System Details 5 1.4 Test Methodology 5 1.5 Test Facility 5 2 SYSTEM TEST CONFIGURATION 7 2.1 Justification 7 2.2 EUT Exercise Software 7 2.3 Special Accessories 7 2.4 Equipment Modifications 7 2.5 Configuration of Tested System 7 3 CONDUCTED EMISSION, 15.107(a) 8 Equipment 8 Data 9 4 RADIATED EMISSIONS, 15.109(a) 42 Equipment 42 Field Strength Calculation 43 Data 44 5 CHANNEL BANDWIDTH 15.247(a)(2); RSS 210, 4.2; 5.9 56 Equipment 56 Data 57 6 RF POWER OUTPUT, 15.247(b) 61 Equipment 61 Data 62 7 SPURIOUS EMISSIONS AT ANTENNA TERMINALS 63 Equipment 63 Data 64 8 CONDUCTED SPURIOUS MODULATION, 15.245(c); RSS 210, 7.2 69 Equipment 69 Data 70 TÜV AMERICA, INC. 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Report No. SC304352-03 Page 3 of 95 Rev.No 1.0 TABLE OF CONTENTS Pages 9 PEAK POWER DENSITY, 15.247(c) 90 Equipment 90 Data 91 10 FREQUENCY STABILITY 93 Equipment 93 Data 94 11 Attestation Statement 95 TÜV AMERICA, INC. 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Report No. SC304352-03 Page 4 of 95 Rev.No 1.0 1 GENERAL INFORMATION 1.1 Product Description EUT Description: Digital Transceiver Model No.: Skyway 5000 Serial No.: n/a Configurations to be tested: all antennas EUT Specifications and Requirements Length: 12-18" Width: 12-18" Height: 3" Weight: 14 lbs Power Requirements Voltage: 120 (If battery powered, make sure battery life is sufficient to complete testing.) # of Phases: 1 Current (Amps/phase(max)): <1 Current (Amps/phase(nominal)): <1 Typical Installation and/or Operating Environment outdoor - mast / tower EUT Power Cable Permanent OR Removable Length (in meters): 2m EUT Interface Ports and Cables Interface Shielding Type Type Termination Connector Type Port Termination Ethernet/Pow er 1 Foil RJ45 50 ohms differential <=10 0 EUT Software. Revision Level: 1.0 Description: initial release, with debug package TÜV AMERICA, INC. 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Report No. SC304352-03 Page 5 of 95 Rev.No 1.0 EUT Operating Modes to be Tested 1. TX 2. RX EUT System Components Description Model # Serial # FCC ID # EUT Power Injector Support Equipment Description Model # Serial # FCC ID # Laptop Toshiba Satellite Oscillator Frequencies Frequency Derived Frequency Component # / Location Description of Use 25 MHz Ethernet 30 MHz Baseband processor 32 MHz 4580 MHz Radio RF LO Power Supply Manufacturer Model # Serial # Type CUI DTS240250UC -P5-ET Switched-mode: (Frequency) unknown Linear Other: Power Line Filters: -- Critical EMI Components (Capacitors, ferrites, etc.): -- EMC Critical Detail -- TÜV AMERICA, INC. 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Report No. SC304352-03 Page 6 of 95 Rev.No 1.0 1 GENERAL INFORMATION (continued) 1.2 Related Submittal/Grant None 1.3 Tested System Details The FCC IDs for all equipment, plus descriptions of all cables used in the tested system are: None 1.4 Test Methodology Purpose of Test: To demonstrate compliance with the ANSI C63.4 setup. TEST FCC CFR 47 # PASS/FAIL Conducted Radiated Channel Bandwidth RF Power Output Spurious Emissions at Terminals Conducted Spurious Modulation Peak Power Density Frequency Stability 15.107(a) 15.107(a) 15.247(a)(2); RSS 210, 4.2; 5.9 15.247(b) 15.247(c); RSS 210 6.2.2(q1) 15.247(c); RSS 210, 7.2 15.247(d) RSS 210, 6.4 Pass Pass Pass Pass Pass Pass Pass Pass Tests were performed according to the procedures in FCC/ANSI C63.4 and CSA 108.8 -M1983. 1.5 Test Facility The open area test site and conducted measurement data were tested by: TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 858 546 3999 Fax: 858 546 0364 The Test Site Data and performance comply with ANSI 63.4 and are registered with the FCC, 7435 Oakland Mills Rd, Columbia Maryland 21046. All Measurement Data is acquired according to the content of FCC Measurement Procedure and ANSI C63.4, unless supplemented with additional requirements as noted in the test report. TÜV AMERICA, INC. 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Report No. SC304352-03 Page 7 of 95 Rev.No 1.0 2. SYSTEM TEST CONFIGURATION 2.1 Justification The EUT was initially tested for FCC emission in the following configuration: See Test Setup Photos exhibit. 2.2 EUT Exercise Software None 2.3 Special Accessories None 2.4 Modification None 2.5 Configuration of Tested System See Test Setup Photos exhibit. TÜV AMERICA, INC. 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Report No. SC304352-03 Page 8 of 95 Rev.No 1.0 3. CONDUCTED EMISSION, CFR Part 15, 15.107(a) 3.1 EQUIPMENT Emissions Test Conditions: CONDUCTED EMISSIONS The Conducted EMISSIONS measurements were performed at the following test location : o - Test not applicable n - SR 3, Shielded Room, 12’ x …

Text truncated - open the document above for the full version.
