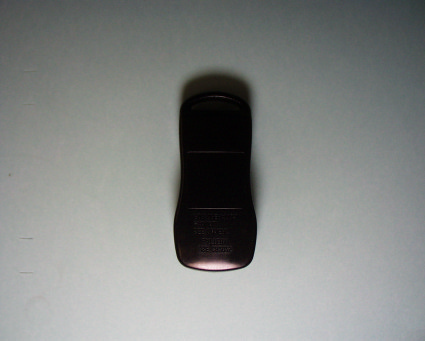

FCC ID : KBRASTU15 Front View Rear View
Circuit Board(Front) Circuit Board (Rear) Internal View
Test report Our reference : 21GE0053YW-1 Page: 2 of 12 Issued date: March 1, 2001 FCC ID: KBRASTU15 Testing Laboratory A-pex International Co., Ltd. Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 Table of Contents Page 1 GENERAL INFORMATION3 1.1 Product Description4 1.2 Test Specification4 1.3 Methods & Procedures4 1.4 Test Location4 2 SYSTEM TEST CONFIGURATION5 2. 1 Operation Environment 5 2.2 Justification5 2. 3 EUT Exercise Software5 2.4 Test Procedure5 Figure 2.1 Configuration of Tested System6 3 RADIATED MEASUREMENT PHOTOS7 Figure 3.1 Radiated Measurement Photos7 3.1 Measurement Uncertainty8 4 RADIATED EMISSION DATA9 4.1 Field Strength Calculation9 5 TEST EQUIPMENT USED11 APPENDIX12 A:Test Data A1 โ A3 Test report Our reference : 21GE0053YW-1 Page: 3 of 12 Issued date: March 1, 2001 FCC ID: KBRASTU15 Testing Laboratory A-pex International Co., Ltd. Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 1 GENERAL INFORMATION APPLICANT: CALSONIC KANSEI CORP. TRADE NAME: CALSONIC KANSEI ADDRESS: 5-24-15 Minamidai, Nakano-ku, Tokyo 164-8602 Japan Tel: +81-283-21-8136 Fax: +81-283-23-9191 REGULATION(S): FCC Part 15 Subpart C MODEL NUMBER: ASTU15 FCC ID: KBRASTU15 SERIAL NUMBER: - KIND OF EQUIPMENT: Keyless Entry System (Transmitter) TESTED DATE: February 26, 2001 RECEIPT DATE OF SAMPLE : February 19, 2001 REPORT FILE NUMBER: 21GE0053YW-1 TEST SITE: A-PEX Yokowa No.3 Open Test Site Test report Our reference : 21GE0053YW-1 Page: 4 of 12 Issued date: March 1, 2001 FCC ID: KBRASTU15 Testing Laboratory A-pex International Co., Ltd. Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 1.1 Product Description Model: ASTU15 (referred to as the EUT in this report) is a Keyless Entry System (Transmitter). . The specification is as following : Carrier Frequency : 315 MHz Operation Voltage: Lithium Battery DC 3.0V(CR2025) Modulation: AM Type of antenna: P.C.B pattern antenna Number of channels: 1 1.2 Test Specification Test Specification: FCC Part 15 Subpart C Title: FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators 15.205 Restricted bands of operation 15.231 Periodic operation in the band 40.66 โ 40.70 MHz and above 70MHz 1.3Methods & Procedures No.ItemTest ProcedureSpecificationRemarks 1Restricted bands of operationFCC/ANSI C63.4:1992 15.205 3m 2 Electric Field Strength of Fundamental Emission FCC/ANSI C63.4:1992 15.231(b) 3m 3 Electric Field Strength of Spurious Emission FCC/ANSI C63.4:1992 15.231(b) 3m 4-20dB BandwidthFCC/ANSI C63.4:1992 15.231(c) 3m 1.4 Test Location A-PEX International Co.,Ltd. Yokowa No.3 test site 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 Japan Telephone number: +81-596-39-1485 Facsimile number: +81-596-39-0232 This site has been fully described in a report submitted to FCC office, and listed on September 12, 2000 (Registration number: 90412). *NVLAP Lab. code : 200109-0 Test report Our reference : 21GE0053YW-1 Page: 5 of 12 Issued date: March 1, 2001 FCC ID: KBRASTU15 Testing Laboratory A-pex International Co., Ltd. Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 2 SYSTEM TEST CONFIGURATION 2.1 Operation Environment Temperature: 23 Humidity: 29% 2.2 Justification The system was configured in typical fashion (as a customer would normally use it) for testing. 2.3 EUT Exercise Software The EUT exercise program used during radiated testing was designed to exercise the various system components in a manner similar to typical use. The sequence is used: Operation Mode : Transmitting 2.4 Test Procedure Tabletop Equipment Radiated Emissions EUT was placed on a platform of nominal size, 1m by 1m, raised 80cm above the conducting ground plane. Test was made with the antenna positioned in both the horizontal and vertical planes of polarization. The measurement antenna was varied in height above the conducting ground plane to obtain the maximum signal strength. The measurement distance was 3m. Test report Our reference : 21GE0053YW-1 Page: 6 of 12 Issued date: March 1, 2001 FCC ID: KBRASTU15 Testing Laboratory A-pex International Co., Ltd. Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 Figure2.1 Configuration of Tested System Front View (1):EUT * Test data was taken under worse case conditions. Top View (1):EUT *Test data was taken under worse case conditions. No.ItemModel numberSerial numberManufacturerFCC ID 1Keyless Entry System (Transmitter) ASTU15-CALSONIC KANSEIKBRASTU15 Test report Our reference : 21GE0053YW-1 Page: 7 of 12 Issued date: March 1, 2001 FCC ID: KBRASTU15 Testing Laboratory A-pex International Co., Ltd. Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 3 RADIATED MEASUREMENT PHOTOS Figure 3.1 Radiated Measurement Photos Test report Our reference : 21GE0053YW-1 Page: 8 of 12 Issued date: March 1, 2001 FCC ID: KBRASTU15 Testing Laboratory A-pex International Co., Ltd. Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 3.1 Measurement Uncertainty Radiated Emission Test The measurement uncertainty (with a 95% confidence level) for this test was 3.3dB. The data listed in this test report may exceed the test limit because it does not have enough margin (more than 3.3dB). The data listed in this test report has enough margin, more than 3.3dB. Test report Our reference : 21GE0053YW-1 Page: 9 of 12 Issued date: March 1, 2001 FCC ID: KBRASTU15 Testing Laboratory A-pex International Co., Ltd. Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 4 RADIATED EMISSION DATA The initial step in collecting radiated data was a spectrum analyzer peak scan of the measurement range (30MHz-3300MHz). The final data was reported in the worst-case emissions. The minimum margin to the limit is as foโฆ
Text truncated - open the document above for the full version.
Test report Our reference : 21GE0053YW-1 Page: 7 of 12 Issued date: March 1, 2001 FCC ID: KBRASTU15 Testing Laboratory A-pex International Co., Ltd. Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 3 RADIATED MEASUREMENT PHOTOS Figure 3.1 Radiated Measurement Photos
108 Yokowa-cho ยท Ise-shi, Mie-ken ยท Japan
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15.231 | 315 MHz - 315 MHz | - |

SW ASSY-SMART KEYLESS
Equipment Class
DSC - Part 15 Security/Remote Control Transmitter
Keyless Start System (LF Transmitter)
Equipment Class
DCD - Part 15 Low Power Transmitter Below 1705 kHz
Automotive Entry System
Equipment Class
DCD - Part 15 Low Power Transmitter Below 1705 kHz
Vehicle Door Lock Transceiver
Equipment Class
DSR - Part 15 Remote Control/Security Device Transceiver
Vehicle Door Lock Transceiver
Equipment Class
DCD - Part 15 Low Power Transmitter Below 1705 kHz
