KBRCSSU58Low power communication transmitter

This manual is the draft version. A formal thing is contained in a vehicles manual. USER OPERATION INSTRUCTION NISSAN VEHICLE IMMOBILIZER SYSTEM Your vehicle has security system, Nissan Vehicle Immobilizer System. The security condition will be shown by the security indicator light. The Nissan Vehicle Immobilizer System will not allow the engine to start without the use of the registered Nissan Vehicle Immobilizer System key. NISSAN VEHICLE IMMOBILIZER SYSTEM KEYS You can only drive your vehicle using the FOBs which are registered to the Nissan Vehicle Immobilizer System components in your vehicle. These FOBs have a transponder chip inside. Never leave these keys in the vehicle. FCC Notice: This device complies with Part 15 of the FCC Rules and with RSS-210 of industry Canada. Operation is subject to the following two condition: (1) The device may not cause harmful interference, and (2) the device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. DRAFT

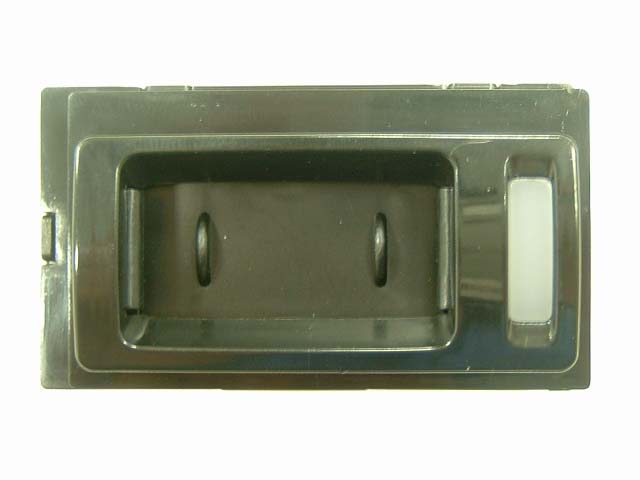

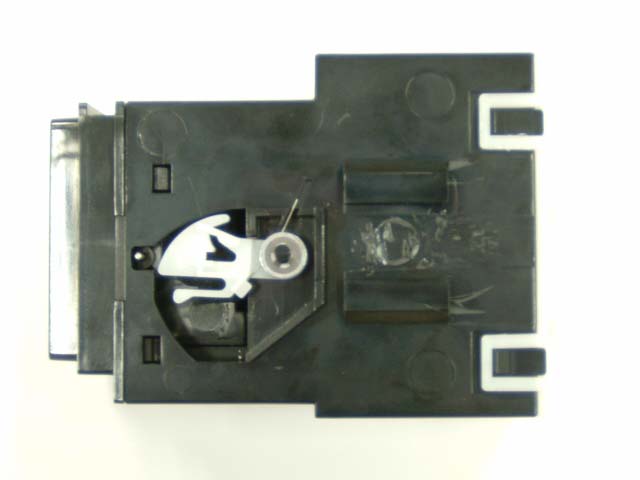

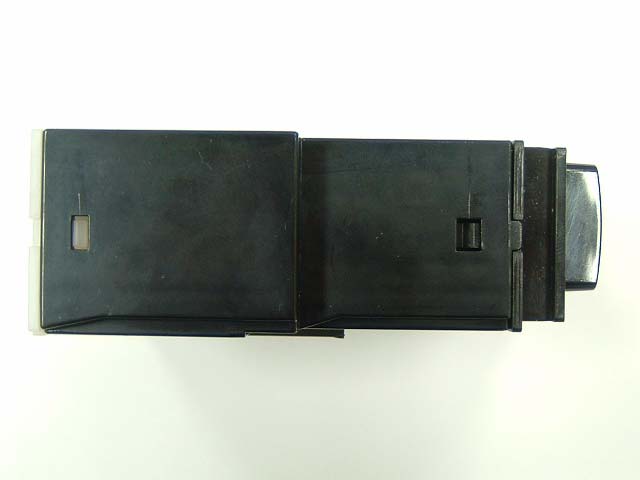

Calsonic Kansei Corp. Immobilizer FCC ID:KBRCSSU58 External photo Card slot Front Rear Calsonic Kansei Corp. Immobilizer FCC ID:KBRCSSU58 Top Bottom Calsonic Kansei Corp. Immobilizer FCC ID:KBRCSSU58 Right Left

Labelling of equipment Location of labeling Label Label Material :Equivalent to Art paper. Adhesive Material : Acrylic type adhesive.

Calsonic Kansei Corp. Immobilizer FCC ID:KBRCSSU58 Internal photo Card slot Front Rear

Test report No. : 24GE0268-HO-1 Page : 1 of 15 Issued date : March 22, 2004 Revised data : March 25,2004 FCC ID : KBRCSSU58 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) EMI TEST REPORT Test Report No. : 24GE0268-HO-1 Applicant : Calsonic Kansei Corporation Type of Equipment : IMMOBILIZER Model No. : CSSU58 Test standard : FCC Part 15 Subpart C Section 15.209(2003) FCC ID : KBRCSSU58 Test Result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Apex Co., Ltd. 2. The results in this report apply only to the sample tested. 3. This equipment is in compliance with above regulation. We hereby certify that the data contain a true representation of the EMC profile. 4. The test results in this report are traceable to the national or international standards. Date of test : March 18 and 19, 2004 Tested by : Mitsuru Fujimura EMC Head Office Division Approved by : Naoki Sakamoto Group Leader of EMC Head Office Division Test report No. : 24GE0268-HO-1 Page : 2 of 15 Issued date : March 22, 2004 Revised data : March 25,2004 FCC ID : KBRCSSU58 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) CONTENTS PAGE SECTION 1: Client information......................................................................................................3 SECTION 2: Equipment under test (E.U.T.)..................................................................................3 SECTION 3: Test specification, procedures & results...................................................................4 SECTION 4: Operation of E.U.T. during testing...........................................................................6 SECTION 5: Radiated emission (Fundamental and Spurious Emission)....................................7 APPENDIX 1: Photographs of test setup........................................................................................9 Radiated emission..................................................................................................................9 Worst Case Position (Horizontal : X-axis/ Vertical: X-axis)...........................................10 APPENDIX 2: Test Instruments....................................................................................................11 APPENDIX 3: Data of EMI test.....................................................................................................12 Radiated Emission (Electric Field Strength of Fundamental and Spurious Emission)12 26dB Bandwidth...................................................................................................................14 99% Occupied Bandwidth..................................................................................................15 Test report No. : 24GE0268-HO-1 Page : 3 of 15 Issued date : March 22, 2004 Revised data : March 25,2004 FCC ID : KBRCSSU58 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) SECTION 1: Client information Company Name : Calsonic Kansei Corporation Address : 8 Sakae-cho Sano-shi Tochigi Japan Telephone Number : +81-283-21-8407 Facsimile Number : +81-283-21-8547 Contact Person : Yoshiaki Ishiduka SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : IMMOBILIZER Model No. : CSSU58 Serial No. : 1 Country of Manufacture : Japan Receipt Date of Sample : March 18, 2004 Condition of EUT : Production prototype (Not for Sale : This sample is equivalent to mass-produced items.) 2.2 Product Description Calsonic Kansei Corporation Model No: CSSU58 is the IMMOBILIZER. The equipment generates a radio and receives the information from transponder which received it. Equipment Type : Transceiver Radio Frequency : 125kHz Type of modulation : ASK Antenna Type : Loop Coil Antenna Connector Type : Soldering CPU : 8MHz Power Supply : DC 5V(Transformed from the DC 12V battery) Temperature of operation : -30 deg. C. to +80 deg. C. FCC 15.31 (e) This EUT is provided DC12V from the Car Battery, and The test is performed using a full charge battery. Therefore, this EUT complies with the requirement. FCC Part 15.203 Antenna requirement Type of Equipment and its antenna comply with this requirement since they are built in host device Model No.CSSU58 when they are put up for sale and they are connected by solder. Test report No. : 24GE0268-HO-1 Page : 4 of 15 Issued date : March 22, 2004 Revised data : March 25,2004 FCC ID : KBRCSSU58 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part 15 Subpart C : 2003 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.209 Radiated emission limits, General requirements. 3.2 Procedures and results No. Item Test Procedure Specification Remarks Deviation Worst margin Result 1 Electric Field Strength of Fundamental Emission ANSI C63.4:2001 FCC Section 15.209 Radiated N/A 27.8dB 0.125MHz 0deg. (AV) Complied 2 Electric Field Strength of Spurious Emission ANSI C63.4:2001 FCC Section 15.209 Radiated N/A 15.2dB 48.1MHz (Vertical) Complied 3 -26dB Bandwidth ANSI C63.4:2001 ANSI C63.4 13.1.7 Radiated N/A N/A Complied 4 Conducted Emission ANSI C63.4:2001 FCC Section 15.207 AC Mains *1) N/A N/A N/A Note: UL Apex’s EMI Work procedures No. QPM05 *1) This test is not applicable since the EUT does not have AC power port. These tests were performed without any deviations from test procedure except for additions or exclusions. 3.3 Addition to standards No. Item Test Procedure Specification Re…

Text truncated - open the document above for the full version.

Test report No. : 24GE0268-HO-1 Page : 9 of 15 Issued date : March 22, 2004 Revised data : March 23,2004 FCC ID : KBRCSSU58 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) APPENDIX 1: Photographs of test setup Radiated emission Front Rear Test report No. : 24GE0268-HO-1 Page : 10 of 15 Issued date : March 22, 2004 Revised data : March 23,2004 FCC ID : KBRCSSU58 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) Worst Case Position (Horizontal : X-axis/ Vertical: X-axis) X-axis Y-axis Z-axis
