KBRGSTU13Automotive Keyless Entry System Receiver

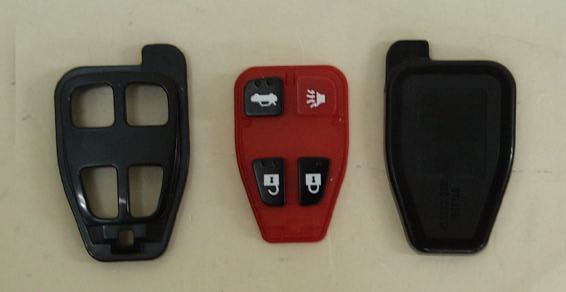

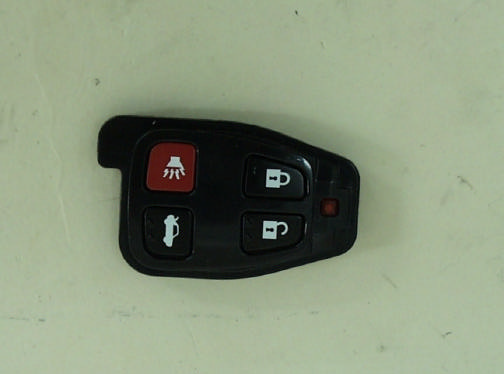

PHOTO:ASTU13 Front View Back View Left View Right View Top View Bottom View Circuit Board (Front) Circuit Board (Back) Enclosure (Front) Enclosure (Back)

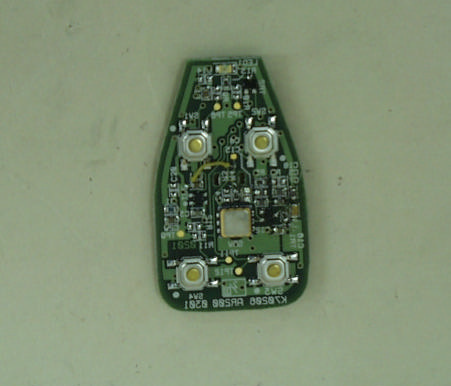

Circuit Board (Front) Circuit Board (Back)

Testing Laboratory A-pex International Co., Ltd. Telephone: +81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106 JAPAN Facsimile: +81 596 39 0232 EMISSION TEST REPORT Test Report No. : 21BE0029YW-2 Applicant: CALSONIC KANSEI CORP. Type of Equipment: Keyless Entry System (Receiver) Model No.: GSTU13 Test standard: FCC Part 15 Subpart B Test Result: Complies This report may not be reproduced in full, partial reproduction may only be made with the written consent of the laboratory. The results in this report apply only to the sample tested. Date of test: September 27, 2000 Tested by: Naoki Sakamoto Approved by: Issued date: October 5, 2000 Kazutoyo Nakanishi Section Manager of EMC section Test report Our reference : 21BE0029YW-2 Page : 2of 12 Issued date : October 5, 2000 FCC ID : KBRGSTU13 Testing Laboratory A-pex International Co., Ltd. Telephone: +81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106 JAPAN Facsimile: +81 596 39 0232 Table of Contents Page 1 GENERAL INFORMATION 3 1.1 Product Description 4 1.2 Tested System Details 4 1.3 Tested Methodology 4 1.4 Test Facility 4 2 SYSTEM TEST CONFIGURATION 5 2.1 Operation Environment 5 2.2 Justification 5 2.3 EUT Exercise Software 5 2.4 Test Procedure 5 Figure 2.1 Configuration of Tested System 6 3 RADIATED MEASUREMENT PHOTOS 7 Figure 3.1 Radiated Measurement Photos 7 3.1 Measurement Uncertainty 8 4 RADIATED EMISSION DATA 9 4.1 Field Strength Calculation 9 5 TEST EQUIPMENT USED 11 APPENDIX 12 A:Test Data A1 – A2 Test report Our reference : 21BE0029YW-2 Page : 3of 12 Issued date : October 5, 2000 FCC ID : KBRGSTU13 Testing Laboratory A-pex International Co., Ltd. Telephone: +81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106 JAPAN Facsimile: +81 596 39 0232 1 GENERAL INFORMATION APPLICANT : CALSONIC KANSEI CORP. TRADE NAME : CALSONIC KANSEI ADDRESS : 5-24-15 Minamidai, Nakano-ku, Tokyo 164-8602 Japan Tel: +81-283-21-8136 Fax: +81-283-23-9191 REGULATION(S) : FCC Part 15 Subpart B MODEL NUMBER : GSTU13 FCC ID : KBRGSTU13 SERIAL NUMBER : - KIND OF EQUIPMENT : Keyless Entry System (Receiver) TESTED DATE : September 27, 2000 RECEIPT DATE OF SAMPLE : September 14, 2000 REPORT FILE NUMBER : 21BE0029YW-2 TEST SITE : A-PEX Yokowa NO.2 Open Test Site Test report Our reference : 21BE0029YW-2 Page : 4of 12 Issued date : October 5, 2000 FCC ID : KBRGSTU13 Testing Laboratory A-pex International Co., Ltd. Telephone: +81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106 JAPAN Facsimile: +81 596 39 0232 1.1 Product Description Model: GSTU13 (referred to as the EUT in this report) is a Keyless Entry System (Receiver). . The specification is as following : Local Clack Frequency : 304.3 MHz Operation Voltage : DC 5V 1.2 Tested Equipment Details The FCC IDs for all equipment, plus description of all cables used in the tested system are: Model FCC ID Description Cable description Backshell Material (1) CALSONIC KANSEI KBRGSTU13 Keyless Entry System Unshielded DC Power Cable P.V.C M/N: GSTU13 (Receiver) (EUT) (2) - - - N/A DC Power Supply Unshielded AC Power Cable - 1.3 Tested Methodology Radiated testing were performed according to the procedures in FCC/ANSI C63.4 (1992). 1.4 Test Facility The open area test site and conducted measurement facility used to collect the radiated data is located on 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 Japan. This site has been fully described in a report submitted to FCC office, and listed on May 15, 2000 (Registration number: 90411). Test report Our reference : 21BE0029YW-2 Page : 5of 12 Issued date : October 5, 2000 FCC ID : KBRGSTU13 Testing Laboratory A-pex International Co., Ltd. Telephone: +81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106 JAPAN Facsimile: +81 596 39 0232 2 SYSTEM TEST CONFIGURATION 2.1 Operation Environment Temperature : 23 °C Humidity : 60% Power supply : DC 5V 2.2 Justification The system was configured in typical fashion (as a customer would normally use it) for testing. 2.3 EUT Exercise Software The EUT exercise program used during radiated testing was designed to exercise the various system components in a manner similar to typical use. The sequence is used: Operation Mode : Running 2.4 Test Procedure Tabletop Equipment Radiated Emissions EUT was placed on a platform of nominal size, 1m by 1.5m, raised 80cm above the conducting ground plane. Test was made with the antenna positioned in both the horizontal and vertical planes of polarization. The measurement antenna was varied in height above the conducting ground plane to obtain the maximum signal strength. The measurement distance was 3m. Test report Our reference : 21BE0029YW-2 Page : 6of 12 Issued date : October 5, 2000 FCC ID : KBRGSTU13 Testing Laboratory A-pex International Co., Ltd. Telephone: +81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106 JAPAN Facsimile: +81 596 39 0232 Figure2.1 Configuration of Tested System Front View (1):EUT Unshielded DC Power Cable 1.0m (2) AC100V/60Hz * Cabling was taken into consideration and test data was taken under worse case conditions. Top View (1):EUT Unshielded DC Power Cable 1.0m (2) AC100V/60Hz * Cabling was taken into consideration and test data was taken under worse case conditions. Test report Our reference : 21BE0029YW-2 Page : 7of 12 Issued date : October 5, 2000 FCC ID : KBRGSTU13 Testing Laboratory A-pex International Co., Ltd. Telephone: +81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106 JAPAN Facsimile: +81 596 39 0232 3 RADIATED MEASUREMENT PHOTOS Figure 3.1 Radiated Measurement Photos Test report Our reference : 21BE0029YW-2 Page : 8of 12 Issued date : October 5, 2000 FCC ID : KBRGSTU13 Testing Laboratory A-pex International Co., Ltd. Telephone: +81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106 JAPAN Facsimile: +81 596 39 0232 3.1 Measurement Uncertainty Radiated Emission Test The measurement uncertainty (with a 95% confidence level) for this test was ± 3.3dB. □ The data listed in this test report may exceed the test limit because it does not have enough …
