KBRTS004Vehicle Remote Control Transmitter

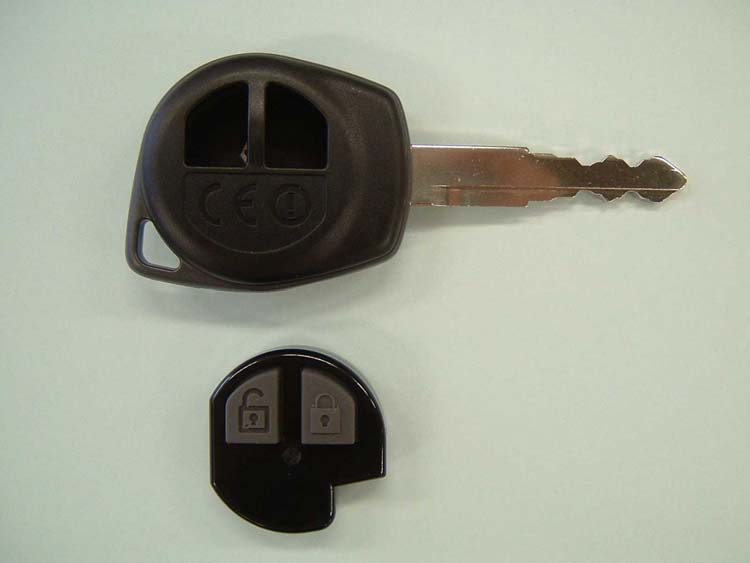

Calsonic Kansei Corp. Transmitter of Keyless Entry System FCC ID: KBRTS004 External photos Front view Rear view

Calsonic Kansei Corp. Transmitter of Keyless Entry System FCC ID: KBRTS004 Internal photos Front view Front view Calsonic Kansei Corp. Transmitter of Keyless Entry System FCC ID: KBRTS004 Inside view Calsonic Kansei Corp. Transmitter of Keyless Entry System FCC ID: KBRTS004 Circuit board <Front> Circuit board <Rear >

Test report No. : 25BE0104-HO-1 Page : 1 of 14 Issued date : October 15, 2004 Revised date : October 25, 2004 FCC ID : KBRTS004 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) EMI TEST REPORT Test Report No. : 25BE0104-HO-1 Applicant : Calsonic Kansei Corp. Type of Equipment : Keyless Transmitter Model No. : TS004 Test standard : FCC Part 15 Subpart C Section 15.231:2004 FCC ID : KBRTS004 Test Result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Apex Co., Ltd. 2. The results in this report apply only to the sample tested. 3. This equipment is in compliance with above regulation. We hereby certify that the data contain a true representation of the EMC profile. 4. The test results in this report are traceable to the national or international standards. Date of test : October 1, 2004 Tested by : Naoki Sakamoto EMC Service Approved by : Hironobu Shimoji Group Leader of EMC Service Test report No. : 25BE0104-HO-1 Page : 2 of 14 Issued date : October 15, 2004 Revised date : October 25, 2004 FCC ID : KBRTS004 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) CONTENTS PAGE SECTION 1: Client information...................................................................................................... 3 SECTION 2: Equipment under test (E.U.T.) ................................................................................. 3 SECTION 3: Test specification, procedures & results .................................................................. 4 SECTION 4: Operation of E.U.T. during testing........................................................................... 6 SECTION 5: Radiated emission (Fundamental and Spurious Emission) ................................... 7 APPENDIX 1: Photographs of test setup........................................................................................ 8 Radiated emission ........................................................................................................................................ 8 X, Y, Z axis (Horizontal : X-axis/Vertical : Z-axis) .................................................................................. 9 APPENDIX 2:Test Instruments...................................................................................................... 10 APPENDIX 3: Data of EMI test ..................................................................................................... 11 Radiated Emission (Electric Field Strength of Fundamental and Spurious Emission) ....................... 11 -20dB Bandwidth ....................................................................................................................................... 12 Automatically deactivate ........................................................................................................................... 13 99% Occupied Bandwidth ........................................................................................................................ 14 Test report No. : 25BE0104-HO-1 Page : 3 of 14 Issued date : October 15, 2004 Revised date : October 25, 2004 FCC ID : KBRTS004 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) SECTION 1: Client information Company Name : Calsonic Kansei Corp. Address : 8 Sakae-cho Sano-shi Tochigi, 327-0816 Japan Telephone Number : +81- 283-21-8407 Facsimile Number : +81- 283-21-8547 Contact Person : Yutaka Suzuki SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Keyless Transmitter Model No. : TS004 Serial No. : 7 Rating : DC3.0V, 0.005A Country of Manufacture : Japan Receipt Date of Sample : October 1, 2004 Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) 2.2 Product Description Model No: TS004 (referred to as the EUT in this report) is the Keyless Transmitter. Operating frequency 315MHz FCC 15.31 (e) This test was performed with the New Battery (DC 3.0V) and the constant voltage was supplied to this EUT during the tests. Therefore, this EUT complies with the requirement. FCC Part 15.203 Antenna requirement It is impossible for end users to replace the antenna, because the antenna is mounted inside of the EUT. Therefore, the equipment complies with the antenna requirement of Section 15.203. Test report No. : 25BE0104-HO-1 Page : 4 of 14 Issued date : October 15, 2004 Revised date : October 25, 2004 FCC ID : KBRTS004 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part 15 Subpart C : 2004 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.231 Periodic operation in the band 40.66 - 40.70MHz and above 70MHz 3.2 Procedures and results No. Item Test Procedure Specification Deviation Worst margin Results 1 Automatically Deactivate ANSI C63.4:2003 Section 15.231(a)(1) N/A - Complied 2 Electric Field Strength of Fundamental Emission ANSI C63.4:2003 Section 15.231(b) N/A 1.8dB 314.99MHz Horizontal Complied 3 Electric Field Strength of Spurious Emission ANSI C63.4:2003 Section 15.205 Section 15.209 Section 15.231(b) N/A 15.3dB 944.97MHz Horizontal Complied 4 -20dB Bandwidth ANSI C63.4:2003 Section 15.231(c) N/A - Complied Note: UL Apex’s EMI Work procedures No. QPM05 3.3 Addition to standards No. Item Test Procedure Specification Remarks Deviation Worst margin Results 1 99 ％ Occupied Band Width RSS-210(issue 5): 2001 + Amendment:2002 + Amendment2:2003 + Amendment3:2004 + Amendment4…

Text truncated - open the document above for the full version.

Test report No. : 25BE0104-HO-1 Page : 8 of 14 Issued date : October 15, 2004 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) APPENDIX 1: Photographs of test setup Radiated emission Front Rear Test report No. : 25BE0104-HO-1 Page : 9 of 14 Issued date : October 15, 2004 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) X, Y, Z axis (Horizontal : X-axis/Vertical : Z-axis) X-axis Y-axis Z-axis
