KBRTSUB13Keyles Entry Receiver

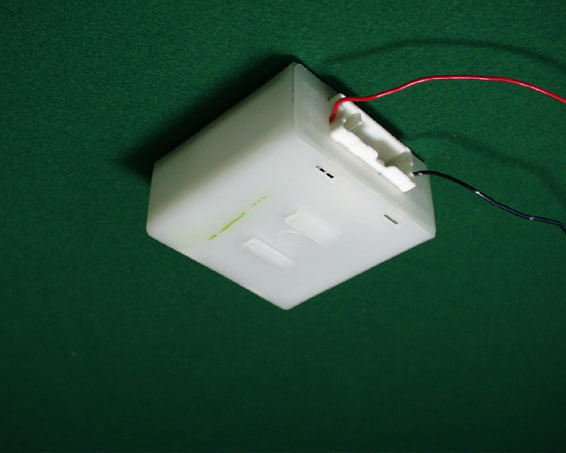

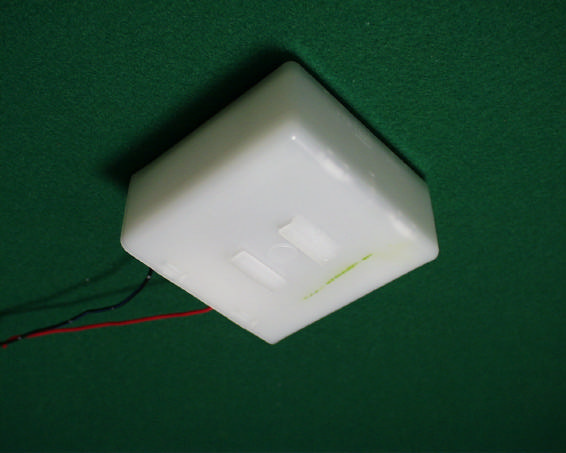

External Photos FCC ID: KBRTSUB13 FCC ID: KBRTSUB13 FCC ID: KBRTSUB13

FCC ID:KBRTSUB13

Internal Photos FCC ID: KBRTSUB13 FCC ID: KBRTSUB13

Test report Our reference : 21LE0042-YW-2 Page: 2 of 11 Issued date: October 18, 2001 FCC ID: KBRTSUB13 Testing Laboratory A-pex International Co., Ltd. Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 Table of Contents Page 1 GENERAL INFORMATION3 1.1 Product Description4 1.2 Test Specification4 1.3 Methods & Procedures4 1.4 Exclusion from satndards4 1.5 Test Location4 2 SYSTEM TEST CONFIGURATION5 2. 1 Operation Environment 5 2.2 Justification5 2. 3 EUT Exercise Software5 2.4 Test Procedure5 Figure 2.1 Configuration of Tested System6 3 RADIATED MEASUREMENT PHOTOS7 Figure 3.1 Radiated Measurement Photos7 3.1 Measurement Uncertainty8 4 RADIATED EMISSION DATA9 4.1 Field Strength Calculation9 5 TEST EQUIPMENT USED10 APPENDIX11 A:Test Data A1-A2 Test report Our reference : 21LE0042-YW-2 Page: 3 of 11 Issued date: October 18, 2001 FCC ID: KBRTSUB13 Testing Laboratory A-pex International Co., Ltd. Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 1 GENERAL INFORMATION APPLICANT: Calsonic Kansei Corporation ADDRESS: 5-24-15 Minamidai, Nakano-ku, Tokyo 164-8602 Japan Telephon Number: +81-3-5385-0111 Facsimile Number: +81-3-3383-1171 REGULATION(S): FCC Part 15 Subpart B Section15.109(a) MODEL NUMBER: TSUB13 FCC ID: KBRTSUB13 SERIAL NUMBER: Sample No.1 CONDITION OF EUT: Engineering Prototype KIND OF EQUIPMENT: Keyless Entry System (Receiver) TESTED DATE: August 28, 2001 RECEIPT DATE OF SAMPLE : August 28, 2001 REPORT FILE NUMBER: 21LE0042-YW-2 TEST SITE: A-PEX Yokowa No.3 Open Test Site Test report Our reference : 21LE0042-YW-2 Page: 4 of 11 Issued date: October 18, 2001 FCC ID: KBRTSUB13 Testing Laboratory A-pex International Co., Ltd. Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 1.1 Product Description Model: TSUB13 (referred to as the EUT in this report) is a Keyless Entry System (Receiver). The specification is as following : Type of receiver: Super Heterodyne Receiving Frequency: 314.85MHz Local Oscillator Frequency : 304.15 MHz Intermediate Frequency: 10.7MHz Other Clock Frequency: 10MHz / 50.691MHz Information antenna: Integral Copper Wire Antenna Operation Voltage: DC 12V(Car Battery) 1.2 Test Specification Test Specification: FCC Part 15 Subpart B Section 15.109 Radiated emission limits Title: FCC 47CFR Part15 Radio Frequency Device Subpart B Unintentional Radiators 1.3 Methods & Procedures No.ItemTest ProcedureSpecificationRemarks 1Conducted emissionANSI C63.4:1992§15.107(a) - 2Radiated emissionANSI C63.4:1992§15.109(a)Class B / 3m 1.4 Exclusion from standards No.ItemTest ProcedureSpecificationRemarks 1Conducted emissionANSI C63.4:1992§15.107(a)- * This test was not performed since EUT dose not have AC power port. 1.5 Test Location A-PEX International Co.,Ltd. Yokowa No.3 test site 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 Japan Telephone number: +81-596-39-1485 Facsimile number: +81-596-39-0232 This site has been fully described in a report submitted to FCC office, and listed on September 12, 2000(Registration number: 90412) . *NVLAP Lab. code : 200109-0 Test report Our reference : 21LE0042-YW-2 Page: 5 of 11 Issued date: October 18, 2001 FCC ID: KBRTSUB13 Testing Laboratory A-pex International Co., Ltd. Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 2 SYSTEM TEST CONFIGURATION 2.1 Operation Environment Temperature: See data Humidity: See data 2.2 Justification The system was configured in typical fashion (as a customer would normally use it) for testing. 2.3 EUT Exercise Software The EUT exercise program used during radiated testing was designed to exercise the various system components in a manner similar to typical use. The sequence is used: Operation Mode : Receiving 2.4 Test Procedure Tabletop Equipment Radiated Emissions EUT was placed on a platform of nominal size, 1m by 1m, raised 80cm above the conducting ground plane. Test was made with the antenna positioned in both the horizontal and vertical planes of polarization. The measurement antenna was varied in height above the conducting ground plane to obtain the maximum signal strength. The measurement distance was 3m. Test report Our reference : 21LE0042-YW-2 Page: 6 of 11 Issued date: October 18, 2001 FCC ID: KBRTSUB13 Testing Laboratory A-pex International Co., Ltd. Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 Figure2.1 Configuration of Tested System Front View (A):EUT (B) * Cabling was taken into consideration and test data was taken under worse case conditions. Top View (A):EUT (B) * Cabling was taken into consideration and test data was taken under worse case conditions. Description of EUT and Support Equipment No.ItemModel numberSerial numberManufacturerFCC ID A Keyless Entry System (Receiver) TSUB13Sample No.1Calsonic Kansei Corp KBRTSUB13 B Car Battery50B24LN/AYUASA - List of cables used No.NameLength (m)ShieldRemark DC Power Cable 0.7N– Test report Our reference : 21LE0042-YW-2 Page: 7 of 11 Issued date: October 18, 2001 FCC ID: KBRTSUB13 Testing Laboratory A-pex International Co., Ltd. Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 3 RADIATED MEASUREMENT PHOTOS Figure 3.1 Radiated Measurement Photos Test report Our reference : 21LE0042-YW-2 Page: 8 of 11 Issued date: October 18, 2001 FCC ID: KBRTSUB13 Testing Laboratory A-pex International Co., Ltd. Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 3.1 Measurement Uncertainty Radiated Emission Test Measurement distance of 3m (30-1000MHz): The measurement uncertainty (with a 95% confidence level) for this test using Biconical antenna is ±4.4dB. The measurement uncertainty (with a 95% confidence level) for this test using Logperiodic antenna is ±3.2dB. The data listed in this test report may exceed the test limit because it d…

Text truncated - open the document above for the full version.

Test report Our reference : 21LE0042-YW-2 Page: 7 of 11 Issued date: October 18, 2001 FCC ID: KBRTSUB13 Testing Laboratory A-pex International Co., Ltd. Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 3 RADIATED MEASUREMENT PHOTOS Figure 3.1 Radiated Measurement Photos
