EQUIPMENT LIST Radiated Emissions ENTypeManufacture rDe scriptionMode l No.Cal Date Due Date 3207Loop Antenna, ActiveEMCO10 KHz - 30 MHz65023/21/003/21/01 4202BiconilogEMCO26 MHz - 2 GHz31427/10/007/10/01 4895Spectrum AnalyzerHewlett Packard9kHz - 22GHz8593EM2/17/002/17/01

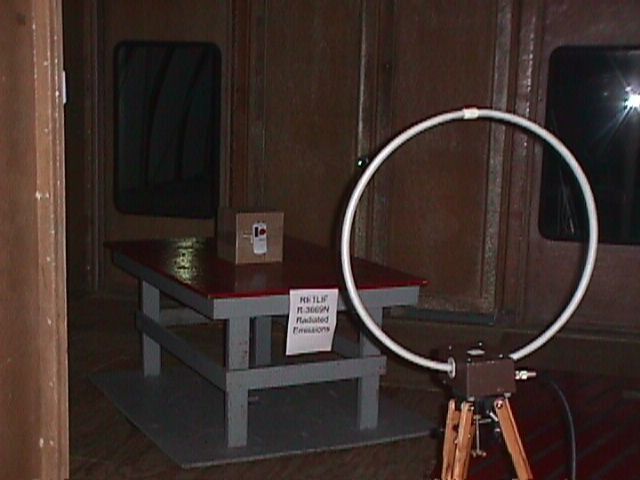

Test AxisMeterCorrectionDuty CycleCorrected ConvertedExtrapolatedLimit Frequency ReadingFactorCorrectionReadingsReadingReadings 300mat 300m KHzX,Y,ZdBuVdBdBdBuV/muV/muV/muV/m Peak Emission Limit (Per 15.35(b) ) 457.85X79.99.189.028216.32.8250.0 457.85Y71.09.180.110069.31.0150.0 457.85Z80.89.189.931260.83.1350.0 Radiated Emission Limit (Per 15.209) 457.85X79.99.10.089.028216.32.825.0 457.85Y71.09.10.080.110069.31.015.0 457.85Z80.89.10.089.931260.83.135.0 l------- l------- l------- l------- 1000.0------- RETLIF TESTING LABORATORIES TABULAR DATA SHEET TEST METHOD: Radiated Emissions 450 KHz to 1 GHz PARAGRAPH: 15.209, 15.35 The frequency range from 450 KHz to 1 GHz was scanned. All other EUT emissions observed were greater than 30 dB below the specified limit. TEST SPECIFICATION: FCC Part 15, Subpart C Frequency Tested: 457 KHz No duty cycle factor was applied per 15.35 Para c. Peak on time exceeded .1 seconds therefore 100% duty cycle. OPERATING MODE: Continuously Transmitting. NOTES: Detector Function: Peak Test Distance: 3 Meters DATA SHEET 1 OF 1 R-3669N CUSTOMER: Ortovox JOB NO: R-3669N MODEL NO: n/a SERIAL NO: M2 TEST SAMPLE: Avalanche Transceiver TECHNICIAN: M. Hippert DATE: 10-4-00

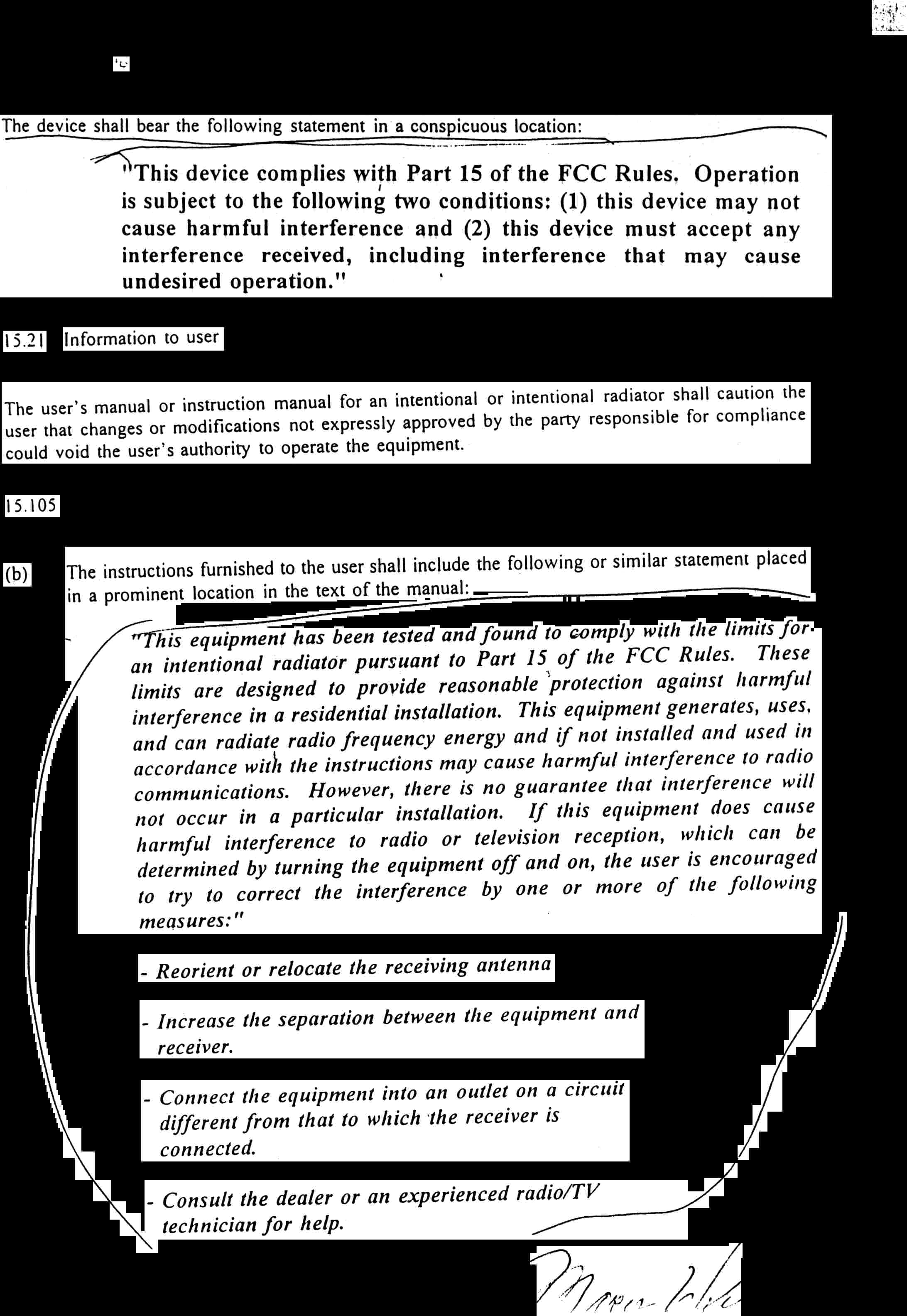

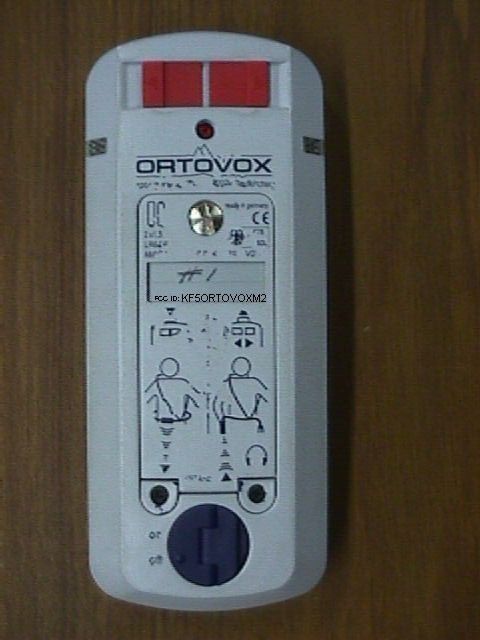

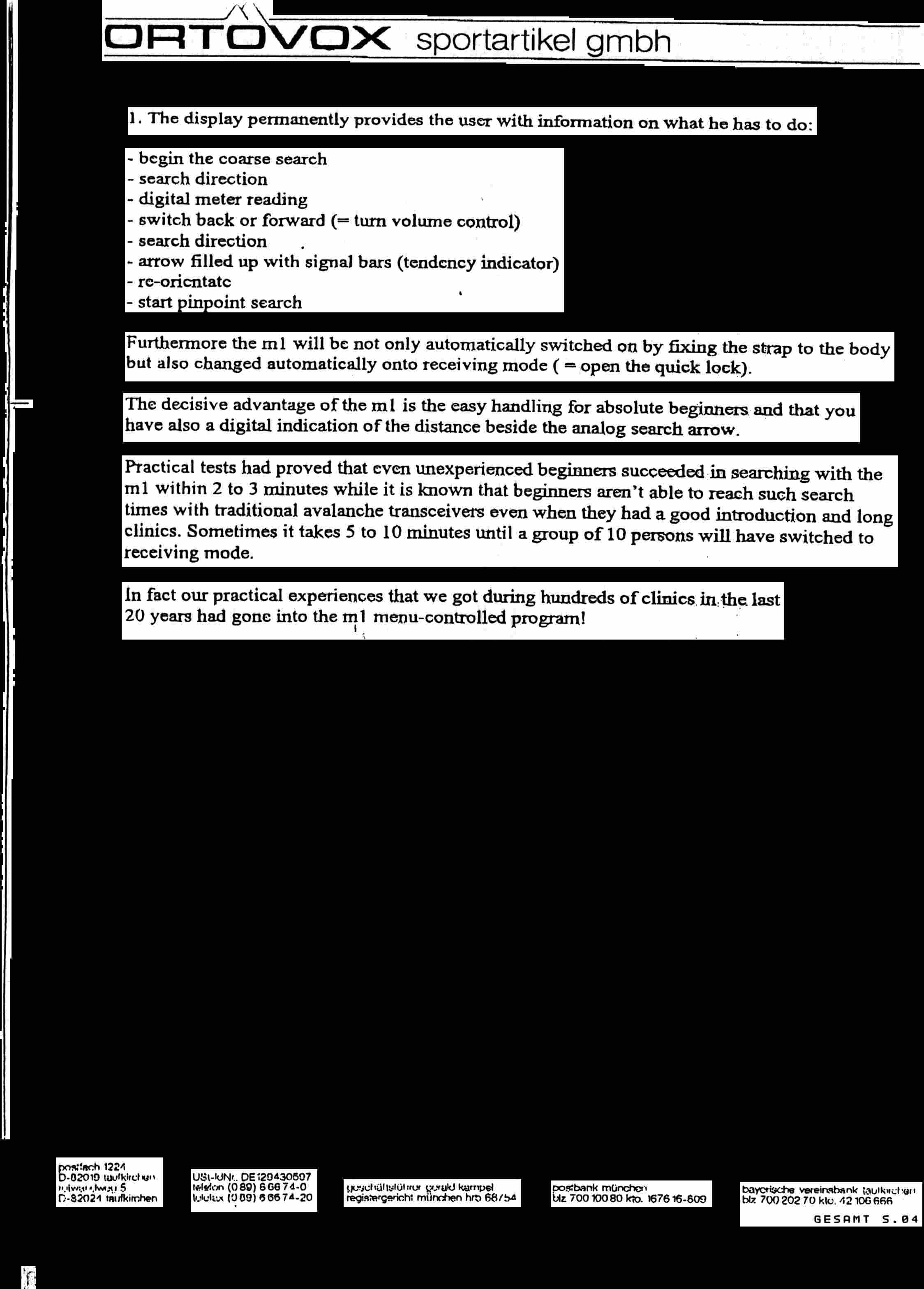

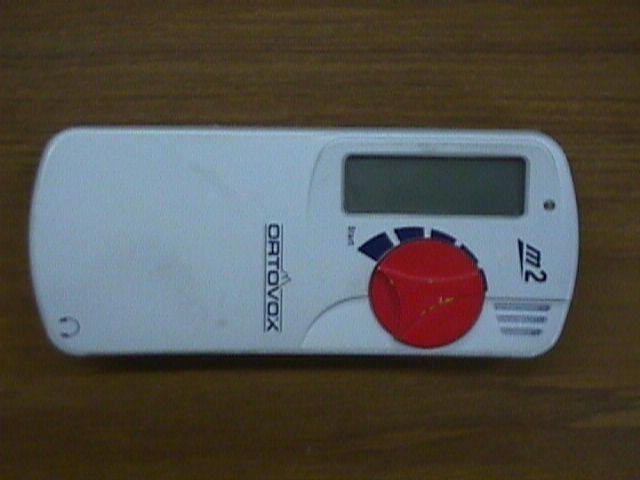

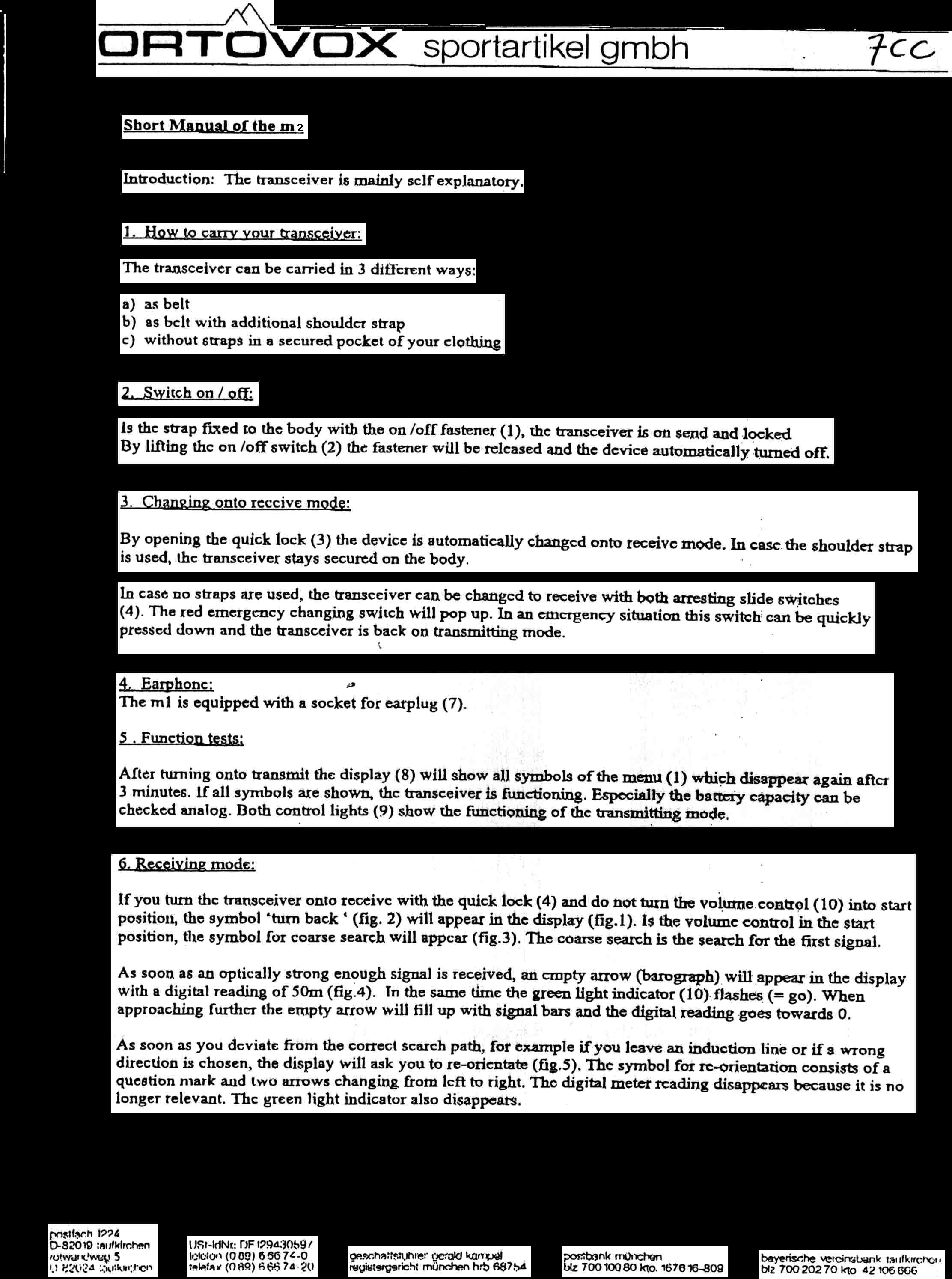

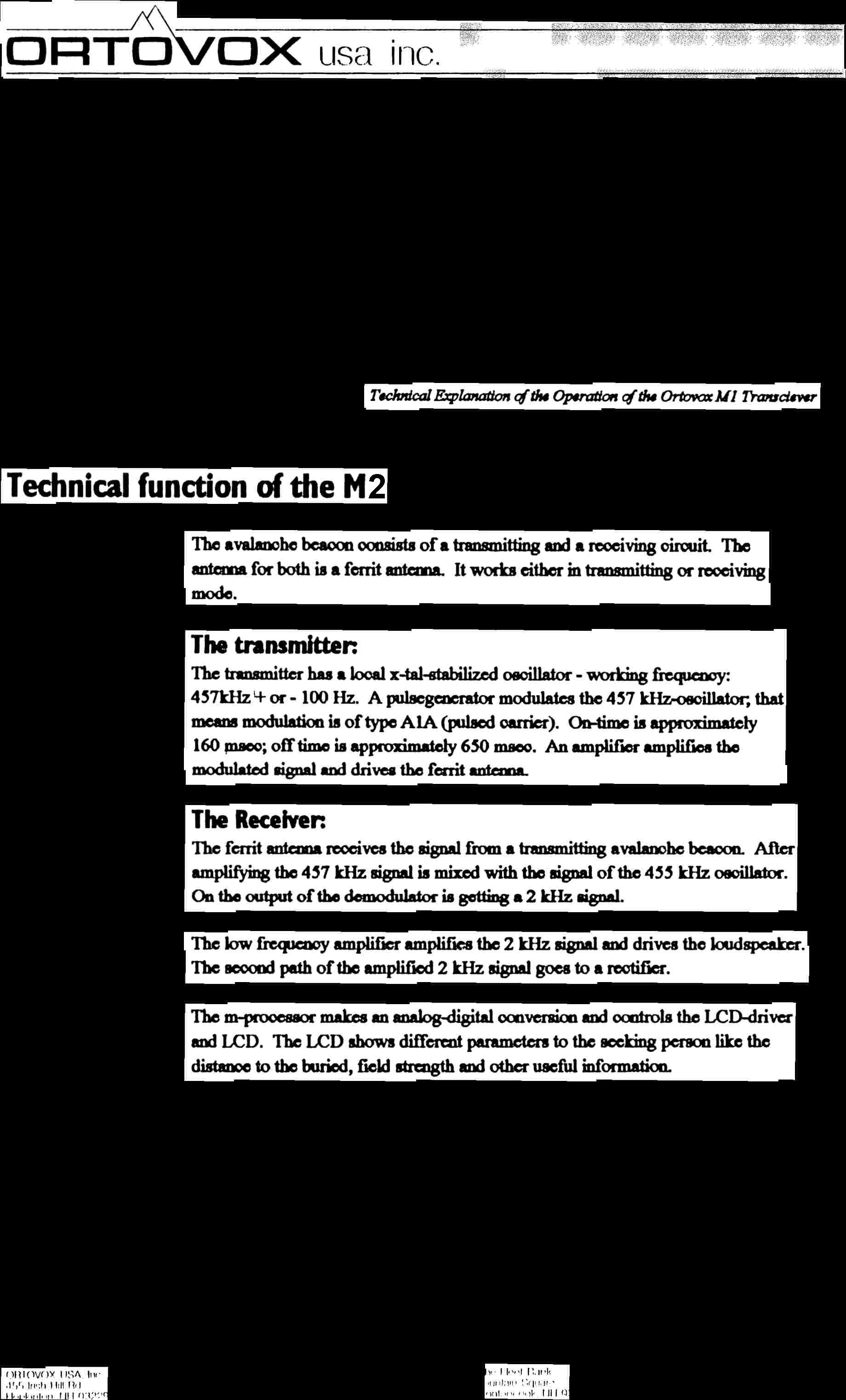

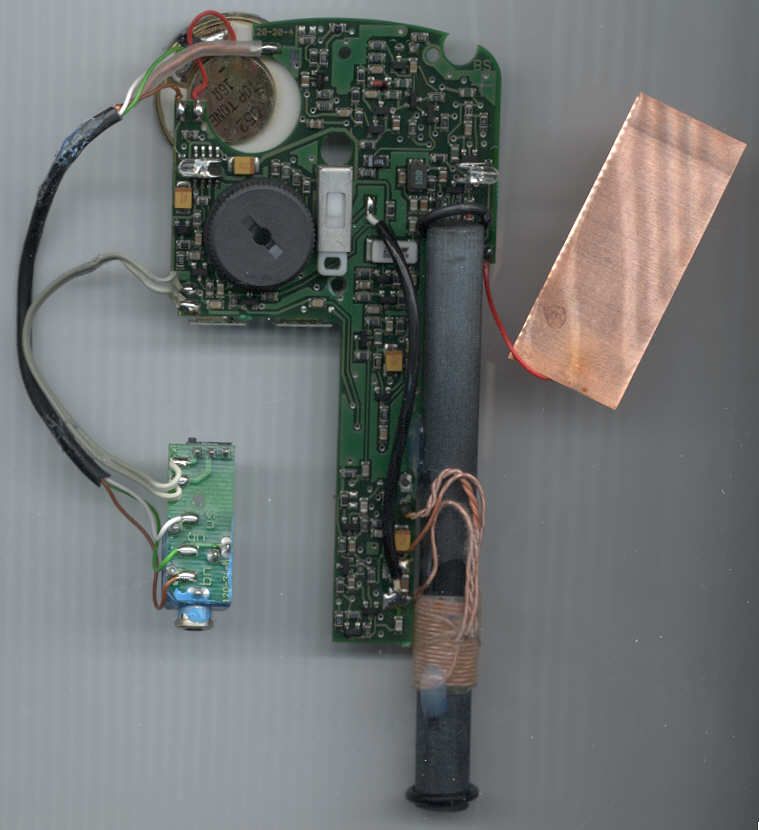

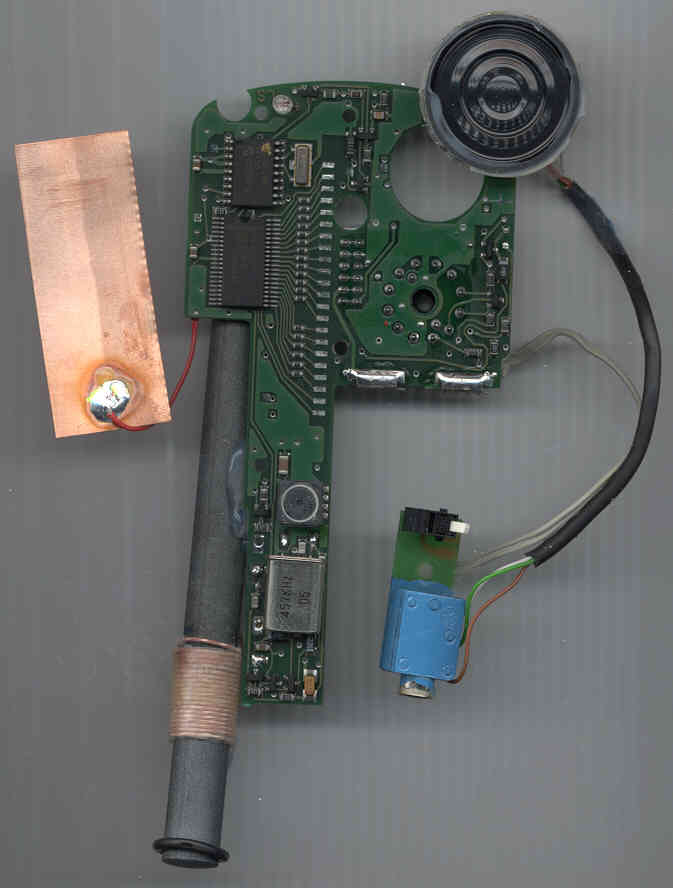

October 17, 2000 Federal Communications Commission Equipment Approval Services PO Box 358315 Pittsburgh, PA 15251-5315 Dear Sir/Madam: Enclosed you will find an application for Certification of a Avalanche Transceiver, Model M2, Serial No. 1, FCC ID: KF5ORTOVOXM2. Certification is requested to the requirements of Part 15, Subpart C of the Commission’s rules. This application is being filed by Retlif Testing Laboratories on behalf of ORTOVOX Sportarikel GmbH The applicable Certification Filing Fee and 731 Form have been submitted. I trust that you will find the enclosed application to be complete; however, should you have any questions or require any additional information, please feel free to contact us. Very truly yours, RETLIF TESTING LABORATORIES Scott Wentworth Manager Enc. (as stated) Test Report No. R-3669N FCC ID: KF5ORTOVOXM2 APPLICANT ORTOVOX Sportarikel GmbH Rotwandweg 5 D-82024 Taufkirchen Germany MANUFACTURER ORTOVOX Sportarikel GmbH Rotwandweg 5 D-82024 Taufkirchen Germany TEST SPECIFICATION: FCC Rules and Regulations Part 15, Subpart C, Para. 15.209 TEST PROCEDURE: ANSI C63.4:1992 TEST SAMP LE DESCRIP TION BRANDNAME: ORTOVOX Sportarikel GmbH MODEL: M2 TYPE: Transceiver POWER REQUIREMENTS: 3VDC, 2 AA Batteries FREQUENCY OF OPERATION: 457KHz FCC ID: KF5ORTOVOXM2 APPLICABLE RULE SECTION: Part 15, Subpart C, Section 15.201 General Requirements and 15.231 Alternative Requirements TESTS P ERFORMED Para. 15.209, Radiated Emissions Determination of Duty Cycle Test Report No. R-3669N FCC ID: KF5ORTOVOXM2 TEST SAMP LE / TEST P ROGRAM • The transmitter is initially manually activated and then goes into continuous pulse operation. • The transmitter’s purpose is to locate avalanche victims. • The field strength of harmonic and spurious emissions did not exceed 3.13μV/M at 300 meters. DETERMINATION OF FIELD STRENGTH LIMITS Fundamental Frequency: 457KHz Where F is the frequency in KHz, the formula for calculating the maximum permitted fundamental field strength for 457KHz, μV/m at 300 meters is: 2400/ (F) 2400/ (457) = 5.25 μV/m The unwanted emission levels cannot exceed the level of the fundamental emission. DETERMINATION OF DUTY CYCLE The transmitter controls were adjusted to maximize the transmitted duty cycle. The analyzer was set for a frequency span of 0Hz. The sweep time was then adjusted in order to display one full pulse train. The transmitter on time was then summed and compared to the time for one full cycle in order to obtain the duty cycle. Transmitter On Time=100 milliseconds (maximum) Transmitter Cycle Time=100 milliseconds Transmitter Duty Cycle=100 % On Time divided by Cycle Time=Duty Cycle Factor 100 divided by 100=1 1 converted to dB (LOG 10 .1)20=0dB Duty Cycle Factor=0dB Duty Cycle Factor Determination Plots are included with this application as a separate attachment. Test Report No. R-3669N FCC ID: KF5ORTOVOXM2 TEST SAMPLE / TEST PROGRAM (continued) SPECTRUM ANALYZER Due to the nature of the emissions being measured, care was taken to ensure that the resolution bandwidth of the spectrum analyzer was adequate to provide accurate measurements. GENERAL NOTES • All readings were taken utilizing a peak detector function at a test distance of 3 meters. • No duty cycle factor was applied. Peak on time exceeded -1 seconds. • The frequency range was scanned from 450Kz to 1GHz. Emission levels closest to the specified limit are listed on the attached data sheet. Test Report No. R-3669N FCC ID: KF5ORTOVOXM2

October 17, 2000 Federal Communications Commission Equipment Approval Services PO Box 358315 Pittsburgh, PA 15251-5315 Dear Sir/Madam: Enclosed you will find an application for Certification of a Avalanche Transceiver, Model M2, Serial No. 1, FCC ID: KF5ORTOVOXM2. Certification is requested to the requirements of Part 15, Subpart C of the Commission’s rules. This application is being filed by Retlif Testing Laboratories on behalf of ORTOVOX Sportarikel GmbH The applicable Certification Filing Fee and 731 Form have been submitted. I trust that you will find the enclosed application to be complete; however, should you have any questions or require any additional information, please feel free to contact us. Very truly yours, RETLIF TESTING LABORATORIES Scott Wentworth Manager Enc. (as stated) Test Report No. R-3669N FCC ID: KF5ORTOVOXM2 APPLICANT ORTOVOX Sportarikel GmbH Rotwandweg 5 D-82024 Taufkirchen Germany MANUFACTURER ORTOVOX Sportarikel GmbH Rotwandweg 5 D-82024 Taufkirchen Germany TEST SPECIFICATION: FCC Rules and Regulations Part 15, Subpart C, Para. 15.209 TEST PROCEDURE: ANSI C63.4:1992 TEST SAMPLE DESCRIPTION BRANDNAME: ORTOVOX Sportarikel GmbH MODEL: M2 TYPE: Transceiver POWER REQUIREMENTS: 3VDC, 2 AA Batteries FREQUENCY OF OPERATION: 457KHz FCC ID: KF5ORTOVOXM2 APPLICABLE RULE SECTION: Part 15, Subpart C, Section 15.201 General Requirements and 15.231 Alternative Requirements TESTS PERFORMED Para. 15.209, Radiated Emissions Determination of Duty Cycle Test Report No. R-3669N FCC ID: KF5ORTOVOXM2 TEST SAMPLE / TEST PROGRAM CThe transmitter is initially manually activated and then goes into continuous pulse operation. CThe transmitter’s purpose is to locate avalanche victims. CThe field strength of harmonic and spurious emissions did not exceed 3.13μV/M at 300 meters. DETERMINATION OF FIELD STRENGTH LIMITS Fundamental Frequency: 457KHz Where F is the frequency in KHz, the formula for calculating the maximum permitted fundamental field strength for 457KHz, μV/m at 300 meters is: 2400/ (F) 2400/ (457) = 5.25 μV/m The unwanted emission levels cannot exceed the level of the fundamental emission. DETERMINATION OF DUTY CYCLE The transmitter controls were adjusted to maximize the transmitted duty cycle. The analyzer was set for a frequency span of 0Hz. The sweep time was then adjusted in order to display one full pulse train. The transmitter on time was then summed and compared to the time for one full cycle in order to obtain the duty cycle. Transmitter On Time=100 milliseconds (maximum) Transmitter Cycle Time=100 milliseconds Transmitter Duty Cycle=100 % On Time divided by Cycle Time=Duty Cycle Factor 100 divided by 100=1 1 converted to dB (LOG 10 .1)20=0dB Duty Cycle Factor=0dB Duty Cycle Factor Determination Plots are included with this application as a separate attachment. Test Report No. R-3669N FCC ID: KF5ORTOVOXM2 TEST SAMPLE / TEST PROGRAM (continued) SPECTRUM ANALYZER Due to the nature of the emissions being measured, care was taken to ensure that the resolution bandwidth of the spectrum analyzer was adequate to provide accurate measurements. GENERAL NOTES 1.All readings were taken utilizing a peak detector function at a test distance of 3 meters. 2.No duty cycle factor was applied. Peak on time exceeded -1 seconds. 3.The frequency range was scanned from 450Kz to 1GHz. Emission levels closest to the specified limit are listed on the attached data sheet. EQUIPMENT LIST Radiated Emissions EN Type Manufacturer Description Model No. Cal Date Due Date 3207 Loop Antenna, Active EMCO 10 KHz - 30 MHz 6502 3/21/00 3/21/01 4202 Biconilog EMCO 26 MHz - 2 GHz 3142 7/10/00 7/10/01 4895 Spectrum Analyzer Hewlett Packard 9kHz - 22GHz 8593EM 2/17/00 2/17/01
